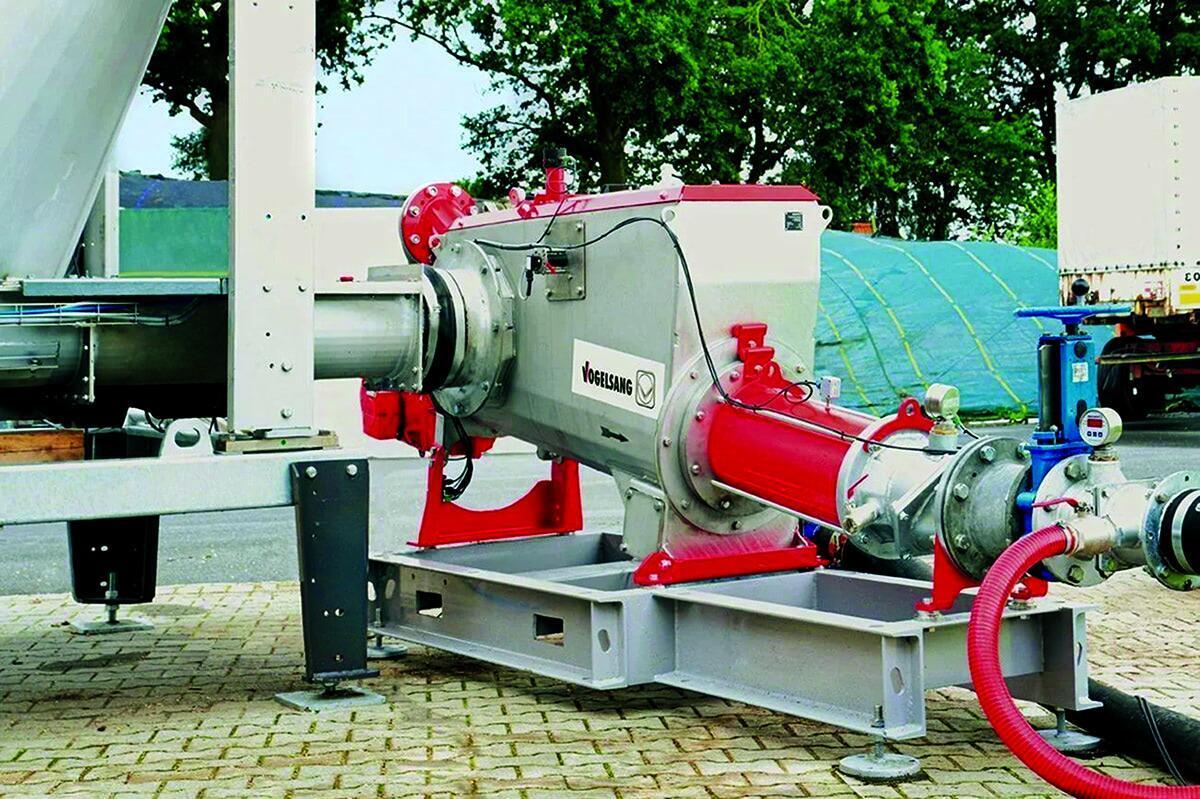

Efficient biomass handling is crucial for optimizing biogas production. It directly impacts the plant’s operational efficiency, cost-effectiveness and overall sustainability. Vogelsang USA recently introduced the CC-Mix, a versatile and efficient solution for biogas plant operators, designed to simplify the processing of diverse feedstocks. The CC-Mix excels in mashing a variety of organic materials into a uniform suspension, optimizing fermentation processes while facilitating minimal energy consumption.
Its low power requirements of just 11-15 kW make it an energy-efficient choice, while its robust mixing capabilities create optimal conditions for bacteria in digesters. An integrated foreign matter separator ensures heavy materials like stones and metal parts are removed before reaching the pump, protecting the unit from damage. With its compact design and simplified controls, the CC-Mix is easy to integrate into biogas plants and can feed multiple digesters from a single unit.
Thanks to Vogelsang’s QuickService concept, key components such as the rotor and stator are designed to swivel out as a unit for quick removal, while the mixing shaft can be replaced on site in just a few steps. These features reduce feeding downtime during service and maintenance. Additionally, the preassembled mechanical seal in the QualityCartridge simplifies on-site replacement, allowing easy access after removing the parallel shaft geared motor without the need for further dismantling.
Optional control technology elevates performance by continuously monitoring key parameters to detect malfunctions early and address them proactively. The control system is available in OEM and System Solutions, providing flexibility based on operational needs. Operators can also benefit from an optional widescreen touch display with an intuitive menu for easy access to essential details, while remote maintenance capabilities allow for software updates and support from Vogelsang when needed.
It is built with corrosion-resistant materials, ensuring its mixing chamber and steel components endure the demanding conditions of biogas operations. The sturdy parallel shaft geared motor, mounted directly onto the drive shaft without the need for additional coupling, delivers reliable performance. Its generously sized cardan shaft with protective sleeves ensures consistent power transmission while shielding against solid, fibrous or foreign matter. An optional two-stage geometry further enhances the CC-Mix by halving the pressure difference per stage, which extends service life even in high-pressure or abrasive conditions. Its energy efficiency, easy integration, and robust design provide cost-effective performance that maximizes resource utilization.
800-984-9400; www.vogelsang.info
