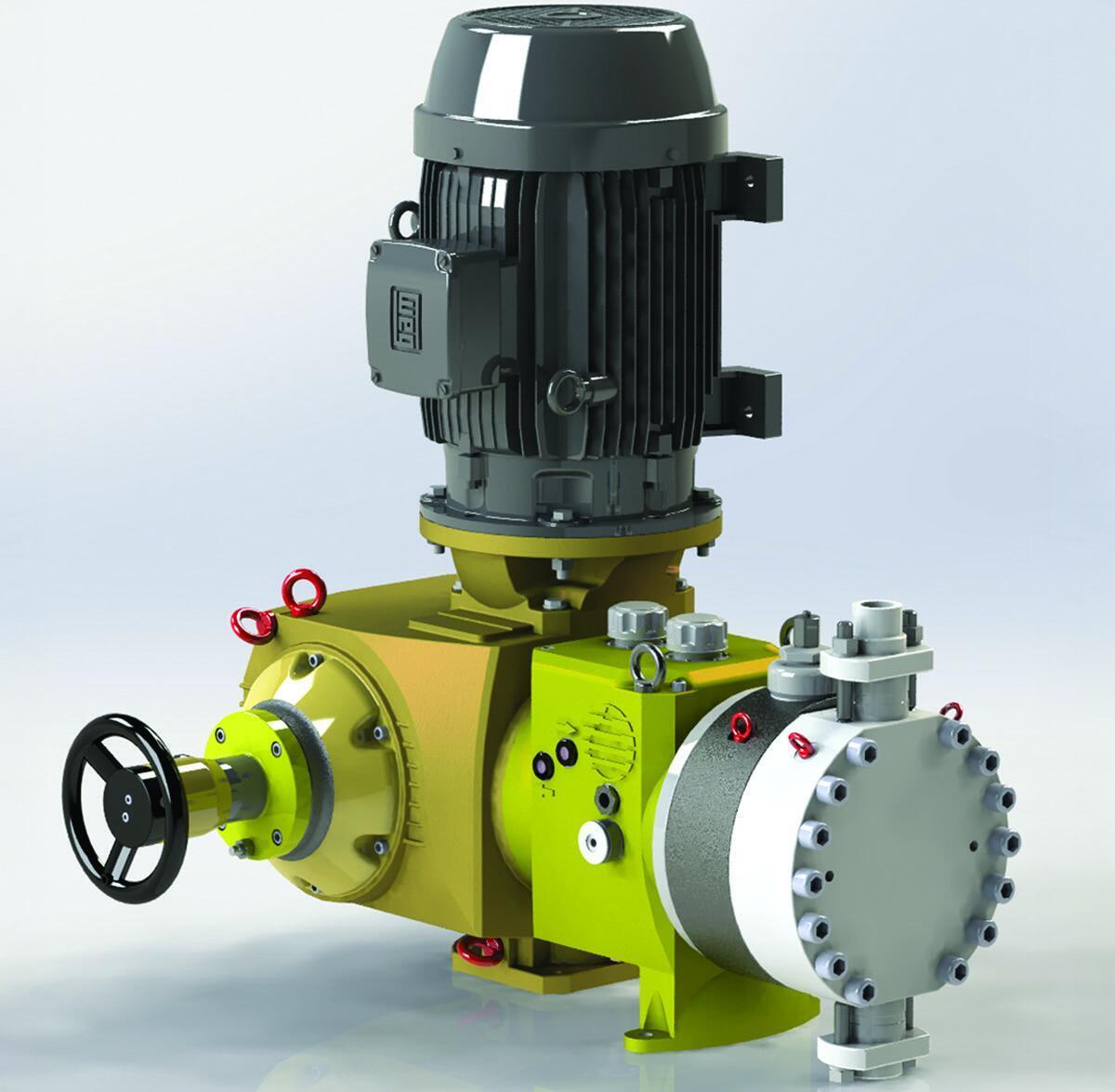

While not common, there are some applications that require a metering pump capable of withstanding high flow rates. The Primeroyal Q series from
Milton Roy from boasts an extensive and modular API 675 range that includes eight distinct drive sizes and nine advanced liquid end technologies, ensuring unparalleled versatility and the ability to meet the most demanding hydraulic performance requirements for high flows and high discharge pressures.
According to Milton Roy, the Primeroyal Q series extends the boundaries of metering pump technology, offering a maximum flow rate 2,199 gph per dosing head and maximum discharge pressure of 15,011 psi. Tailored to withstand the rigors of continuous, round-the-clock operation, the Q series was engineered with three liquid end types — packed plunger, PTFE or metallic diaphragm. The double diaphragm liquid end technology, coupled with a sophisticated leak detection system, offers superior safety for handling all types of fluids including critical, toxic, harmful and explosive process fluids.
The Q series offers compliance with API 675 standards for steady state accuracy (±1%), linearity and repeatability (±3%), a maximum suction pressure of 5,380 psi dedicated for liquified gases application, a leak-free design, operation in 14 to 122 degree F temperatures in standard operation, with optional low temperature operation to -40 degrees F. It includes manual and local stroke length adjustment for precise control of the flow rate, and remote control of the capacity, through the 4-20 mA analog and feedback signals for modulation. It has a compact and lightweight design with a minimal footprint and multiplexing capabilities, with up to six heads max.
A value-added service and an essential element of your contract, the documentation, established by our contractual documentation competence, guarantees compliance with applicable standards. Available to you, this competence provides a continuous check on conformity and brings together all documents related to purchasing such as: compliance certificates, minutes, drawings issued by design office and data sheets which allow for flexibility while pursuing potential revisions of the project drawings and documents.
In addition to high-pressure boiler feed water treatment and more, the Primeroyal Q series can be used for high-pressure methanol injection at the wellhead and the injection of corrosion inhibitors and chemicals for refined product treatment, and for precise dosing of catalysts in polymerization processes. Its modular design offers a multitude of configuration possibilities to meet the specific demands.
877-786-7298; www.miltonroy.com
