Asset Management

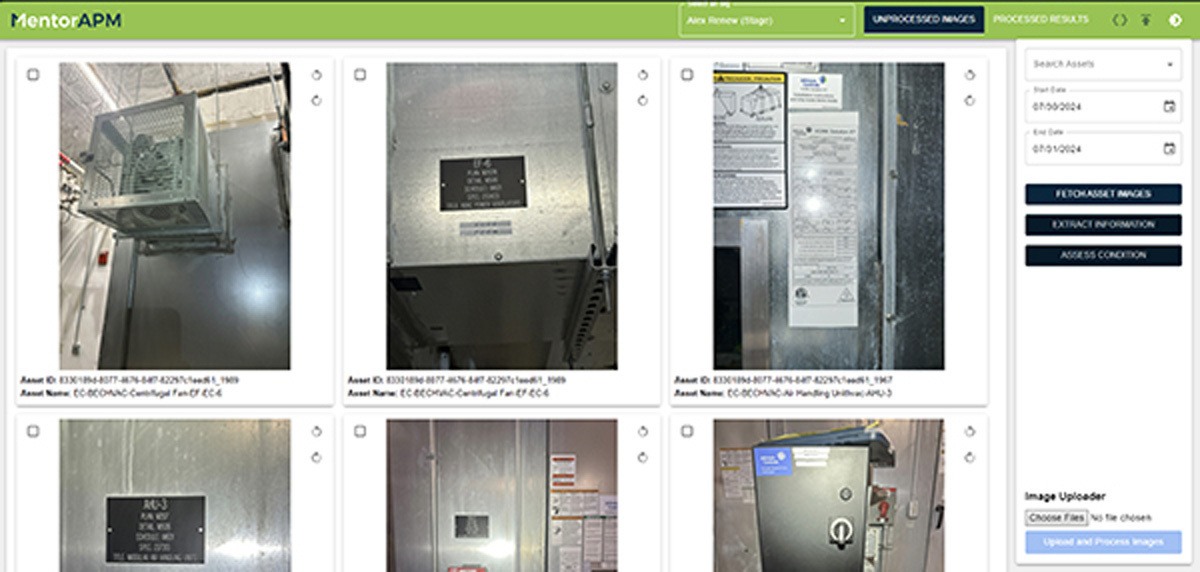

MentorAPM Asset Lens

The MentorAPM Asset Lens is an asset management tool that dramatically reduces the time and cost of building and keeping asset registers and condition assessments updated with high-quality, consistent information. Cutting the time spent on field collection from 30 minutes to 30 seconds per asset, it allows team members to capture and process nameplate data with just a photo, automatically attaching it to the correct asset record with three plus layers of validation. Additionally, it delivers instant, Level 2+ asset condition scores based on observable characteristics from corrosion and leakage through to thermographic analysis all calibrated against MentorAPM’s asset condition libraries and manufacturers’ data. The software standardizes data collection so that all asset records track the same fields, making them easier to assess, compare and standardize. 602-492-6212; www.mentorapm.com

Automation/Optimization

DSI Dynamatic EC-2000 Digital Controller

The EC-2000 Digital Controller from DSI Dynamatic can be used with any eddy current product. It consists of a single printed circuit board rated for 115-volt AC, single-phase, 60 Hz input. It has the flexibility of 45 or 90 volts DC coil voltage at 8 amps and is available for use with a wide range of drives and brakes rated 1 through 200 hp. A power relay is a standard feature. The basic circuit board includes provisions for many control functions, including multiple cascading, linear accel/decel, manual or auto signal follower. It can also be run in speed or torque mode. Selection of these options is made through the soft touch keypad. Many other modifications are also available. It is designed to offer all standard industrial modifications without the need for auxiliary modification boards. 262-554-7977; www.dynamatic.com

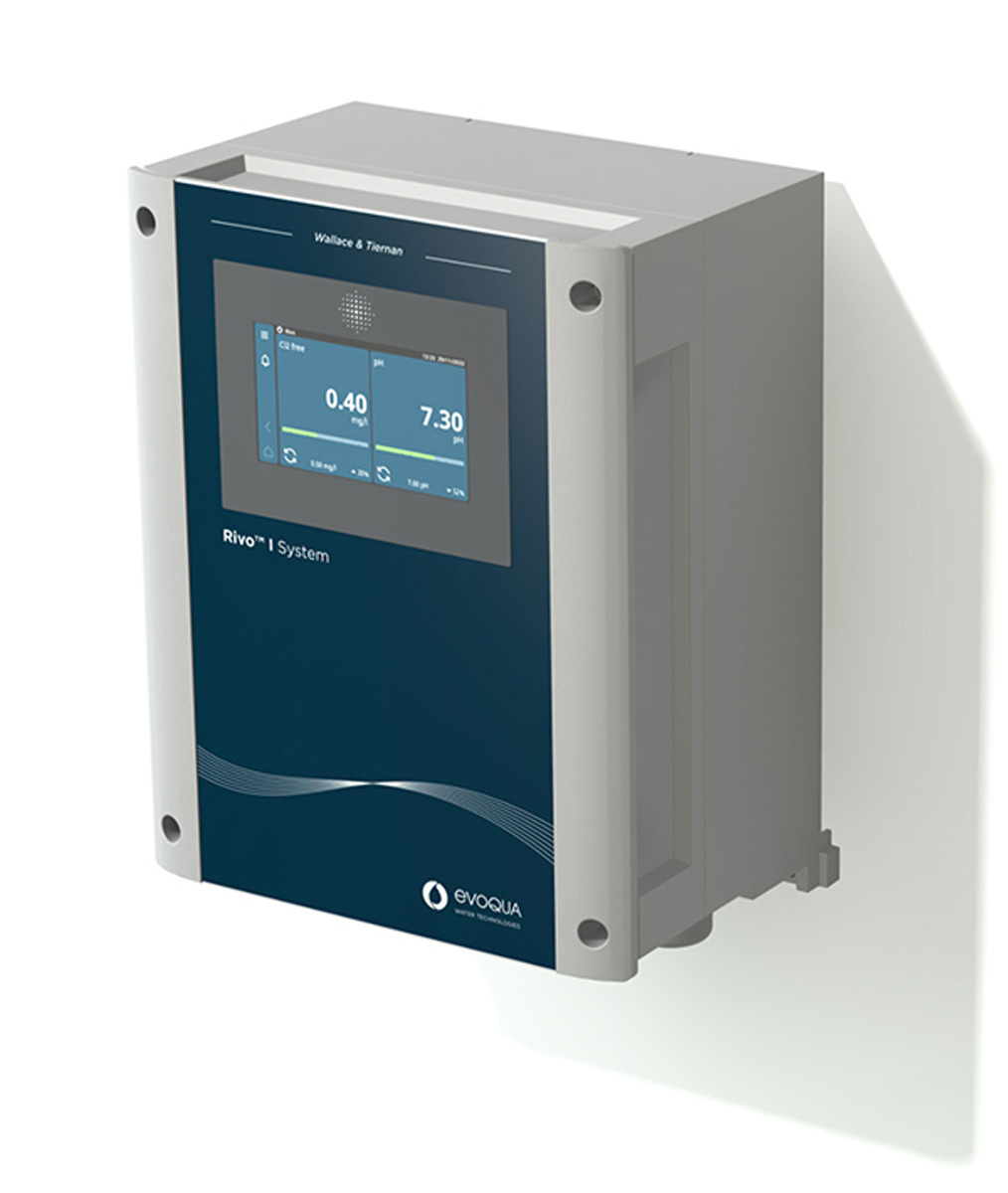

Xylem Rivo I

The Rivo I system from Xylem helps municipalities measure, monitor and control water quality. The new analyzer and control platform simplifies the water treatment process. Plant operators can precisely dose disinfection chemicals to enhance compliance and safety with real-time monitoring. The innovative system is adaptable with a modular plug-and-play design. The wide array of input and output ports seamlessly integrate with existing assets. This flexibility allows for scalability and easy adjustments to meet future monitoring requirements. It offers up to four flexible ports for Rivo Flex IO modules. 855-955-4261; www.xylem.com

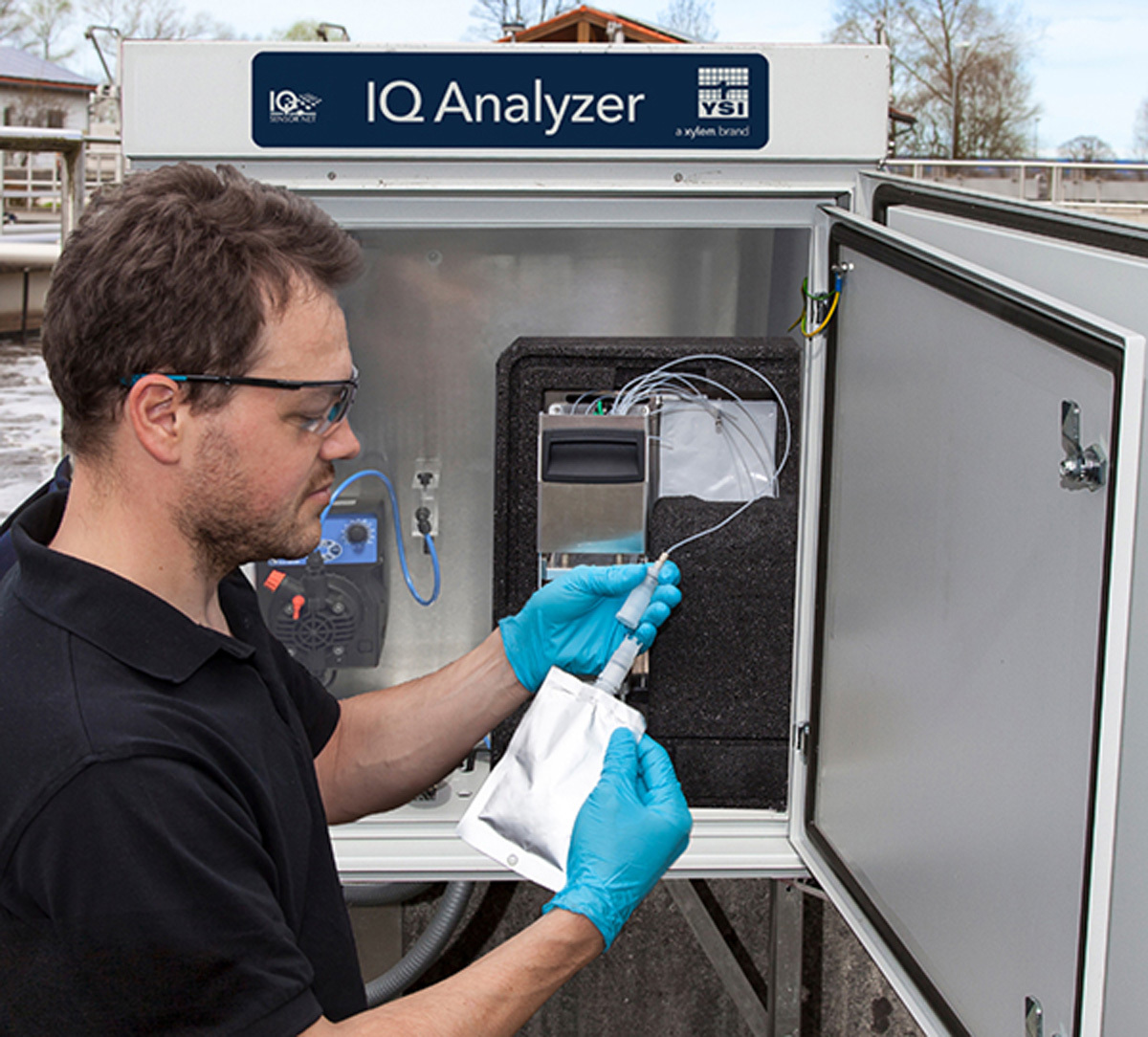

YSI, a Xylem brand Alyza IQ

Alyza IQ from YSI, a Xylem brand is an online wet chemistry analyzer platform developed to help ensure regulatory compliance, improve operational efficiency and reduce costs. It is designed to minimize analyzer maintenance while maximizing accuracy and reliability. It features automatic cleanings and calibrations, no-spill reagent containers, and uses only 5 to 15 microliters of reagent per measurement, resulting in fewer reagent changes over time. The analyzer platform has a fully automated temperature control system with a double-insulated cabinet to maximize performance regardless of where it’s deployed. The Alyza NH4 continuously measures ammonium and can be used to help control ammonia-based aeration and ensure regulatory compliance. The Alyza PO4 continuously measures orthophosphate to monitor and control chemical-P removal, verify bio-P removal and help ensure regulatory compliance. 937-767-7241; www.ysi.com

Biogas

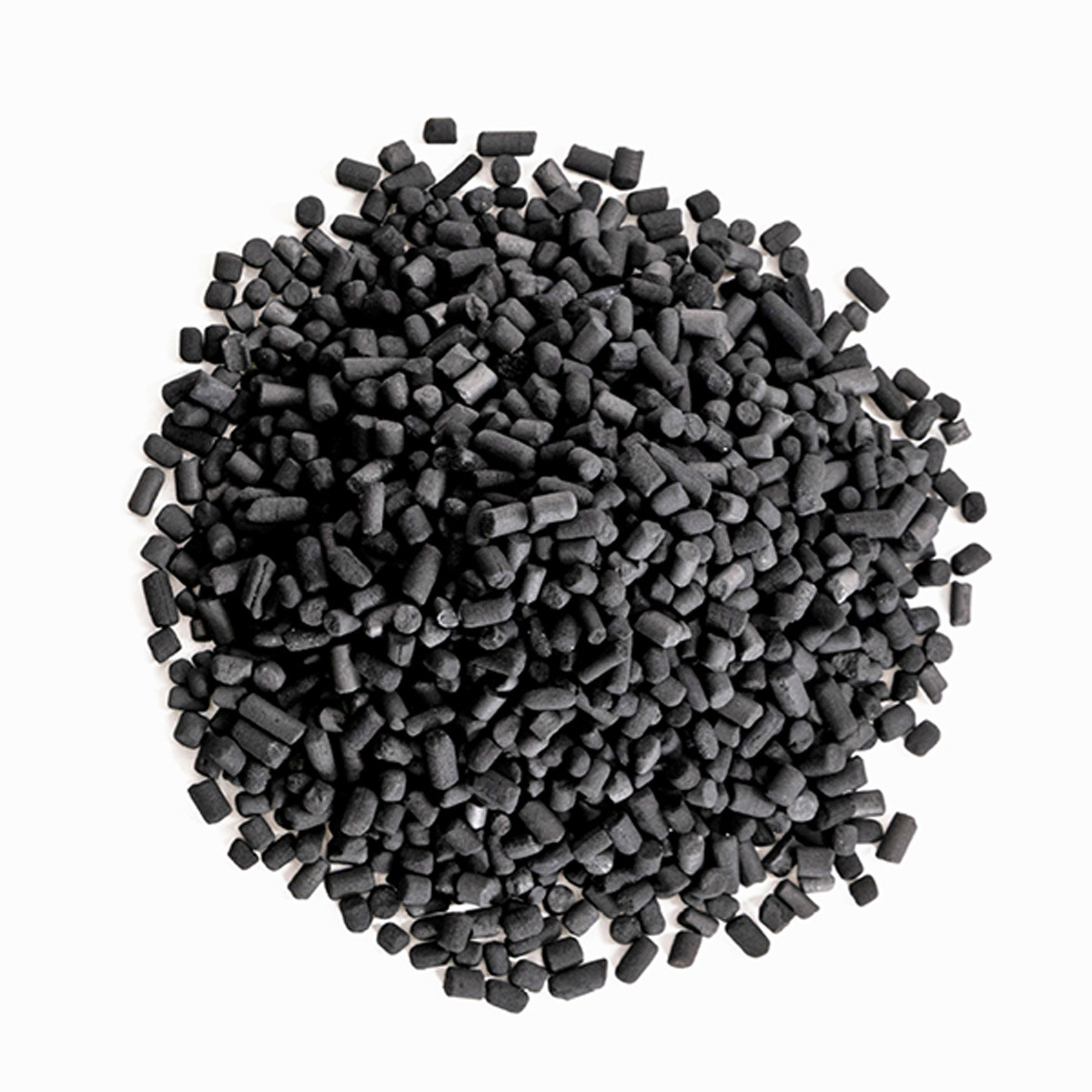

Jacobi Carbons AddSorb OX-Series

Jacobi Carbons AddSorb OX-Series is a coconut-shell based pelletized carbon designed for use in odor removal in the biogas industry. Specially formulated for optimal hydrogen sulfide removal, the product line is a replacement for AddSorb Sulfox, Jacobi’s original coal-based product. The series is available in two variants – OX20, which has a minimum hydrogen sulfide loading capacity of 0.2 grams per cubic centimeter (capacity is 40% by weight), and AddSorb OX30 with an enhanced hydrogen sulfide loading capacity of 0.3 grams per cubic centimeter (capacity is 66% by weight). Both offer a non-impregnated grade with lower ash and higher purity, which helps maintain the signature low pressure drop associated with pelletized carbon. With coconut shell as the primary raw material, the global warming potential is significantly less than that of the prior coal-based offering, meaning a more sustainable product for the market. 215-546-3900; www.jacobi.net

Drives

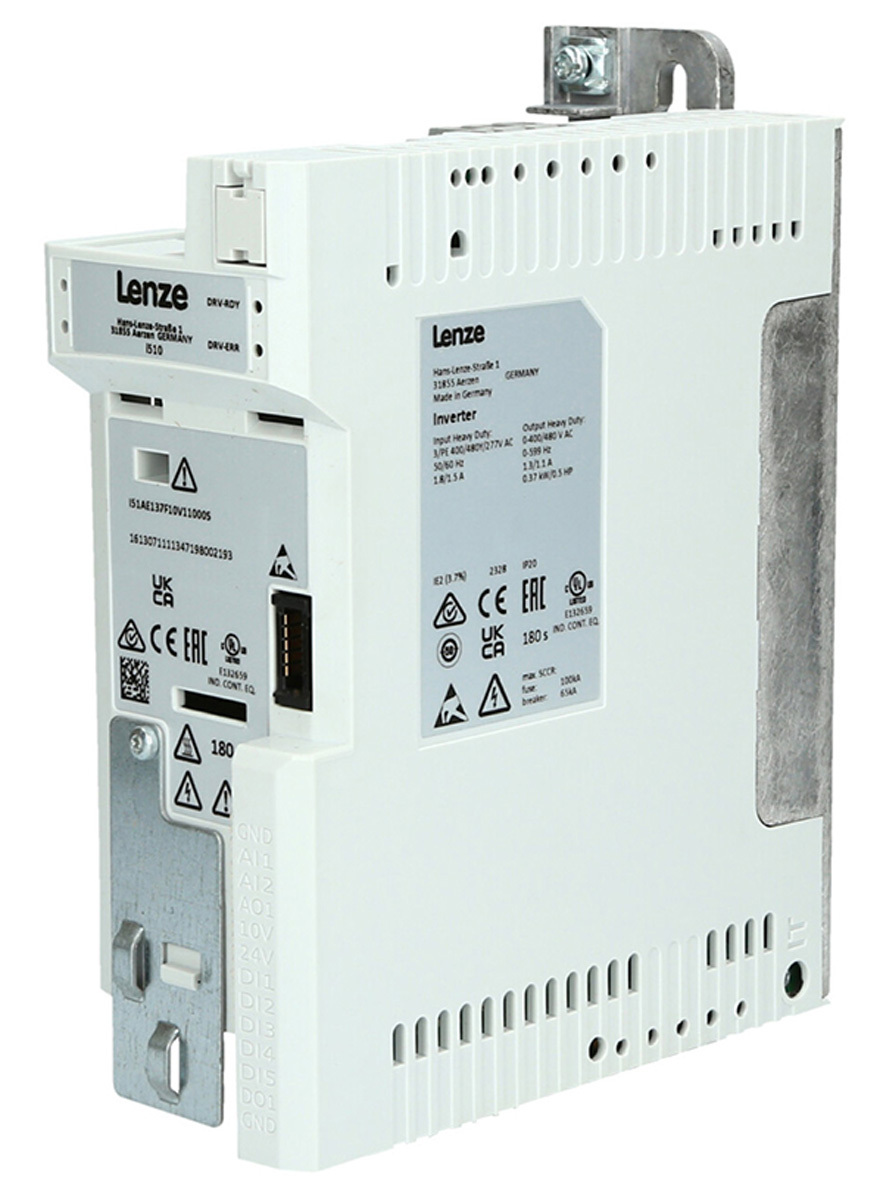

Automation24 Lenze i510

The Lenze i510 variable frequency drive from Automation24 is rated for 0.5 hp and can accept a 400- or 480-volt AC, three-phase input voltage. It contains five digital inputs, one digital output, two analog inputs and an analog output, as well as an NO/NC relay output. This onboard I/O allows for easy integration with a process control system, or for controlling the drive with standalone controls such as pushbuttons and a potentiometer for the speed/frequency setpoint. Additionally, various interface modules are available for communicating with the drive via push button controls, a laptop USB connection, or over WiFi. Its small footprint makes for easy mounting in tight areas. It has a wide operating temperature range of 14 113 degrees F without derating (140 degrees F maximum rated ambient operating temperature. 800-250-6772; www.automation24.com

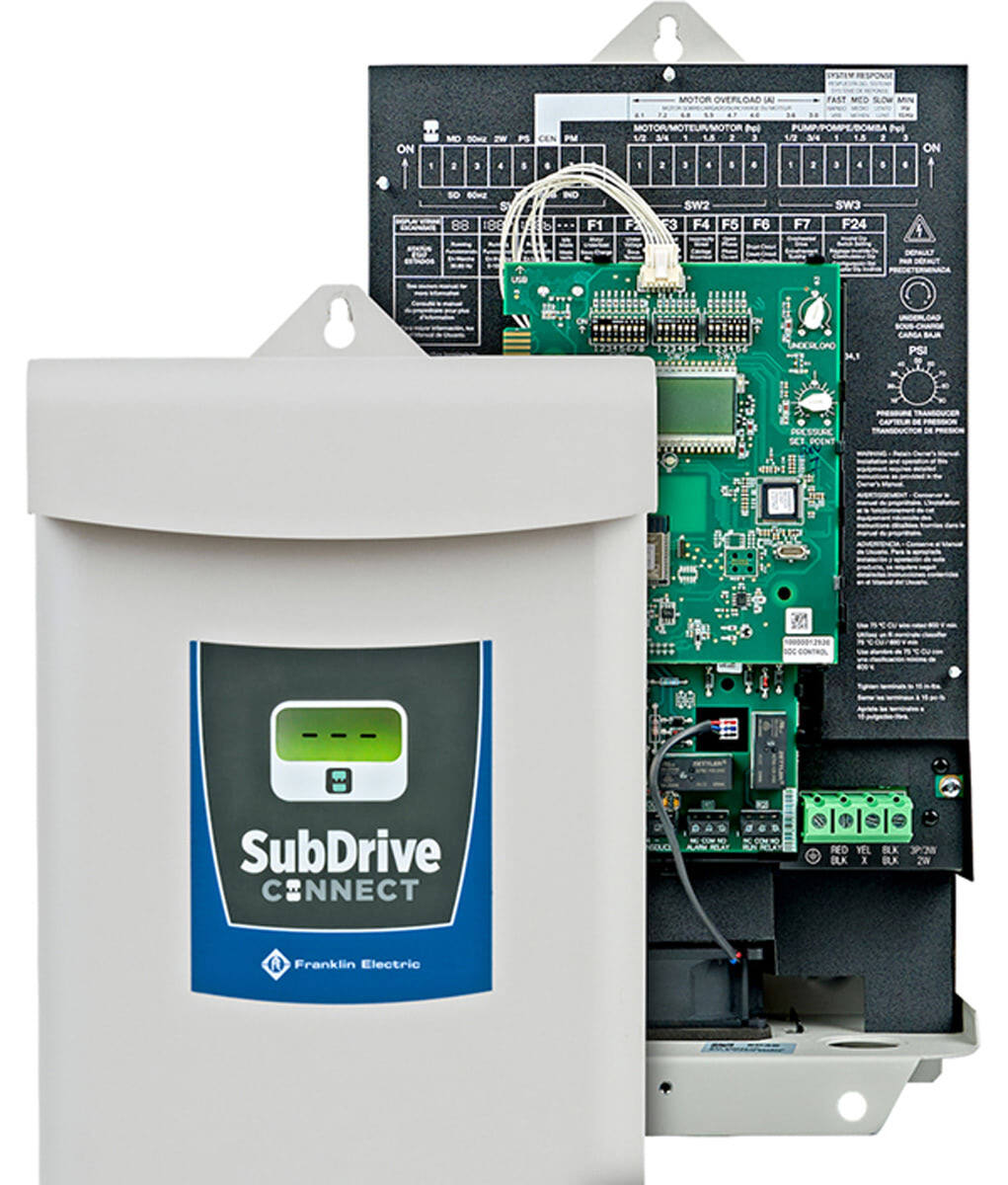

Franklin Electric SubDrive Connect

Franklin Electric’s newest generation of SubDrive Connect variable-frequency drives include several re-engineered features and technology upgrades that optimize SubDrive Connect for more jobs. A new built-in input filter boosts performance and consistently mitigates interference with electronic devices in residential settings. Installers can also purchase the filter separately as an add-on for existing SubDrive Connect units. The drives are equipped to optimize submersible and aboveground pumps with single-phase, two-wire and three-wire, or three-phase motors to accommodate more water system possibilities while still delivering the same intuitive startup experience. And a scannable QR code in each unit will quickly pair SubDrive Connect to the FE Connect mobile app. 866-271-2859; www.franklinwater.com

Heat Exchangers/Recovery Systems

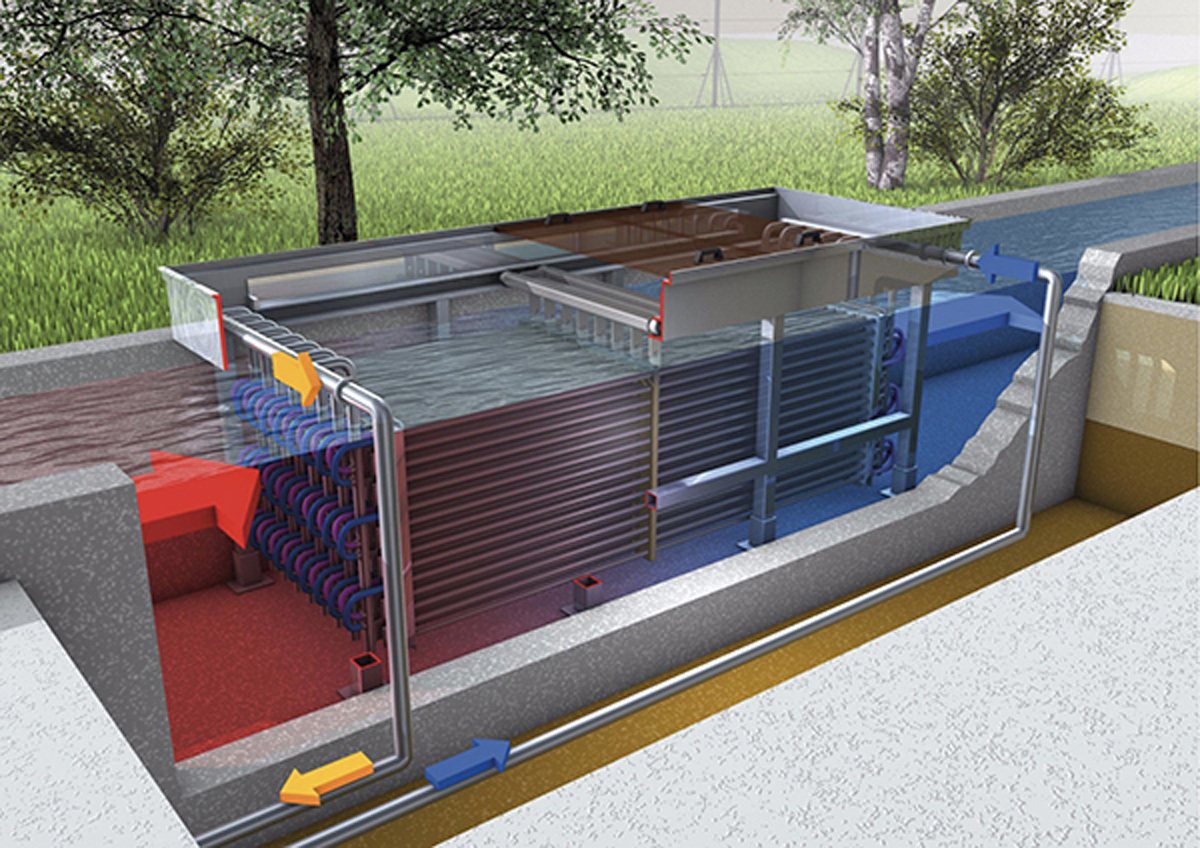

HUBER ThermWin System

The HUBER ThermWin System allows facilities to take advantage of the existing sewer infrastructure to access sustainable thermal energy. The system consists of the RoWin Heat Exchanger and one of several types of HUBER’s pumping stations screens (style dependent on application but most typically the ROTAMAT RoK4). The products work together to capitalize on an untapped energy source — the sewer — and effectively recover thermal energy from wastewater. The self-cleaning system provides consistent energy transfer while allowing for maintenance free operation. 704-949-1010; www.huber-technology.com

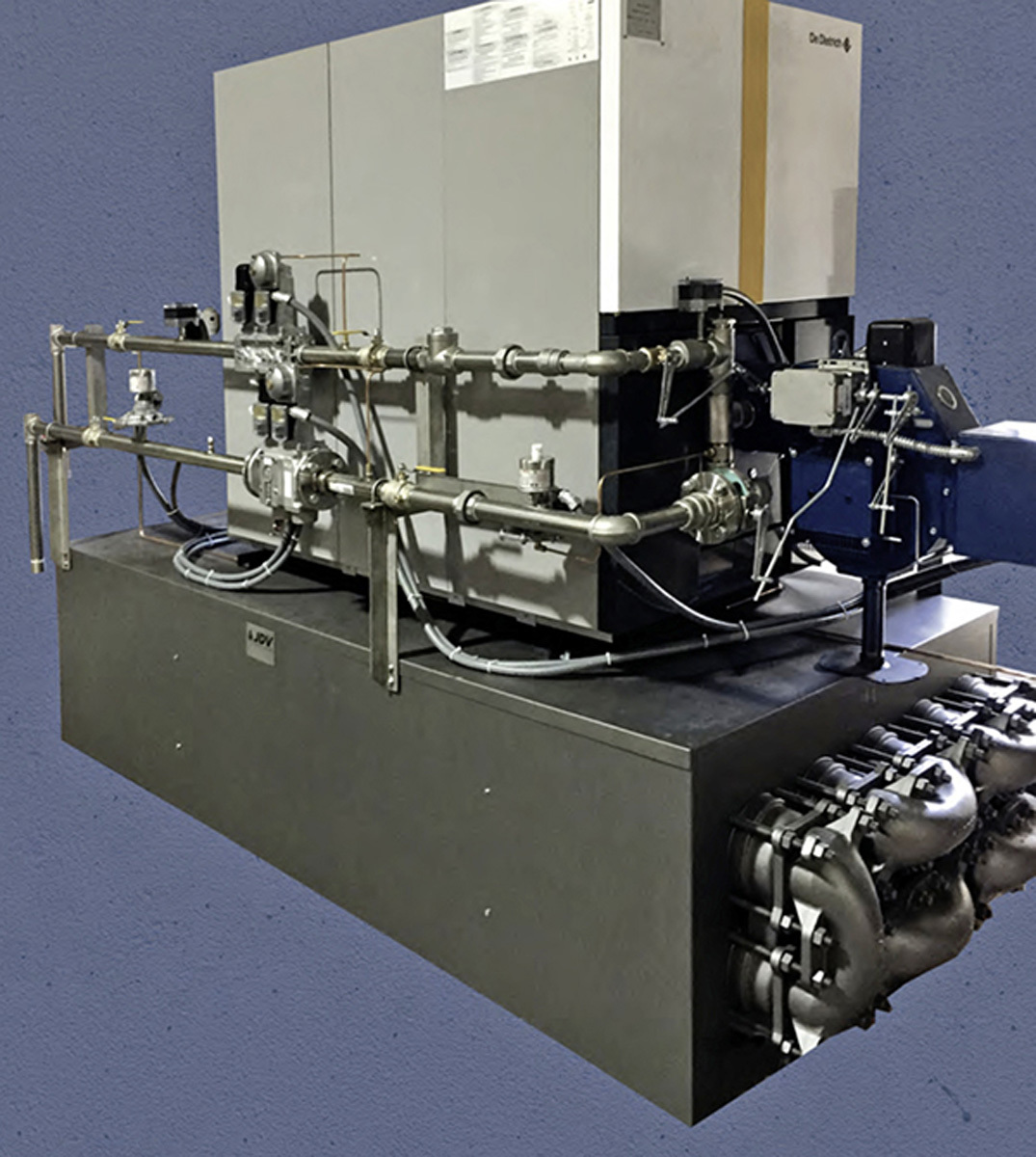

JDV Equipment Sludge Heater and Exchanger System

The Sludge Heater and Exchanger System from JDV Equipment ensures optimal thermal efficiency for anaerobic digestion. The counter-flow tube-in-tube Ralph B. Carter design promotes high-efficiency heat transfer with minimal fouling to recirculated biosolids. The integrated three-way blending valve maintains a uniform inlet water temperature for increased digester operational efficiency. Each system is manufactured to ASME standards. 973-366-6556; www.jdvequipment.com

High-Efficiency Motors/Pumps/Blowers

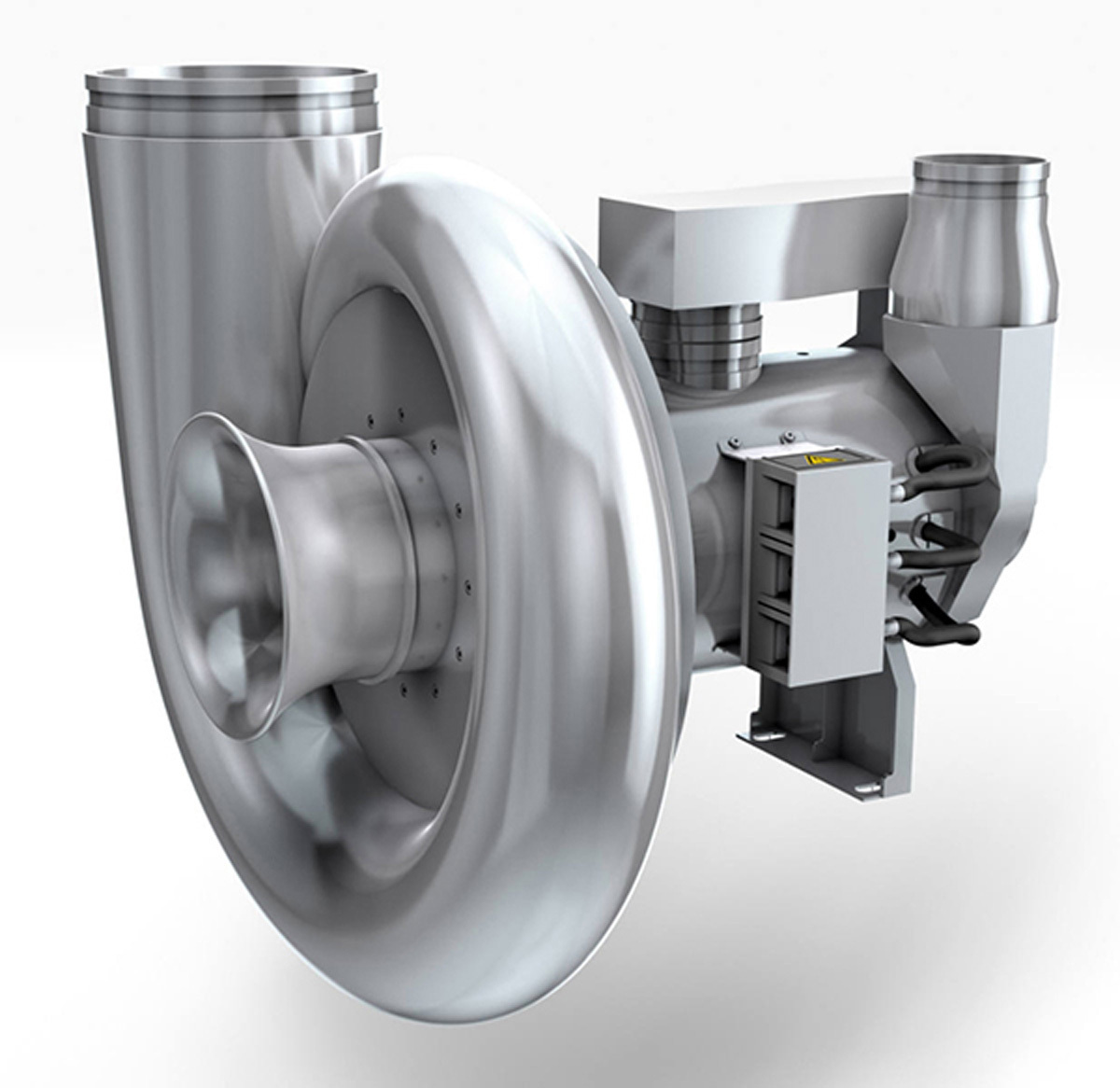

AERZEN Turbo AT250 G5Plus

The AERZEN Turbo AT250 G5Plus with airfoil bearings is rated for a volume flow of 5,473 cfm, a maximum differential pressure of 13.5 psi, speeds of up to 26,000 rpm and a turndown ratio of 1-4. An IE5 permanent magnet synchronous motor and the aerodynamic design of the turbo impeller and spiral casing ensure consistently high overall efficiency. The packages are sound-optimized and guarantee quiet operation of 73 db(A), and in addition, the turbo blowers are 100% oil-free. 610-380-0244; www.aerzen.com

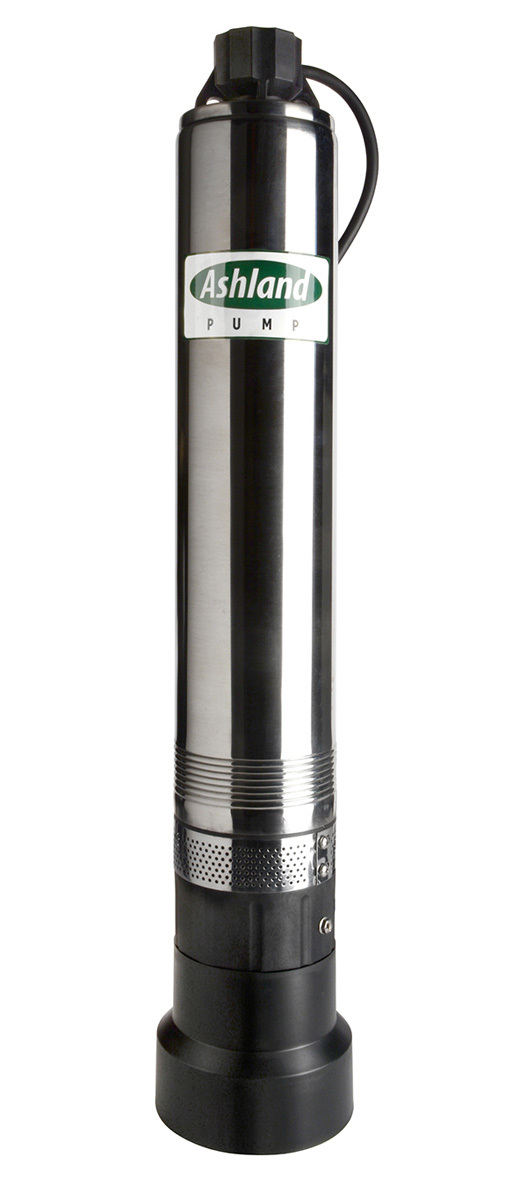

Ashland Pump CPM Series

The Ashland Pump CPM Series is a versatile and efficient solution for managing filtered effluent and gray water. With flow rates of 10, 20 and 30 gpm, this series has a bottom suction design that ensures maximum fluid drawdown, enhancing operational efficiency. Equipped with 1/2 hp, 230-volt and 115-volt single-phase five-stage motors, these pumps operate quietly without compromising performance. They are able to handle up to 1/8-inch solids without any damage, making them a reliable choice for various applications. Stainless steel and thermoplastic materials guarantee durability, while the detachable base allows for secure mounting, ensuring stability during operation. 855-281-6830; www.ashlandpump.com

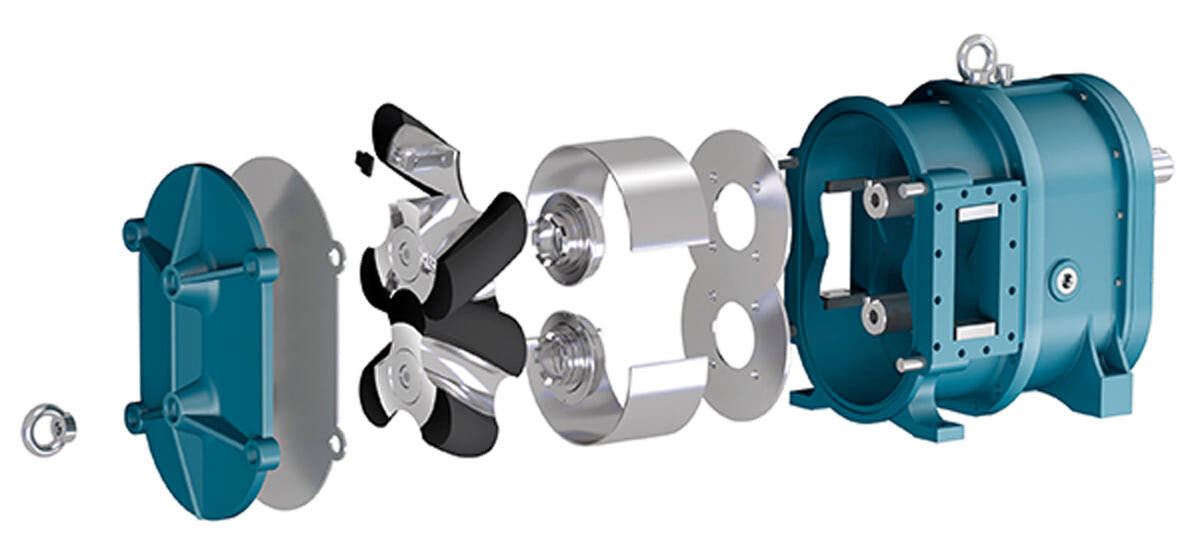

Boerger BLUEline

Boerger BLUEline rotary lobe pumps are self-priming, valveless positive displacement pumps used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com

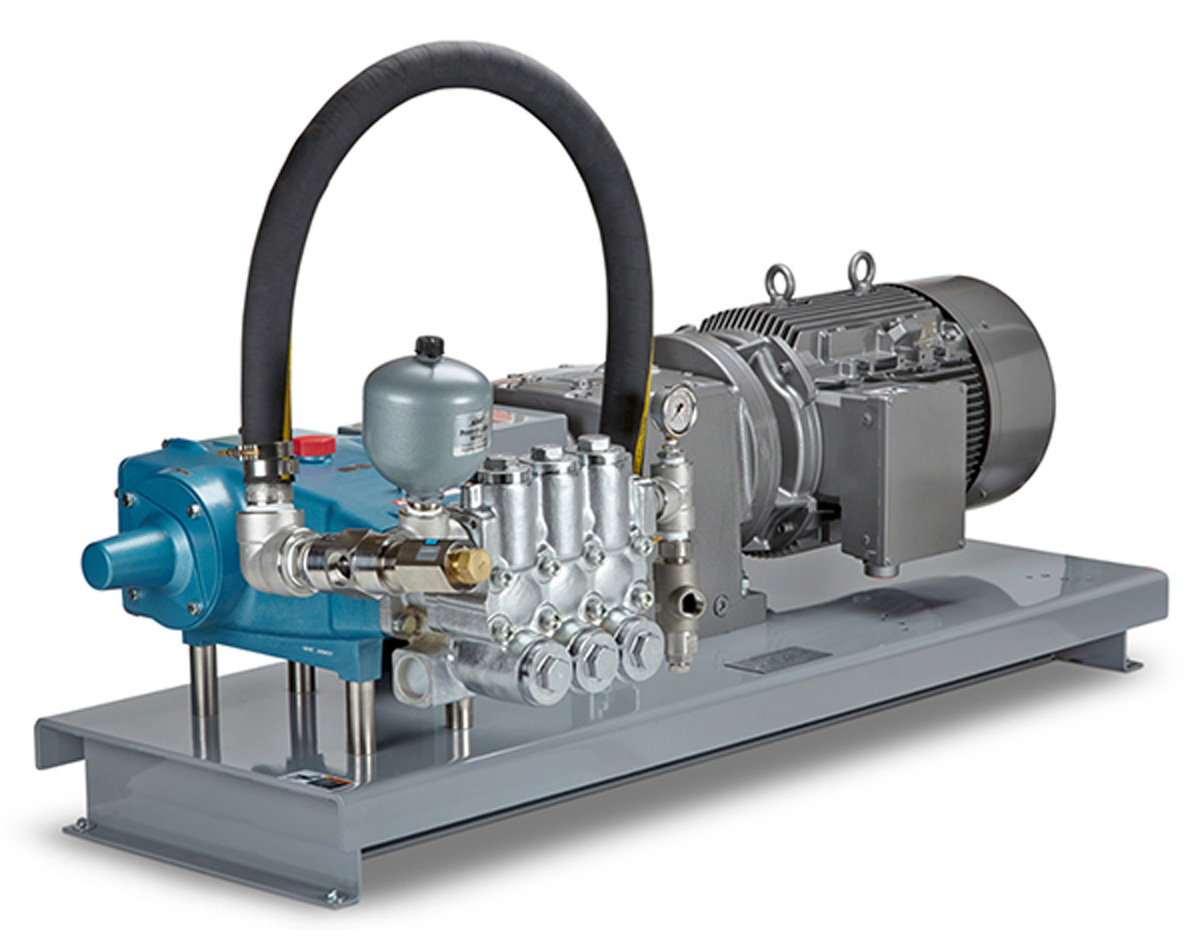

Cat Pumps stainless steel triplex pumps

Cat Pumps stainless steel triplex pumps mounted to a gear motor can provide thousands of hours of maintenance-free slip pump service. Direct-coupling the pump to a gear motor offers many advantages, including a smaller footprint, reduced noise and ease-of-service with no belts to maintain. A 316 stainless steel manifold, paired with elastomers like NBR, FPM, EPDM or PTFE, allows many chemical and fluid compatibility options. Performance specifications range from 0.1 to 100 gpm and 100 to 10,000 psi. Custom builds can include pump(s), motor(s), base, pressure control valves, pressure gauges and/or pulsation dampeners. Custom builds typically have a three to four-week lead time with individual pumps and repair parts usually being in-stock items with 95% of orders shipped within 24 hours of placement. 763-780-5440; www.catpumps.com

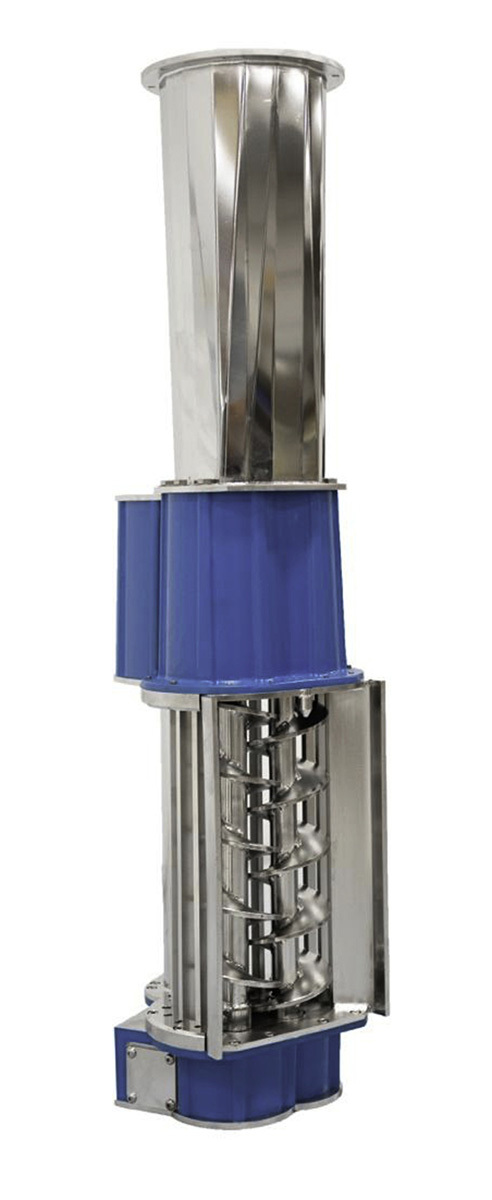

Duperon Dual Auger System

Serving as an alternative to grinders and chopper pumps in the collection system and plant headworks, the Duperon Dual Auger System is comprised of two vertical, electrically driven, counter-rotating augers that catch, dewater, compact and remove rags, wipes and other debris from the waste stream. Each unit offers a brushless 0.71-inch bar screen that passes organics and conveys compacted nondissolvable debris to a discharge extension chute for disposal as well as a built-in-bypass to avoid the risk of sewer backups during power outages. Utilities save time and money by eliminating the manual cleaning of clogged pumps and the use of maintenance-intensive grinders that send debris downstream only to reweave and become problematic again. The compact, fully submersible unit can be installed in a wet well or manhole as small as 17 inches. 800-383-8479; www.duperon.com

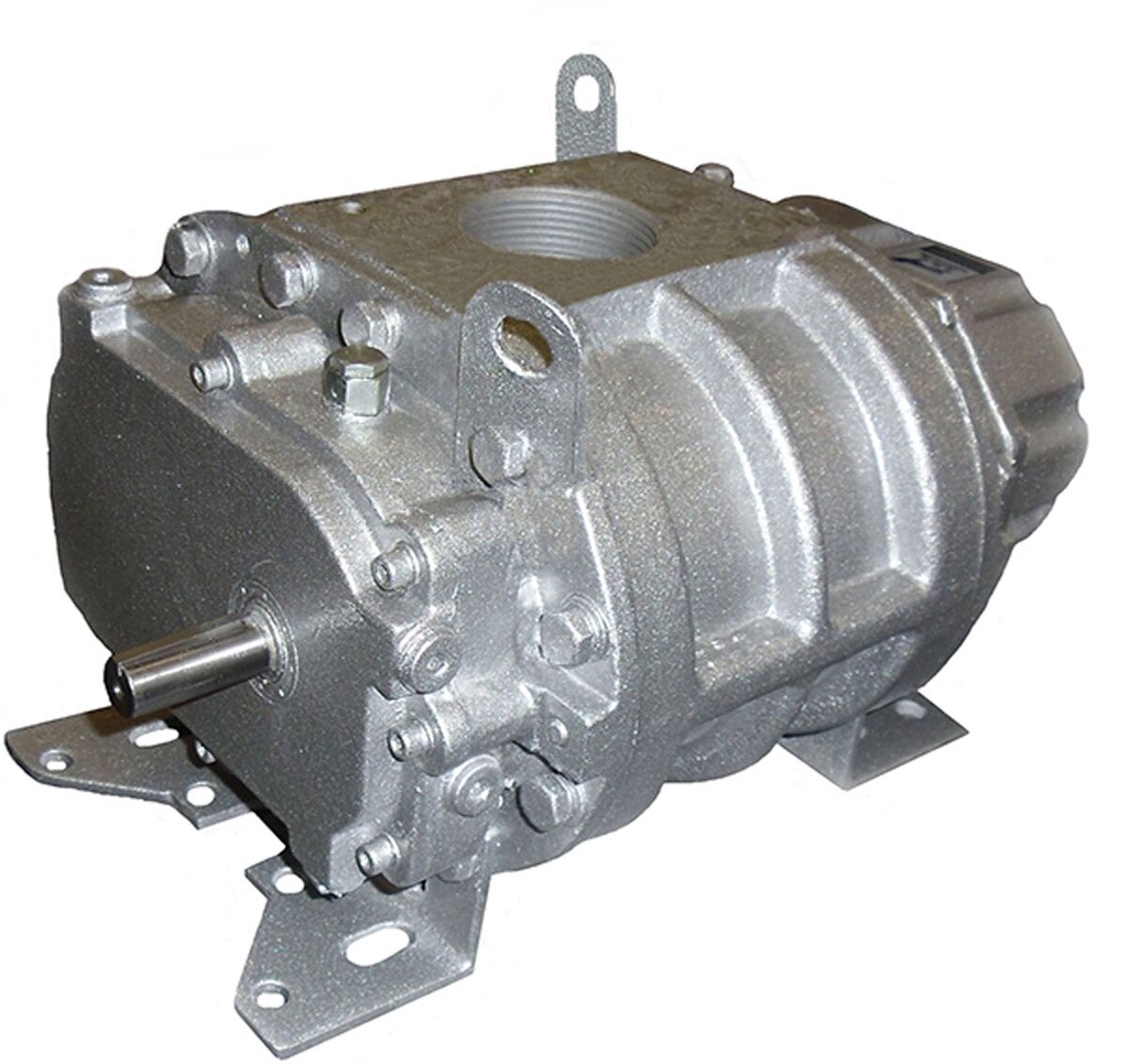

Eurus Blower ZZ Series

ZZ Series blowers from Eurus Blower are drop-in replacements for competitor blowers. They have heavy-duty cast housings, machined impellers, alloy steel shafts with oversized bearings, hardened/precision machined steel forged gears, oil-lubricated gear and/or grease- or oil-lubricated drive sides, plus keyless locking assemblies for easier timing gear maintenance. The blowers provide up to 15 psig pressure and 2,350 cfm flow. 918-361-0285; www.eurusblower.com

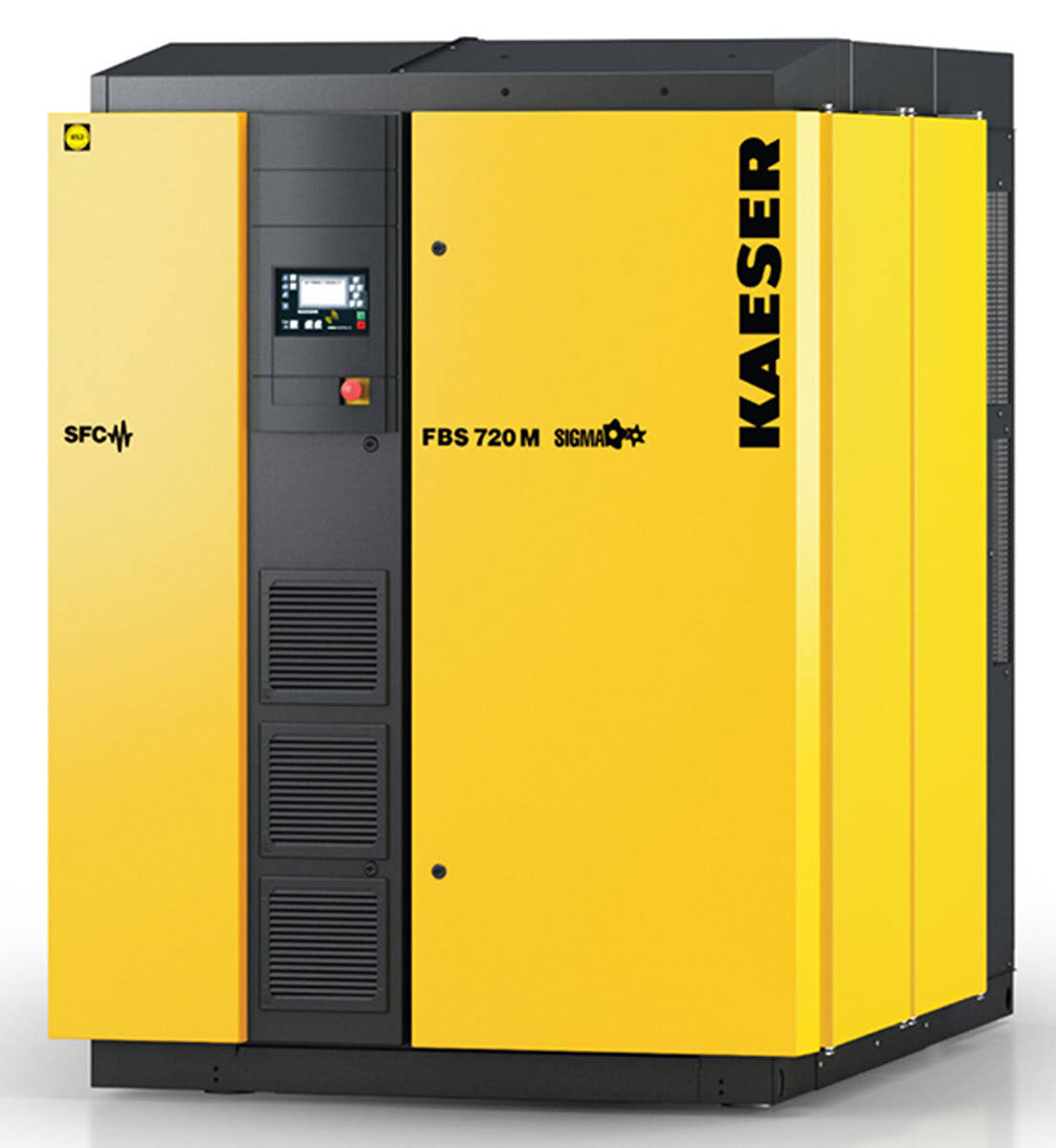

Kaeser Compressors FBS 720 series

The FBS 720 series of low-pressure rotary screw blowers from Kaeser Compressors offers synchronous reluctance motors that achieve significantly higher efficiency. The flow rate is adjusted to actual demand through variable speed. They allow access from the front of the unit for side-by-side installation. The complete package includes the VFD, controller and sensors. They are turnkey systems, arriving on site and ready to run, complete with noise-insulated cabinets, inlet and outlet silencers, motors and drives. The intelligent SIGMA CONTROL 2 on each blower optimizes machine performance via various control modes, and a full suite of sensors provides active condition monitoring to protect the machine. Both fixed (STC) and variable speed (SFC) units arrive fully wired and UL-certified. The blower’s compact design facilitates installation and uses minimal floor space. 800-981-6888; us.kaeser.com/blowers

Water/Wastewater Reuse

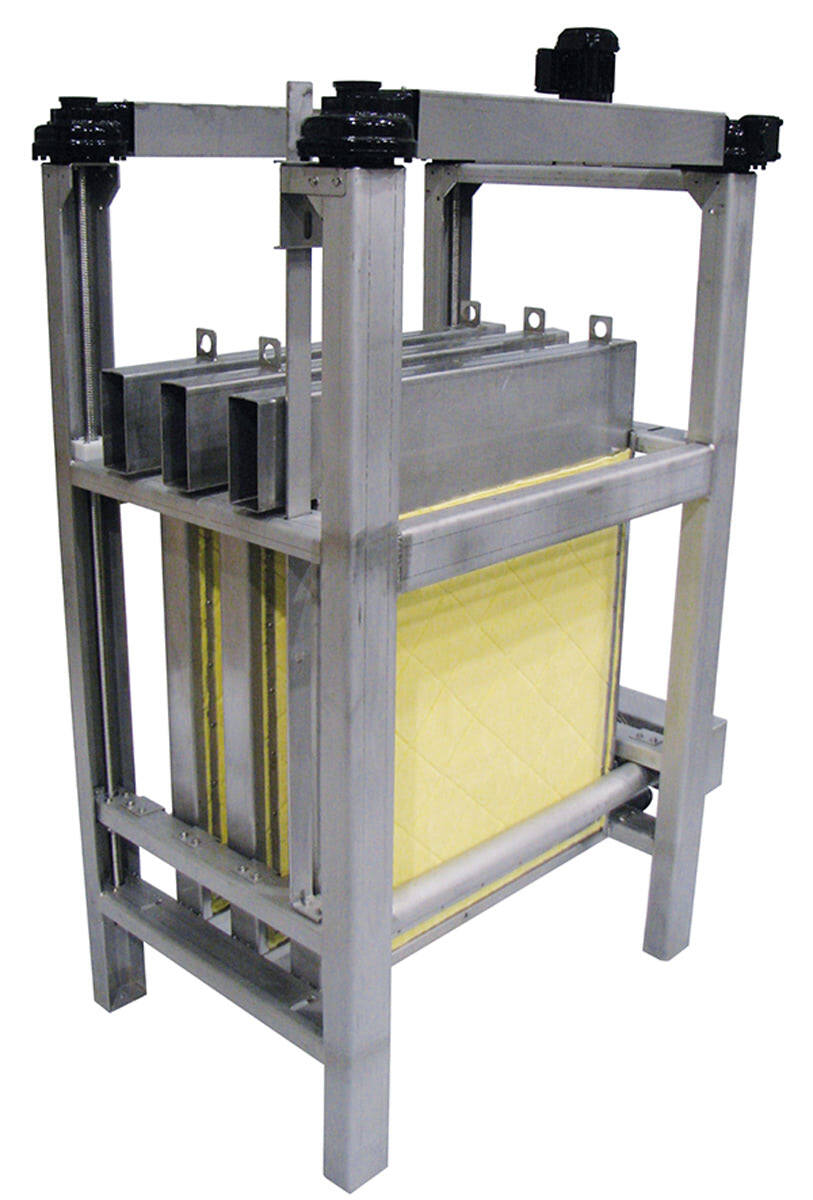

Alfa Laval AS-H Iso-Disc

Alfa Laval AS-H Iso-Disc cloth media filters provide tertiary filtration that with proper pretreatment can meet California Title 22 reuse standards, effluent turbidity of less than 2 NTU, and effluent TSS less than 5 mg/L. The design enables individual disk turbidity to be measured, and an operator can visually inspect the flow from each one. Also, if necessary, they allow an operator to isolate an individual disc for maintenance without disrupting the rest of the flow. The design can also be engineered to maximize the filtration area in the existing basin. 866-253-2528; www.alfalaval.us

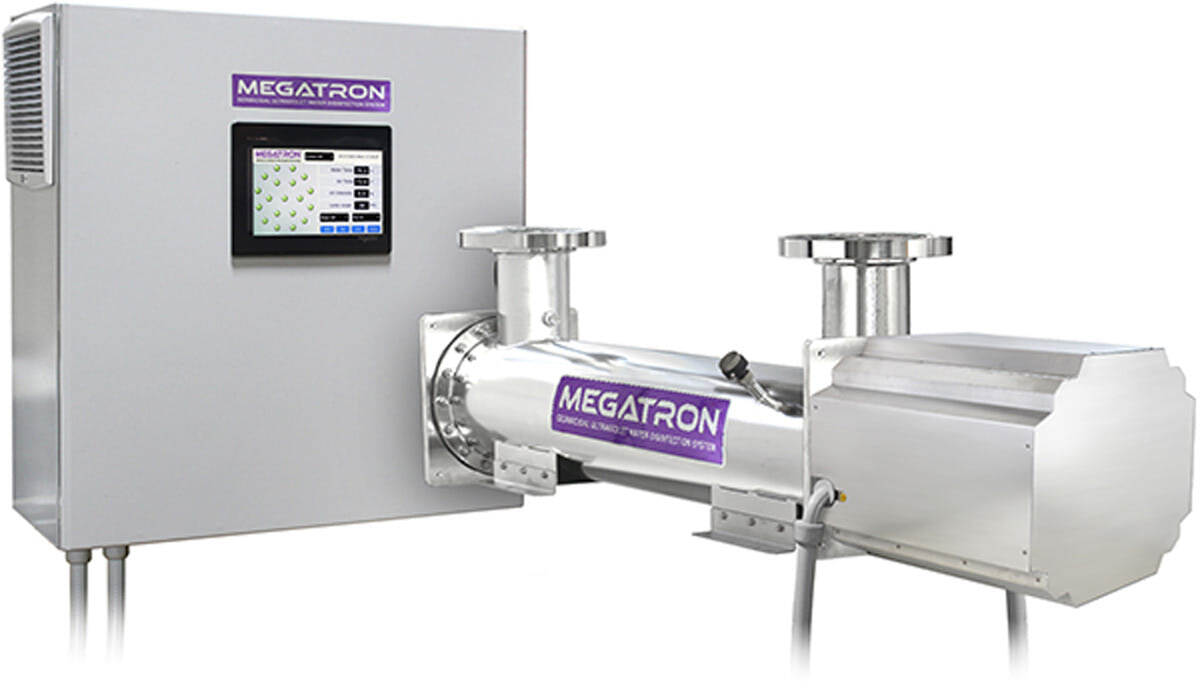

Atlantic Ultraviolet MEGATRON Germicidal Ultraviolet Disinfection System

The MEGATRON Germicidal Ultraviolet Disinfection System from Atlantic Ultraviolet seamlessly integrates into various building management systems. An HMI touchscreen provides easy system monitoring and controlling. Four different models (treating 90 to 450 gpm of clear freshwater) contain multiple UV-C lamps to neutralize bacteria and viruses. Each model consists of a Type 316 stainless steel chamber, and multiple units can be plumbed together to handle larger water flow requirements (for clear freshwater, clear wastewater, and high purity water). Standard features include a sight port for viewing lamp operation, digital lamp operation indicators, an elapsed time indicator and removable chamber heads. It is available with manual or automatic wiper systems to clean quartz sleeves around each UV-C lamp. 631-273-0500; www.atlanticultraviolet.com

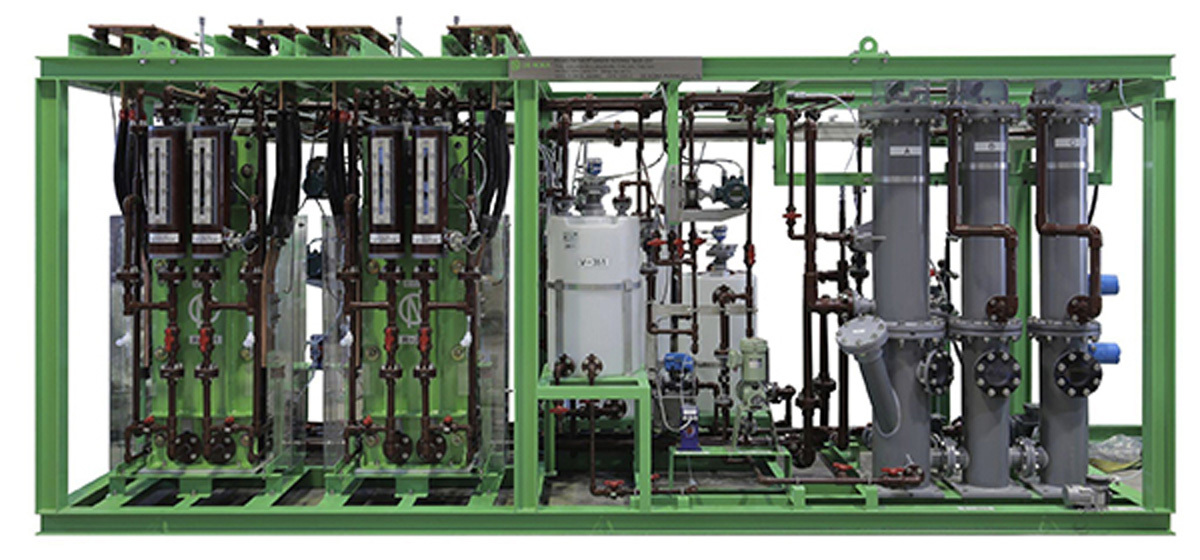

De Nora CECHLO-MS 200

The De Nora CECHLO-MS 200 is a high-strength sodium hypochlorite generator with an ion-exchange membrane that safely produces 12.5% sodium hypochlorite, sodium hydroxide and/or chlorine gas on site, helping customers achieve independence from the volatile bulk bleach market. The technology is used for process water and wastewater treatment, including water reuse, bleach manufacturing and wholesale chemical production. Using just salt, water and electricity to generate powerful chlorine-based disinfectants on site, it is safe, economical and energy-efficient and eliminates the human health and environmental risks associated with delivering and storing hazardous chemicals. Systems require no special training and are built around De Nora’s electrolyzer and latest generation DSA electrodes. 215-997-4000; www.denora.com
