Activated Carbon System
CarboNet SimpleFloc
SimpleFloc from CarboNet is a flocculant designed to replace traditional polymers in wastewater clarification, flotation, thickening and dewatering. It is made by combining high-performance polymers with NanoNet technology, a molecular design platform used to target specific particle types to maximize flocculation and minimize petrochemicals in water treatment by reducing dosage/usage. It cuts polymer use up to 80%, cost-to-treat 50% and labor 35%. Facilities see improved performance across wider ranges of influent conditions and less residuals/carryover. It is available in emulsion (liquid) and gel (preactivated) formats across a range of charges and molecular weights. 778-957-1157; www.carbonet.com
Biofiltration

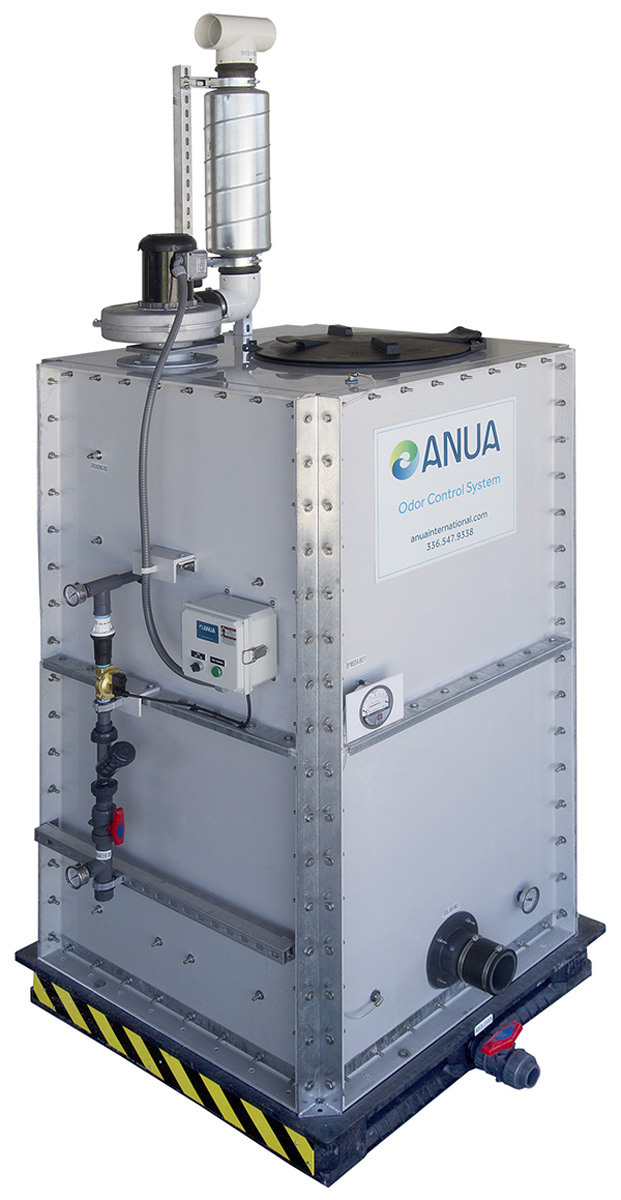

Anua AiraHybrid-175
The AiraHybrid-175 from Anua is a multistage system that addresses both odor control and noise reduction in a compact, factory-assembled solution. The first stage uses a biological process to remove hydrogen sulfide and other water-soluble odorous compounds with AiraGlass foamed glass media, made from recycled glass. A second-stage activated carbon system removes remaining odors while extending media life and reducing operating costs. Integrated noise-abatement equipment comes standard, and each unit is shop-assembled, tested and delivered with media preloaded for fast installation. 336-547-9338; www.anua-us.com
Evoqua Water Technologies BTF-Bioscrubber
The BTF-Bioscrubber biological odor control system from Evoqua Water Technologies is an advanced, nonhazardous biological air treatment system that integrates equipment, media and the NUCIRC process for optimal performance and flexibility. Utilizing a dual-stage biotrickling filter system, which can be operated in both single- or dual-stage modes, applications have achieved 99.9% hydrogen sulfide removal and up to 97.5% of total odor removal during performance testing. The process skid allows operation in recirculation or once through modes, delivering accelerated acclimation without separate startup equipment. Systems are available in both single- and dual-stage options with single-stage recirculated systems suited for treating raw biosolids odors found in pump stations, headworks and primary sedimentation, while dual-stage systems are better suited to handle entire plant odors. 800-466-7873; www.evoqua.com

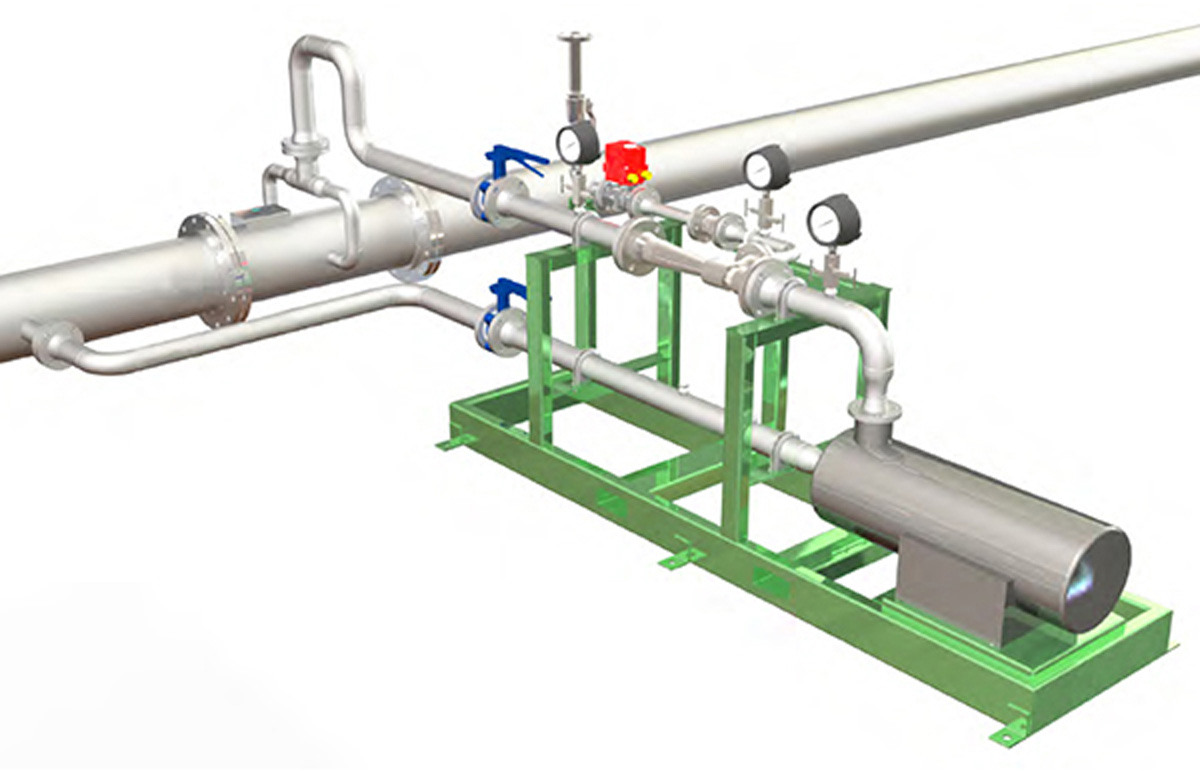

Mazzei Injector Pre-Filter Aeration System
The Pre-Filter Aeration System from Mazzei Injector provides in-line oxidation of iron and hydrogen sulfide ahead of media filtration. Ammonia removal can also be achieved. The system pairs a sidestream injection skid with a Pipeline Flash Reactor installed on the mainline. A booster pump circulates water through a venturi injector that draws in atmospheric air, and the air-water mixture is reintroduced into the mainline, through the PFR, to promote mixing and oxygen transfer. The process converts soluble ferrous iron to ferric iron for removal by filtration, oxidizes H₂S to address odor concerns and supports biological activity for the removal of ammonia via nitrification. By improving oxygenation prior to filtration, the system can reduce chlorine demand and support overall treatment efficiency. It accommodates varying flow rates with nearly zero pressure loss. Routine maintenance is limited to the pump. 661-428-1091; www.mazzei.net

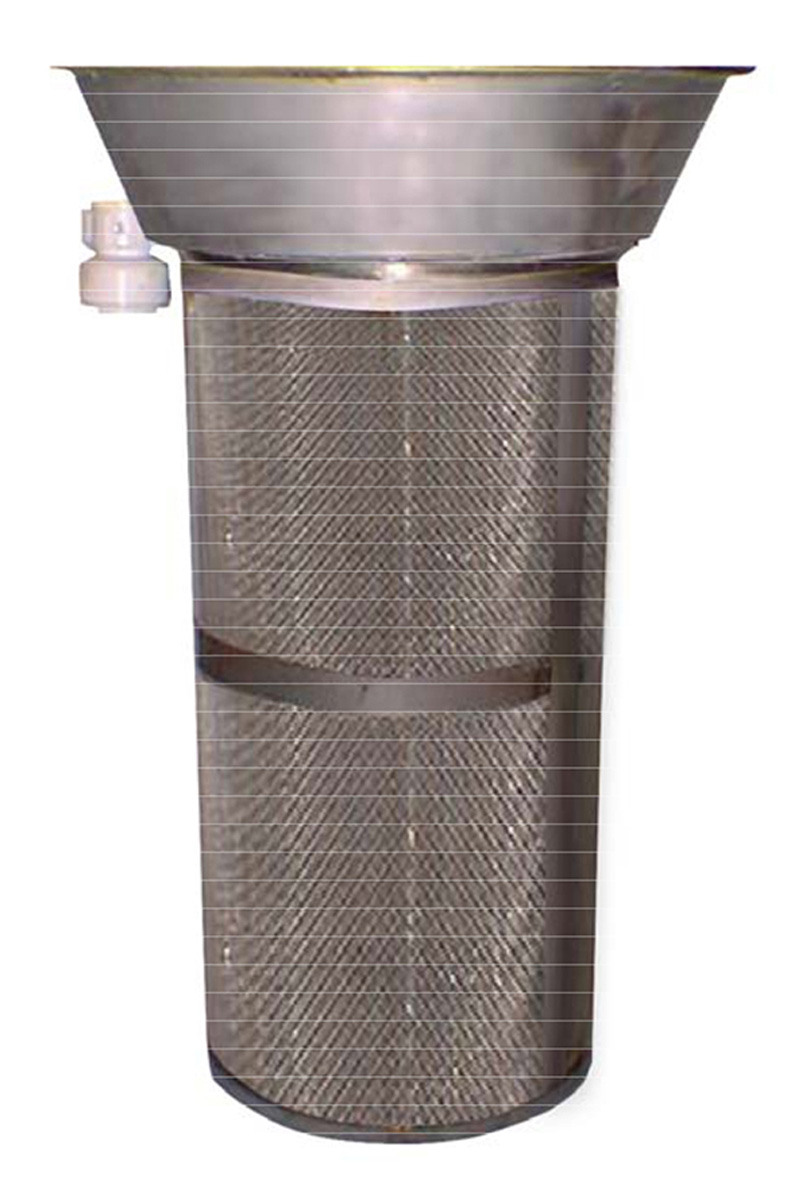

Sierra Environmental Technologies ODORGUARD
The ODORGUARD unit from Sierra Environmental Technologies is a high capacity, radial-flow manhole and wet well insert. It fits below the manhole lid, past steps, so it works anywhere, even in locations with water entry problems. The cylindrical media basket is held in the manhole or wet well with a tub-type holder that can be manufactured to fit any size or shape of manhole or wet well entry. The lightweight components and distinctive design allows the unit to be installed by one person in less than 30 minutes. It is constructed of stainless steel and other corrosion-resistant materials to last. A bottom swing-open trap door allows easy media removal, in or out of the manhole. 636-273-5189; www.setodorcontrol.com

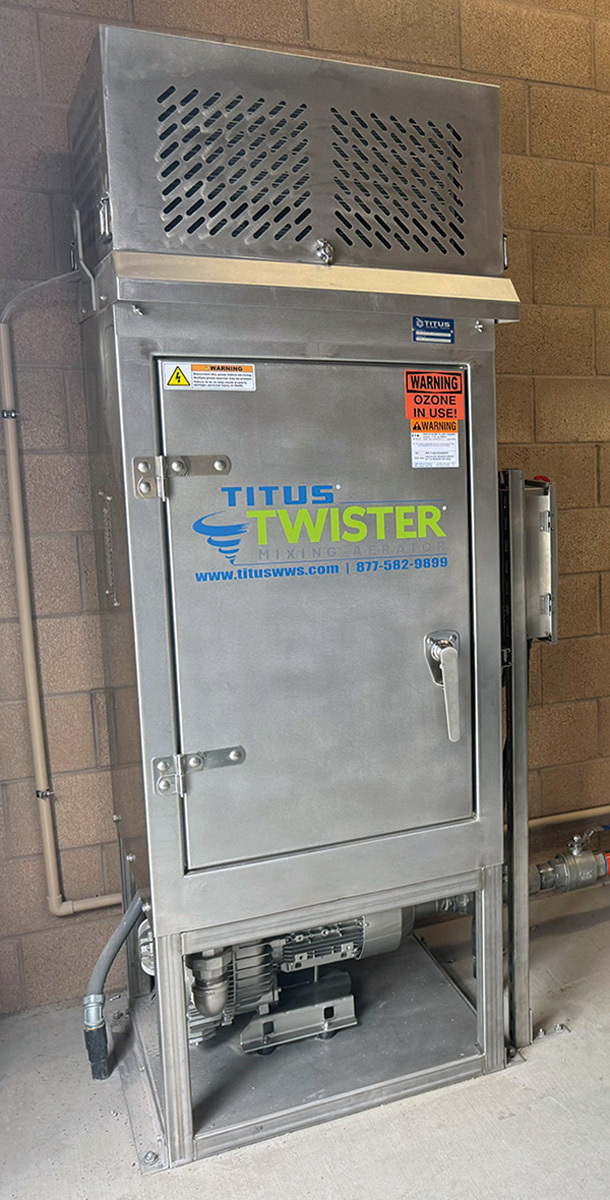

Titus Wastewater Solutions TITUS Twister Mixing Aerator
The TITUS Twister Mixing Aerator from Titus Wastewater Solutions provides a chemical-free approach to odor control by combining powerful aeration with mechanical mixing to create aerobic conditions that suppress odor-causing gases while improving wastewater pretreatment performance. Using air-lift technology, membrane diffusion and internal shear blades, the system introduces fine air bubbles that transfer oxygen into the wastewater while continuously mixing and suspending solids. This process helps break down solids, prevent blockages and reduce odor generation without relying on chemical dosing. At a recent installation at an 11 mgd wastewater treatment plant in Texas, the TITUS Twister reduced persistent hydrogen sulfide levels of over 1,000 ppm to approximately 40 ppm within a single day, maintaining those levels afterward. 877-582-9899; www.tituswws.com
Chemicals/Chemical Storage

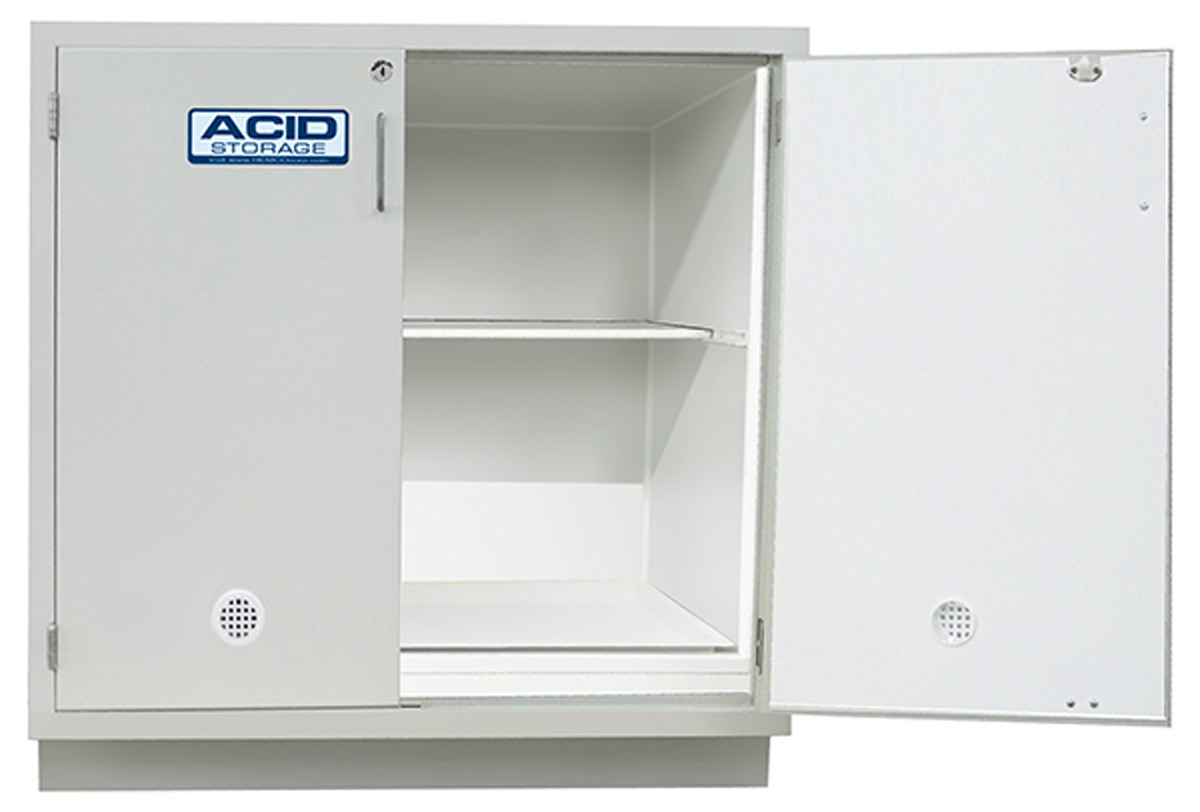

HEMCO Acid Storage Cabinet
The Acid Storage Cabinet from HEMCO is designed for storing corrosive chemicals and is available in 12-, 18-, 24-, 30-, 36-, 42- and 48-inch widths. The standard size is 35 inches high and 22 inches deep. The molded one-piece fiberglass liner inserts directly into the cabinet and has coved corners for ease of cleaning. The interior features a containment lip on the front bottom edge to hold spills. The front access doors have air inlet vents, are lined and have sealed edges. No metal is exposed to corrosive vapors. The shelf is removable for storing smaller containers. 816-796-2900; www.hemcocorp.com
The Definitive Deodorant Company Formula 105
Formula 105 from The Definitive Deodorant Company is an aqueous deodorizer designed to neutralize waterborne odors. It accomplishes this by combining with TSS in such a manner as to prevent them from creating odor. To ensure its effectiveness, it must be dispersed throughout the system that is to be deodorized. The beginning usage factor is about one part per 100 parts TSS in the wastewater. Over time it will aid aerobic bacteria in a wastewater system. In addition to neutralizing odor, it reduces solids’ appetite for dissolved oxygen, providing more oxygen for aerobic bacteria. It is nonvolatile, nonhazardous and biodegradable, allowing it to be suitable for land application. 816-221-4007; www.odorless.com
Chlorination/Dechlorination
Blue-White FLEXFLO M3
Blue-White’s FLEXFLO M3 peristaltic metering pump combines accurate metering at discharge pressures up to 125 psi, and intuitive icon-based touchscreen controls as easy to operate as a smart phone. Its IP66 rated M12 connection ports protect against moisture, dust, vibration and any temperature change. Remote control signal options include Pulse, 4-20 mA, Modbus TCP, EtherNet/IP and PROFIBUS for enhanced supervision and automation for critical metering and transfer applications. It provides quiet, smooth and low-velocity pumping action while easily handling many aggressive and/or viscous chemicals, and with peristaltic pumps there is no chance of vapor locking or loss of prime. 714-893-8529; www.blue-white.com
Force Flow Chlor-Scale and Halogen Eclipse
To protect chlorination systems from dangerous leaks, the Halogen Eclipse emergency valve shut-off system instantly closes the container valve when a signal is received from a leak detector, panic button or SCADA. The actuator quickly installs on the tank without the use of any tools and allows manual operation of the valve while in place. During an emergency shutdown event, the system measures the actual torque applied to the valve to ensure that the valve is closed to Chlorine Institute recommended standards and provides remote confirmation that the emergency close operation successfully closed the valve. The Chlor-Scale from Force Flow safely cradles a chlorine ton container while providing critical feed and chemical inventory information. Know in real time exactly how much chlorine has been fed and how much remains in the tank. It can warn of excessive or insufficient feed rates and can be remotely monitored from a PLC or SCADA system. 925-893-6723; www.forceflow.com
Ixom Watercare ResidualHQ
ResidualHQ from Ixom Watercare is a continuous residual monitoring and disinfectant delivery platform for chlorine or chloramine systems. When added to elevated or ground-level water storage tanks, it automatically maintains a preset level of disinfectant residual, saving on chemicals and minimizing disinfection byproducts. The system continuously samples and measures the chlorine and uses a feedback loop to add disinfectant as required. Active mixing ensures that disinfectant is uniformly distributed throughout the tank contents. The technology tracks disinfectant residual levels and trends and enables users to easily adjust parameters such as action thresholds, feed concentrations and feed ratios. Ixom ResidualHQ is configurable, making it adaptable to fit a wide range of applications, and it is designed to be easy to maintain, requiring infrequent system checks and calibrations. 866-437-8076; www.ixomwatercare.com

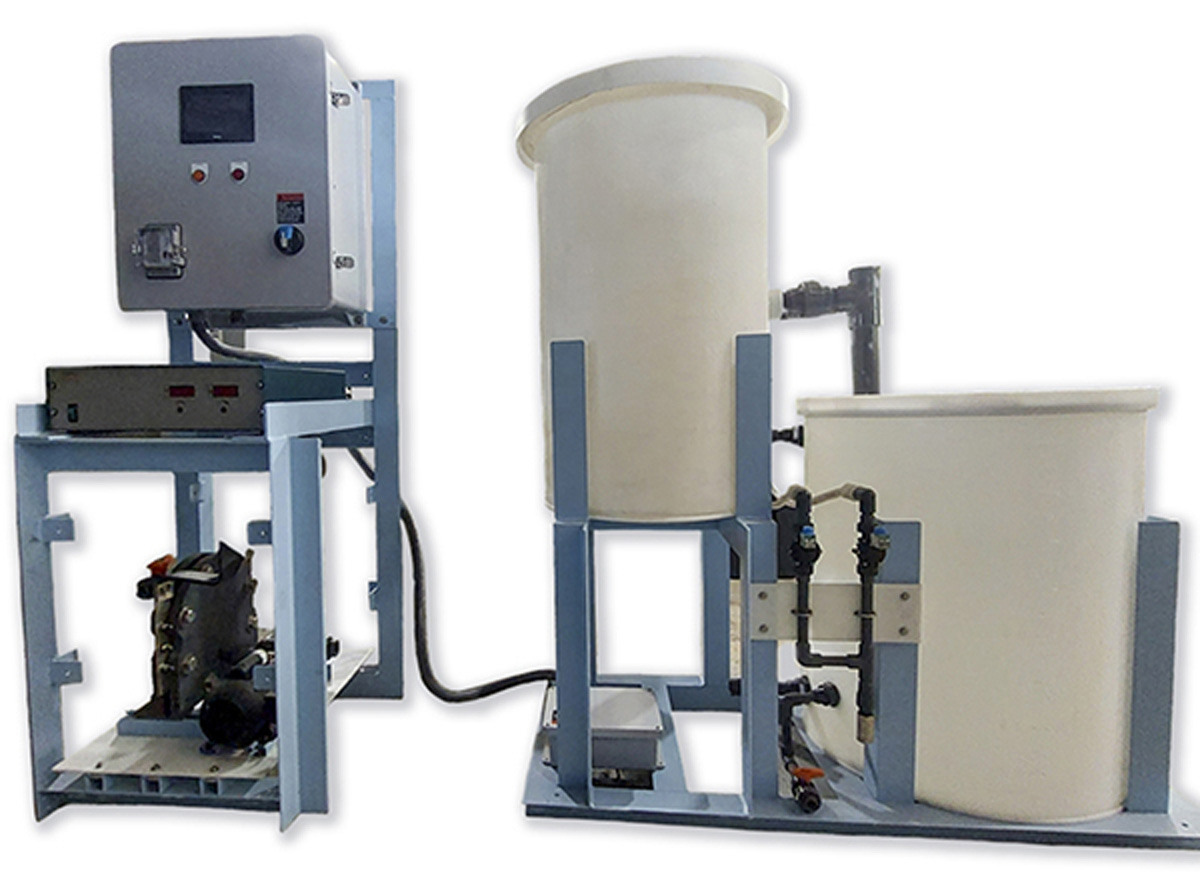

Scienco/FAST - a division of BioMicrobics SciCHLOR
The SciCHLOR sodium hypochlorite generator from Scienco/FAST - a division of BioMicrobics, is a fully integrated, simple and compact system for small to midsize municipal water treatment facilities. It features a “multi-pass” scouring design utilizing a SciCELL electrolytic unit, a control panel and a recirculation pump. It alleviates safety concerns associated with storing and using bulk sodium hypochlorite, chlorine tablets or chlorine gas. With an on-site generation of chlorine, a generator produces sodium hypochlorite at a cost that is significantly lower than purchasing from an outside source. The hypochlorite stays fresh instead of degrading in storage. Factory-tested, each compact system comes complete with an integral brine tank, SciCELL unit, control panel and recirculation pump. 314-756-9300; www.sciencofast.com
Covers/Domes
In the Round Dewatering horizontal drum
The horizontal biosolids dewatering system from In the Round Dewatering features a stainless steel drum with perforated plastic tile lining. The drum is mounted on a roll-off frame for easy transport and unloading. Trays contain discharge water. An 18,000- to 25,000-gallon batch is mixed with polymer before being filtered in the rotating drum, which is driven by a 1/2 hp variable-speed electric motor with a heavy-duty chain and sprocket. Turning eliminates crusting and wet pockets to produce uniform, consistent results. The dewatered material dumps easily, and the drum is self-cleaning. 317-563-2072; www.itrdewatering.com
Industrial Flow Solutions OverWatch
The OverWatch direct in-line pump system from Industrial Flow Solutions eliminates the need for a wet well, preventing the buildup of odors, minimizing clogging and reducing maintenance. Its smart sensing technology adjusts in real time to manage flow, ensuring optimal performance and eliminating the risk of downtime. Constructed with a durable stainless steel body, it is highly resistant to corrosion, making it ideal for municipal, industrial and commercial applications. Its compact design and efficient operation create safer, more hygienic environments, enhancing worker safety and reducing the need for costly odor-suppression measures. 860-631-3618; www.flowsolutions.com
JDV Equipment Level LODOR
The Level LODOR from JDV Equipment provides water quality professionals a means to dispose of processed waste, control odors and limit waste exposure to operators. It uses auto-leveling technology to level the waste material. This increases the fill percentage of a dumpster without operator intervention, slide gates or extensive control strategies while limiting exposure to potentially hazardous material and working conditions. Made for indoor or outdoor use, it can save valuable indoor square footage or eliminate the need for additional building space by installing the system outdoors. The covers are custom made to cover standard 20-, 30- and 40-yard dumpsters, with an overall footprint barely larger than a standard dumpster. The shaftless option uses replaceable ultra-high molecular weight liners that will reduce screw wear. The shafted option can be used for increased efficiency and has easily accessible grease points. 973-366-6556; www.jdvequipment.com
Paxxo Longopac Fill
The Longopac Fill continuous bag system from Paxxo can connect to the discharge point of machines used to move, dewater or compact screenings, grit and biosolids. Material is then deposited in a 90-meter-long continuous bag for odor containment and spillage control. The cassette bag can be sealed with ease and the material and odors are trapped inside, cutting down development of bacteria and fungus spores. 770-502-0055; www.paxxo.se/us
Detection Equipment
Eagle Microsystems GD-4000 Premier Series Chlorine Gas Detector
The GD-4000 Premier Series Chlorine Gas Detector from Eagle Microsystems is a high-performance solution for swift and precise gas detection. This versatile instrument safeguards against a spectrum of gases such as chlorine, ammonia, sulfur dioxide, ozone and methane. Engineered with an electrochemical gas sensor and touchscreen color alarm indicator unit, it ensures reliable monitoring across various concentration levels. Designed for user convenience, the sensors can be strategically placed in potentially hazardous zones while the main monitor resides in a safe area, shielding operators from direct exposure to gas leaks. The system employs an audible alarm, flashing display and 4 4-20 mA DC outputs ensuring quick response to potential threats. Furthermore, the alarm indicating unit seamlessly interfaces with up to four sensors, accommodating monitoring for the same or different gases. 610-323-2250; www.eaglemicrosystems.com
Distillation/Floridation Equipment and Microbiological Control
Lutz Jesco America TOPAX MC
The TOPAX MC multichannel controller from Lutz Jesco America has a modular design that makes it an adaptable and effective solution for all measurement and control technology requirements. It offers automated efficiency — freedom from repetitive control tasks while providing accuracy and reliability. Users can actuate the dosing pumps using an optocoupler or relay and servomotors by using a relay or a 20 mA output. The high-resolution, 5-inch color display offers a user-friendly operating interface with a simple touch-control and intuitive navigation menu that can be set to multiple languages. Use four analog outputs (0/4-20 mA) or the network capability to transfer measured values to a web browser or a telemaintenance point. A programmable interval timer can be used to set automatic alerts for wear-related sensor change. 800-554-2762; www.lutz-jesco.com/us

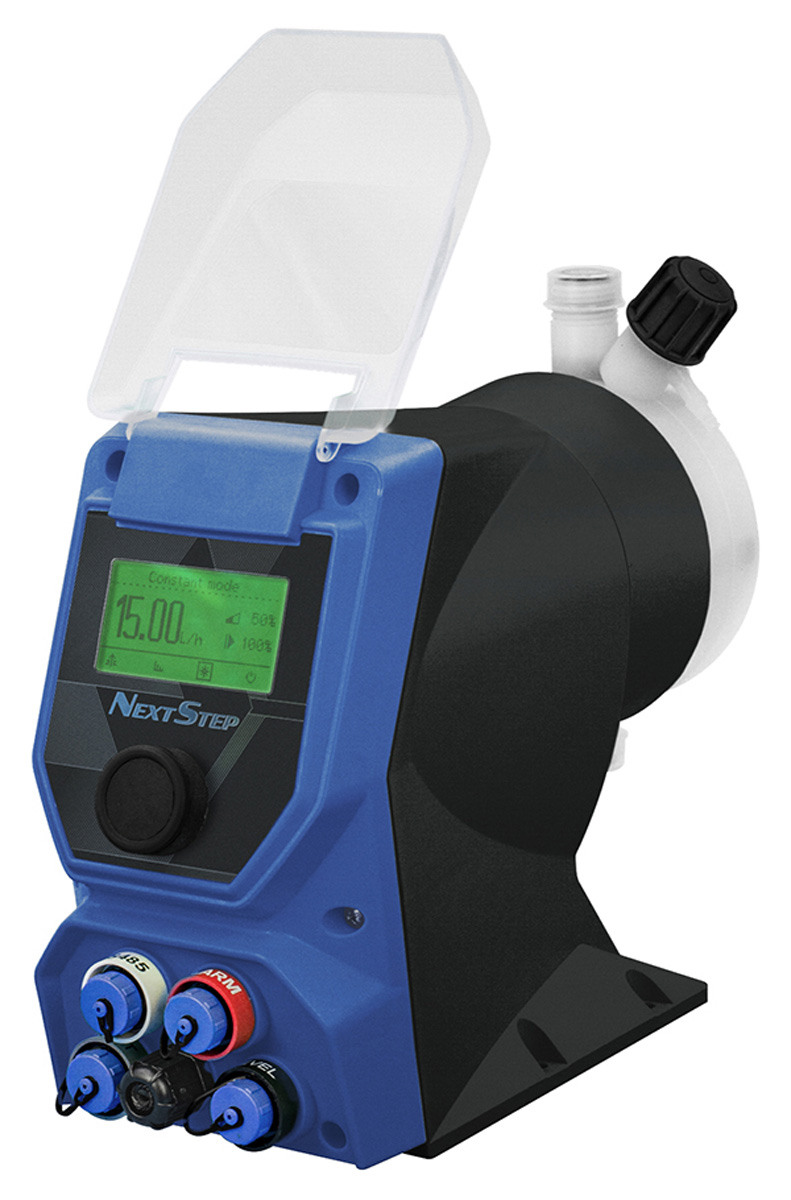

Pulsafeeder NextStep
NextStep dosing pumps from Pulsafeeder are designed for high-resolution metering control and reliability, covering a range of applications including polymer feed applications. When “once through” or nearly constant chemical discharge and even distribution of flow is beneficial, NextStep stepper motor pump provides high dosing accuracy, digitally controlled, high turndown ratio of 3,333-1, reducing pulsation and increasing the reliability of metering off-gassing and high-viscosity chemicals. Modbus or RS-485 communication keeps the process running smoothly even from a remote location. All needed valves, tubing and cables are in the box, even a foot valve with integrated low tank level alarm. 800-333-6677; www.pulsafeeder.com
