OZ Lifting Products stainless series
OZ Lifting Products’ stainless steel range includes chain hoists, lever hoists, trolleys and beam clamps all designed for use in corrosive environments. The centerpiece of the line is the stainless steel chain hoist, which is lightweight — meaning minimal effort is required to lift loads — yet durable enough for industry’s most demanding applications. The hoists feature fully enclosed gearing; a fully machined lift wheel; a weather-proof holding brake; roller bearings on all gears and shafts; and forged stainless steel hooks with safety latches. Chain hoists, like the trolleys, are available in 1/2-, 1- and 2-ton capacities. The stainless push beam trolley fits most I, S and W beams and has precision ball-bearing trolley wheels. The beam clamps are available in 1- and 2-ton capacities. All products in the line are made from 304 stainless steel and come with individual test certificates and serial numbers. 800-749-1064; www.ozliftingproducts.com

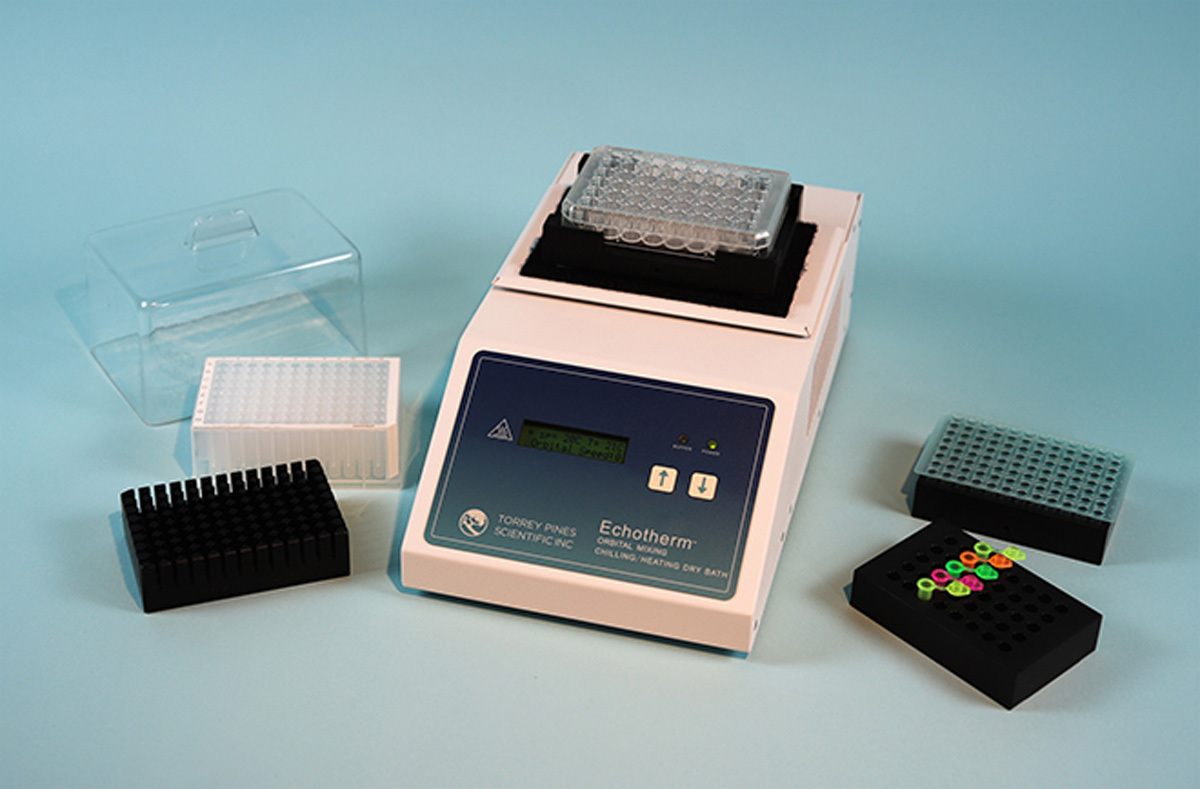

Torrey Pines Scientific EchoTherm SC20 and SC25 dry baths
Torrey Pines Scientific has introduced two new EchoTherm models. The SC20 is a simple digital unit while the SC25 is a fully programmable unit with a five-program memory. Both have a temperature range from -4 degrees to 212 degrees F and incorporate a variable speed orbital shaker for mixing and controlling the temperature of samples simultaneously. Both units have a 30-day countdown timer with alarm and auto-off, data logger and RS232 I/O port for data logging or controlling the units from a computer. Both models are Peltier-driven, with control to 34 degrees F, shaking range from 200 to 1,000 rpm and have a backlit two-line alphanumeric display. 866-573-9104; www.torreypinesscientific.com

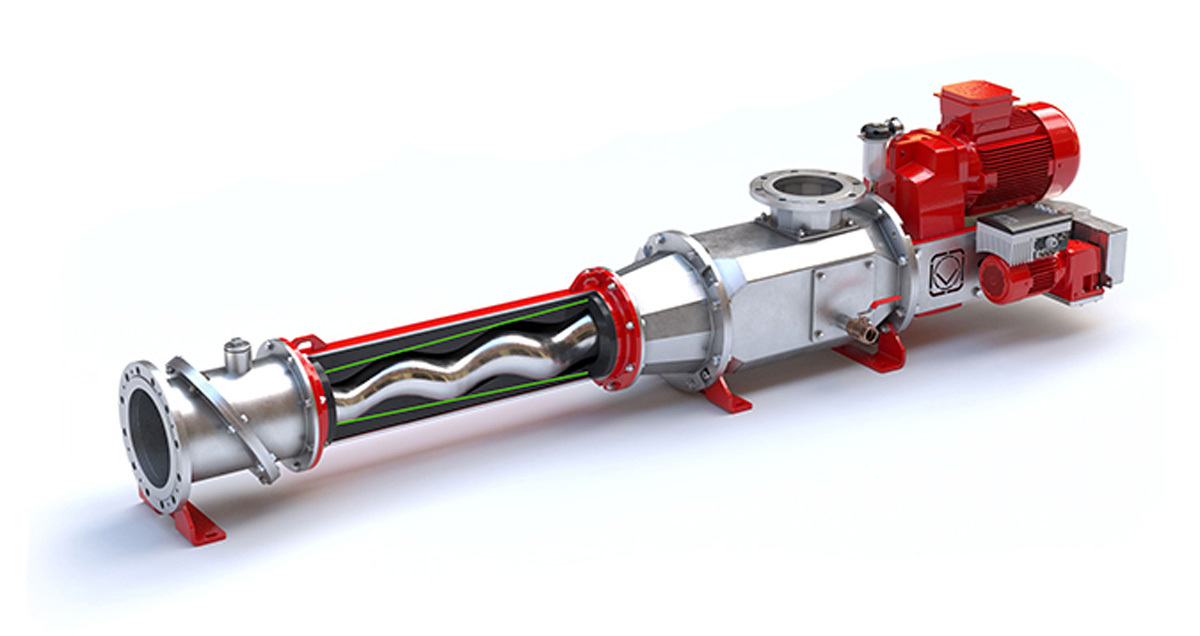

Vogelsang HiCone pumps
The HiCone progressive cavity pump from Vogelsang enables precise adjustments and was designed to maintain consistent conveying capacity and pressure resistance. The HiCone pump is suitable for applications in environmental wastewater applications as well as most industrial settings. The conical shape of the rotor and stator enables consistent sealing line compression through the pump life cycle. While static, the rotor and stator are positioned relative to each other to minimize compression between the two, requiring a smaller motor to start the pump as compared to a conventional progressive cavity pump. This greatly reduces the start-up torque of the pump, which in turn improves energy efficiency. The pump can be flexibly readjusted to suit a broad range of pumping tasks and operating parameters, providing solutions for demanding applications. 800-984-9400; www.vogelsang.com

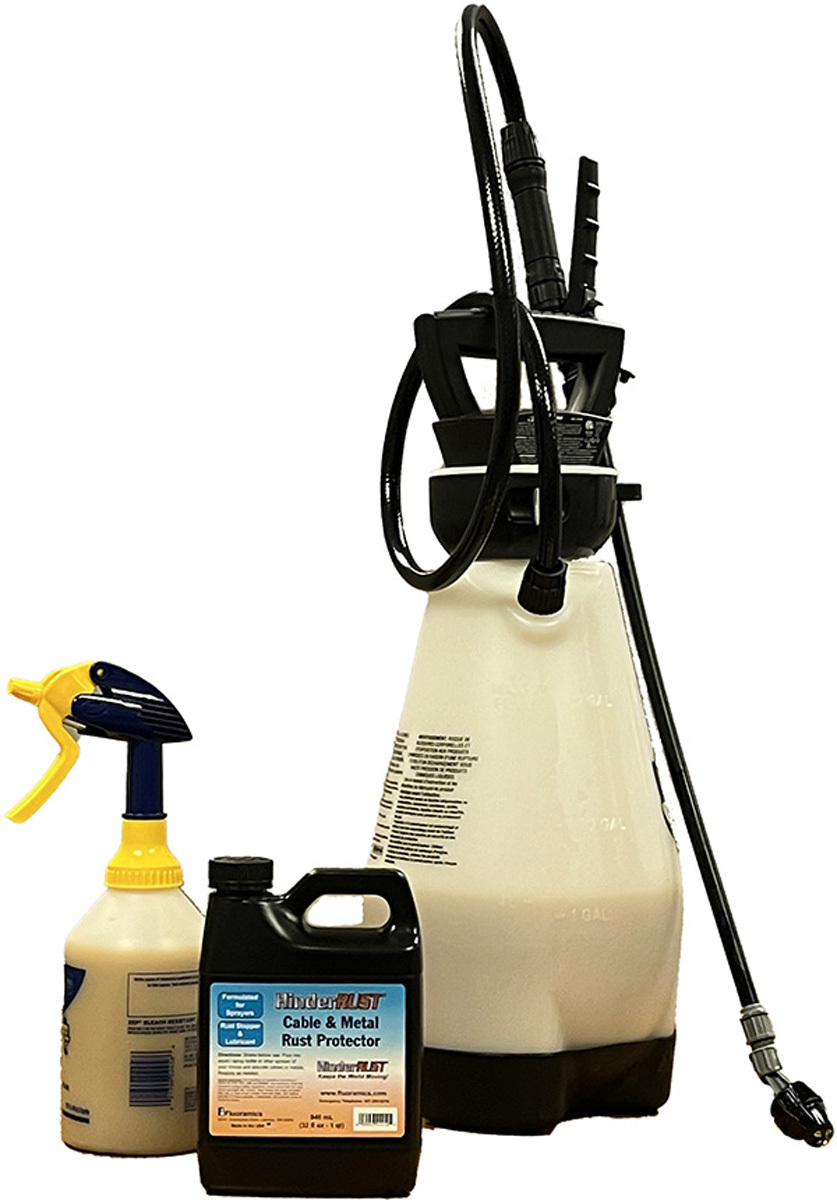

Fluoramics sprayable HinderRUST protector
Fluoramic’s new sprayable version of HinderRUST cable and metal rust protector offers ease of application. It can be sprayed through off-the-shelf chemical-approved squirt bottles or garden sprayers. HinderRust offers both short-term and long-term penetrating protection against flash rust, pitting and corrosion, and does not evaporate away. It is removable through normal finishing procedures such as power washing, or cleaning with acids and chemicals. The sprayable HinderRUST can also be used as a lubricant during nut/bolt and final product assembly to prevent rust, metal seizures and galling. 800-922-0075; www.fluoramics.com

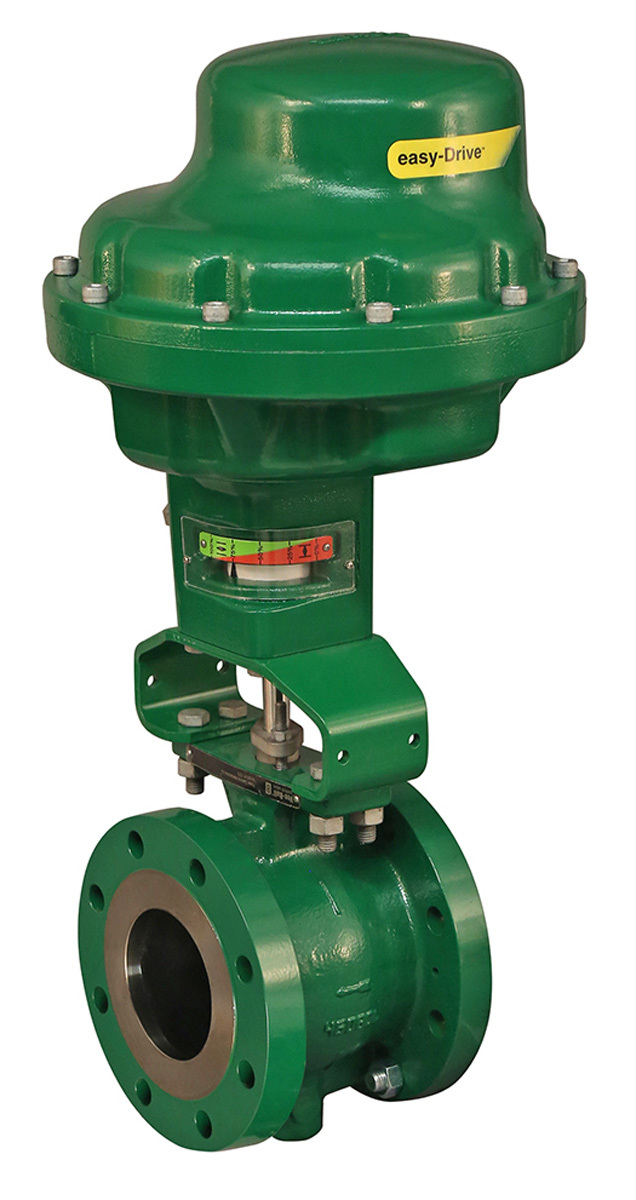

Emerson Fisher easy-Drive 200R electric actuator
Emerson has introduced the Fisher easy-Drive 200R electric actuator for use on Fisher butterfly and ball valves. The 200R calibrates itself when a user clicks one button using the easy-Drive Configurator Software, provided free of charge with the actuator. The actuator operates in temperatures as low as -40 degrees F, eliminating the need for a space heater in all but the most extreme temperature applications. It offers real-time monitoring of position, movements, cycles, travel time to position and power loss available via a Modbus RTU serial interface. 800-972-2726; www.emerson.com

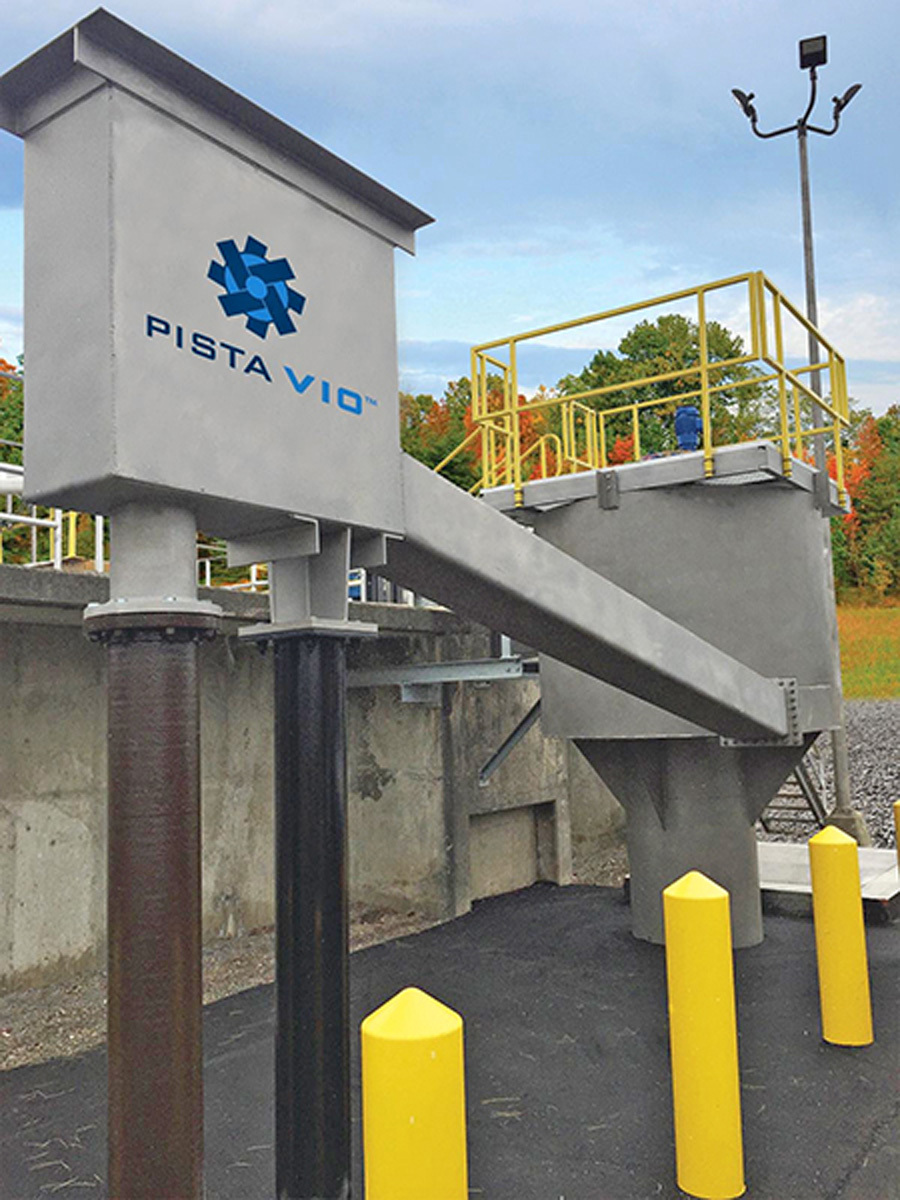

Smith & Loveless PISTA VIO grit removal chamber
The PISTA VIO (variable inlet outlet) grit removal chamber from Smith & Loveless features a versatile chamber design that brings grit removal performance to tight spaces with unique layout requirements. The innovative design of the PISTA VIO provides the ability to arrange the inlet and outlet channels at any angle up to the full 360 degrees of the chamber. The chamber achieves 95% grit removal efficiency of particles down to 100 microns in size, across all flow conditions. Its flow maximizer baffle and tunnel system create an effective vortex flow pattern, while the effluent flume counteracts the weir effect, significantly reducing grit bypass. With a 5:1 turndown capability, the PISTA VIO delivers exceptional performance and reliability during low-flow, average daily and peak flow conditions without derating. 800-898-9122; www.smithandloveless.com

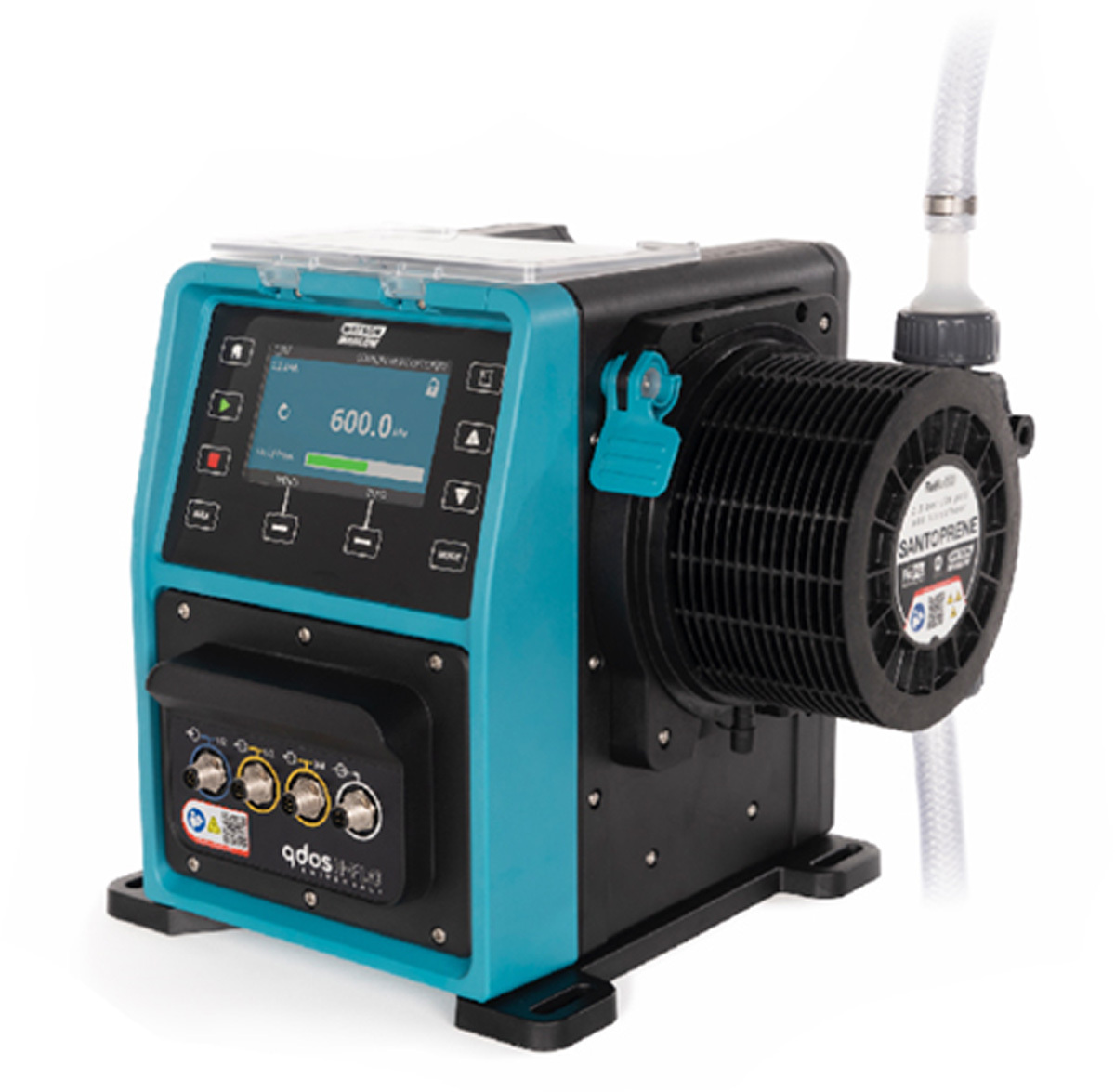

Watson-Marlow Qdos H-FLO chemical metering pump
Watson-Marlow Fluid Technology Solutions has launched the Qdos H-FLO chemical metering and dosing pump, designed specifically for higher flow rates up to 158 gph. Qdos H-FLO is designed for higher flow rates with a variety of pump heads and a range of different tube materials to ensure chemical compatibility with the process fluid. The pump offers pressure capability up to 102 psi. Qdos H-FLO is supported with an optional pressure sensing kit that provides real-time pressure monitoring, which ensures process security and improves safety. 800-282-8823; www.wmfts.com

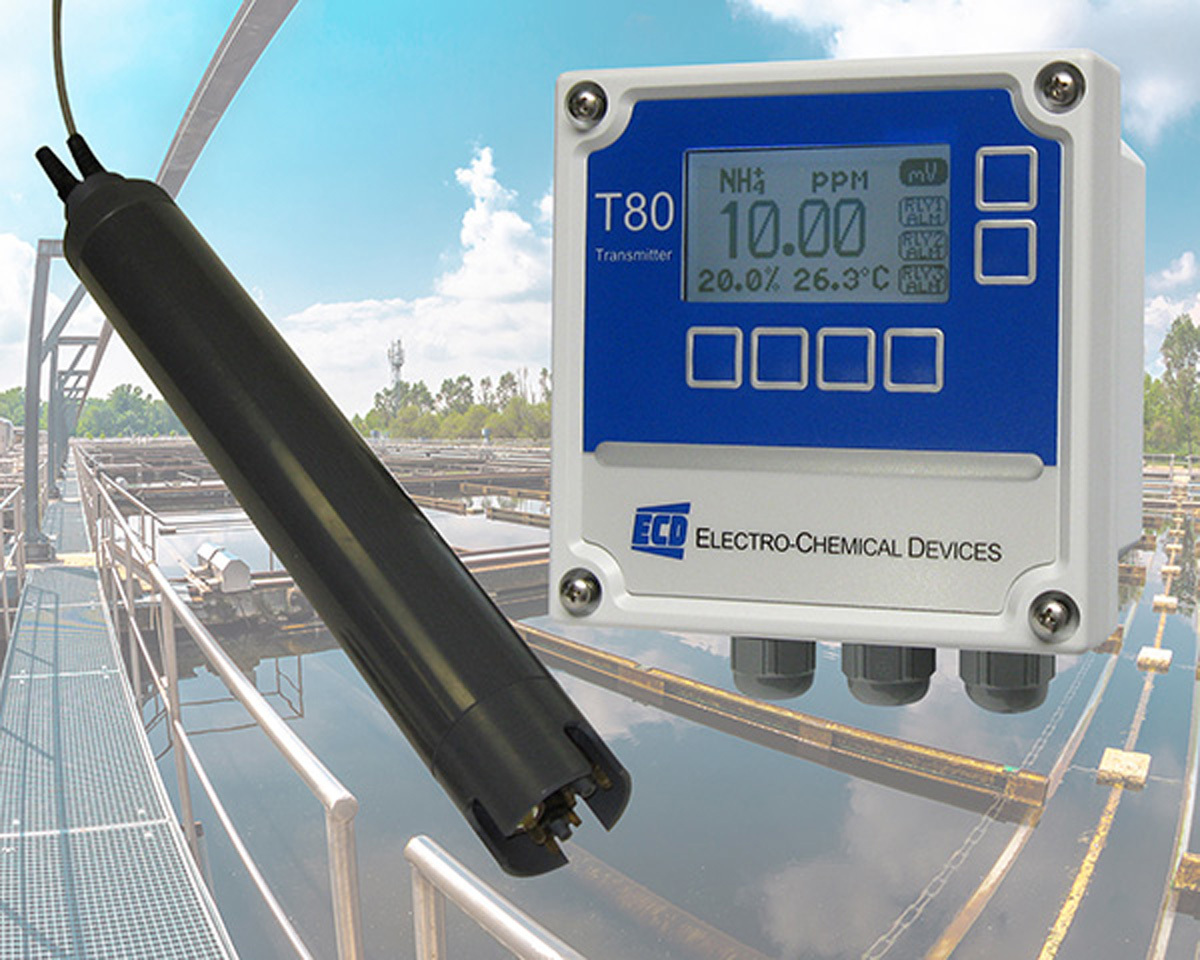

Electro-Chemical Devices HYDRA-DS analyzers
With its versatile design that monitors nitrogen as ammonium or as nitrate, the precision family of HYDRA-DS Analyzers from Electro-Chemical Devices simplifies the accurate measurement of harmful nutrients in wastewater treatment effluent flows and in surface water storage systems, including ponds, lakes, reservoirs, canals and streams. The analyzers feature an advanced ion-selective electrode sensor, which is designed for multiple parameter nutrient nitrogen water quality measurements. This versatile double-duty ISE sensor seamlessly connects with either ECD’s intelligent T80 transmitter or LQ800 multi-channel transmitter to provide a total system solution for highly effective and economical nutrient management. The HYDRA-DS feature auto-compensation circuitry for interfering ions and temperature compensation, rugged PVC construction with easily replaceable electrodes and a built-in spray cleaner that minimizes expensive technician maintenance for a lowest total cost of ownership. 800-729-1333; www.ecdi.com

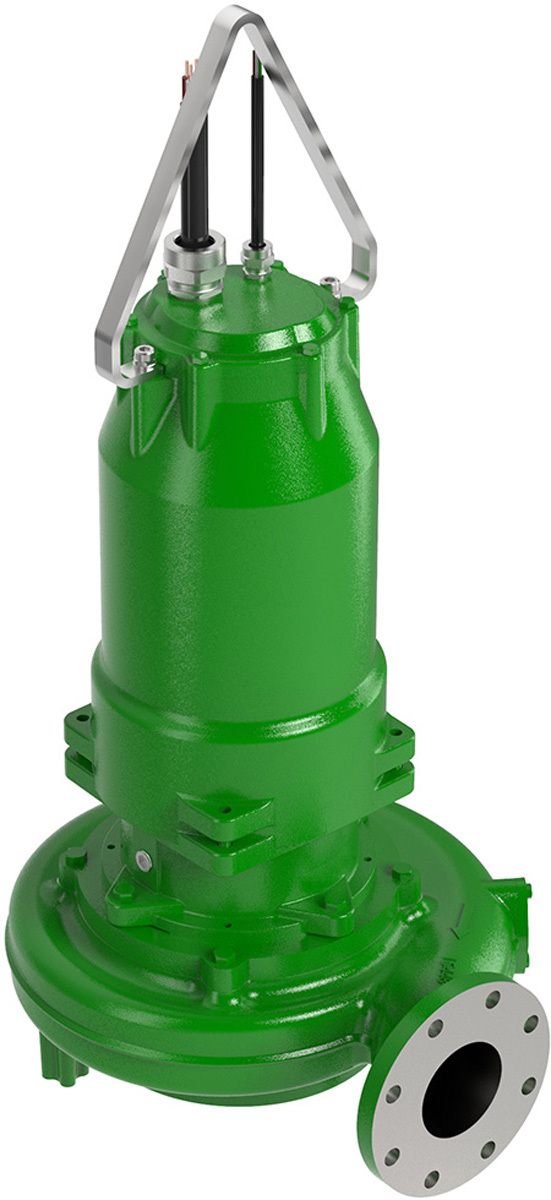

Pentair solids handling pumps with advanced hydraulics
Pentair released its new line of next-generation submersible solids handling pumps. Featuring a hydraulic design built to protect wastewater systems from the clogging challenges presented by modern flushables, this new range of pumps provides superior clog resistance while reducing energy consumption and the need for regular maintenance. Designed to prevent clogs, these pumps feature a semi-open impeller and cutter plate combination that provides superior clog resistance. An all-new hydraulic design requires less horsepower to meet specific duty points. Built with servicing in mind, the pumps require no regular maintenance. The pumps come in multiple sizes ranging from 10 to 40 hp and 3-, 4- or 6-inch discharge configurations. 763-656-5589; www.pentair.com
