Lifting Products facility maintenance system
The facility maintenance system by OZ Lifting Products is a versatile, customizable material handling system designed to optimize efficiency and safety in water treatment and wastewater facilities. At its core is the Tele-Pro davit crane, available in capacities of 500, 1,200 or 2,500 pounds. Featuring OZ’s patented telescoping boom technology, this advanced boom enables precise, infinite adjustments under load. The Smart Latch ensures tool-free assembly, while the corrosion-resistant finish offers added protection from the elements. Each USA-made davit crane is individually tested and certified to 125% of its rated capacity. Choose from a variety of base options and winch configurations to tailor a system to specific needs. Elevate your facility’s maintenance operations with OZ Lifting Products. 800-749-1064; www.ozliftingproducts.com

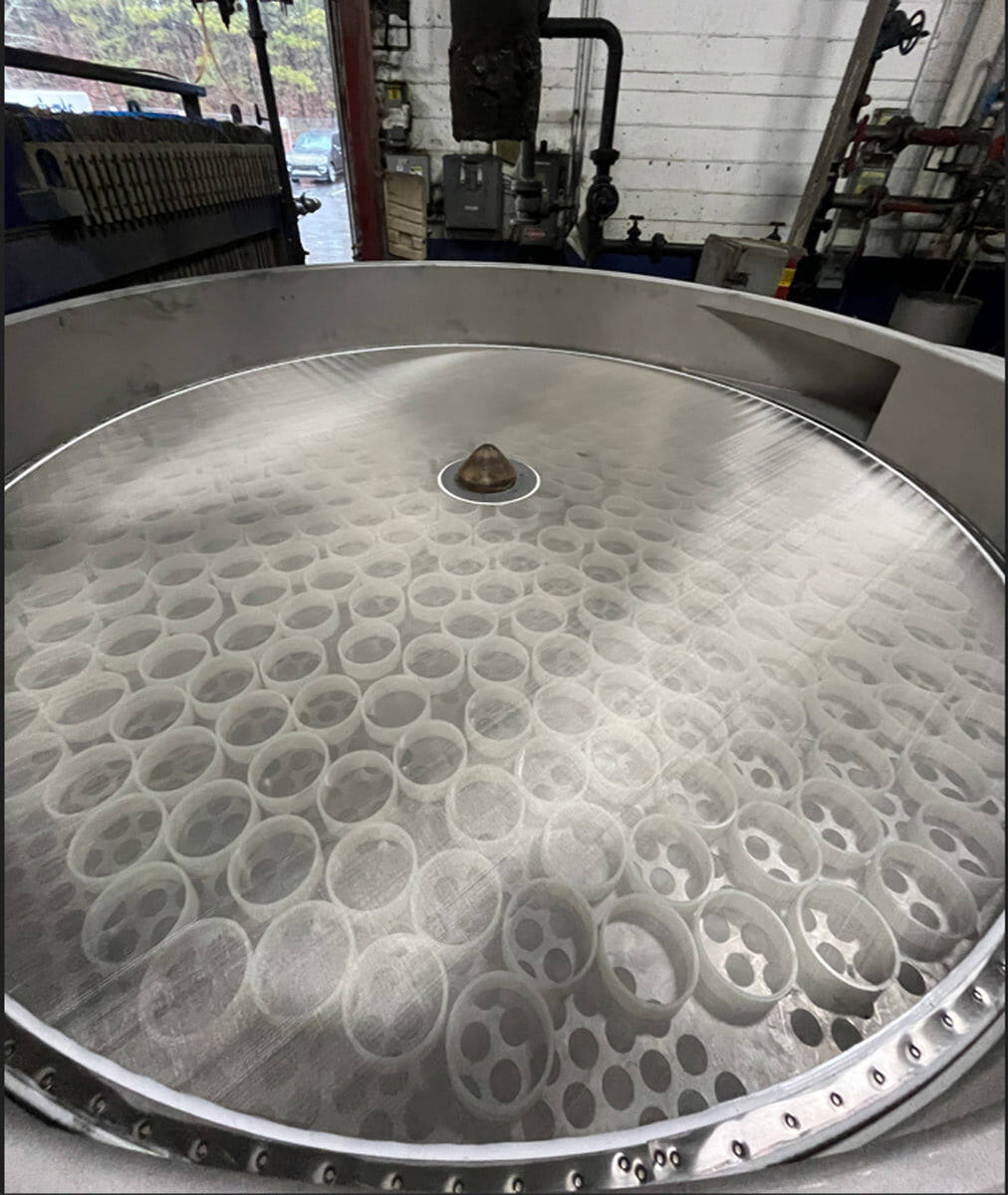

Compass Wire Cloth pretensioned sandwich screens
Compass Wire Cloth’s round pretensioned sandwich screens are outfitted with self-cleaning sliders and robust connectors to achieve superior filtration at each stage of treatment. The screens feature a precision-tensioned mesh system, fabricated in-house to ensure tight tolerances and dependable fit with all major OEM vibratory screeners. The round screen’s unique sandwich-style construction holds self-cleaning sliders that move freely during operation to actively reduce screen blinding, maintain high flow rates and minimize maintenance interruptions. The screens are available in multiple aperture sizes ranging from 20 microns to 11,000 microns. 800-257-5241; www.compasswire.com

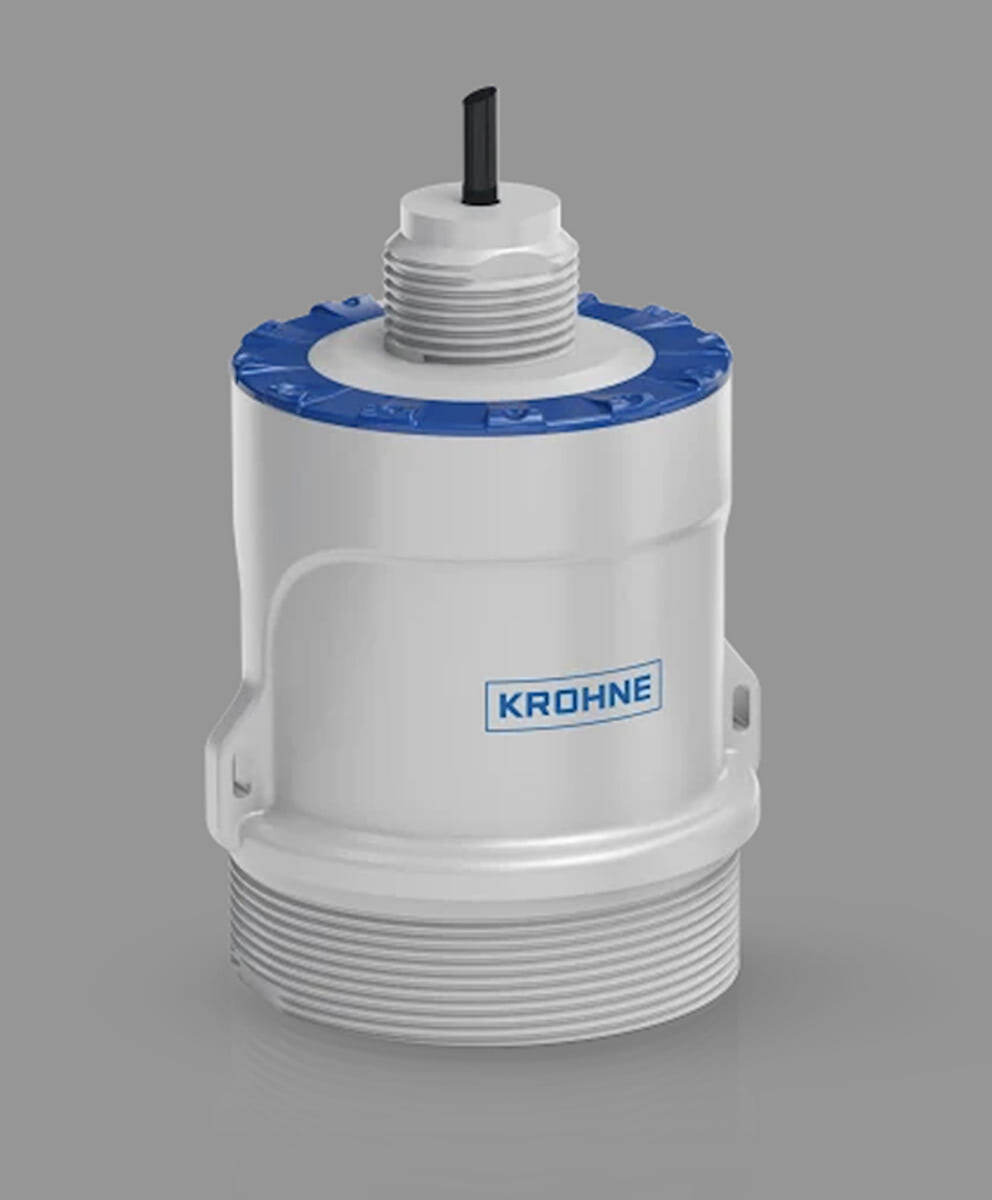

KROHNE OPTIWAVE radar FMCW transmitters
KROHNE’s OPTIWAVE 1530 and OPTIWAVE 1560 radar FMCW level transmitters deliver drift-free, maintenance-free operation without the need for recalibration over the lifetime of the product. The OPTIWAVE 1530 has a measuring range of 49.2 feet, making it well-suited for small to medium silos, stockpiles, bunkers and tanks. The OPTIWAVE 1560 extends this capability to 98.4 feet for long-range measurement in tall silos, large tanks, and deep vessels. The flush-mounted, concave PVDF lens antenna offers excellent chemical resistance and a self-draining design to prevent buildup, maintain a stable radar signal, and ensure consistent performance, even with condensation present. Installation is simplified with a unique 3-inch threaded connection that fits standard flanges and accessories without protruding into nozzles, eliminating potential measurement interference. For extreme conditions, an optional IP68-rated waterproof version offers maximum protection in heavy rain, outdoor dusty environments and flood-prone areas. 800-356-9464; us.krohne.com

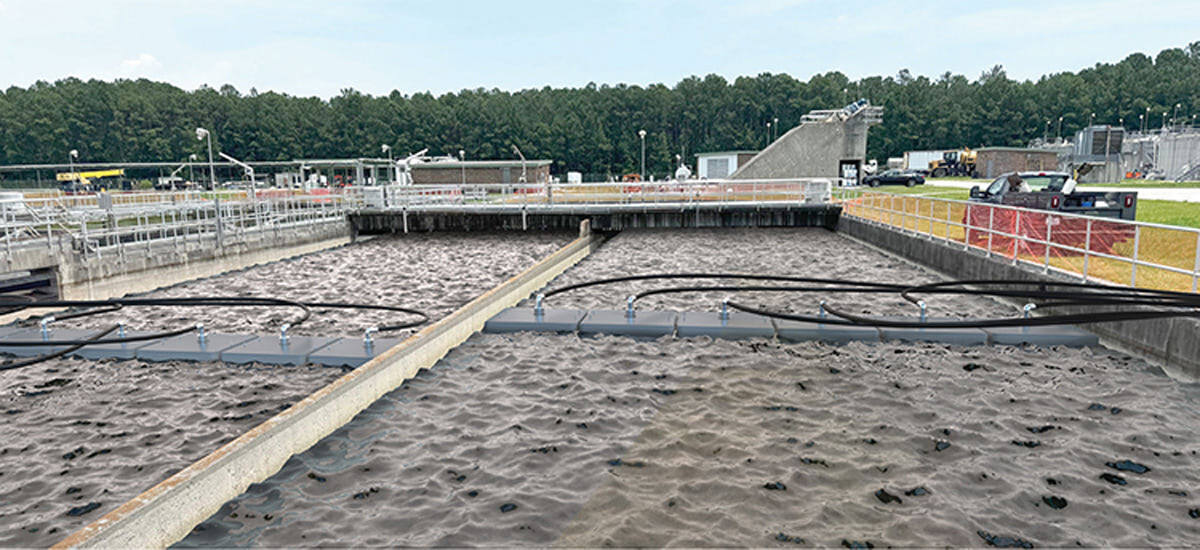

Titus Wastewater Solutions Twister SDF aerator
Titus’ Twister SDF aerator is an air-driven, subsurface aeration system engineered to transform oxidation ditches, polishing lagoons and other treatment basins. Designed as a low-maintenance, high-performance alternative to traditional brush, surface and disc aerators, the Twister delivers equal or superior oxygen transfer compared to mechanical aerators, and true directional flow for even oxygen distribution. The aerator also reduces sludge buildup and handling costs through enhanced mixing. There are no moving parts in water, resulting in lower downtime and improved operator safety. They can be installed quickly and all maintenance can be performed from land-based access. 877-582-9899; www.tituswws.com

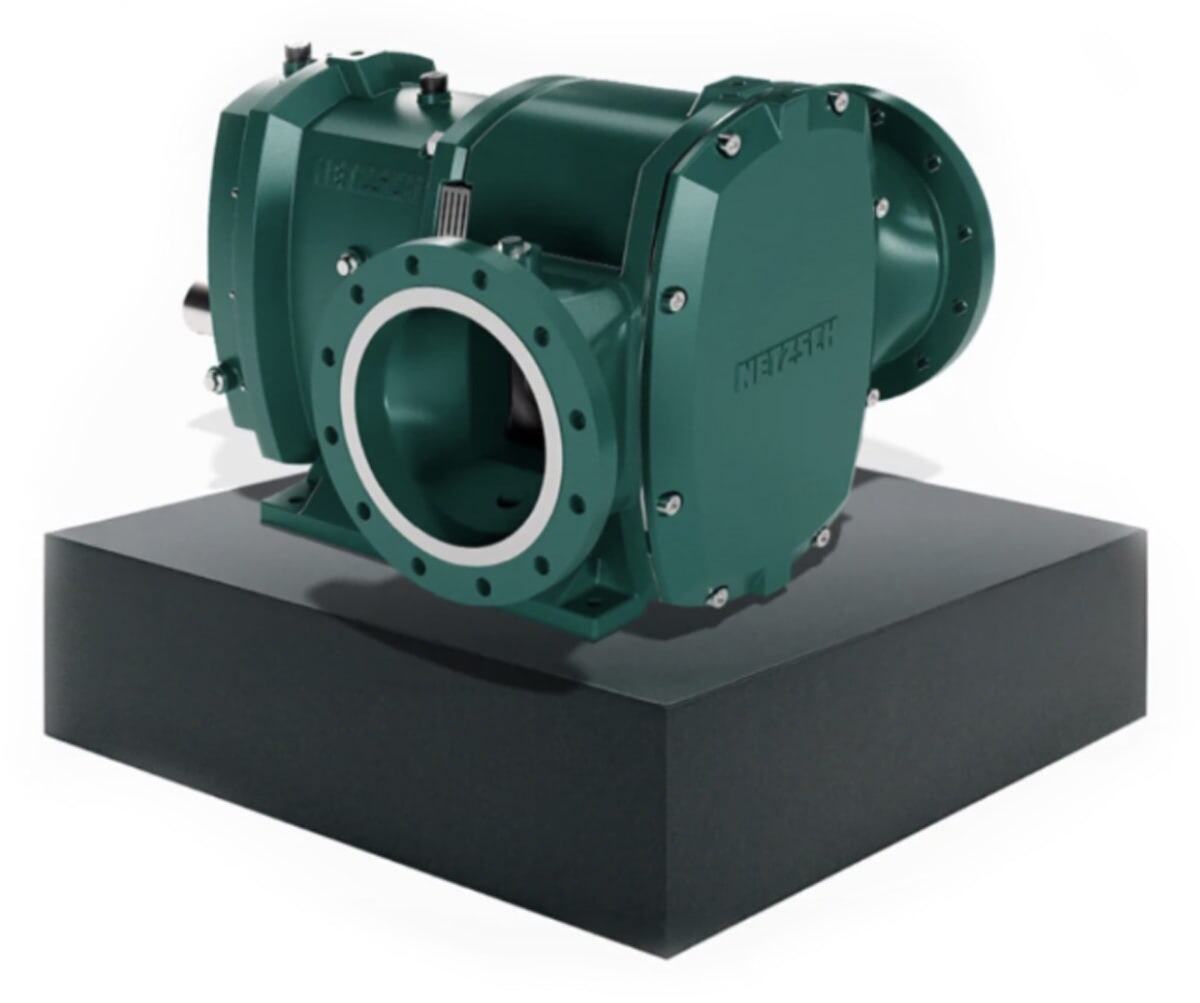

NETZSCH Pumps USA TORNADO T1 XXLB-F rotary lobe pump
NETZSCH Pumps USA introduces the TORNADO T1 XXLB-F rotary lobe pump, a new high-performance model engineered for demanding, large-scale pumping applications. With flow rates up to 6,160 gpm and differential pressures up to 174 psi, the XXLB-F extends the TORNADO line into new territory, offering maximum flow in a compact, modular and service-friendly design. Available in three sizes (XXLB 2F, 4F and 6F), the new model delivers up to 35% more flow than previous T1 pumps, while maintaining excellent energy efficiency and dry installation flexibility. The pump features a one-piece, flow-optimized housing and improved lobe geometry for enhanced volumetric efficiency and gentle handling of shear-sensitive or solids-laden media. New wider lobe tips reduce backflow, while the axial and optional radial wear plates available in highly abrasive- and chemical-resistant materials extend wear life even in harsh operating environments. 610-363-8010; www.pumps-systems.netzsch.com

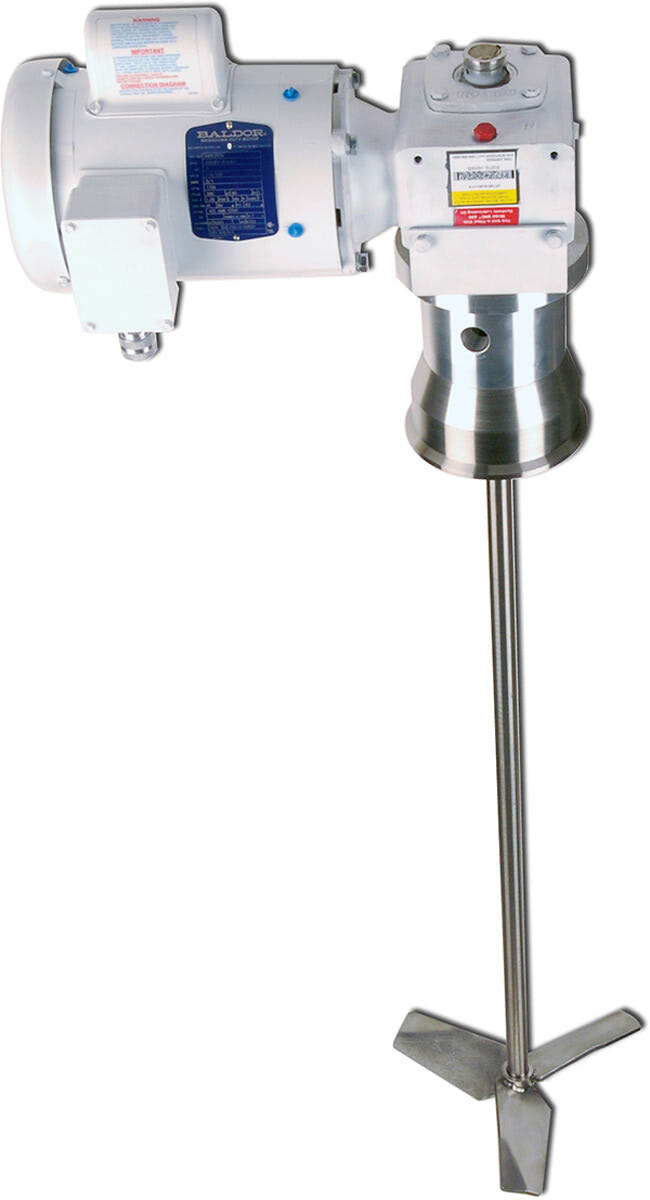

INDCO Tri-Clamp mount mixers
Tri-Clamp mount mixers from INDCO offer a sanitary tri-clamp design that allows quick and easy no-tools access to the vessel. The Model TCMG-4-075V gear-driven, electric variable speed unit plugs directly into a standard 120-volt outlet. Standard features include a 4-inch diameter tri-clamp flange, internally mounted mechanical seal rated full vacuum to 125 psi and a 5:1 gear reducer. A 3/4 hp nonpainted washdown motor (white epoxy finish optional) is driven by a NEMA 4X control and provides output speed from 35 to 350 rpm. The 1-inch diameter by 48-inch long shaft attaches to the coupler and one 14-inch hydrofoil impeller with set screws. All wetted parts are 316 stainless steel, with optional electropolished wetted parts available. Various motors and impeller options are available. 800-851-1049; www.indco.com

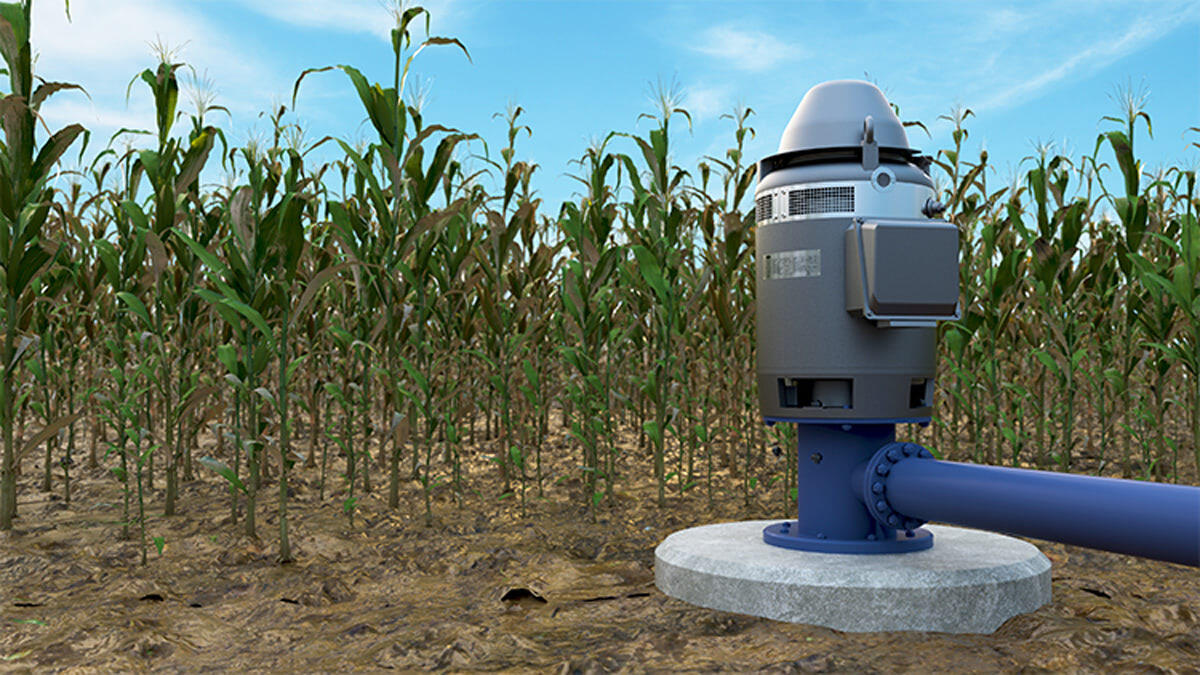

ABB vertical hollow-shaft motors
ABB vertical hollow-shaft motors deliver increased high-thrust capacity for demanding applications, simplified maintenance with direct pump-shaft access and faster installation with drop-in design. ABB’s VHS motors reduce downtime with a top-mounted coupling and hollow shaft that provide quick, direct access to the pump shaft. A stationary and nonreverse ratchet prevents reversing due to backspins. The motors come in a wide range of configurations: 15 to 500 hp with multiple voltage and frame options. 800-435-7365; www.abb.com
