Centrifugal Pumps

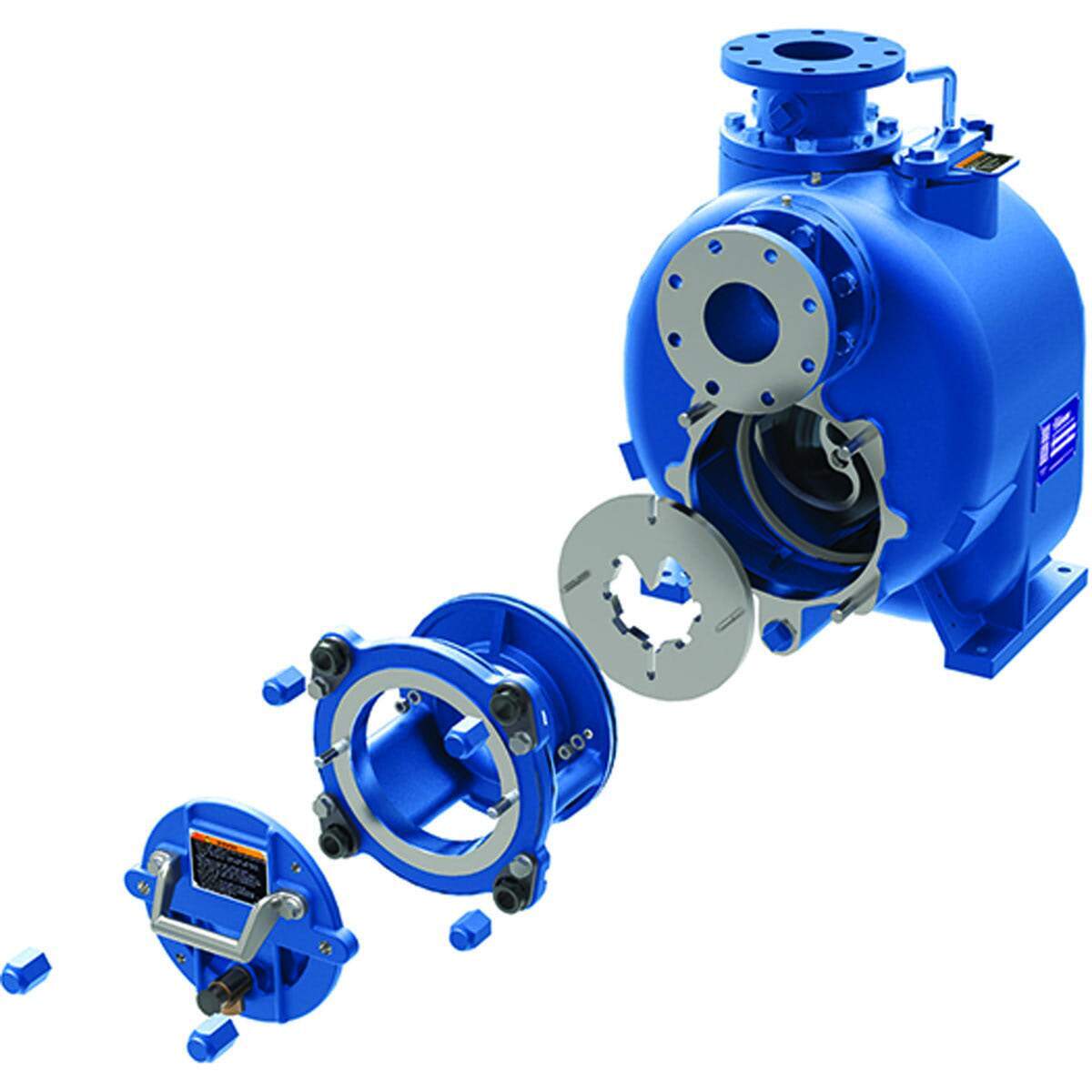

Gorman-Rupp Super T Series

Super T Series self-priming centrifugal trash pumps from Gorman-Rupp are available with Eradicator Plus solids-reduction technology for 3-, 4- and 6-inch sizes. The product was designed for extreme-duty applications in municipal, industrial and agricultural markets. For liquids containing trash bags, wipes, mop heads, hair, industrial byproducts and agricultural wastes, it cuts and tears organic solids entering the pump. Pumps include an easily removable lightweight inspection cover, a back cover plate incorporating an obstruction-free flow path, a heavy-duty hard iron continuous vane impeller with thick back shroud to prevent debris buildup, an extra-thick hard iron wear plate with notches, grooves and oversized lacerating teeth to cut and shred organic solids, and an upgraded stainless steel, load-bearing shaft. Complete units are available in cast iron construction. Upgrade kits are available for pumps currently in use. 419-755-1011; www.grpumps.com

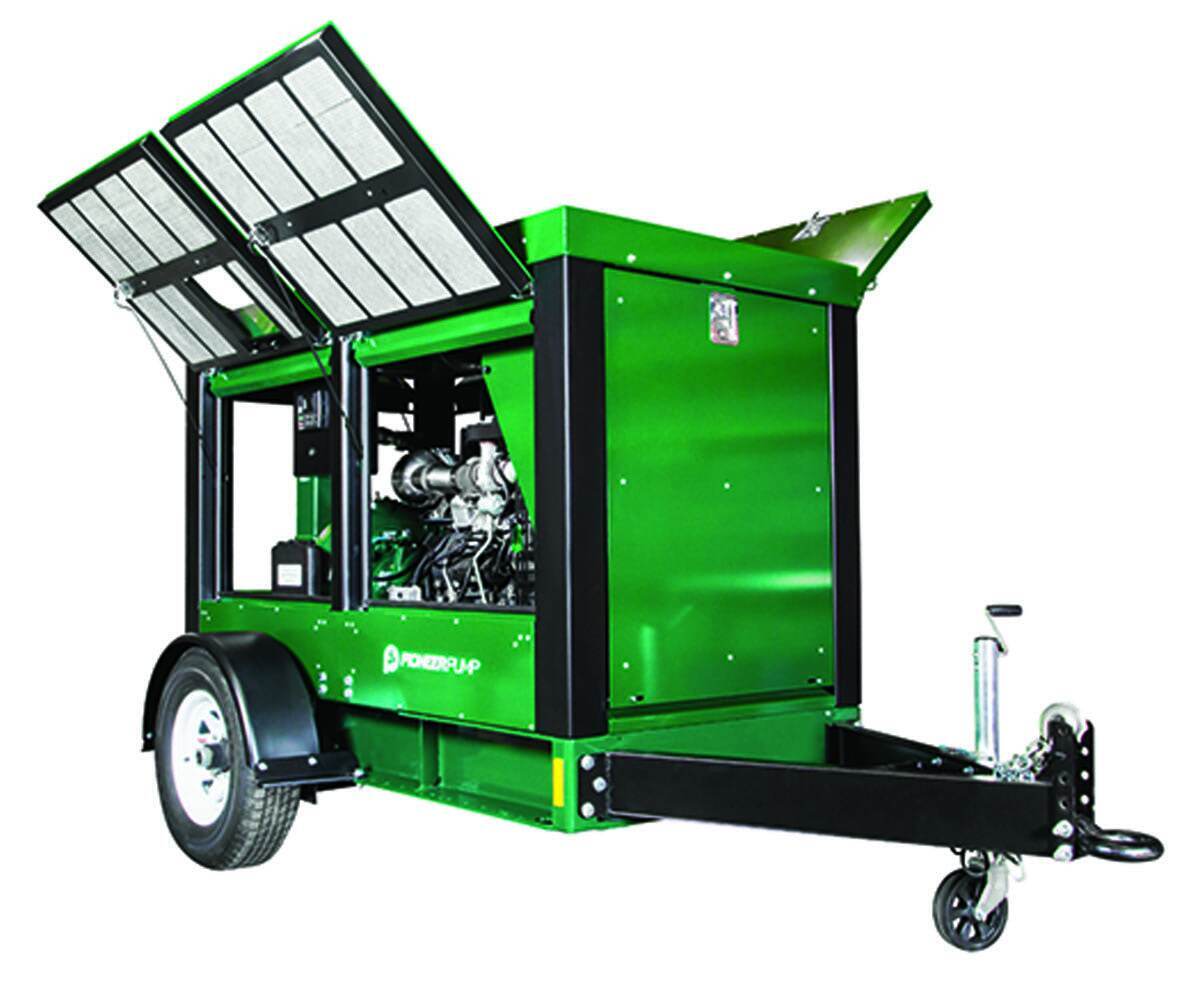

Pioneer Pump Diesel-Driven Pump Packages

Pioneer Pump, a brand of Franklin Electric, offers a comprehensive range of diesel-driven pump packages including options for fixed and portable installations. These packages are built for tough environments and are available with vacuum-assisted priming, self-priming and standard centrifugal pump ends. Available in sizes up to 18 inches, the centrifugal pumps are designed to provide better flow, higher head and greater efficiency to meet unique challenges. Sound-attenuated enclosures are available for select models. Enclosures are manufactured from heavy-duty sound-deadening material to meet industry standards for noise reduction. All enclosures offer lockable door panels that can be removed in minutes without tools for easy and direct access to the pump. 503-266-4115; www.pioneerpump.com

Chopper Pump

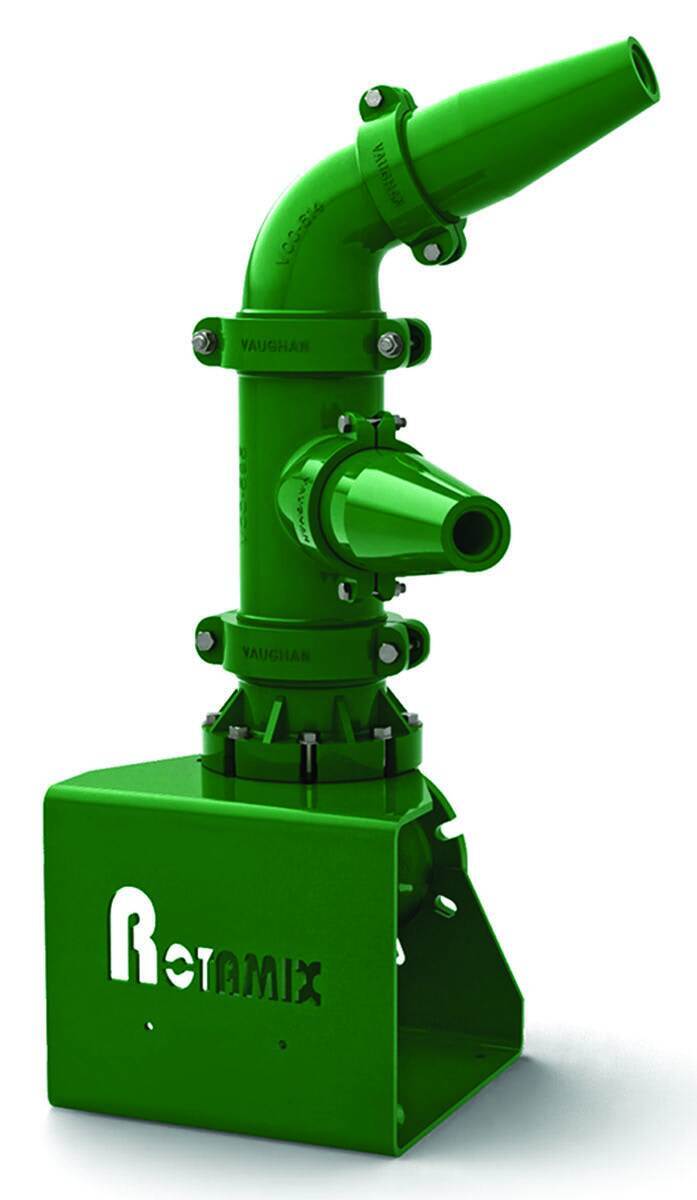

Vaughan Company Rotamix system

The Vaughan Company Rotamix system is a cost-effective means of mechanical hydraulic mixing for sludge tanks, digesters and other high-volume applications. Combining high-velocity mixing nozzles and the Vaughan Chopper Pump, the Rotamix creates a multizone mixing pattern while simultaneously chopping all accumulated solids, resulting is an easy-to-pump, homogeneous mix. 888-249-2467; www.chopperpumps.com

Effluent Pumps

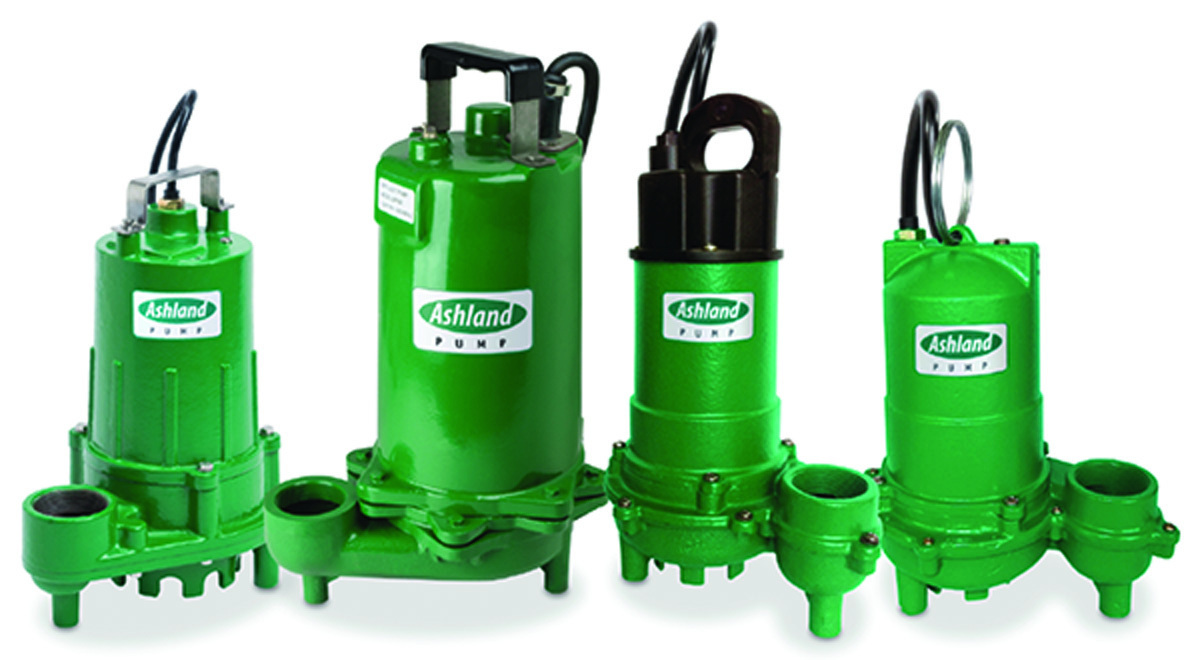

Ashland Pump effluent pumps

Heavy-duty effluent pumps from Ashland Pump are available in multiple horsepower sizes for various performance requirements and have efficient permanent split-capacitor motors. The oil-filled pumps have an upper and lower ball-bearing design and handle solids up to 3/4 inch. They are made of cast iron with cast iron impellers and equipped with a piggyback switch (20-foot standard cord) or in manual configurations. They are offered in 3/10, 4/10, 1/2, 3/4, 1 and 1 1/2 hp models. 855-281-6830; www.ashlandpump.com

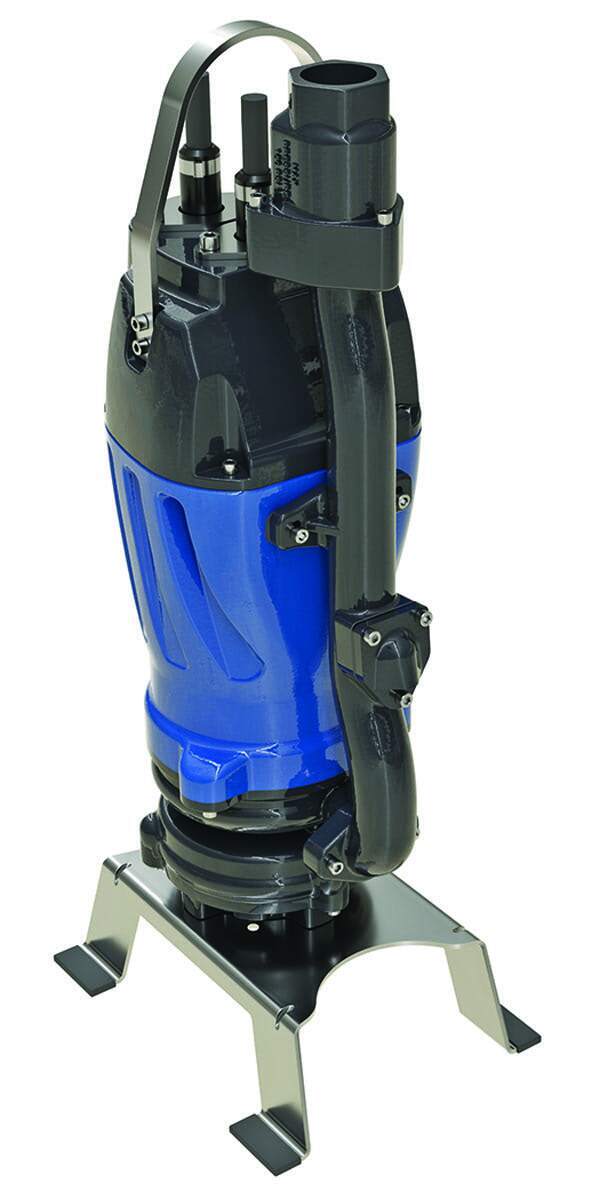

Crane Pumps & Systems Barnes RAZOR

The 2 hp Barnes RAZOR grinder pump from Crane Pumps & Systems is suitable for light commercial and residential solids-handling applications. It is designed with axial cutting technology to reduce solids like flushable wipes, diapers and other nonbiodegradable items. Maintenance is convenient with only a single tool needed for disassembly. The plug-and-play cord also provides easy servicing without requiring removal of epoxy in the conduit. Its 1.25-inch discharge is suitable for preconfigured packaged systems and turnkey solutions. It is available in the Barnes EcoTRAN Pressure Sewer System for grinding in tough terrain. It provides a practical and environmentally safe alternative to traditional gravity systems. Numerous configuration options are available. 937-778-8947; www.cranepumps.com

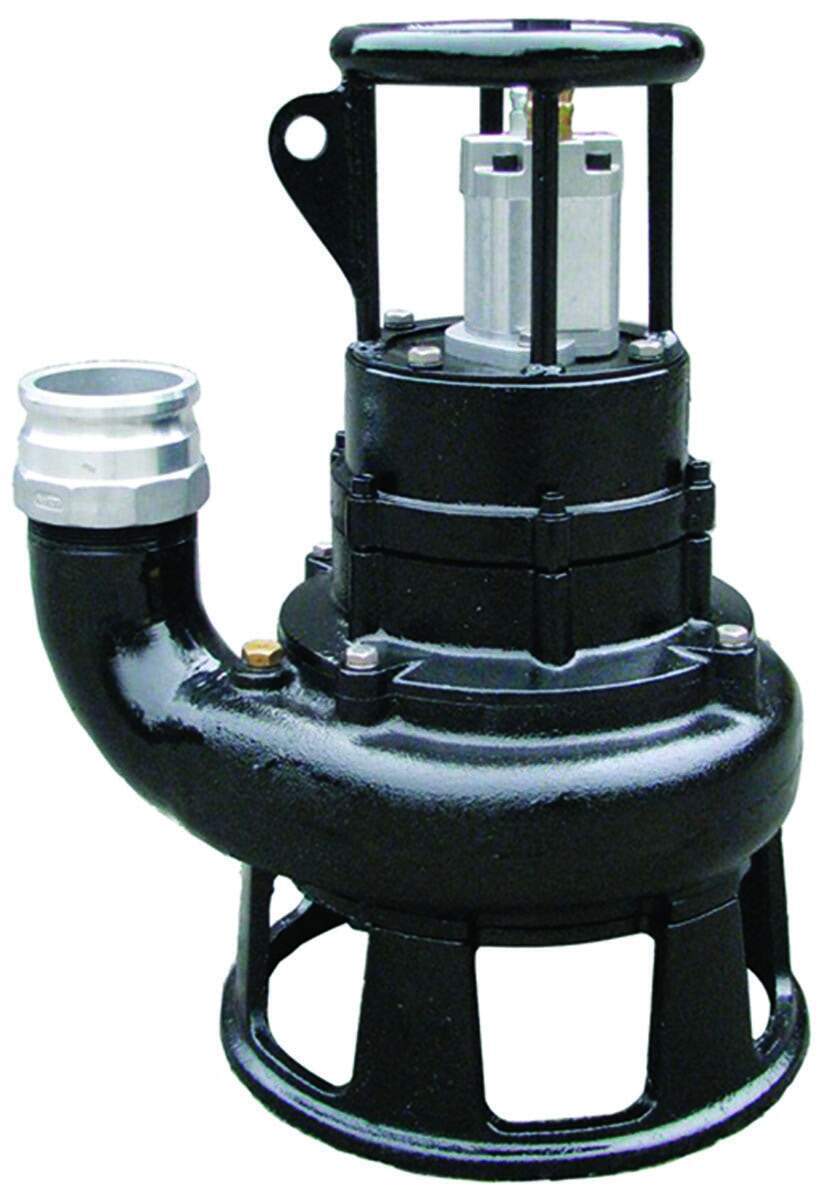

Hydra-Tech Pumps S4SHR and S4SHR-LP

S4SHR and S4SHR-LP 4-inch hydraulic submersible shredder pumps from Hydra-Tech Pumps are designed to continuously rip and shear solids with a 360-degree shredding action. The pump’s carbide-tipped impeller and hardened macerator suction plate work together to produce a violent shredding action that keeps the discharge open. This 4-inch pump is suitable for municipal, industrial, agricultural and institutional waste applications. The S4SHR-LP is narrower in size at 21.5 inches, which allows it to fit through most manholes. Depending on the application, there is a version for portable or fixed installations. A guide rail assembly is available for stationary applications. Combined with HT16 to HT25 power units, the S4SHR is capable of flows up to 810 gpm. The safe and variable-speed hydraulic drive can be used where electric power is hazardous or impractical. 570-645-3779; www.hydra-tech.com

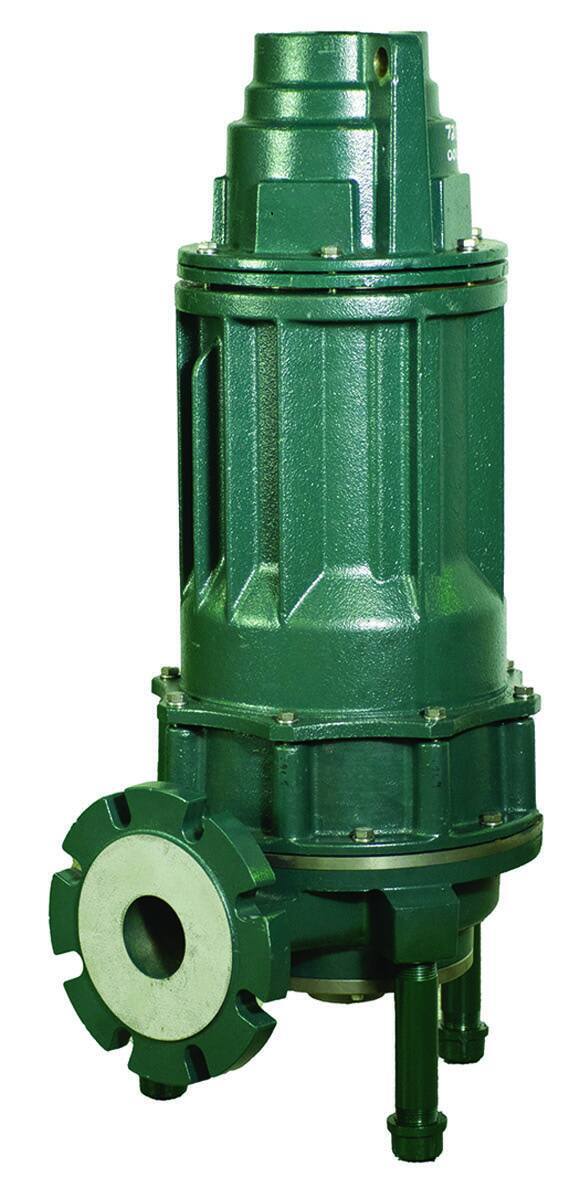

Zoeller Pump 10 & 15 hp grinder pumps

Zoeller Pump’s 10 & 15 hp is an expansion to its existing grinder product offering now ranging from 1 to 15 hp.  The units include a dual carbon ceramic shaft seal, moisture and thermal sensor and buna-N gasket protect the 3,450 rpm motor, and class F windings. They are available in 208, 230, 460 or 575 volt, three phase. The 3- or 4-inch ANSI flanged horizontal discharge allows for easy adaption to competitor grinder or solids handling rail systems. The pumping performance ranges from 250 feet at shut off and a max flow at 150 gpm at 50 feet TDH. Removable legs clear the bottom of the pump to allow debris to flow easier into the cutter assembly when used with a guide rail assembly. This assembly uses 440 stainless steel with a Rockwell C hardness of 55-60 cutter and cutter plate in a scissor-like cutting motion that reduces solids down to 1/8 inch in size. 800-928-7867; www.zoellerengineered.com

Metering Pumps

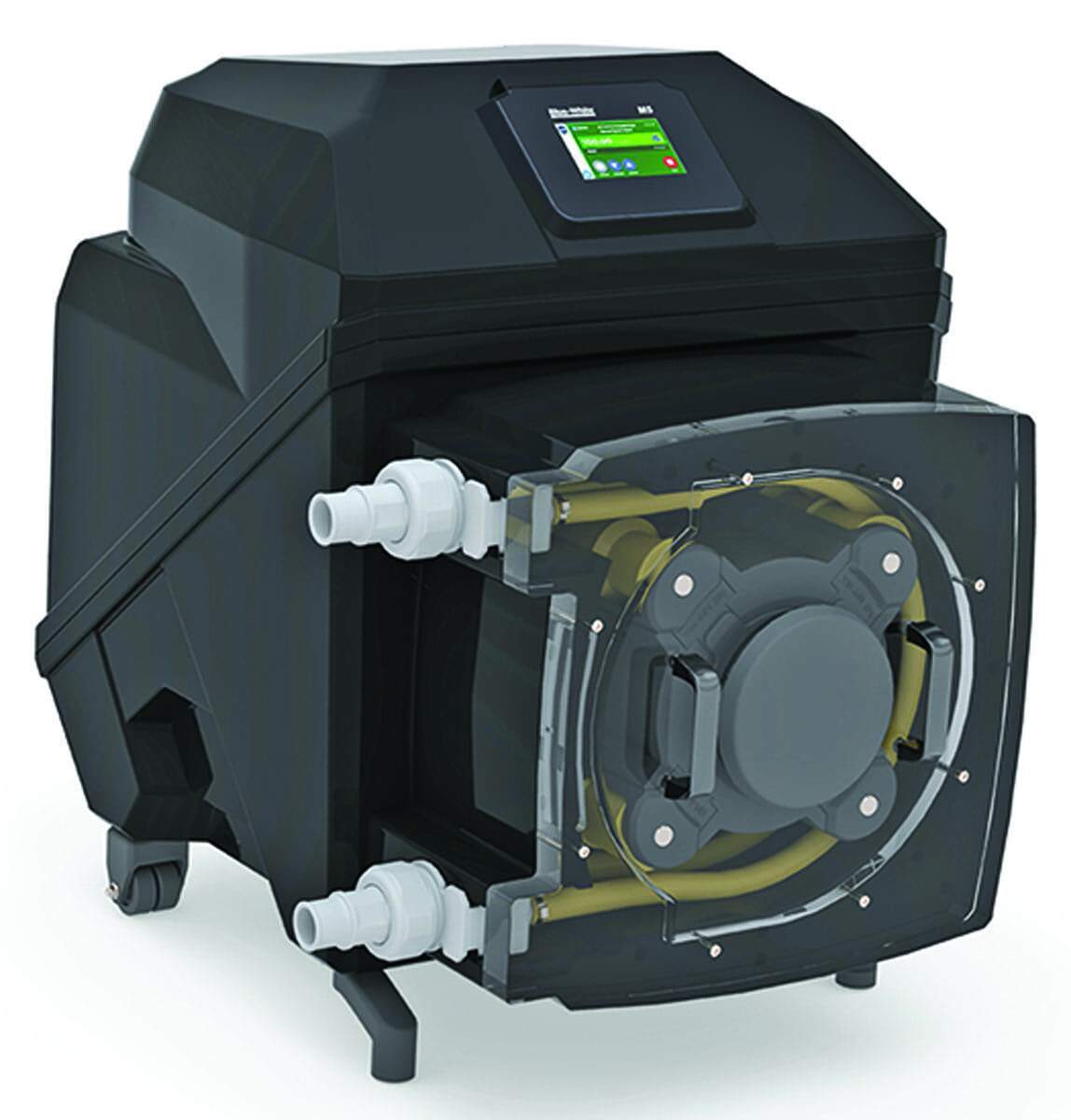

Blue-White FLEXFLO M5 Peristaltic Metering Pump

The FLEXFLO M5 Peristaltic Metering Pump from Blue-White accurately doses chemical .0124 to 540 gph at motor speeds of just 75 rpm. This greatly increases tube life, reduces overall maintenance and is energy-efficient. It is all-inclusive with no external components required. The chemical resistant enclosure houses the pump head, energy efficient BLDC motor, premium control boards, and all connections (manual, remote analog/digital, EtherNet IP, Modbus TCP/IP, PROFIBUS). The large 5-inch touchscreen color display is as simple to operate as a cellphone. It includes password security to prevent tampering. Pulsation is reduced by up to 80% with its offset roller design and dual-channel tube assembly. The heavy-duty roller eliminates flexing and increases accuracy. There are no metal springs or hinges to corrode. It is equipped with built-in tube failure detection to help prevent hazardous chemical spills. 714-893-8529; www.blue-white.com

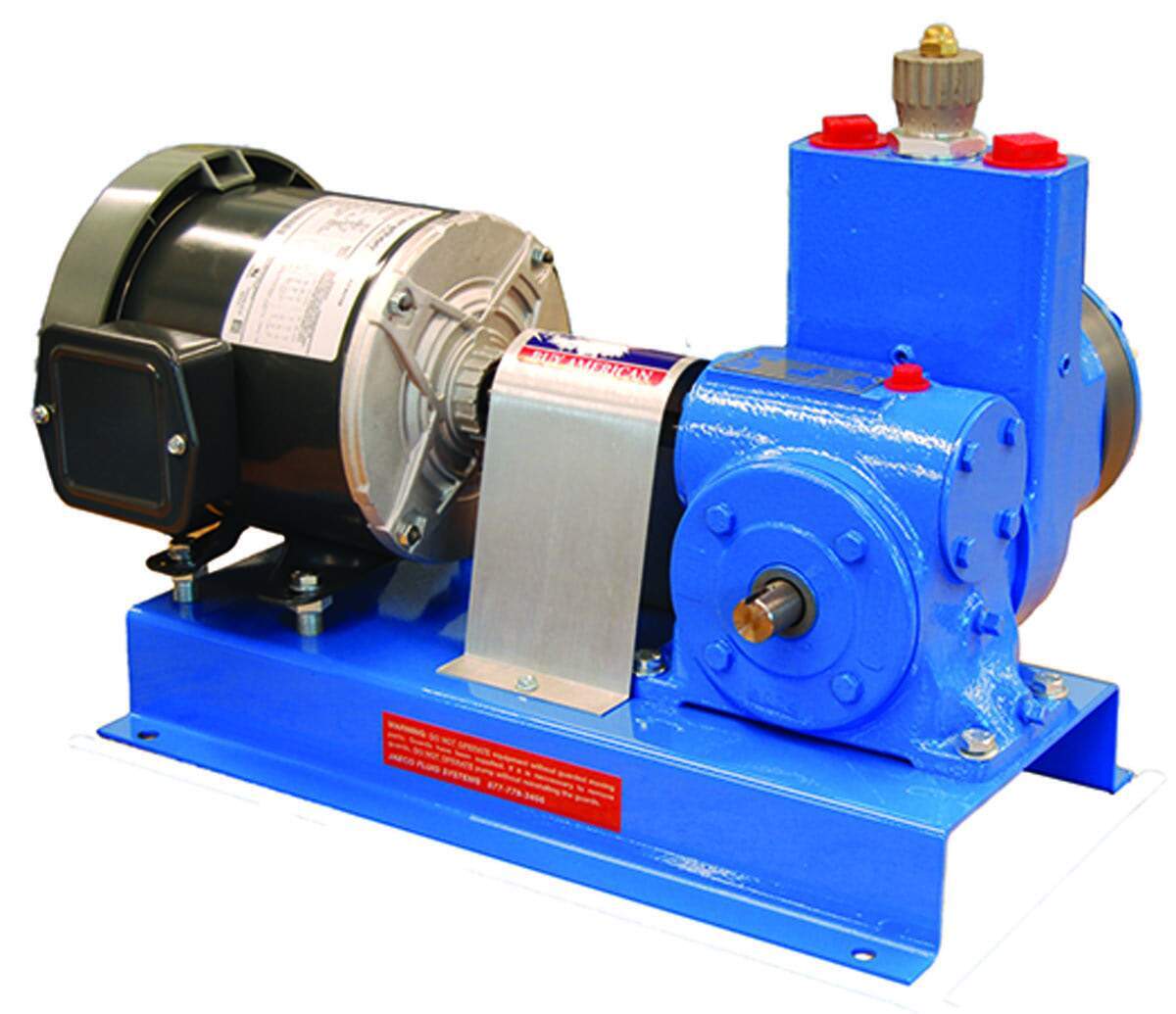

JAECO Fluid Systems FRAM pumps

FRAM pumps from JAECO Fluid Systems are hydraulically actuated and designed for accurate, completely leakproof metering of difficult-to-handle liquids. The durable cast iron pumps are available in simplex or duplex with capacities ranging from 0.86 to 56 gph at operating pressures up to 1,200 psi. Liquid end options include 316 stainless steel, PVC or Alloy 20 and include single or double ball or poppet spring-loaded check valves. The pumps customized to each customer’s specific needs and are designed for continuous use with minimal downtime. 877-778-3456; www.jaecofs.com

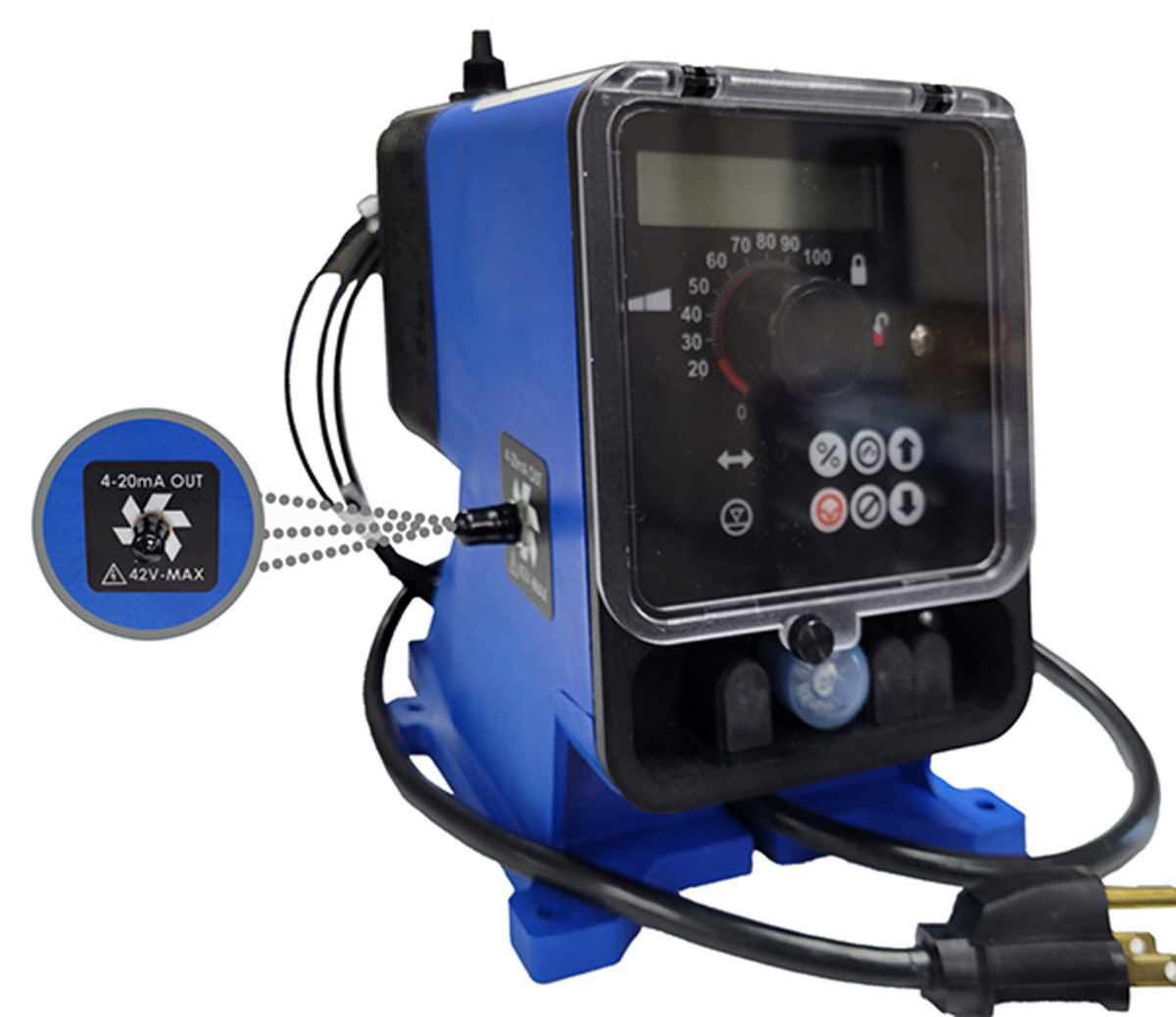

Pulsafeeder Pulsatron MP Series

Pulsafeeder’s Pulsatron MP Series has an optional 4-20mA output signal that provides a remote indication of pump speed, so the user can remotely confirm the pump’s speed is adjusting to process parameters, to more accurately estimate chemical usage over time. The pump transmits a 4-20mA signal proportional to the actual speed of the unit and is factory calibrated for easy installation in the field. It is a true microprocessor-controlled instrument, delivering precise and accurate metering control. It includes automatic control via 4-20mA or 20-4mA inputs, an external pace function with a stop feature, and a graphical LCD display with support for English, French, German and Spanish languages. Models are capable of flows ranging between 3 and 504 gpd and pressure ranges from 20 to 300 psig, and a turndown ratio of 1,000 to 1. 800-333-6677; www.pulsafeeder.com

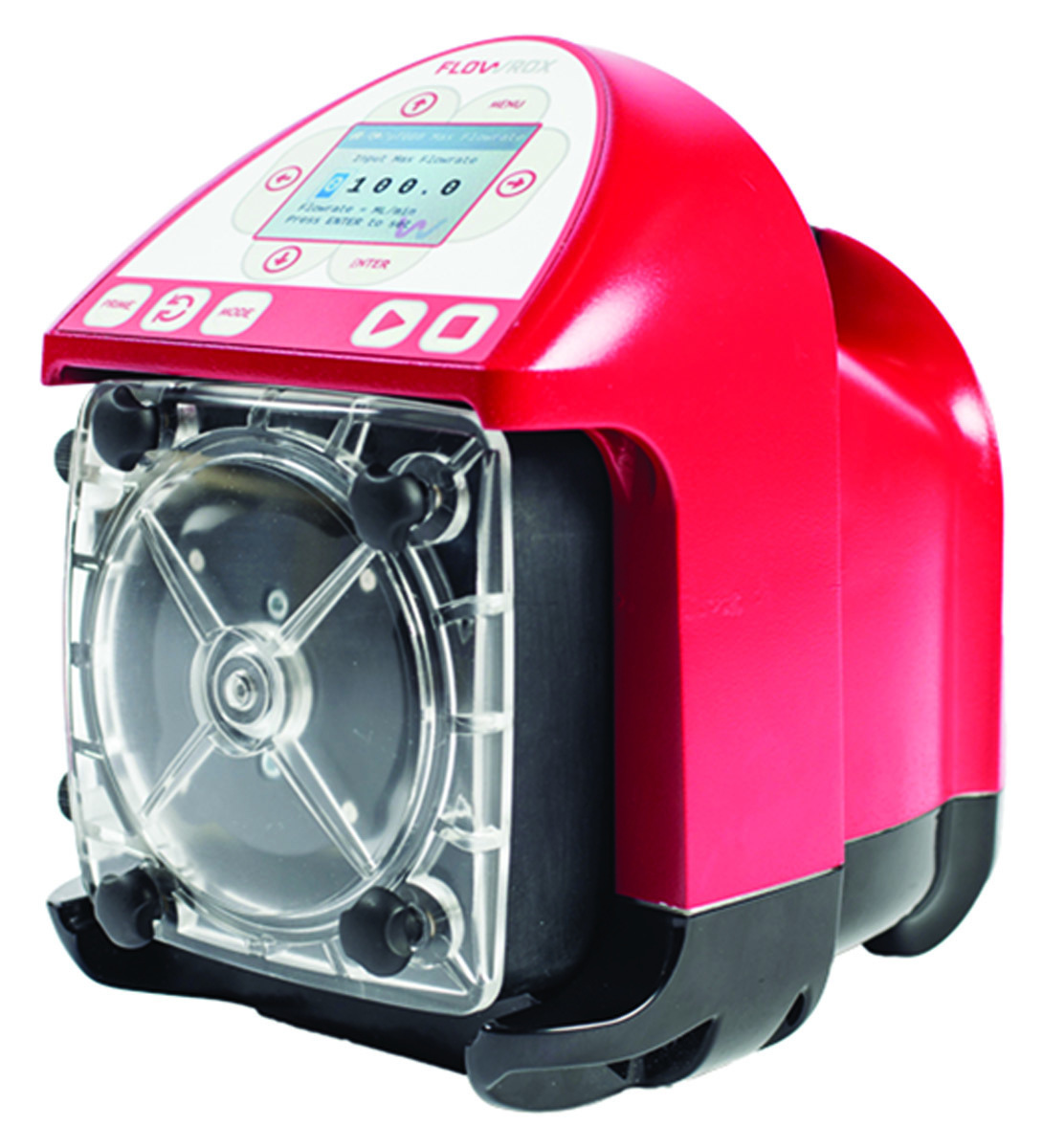

Valmet Flow Control Flowrox FXM

Flowrox FXM metering pumps from Valmet Flow Control are suitable for but not limited to chemical dosing applications that require accurate metering. FXM2 and FXM3 series pumps have only one wear-resistant part (tube assembly) in contact with corrosive or abrasive mediums. The pumps have a low consumption of spare parts, which allows reduced maintenance and downtime to improve process performance and provides accurate dosing. They ensure accurate dosing by the positive displacement of the tube bore with zero slip that produces the same volume on every cycle. There is no variation due to the discharge pressure condition. The compression points of the tube act as a self-cleaning check valve without clogging. This helps eliminate the risk of vapor lock. They have expanded logic programming, functionality and have a higher pumping capacity. Other features include contactless external leak sensors for tube failure detection. They have upgraded motors and control circuits to ensure accuracy even at the lowest speed. 678-772-9584; www.valmet.com

Rotary Lobe Pump

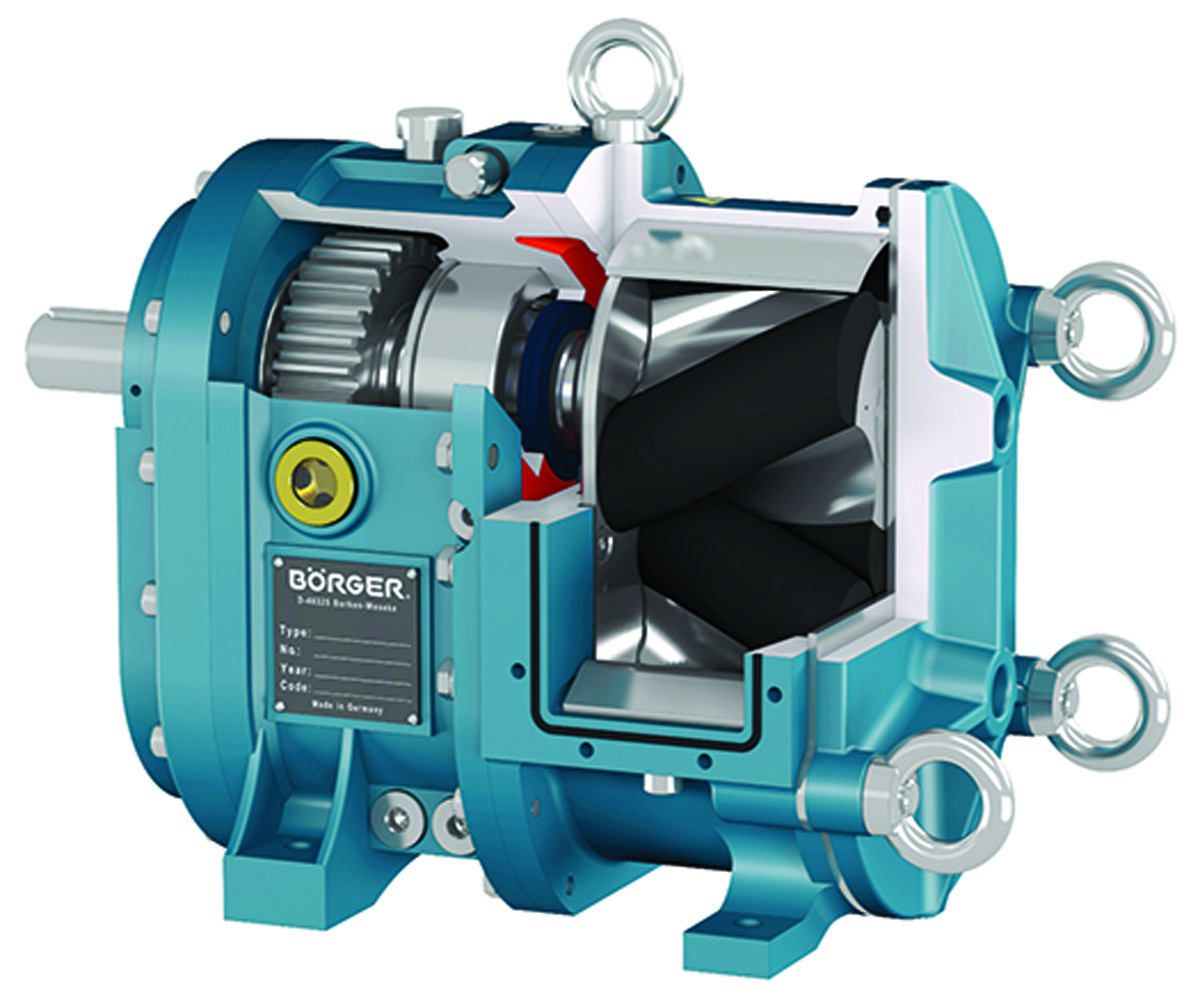

Boerger BLUEline rotary lobe pumps

Boerger BLUEline rotary lobe pumps are a self-priming, valveless, positive displacement pump used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible, with dry run capability and flow rates up to 7,000 gpm. They are constructed with maintenance in place design, allowing for all wetted parts to be easily replaced through the front cover without the removal of pipe or drive systems. The pump conveys biosolids (primary, WAS, RAS, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com

Slip Pump

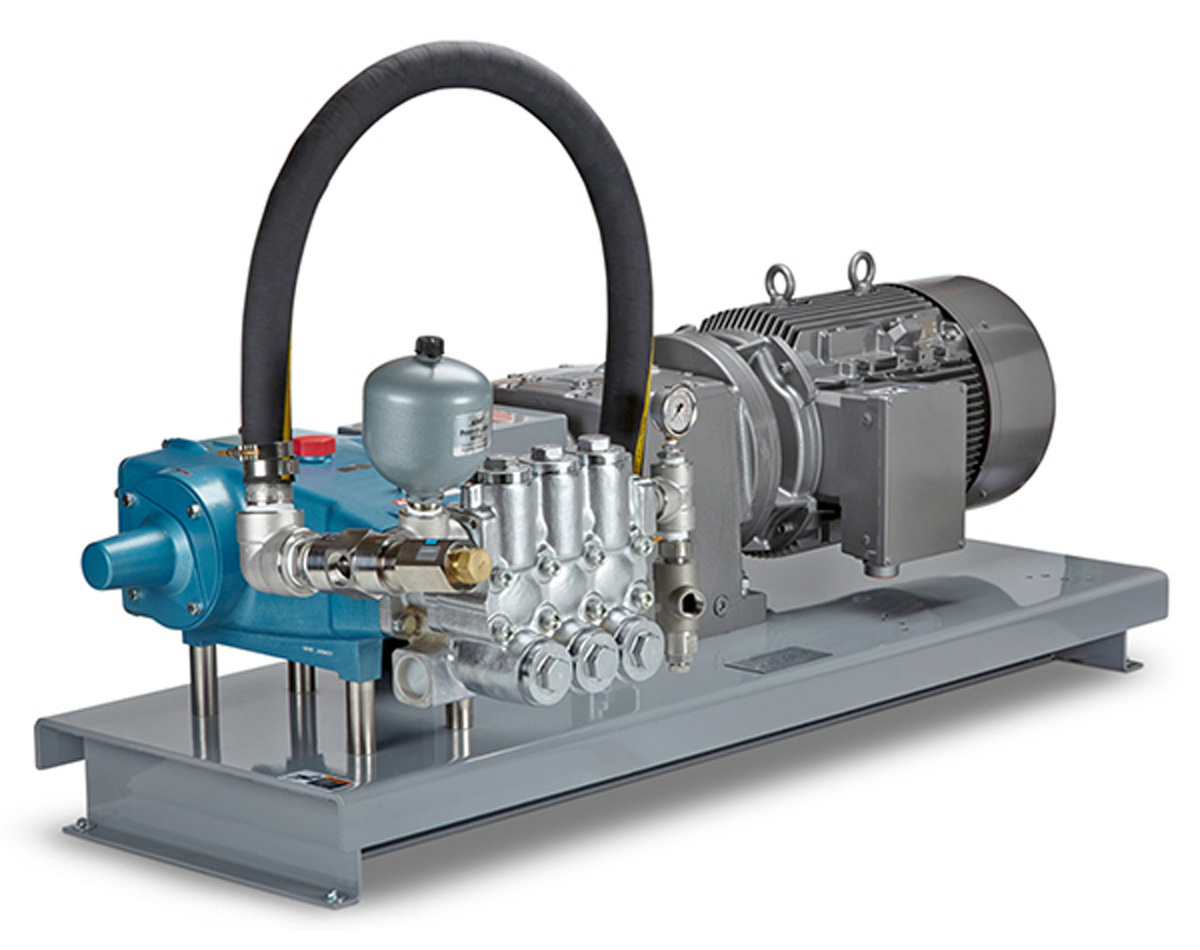

Cat Pumps stainless steel triplex pumps

Cat Pumps stainless steel triplex pumps mounted to a gear motor can provide thousands of hours of maintenance-free slip pump service. Direct-coupling the pump to a gear motor offers many advantages, including a smaller footprint, reduced noise and ease-of-service with no belts to maintain. A 316 stainless steel manifold, paired with elastomers like NBR, FPM, EPDM or PTFE, allows many chemical and fluid compatibility options. Performance specifications range from 0.1 to 100 gpm and 100 to 10,000 psi. Custom-built power units can include pump(s), motor(s), base, pressure control valves, pressure gauges and/or pulsation dampeners. Custom builds typically have a three to four-week lead time, with individual pumps and repair parts usually being in-stock items, with 95% of orders shipped within 24 hours of placement. 763-780-5440; www.catpumps.com

Solids/Sludge Pump

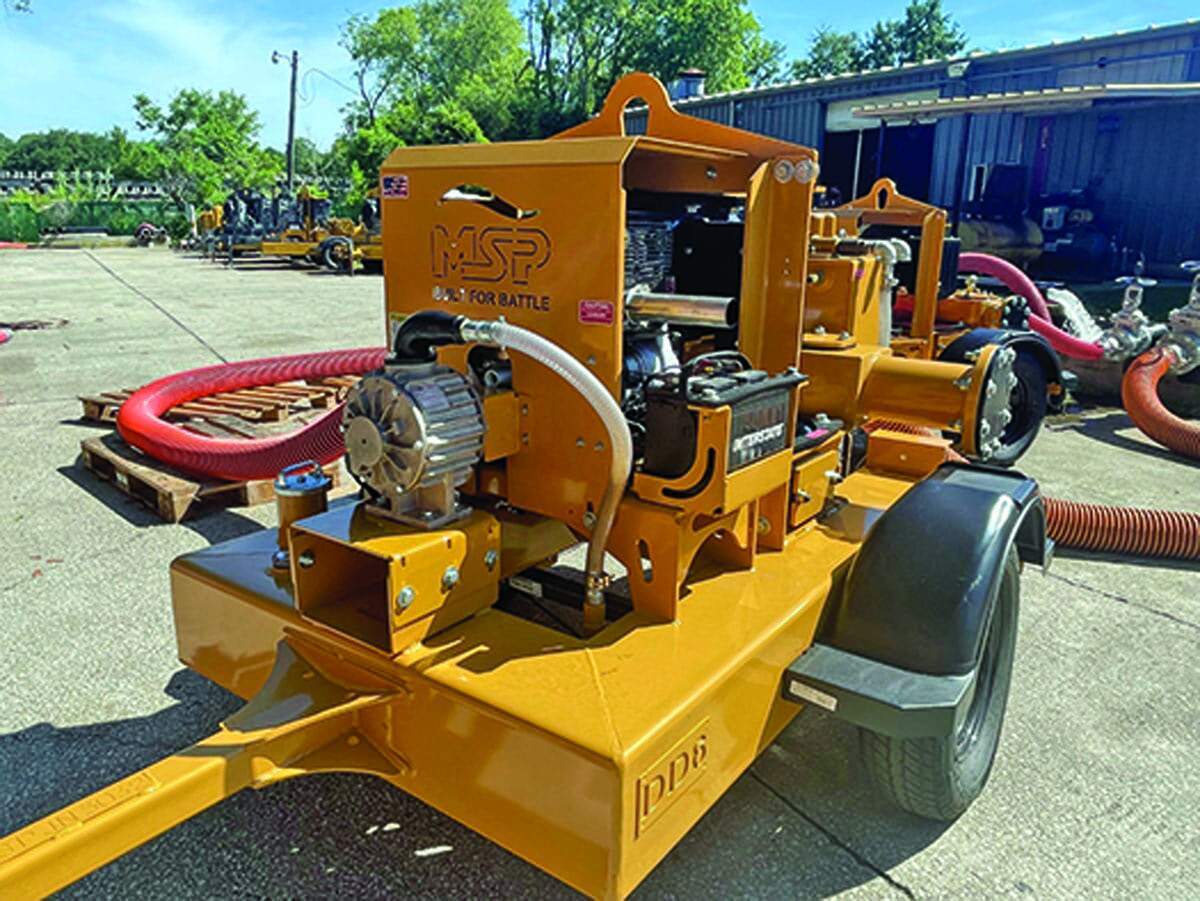

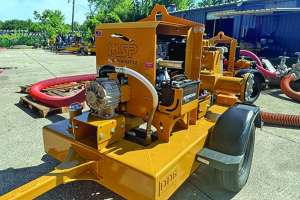

Myers Seth Pump DV-6

The DV-6 from Myers Seth Pump is a vacuum-assisted 6-inch double diaphragm pump with incorporated vacuum assisted technology through an oilless 80 cfm vacuum pump and float chamber assembly. With the addition of the vacuum pump it creates a total of 120 to 130 cfm. This will allow customers who prefer using double diaphragms to use this pump for much larger and deeper wellpoint and sock drain systems, in addition to other applications such as sump pumping, rim ditching and open pond applications. It only burns 9 to 10 gallons of fuel per day and is capable of running over seven days continuously. 904-389-6114; www.myerssethpumps.com

Submersible Pump

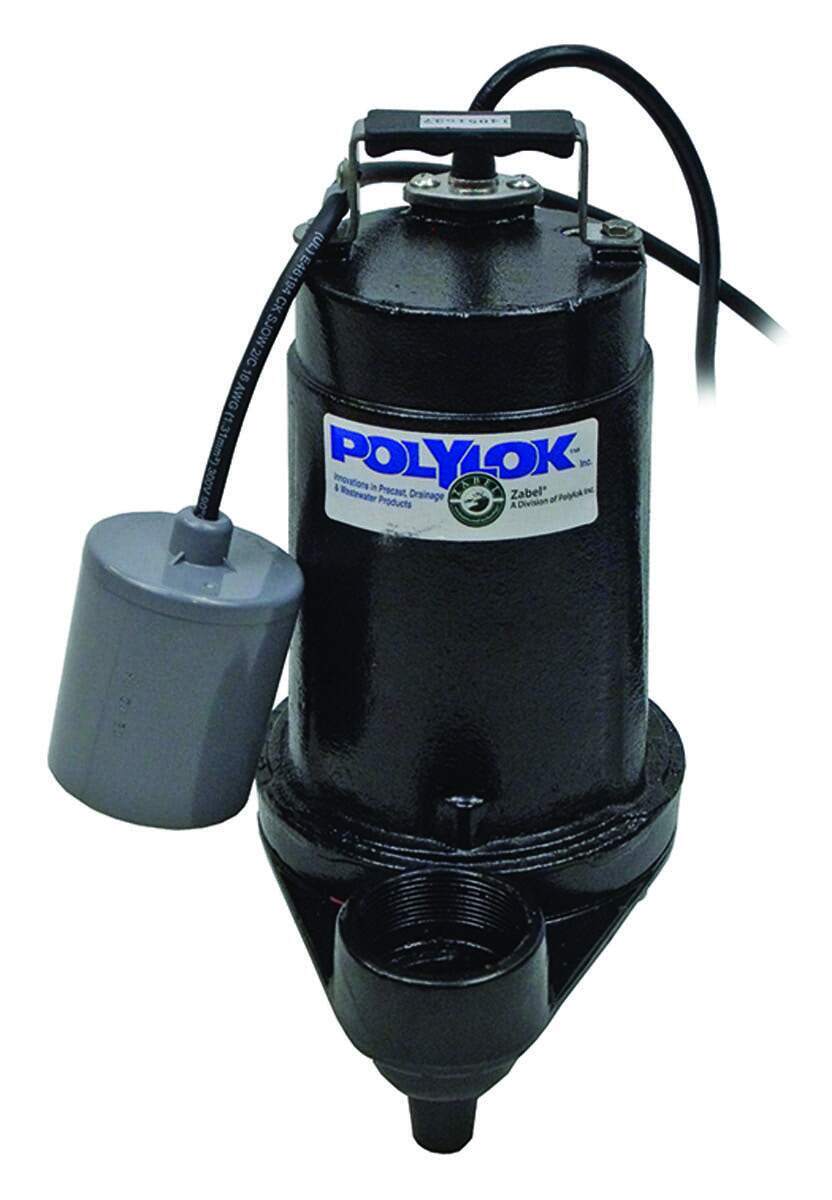

Polylok PL-CPE4A

The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a rugged cast iron housing and volute equipped with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com

Blowers

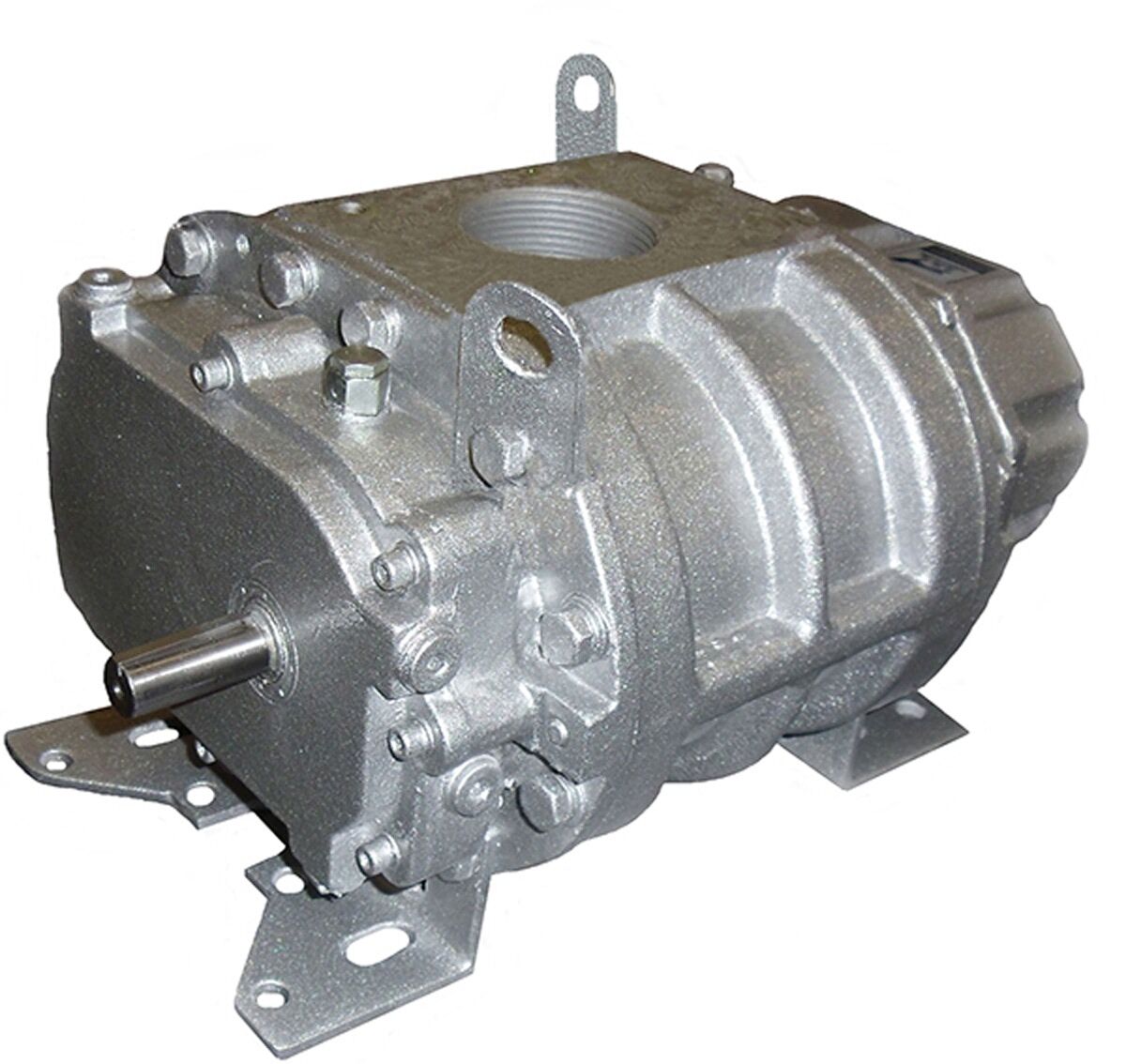

Eurus Blower ZZ Series

ZZ Series blowers from Eurus Blower are drop-in replacements for competitor blowers. They have heavy-duty cast housings, machined impellers, alloy steel shafts with oversized bearings, hardened/precision machined steel forged gears, oil-lubricated gear and/or grease- or oil-lubricated drive sides, plus keyless locking assemblies for easier timing gear maintenance. The blowers provide up to 15 psig pressure and 2,350 cfm flow. 918-361-0285; www.eurusblower.com

KAESER rotary screw blowers

Low-maintenance blower technology can help minimize power costs with load splitting, sequencing, and superior multi-blower controls. KAESER rotary screw blowers are turnkey systems, available in sizes up to 335 hp and flows to 5,650 cfm, using up to 35% less energy than conventional rotary blowers, while energy savings of up to 15% can be achieved in comparison with turbo blowers. All blowers come complete with noise-insulated cabinets, inlet and outlet silencers, motors and drives. The intelligent Sigma Control 2 on each blower optimizes machine performance via various control modes, and a full suite of sensors provides active condition monitoring to protect the machine. The combination of a blower air-end with high-efficiency SIGMA Profile rotors, flow-optimized components, efficient power transmission and drive components, ensures wire-to-air performance year after year. 866-516-6888; www.us.kaeser.com

Pump Controls

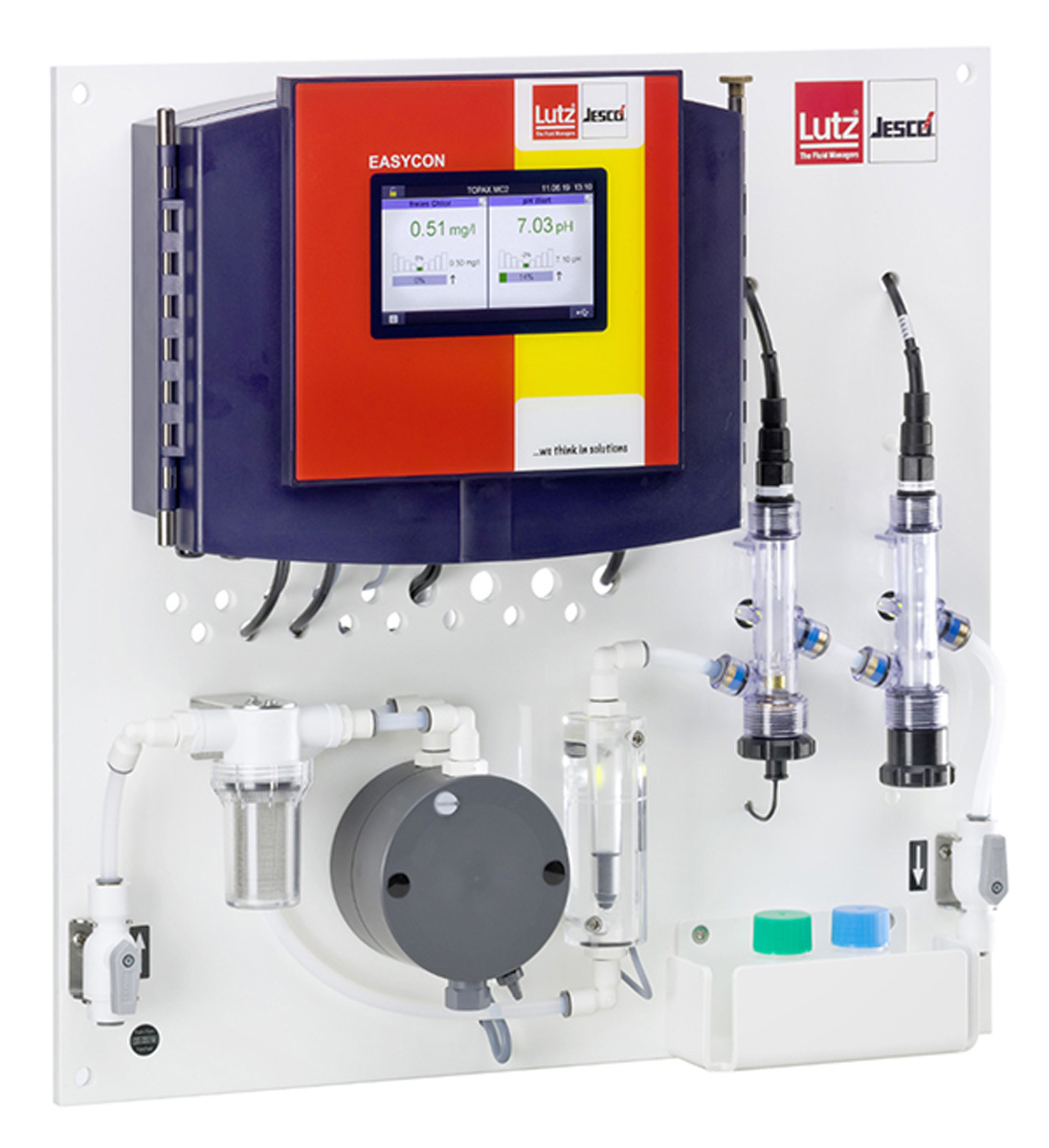

Lutz-JESCO America TOPAX MC

The TOPAX MC multichannel controller from Lutz-JESCO America has a modular design that makes it an adaptable and effective solution for all measurement and control technology requirements. It offers automated efficiency — freedom from repetitive control tasks while providing accuracy and reliability. Users can actuate the dosing pumps using an optocoupler or relay and servomotors by using a relay or a 20mA output. The high-resolution, 5-inch color display offers a user-friendly operating interface with a simple touch-control and intuitive navigation menu that can be set to multiple languages. Use four analog outputs (0/4-20 mA) or the network capability to transfer measured values to a web browser or a telemaintenance point. A programmable interval timer can be used to set automatic alerts for wear-related sensor change. 800-554-2762; www.lutzjescoamerica.com

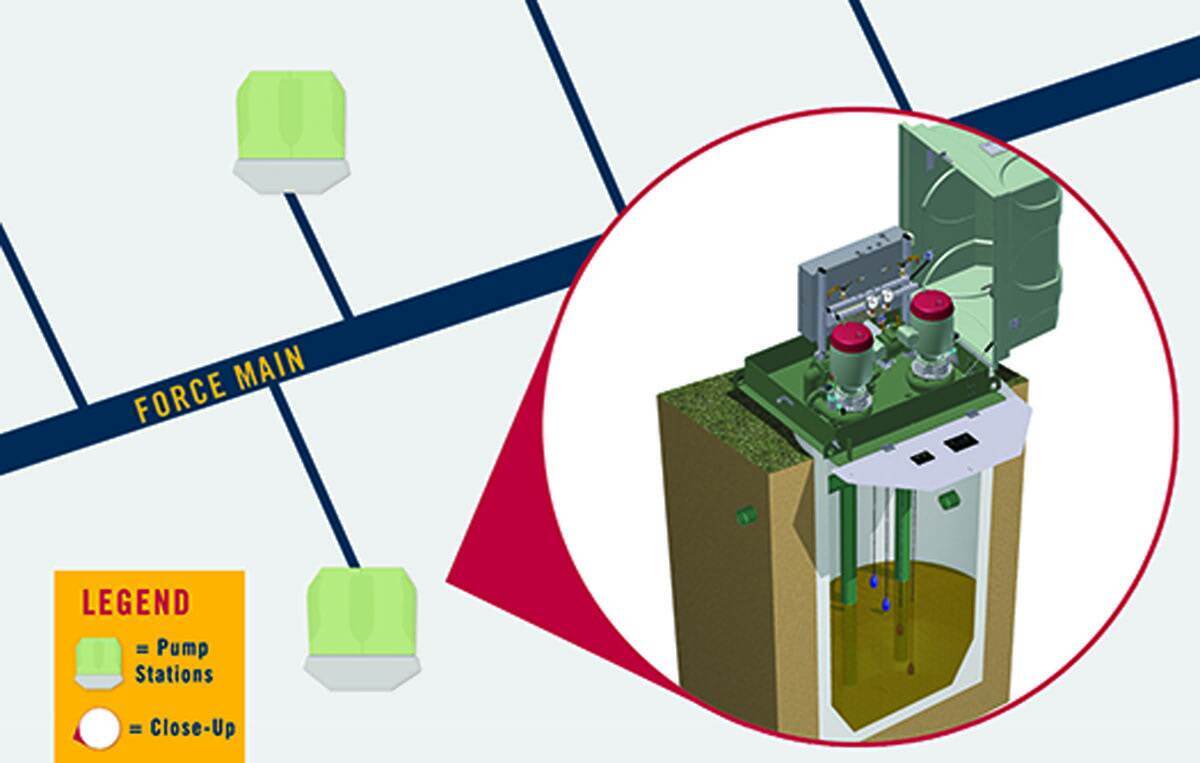

Smith & Loveless Force Main Sync

Force main pressures vary; and without accounting for the variable conditions, reduced service life and a multitude of other issues arise. These phenomena result in impeller and volute erosion, reduced bearing and seal life, excessive pump noise and vibration. Force Main Sync from Smith & Loveless monitors hydraulics in the common force main to keep pumping at the required flow rate. Using a PLC touchscreen human-machine interface, a variable-frequency drive and a force main sensor, it constantly senses force main pressure and automatically adjusts the VFD to maintain a constant flow rate, no matter how many stations are online. 800-898-9122; www.smithandloveless.com

Pump Parts/Supplies/Service

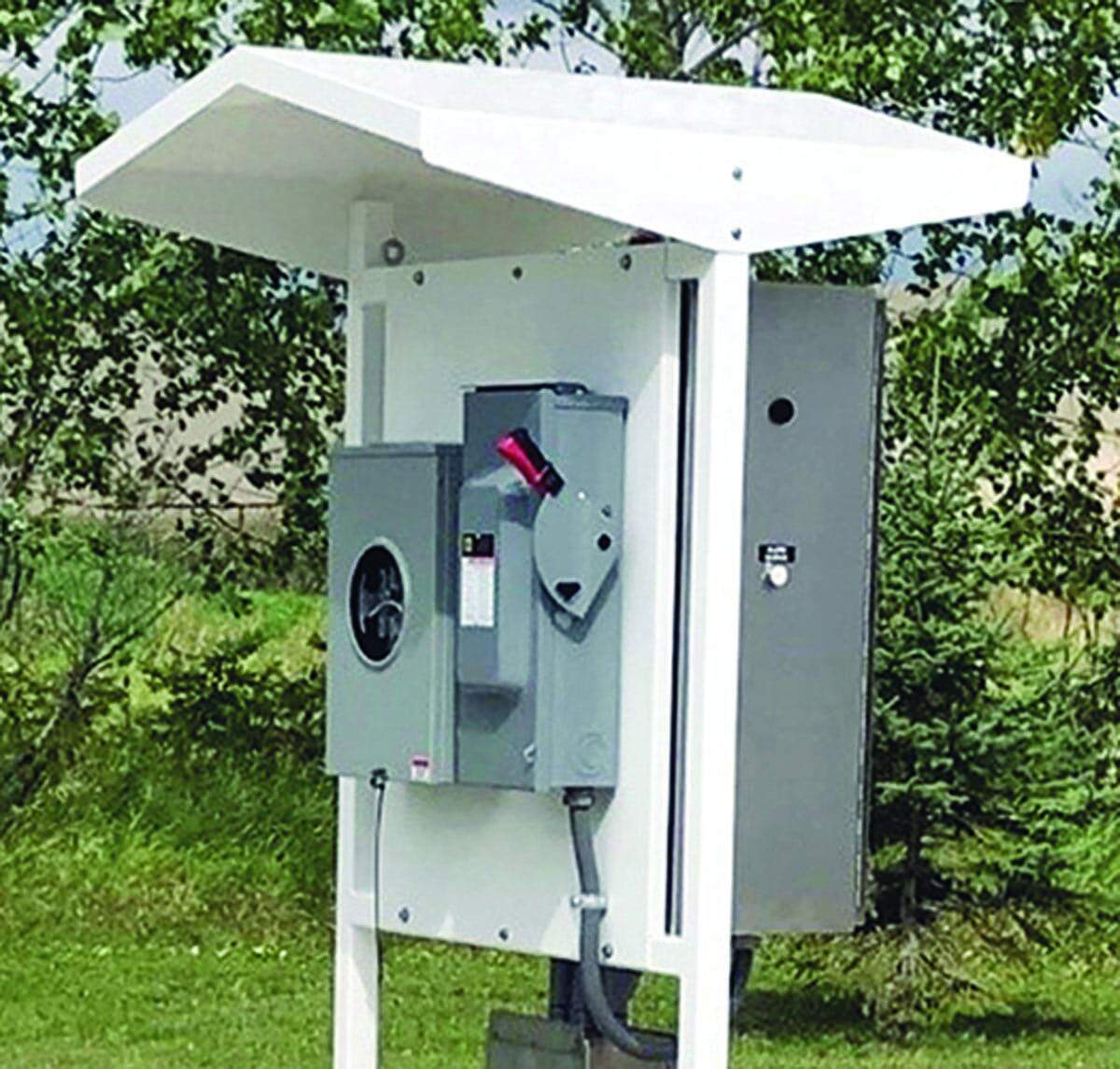

PRIMEX Rapid Set

The PRIMEX Rapid Set mounting system provides a complete, ready-to-install, compact lift station control package. It is an easy-to-install system that can save time and make installs look better than ever. Its welded, stainless steel, white powder-coated frame provides a durable yet clean controls package for fast installation. The powder-coated aluminum sunshield protects both operators and the controls from the weather. The additional mounting plate allows for operators to easily install any additional controls that the station may need. 844-477-4639; www.primexcontrols.com
