Aftermarket Parts/Service

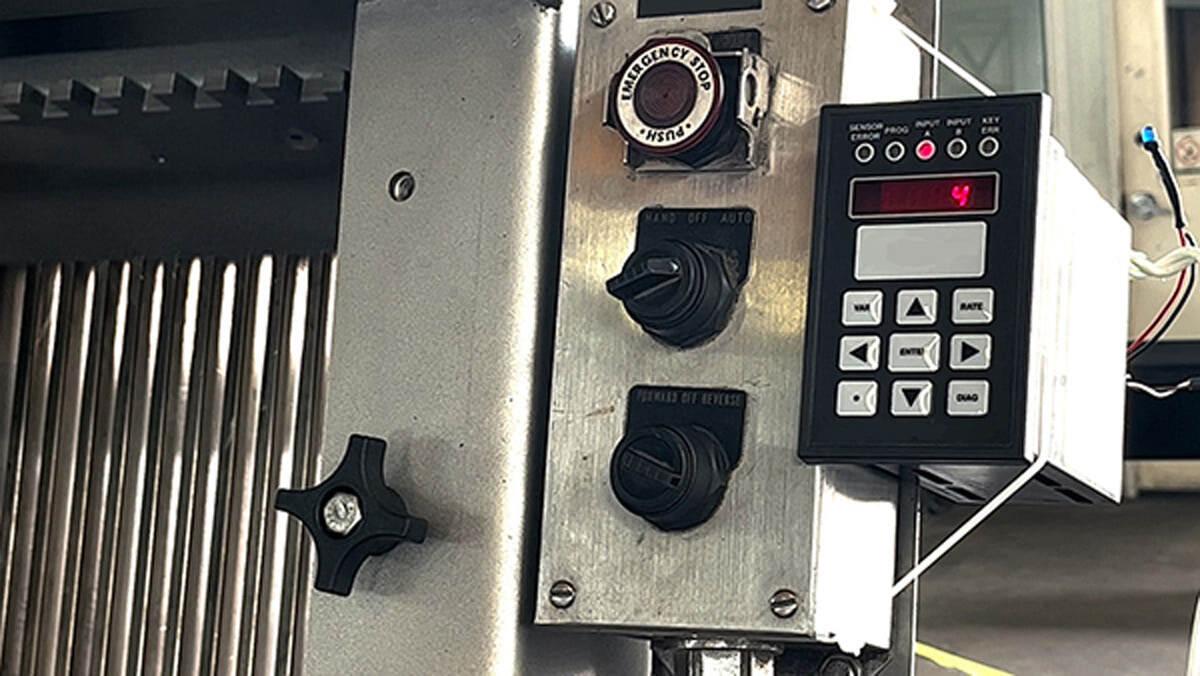

Headworks International Performance Monitor
Improper chain tension can lead to costly equipment damage and premature wear and tear. Headworks International’s Performance Monitor takes the guesswork out of maintenance by continuously assessing chain tension and providing alerts whenever anomalies in the screen performance occur. It senses vibrations outside of a defined range, which is indicative of a mechanical misalignment or loose chain, and triggers an immediate alert that will notify the operators that the bar screen requires attention. This alert can be a simple indicator light on the main control panel or fully integrated into a SCADA system. It can be seamlessly integrated into a new bar screen control system or retrofitted to an existing installation, helping protect investment, reduce downtime and maintain peak operating efficiency. 713-647-6667; www.headworksintl.com
Biosolids Handling/Hauling/Disposal/Application

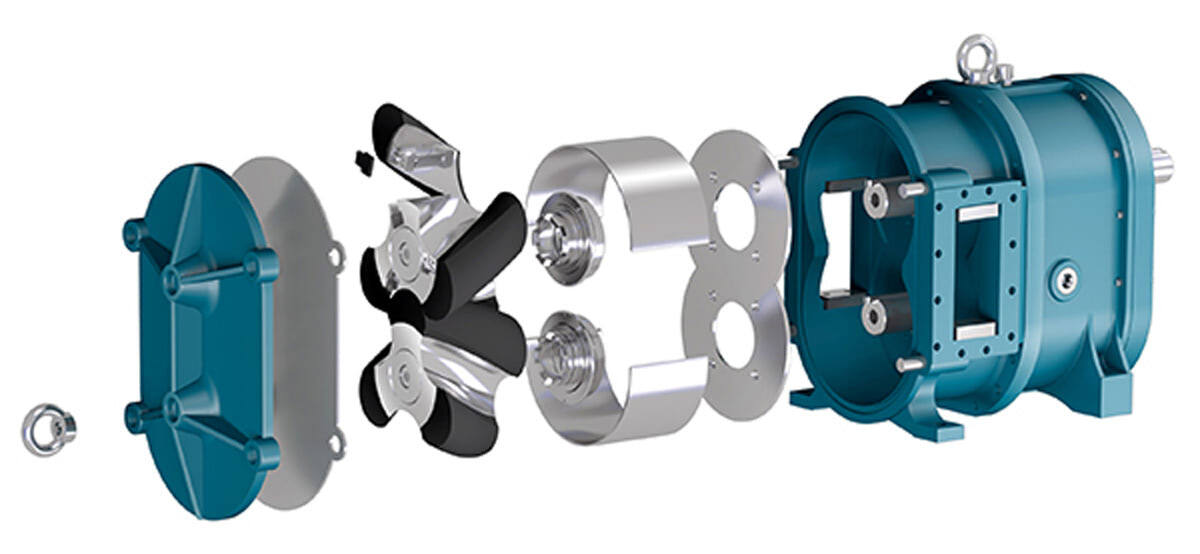

Boerger BLUEline
Boerger BLUEline rotary lobe pumps are self-priming, valveless positive displacement pumps used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com

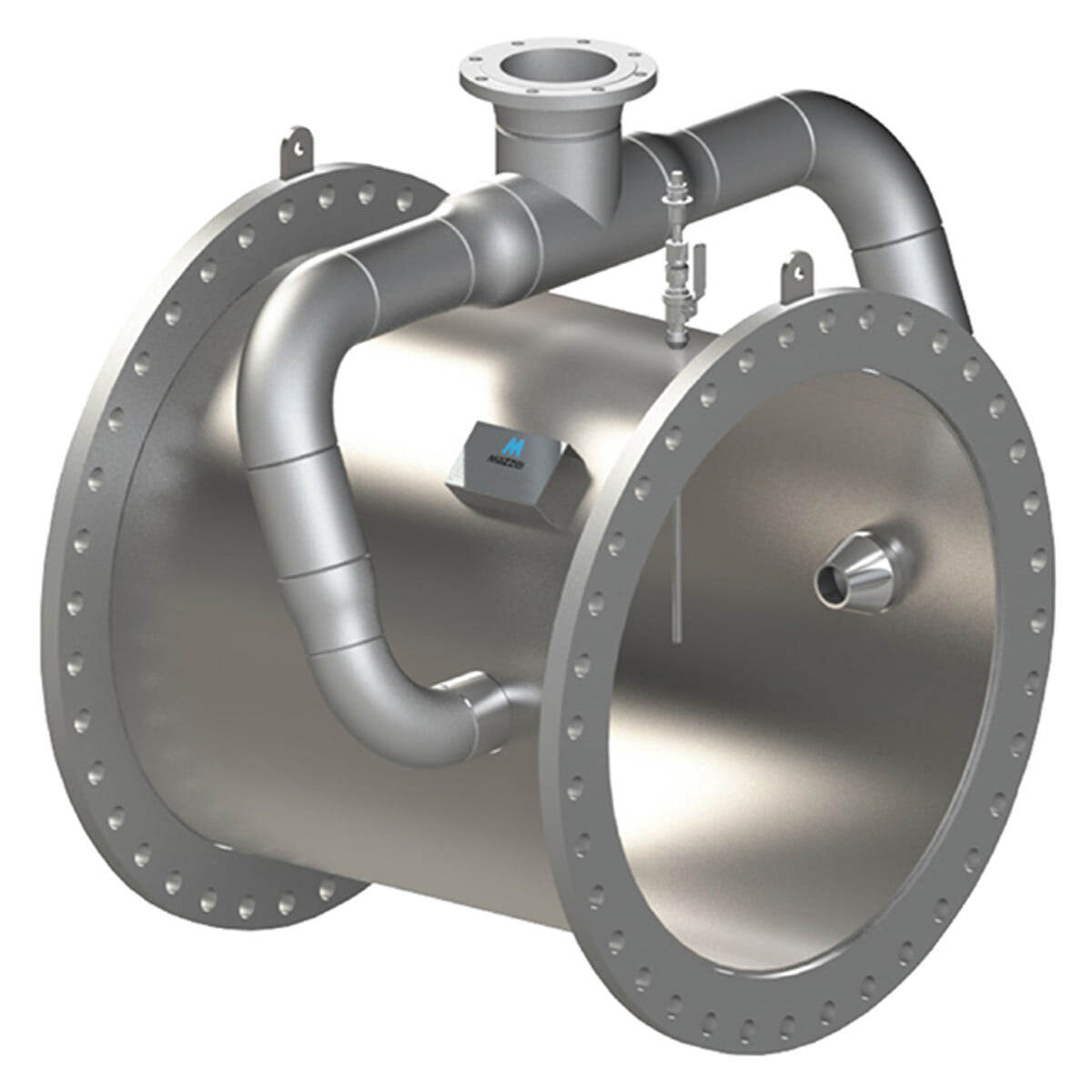

Mazzei Chemical Mixing Reactor
The Mazzei Chemical Mixing Reactor is engineered for the rapid and efficient mixing of coagulants directly into a mainline flow. Its nozzle-based design creates a highly turbulent mixing zone with virtually no pressure loss, eliminating the need for excessive chemical dosing and reducing solids-handling requirements. With no moving parts, no maintenance needs and a compact footprint ideal for retrofits, it provides operators with a durable, low-maintenance solution, leading to improved coagulation, lower turbidity and TOC, enhanced UV transmittance and extended filter run times. 661-363-6500; www.mazzei.net

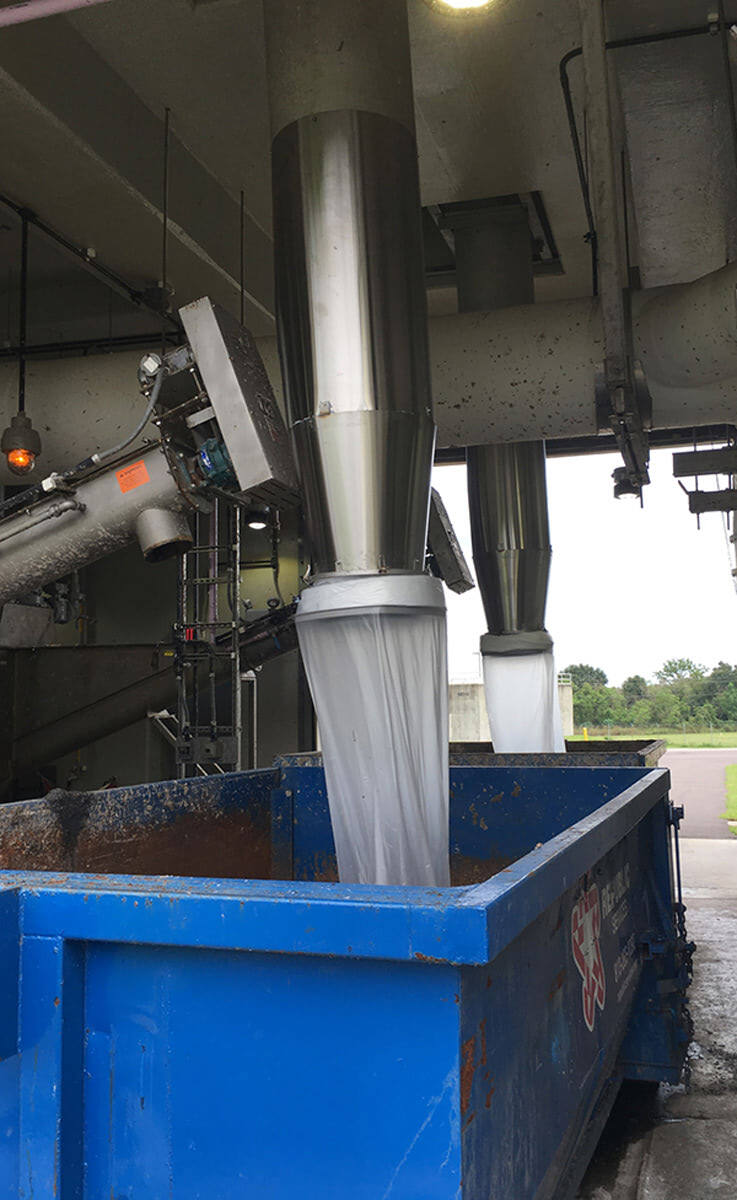

Paxxo Longopac Fill
The Longopac Fill continuous bag system from Paxxo can connect to the discharge point of machines used to move, dewater or compact screenings, grit and biosolids. Material is then deposited in a 90-meter-long continuous bag for odor containment and spillage control. The cassette bag can be sealed with ease and the material and odors are trapped inside, cutting down development of bacteria and fungus spores. 770-502-0055; www.paxxo.se/us

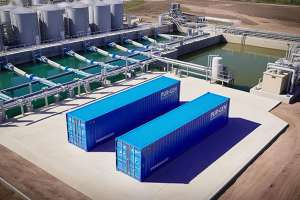

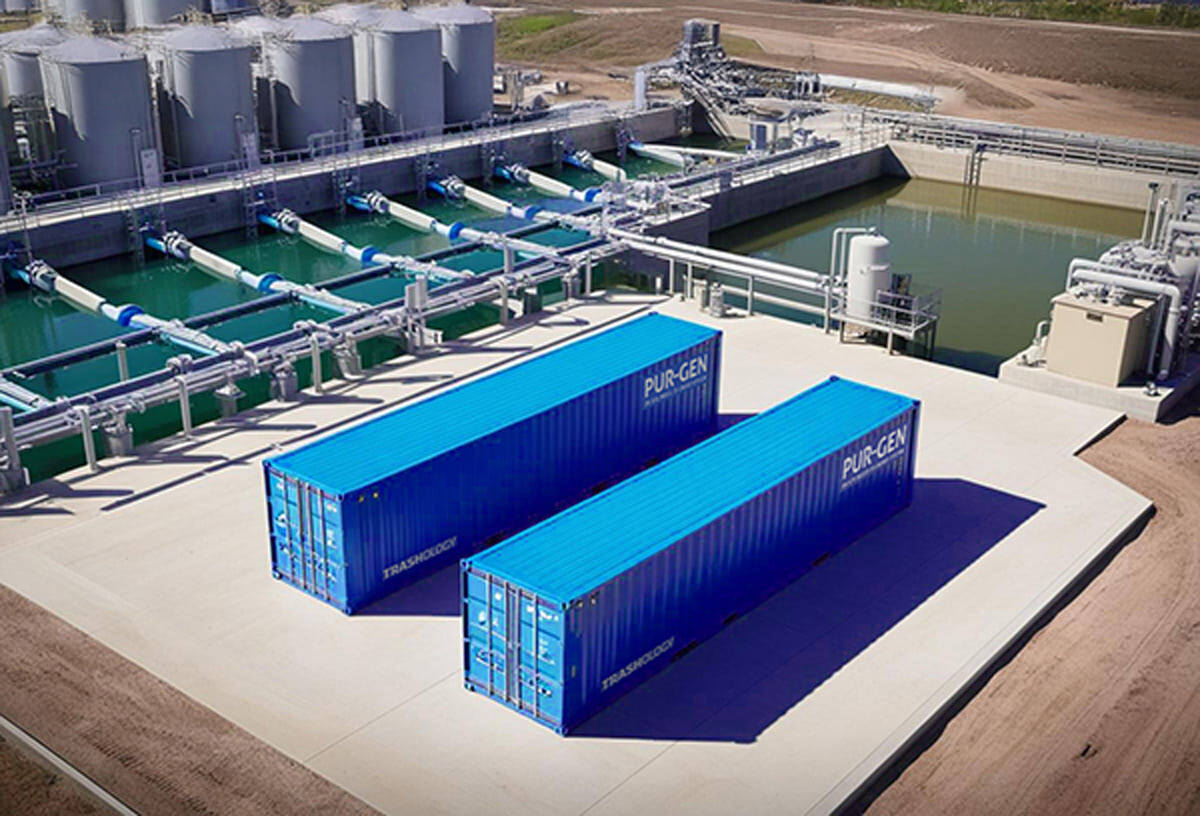

Trashology Pur-Gen
The Pur-Gen system from Trashology provides an on-site, closed-loop solution that converts biosolids into renewable thermal energy while destroying PFAS chemicals. Dried biosolids are pelletized into a high-density fuel, then cleanly gasified at more than 900 degrees C in a downdraft gasifier. The resulting syngas is combusted to produce clean heat that powers the dryer and is expected to destroy PFAS chemicals with 99.99% efficiency. The fully containerized, automated system requires only 640 to 1,200 square feet per module and processes 1 to 5 dry tons per day without an operator required. The gasifier’s high-temperature process produces a solid byproduct that is nutrient-rich biochar suitable for beneficial reuse. No offsite hauling for land application, landfilling or incineration is required, significantly reducing costs and regulatory risk. 978-264-0679; www.trashology.com
Biosolids Heaters/Dryers/Thickeners

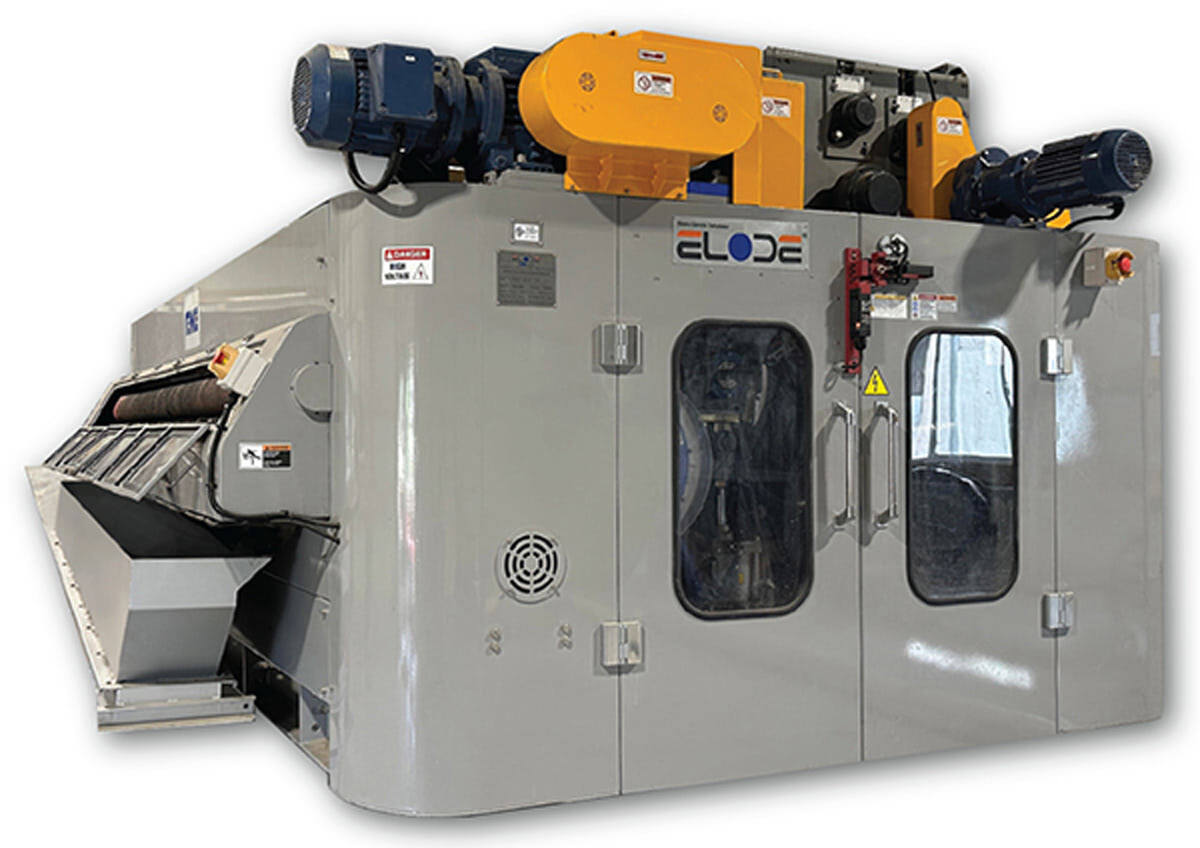

ELODE USA Electro Osmosis Dehydrator
The Electro Osmosis Dehydrator from ELODE USA reduces disposal costs by drying sludge cake to half its weight or less. Its compact design integrates seamlessly with existing dewatering equipment. Rather than using heat, chemicals or mechanical forces, it uses only electricity, driving a rapid one-minute, electroosmosis process to separate water from solids. As a nonthermal dryer, it uses less energy than thermal ones, bypassing the inefficiency of evaporating water to steam. It also requires less peripheral equipment, making it a practical alternative to conventional thermal dryers by minimizing costs, space requirements and maintenance downtime. 201-568-7778; www.elodeusa.com
Chemical/Polymer Feeding Equipment

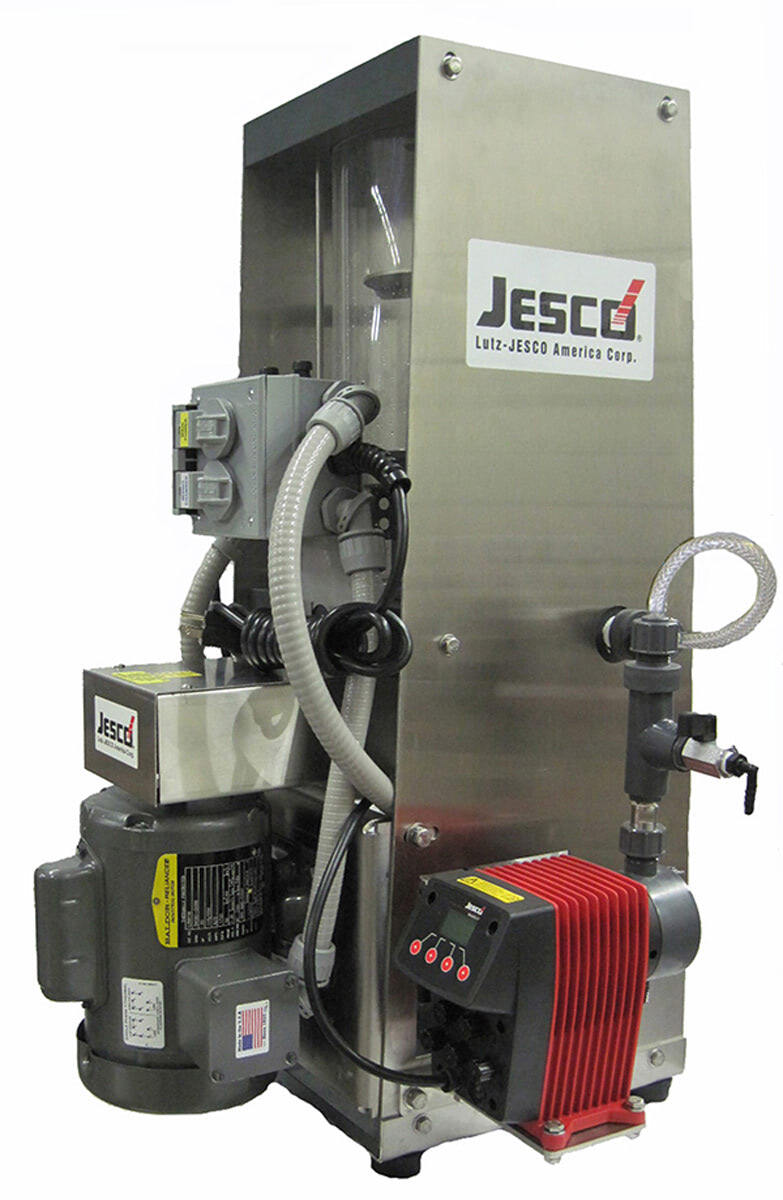

Lutz-JESCO America LJ-PolyBlend Polymer System
The LJ-PolyBlend Polymer System from Lutz-JESCO America is a dependable, motorized mixing machine with a corrosion-resistant housing, large turbine and multizone mixing chamber that provides uniform dispersion energy at the moment of initial polymer wetting. The prime mixing zone fully activates the polymer while the second mixing zone promotes gentle polymer activation via a small turbine, lessening molecule fracturing. Its stainless steel injection valve prevents agglomerations and reduces the need for extended mixing time. The system includes a clear mixing chamber that provides visual monitoring of mixing polymer feed. Its compact design — only 1 to 1.5 square feet — means it’s light and allows for easy installation and transportation. It has automatic pump speed adjustment via 4-20 mA input, water flow sensor and priming port. 800-554-2762; www.lutzjescoamerica.com

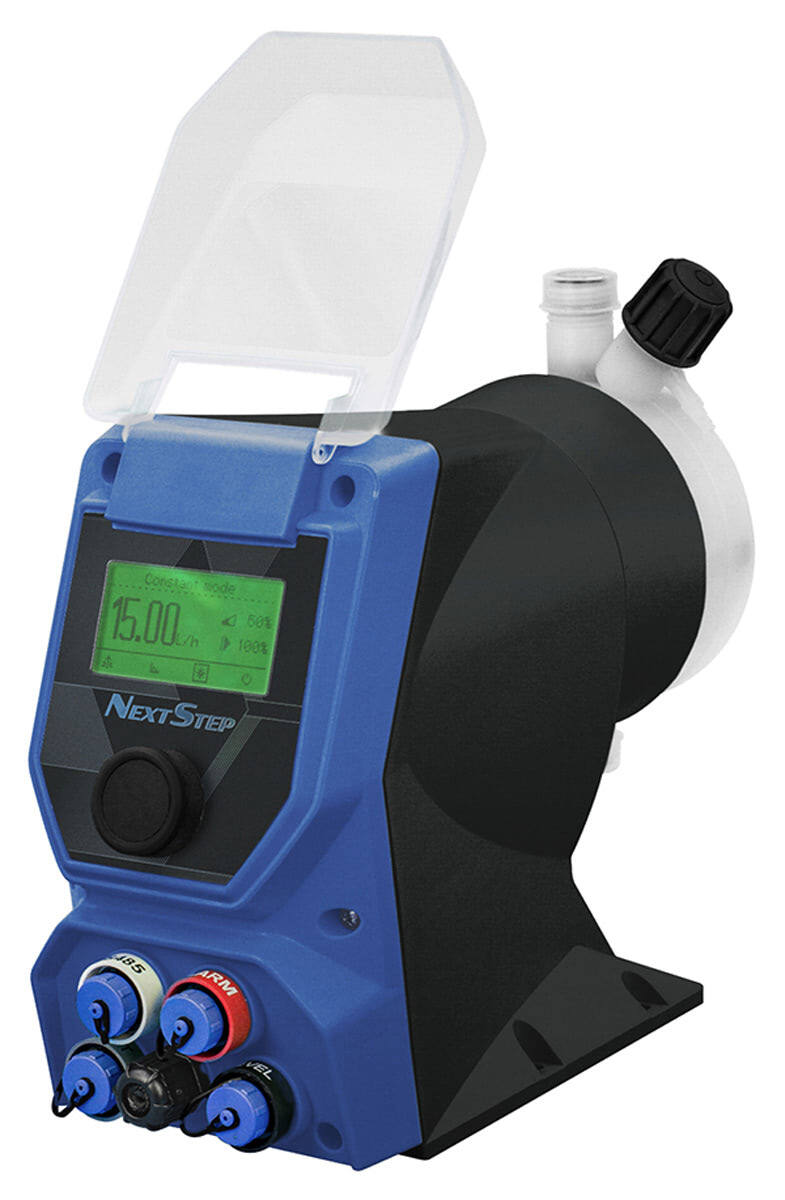

Pulsafeeder NextStep
NextStep dosing pumps from Pulsafeeder are designed for high-resolution metering control and reliability and cover a wide range of applications including polymer feed applications. When “once through” or nearly constant chemical discharge and even distribution of flow is beneficial, NextStep stepper motor pump provides high dosing accuracy, digitally controlled, high turndown ratio of 3,333-1 reducing pulsation and increases the reliability of metering off-gassing and high-viscosity chemicals. Modbus or RS-485 communication keeps the process running smoothly even from a remote location. All needed valves, tubing and cables are in the box, even a foot valve with integrated low tank level alarm. 800-333-6677; www.pulsafeeder.com
Dewatering Equipment

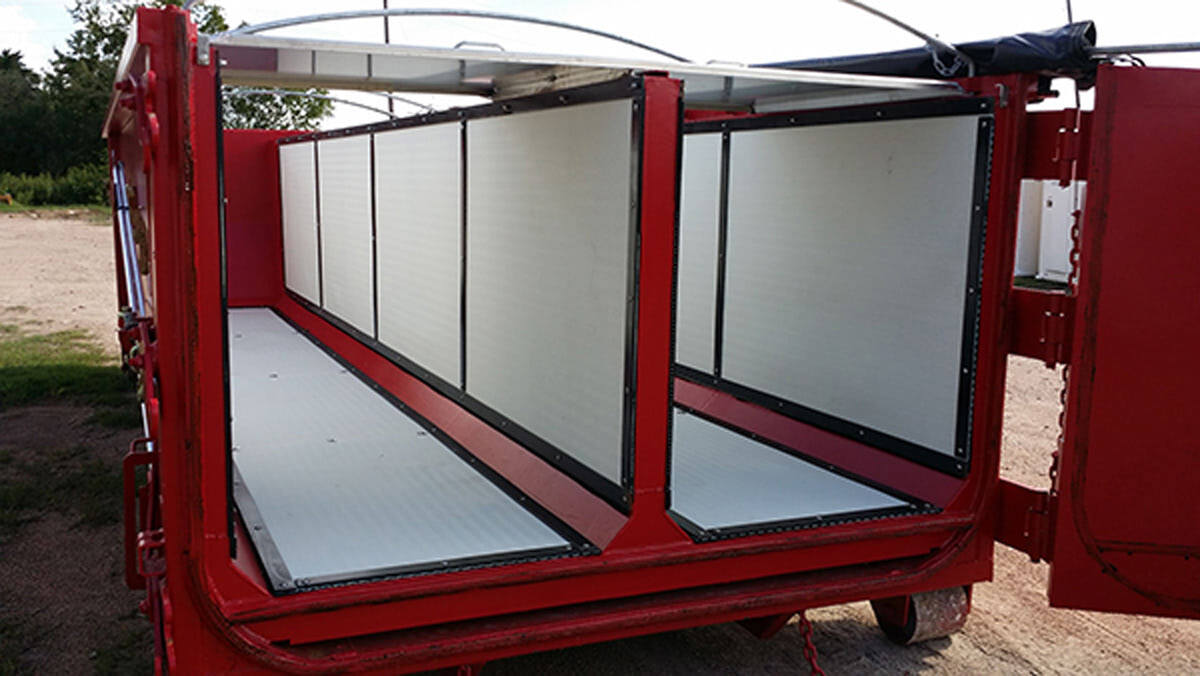

AQUA-Zyme Disposal Systems ADS
The ADS 30-yard open-top roll-off dewatering unit from AQUA-Zyme Disposal Systems can be filled with 22,000 to 25,000 gallons of biosolids at 2% solids in about two hours. After draining for 24 hours, the unit can be picked up using a standard-capacity roll-off truck and transported for solids disposal. Sludge volume can be reduced by 80% with reductions to 98% in BOD, COD, FOG and TSS. Effluent is clear, the unit has few moving parts and the size of filter media can be selected according to job requirements. 979-245-5656; www.aqua-zyme.com

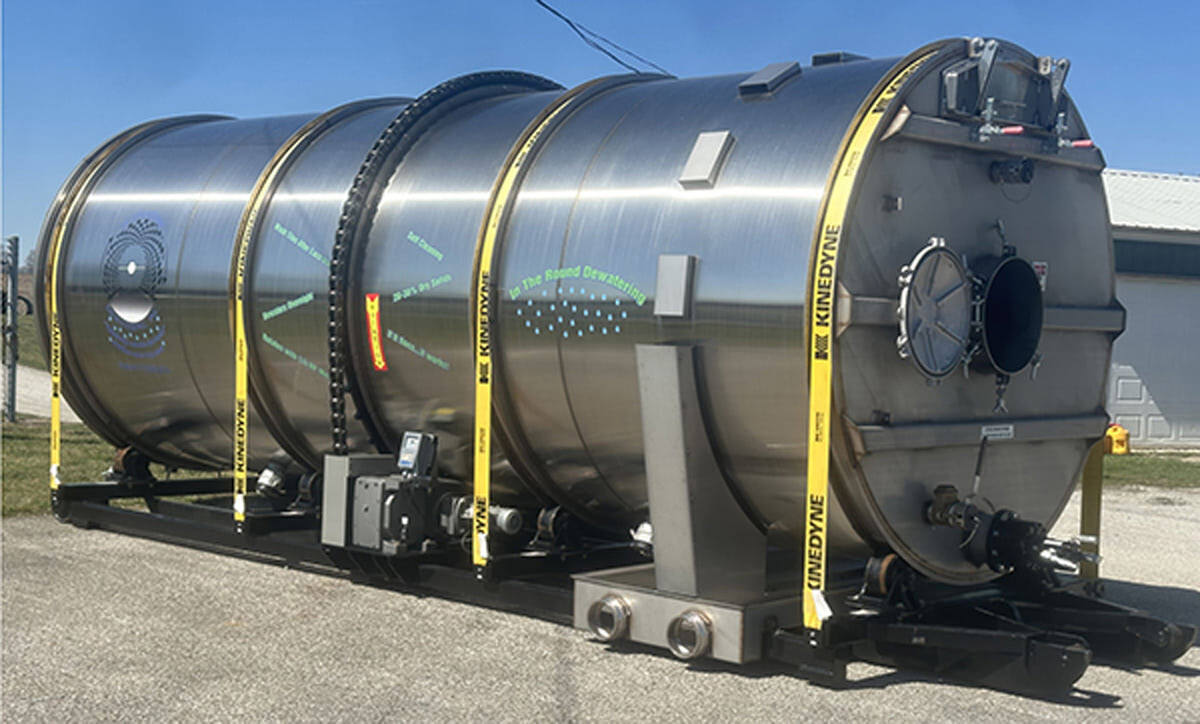

In the Round Dewatering horizontal drum
The horizontal biosolids dewatering system from In the Round Dewatering features a stainless steel drum with perforated plastic tile lining. The drum is mounted on a roll-off frame for easy transport and unloading. Trays contain discharge water. An 18,000- to 25,000-gallon batch is mixed with polymer before being filtered in the rotating drum, which is driven by a 1/2 hp variable-speed electric motor with a heavy-duty chain and sprocket. Turning eliminates crusting and wet pockets to produce uniform, consistent results. The dewatered material dumps easily, and the drum is self-cleaning. 317-563-2072; www.itrdewatering.com
Grinders/Shredders

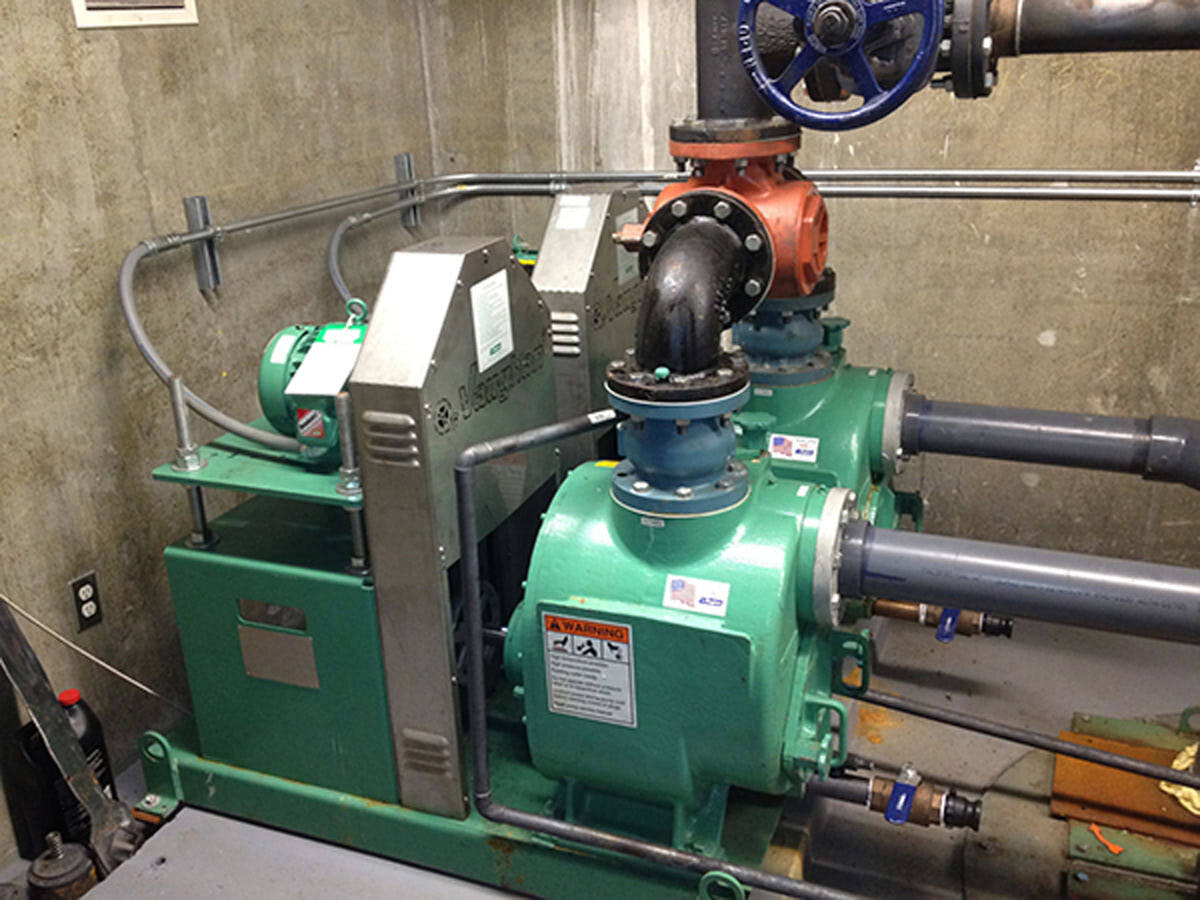

Vaughan Chopper Pump
Self-priming Chopper Pumps from Vaughan are designed to be easily accessed outside of the wet well while pumping waste solids at heavy consistencies without plugging or dewatering of the solids. They eliminate the loss in production and mess along with making it easy to service the pump to get it back in operation. 888-249-2467; www.chopperpumps.com
Screw Conveyors

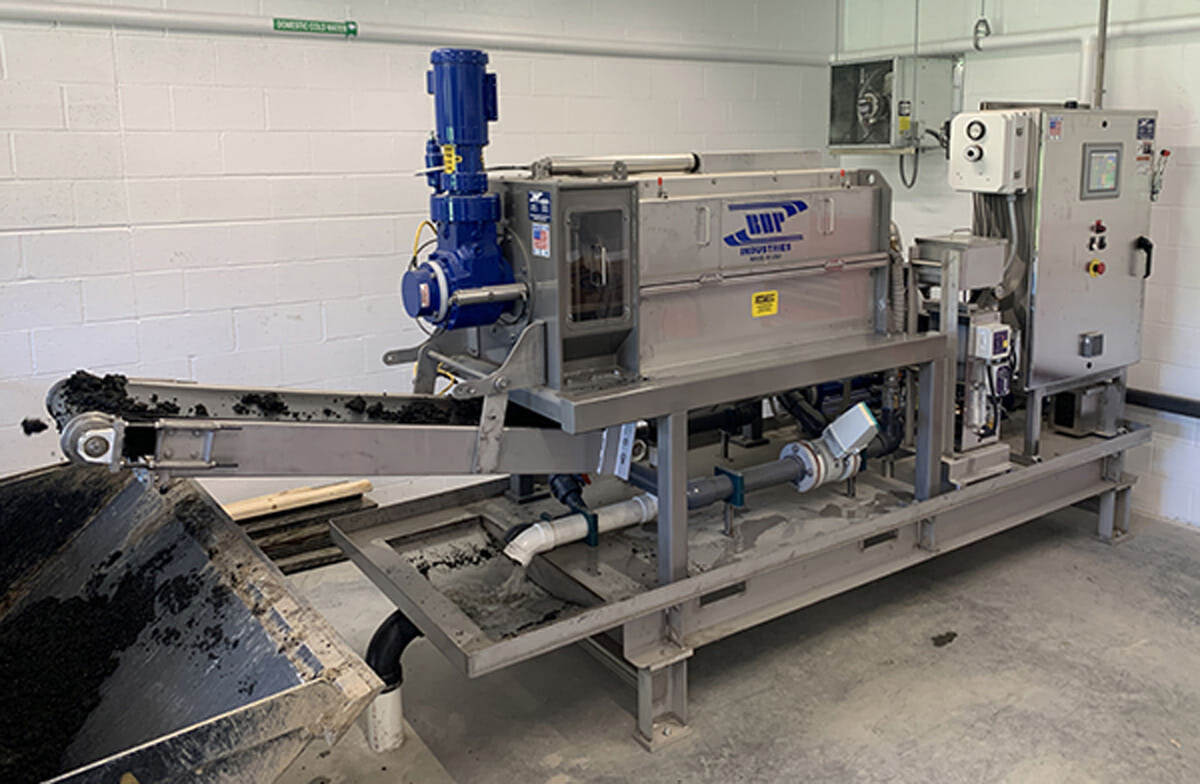

BDP Industries DSP Screw Press
The DSP Screw Press from BDP Industries is a heavy-duty option for those looking for dewatering performance in a completely enclosed unit with low energy and water consumption, and reduced operation and maintenance costs. The pivoting basket design allows for increased access for maintenance. Other improvements include the vertical thickener for prethickening, processing flow rates of up to 150 gpm as well as the ability for a small-scale package system capable of 5 to 10 gpm. 518-695-6851; www.bdpindustries.com

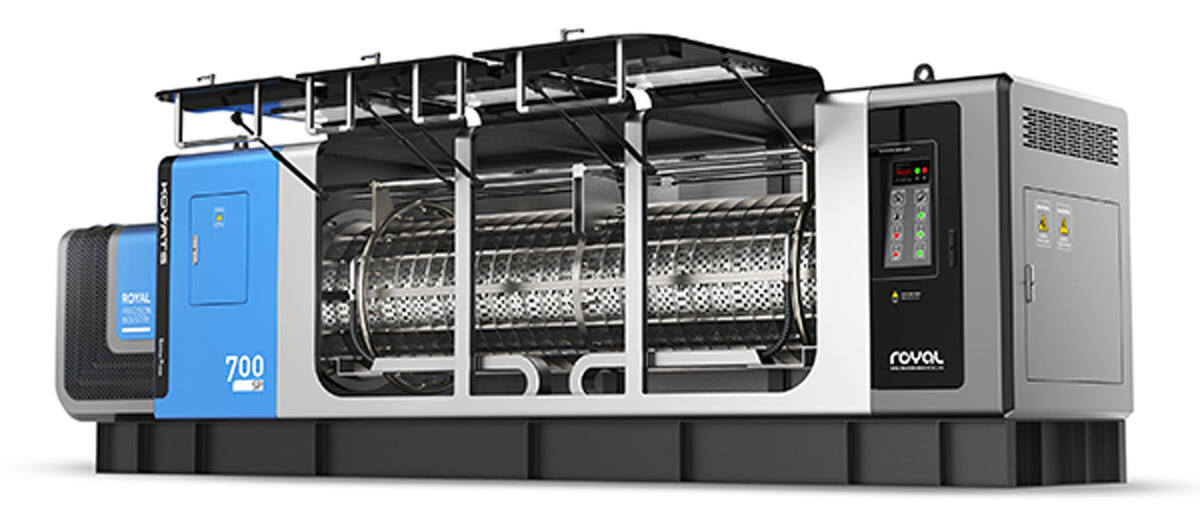

Charter Machine Royal Screw Press
Charter Machine’s Royal Screw Press offers a small footprint and high efficiency design that has very low power consumption with a higher throughput. Using an integrated thickening drum, the system can concentrate feed solids up to 5% DS. The complete skidded system is ultra-quiet, large capacity and low-maintenance. The removable wash-water nozzle ring travels, with its self-cleaning nozzles, laterally the length of the drum and gives a maximum clean with minimum amount of water. The sleek skidded design includes controls, drum thickener, sludge concentrator tank, sludge pump and screw press. 732-494-5350; www.chartermachine.com

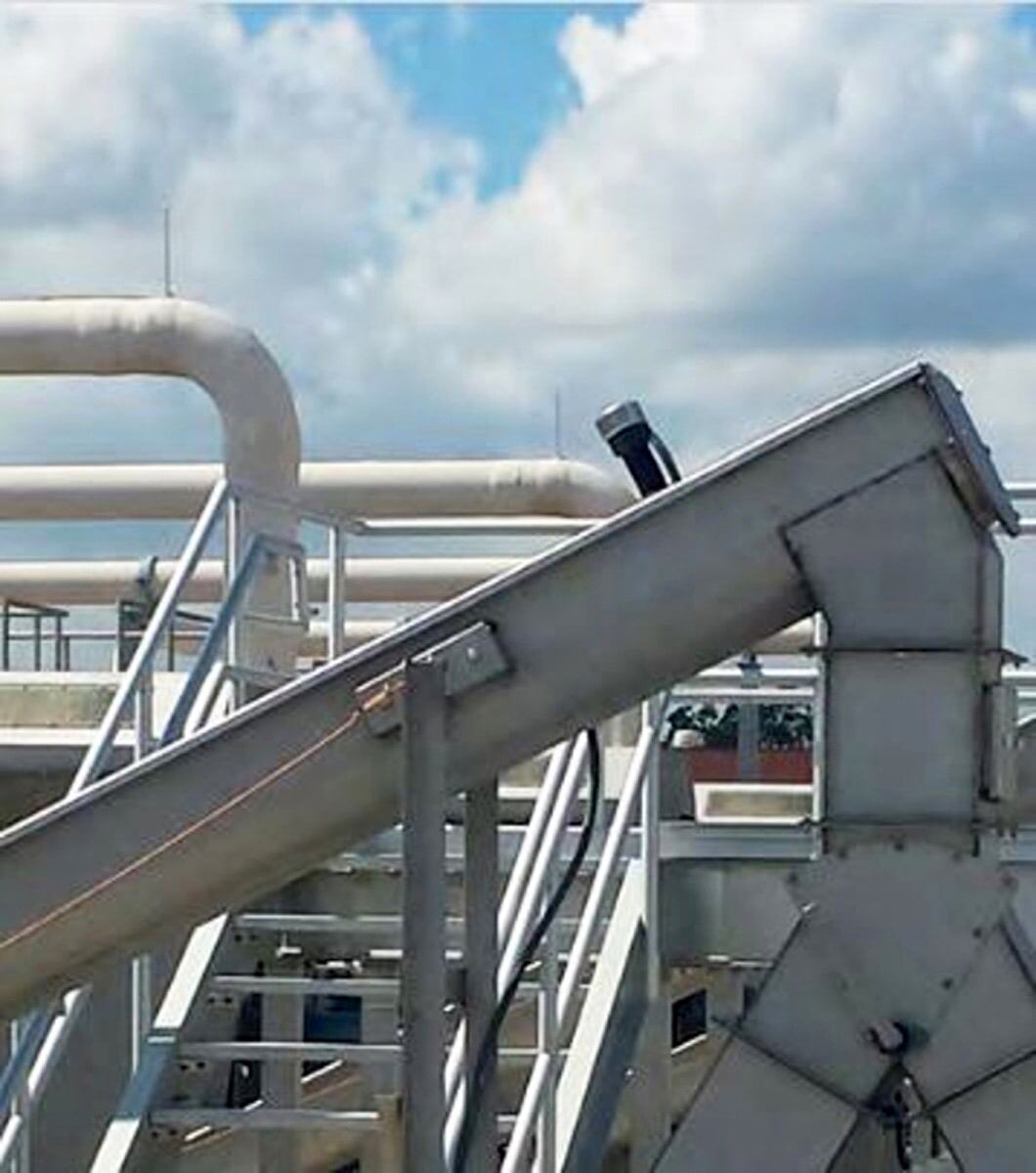

JDV Equipment Shaftless Screw Conveyor
The JDV Equipment Shaftless Screw Conveyor reliably transports solids with a lower total cost of ownership when compared to other transport methods. The shaftless screw allows for a greater fill rate versus other methods/equipment, increasing operational efficiencies and lowering initial capital investment. Long-life wear liners allow for increased maintenance intervals, lowering overall maintenance costs and equipment downtime. The enclosed design provides for a safe working environment for personnel while in operation. They safely transport biosolids, grit and screenings in thousands of municipal and industrial treatment plant installations. 973-366-6556; www.jdvequipment.com
Septage Receiving Stations

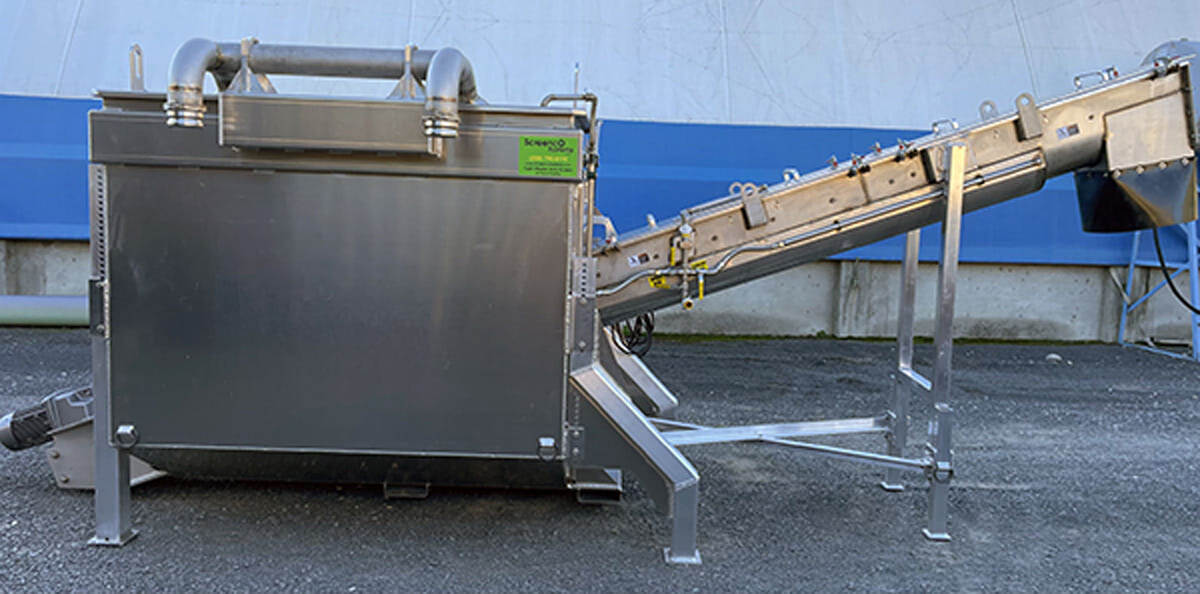

ScreencO Trash Master 600 Auto Screen
The Trash Master 600 Auto Screen receiving station from ScreencO is gravity- and flow-driven to separate trash from the flow stream with a 6-inch inlet and dual fan spreaders, offloading trucks via single 6- or two 4-inch cam inlets at a rate of up to 800 gpm. The aluminum hopper has an 8-inch outlet cam and 3/8-inch gap stainless steel bar screen. The stainless steel U-channel is lined with titanium UHMW and a high-strength alloy steel 11 1/2-inch shaftless screw conveyor. The U-channel has slotted drain holes and a center channel bar screen to promote cleaner, dryer trash. Custom cleaning tools are included. Two hopper spray bars keep the unit clean and free of buildup. The lower cover has two built-in nozzles for cleaning trash. A 3 hp Nord drive with VFD control, 220 single-phase power for plug-and-play functionality, adjustable legs, fork skids and an OSHA-compliant catwalk are included. 208-790-8770; www.screencosystems.com

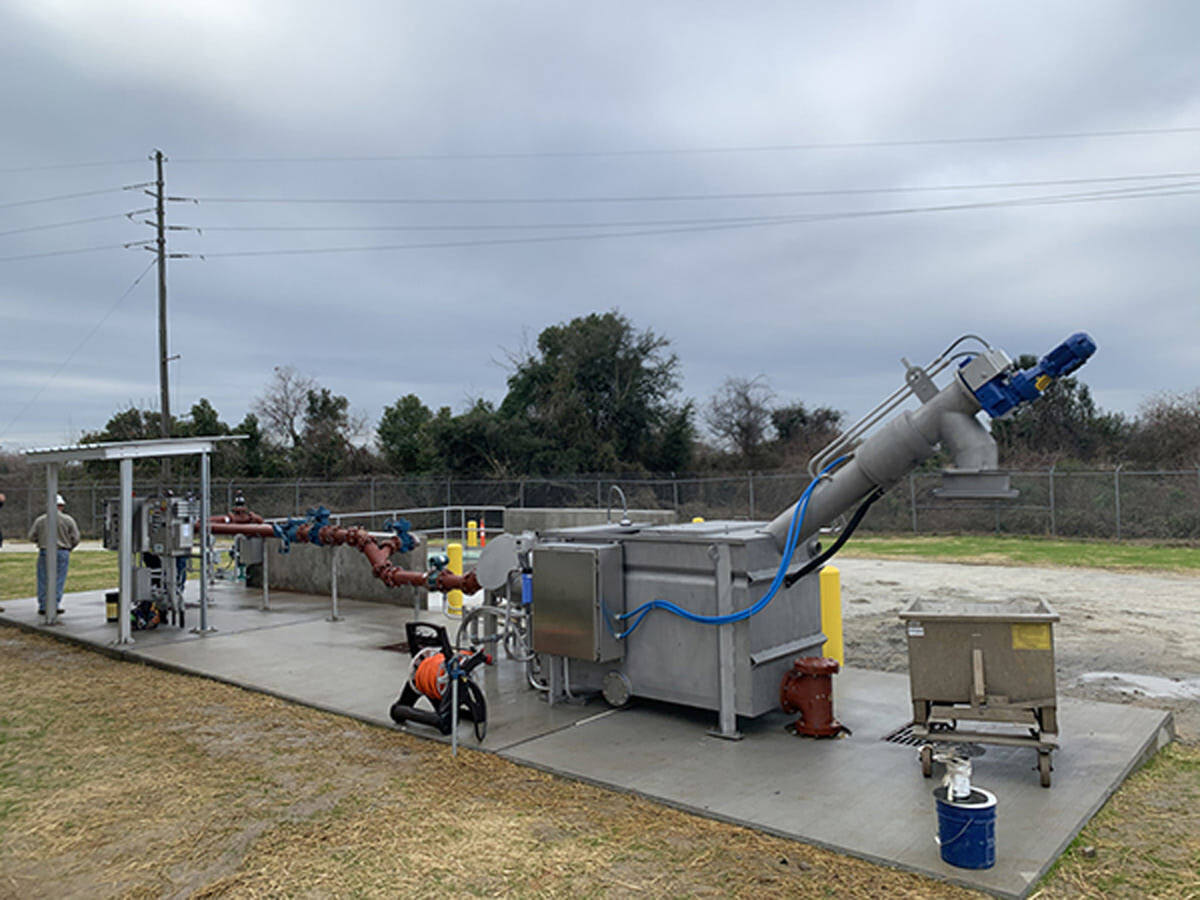

Lakeside Raptor Septage Acceptance Plant
Lakeside’s Raptor Septage Acceptance Plant is a self-contained, fully automated unit designed to remove debris and inorganic solids, including grease trap waste, that typically pass through a conventional bar screen. Anchored by the reliable Raptor Fine Screen, the unit is a simple, efficient way to pretreat the increasing amount of municipal, industrial and septic tank sludges processed at wastewater treatment plants. Lakeside’s heavy-duty, three-plane fine screen utilizes a rotating rake that passes through the full depth of the basket bars, removing debris from the screening area. The rotating rake deposits the collected screenings into the central screw conveyor hopper for washing, transport and compaction/dewatering. With the addition of aerated grit removal to the system, the unit is offered as the Raptor Septage Complete Plant. 630-837-5640; www.lakeside-equipment.com
Screening Systems

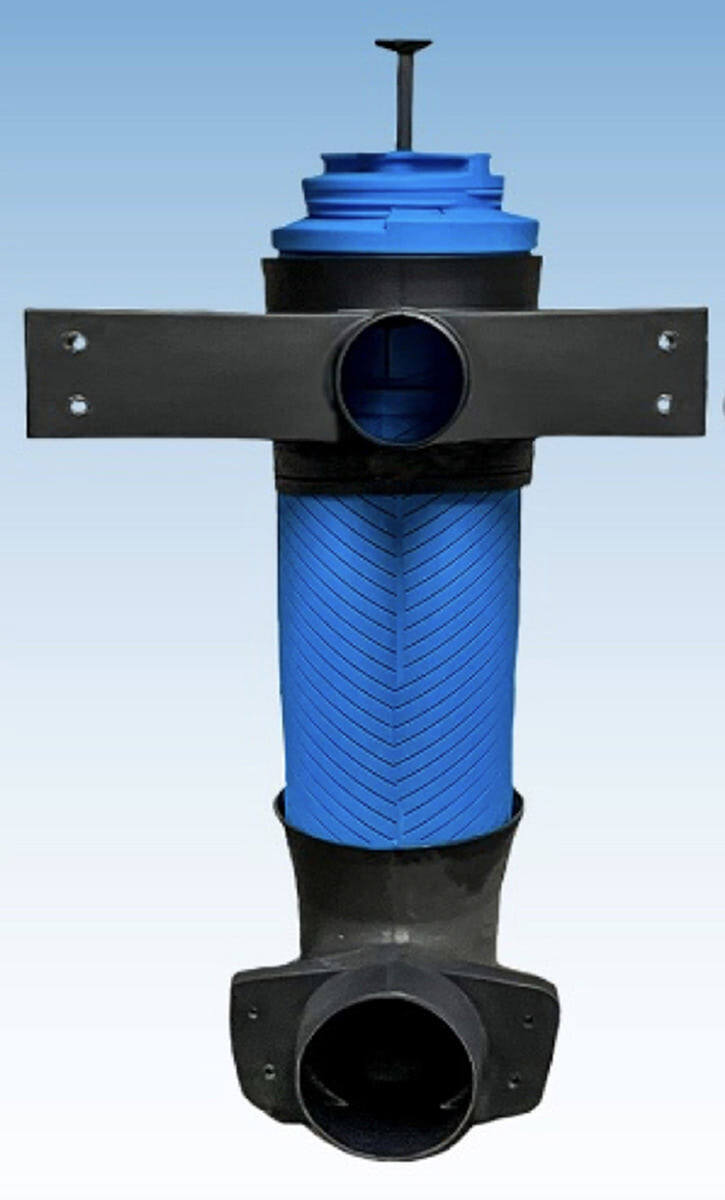

BioMicrobics MyTEE Vault
The MyTEE Vault screening system from BioMicrobics effectively separates and holds grit and nonbiological solids in a single vault for vacuum truck disposal as needed. The screens have a center handle and swab that can be raised and lowered to dislodge accumulated solids. It comes with strong holding brackets on top and bottom to hold it in place during surge flows. The top bracket has a formed pipe to allow the screened water to travel to the treatment plant. The top of the screen inside the top bracket has three engineered keyhole-shaped weirs. After the water is filtered and flows from the outside to the inside of the screen, the keyhole weirs attenuate surge flow as the water leaves the vault. It is almost always ahead of MyFAST and MacroFITT wastewater treatment and other similar treatment systems. 800-753-3278; www.biomicrobics.com
Evoqua Water Technologies Forty-X Disc Filter Armor Series
The Forty-X Disc Filter Armor Series from Evoqua Water Technologies is a high-rate filtration device that utilizes an integrated prescreen and stainless steel panels that are designed to accommodate high solids loading capacities and greater hydraulic throughput. The woven optimum primary mesh filter panel utilizes 316 L stainless steel threads to create a weave that improves solids collection and rejection, which makes this disc filter suitable for stormflow applications. The panel configuration includes a molded structural frame and pressured assisted seal, allowing the panels to sustain and operate at a higher headloss and provide higher throughput when compared to other disc filter synthetic media. The series combines the technology of outside-in and inside-out filtration into a single PLC-controlled unit with influent water flowing through the prescreen (outside-in) into the disc filter panels (inside-out). This combination of two filtration technologies provides an effective option for challenging applications. 800-466-7873; www.evoqua.com

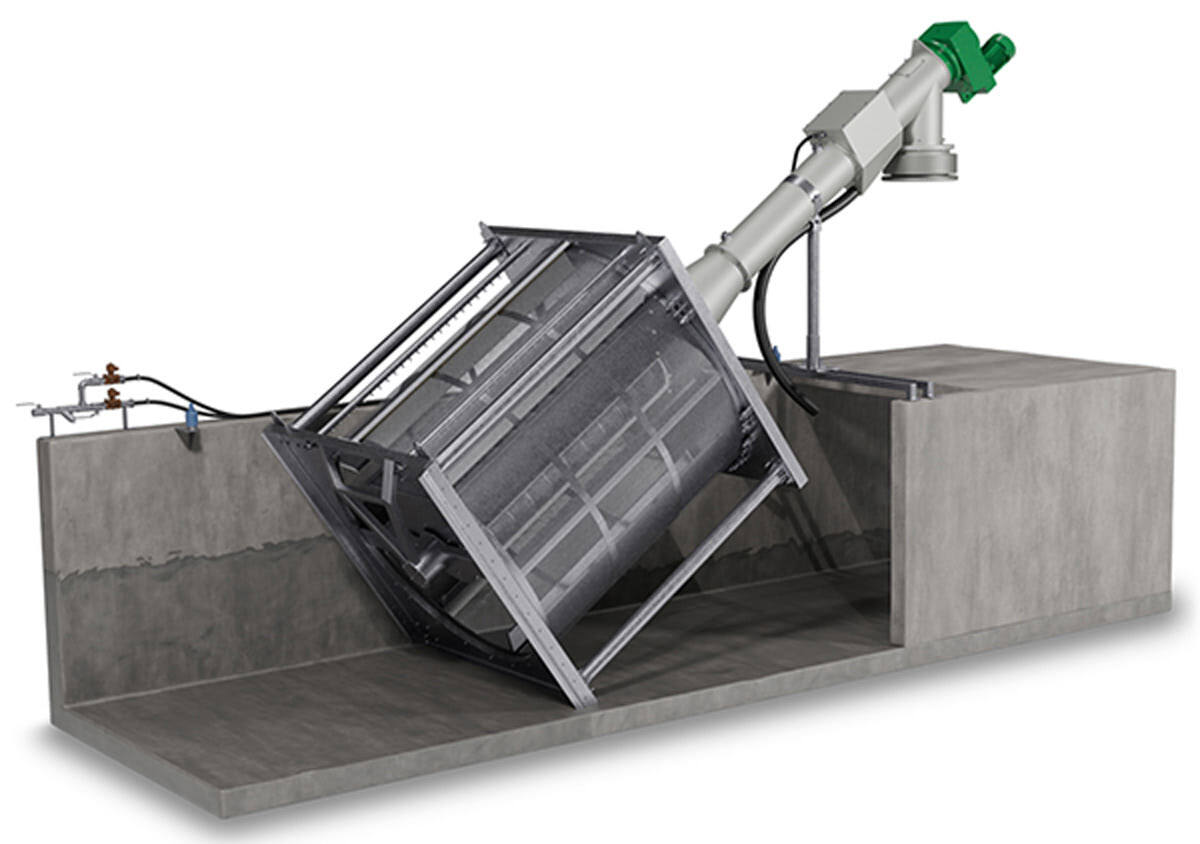

JWC Environmental Drumscreen Monster Channel Rotary Screen
The Drumscreen Monster Channel Rotary Screen from JWC Environmental is a high-performance in-channel screening solution designed for municipal and industrial wastewater applications. It captures, washes, dewaters and conveys solids using an integrated rotating auger, delivering cleaner, drier discharge and reducing odor for improved regulatory compliance. Its pivot-mounted auger simplifies maintenance and minimizes downtime, while the compact footprint allows for easy installation or retrofit into existing channels. Built for durability and efficiency, the system protects downstream processes from debris and enhances overall plant performance. Ideal for facilities with high solids removal needs, it offers customizable configurations to meet specific treatment requirements. 800-331-2277; www.jwce.com
