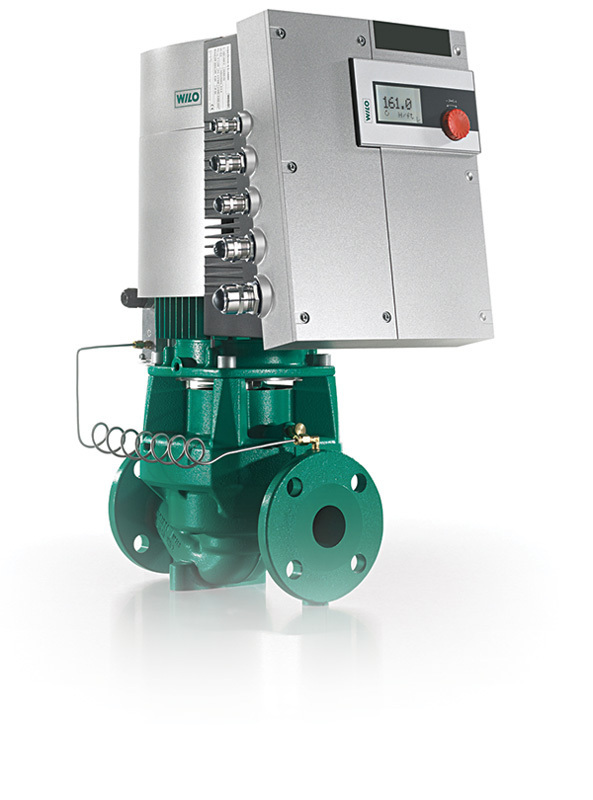

WILO single-stage inline centrifugal pump

The Stratos GIGA high-efficiency, single-stage inline centrifugal pump from WILO USA is designed for use in hot-water heating systems, closed cooling circuits and industrial process systems. The redesigned hydraulics and permanent magnet motor can achieve 1E4 efficiencies. Features include heads to 167 feet and flows to 275 gpm. 866/945-6872; www.wilo-usa.com.

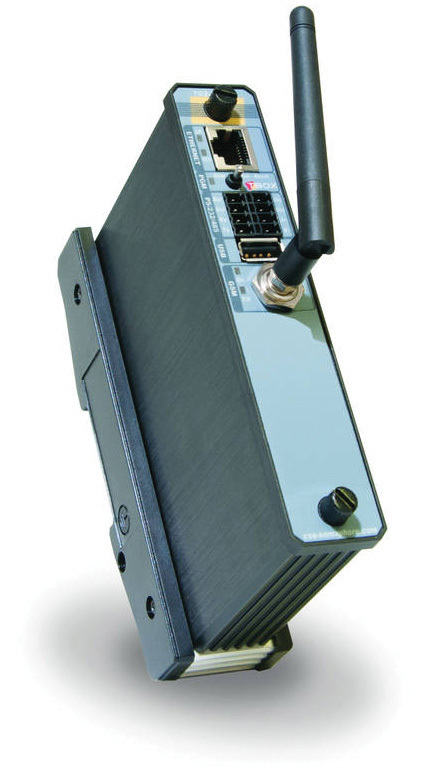

CSE-Semaphore remote gateway

The TBox TG2 TeleControl remote gateway from CSE-Semaphore enables multiple devices to connect to cellular and IP SCADA networks. The system combines programmable automation, alarm management, data logging and SCADA communications with a Web 2.0 user interface and cyber security suite in a single package. 860/618-0293; www.cse-semaphore.com.

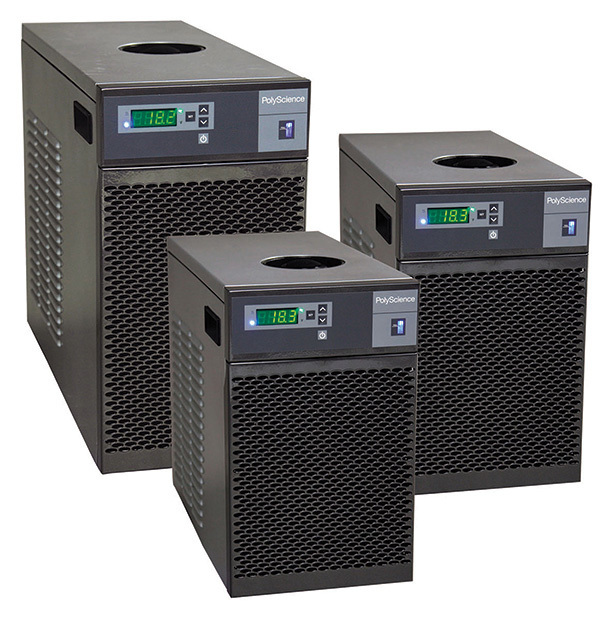

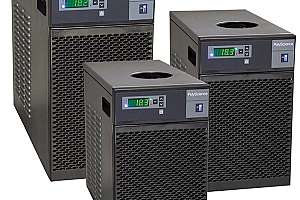

PolyScience benchtop chillers

LS, LM and MM series low-temperature chillers from PolyScience, a division of Preston Industries, are designed to maximize bench space and provide up to 1,290 watts of cooling at 68 degrees F (20 degrees C). The LS Series has a working temperature range of -4 to 104 degrees F (-20 to 40 degrees C) and provides 475 watts of cooling at 14 degrees F (-10 degrees C). The LM Series has a working temperature range of 14 to 86 degrees F (-10 to 30 degrees C) and 230 watts of cooling capacity at 14 degrees F (-10 degrees C). The MM Series has a working temperature range of 23 to 122 degrees F (-5 to 50 degrees C) and provides 129 watts of cooling at 23 degrees F (-5 degrees C). 800/229-7569; www.polyscience.com.

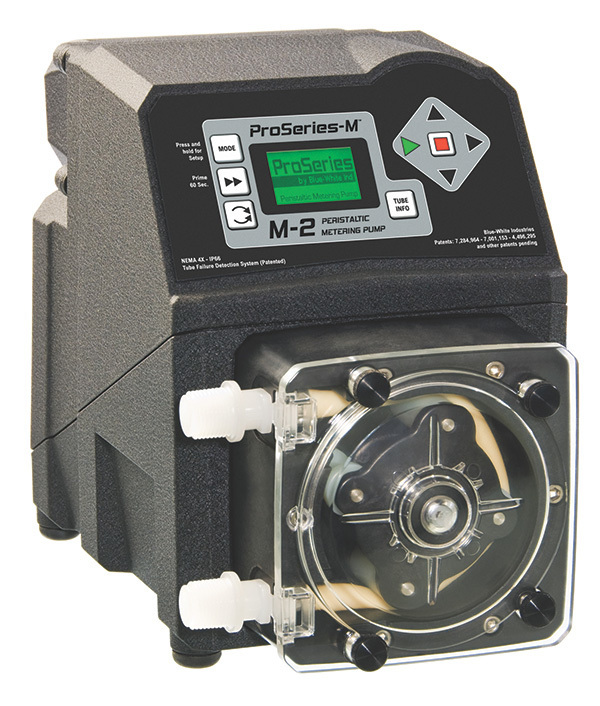

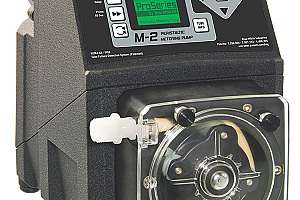

Blue-White Industries Pro Series metering pump

The ProSeries-M M-2 peristaltic metering pump from Blue-White Industries is designed for use in small- to mid-sized municipal water and wastewater systems. The pump, which can be used with a variety of aggressive and viscous chemicals, has feed rates from 0.007 to 15 gph with pressures to 125 psi, a 200:1 turndown ratio and 4-20 mA input and output. 714/893-8529; www.blue-white.com.

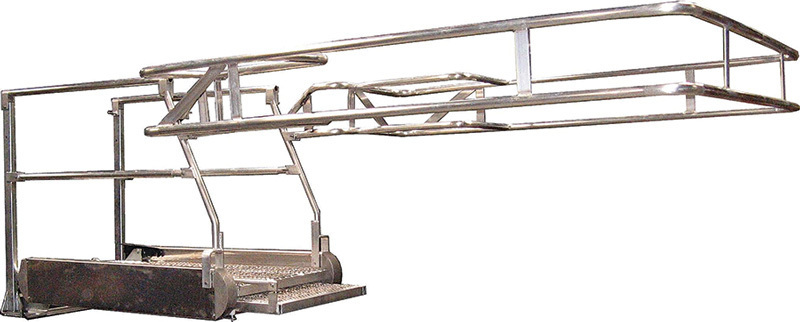

Green Access gangway extension

The SB-RT telescoping ramp gangway with extended reach access from Green Access & Fall Protection is designed to protect operators working on top of tank trucks or rail cars. Features include adjustable dual-tension springs in both box-channel side panels. Folding handrails and telescoping midrails are made of heavy wall tubing. Other features include 1/2-inch bumpers and grip-strut walking surface. www.green-mfg.com.

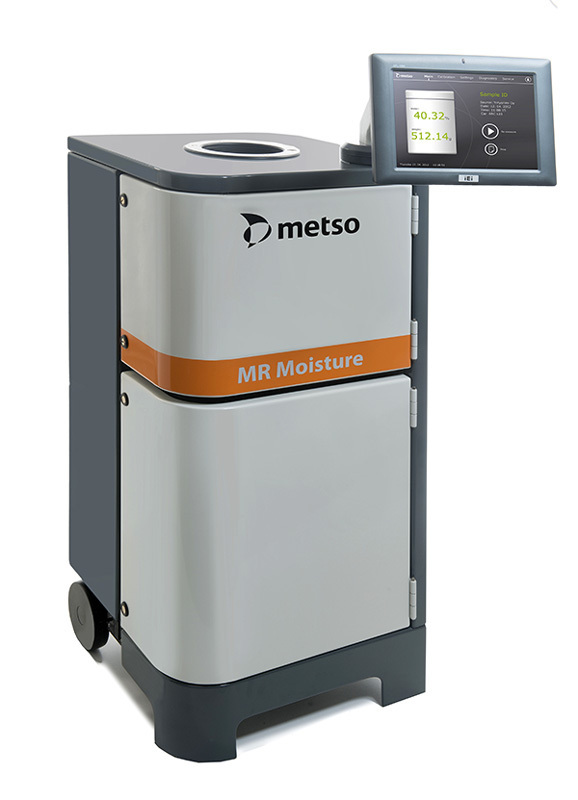

Metso moisture analyzer

The MR moisture analyzer from Metso Automation USA measures water content in bulk material, such as wood chips, minerals and biomass. The device has a touch-screen interface and can be connected to the distributed control or other plant system via Ethernet modbus. Moisture content can be measured in the field in less than two minutes. Calibrated with tap water, the analyzer handles sample volumes up to 0.8 liters, according to the European standard. 770/263-7863; www.metso.com.

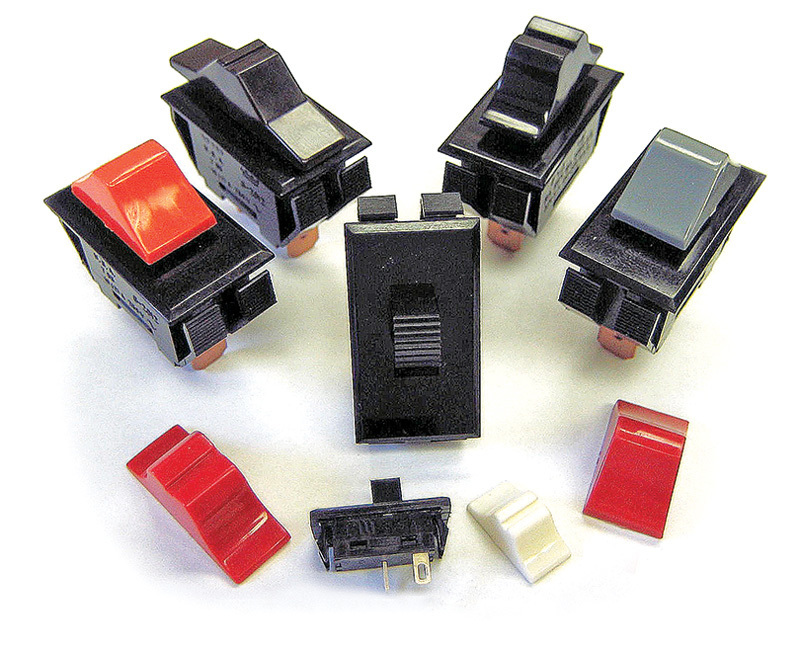

CW Industries enclosed power-slide switches

Enclosed, heavy-duty, power-slide switches from CW Industries are rated at 16 amps at 125 VAC. The G/GS-2011 and G/GS-2012 series are dust proof and available in SPST and SPDT circuitries. The switches install into a panel opening of 0.550 by 1.125 inches and are available in custom colors. Optional toppers can be added for enhanced appearance. Switches can be modified for specific actuation forces, height requirements and style. They have an operating temperature range of -13 to 221 degrees F and are rated at 100,000 cycles, no load minimum. 215/355-7080; www.cwind.com.

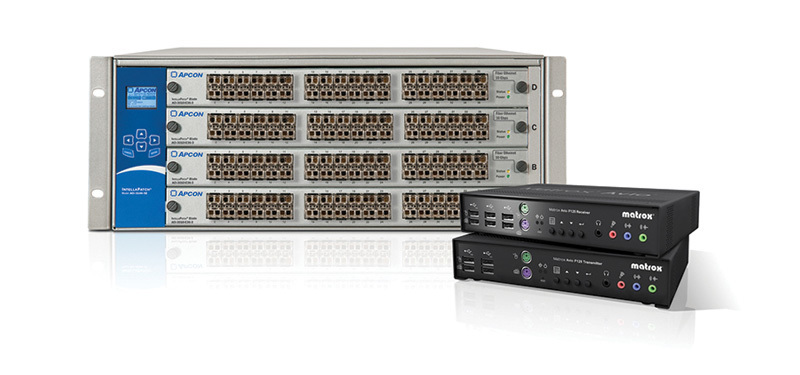

Matrox digital matrix switch

Avio KVM extenders from Matrox Graphics are compatible with APCON IntellaPatch Series 3000 XE network switches, supporting 10 Gbps. Avio F120 and F125 KVM extenders enable users to run remote desktops without compromising graphics performance through the uncompressed, high-bandwidth transmission of digital content. 514/822-6000; www.matrox.com/graphics.

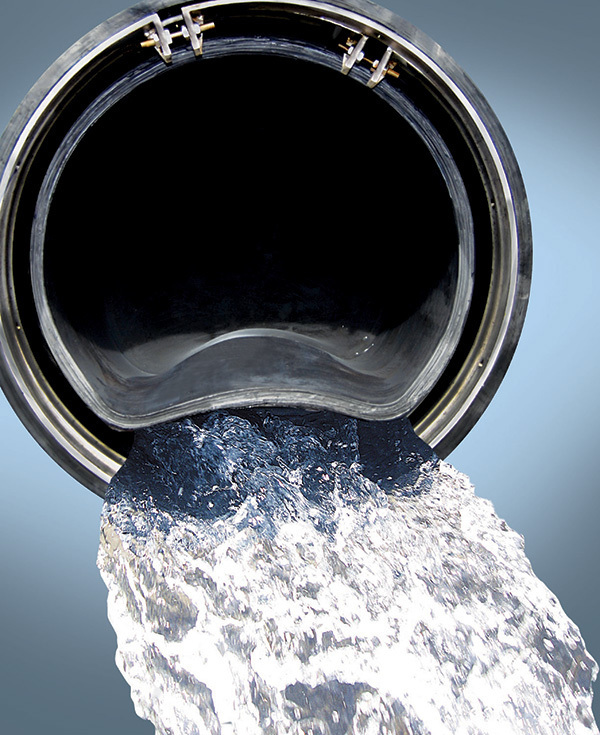

Tideflex inline check valve

The CheckMate inline check valve from Tideflex Technologies, a division of Red Valve Company, is designed for backflow prevention and odor mitigation in outfalls, stormwater, CSO and SSO applications. The custom-engineered, all-rubber unibody design eliminates backflow from oceans, rivers and interceptors. The valve is made of 100 percent fabric and elastomer to eliminate corrosion and can open to a near-full pipe diameter for maximum flow capacity. Valves are available in 4- to 72-inch sizes. 412/279-0044; www.redvalve.com.

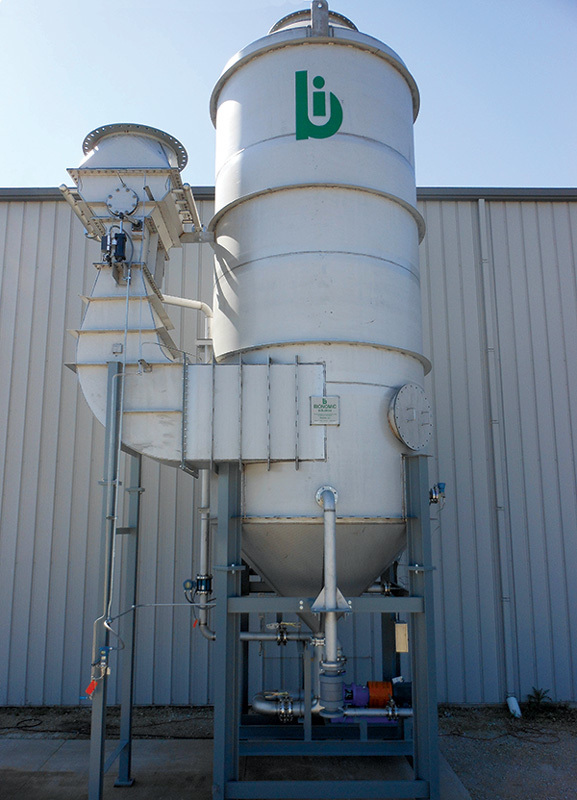

Bionomic venture scrubbers

Series 7000/8000 high-performance venture scrubbers from Bionomic Industries, available in a fully integrated, pre-engineered package, include recirculation pump, piping networks, instrumentation and automated controls. Outdoor units are available with a freeze protection package for cold weather operation. The scrubbing packages are designed to meet PM 10 and PM 2.5 particulate emission standards. 800/311-6767; www.bionomicind.com.

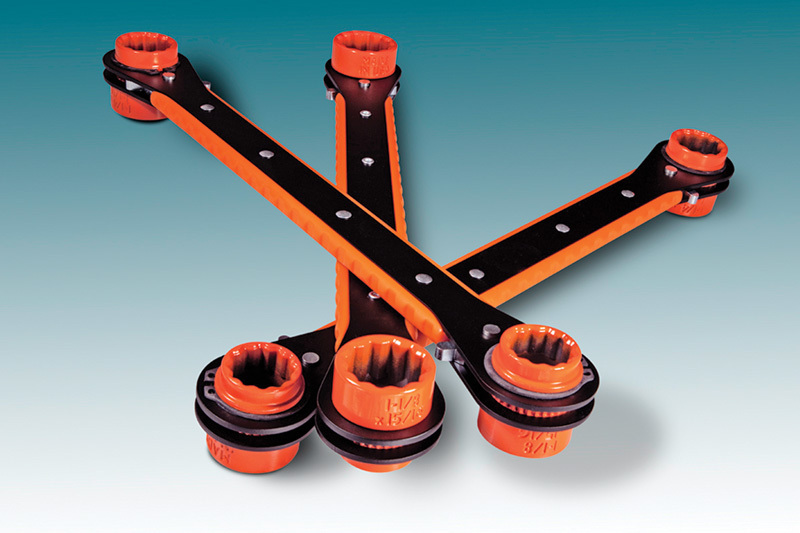

Lowell ratcheting socket wrench

The 8C ratcheting socket wrench from Lowell Corp. features a 1 1/4- by 1 1/16-inch hex socket and 1 1/8- by 15/16-inch socket for tightening 3/4- and 5/8-inch bolts. The 2.5-pound wrench is 1/2-inch thick, has a 17-inch handle and is rated at 200 ft-lbs torque. The ratchets have 36 teeth in a 10-degree handle throw for working in tight locations. 800/456-9355; www.lowellcorp.com.

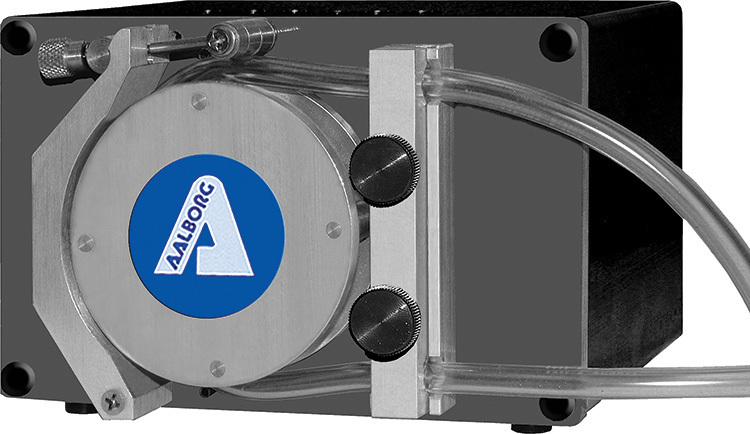

AALBORG pump head

TPU1 and TPU2 pump heads from AALBORG are mounted on a front panel with adjustable occlusion wall and safety cover. Designed for low to high viscosities, the pump heads feature four rollers (TPU 1) or 10 rollers (TPU 2) to minimize pulsing, 340 inches maximum water lift at 12.3 psig and 350 inches water suction at 12.6 psig. 845/770-3000; www.aalborg.com.

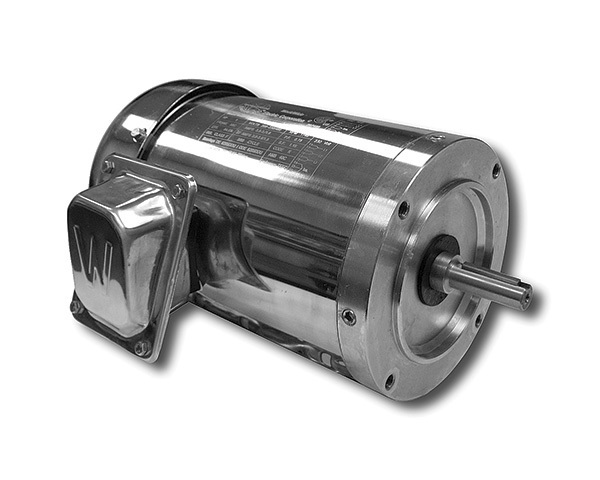

Omega stainless steel AC motors

WSS stainless steel AC motors from Omega feature windings double-dipped and cured in polyester insulating varnish, anti-rust coated rotor and double-lip seals plus V-ring shaft slingers. The three-phase industrial grade washdown duty motors are available in 1/3 to 2 hp (3,600 and 1,800 rpm) and 208 to 230/460 volt. 800/826-6342; www.omega.com.

Larson Electronics portable work light tower

The WAL-2X400MCE portable work light tower from Larson Electronics enables operators to illuminate 50,000 square feet of workspace. The light includes a wheeled base platform, detachable metal halide lamp assembly and adjustable center mast. Suitable for use in wet locations, the light features aluminum reflectors and heat/impact-resistant tempered flat door glass for durability. 800/369-6671; www.magnalight.com.

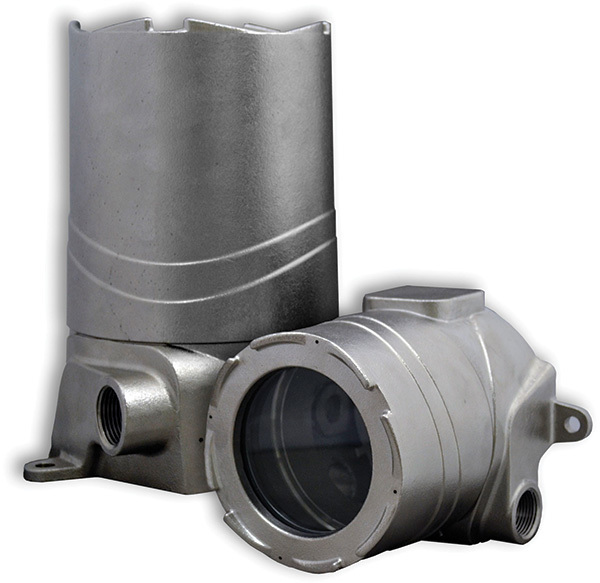

Adalet stainless steel instrument housing

The XIHNS stainless steel, explosion-proof instrument housing from Adalet has a 4 1/16-inch bored throat to accommodate a variety of OEM instruments and devices. Two solid cover and two glass cover options are available. The glass cover has a 3.21-inch viewing window and low-profile, tab-free retaining ring. Other features include removable, internal mounting pan for easy installation, three 3/4-inch conduit entries (six optional) and two cast-on mounting tabs (third optional). 216/267-9000; www.adalet.com.

Hach nitrification control module

The RTC105 nitrification/denitrification system from Hach provides real-time control of aeration in oxidation ditches and sequencing batch reactors, ensuring energy efficiency and constant nitrogen levels in effluent. The module control system installs in about an hour. 800/227-4224; www.hach.com.

MSA sensor for multigas detectors

The SO2/H2S-LC XCell sensor for Altair 4X multigas detectors from MSA has a range of 0-20 ppm SO2 and 0-100 ppm H2S with 0.1 ppm resolution on both channels. The standard H2S low concentration channel meets ACGIH recommendations for 1 ppm TLV. The sensor provides pump tests in less than 10 seconds and full scan calibration in 60 seconds. www.msasafety.com.

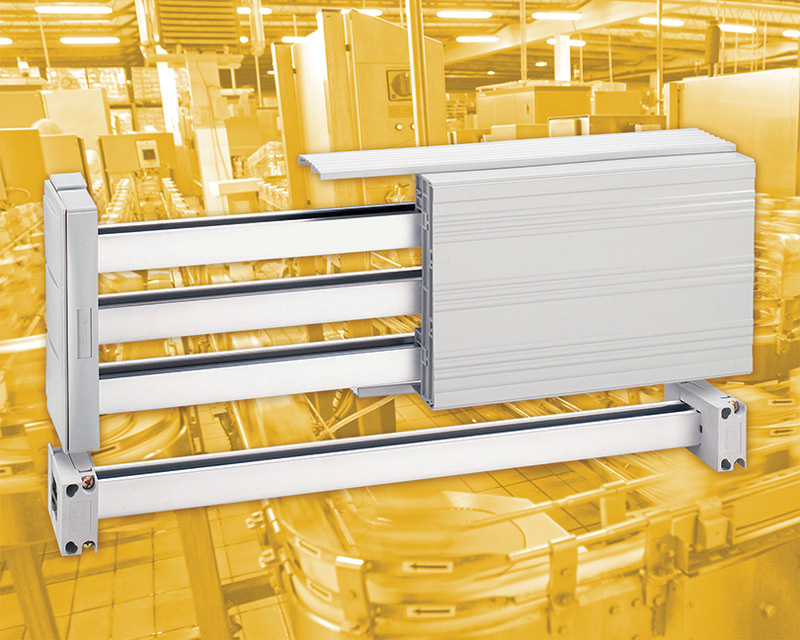

Pentair Equipment 60mm power distribution system

The Hoffman Wohner 60mm busbar power distribution system from Pentair Equipment Protection features components mounted onto pre-wired adapters that snap onto sliding DIN rails for close-proximity placement. The system can distribute three-phase power greater than 1,600 amps at 690 volts, as well as supply single-phase or DC power. The busbar input and output terminals accommodate wire sizes up to 600 mcm. 763/421-2240; www.hoffmanonline.com.

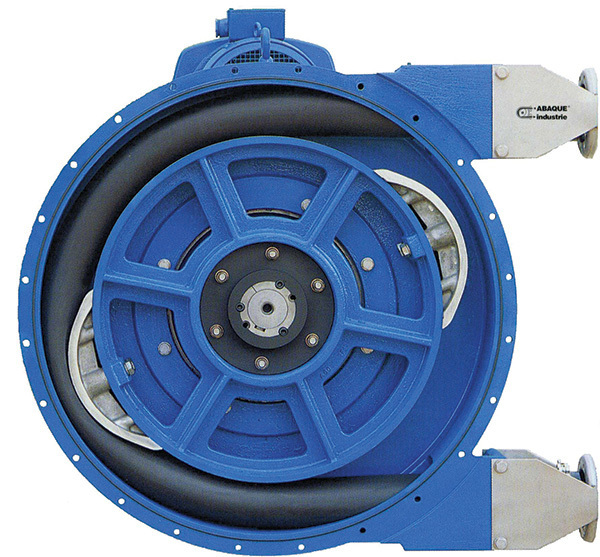

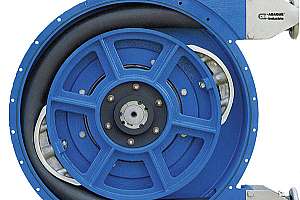

Neptune peristaltic hose pump

The Abaque series of peristaltic hose pumps from Neptune Chemical Pump Co. are available in nine models (AB10 to AB100) and flow rates from 0.07 to 211 gpm. The seal-free design eliminates leaks and contamination, enabling the pumps to handle challenging applications in the municipal treatment industry. The self-priming, run-dry pumps can operate in forward or reverse with lift capabilities to 29.5 feet and discharge pressures to 217 psi. 215/699-8700; www.neptune1.com.

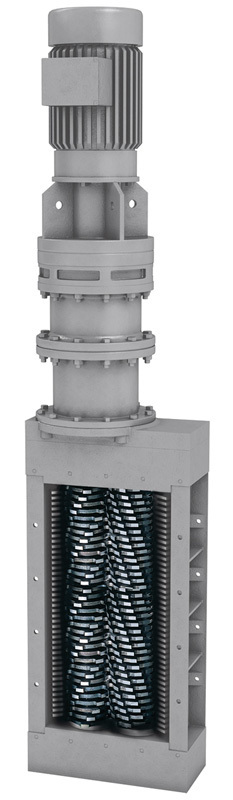

JWC Environmental industrial grinder

The 100 hp (maximum) 7 SHRED industrial grinder from JWC Environmental has three cutting chambers (30, 40 and 50 inches) with 10-inch diameter cutters and a variety of cutter types and thickness options to process solids such as rock, wood, plastics, bone, food waste and textiles. It is designed to be horizontally mounted on a stand with a custom hopper that allows solids to feed from a conveyor, sluice or be manually fed. Applications include petroleum and municipal solid waste processing. 800/331-2277; www.jwce.com.
