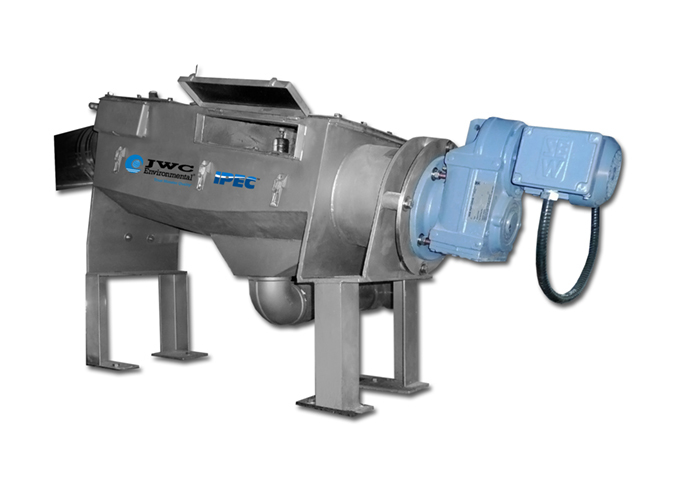

The SLB Screening Conveyor Compactor is an ideal pretreatment screening solution for rural housing, resorts, camps and other remote treatment works. It is designed to receive pumped influent directly from 2- or 3-inch sewage pumps with a maximum 2-inch solid. It will remove trash from primary effluent flows in the range of 50 to 300 gpm ahead of the biological process.
Solids-laden influent is passed through a screening cylinder and transported axially through it by an auger. Solids are to accumulate in the press zone cylinder where a series of shower nozzles wash away organic components during a compaction process. The final discharge solids exit in plug form to a disposal bin. Filtrate and wash water drains by gravity to the downstream treatment process.
Benefits
- Efficient removal of inorganics ahead of biological processes
- Sized for smaller installations and remote locations
Features and specifications
- Screening press to dewater solids
- Spray system to flush organics back into treatment process
- Optional screening bagging system
- Flows 50 of 300 gpm
- Screening from 500 micron to 6 mm
- Pumped flow from 2- or 3-inch sewage pumps
