Product News - August 2021

Product News - August 2021

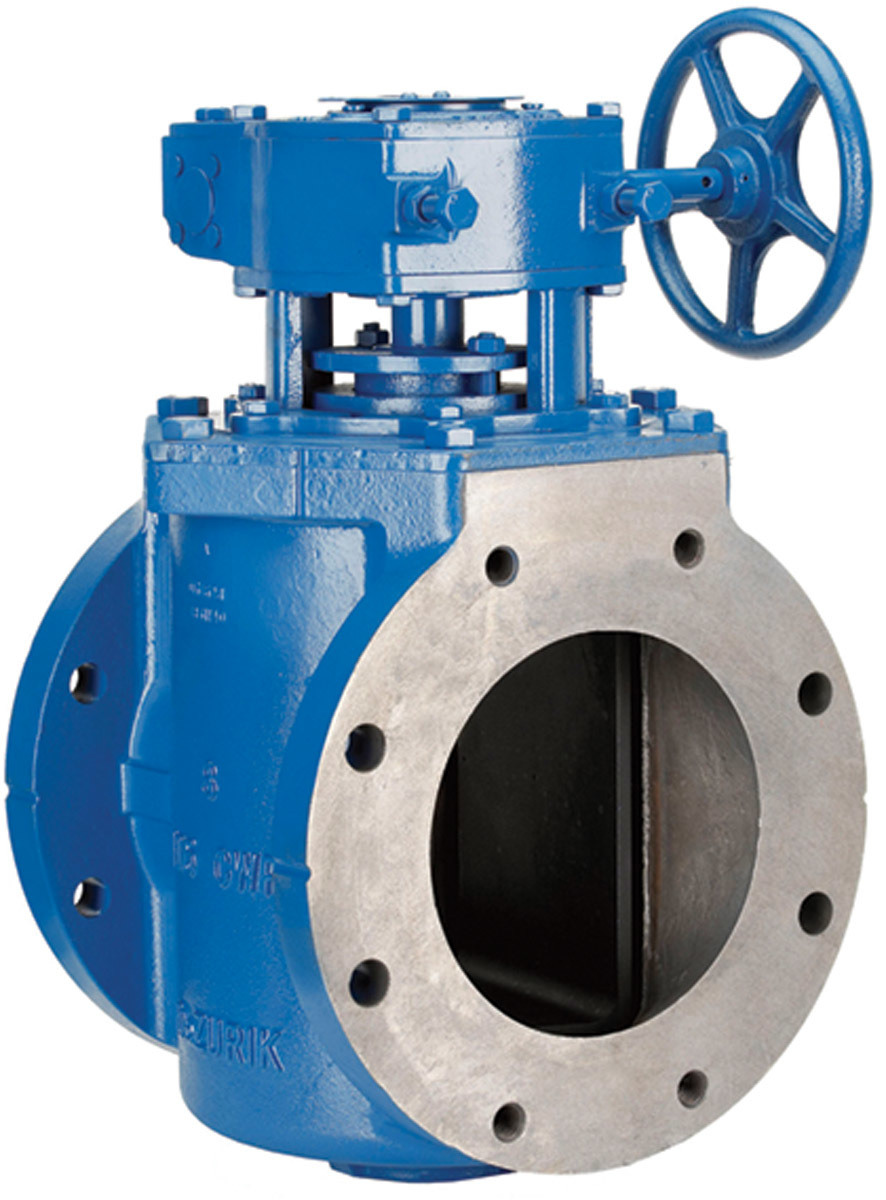

DeZURIK Eccentric Plug Valves

In thousands of installations worldwide, DeZURIK Eccentric Plug Valves have a proven record of long-term reliability. The valve is designed for handling clean and dirty liquids, gases, sludge and slurries. It features a raised, welded nickel seat that provides protection against corrosion that can cause plug face damage and leakage. The rectangular port design has wide-tolerance seating geometry for lasting superior shutoff. An adjustable packing gland allows packing to be inspected, replaced or adjusted under pressure without actuator removal or valve disassembly. Standard features include corrosion-resistant bearings, grit excluders and a choice of resilient plug facings for dead-tight shutoff. Optional features include 100% port area, rubber lining and glass lining. 320-259-2000; www.dezurik.com

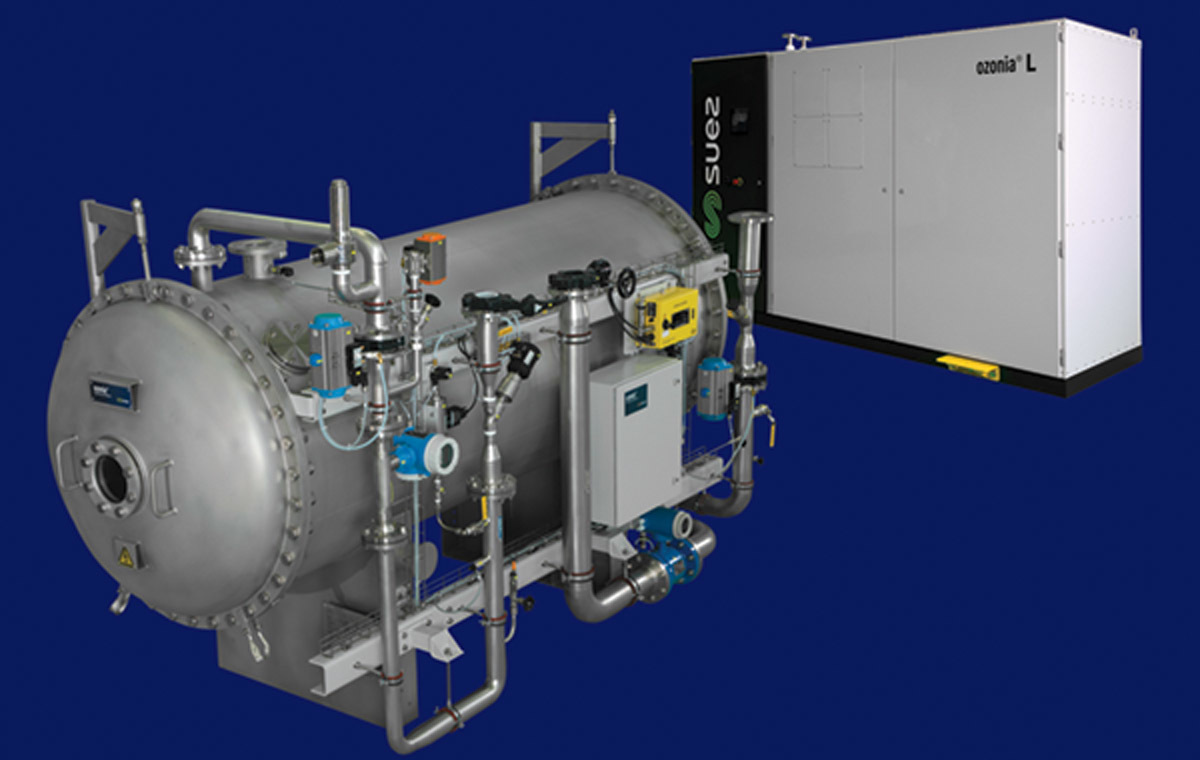

SUEZ Ozonia L large-capacity ozone generators

SUEZ Water Technologies and Solutions added a new family of large-capacity ozone generators to its portfolio, the Ozonia L. The generators deliver large scale ozone production on a compact footprint, with a new web-enabled interface and real-time system optimization for energy efficiency and low total cost of ownership. The Ozonia L family includes three new models to cover ozone production ranges up to 3,200 pounds per day and reduces energy consumption up to 25% over previous generations. The Ozonia second-generation Intelligent Gap System provides flexible ozone production in response to real-time conditions and produces ozone concentrations of up to 16 weight percent with a high tolerance for total hydrocarbon levels in the feedgas. 215-355-3300; www.suezwatertechnologies.com

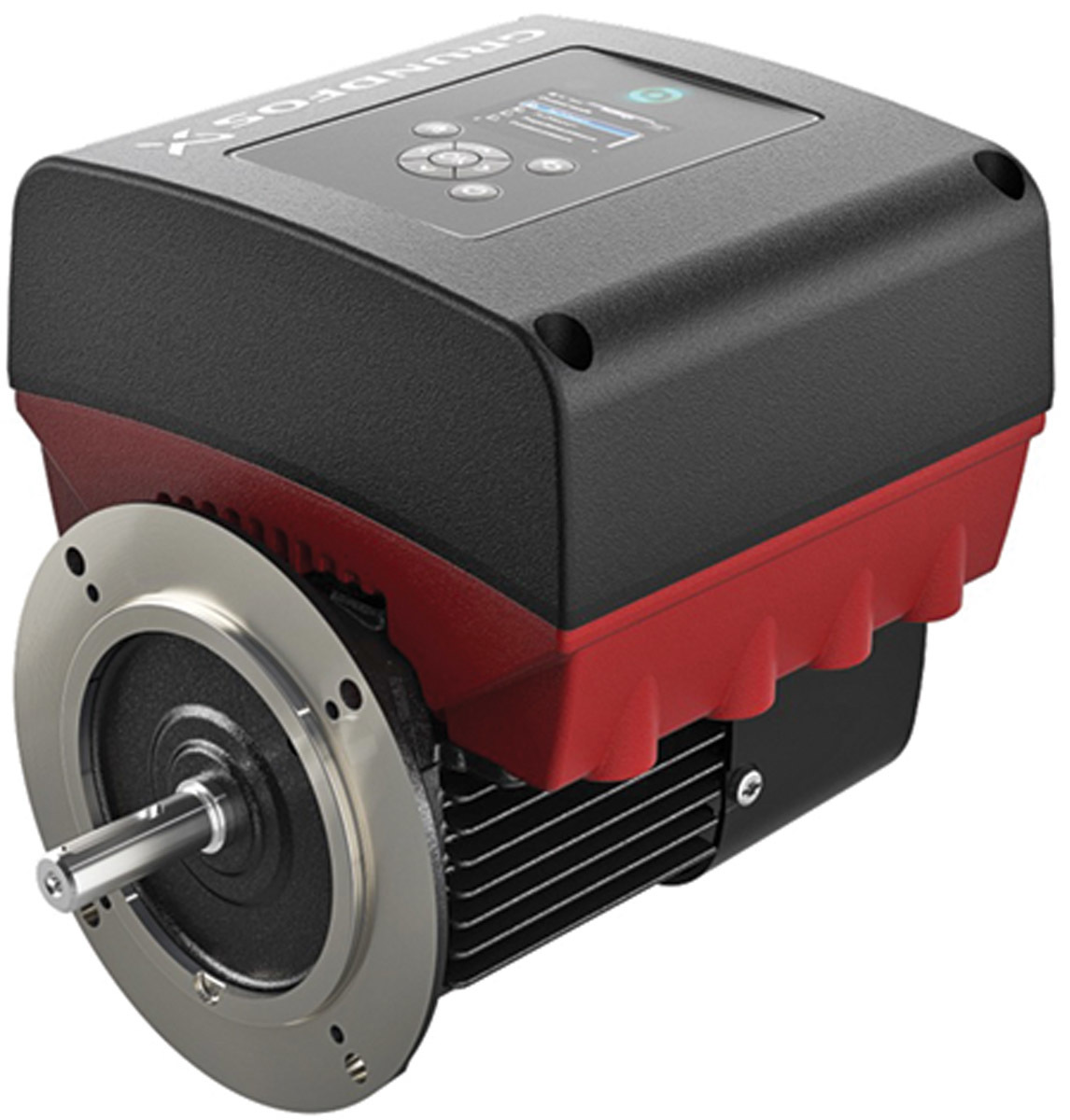

Grundfos high-efficiency IE5 motors and pumps

Grundfos’ E-pumps with integrated frequency converter are designed for total control, customer convenience and environmental sustainability. Grundfos’ MGE E-motors exceed the IE5 requirements by more than 2% with a motor efficiency of 95.7% at 380 V/2,600 rpm. The built-in application control in MGE E-Motors reduces not only the energy consumption of the pump but also optimizes the performance and efficiency of the entire system. The permanent magnet synchronous motors (PMSM) are designed specifically for frequency converter operations and optimized for pump applications and high part-load efficiency. The PMSM also has a built-in frequency converter that enables variable-speed operation with benefits in pump applications ranging from energy savings, process control, extra functionalities, built-in motor protection, higher performance and more compact pumps, reduced water hammer due to long ramp times, and low starting currents. 800-926-6688; www.grundfos.com/us

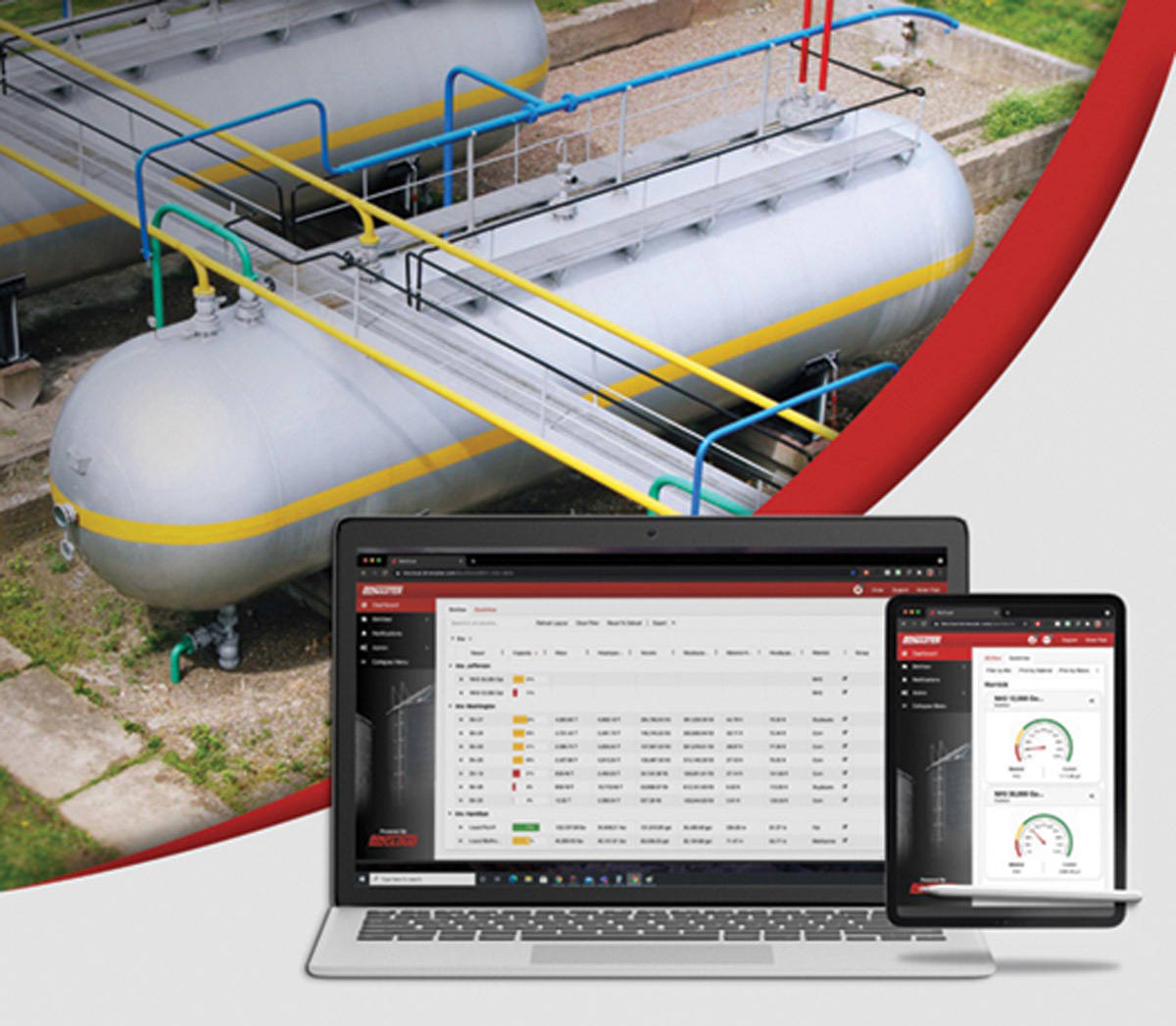

BinMaster BinCloud tank monitor software

BinCloud from BinMaster takes inventory in bins, tanks, or silos and organizes it in one simple software, doing away with climbing vessels, manual measurements and spreadsheets. One login can be used to view current levels, place orders and generate reports. BinCloud SaaS-integrated ordering creates and places orders by site, vendor, vessels, material and amount. Vendors and the materials they provide are set up in the user interface and orders are placed directly from the software. View order history by vendor, material, delivery date and more. Units of measurements can be set to metric measurements, and inventory data can be viewed in either imperial or metric units. Historical measurement data can be exported by a specific data range to Excel. 800-278-4241; www.binmaster.com

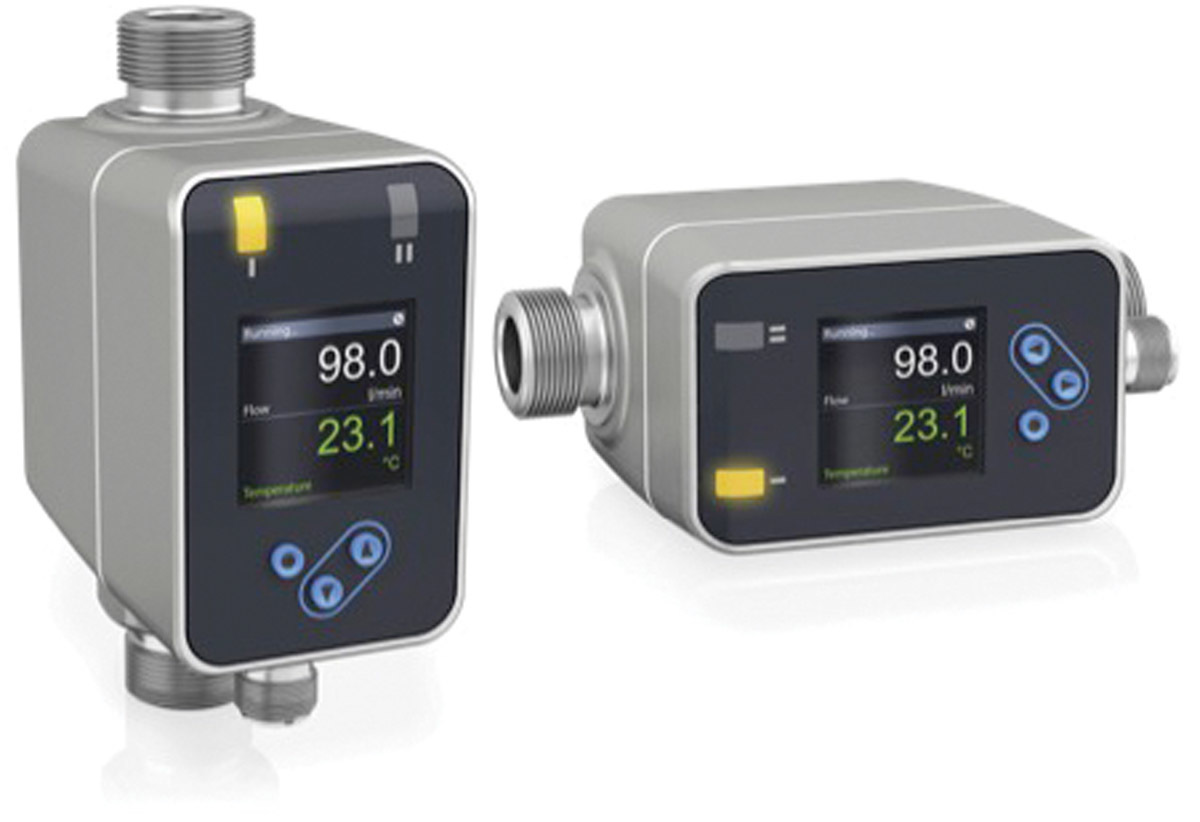

KROHNE AF-E 400 electromagnetic flowmeter

KROHNE’s AF-E 400 electromagnetic flowmeter is an ideal choice for applications with conductive liquids in tight spaces, such as cooling lines of welding equipment, bending machines and robots, or chemical dosing skids. The AF-E 400 features accuracy in every flow range, allowing optimal processing in automation. The round bore reduction of the sensor makes the flowmeter more resilient in terms of increased pressure, ensuring high accuracy over a wide pressure and temperature range. Capable of continuous use at over 194 degrees F, the AF-E 400 is engineered for the most demanding cooling and hot water applications. Due to the special design of the magnetic circuit, field strength and electronics, these mag meters can be positioned in extreme proximity to one another, as close as 0.08 inch, and can be mounted in parallel without any risk of signal interference. 800-356-9464; www.us.krohne.com

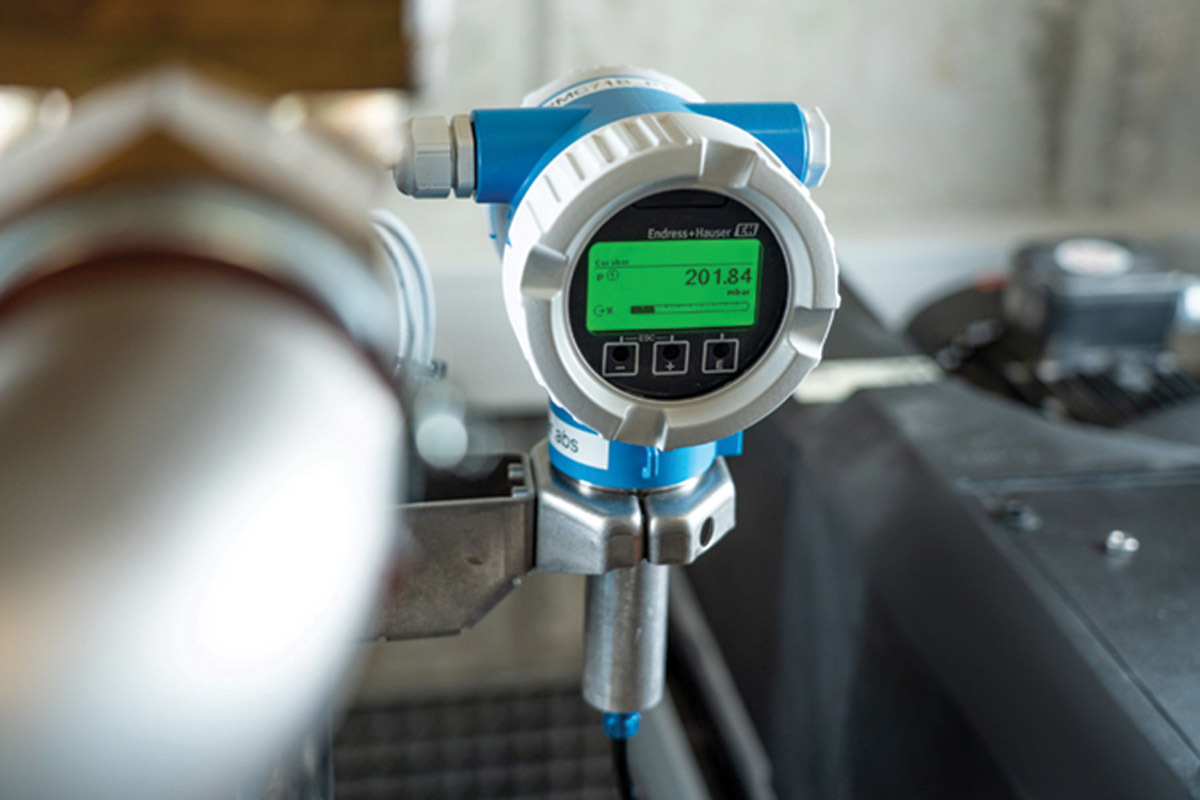

Endress+Hauser Cerabar and Deltabar pressure instruments

Endress+Hauser’s Cerabar and Deltabar pressure and differential pressure instruments have a Bluetooth interface for easier operation and improved efficiency in regulatory control, safety and other systems. Heartbeat Technology creates the data basis for predictive maintenance and allows the instruments’ functionality to be verified without process interruption. Intuitive operation is provided via the SmartBlue app, which includes guided operating sequences for parameterization and commissioning of the pressure sensor, bridging distances of up to 50 feet. Measuring points that are difficult to reach or in hazardous areas are easy to maintain, even if they are only integrated into the process via a 4–20mA interface. 888-363-7377; www.us.endress.com

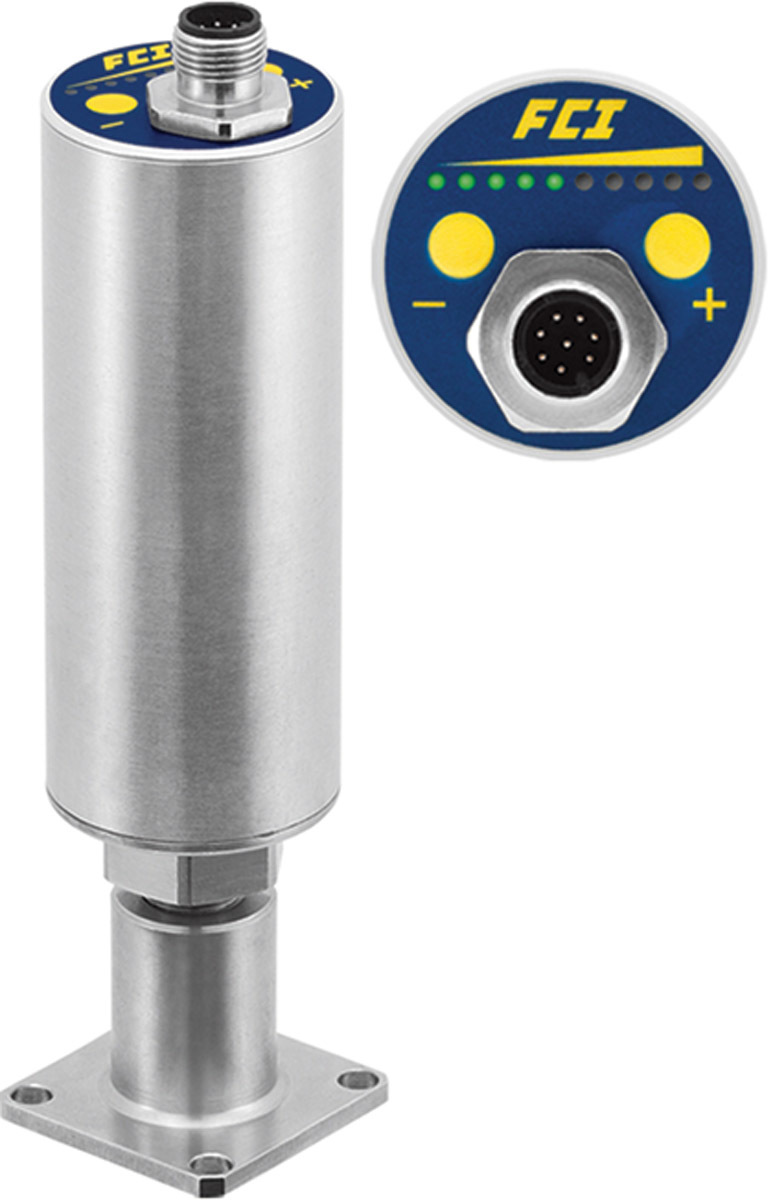

FCI FS10A analyzer flow switch/monitor with SP76 adapter

The Model FS10A analyzer flow switch/monitor from Fluid Components International features a convenient SP76 adapter that supports or integrates easily with New Sampling/Sensor Initiative (NeSSI) standard compliant hardware. FCI’s SP76 adapter for NeSSI modular manifolds allows the FS10A to be installed into a standardized mechanical platform for analyzers and sensors. In NeSSI-compliant devices, sample system components such as the FS10A can be mounted onto a standard fluidic interface for modular surface-mount components, which features standard wiring and communications interfaces and a standard platform for micro analytics. The FS10A conforms to NeSSI Generation I and is prepped for Generation II and III compliance. It requires only a single 1.5-by-1.5-inch SP76 base. 800-854-1993; www.fluidcomponents.com

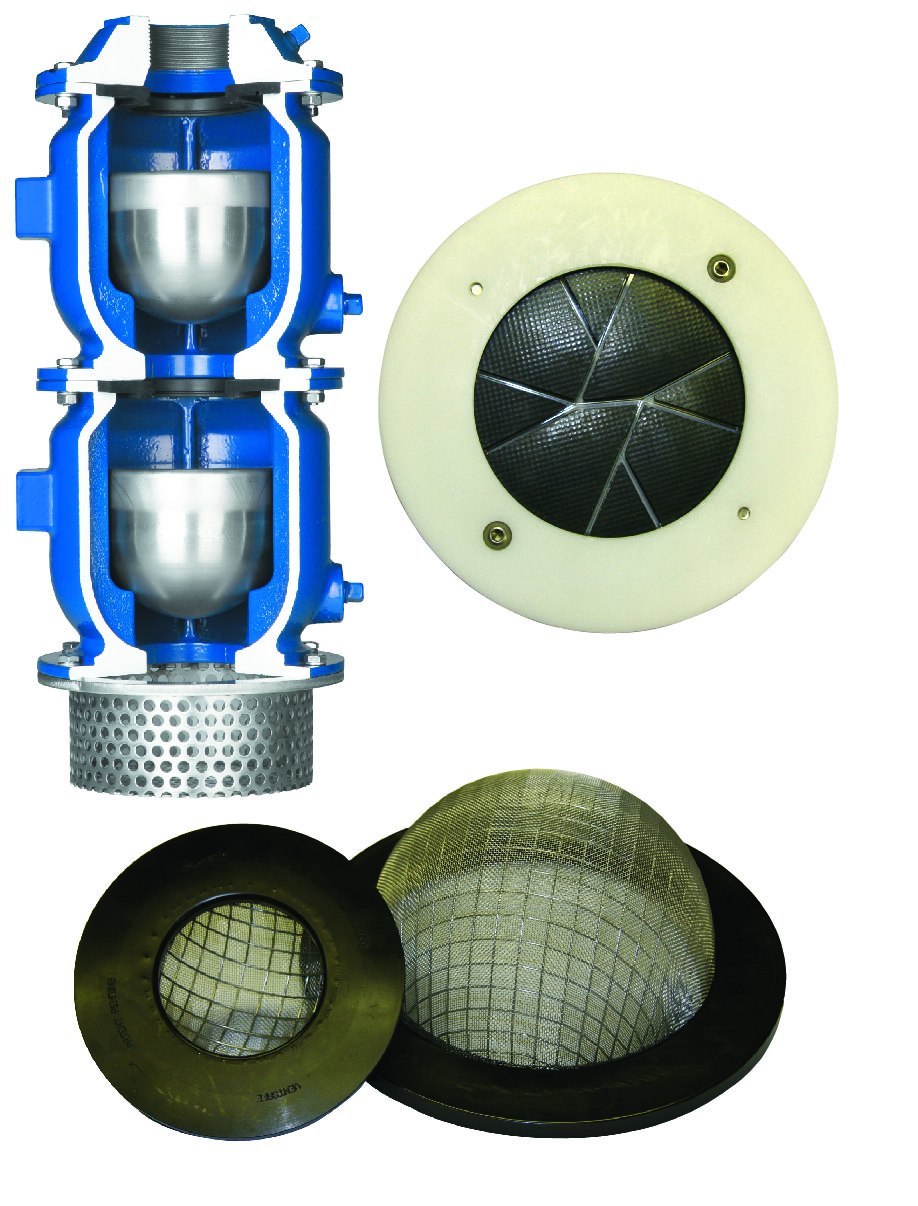

Val-Matic VaultSafe products for potable water

Val-Matic’s VaultSafe family consists of the FloodSafe Inflow Preventer, the FrostSafe air damper and the VentSafe vent pipe security cage. The FloodSafe prevents contaminated water from passing through it, preventing it from entering the air valve outlet and compromising the potable water system with its dual chambers and float checks. The FrostSafe minimizes the thermal exchange of cold and warm air in and out of a vault to help prevent freezing with a bidirectional hingeless disc and wafer design. The VentSafe safeguards vent pipes against the hazards of nesting animals and intentional harmful activities because of its hemispherical screened security cage. 630-941-7600; www.valmatic.com

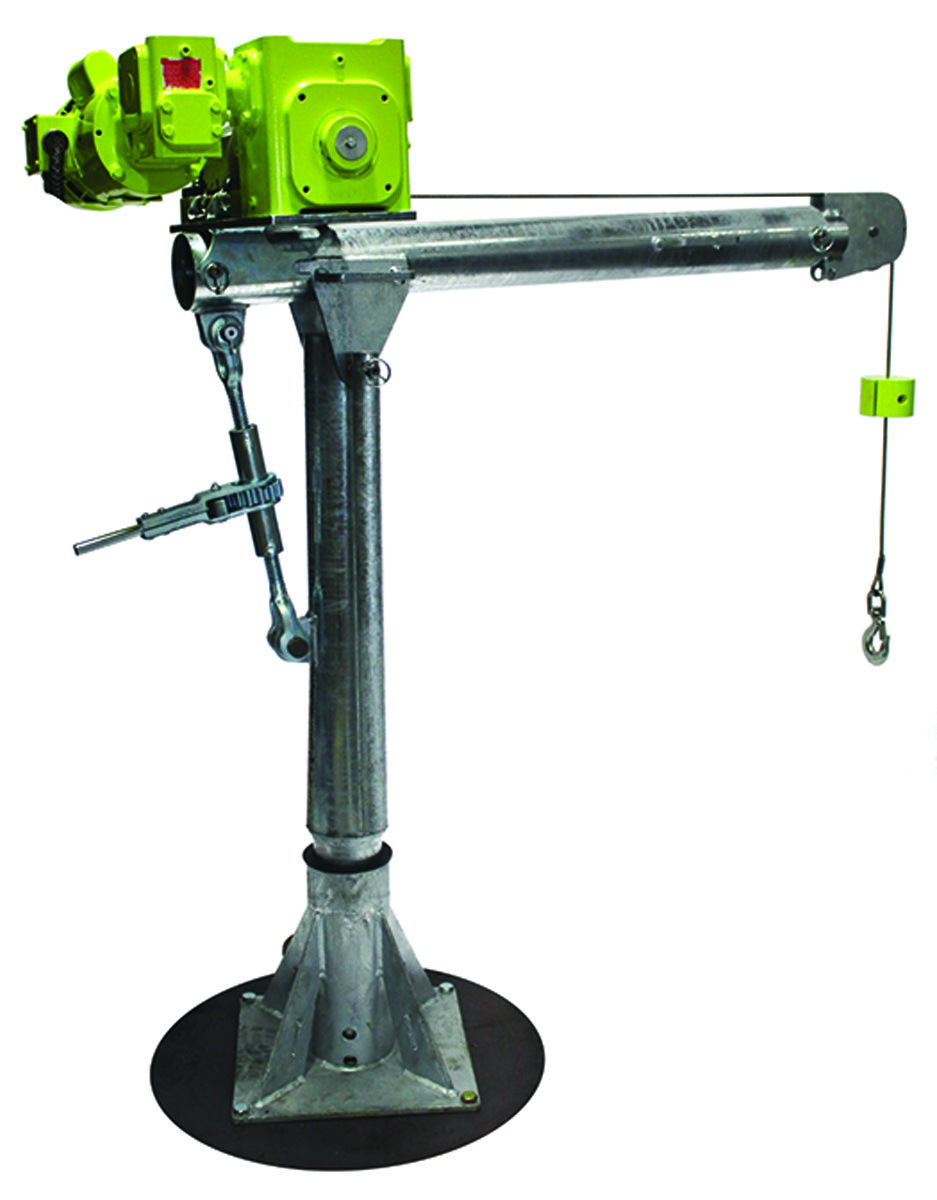

Patterson Mfg. davit cranes

New davit cranes are available from corrosive environment and safety experts Patterson Mfg. Give your operations a lift with models in 1/2- and 1-ton capacities. The cranes exhibit the company’s hallmark safety, simplicity and durability, with key features such as a reliable brake with long life and readily available parts, a hot-dipped galvanized finish and no plastic sheaves or pulleys. They put safety and simplicity within your reach with a low maintenance, easy-to-assemble design that is made in the USA. For over 160 years, Patterson has been a trusted supplier of winches, rigging, fittings and custom products for lifting applications in the marine, construction and mining markets. These davit cranes continue to deliver the company’s promise of helping businesses run safer, easier and faster. Find out how our team and products can improve employee safety and positively impact your bottom line. 800-322-2018; www.pattersonmfg.com/davit-cranes
