Chemical and polymer feeding equipment is designed to handle the precise measurement and delivery of chemicals like coagulants and polymers, which are essential in processes such as dewatering, coagulation and chemical mixing. They feature advanced monitoring and control options, enabling seamless integration with existing plant systems and ensuring compliance with regulatory standards. Take a look at some product options below.
Force Flow Tote Bin Scale
The Tote Bin Scale from Force Flow allows plant operators to accurately monitor the amount of polymer being fed from IBC-type totes for dewatering. Simply place the tote on the platform and monitoring begins, as there is nothing to install inside the tote. Monitoring systems prevent costly overfeed conditions and enable the documentation of the actual amount fed, which keeps the plant in compliance with federal and state reporting requirements. Users can remotely monitor from SCADA or PLC. The unit is available with the SOLO G2 digital display or with the advanced Wizard 4000 chemical inventory management system. 800-893-6723; www.forceflow.com

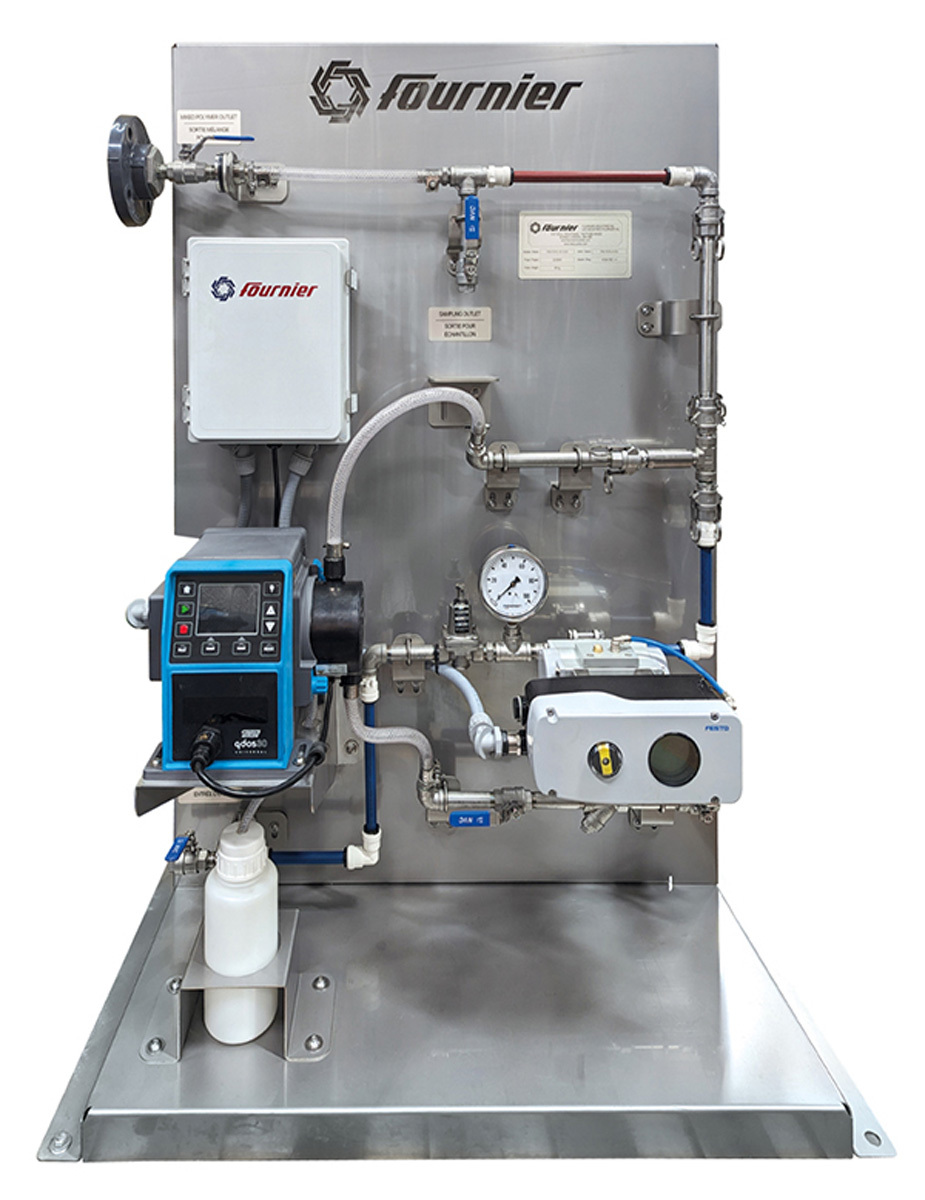

Fournier Polysys Polymer Preparation & Feed System
The Polysys Polymer Preparation & Feed System from Fournier is designed to activate and blend a uniform polymer solution within the concentration range of 0.1% to 0.45%, derived from a neat polymer solution ranging from 40% to 55%, streamlining the preparation process. Its compact design optimizes space utilization and simplifies installation. Maintenance is facilitated by its minimal moving parts and easily removable pump head, reducing downtime and operational disruptions. It can be seamlessly integrated into existing dewatering systems or function as a standalone unit with its own control panel. Its adaptable range of capacities caters to both small- and large-scale throughput requirements, offering versatility for diverse operational needs. 800-463-6328; www.fournierdewatering.com

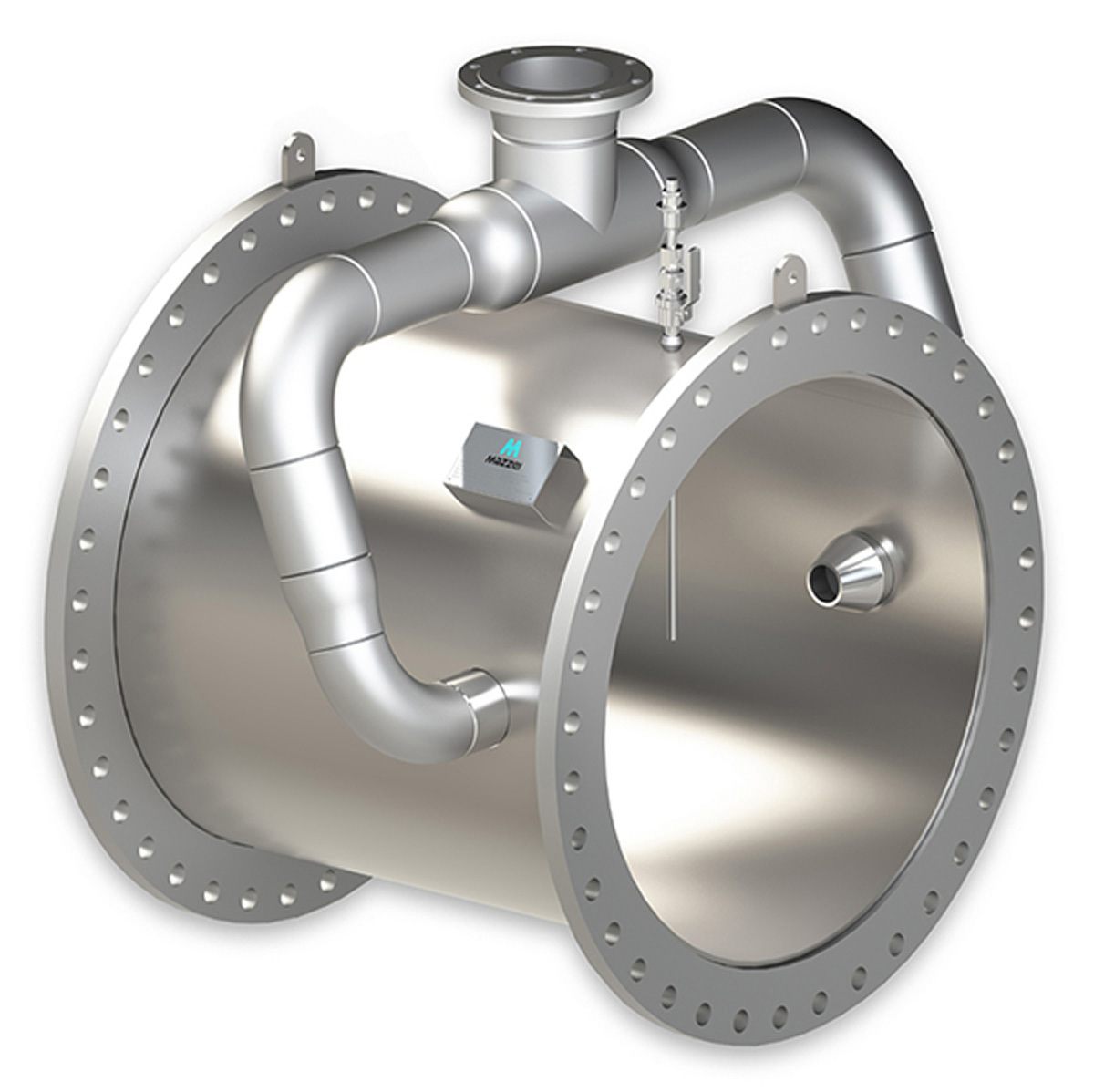

Mazzei Injector Chemical Mixing Reactor
The nozzle-based Chemical Mixing Reactor from Mazzei Injector has no traditional static mixing elements, meaning that obstruction to the mainline flow is prevented, eliminating potential issues such as unacceptable pressure losses or accumulation points for debris. When injected, the chemical immediately enters a highly turbulent zone inside the CMR, rapidly and effectively mixing coagulants into the mainline flow. This eliminates the need for excessive coagulant usage typically required to compensate for inadequate mixing, resulting in cost savings and decreased solids handling requirements. The CMR contains no moving parts and requires zero routine maintenance, and with its compact design, is suitable for retrofit applications where space is limited. 661-363-6500; www.mazzei.net

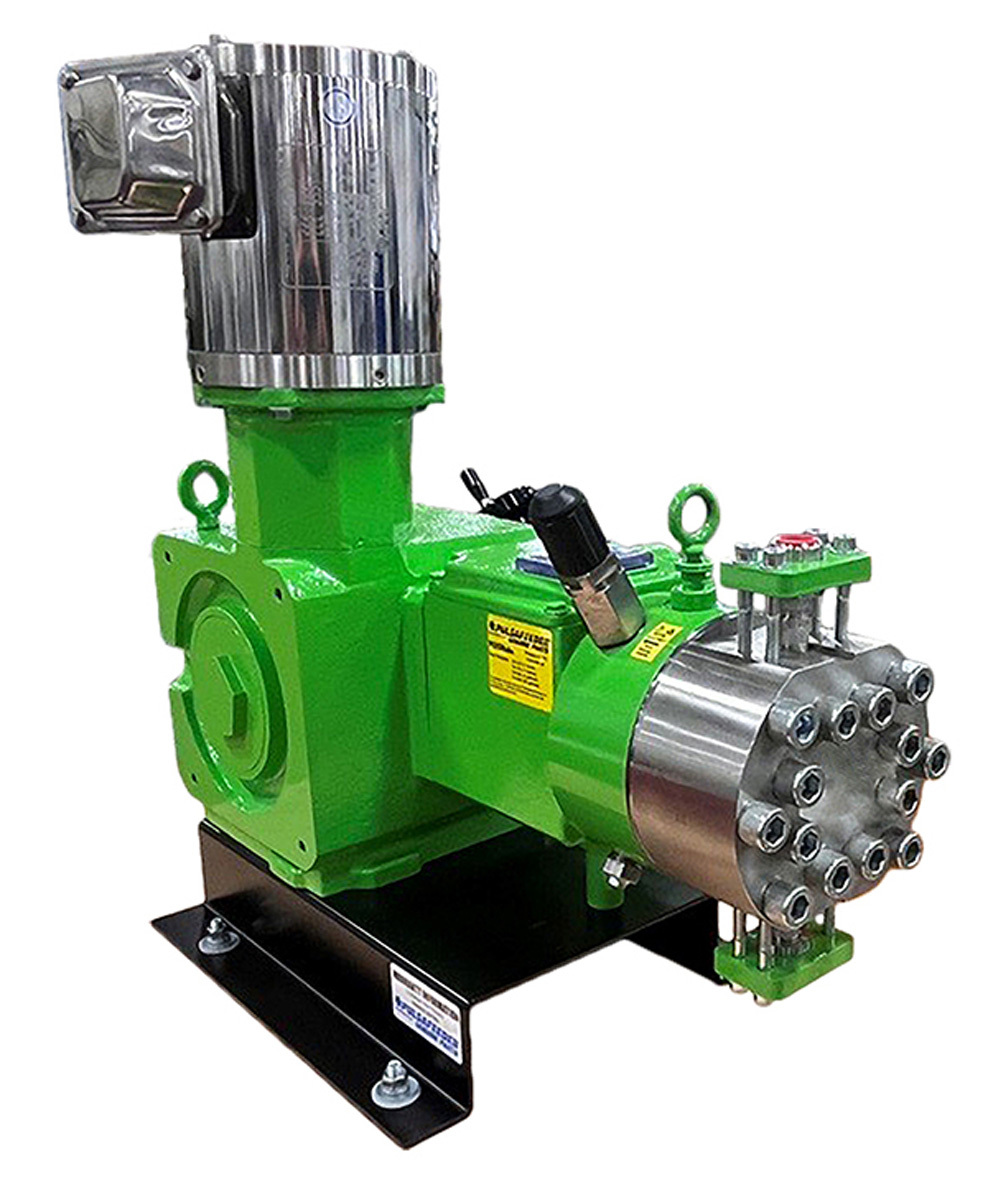

Pulsafeeder PulsaPro 7440
When chemical injection processes demand dependable and accurate delivery where space is limited and reliability and convenience are required, Pulsafeeder’s PulsaPro 7440 has the compact size and features to make operation and maintenance easier and faster. The large, easy-to-view hydraulic diagnostic window provides observation of oil condition and proper pump operation saving time troubleshooting. Externally adjustable bypass valves protect the pump from system over-pressurization and quickly adapt to changing process conditions. The push-to-purge button allows for on-demand removal of air from pump hydraulics to avoid wasting energy from inefficient pump operation. When precise and accurate chemical delivery matters the PulsaPro 7440 provides dosing accuracy of ± 0.5% across its operating range, whether the stroke length is set at full capacity or 10% of maximum. It is available with flows up to 1,098 gph and pressures up to 3,200 psig. 800-333-6677; www.pulsafeeder.com
