OZ Lifting davit crane wheel base
OZ Lifting Products’ wheel base revolutionizes lifting operations by effortlessly transporting and positioning a davit crane (up to 1,200 pounds) across diverse environments. Featuring industrial-strength steel construction and powder coat finish, the versatile base tackles tough jobs with ease. Durable polyurethane-tread indoor/outdoor wheels with rear swivel casters ensure smooth mobility. Rear casters feature lock brakes for enhanced safety and stability, and a patent-pending floor-anchoring system allows the davit to rotate under load with 360-degree rotation. Made in the USA and fully adjustable from 56.57 to 77.57 inches long, 32.44 inches wide and 36.87 inches high, OZ’s wheel base helps unlock the full potential of your davit crane. 800-749-1064; www.ozliftingproducts.com

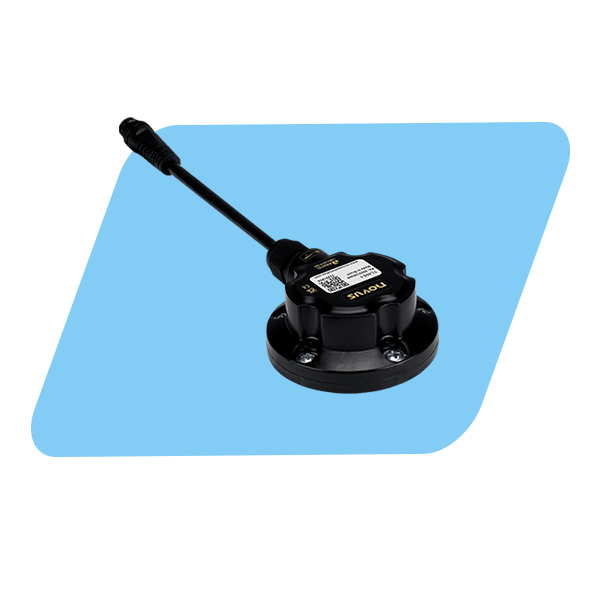

CAS Dataloggers TL400-I level transmitter
CAS Dataloggers’ new TL400-I level transmitter from Novus Automation is designed for nonintrusive level and volume measurement in tanks. It utilizes low-power infrared laser time-of-flight measurements to determine the exact distance between the sensor and the surface of the contents of the vessel. It can be used to measure liquids such as water or solids like grains. An onboard processor provides advanced filtering capabilities to accurately measure stirred liquids and the ability to calibrate the output in volume with a 20-point linearization to accommodate irregularly shaped vessels. The TL400 can be easily configured using its Bluetooth interface and the Novus SigNow software for Windows PCs, iOS, and Android devices. 800-956-4437; www.dataloggerinc.com

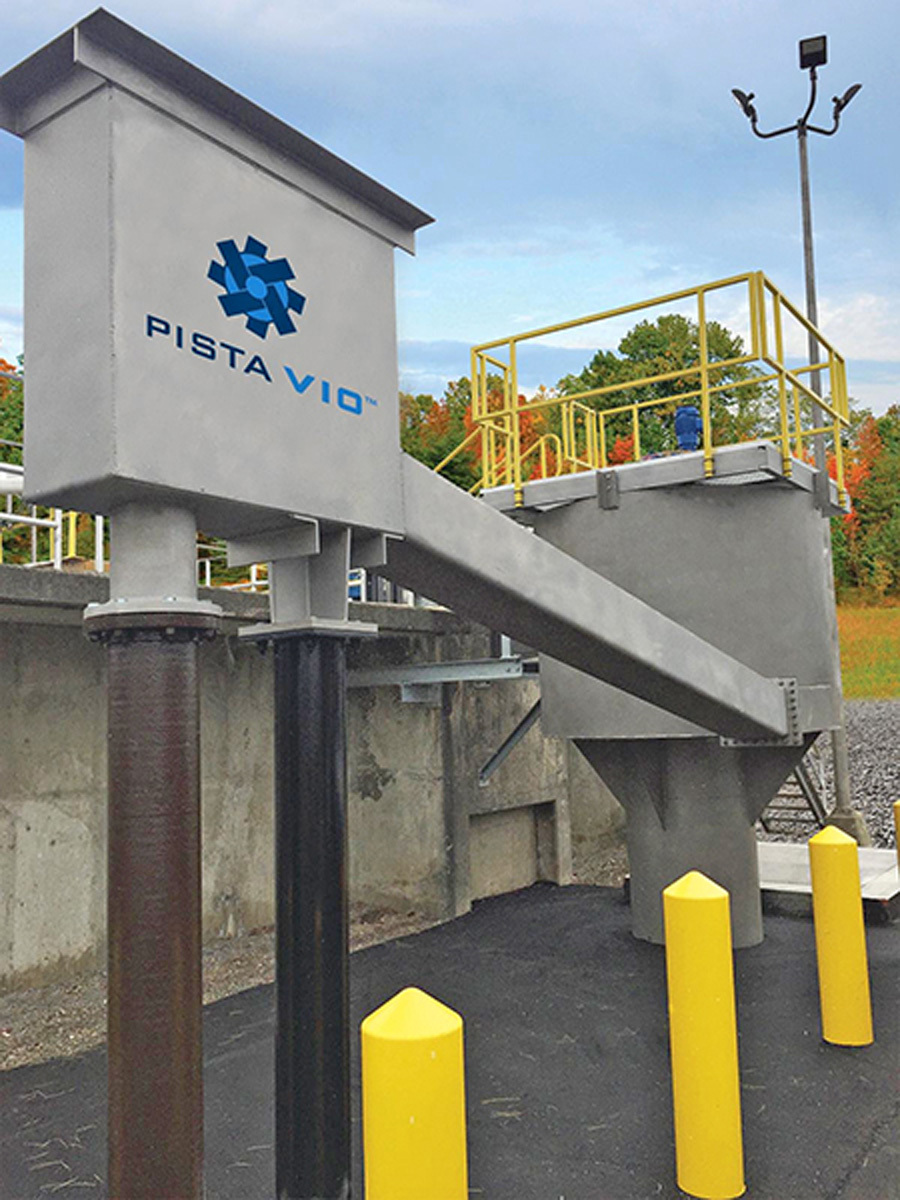

Smith & Loveless PISTA VIO grit removal chamber
The PISTA VIO grit removal chamber from Smith & Loveless features a versatile chamber design that brings grit removal performance to tight spaces with unique layout requirements. The innovative design of the PISTA VIO, which stands for variable inlet outlet, provides the ability to arrange the inlet and outlet channels at any angle up to the full 360 degrees of the chamber. The chamber achieves 95% grit removal efficiency of particles down to 100 microns in size across all flow conditions. Its flow maximizer baffle and tunnel system create an effective vortex flow pattern while the effluent flume counteracts the weir effect, significantly reducing grit bypass. With a 5:1 turndown capability, the PISTA® VIO™ delivers performance and reliability during low-flow, average daily and peak flow conditions without derating. 800-898-9122; www.smithandloveless.com

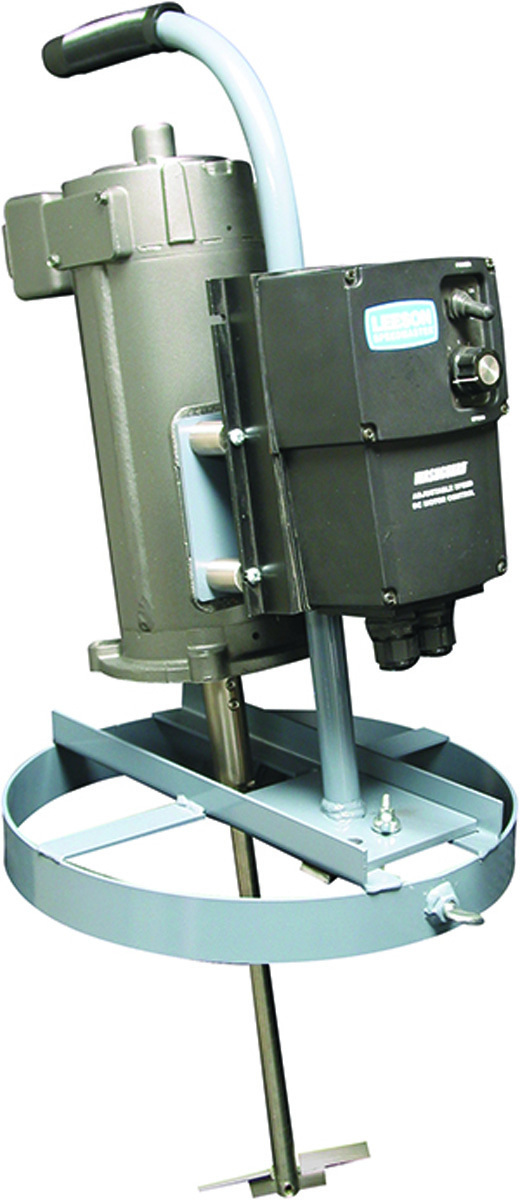

INDCO portable Quic Mixers for 5-gallon pails
INDCO Quic Mixers provide a portable, lightweight solution for mixing materials in 5-gallon pails. A ring mount provides a low center of gravity for steady, worry-free mixing in open-topped or closed 5-gallon pails with lids to 12 1/4 inches outside diameter. Stainless steel folding impellers fit through a 1 1/2-inch opening. Air or electric motors are available, and all models are supplied with quick-change coupler and shaft design featuring a shaft pin that locks in place during rotation. Air-operated versions are available with a 3/4 or 1 1/2 hp air motor equipped with control valve to regulate speed from 300 to 3,000 rpm, and a muffler. Powered by a 1/2 hp totally enclosed fan cooled motor that is ready to plug in to a standard outlet, the single-phase electric motor option operates at a fixed speed of 1,750 rpm (EP version supplied with motor leads only). INDCO Quic Mixers are ideal for mixing colorants into paint, remixing settled materials, blending powders into liquids and other general purpose mixing applications in 5-gallon pails. 800-851-1049; www.indco.com

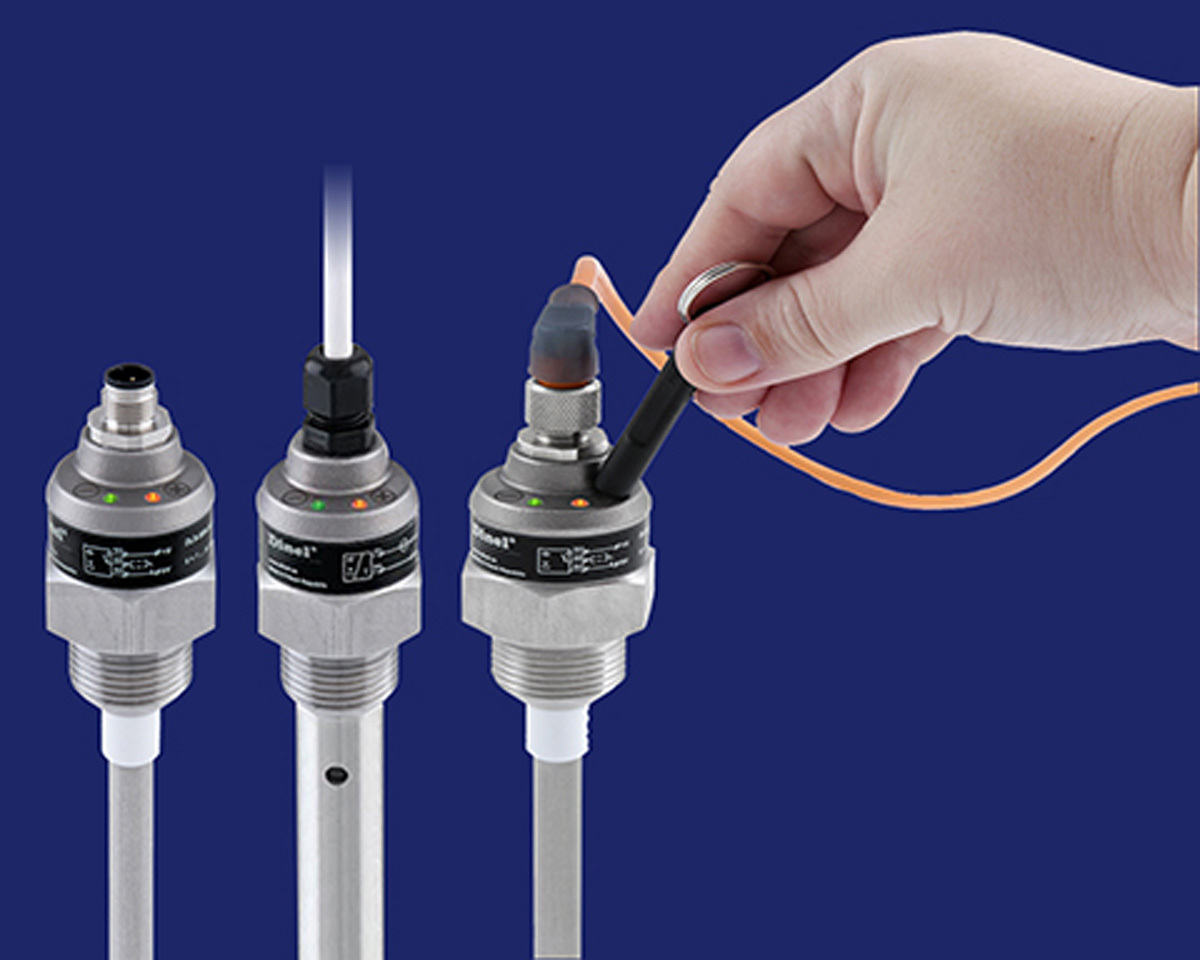

Bristol Instruments Dinel DLS-35 Series level sensors
The Dinel DLS-35 Series of capacitive level sensors from Bristol Instruments are designed for use with liquids and bulk solids. Limits are set easily with a magnetic pen. A quick-set mode lets users perform set up without the presence of a medium. DLS-35 level sensors can be directly mounted to tanks, vessels, sumps, tubes, silos and hoppers. Bar, rod and rope electrode options collectively cover electrode lengths from 2 inches to 19.7 feet over five range options. Two LED indicators show operation status and provide visual confirmation of settings. Signal output options are NPN, PNP or NAMUR (change in supply current). Housing and electrodes are available in either 304 or 316L stainless steel. G3/4, G1, M27 and M30 threaded and C134 and C150 Tri-clamp process connections are available. 877-866-8500; www.bristol-inst.com

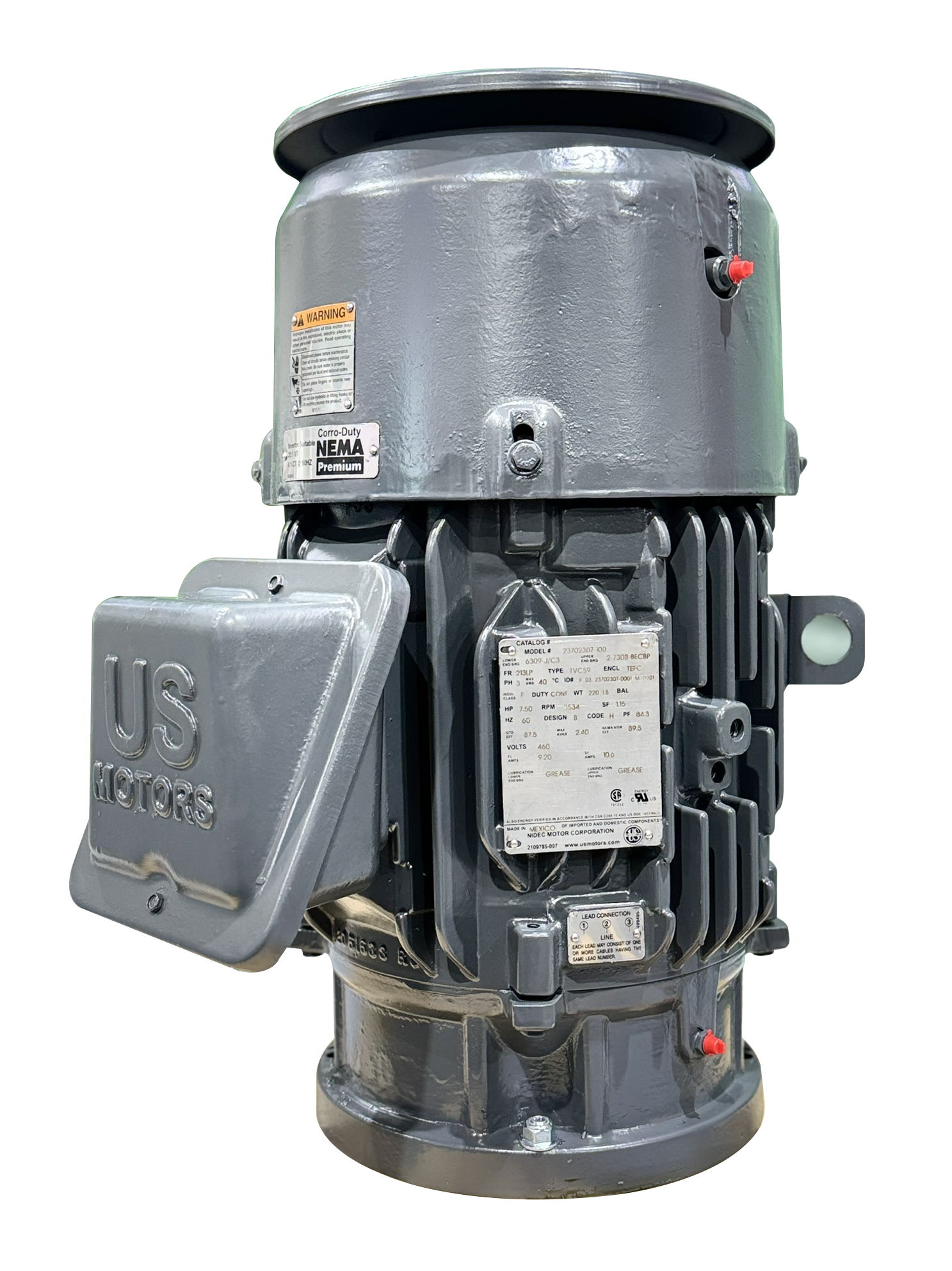

Nidec vertical pump motors for severe duty environments
Nidec Motor Corp. expanded its line of Totally Enclosed Fan Cooled vertical motors with a new medium-high thrust motor and enhancements to its medium thrust inline motor. These two U.S. MOTORS products are available in frame sizes 182 through 286 and are specifically engineered for use in severe duty environments. The motors feature improved conduit box sealing, cast iron frame, brackets and fan cover guard, and through-the-bearing lubrication for better expelling of used grease, which extends motor life and is particularly critical for vertical motors. The motors also include an option to meet API 610 driver requirements. 888-637-7333; www.nidec.com

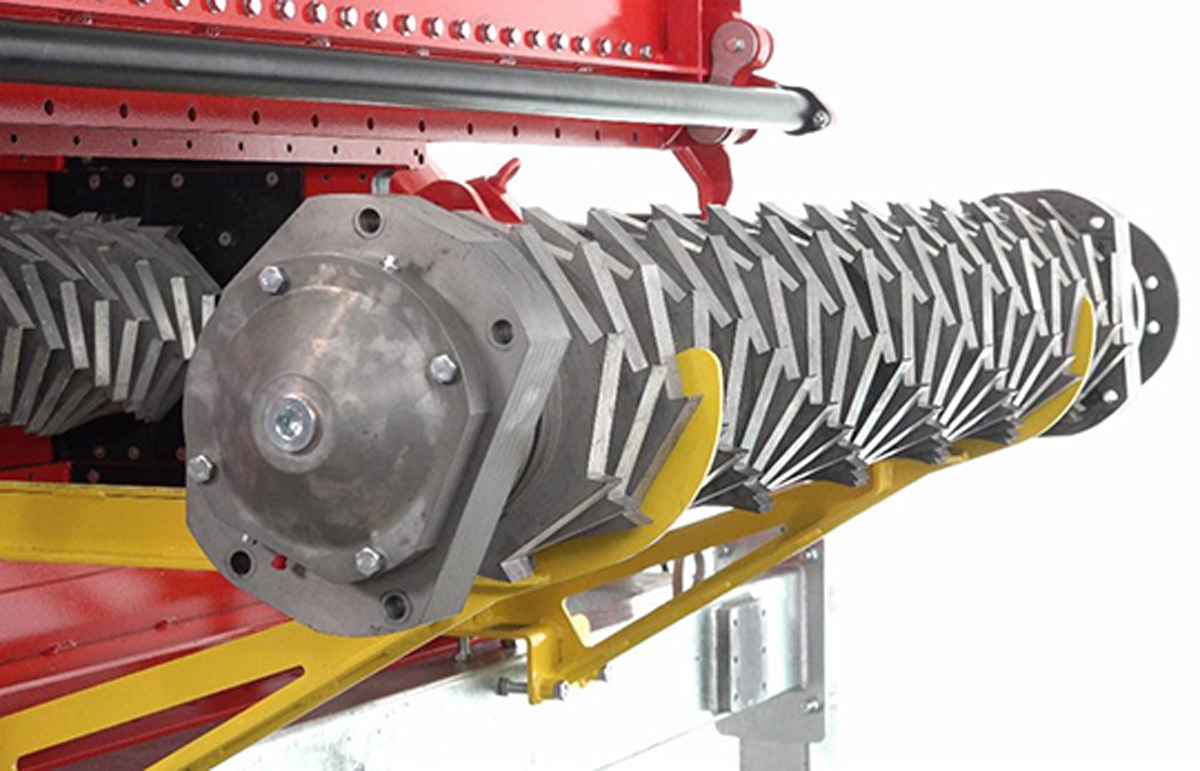

Vogelsang RedUnit XRL260 large-format grinding system
Vogelsang is bringing its largest format grinding system, the RedUnit XRL260, to North America. Vogelsang’s largest hopper-fed grinder to date is designed specifically to reduce large quantities of solid waste material quickly. The RedUnit XRL260 features two 50 hp geared motors capable of handling up to 130 cubic yards of solid waste per hour. The 5-by-2-foot inlet handles whole hogs and higher volumes of waste material. Units are available in different sizes with various blade options, offering continuous height adjustment. 800-984-9400; www.vogelsangusa.com

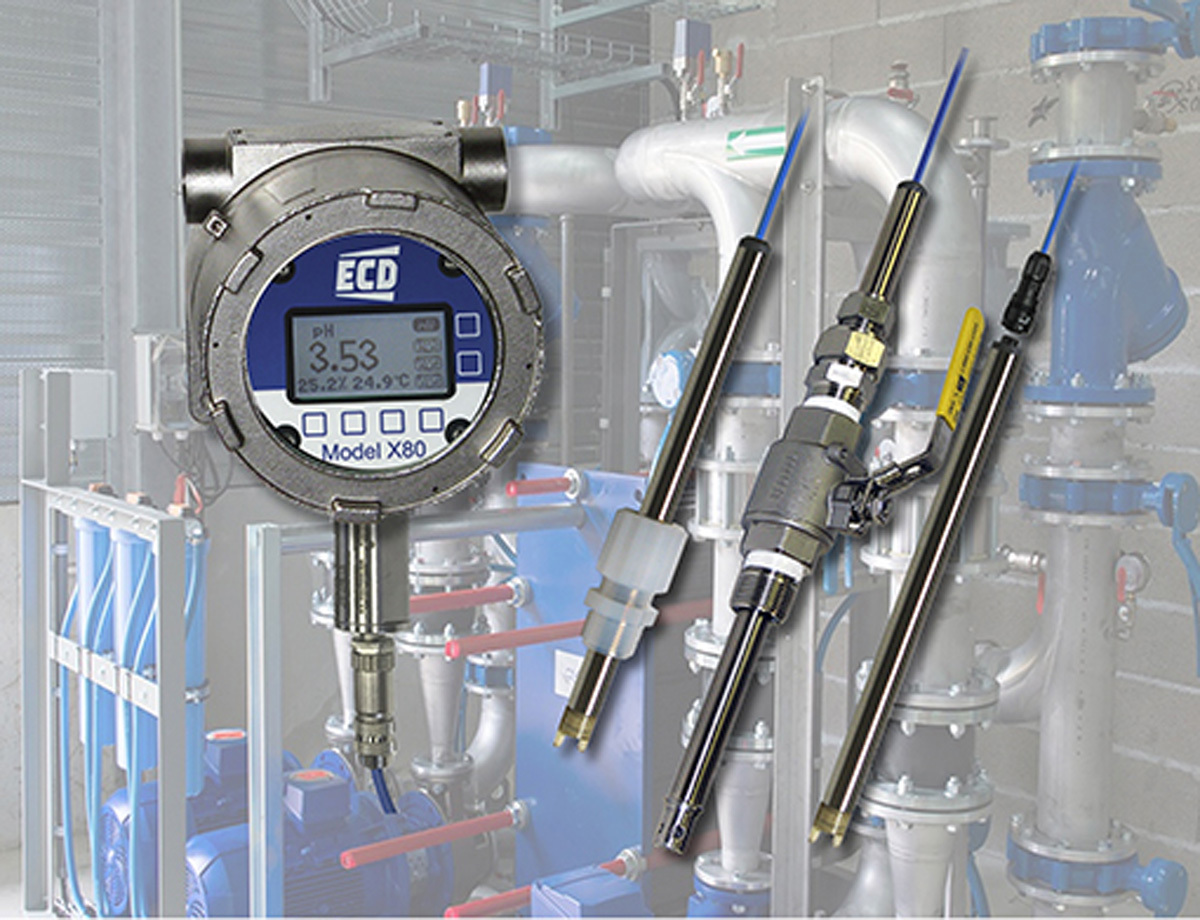

ECD X80-S88 analyzer system
The rugged, modular, versatile X80 universal transmitter and S88 intelligent sensor from Electronic Component Devices deliver an easy-to-use, plug-and-play, reliable precision liquid measurement analyzer solution compatible with advanced operating and control systems for harsh industrial and other environments. The X80-S88 analyzer system is an ATEX-, IECEx-, FM- and CSA-certified product family, which features a sealed 316 stainless transmitter and sensors offering a pedigree of hazardous area safety approvals. ECD’s Model X80 is available as either a single- or a dual-channel instrument for continuous measurement with standard MODBUS or optional HART digital bus communications and three optional alarm relays. With its advanced electronics, the modular X80 transmitter communicates with any Model S88 intelligent sensor, automatically configuring the transmitter’s menus and display screens to the desired measurement parameter. 800-729-1333; www.ecdi.com

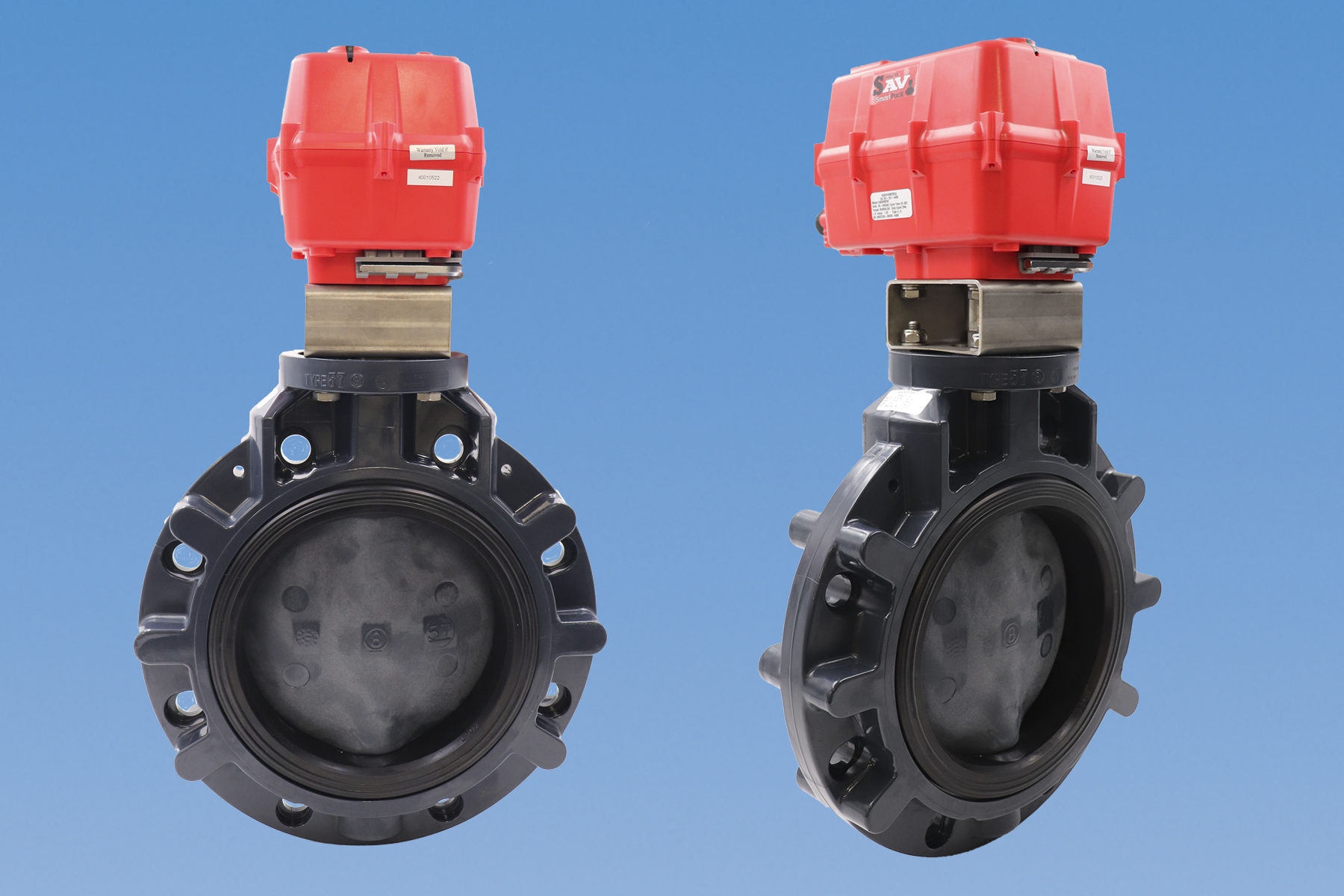

Asahi/America larger Series 19 actuator sizes for butterfly valves
Asahi/America has expanded its Series 19 SAV electric actuation line to include a larger sized actuator, known as the S400, capable of operating on Asahi/America’s family of 8- and 10-inch Type-57 butterfly valves. The Series 19 S400 is a part of the SAV Smart Pack electric actuator product line and is available as an on/off, fail-safe, modulating or modulating fail-safe unit. The Series 19 S400 actuators have an output torque range up to 3,540 in-lbs. They feature all of the same standard features as the Series 19 product line including a heater, one set of dry contacts for PLC confirmation and one for alarm reporting, an OLED screen with push buttons, local controls and a QR code for easy and instant access to user manuals. 800-343-3618; www.asahi-america.com
Metrohm update to Raman Library
Metrohm introduced the first significant update to the Metrohm Comprehensive Raman Library. With over 20,000 compounds, the MCRL is the largest library available on any handheld Raman instrument. The MCRL simplifies material identification for customers in diverse industries and broadens applications for handheld and laboratory Raman. The MCRL is available on Metrohm MIRA XTR/MIRA DS, B&W Tek TacticID and i-Raman instruments. With this update, sub-libraries are now available on all handheld instruments and the i-Raman laboratory instruments, allowing users to narrow their search for faster and more accurate identification. Six sub-libraries are available for individual purchase or included in the complete MCRL product. 866-638-7646; www.metrohmusa.com
