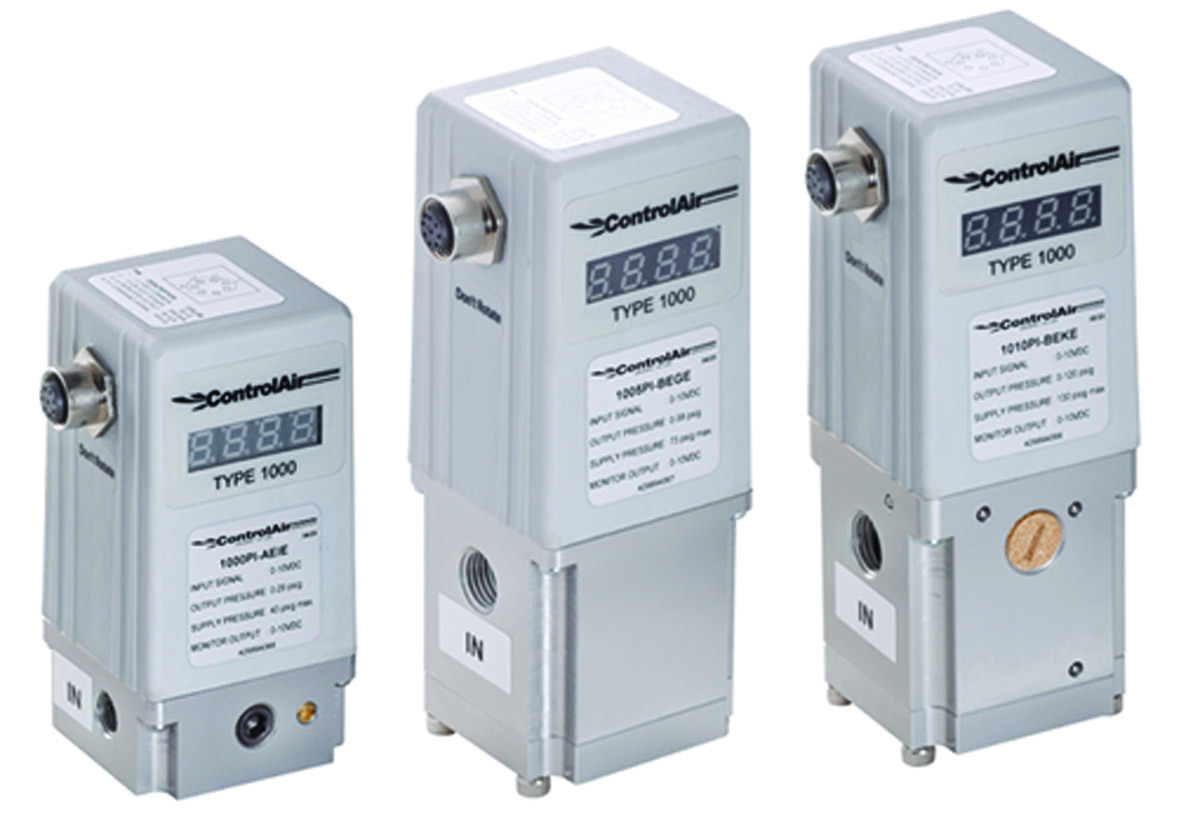

ControlAir electro-pneumatic pressure regulators series
ControlAir has introduced a new Type 1000P electro-pneumatic pressure regulator series. The series consists of the Type 1000P precision pressure regulator, Type 1005P high-flow pressure regulator and the Type 1010P economic pressure regulator. The regulators are complete closed loop servo systems consisting of two solenoid valves, an internal pressure sensor and electronic controls. Based on analog signals, the pressure is controlled by two solenoid valves to maintain precise pressure: one valve functions as inlet control, the other as exhaust. The pressure output is measured by an internal or an external feedback pressure sensor that provides a feedback signal to the electronic controls. 800-216-3636; www.controlair.com

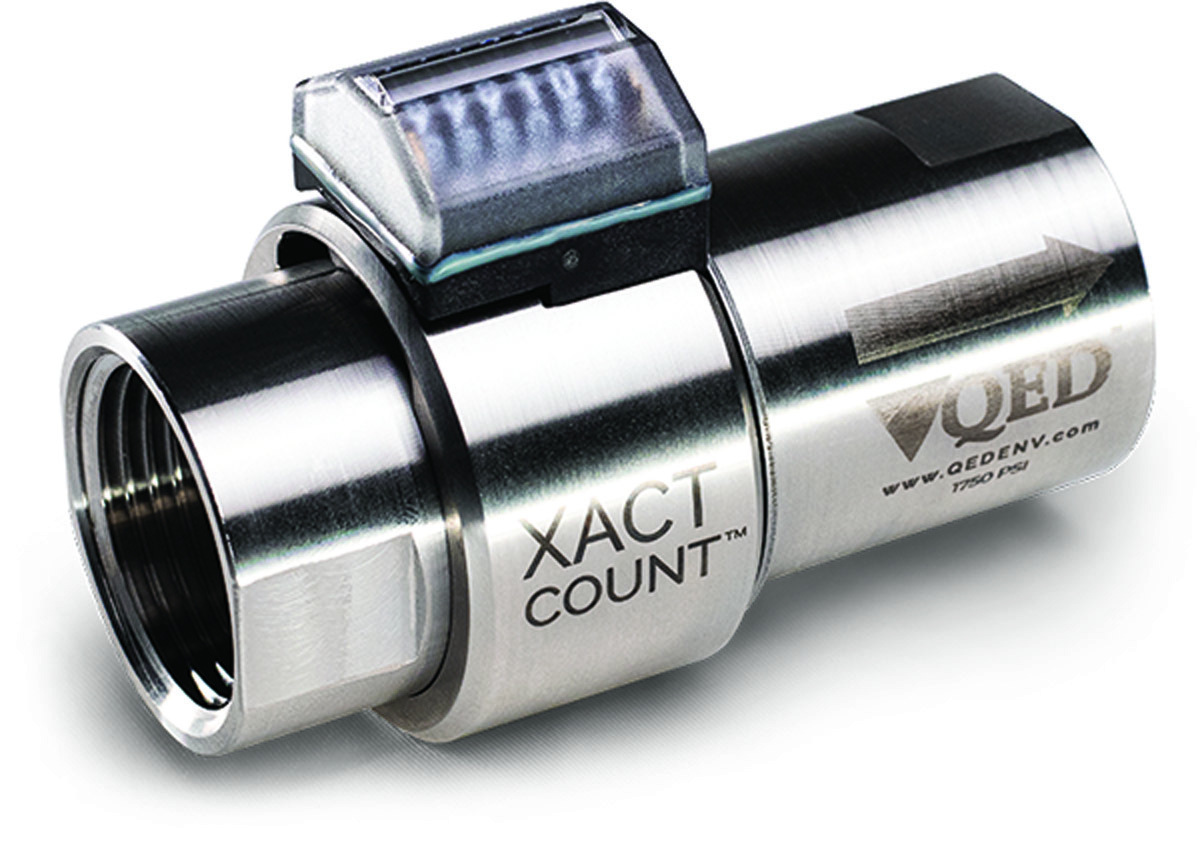

QED Environmental Systems Xact Count pump cycle counter
QED Environmental Systems’ Xact Count pneumatic pump cycle counter reliably monitors pump performance, maintenance cycles and estimating liquid volumes being pumped. The cycle counter directly monitors the water discharge flow rather than monitoring pneumatic airflow as a proxy. While designed specifically for AP4 landfill remediation pumps, the Xact Count is capable of monitoring flow on many different applications. The liquid pulse detecting unit is placed in-line between a pump and its discharge reservoir or force main. It requires no external power source. A digital readout displays the number of times a pump cycles. An Xact Count cycle counter consists of a valve housing, an internally located and magnetically integrated poppet, and a digital display. All wetted parts of the Xact Count are 316 stainless steel, and the seat and poppet are also constructed of wear-resistant stainless steel. 800-810-9908; www.qedenv.com

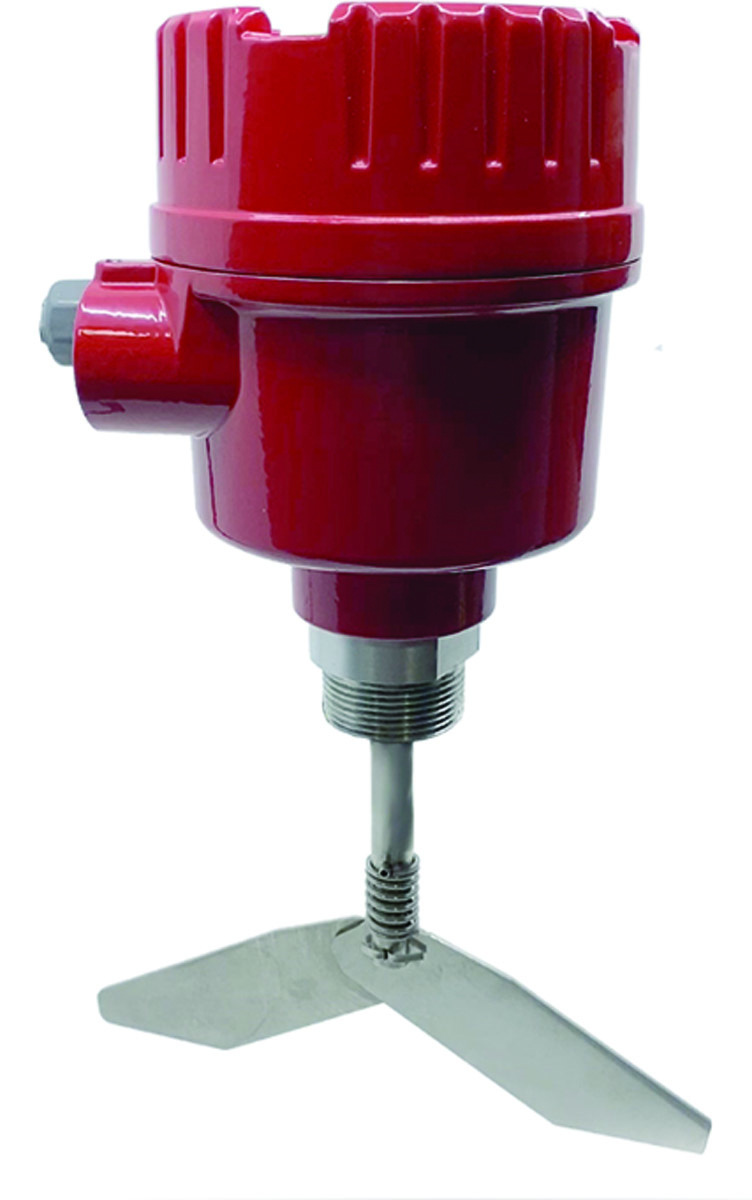

BinMaster BMRX-100 bin level indicator
The new BinMaster BMRX-100 rotary level indicator is an electromechanical device used in solids and powders to prevent bin overfills, dry runs, or to shut off a process. The BMRX-100 has no printed circuit board, so it’s impervious to moisture and vibration found in many tough processing environments. By alerting to full and empty vessel conditions, it prevents waste and saves time when handling bulk materials stored in bins and silos. It’s designed for materials with a bulk density of 2 pounds to over 100 pounds per cubic foot for use in ordinary storage and processing conditions. It is designed to rotate once installed, keeping conduit entries pointed toward the ground, mitigating the risk of moisture damaging internal components. 800-278-4241; www.binmaster.com
Pace PFAS test method ASTM D8421/EPA 8327
Pace Analytical Services’ PFAS Test Method ASTM D8421/EPA 8327 applies to aqueous and solid sample material. It uses isotope dilution and liquid chromatography tandem mass spectrometry to analyze for up to 44 PFAS compounds in both aqueous and solid sample material. This test method requires only a 5 mL sample, reducing waste. The test method offers method detection limits that meet the EPA’s proposed drinking water standards and Regional Screening Levels. 612-607-1700; www.pacelabs.com

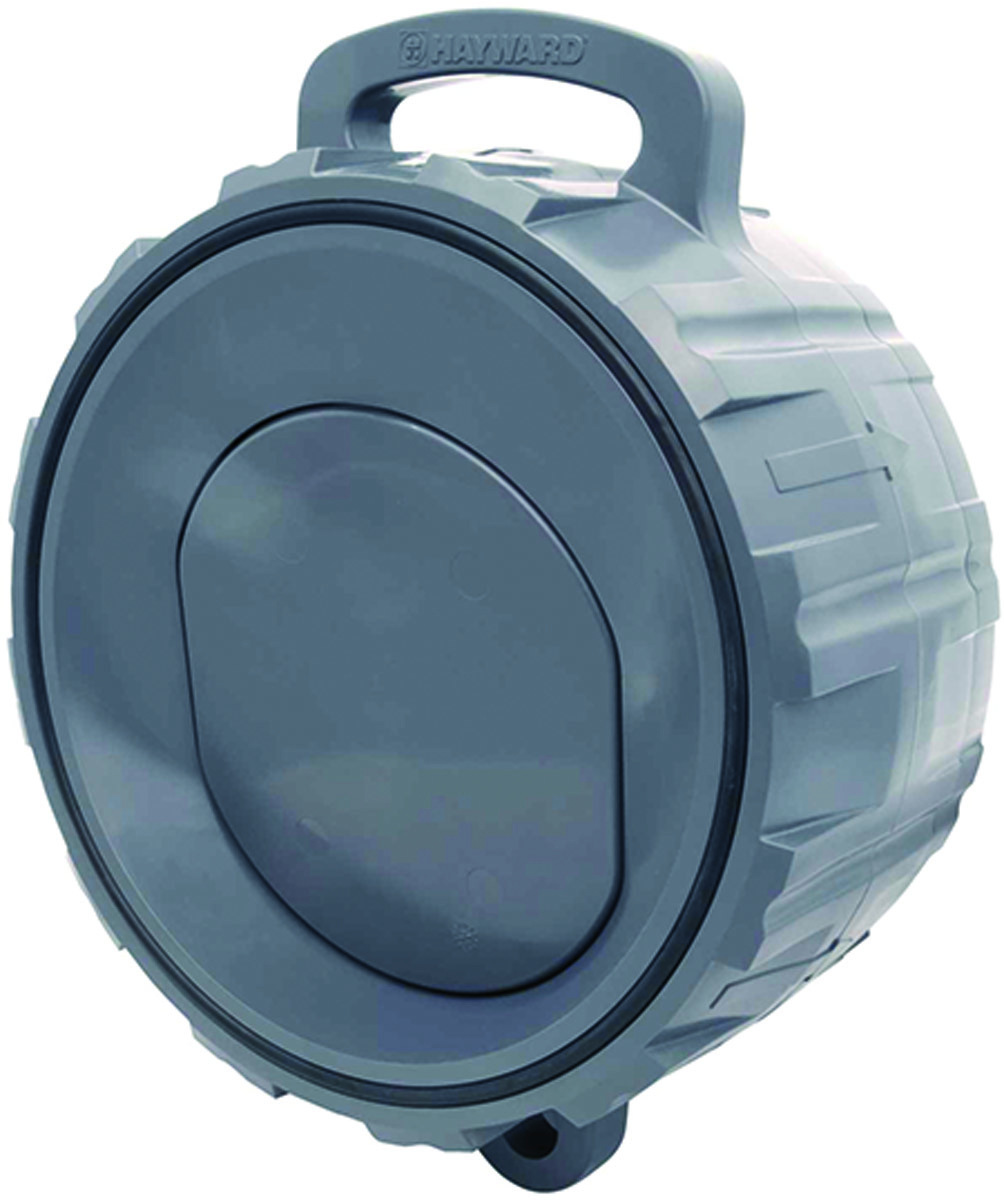

Hayward Flow Control WCV Series wafer checks
Hayward Flow Control has added 10- and 12-inch sizes to its WCV Series full pattern wafer check valves. The large-diameter WCV Series features a thermoplastic injection molded construction with the angle seat and disc design. Integral bolt eyes and the handgrip are molded into the body for ease of installation and safety. The seat and disc design allows for high flow capacities, and is equal to or better than most metal wafer checks. The full pattern design also eliminates the need for spacers or specialty flanges allowing for easy installation. The new valves are available in PVC and CPVC materials. Both sizes have maximum pressure rating of 150 psi nonshock at 70 degrees F and fit ANSI150 Class flanges. Size 10-inch DN250 valves will also fit PN10 flanges. 800-429-4635; www.haywardflowcontrol.com

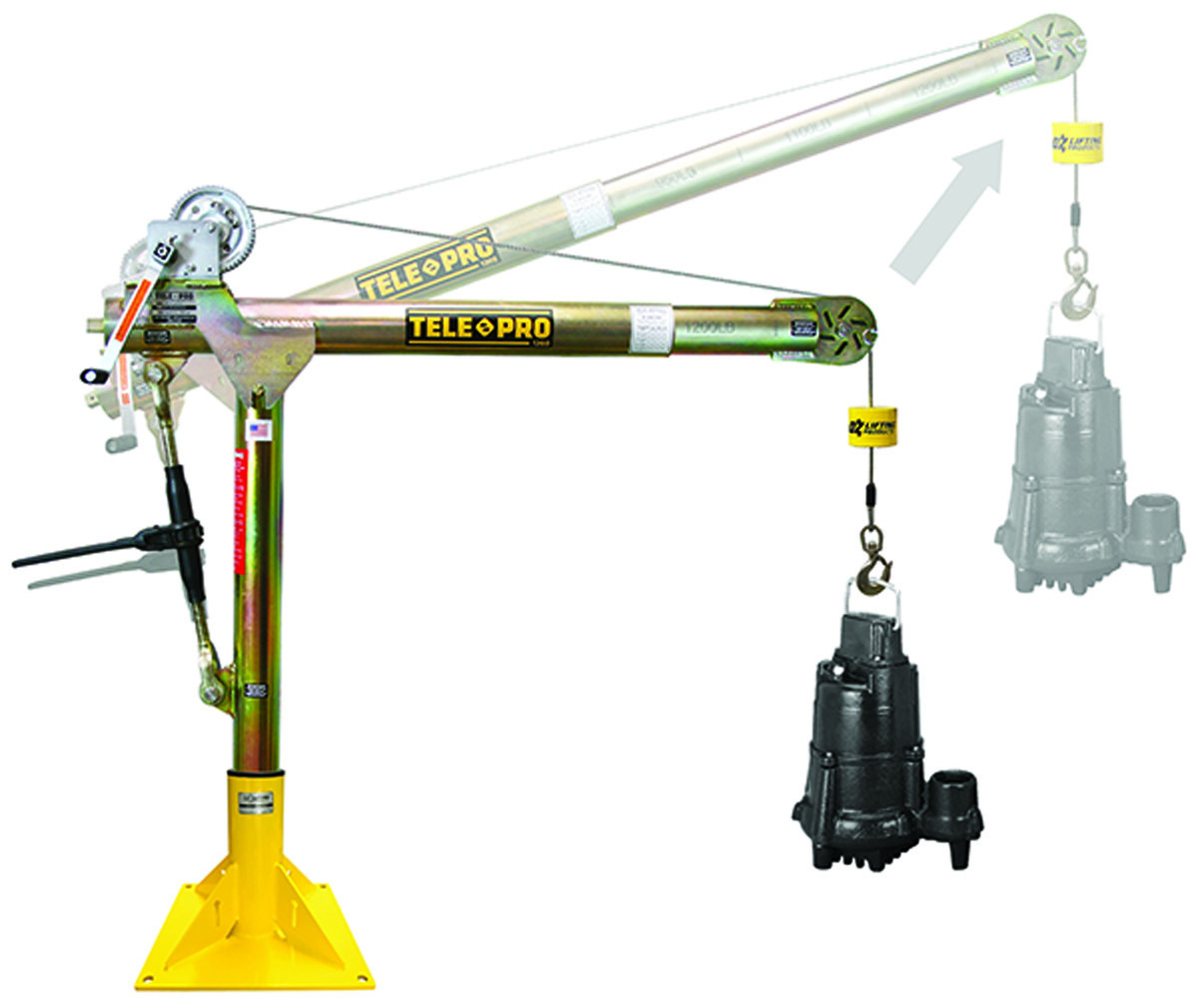

OZ Lifting Products Tele-Pro davit crane
OZ Lifting Products’ patented Tele-Pro davit crane features a telescoping boom adjustment that can be moved in and out while under load. A ratchet screw jack allows the user to adjust the boom from horizontal to 45 degrees while under load and the 360-degree rotation of the crane allows for a full range of motion. Smart latch technology at the boom/mast means no tools are required for assembly. A zinc-plated finish provides added corrosion protection. The Tele-Pro is available in 500-, 1,200- and 2,500-pound capacities. Volt AC and DC electric winches are optional on the 500- and 1,200-pound models, or a manual winch with a drill drive adapter is available for all three models. The cranes are made in the USA and each one is individually tested and certified at 125%. 800-749-1064; www.ozliftingproducts.com
