Product News - June 2022

Product News - June 2022

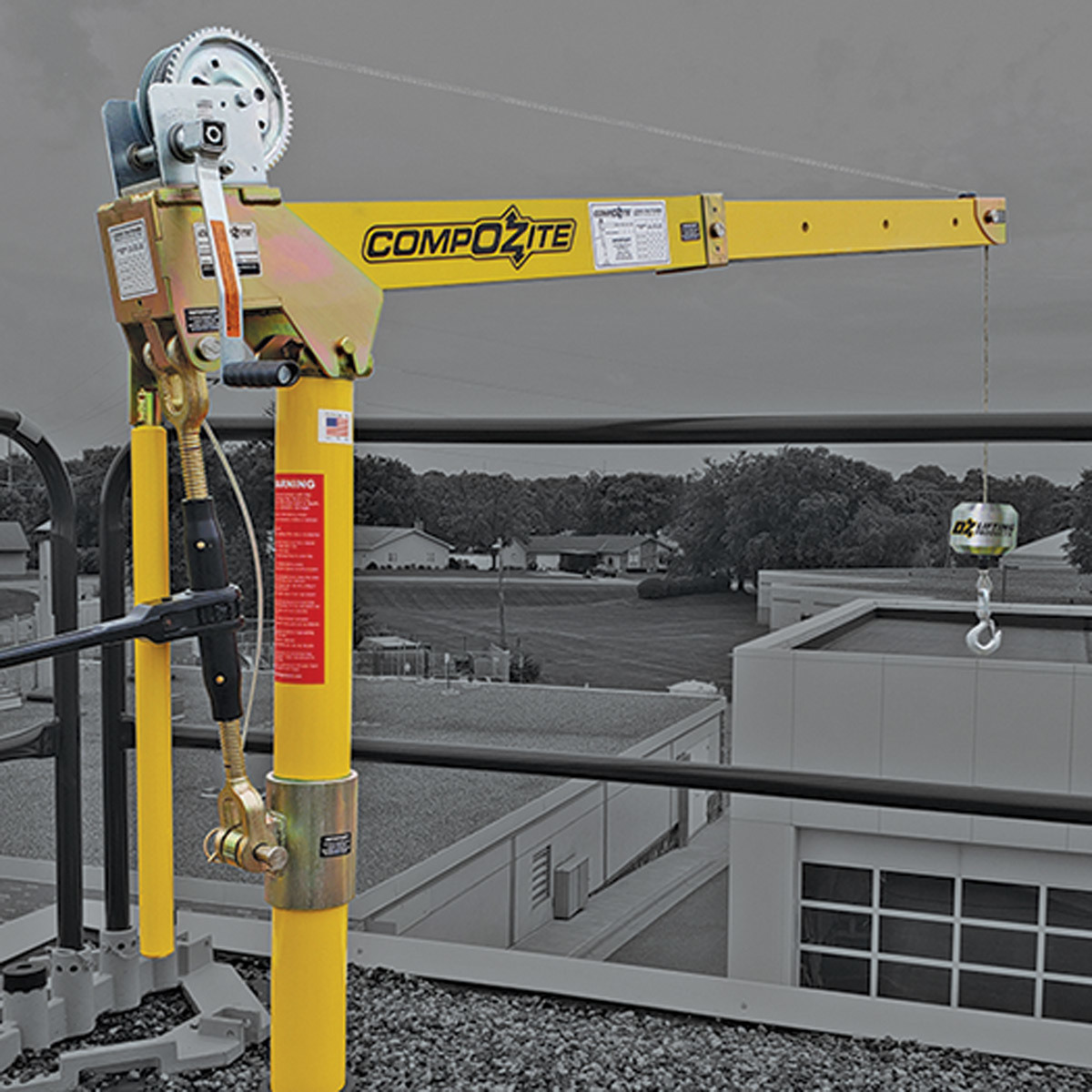

OZ Lifting Products CompOZite davit crane

OZ Lifting Products’ patented CompOZite davit crane is made of advanced composite materials making it 40% lighter than equivalent capacity steel davits. With a total weight of only 83 pounds for the boom, mast and winch combined, a single crane is commonly moved to multiple base locations throughout a treatment plant. A ratchet screw jack allows the user to adjust the boom from horizontal to 45 degrees while under load and the 360-degree rotation of the crane allows a full range of motion. Smart-latch technology at the boom/mast means no tools are required for assembly.  A zinc-plated finish on all noncomposite parts provides added corrosion protection. AC and DC electric winches are optional or a manual winch comes standard with a drill drive adapter. The cranes are made in the U.S. and each one is individually tested and certified at 125%. 800-749-1064;

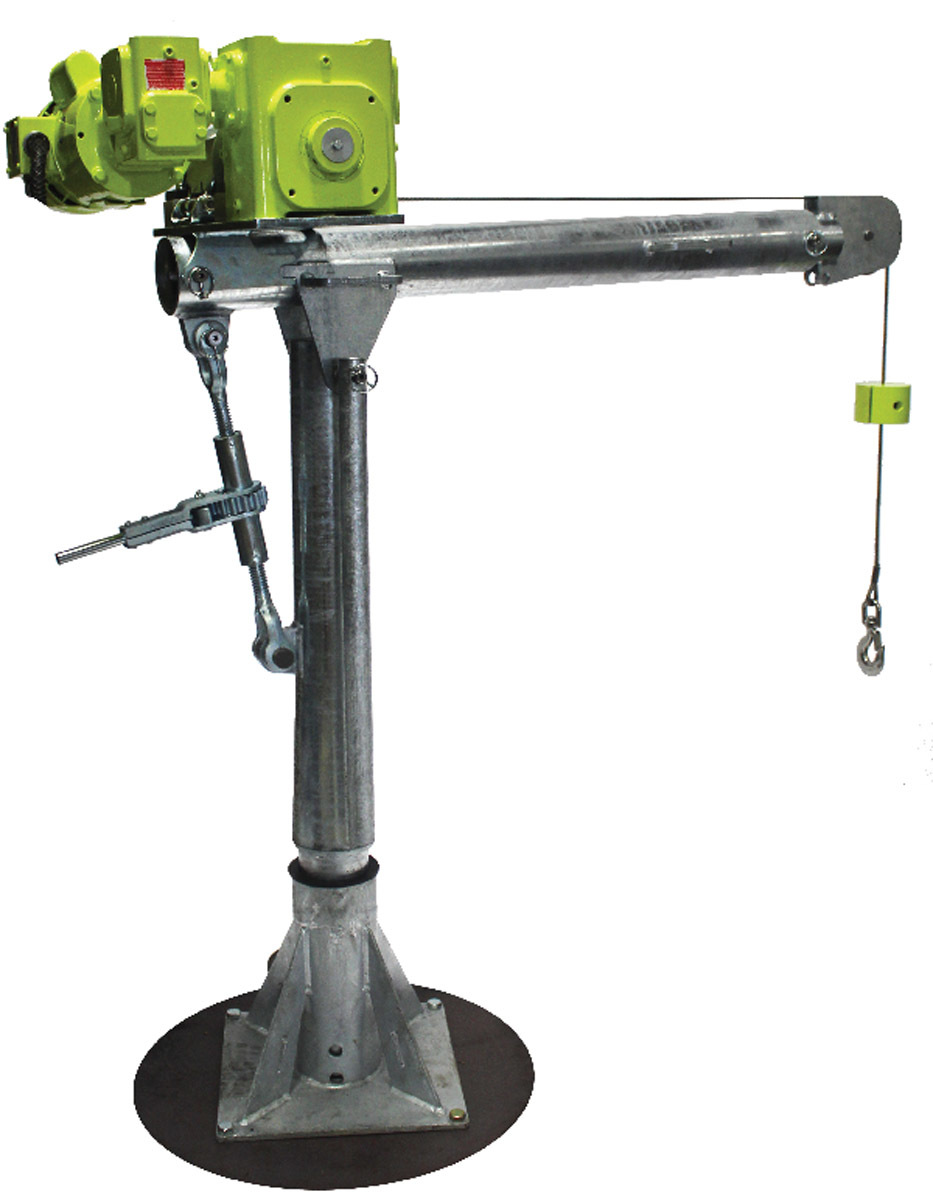

Patterson Manufacturing Davit Crane

Give your operations a lift with Patterson Davit Cranes, available in ½-ton and 1-ton capacities. The low maintenance, easy-to-assemble design offers adequate reach to accommodate lifting large loads within tight spaces, and a boom that can be adjusted to nearly 45 degrees to allow for clearance over obstructions such as handrails. Built for durability, it comes standard with a hot-dipped galvanized finish and stainless steel hardware to prevent rust and corrosion in wet work environments. Following Patterson’s tradition of safety-focused innovation, the davit features a reliable brake to keep loads in position without creeping. For over 160 years Patterson has been a trusted supplier of winches, rigging, fittings and custom products for lifting applications. Patterson Davit Cranes are made in the U.S.A. and deliver on the company’s promise of helping businesses run safer, easier and faster. Find out how Patterson can improve employee safety and positively impact your bottom line. 800-322-2018;

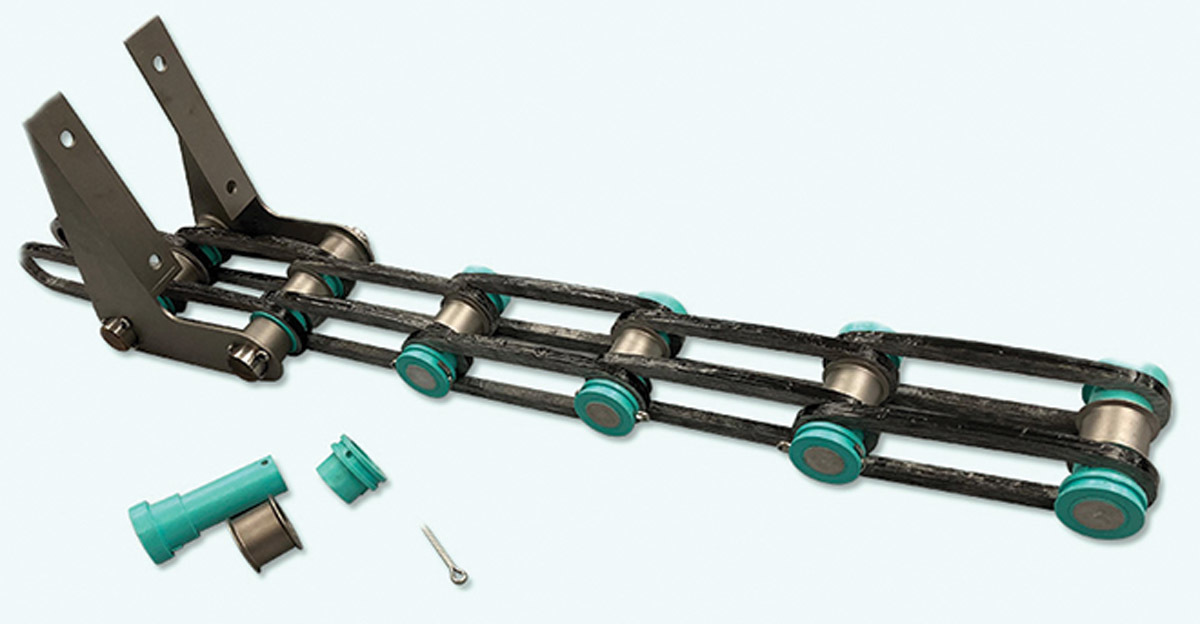

Evoqua Next Generation Collector Chain from the OEM

The new Envirex HS730-NX Collector Chain is designed to be as strong as steel, but one-third of the weight of stainless steel conveyor chain, reducing installation time and maintenance. The design has virtually no elongation in comparison to molded chain and is wear resistant to abrasive materials such as sand and grit, which can be carried through pretreatment systems. This translates to less frequent tensioning of the collector chain, which requires basins to be drained. Contact Evoqua about the next generation collector chain and learn how it can help extend the life of your chain and scraper system. 800-524-6324;

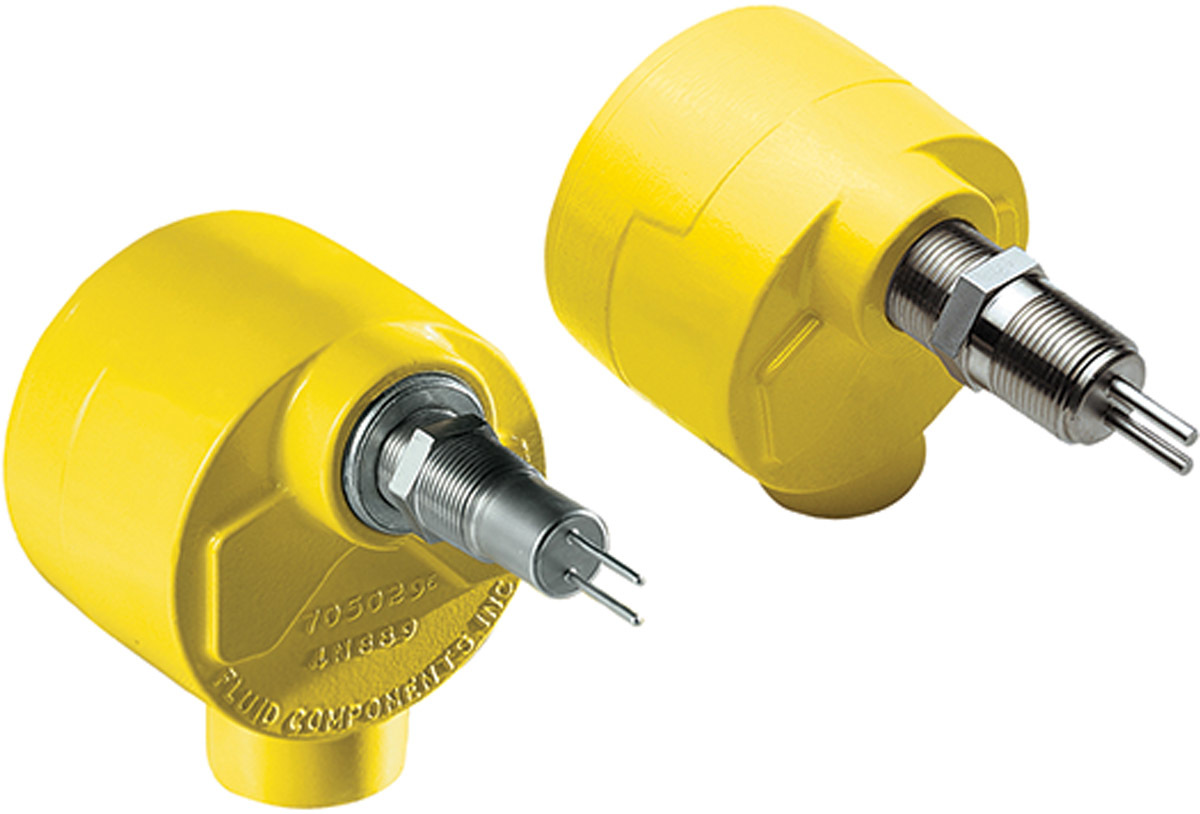

FCI FLT93 Series flow switch

The FLT93 Series flow switch from Fluid Components International provides a reliable early warning alert to the potential of dry running conditions, cavitation and other pump issues that can lead to emergency shutdowns, service interruptions and unplanned costly maintenance. With a no-moving-parts design, the SIL2-rated switch offers robust pump protection with its dual alarm capability. With Alarm 1, the switch will detect a low flow situation anywhere between 0.01 and 3 feet per second. If Alarm 2 occurs because the feed line to the pump is running dry, it would be an emergency signal to shut down the pump immediately because the bearings see gas instead of a liquid as a heat transfer media. Dual 6A-relay outputs are standard and are assignable to flow, level or temperature. The FLT93 switch can be specified in either insertion or inline styles for pipe or tube installation. 800-854-1993;

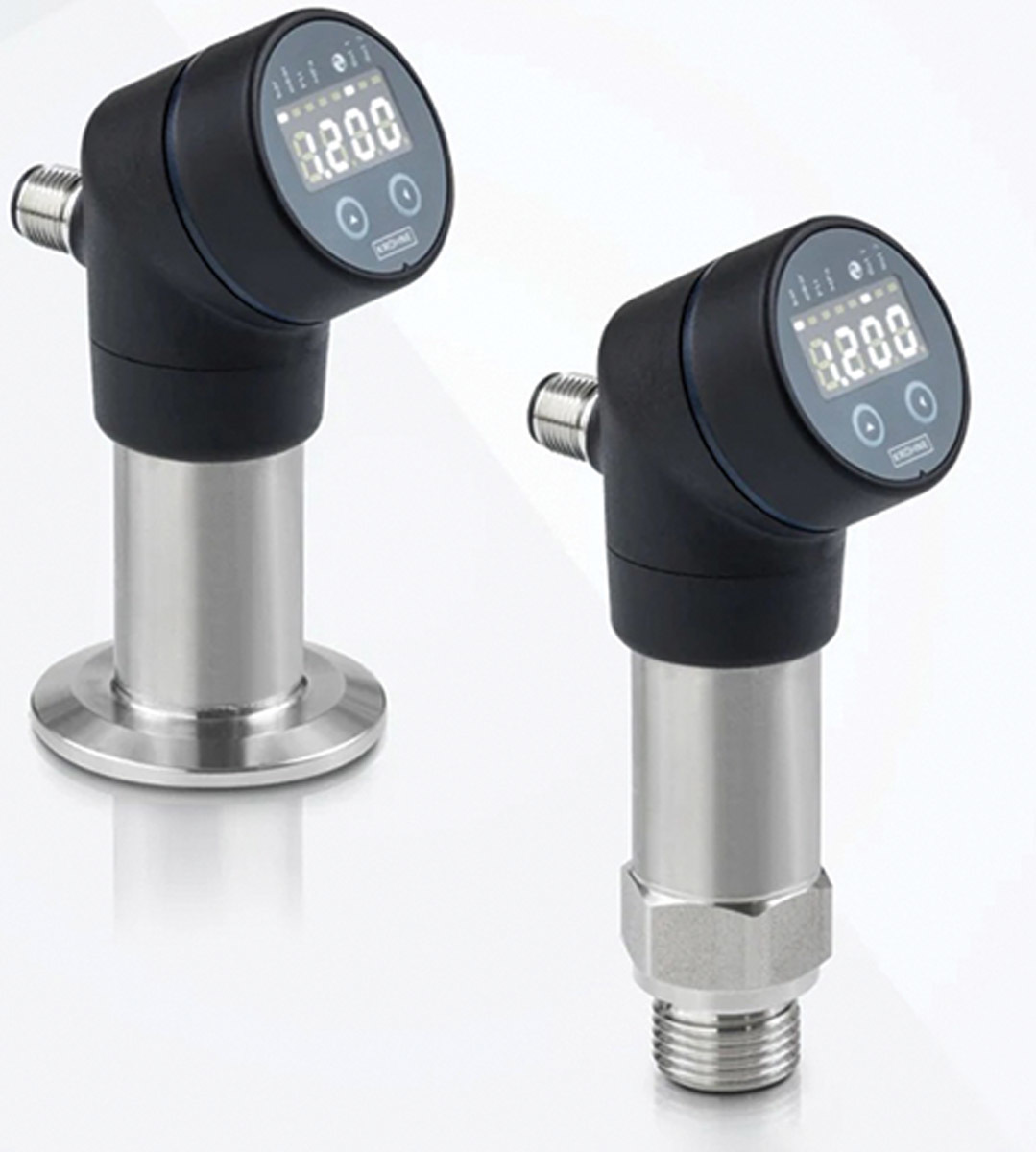

KROHNE OPTIBAR pressure switches

KROHNE’s OPTIBAR PSM 1010 and OPTIBAR PSM 2010 ultra-compact pressure switches are designed for absolute and gauge pressure measurement in gases and liquids. The switches feature a double-axis (multirotatable) display and adjustment module, a robust IP67 construction and fully configurable communication outputs for all possible configurations: IO-Link and PNP/NPN as standard I/O, and 4-20 mA, 0-10 V or NPN/PNP as secondary output. Both devices offer excellent temperature stability due to advanced digital compensation. 978-535-6060;

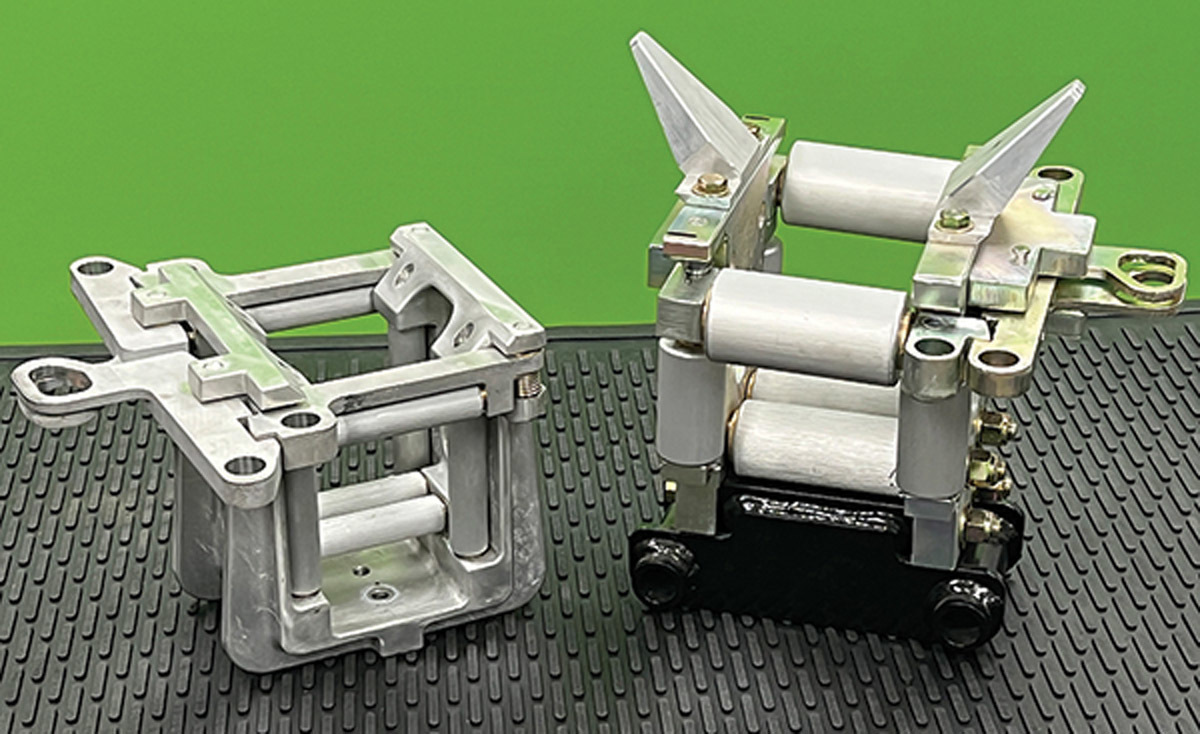

LineWise Swing Gate Wire Holders

LineWise’s two new swing gate wire holders can be used on both vertical and horizontal construction and are the only wire holders available with a load-rated gate. For maximum safety, the wire holders have two side-swinging redundant gates that can be opened and closed individually or together by hand or with a hot stick. Aluminum rollers are included on all four sides of the units for conductor protection. Unlike traditional wire holders, this unique design allows contractors to safely roll captured lines from horizontal to vertical construction or vice versa. Model SGWH 500 is rated for a 500-pound downward load, 500-pound side load and 200-pound gate load. The SGWH 2500 has 2,500-pound downward and side load ratings, plus a 500-pound gate load rating. 254-757-1177;

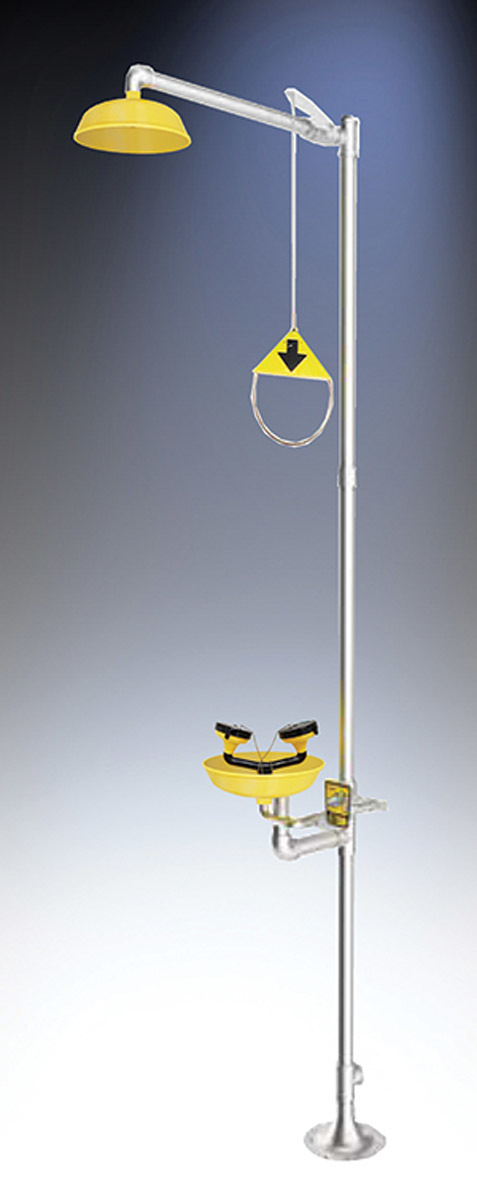

HEMCO Drench shower

HEMCO’s Drench shower is equipped with a pull-rod activated shower and push handle eye/face wash for immediate drenching of personnel that have been exposed to hazardous chemicals. After activation, the shower provides a continuous stream of non-injurious water for 15 minutes or longer. Combination shower and eye/face wash deliver 30 gpm of flowing pressure from the shower head and 8 gpm of flowing pressure from the eye/face wash. The shower comes ready to install to a water supply and waste system. Compliant with ANSI and OSHA requirements. 800-779-4362;

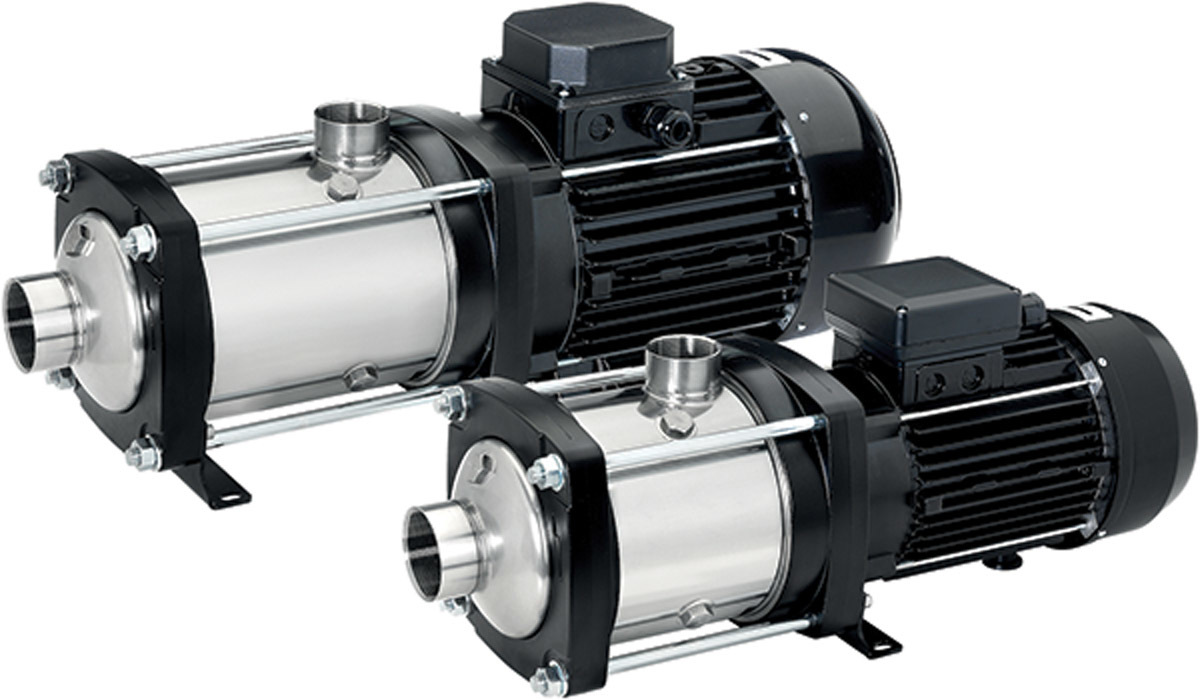

Franklin Electric’s FPS MH Series horizontal booster pumps

Franklin Electric announced several additions to its line of FPS MH Series horizontal booster pumps. The expanded offering includes pumps with nominal flow ratings of 70 and 90 gpm. By delivering this increased flow, the MH Series will now cover flow rates of up to 145 gpm and discharge heads to 280 feet. The pumps feature impellers and diffusers made of 300 Series stainless steel for maximum durability. The new models powered with 4, 5.5 or 7.5 hp, three-phase motors rated IE3 for premium efficiency, IP55 enclosure and Class F insulation. All MH Series pumps are also compatible with select models of the SubDrive family of variable frequency drives. 866-271-2859;

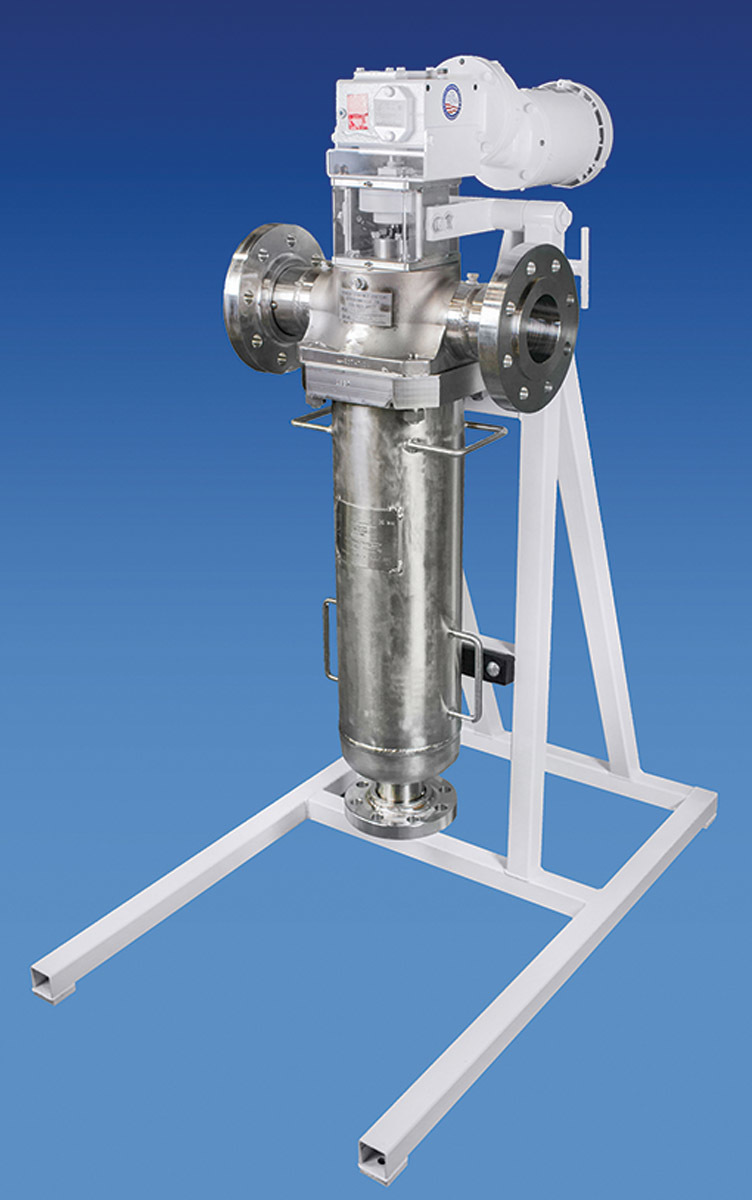

Spencer Strainer GS-144-F self-cleaning filter

Spencer Strainer’s GS-144-F sanitary self-cleaning filter is for process flow of up to 400 gpm. Constructed of 316L stainless steel, there are no bags or elements to replace, so there is no waste and no downtime for filter changes. Wedgewire or perforated screens of various openings are available and interchangeable, allowing one strainer to be used for multiple applications. The product to be filtered enters the strainer through the inlet, and filtration occurs from the outside in. Screened particulate accumulates within the canister and is purged through the bottom drain as needed. Purged particles are piped away for disposal, recycling or reuse. The GS-144-F operates continuously as a sealed device, so product stays within the piping and out of the atmosphere. 800-801-4977;

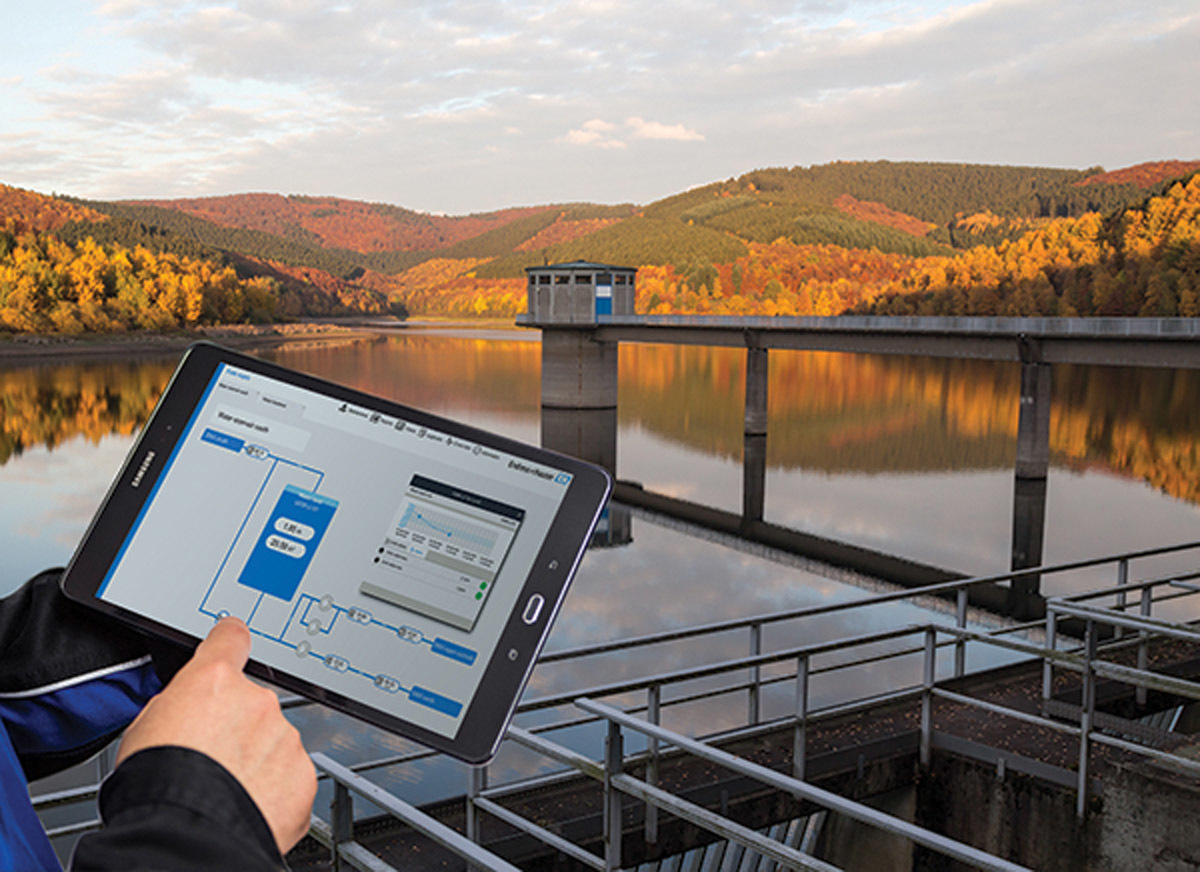

Endress+Hauser Netilion Water Networks Insights

Netilion Water Network Insights from Endress+Hauser enables full transparency for water networks around the clock by providing reliable monitoring of flow, pressure, temperature, level, water quality and other measurements. The technology connects multiple sources in a single interface, including field devices, industrial controllers, data transfer components, data recording and archiving devices, analysis and forecasting tools, and others. The web-based interface provides users with complete system monitoring, and when limit values are exceeded, or in the event of failure, it delivers alarms to users via email, SMS or push notifications. All communication is encrypted and secure, even in remote regions with a self-sufficient power supply, providing data reliability and integrity. 888-363-7377;
