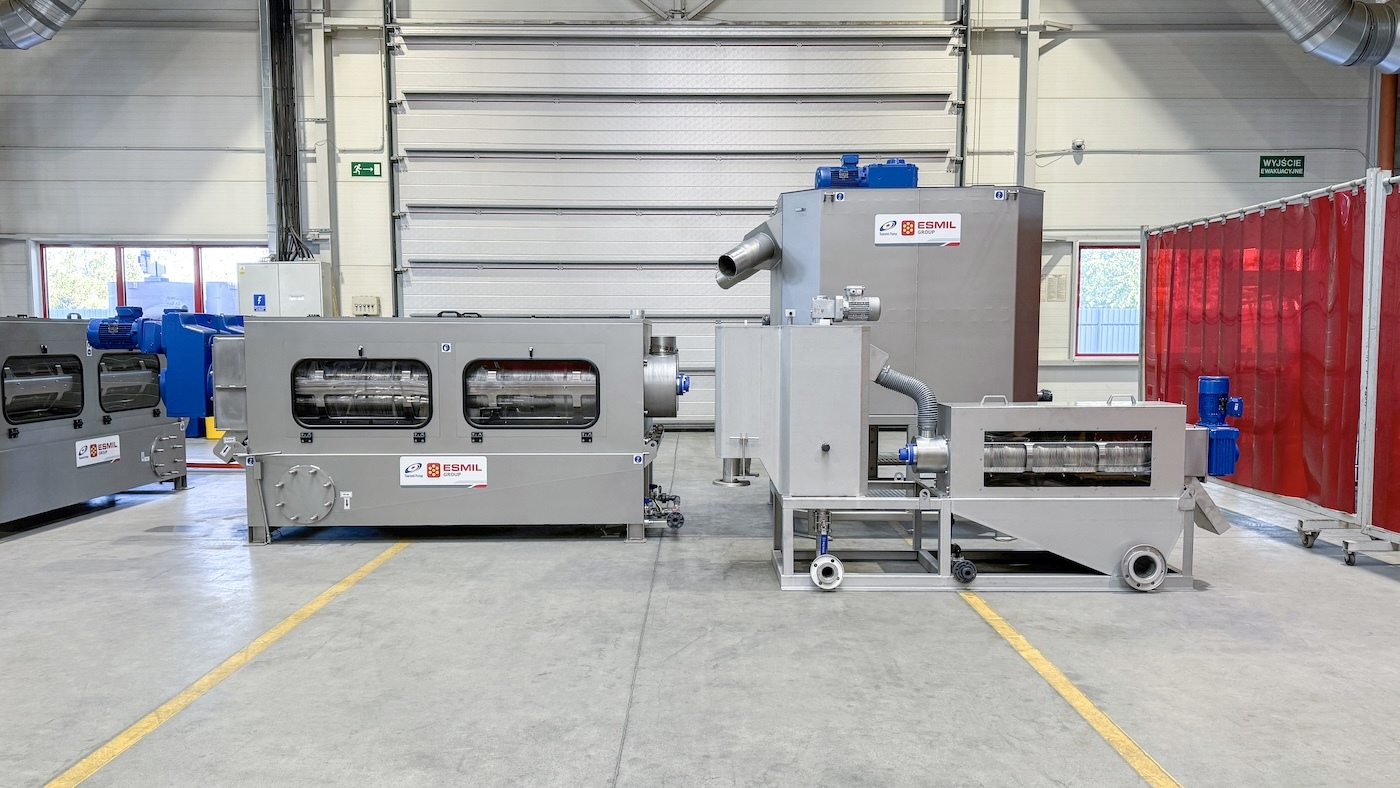

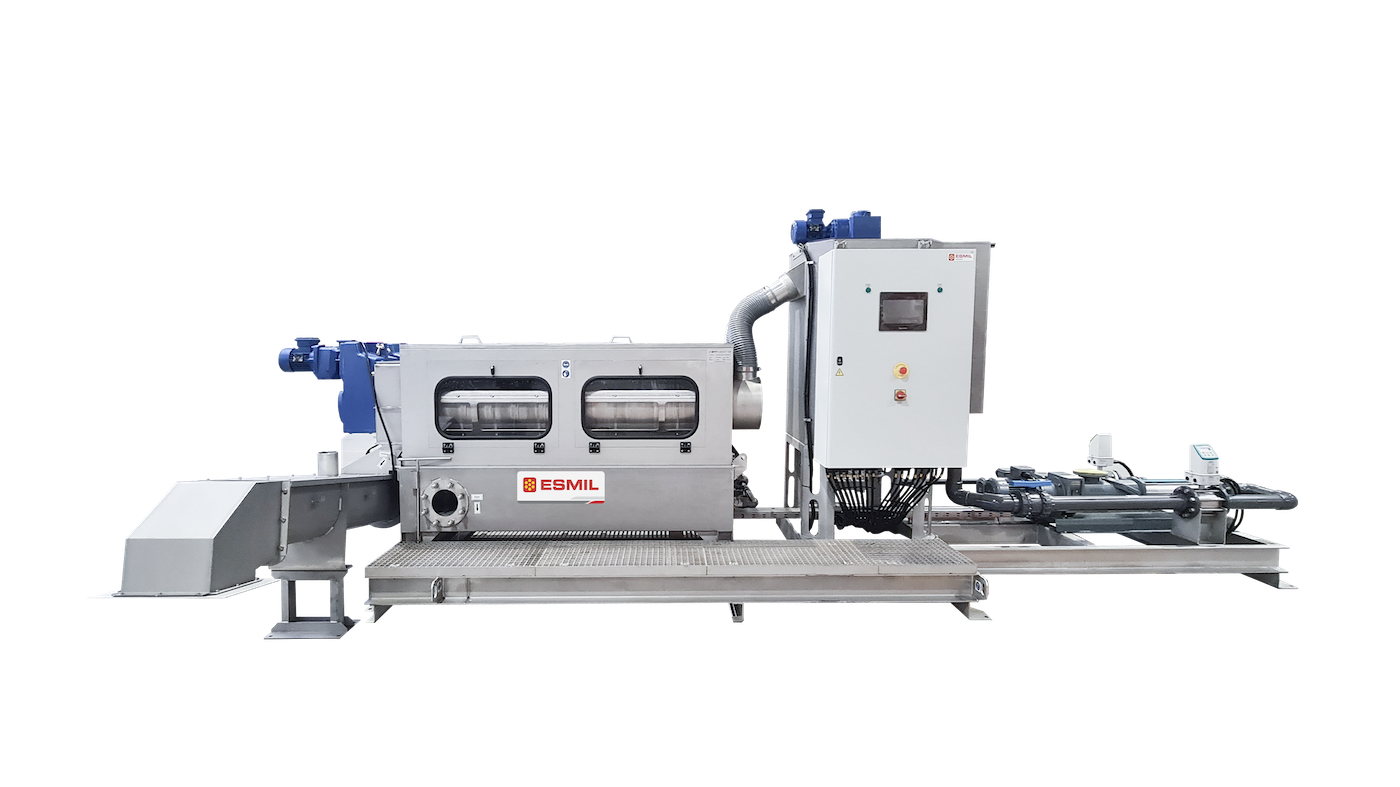

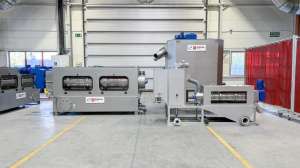

When it comes to selecting a multi-disk screw press for sludge dewatering, making the right choice is crucial for ensuring long-lasting performance and minimal maintenance. As an American manufacturer with over 30 years of technological development experience, Esmil stands at the forefront of innovation in this field with its MDQ-500 Multi-Disk Screw Press — a high-tech solution designed to deliver exceptional dewatering performance.
Key considerations
- Drum diameter and length: The capacity of a multi-disk screw press is largely determined by the diameter and length of the dewatering drum. The Esmil MDQ-500 features a drum with a 20 inch diameter and a length of 8 feet, ensuring optimal sludge dewatering capacity.
- Drum frame strength and rigidity: The drum frame must be robust and rigid, acting as a solid structural component to withstand the significant pressures generated during operation. A well-designed, casing-like drum frame is essential for maintaining durability and preventing deformation under high loads.
- Screw protective layer thickness: The longevity of the equipment also depends on the protective layer applied to the screw. Esmil’s MDQ-500 uses an ultra-durable FREA-METAL material welded onto the screw blade edge, with an increased thickness (up to 3 mm) for handling abrasive sludge, thus ensuring superior wear resistance.
- Ring thickness and flatness: The rings that compose the dewatering drum must be made from high-quality materials with precise thickness and flatness — down to hundredths of a millimeter — to avoid wear and jamming. Maintaining perfect flatness becomes increasingly challenging with larger components, making meticulous manufacturing critical.
- Automation system: A reliable automation system is indispensable. It not only controls the technological process but also safeguards the equipment from overloads, ensuring efficient and safe operation.
- Capacity: Beware of misleading nomenclature; many manufacturers assign arbitrary names to their machines, which can obscure true performance. The Esmil Multi-Disk Screw Press MDQ-500, however, stands out by delivering the highest sludge dewatering performance available. Its single dewatering drum can handle between 440 pounds of dry solids per hour for activated sludge to 1,540 pounds of dry solids per hour for easily dewaterable sludge, with a hydraulic capacity ranging from 44 to 88 gpm.
By carefully evaluating these factors, you can ensure that you select a multi-disk screw press that not only meets but exceeds your dewatering needs, offering both efficiency and reliability.
Esmil: American excellence in wastewater treatment
Esmil leverages decades of experience and advanced engineering to produce equipment that truly makes a difference. The MDQ-500 Multi-Disk Screw Press is a testament to a commitment to quality, performance and innovation — ensuring that your sludge dewatering process is efficient, cost-effective and built to last.
Choose wisely, and invest in technology that stands the test of time.
