OZ Lifting Products facility maintenance system
The facility maintenance system by OZ Lifting Products is a versatile, customizable material handling system designed to optimize efficiency and safety in water treatment and wastewater facilities. At its core is the Tele-Pro davit crane, available in capacities of 500, 1,200 or 2,500 pounds. Featuring OZ’s patented telescoping boom technology, this advanced boom enables precise, infinite adjustments under load. The Smart Latch ensures tool-free assembly, while the corrosion-resistant finish offers added protection from the elements. Each USA-made davit crane is individually tested and certified to 125% of its rated capacity. Choose from a variety of base options and winch configurations to tailor a system to specific needs. Elevate your facility’s maintenance operations with OZ Lifting Products. 800-749-1064; www.ozliftingproducts.com

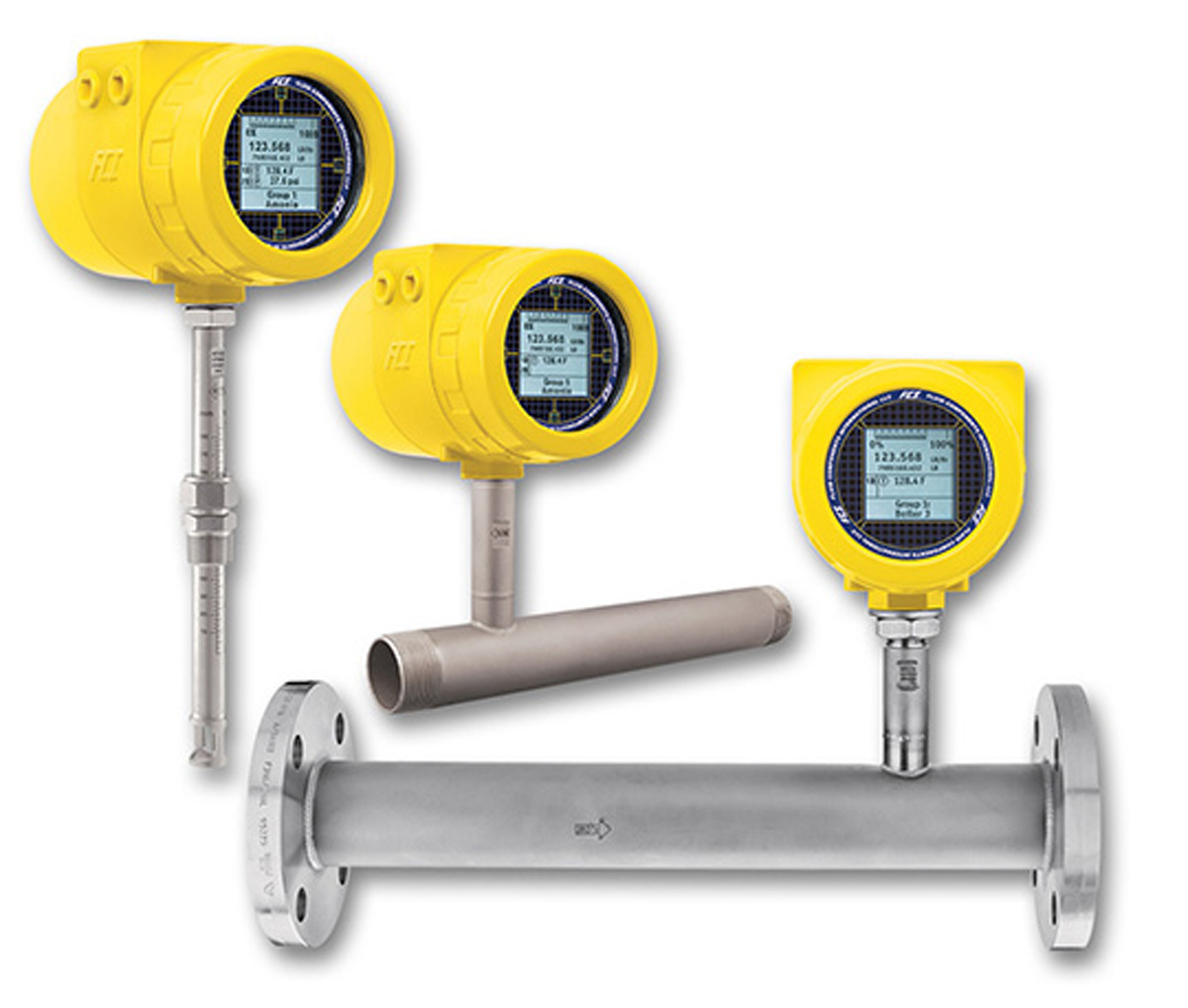

FCI ST Series thermal flow meters
The ST Series thermal flow meters from Fluid Components International are calibrated under customer installation conditions in hydrogen to achieve superior installed accuracy and repeatability in their intended application. They are direct mass flow measuring and inherently multivariable providing both flow and temperature outputs. The ST series has a wide selection of process connections, including compression fittings, NPT male and female threaded connections, flanges, ball valves, hot taps and more to ensure installation site compatibility. FCI’s ST family offers solutions from small, compact meters with basic 4-20 mA analog output to feature-enhanced versions with multiple 4-20 mA outputs, digital bus communications such as HART, Modbus, Foundation Fieldbus and Profibus, in-situ calibration, self-checks, on-board data logging and more. 800-854-1993; www.fluidcomponents.com

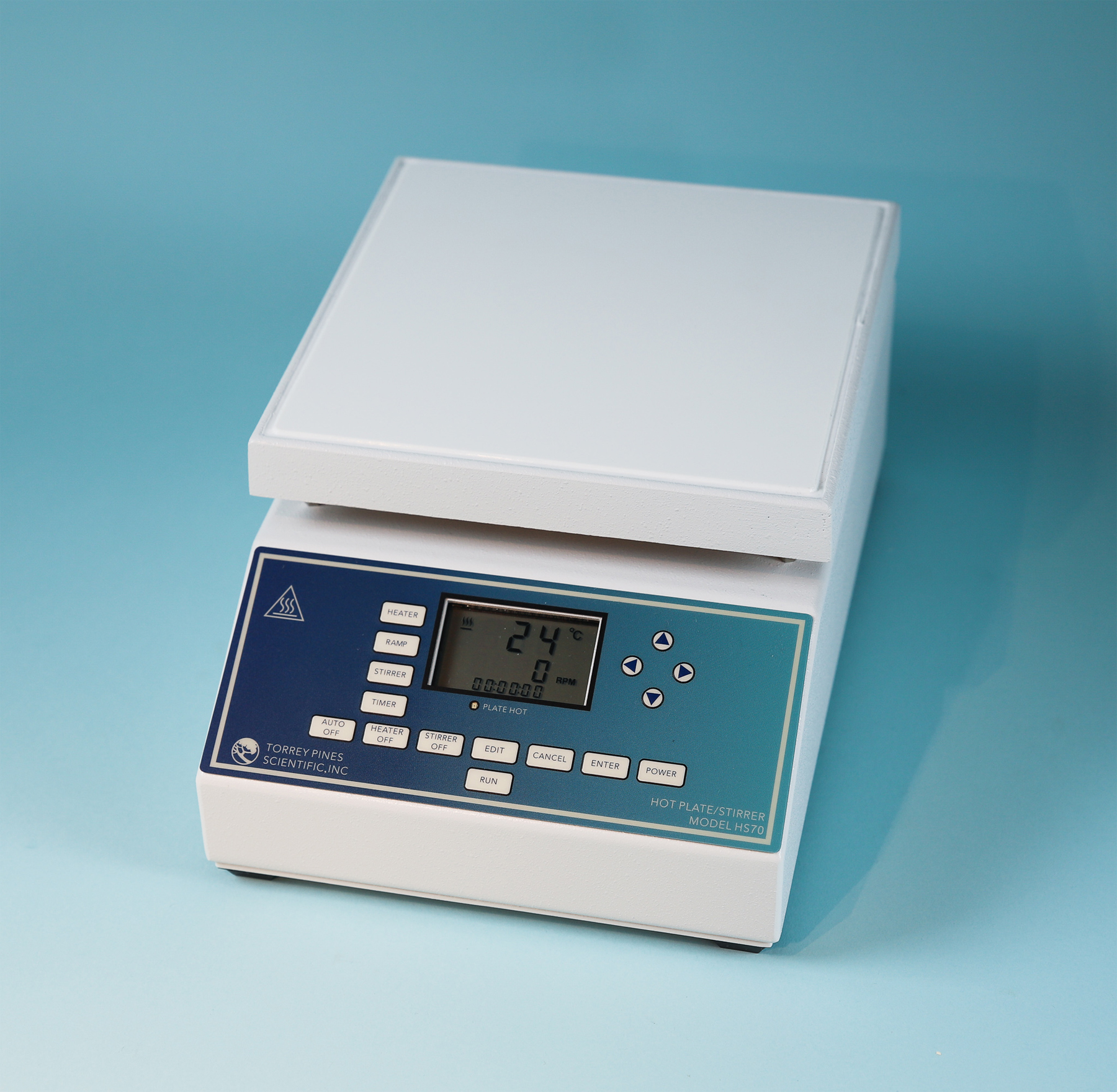

Torrey Pines Scientific EchoTherm Model HS70 stirring hot plates
The new EchoTherm Model HS70 corrosion-resistant fully programmable digital stirring hot plates from Torrey Pines Scientific are designed with a purge port for infusing an inert gas into the chassis of the unit. The positive pressure inside the chassis causes the gas to flow out of any openings and prevents corrosive gasses from entering the chassis, greatly improving unit life. In manual operation, select the parameter to be set and scroll to the value needed and the unit will do the rest. In the programmable mode, routines can be stored for instant recall and use. The stored routine will run automatically, without attention, and exactly the same time after time. 866-573-9104; www.torreypinesscientific.com

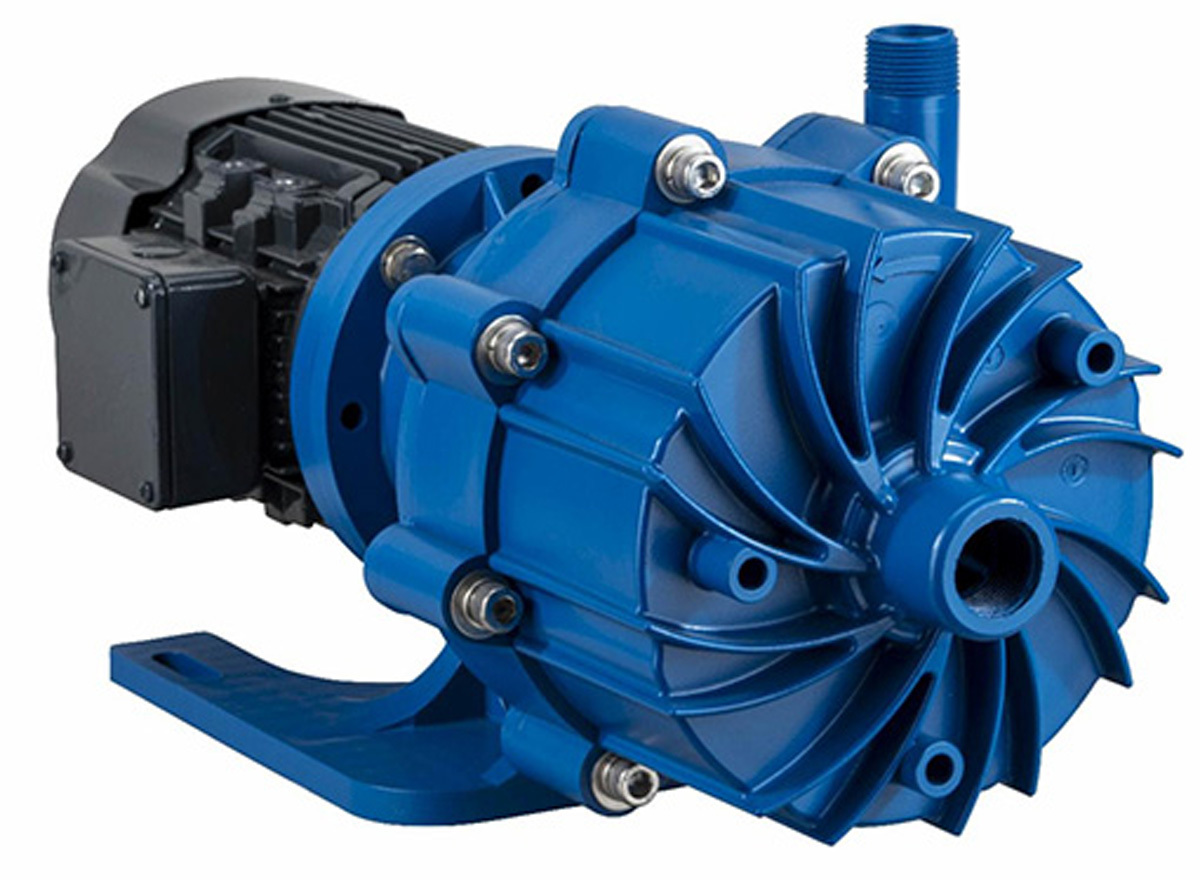

Finish Thompson MSDB series centrifugal pumps
Finish Thompson’s MSDB series of magnetic drive sealless centrifugal pumps are designed to meet the demands of high-head and low-flow applications. The series builds on the proven DB11/15 platform, featuring a flooded suction design. Available in two models, the MSDB2 with two impellers and the MSDB3 with three impellers, each stage adds additional head enabling the pumps to achieve higher heads at lower flows. The pumps boast a neodymium, high-strength, magnetic drive system, ensuring reliable operation with encapsulated inner-drive magnets made from unfilled polypropylene or PVDF. The easy-set outer drive simplifies motor installation with a measurement-free setup, and the vertical installation with IEC motor compatibility provides flexibility in various setups. 814-455-4478; www.finishthompson.com

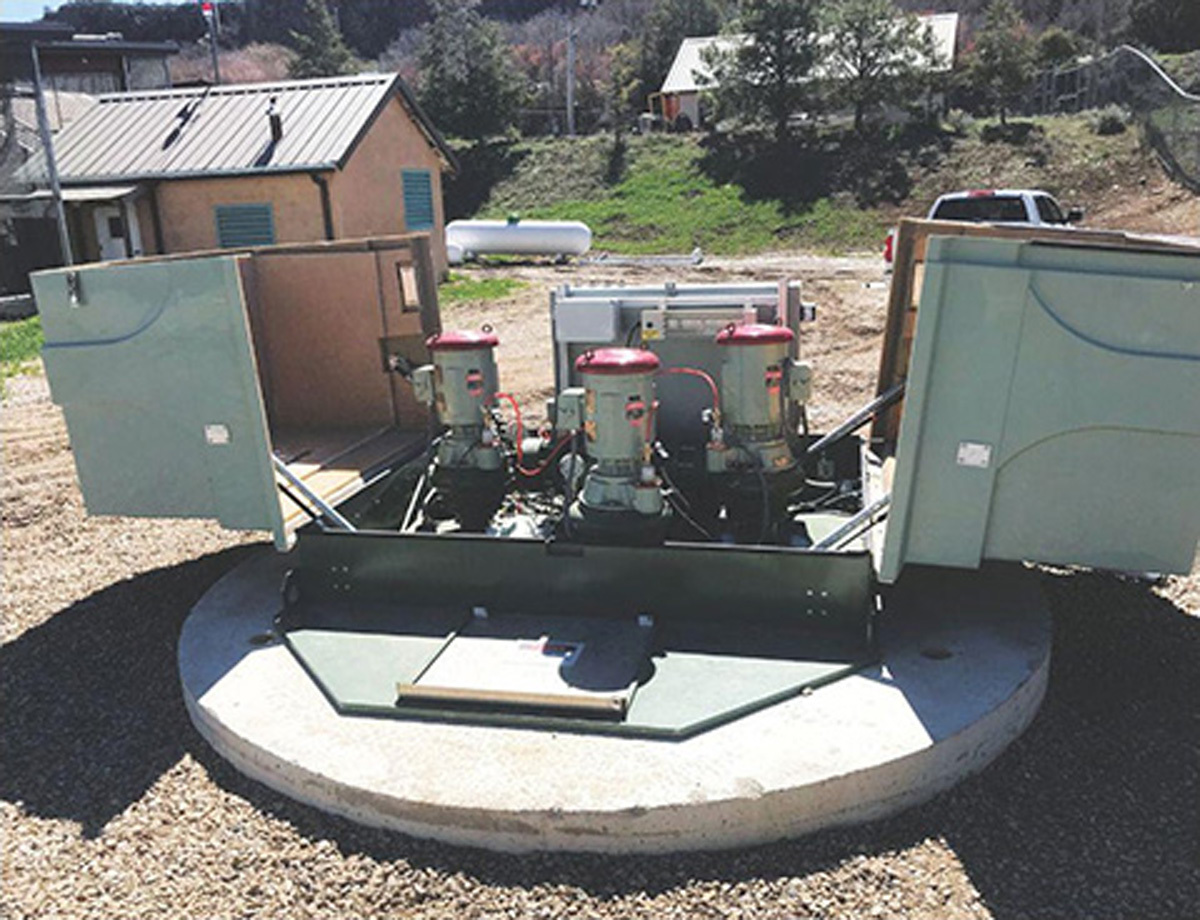

Smith & Loveless EVERLAST triplex pump station
The EVERLAST triplex pump station from Smith & Loveless is designed with three efficient STAR ONE non-clog pumps. The unique three-pump configuration significantly increases the station’s pumping capacity, capable of handling up to 2,600 gpm with a total dynamic head of up to 160 feet. The pumps are positioned above ground on a stainless steel baseplate eliminating the need for confined space entry for maintenance. The system also features the QUICKSMART PLC control panel, an intuitive touchscreen interface that provides real-time operational data, system alarms and easy-to-use settings for station operators. 800-898-9122; www.wmithandloveless.com

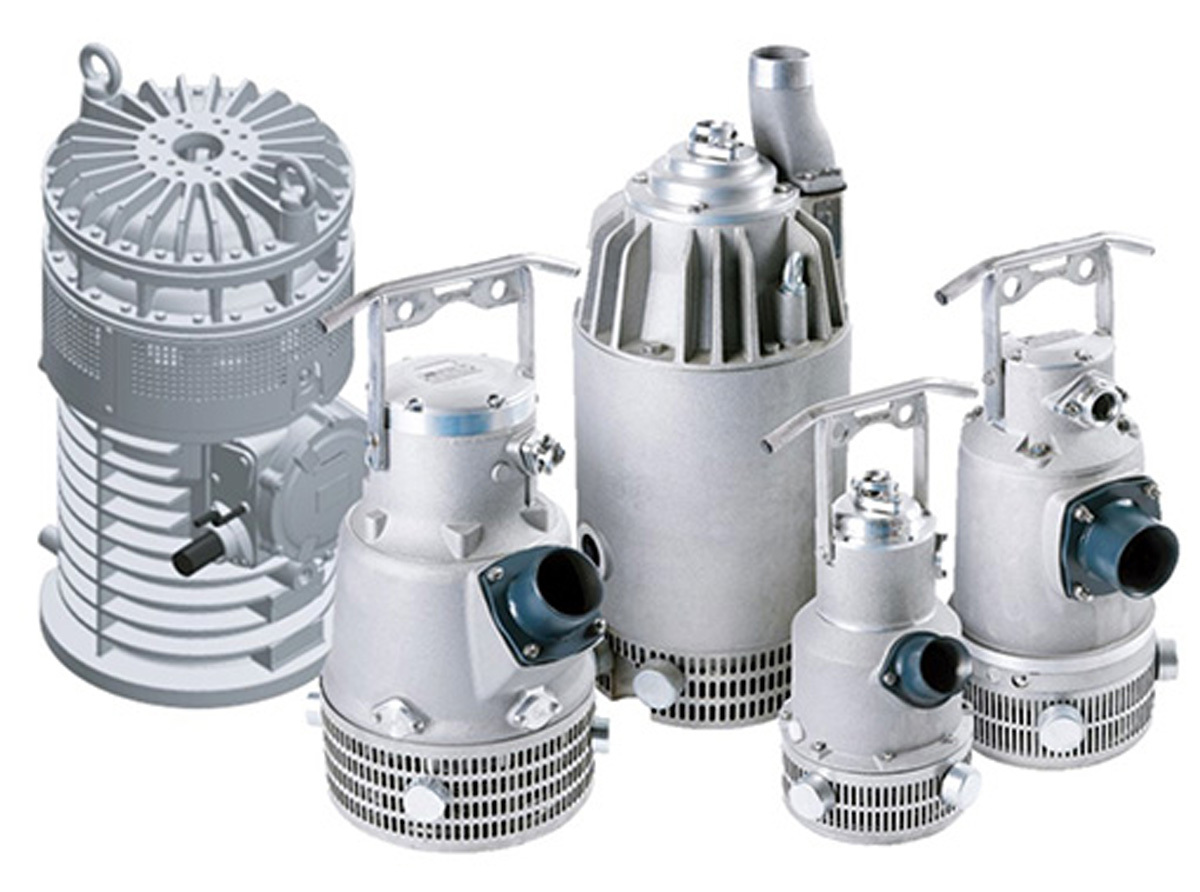

Pioneer Pump Minetuff Series dewatering pumps
Franklin Electric’s Minetuff Series of electric submersible dewatering pumps from Pioneer Pump are specially designed for deep wells or space-limited sites. The pumps come in 8 to 140 hp and are designed to work in harsh environments from wastewater, to mining, to construction. Features include heavy-duty motors with integrated thermistors to protect against thermal overload, durable mechanical seals, duplex stainless steel impellers for toughness and corrosion resistance, polyurethane-coated wear parts, and light aluminum castings with thick walls for durability. 844-250-4982, www.pioneerpump.com
