Efficient wastewater treatment relies on effective screening at the headworks to remove debris and protect downstream equipment. Below, we examine three screening olutions designed to improve efficiency and reduce costs.
Duperon FlexRake IQ
The Duperon FlexRake IQ platform provides real-time smart screening for maximum resilience at the headworks. It tackles high peaking factors due to extreme weather and difficult debris like flushable wipes, first flushes and settled solids. This is accomplished by system improvements and a sequence of operations that automatically responds in real time to optimize the screen field. The reimagined design focuses on smart enhancements to the raking device to manage heavy solids loading events with four times increased debris removal capacity, improved grit and rock handling and greater solids capture. During peak flow conditions, it adjusts the bar screen opening itself to provide additional hydraulic capacity and safety factor, matching the best capture rate to the flow volume in real time.
800-383-8479; www.duperon.com
Evoqua Water Technologies (part of Xylem) Forty-X Disc Filter Armor Series
The Forty-X Disc Filter Armor Series from Evoqua Water Technologies (part of Xylem) is a high-rate filtration device that utilizes an integrated pre-screen and stainless steel panels that are designed to accommodate high solids loading capacities and greater hydraulic throughput. The woven optimum primary mesh filter panel utilizes 316 L stainless steel threads to create a weave that improves solids collection and rejection, which makes this disc filter suitable for stormflow applications. The panel configuration includes a molded structural frame and pressured assisted seal, allowing the panels to sustain and operate at a higher headloss and provide higher throughput when compared to other disc filter synthetic media. The series combines the technology of outside-in and inside-out filtration into a single PLC-controlled unit with influent water flowing through the prescreen (outside-in) into the disc filter panels (inside-out). This combination of two filtration technologies provides an effective option for challenging applications.
844-409-9492; www.evoqua.com

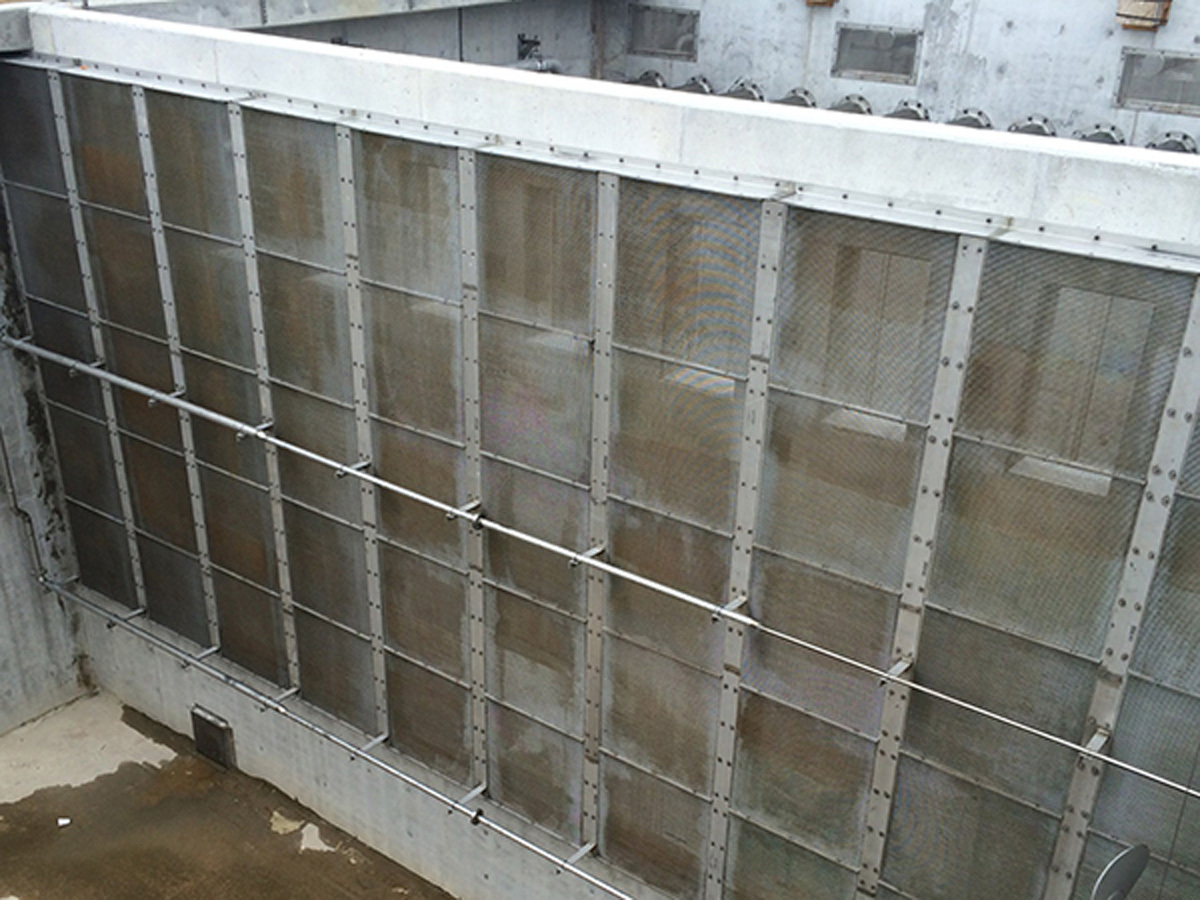

Federal Screen Products MBBR Screens
Federal Screen Products custom fabricates MBBR Screens that maximize flow rates while containing biofilm carriers, helping save on maintenance costs. They are fabricated with wedge wire by resistance welding V-shaped wire on shaped support rods. These thousands of fused points create a honeycomb-like structure that provides a strong and accurate continuous slot. This results in a product that provides accurate flow, distribution and effective media and debris filtration and retention. Wastewater screens are available in a wide range of profile wires to suit most systems, and can be designed in flat, curved or cylindrical form to meet customers’ drawings and specifications. Robust for vertical wall applications, screens are also self-cleaning when designed to the flow rate and are passivated in-house, which allows for a quality of finish, extending product life.
905-677-4171; www.federalscreen.com
