Sherwin-Williams Announces 2020 Water/Wastewater Impact Award Winners

A challenging membrane bioreactor basin lining project earns first place honors for the South Valley Sewer District, CDC Restoration & Construction, and Bowen, Collins & Associates

Sherwin-Williams Announces 2020 Water/Wastewater Impact Award Winners

The South Valley Sewer District project would require investigating the corrosion problem, extensively evaluating potential coating systems and developing a contract addressing materials, procedures and quality control for restoration work of concrete basins in its MBR system.

Interested in Maintenance?

Get Maintenance articles, news and videos right in your inbox! Sign up now.

Maintenance + Get Alerts

A labor-intensive restoration of eight deteriorated membrane bioreactor basins for the South Valley Sewer District Jordan Basin Water Reclamation Facility in Bluffdale, Utah, has earned the facility and project team the 2020 Sherwin-Williams Impact Award.

The award recognizes exceptional projects that feature high-performance coating and lining materials from Sherwin-Williams Protective & Marine. The project involved restoring the concrete basins and applying a durable, fiberglass-reinforced lining system designed to prevent future deterioration. The winning team includes the SVSD, general contractor CDC Restoration & Construction, and Bowen, Collins & Associates, which served as the project’s engineering and coating inspection firm.

A similar endeavor featuring a different lining solution for MBR basins was named the runner-up project. Applicators from Champion Coatings installed a flexible polyurethane lining system in five newly installed basins at the Grand Forks Regional Water Treatment Plant for the City of Grand Forks, North Dakota.

In addition, Traill Painting Company coated a wide array of assets for the plant, including applying a heavy-duty, graphite-filled lining system on a secondary containment vessel, installing resinous flooring throughout the facility, and coating pipes, tanks, walls, doors and numerous other structures. Additional project members included civil/environmental consulting engineering firm AE2S and engineering and construction firm Ulliman Schutte Construction.

The honorable mention project focused on the potable water storage side of the water and wastewater industry. It involved the inside and outside restoration of a 500,000-gallon water tower for Saint Paul Regional Water Services in St. Paul, Minnesota. Inside the tower, applicators from TMI Coatings installed a zinc/epoxy/epoxy lining system that had recently secured industry approval for potable water storage, making this the first tower to feature the interior lining. In addition, applicators used a zinc/epoxy/polyurethane system with excellent color and gloss retention on the exterior. Consulting services firm Short Elliott Hendrickson Inc. served as the engineering and coatings inspection firm for the project.

“When we review applications for the Sherwin-Williams Impact Award each year, we’re always very impressed by the applicants’ commitment to finding optimal solutions to water and wastewater challenges. As we see in this year’s first place and runner-up projects, there are multiple ways to address similar challenges, with the best solution dependent on the particular project,” says Murray Heywood, North America Market Manager of Water & Wastewater for Sherwin-Williams Protective & Marine. “Through the Impact Award program, we take pride in honoring the problem solvers who find ways to ensure the proper care and upkeep of critical water and wastewater infrastructure to continually deliver safe, reliable service in communities across North America.”

The Sherwin-Williams Impact Award program recognizes application contractors, specifiers and owners for excellence on North American water and wastewater projects that have a compelling effect on the industry with regard to public safety, asset protection and infrastructure life cycle improvement. Eligible projects included any water-related structure that was new, restored and/or rehabilitated in 2019 and was completed using coating and lining materials from Sherwin-Williams Protective & Marine.

About the winning project

As the South Valley Sewer District in Bluffdale, Utah, planned and designed its new Jordan Basin Water Reclamation Facility, project managers pondered a common question: to line or not to line the eight concrete basins that make up the facility’s MBR system. Ultimately, budgetary restrictions drove the decision to wait on the linings and address them after the concrete degraded from use. That deterioration came a bit faster than anticipated as the corrosive membrane filter cleaning process caused the loss of one-quarter to three-quarters of an inch of concrete throughout the basins within about six years of service. There was no question now — it was time to line the basins.

The project would require investigating the corrosion problem, extensively evaluating potential coating systems and developing a contract addressing materials, procedures and quality control for the restoration work. SVSD retained Bowen Collins & Associates as the design engineer for the project. BC&A engaged Corrosion Control Technologies — a corrosion engineering firm based in Sandy, Utah — as a subconsultant to assist with the work.

Following the firms’ completion of the design investigation and rehabilitation specifications, SVSD put the contract out for bid and selected Salt Lake City, Utah-based CDC Restoration & Construction to complete the work. The contractor then restored the concrete and applied a durable, non-permeable lining system from Sherwin-Williams Protective & Marine, returning the basins to like-new condition with a durable barrier that will protect the concrete from wear for far longer than when it was unlined.

Concrete in the JBWRF’s MBR basins had severely degraded due to chemical attack caused by cleaning agents used to clean the MBR filters. The citric acid and sodium hypochlorite used to remove unwanted elements from the filter membranes had progressively eaten away at the unlined basin walls. CDC Restoration & Construction performed a variety of rehabilitation steps, including preparing the concrete for repairs, restoring its surface to its original plane, applying a moisture remediation primer, adding a fiberglass mat-reinforced epoxy laminate system and applying a protective epoxy lining.

After applicators from CDC Restoration & Construction vapor abrasive blasted the concrete to create a clean surface for coating applications, project engineers knew moisture would be an issue for the lining application, as adjacent basins remained full of water. Moisture would therefore be able to migrate through the concrete on at least one wall in each basin undergoing repairs, creating potential adhesion issues. The team remedied this issue by spray applying the basin walls with Resuprime MVT, a two-component, fast-curing epoxy resin from Sherwin-Williams. The surface membrane is tolerant of residual moisture in concrete and served to block moisture migration to the concrete’s surface, enabling its restoration.

Applicators were able to begin repairing the deteriorated concrete about 12 hours after applying the Resuprime MVT moisture-control coat. Using Steel-Seam FT910 — a 100% solids epoxy patching and surfacing compound from Sherwin-Williams — they repaired cracks, filled voids, bugholes and honeycombs, and rebuilt the deteriorated concrete surfaces to their original dimensions.

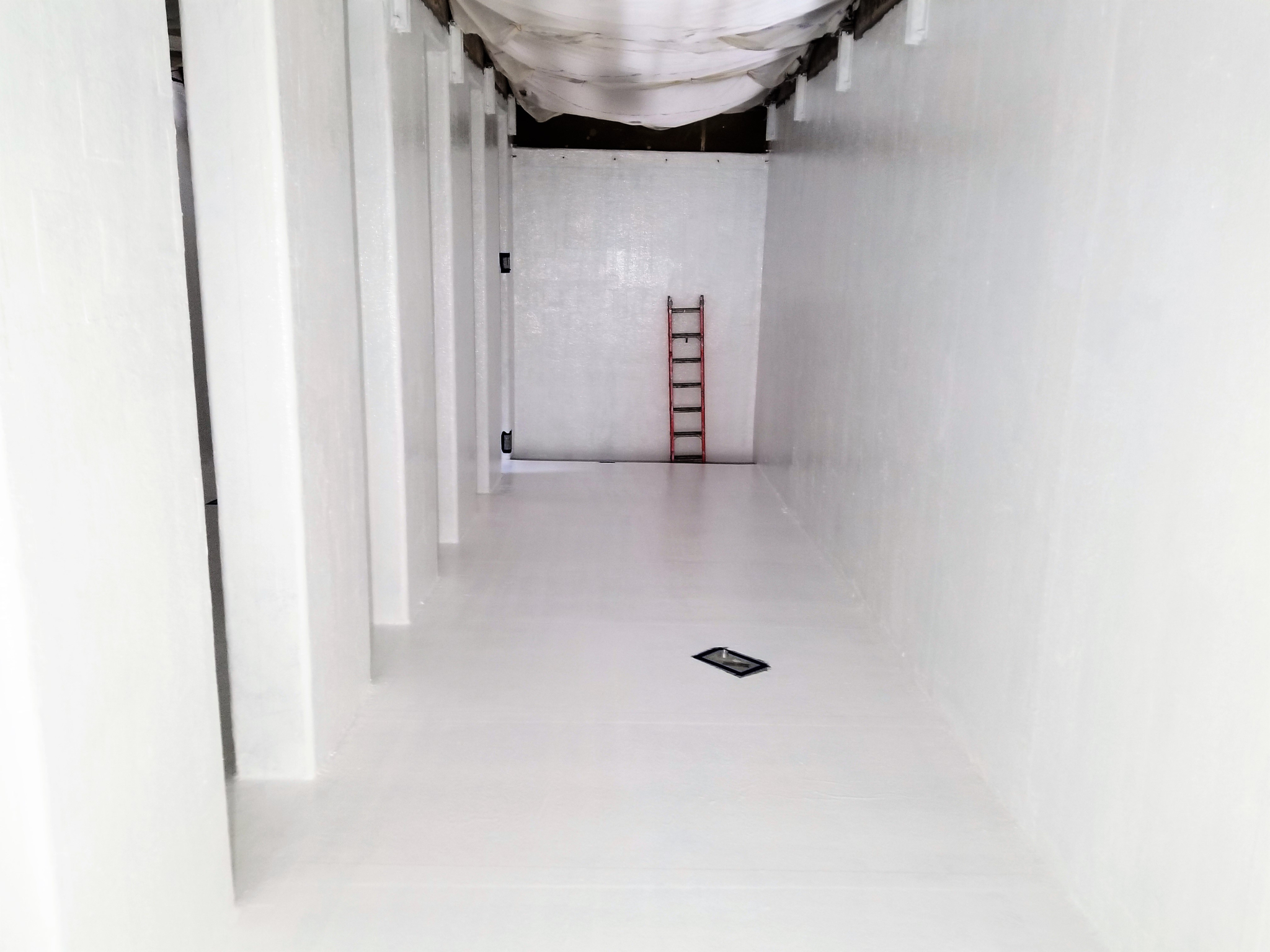

With the concrete built back to an even plane, applicators turned to the reinforced lining system application. That included applying a base layer of Sherwin-Williams Dura-Plate UHS Clear Laminate topped with a 1.5-ounce fiberglass mat that was then sealed with more of the clear laminate material before being topcoated with Dura-Plate UHS Epoxy White. The two ultra-high-solids epoxy amine coatings are engineered specifically for use as laminating systems in immersion service and provide quality protection via their high-build, edge-retentive properties.

As a quality control efficiency, the engineering team devised a clever solution that would help inspectors — both during the lining application process and later when examining the lining for damage during periodic service inspections. They used a green-tinted hardener with the clear laminate, which made it easier for applicators and inspectors to ensure the fiberglass matting was fully wetted during applications. When applying the white topcoat, applicators were also able to ensure a uniform, pinhole-free final film by fully covering the contrasting green layer. In addition, the color contrast is helping inspectors examine basins following service, as any visible green spots indicate damage to the topcoat.

Following inspection by staff from BC&A, each basin was approved for use before applicators moved onto the next one. The protocol of applying the moisture-mitigation coat, surfacing compound, tinted base epoxy layer and white topcoat enabled the time-consuming project to proceed quickly. The team was able to restore all eight MBR basins in about 57 weeks — well within the 60-week completion time frame. Best of all, the 15 mgd facility was able to remain in operation throughout the project, enabling it to continue serving the surrounding area with water filtered for use in secondary irrigation systems.
