Sonic-Pro S3 Hybrid Ultrasonic Flowmeters will precisely measure flow in virtually any fluid in which sound can travel. The sound transducers are clamped to the outside of the pipe wall to measure flow in either clean or dirty fluids. This method of flow measurement is safe, nonintrusive and very easy to service.

Because the Sonic Pro flowmeter does not encounter the fluid being measured, it is well suited for use in applications where harsh chemicals or other abrasive fluids are in use. The ultrasonic Sonic-Pro has a high capacity flow range of up to 30 feet per second.

The flowmeter can be equipped with a communications package for remote access via a Windows PC; this can facilitate such functions as program editing and downloading of data logs.  Additionally, a relay package is available for process control and alarm functions.

Additional Sonic-Pro features include a housing of powder-coated rugged aluminum. Mounting clamps and hardware are stainless steel.

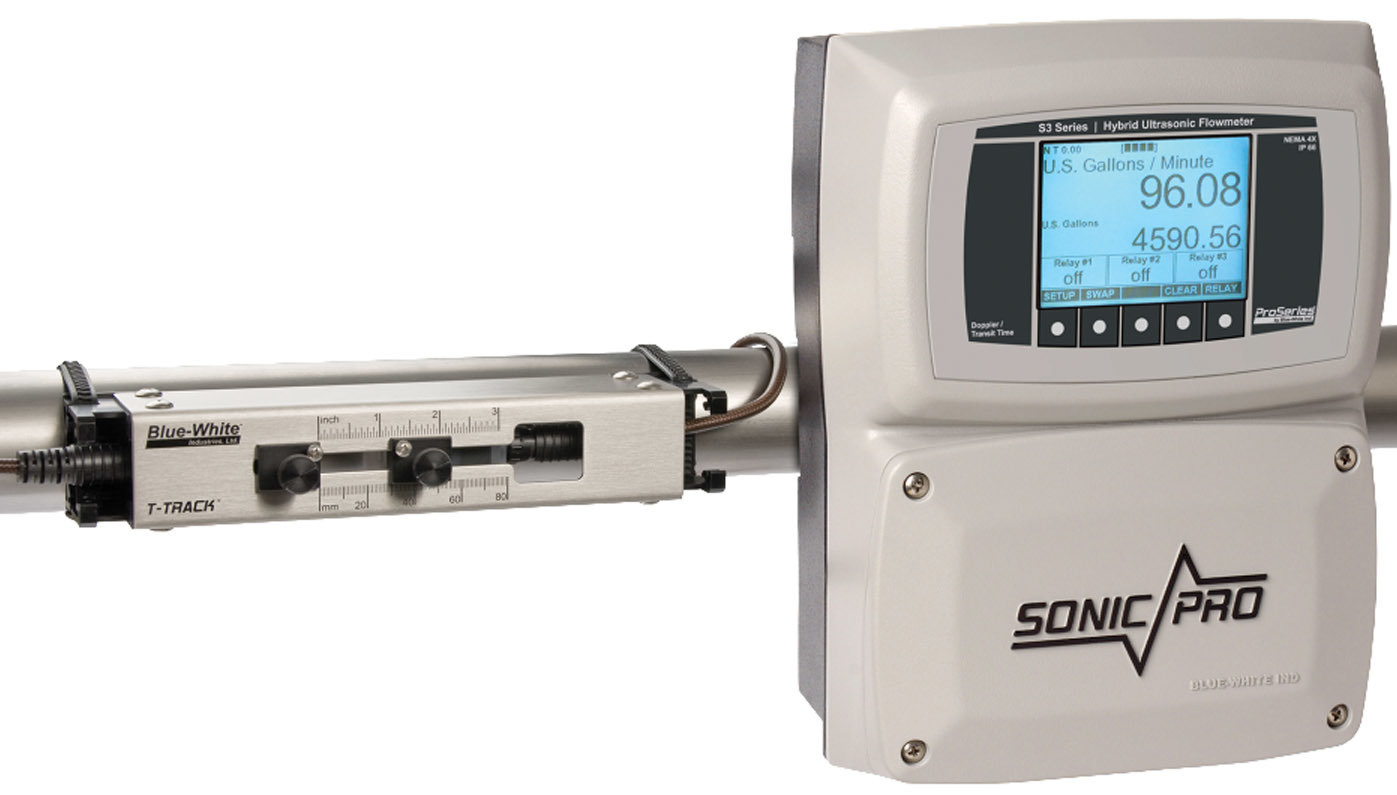

The flowmeter may be ordered with Blue-White’s patented T-Track Mounting System (US Patent number 9,374,024). It’s designed to assist in quickly and accurately mounting the transducers utilizing a built-in ruler and mounting base. This helps to ensure transducers are perfectly aligned. A heavy-gauge stainless steel cover, anodized aluminum end blocks, and polymeric tensioning clamps provide transducer protection for years of service in harsh environments.

Additional features include:

  • User selectable Doppler or Transit Time operation
  • Units can be factory configured
  • Fully configurable isolated 4-20 mA output
  • Fully configurable 0 to 1,000 Hz pulse output
  • A rugged carrying case for easy transportation between applications
  • A two-year factory warranty

Three models of the Sonic-Pro are currently offered:

Sonic-Pro Model S1 has no local display. The unit is factory configured for one application. A communication package is required to access the configuration menu and data log.

Sonic-Pro Model S2 features a high quality 320 x 240 pixels QVGA backlit LCD display. It has two-button interface allowing the operator access to clear accumulated total and swap rate, and total display fonts. A communication package is required to access the configuration menu.

Sonic-Pro Model S3 has a high quality 320 x 240 pixels QVGA backlit LCD display, and a five-button, fully configurable, tactile switch keypad interface. A security feature of master and configuration passwords helps prevent tampering by unauthorized persons.

Sonic-Pro is NSF STD61, ETL and CE listed. Flowmeters are NEMA 4X / lP66 rated.

Blue-White Industries is ISO 9001:2015 certified.
