Product News - June 2013

Product News - June 2013
AllMax operations management software

Interested in Instrumentation?

Get Instrumentation articles, news and videos right in your inbox! Sign up now.

Instrumentation + Get Alerts

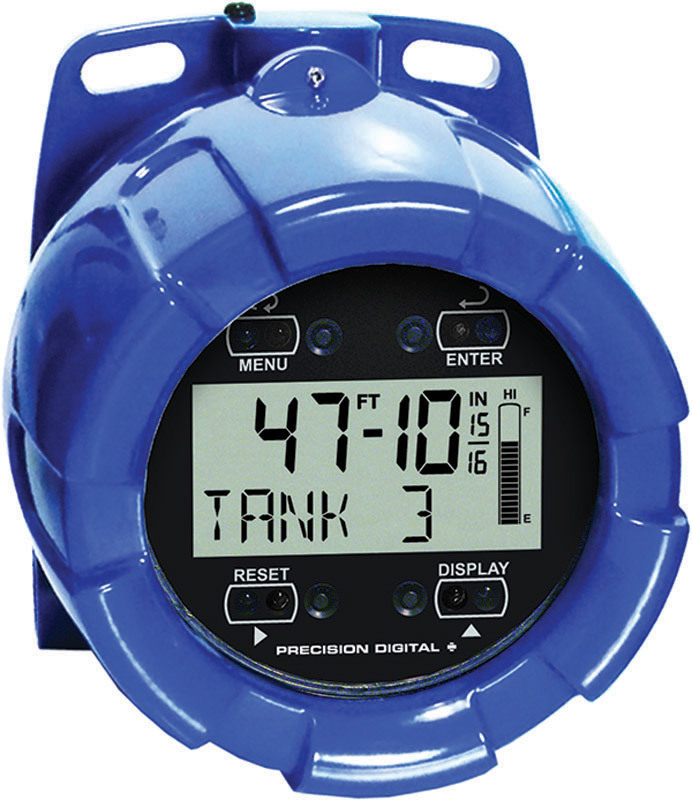

Precision Digital level meter

The PD6801 ProtEX F&I explosion-proof level meter from Precision Digital Corp. is designed for safe and hazardous environments. The 4-20 mA loop-powered input displays the level in feet and inches. A second line shows volume, percent or custom label. A 20-segment tank level indicator displays height. The meter has FM, ATEX, CSA and IECEx approvals and is housed in a cast aluminum NEMA 4X enclosure. Through-glass buttons permit operation without removing the cover. 800/343-1001; www.predig.com.

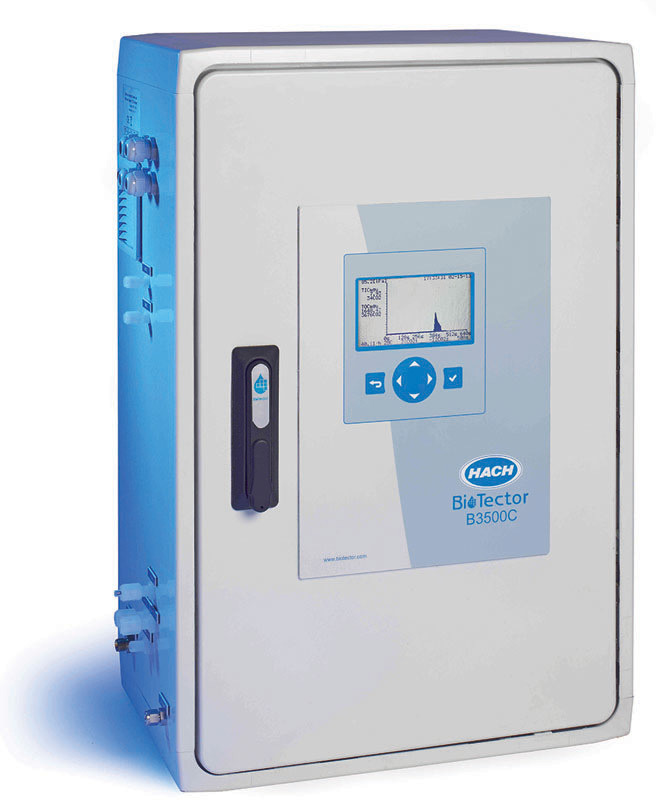

Hach TOC analyzer

The BioTector B3500c TOC analyzer from Hach Co. was designed to meet the requirements of clean water applications, including condensate return, cooling water, potable water, pharmaceutical water and demineralized water. The analyzer offers process insights, process incident alerts, environmental monitoring, energy optimization, product and water low prevention and boiler and plant protection. 800/227-4224; www.hach.com.

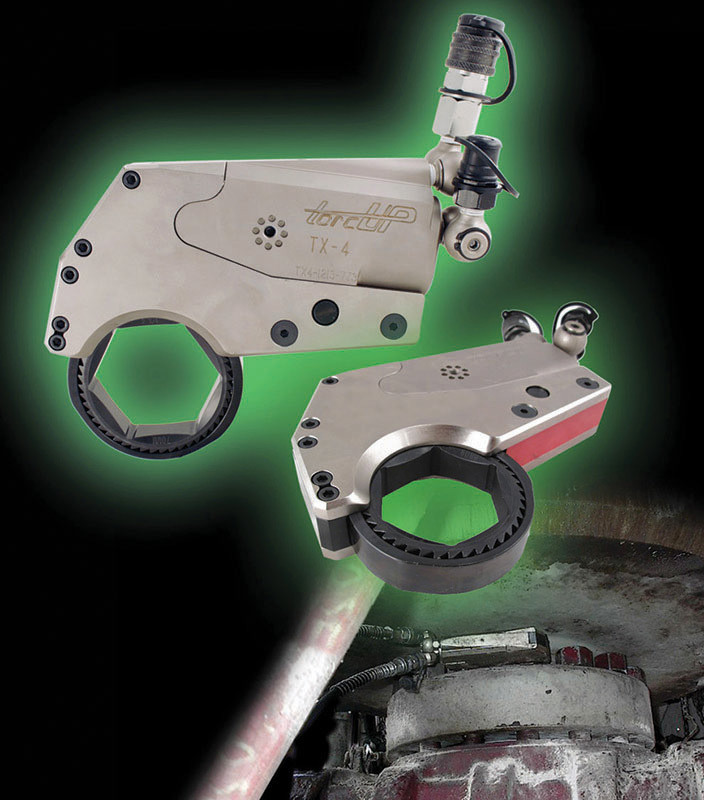

TorcUP industrial torque wrench

The Slimline Ratchet Link industrial torque wrench by TorcUP has a torque range of 395 ft-lbs to 3,950 ft-lbs for use on fasteners from 1 to 3 1/8 inches. The wrench fits in areas less than 1 inch wide. Powered by an electrically or pneumatically driven hydraulic pump, torque can be applied by one operator.  610/250-5800; www.torcup.com.

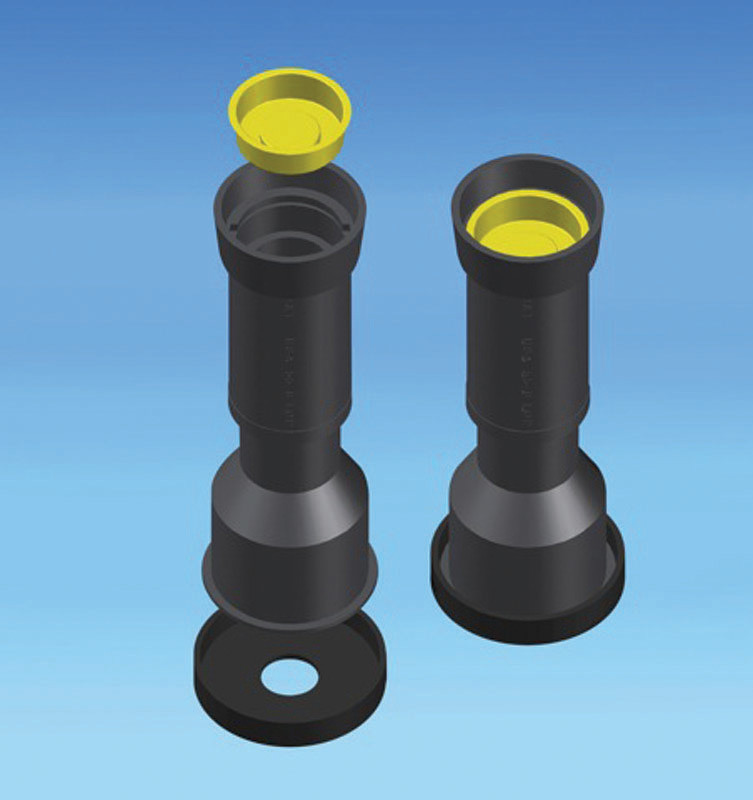

Bingham valve box sealed system

The Buffalo brand No Vac valve box sealed system from Bingham & Taylor includes valve box stabilizer and debris trap (available together or separately) for use with cast iron or plastic valve boxes. Designed to prevent the intrusion of dirt, backfill or sand from below, the unit assures proper valve box alignment and valve protection. It also assures that all down force is transferred to the backfilled area rather than to the buried valve or pipe, eliminating the need to block up the valve box. The debris trap component is engineered to eliminate maintenance and service issues caused by debris intrusion through and around the valve box top over time. 540/825-8334; www.binghamandtaylor.com.

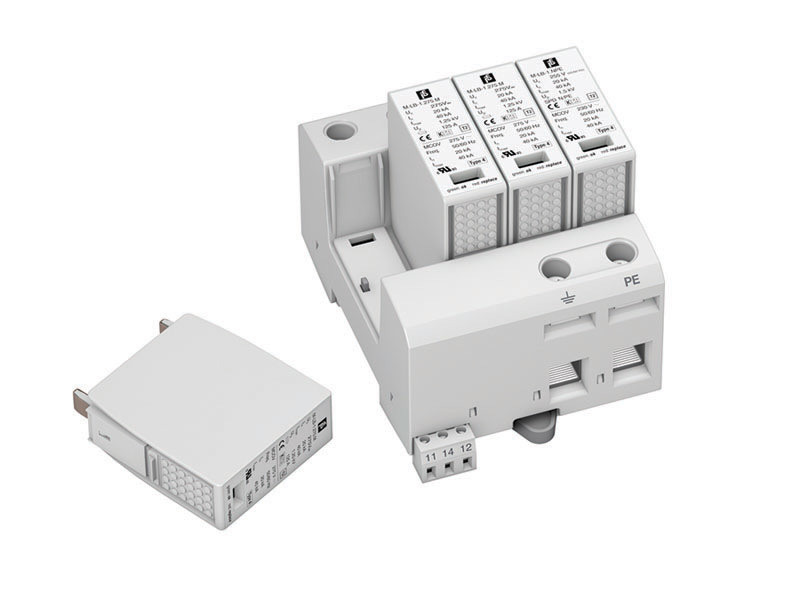

Pepperl+Fuchs surge protection barriers

M-LB Series surge protection barriers from Pepperl+Fuchs fit various configurations and protect 115/230 volt main power supplies against power surges. The pluggable and pre-wired protection modules can be mounted on DIN rails and feature front indicators that deliver at-a-glance operating state and error-message outputs for quick and easy maintenance. The units are hot-swappable for in-the-field replacement without the need for tools. 330/486-0002; www.pepperl-fuchs.us.

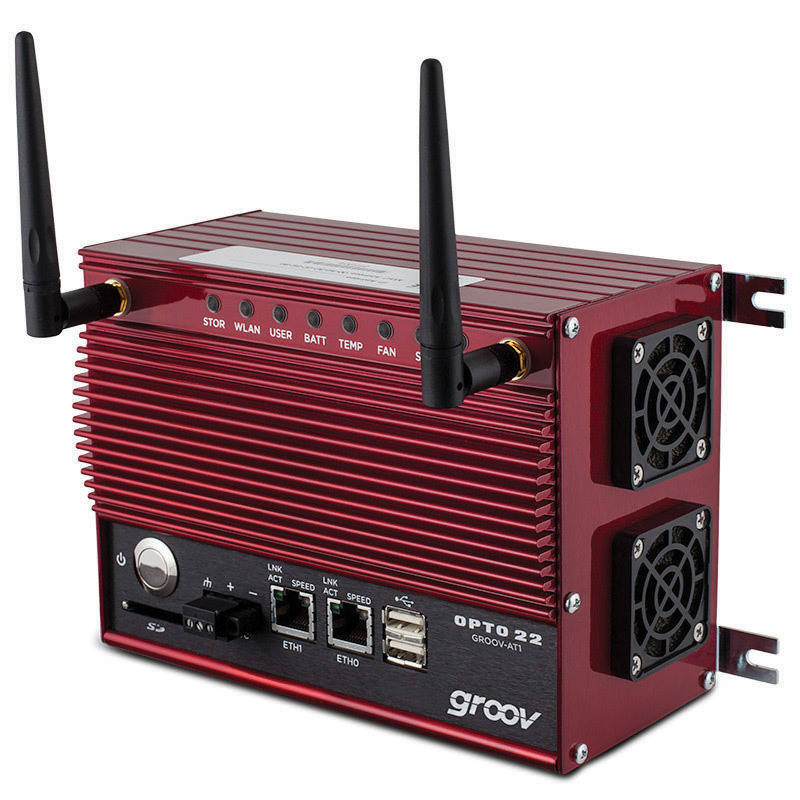

Opto 22 scalable operator interface

The groov scalable operator interface from Opto 22 monitors and controls systems and equipment using computers and mobile devices. The system enables end-users to build and deploy browser-based interfaces for automation, monitoring and control applications. The interfaces can be viewed on most computer and mobile devices, regardless of manufacturer or operating system. 800/321-6786; www.opto22.com.

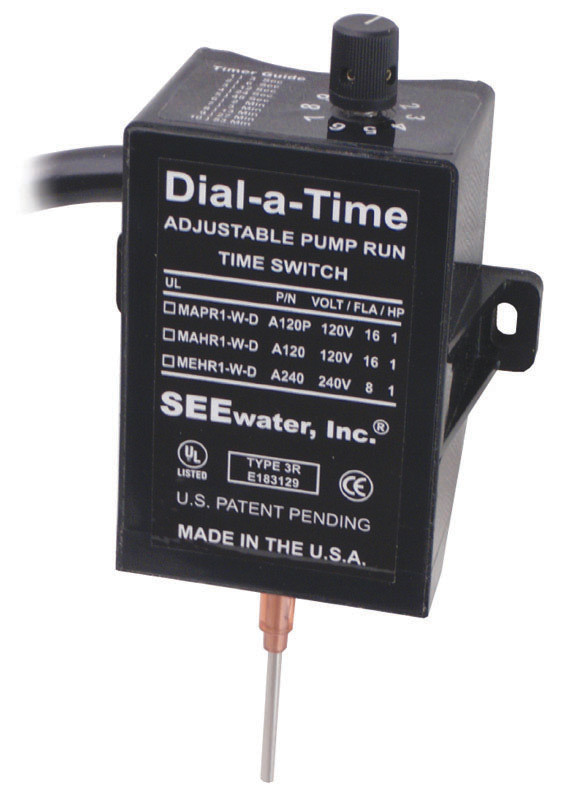

See Water adjustable pump control

The Dial-a-Time piggyback sewage and sump pump control from See Water has an adjustable pump run-time switch for use in general dewatering, wastewater, sewage and confined space pumping applications. The control has a time range of 3 seconds to 53 minutes. It can be used with a See Water WS Series control panel or as a standalone control. 888/733-9283; www.seewaterinc.com.

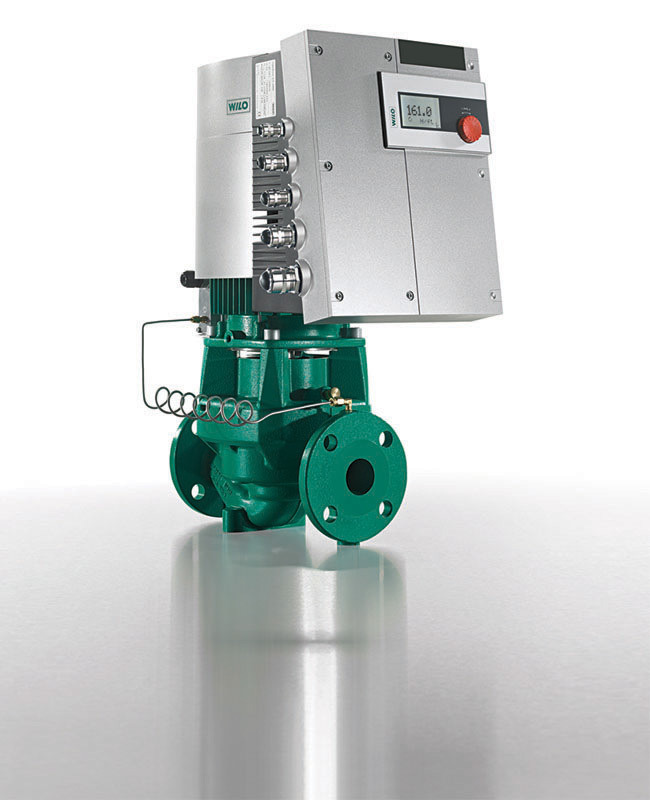

WILO single-stage inline centrifugal pump

The Stratos GIGA high-efficiency, single-stage inline centrifugal pump from WILO USA is designed for use in hot water heating systems, closed cooling circuits and industrial process systems. The redesigned hydraulics and permanent magnet motor can achieve 1E4 efficiencies. Features include heads to 167 feet and flows to 275 gpm. 866/945-6872; www.wilo-usa.com.

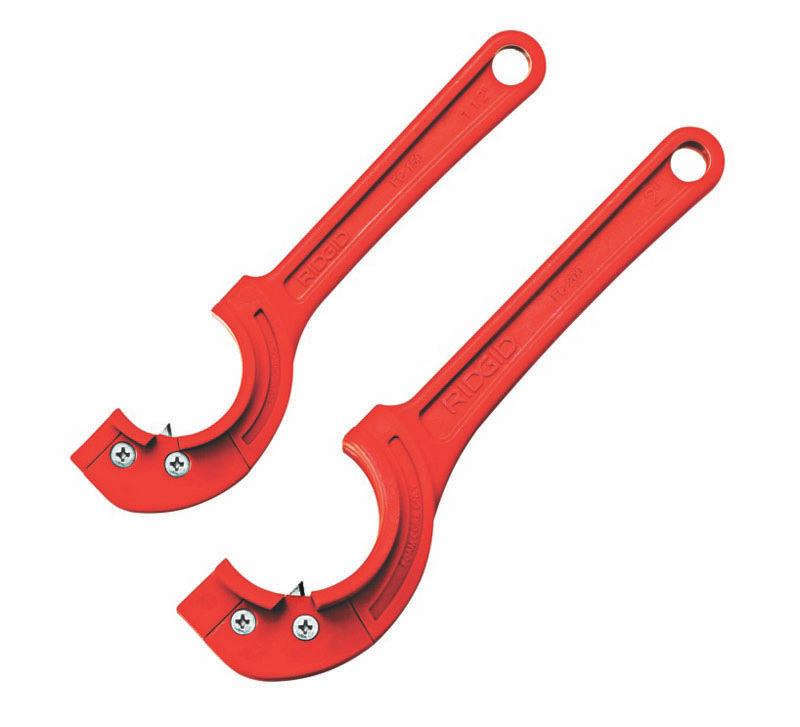

RIDGID ABS, foam-core PVC pipe cutters

FC-Cutters from RIDGID are designed to cut ABS and foam-core PVC pipe. Available in two options for cutting 1 1/2- and 2-inch diameter pipe, the cutters feature an extended handle for leverage and one rotation cuts that don’t leave burrs. 800/769-7743; www.ridgid.com.

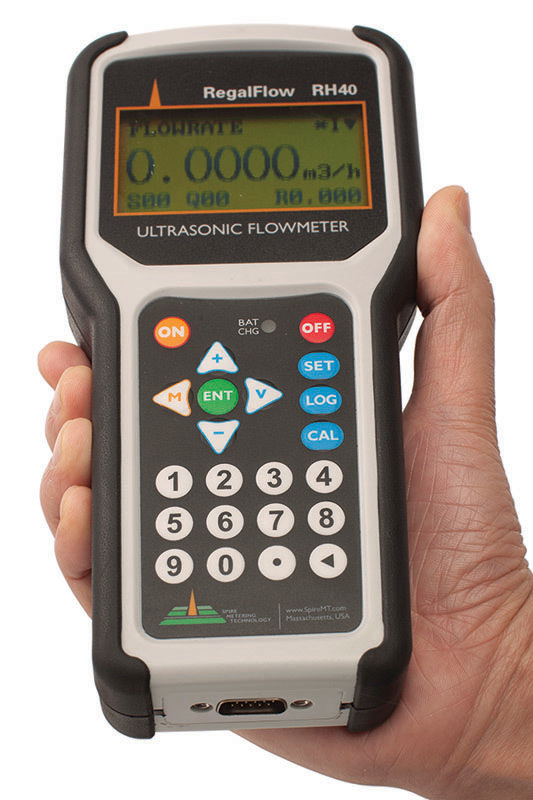

Spire portable Btu meter

The Regal Series RH40 portable ultrasonic Btu meter from Spire Metering Technology, formerly Shenitech, is designed to deliver non-intrusive Btu and flow measurement across an array of pipe sizes and various liquids in heating/cooling applications. The one-pound, handheld meter uses clamp-on sensors to measure flow, temperature and heat energy/Btu consumption on pipes from 0.5 to 120 inches in diameter. 888/738-0188; www.spiremt.com.

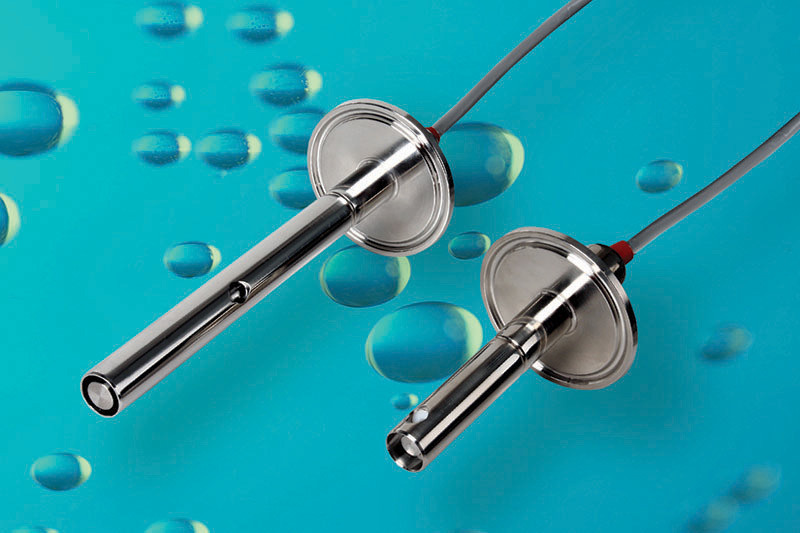

Sensorex fluid monitor sensors

CS615 conductivity sensors from Sensorex Corp. monitor process fluids. Made of 316 stainless steel, the sensor withstands cleaning in place and steam sterilization processes up to 266 degrees F. Two models are available for 1- to 1.5-inch and 2-inch tri-clamp flanges. Both sizes come with optional automatic temperature compensation. 714/895-4344; www.sensorex.com.

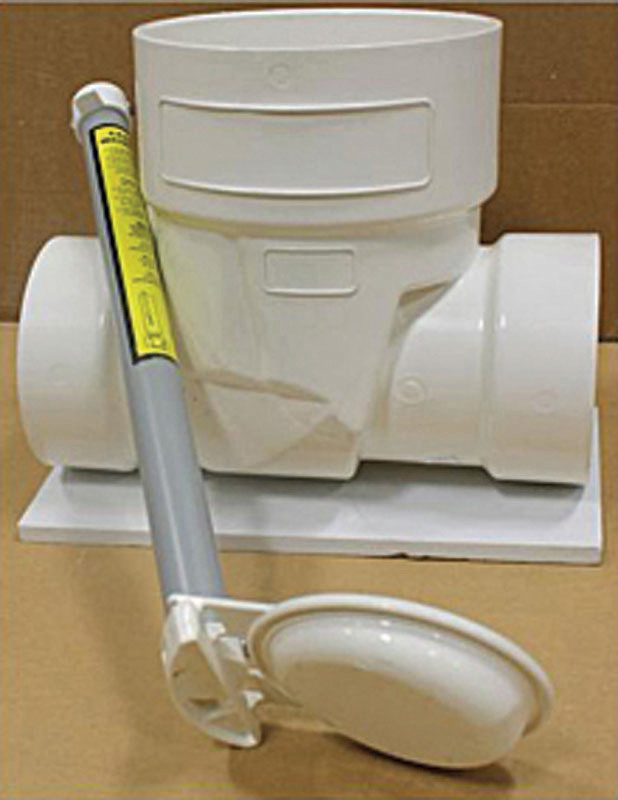

Mainline extendible backwater valve

The Straight-Fit extendible backwater valve series from Mainline Backflow Products is available in 4- and 6-inch diameters. Made of PVC and ABS, the valve body can be extended to any depth by gluing a riser pipe into the valve body. The gate is glued to a 3/4-inch PVC pipe to form a key and cut the required length to extract the gate from the valve body. A curved gate allows a sewer snake to feed and retract without catching on the gate. A cleat insert in the body eases and guides the retrieval of the snake without hanging up. An optional test gate can be used to pressure test the system or to isolate the property. 877/734-8691; www.backwatervalve.com.

AllMax operations management software

The Operator 10 v10 suite of operations information management system from AllMax Software has ribbon-type toolbars for displaying menu options and program features. A new database feature enables users to organize information from multiple components into an easily readable display. Graph, data, gauge and navigation shortcuts can be created for instant access. The software can be linked to SCADA or other compatible systems through OPC/DDE interface applications (available as an add-on). A built-in import function collects data from the LIMS (laboratory information management system) and automatically transfers it into the Operator 10 program. 800/670-1867; www.allmaxsoftware.com/tpo.

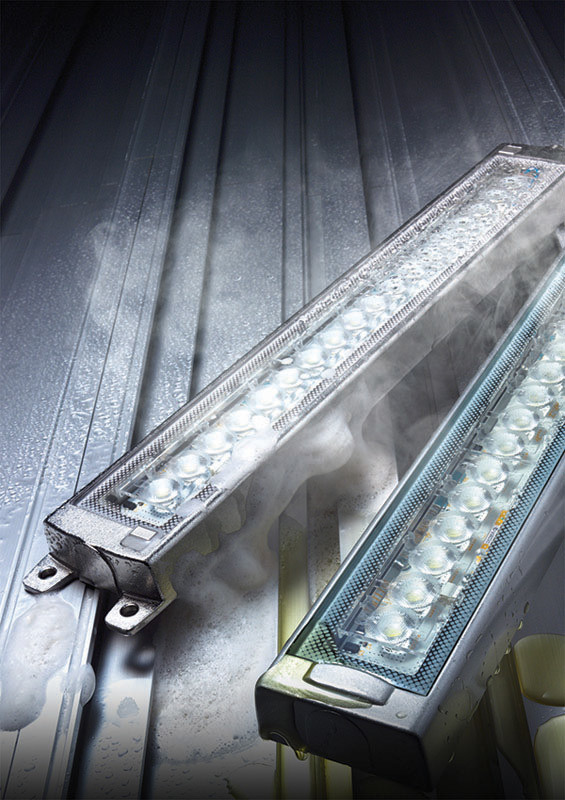

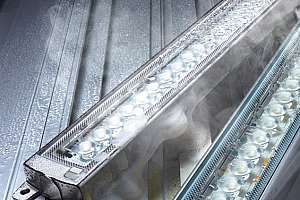

Patlite LED worklights

CLK Series LED worklights from Patlite feature micro-array lens technology for even light distribution and illuminance up to 2,100 lux. The lights maintain at least 70 percent of initial brightness for 60,000 hours of operation and have a slim profile aluminum or stainless steel body that resists water, oil and chemicals. 888/214-2580; www.patlite.com.

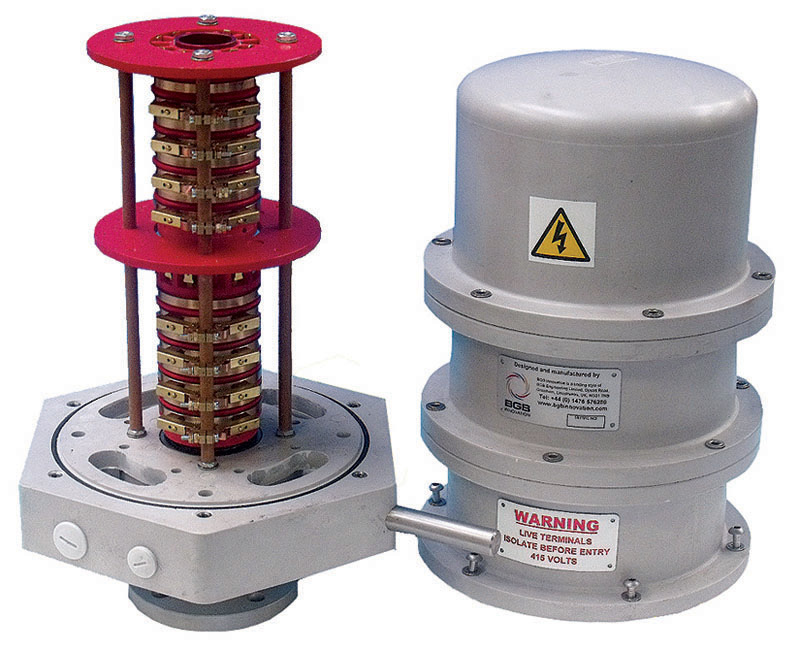

BGB Technology slip ring assemblies

The SPB 03 line of slip ring assemblies from BGB Technologies, designed for use as collector columns within half bridge clarifier and scrapper systems, feature standardized components and can be refurbished and rebuilt. The assemblies are compliant to WIMES Directive 2.01 Section 6.12.2 for rotating half bridge scrappers, and are capable of both power and signal transfer. 804/451-5211; www.bgbtechnology.com.

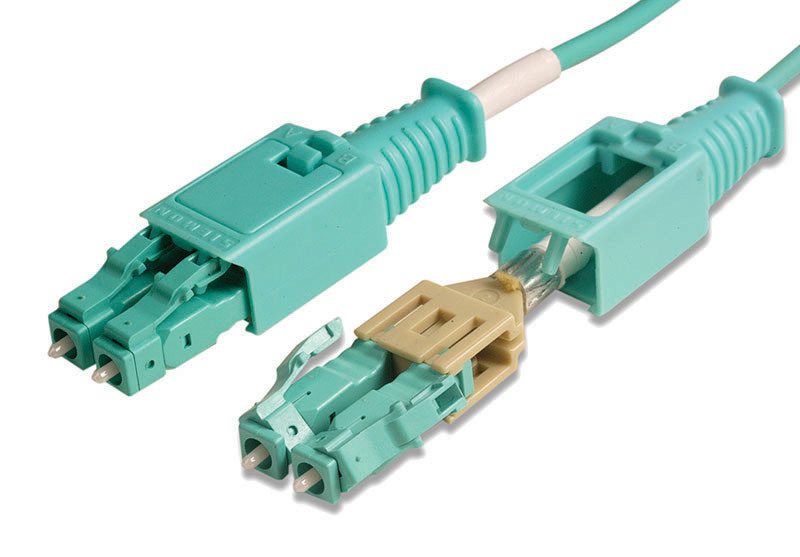

Siemon fiber optic duplex jumper

The LC BladePatch fiber optic duplex jumper from The Siemon Co. eliminates the need to access a latch during installation and removal, avoiding disruption or damage to adjacent fiber connectors. Features include push-pull boot design, a rotating latch that eliminates potential connector and cable damage during polarity changes, and uni-tube cable design to reduce pathway congestion. 860/945-4200; www.siemon.com.

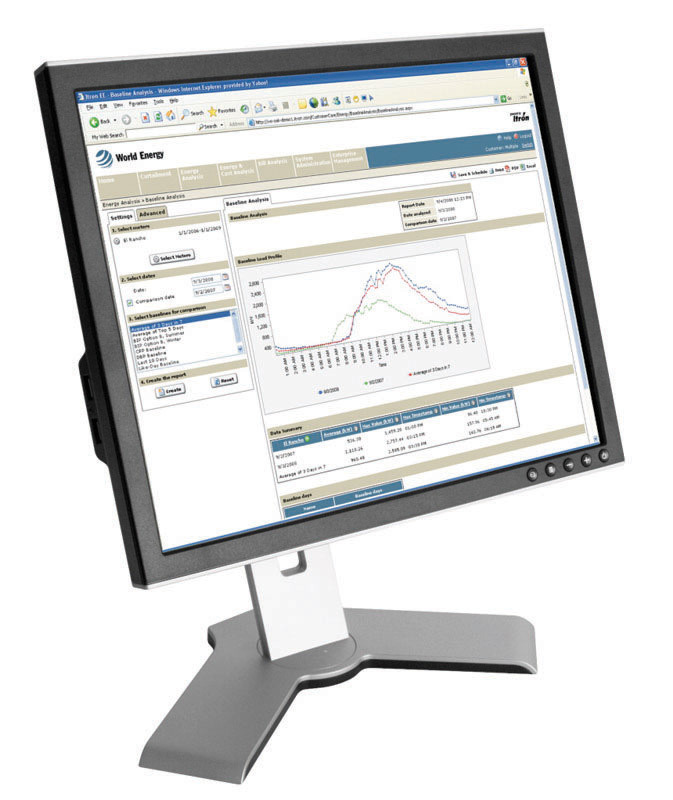

Itron meter data management

The Itron Enterprise Edition data management system for smart metering from Itron supports Microsoft’s SQL Server 2012 database and Oracle 11g platforms. 866/374-8766; www.itron.com.

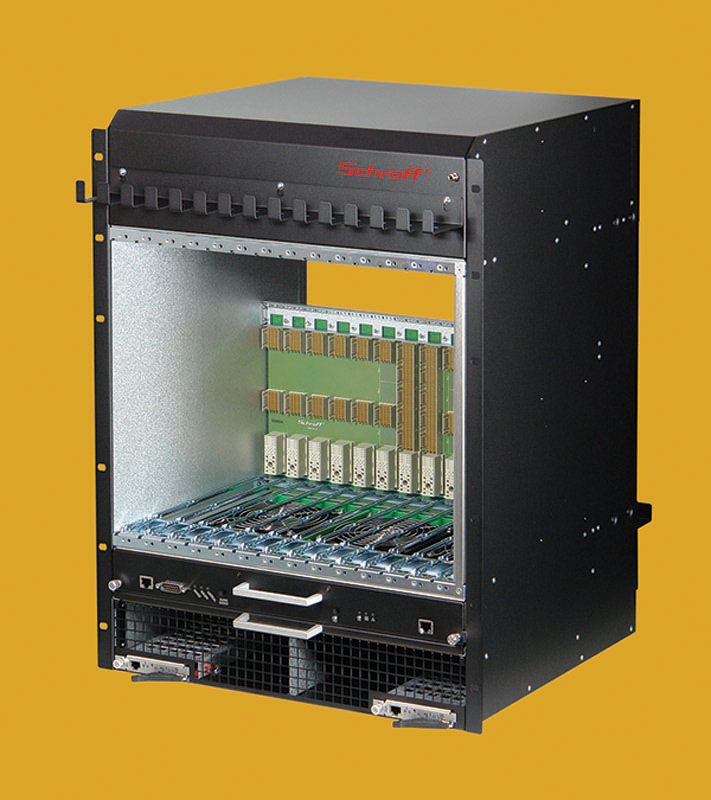

Pentair chassis

The Schroff 14U, 14-slot 450/40 family of AT CA chassis from Pentair Equipment Protection deliver 400 watts of cooling capacity per slot in the front of the chassis and 50 watts per slot in the rear transition modules. Features include bussed or radial IPMI, 800-watt electrical power for double-wide blades, redundant power entry modules and redundant push-pull fan tray cooling for fault tolerance. 763/421-2240; www.hoffmanonline.com.

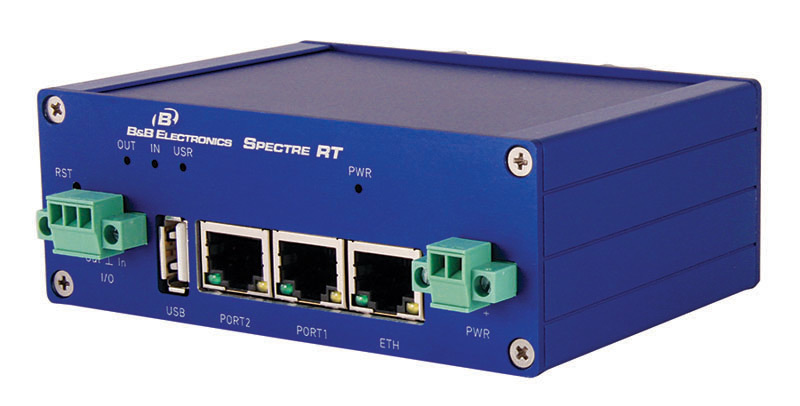

B&B Electronics industrial router

The SPECTRE RT 300 series industrial wired Ethernet router from B&B Electronics Manufacturing is designed to securely connect Ethernet and serial equipment in tough environments. The router can connect a private network to a public one, enabling devices to communicate across the Internet. The 1.7 by 3.1 by 4.5 inch router has an operating temperature range of -40 to 75 degrees F, DIN-rail mount, ability to use 10 to 30VDC power input and I/O that can be used to monitor door closures or set alarms. 815/433-5100; www.bb-elec.com.

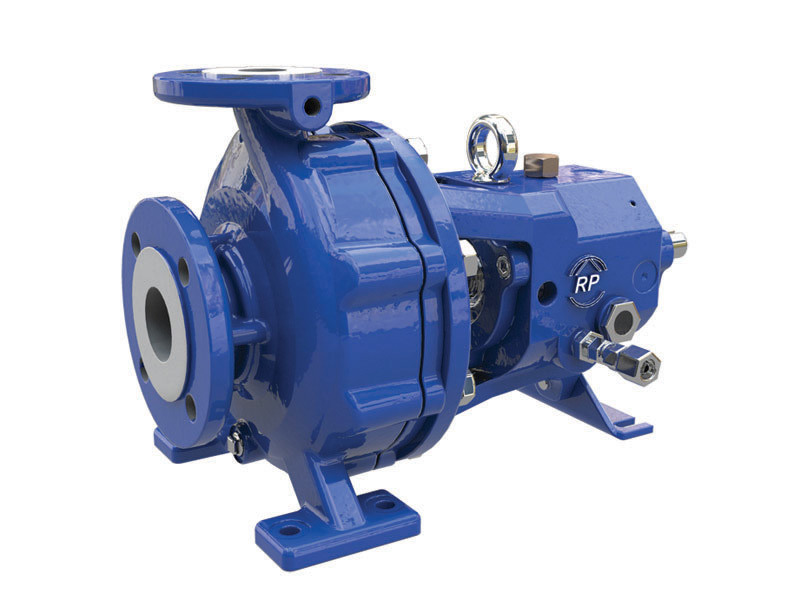

Ruhrpumpen overhung single-stage centrifugal pump

The CRP overhung single-stage centrifugal pump from Ruhrpumpen conforms to the German Institute for Standardization or Deutsches Institut fur Normung (DIN) and is available in 33 hydraulic combinations. 918/627-8400; www.ruhrpumpen.com.

Omega handheld dip strip photometers

The lightweight HHWT-13 series of handheld dip strip photometers from Omega Engineering are CE compliant and use a 4 ml water sample. Designed for monitoring pH, features include three-button control, 140-test memory and automatic countdown test time. 800/826-6342; www.omega.com.
