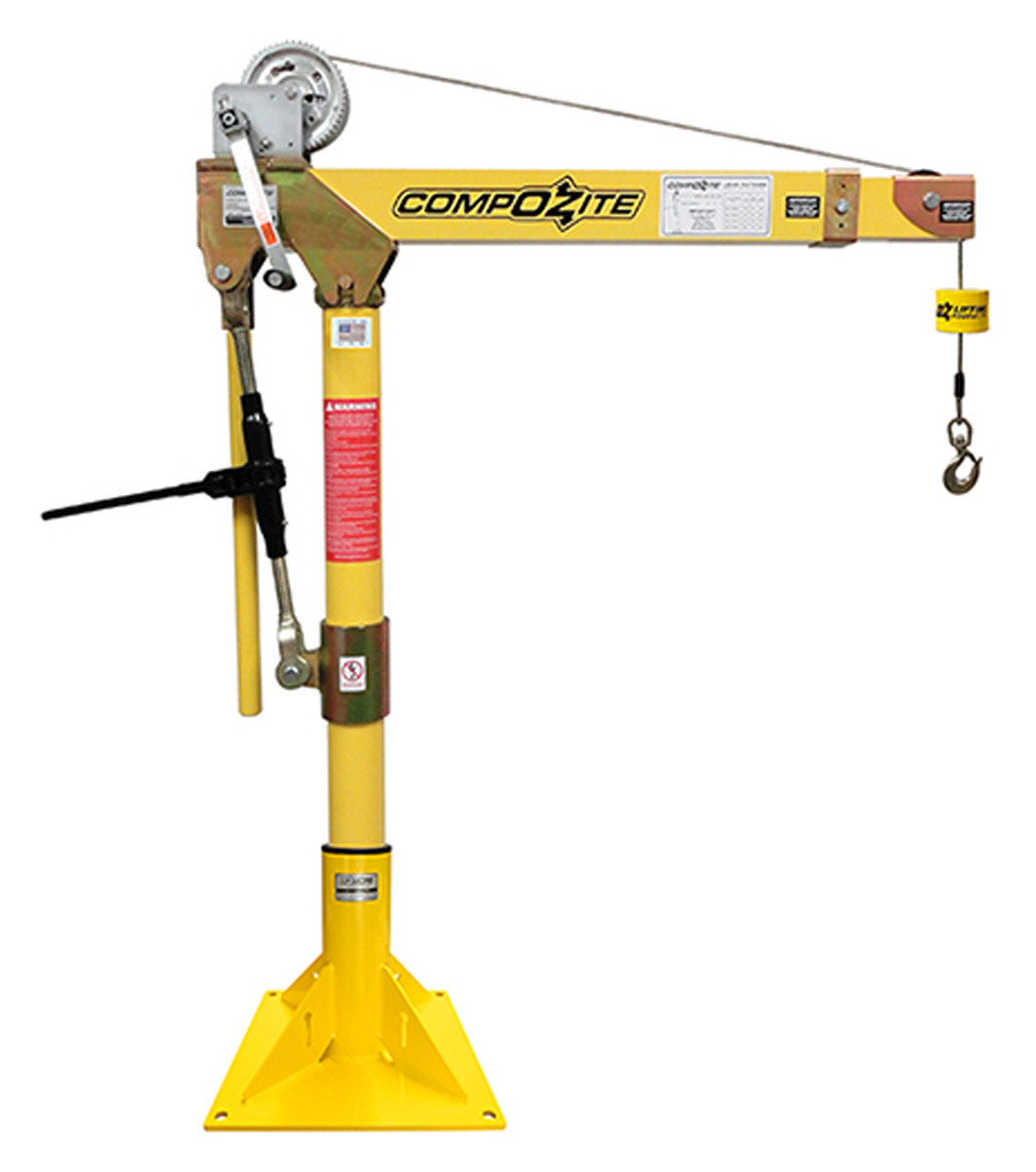

OZ Lifting Products CompOZite davit crane
Experience unparalleled portability and strength with the CompOZite davit crane. Engineered from lightweight advanced composite material, this patented crane is 40% lighter than traditional steel models for effortless maneuverability. Despite its reduced weight, it maintains a robust lifting capacity of 1,200 pounds, making it a reliable choice for various lifting tasks. Utilizing Smart Latch technology, the CompOZite davit crane is designed for ease of use, requiring no tools for assembly. Its composite material also provides superior corrosion resistance, ensuring long-lasting durability. The crane features 360-degree rotation and four adjustable boom heights to ensure exceptional versatility. Standard with a manual brake winch, the CompOZite offers optional AC and DC electric winch upgrades. Every unit is individually tested and certified at 125% capacity, guaranteeing top-notch safety and performance. Made in the USA, the CompOZite davit crane is a testament to innovation and quality lifting equipment. 800-749-1064; www.ozliftingproducts.com

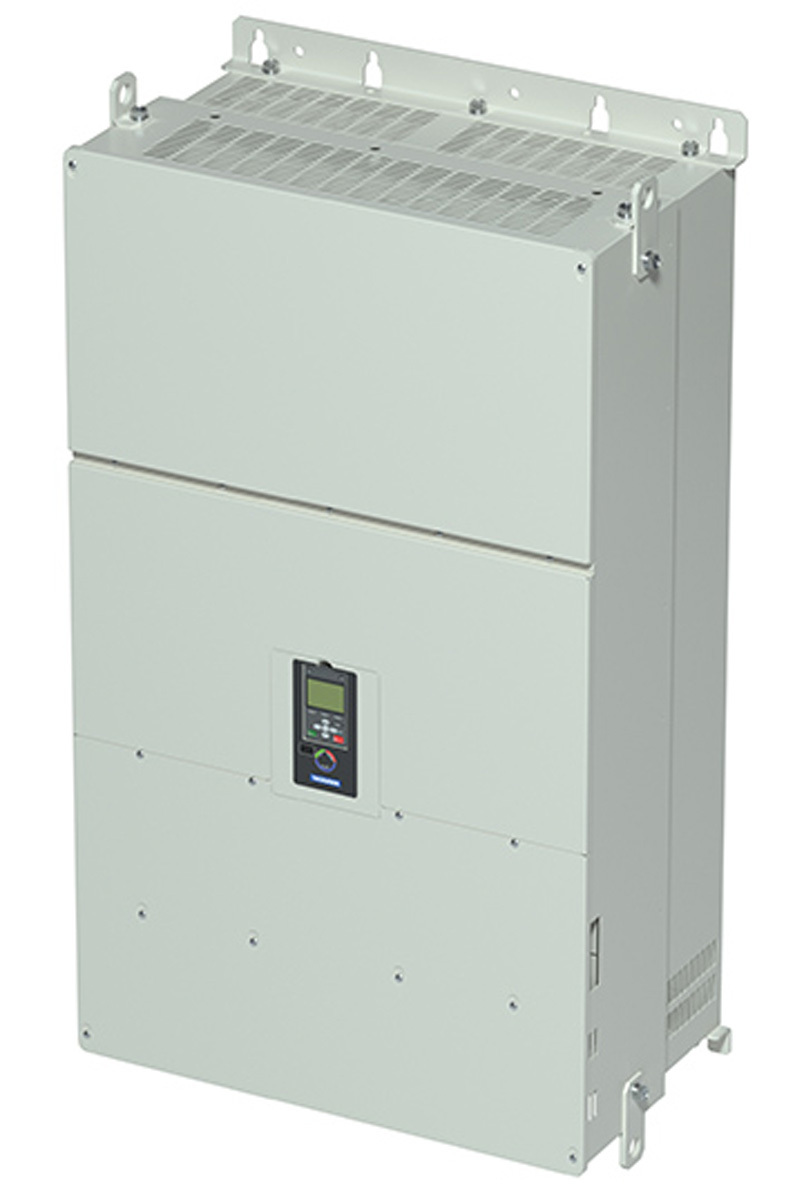

Yaskawa GA800 variable speed drive
Designed to control traditional and emerging motor technologies, Yaskawa’s GA800 variable speed drive handles applications ranging from simple fans and pumps to high-performance test dynamometers requiring precise regulation. The GA800 provides highly flexible network communications, embedded functional safety and easy-to-use tools featuring mobile device connectivity. The following expansions were added to the GA800 product line: GA800 frame 12 standard drives — 480V, 700 to 1000 hp; GA800 480V, 700 to 1000 hp configured packages — types 1, 12, and 3R; and the GA800 480V, 400 to 600 hp configured size reduction. 800-927-5292; www.yaskawa.com

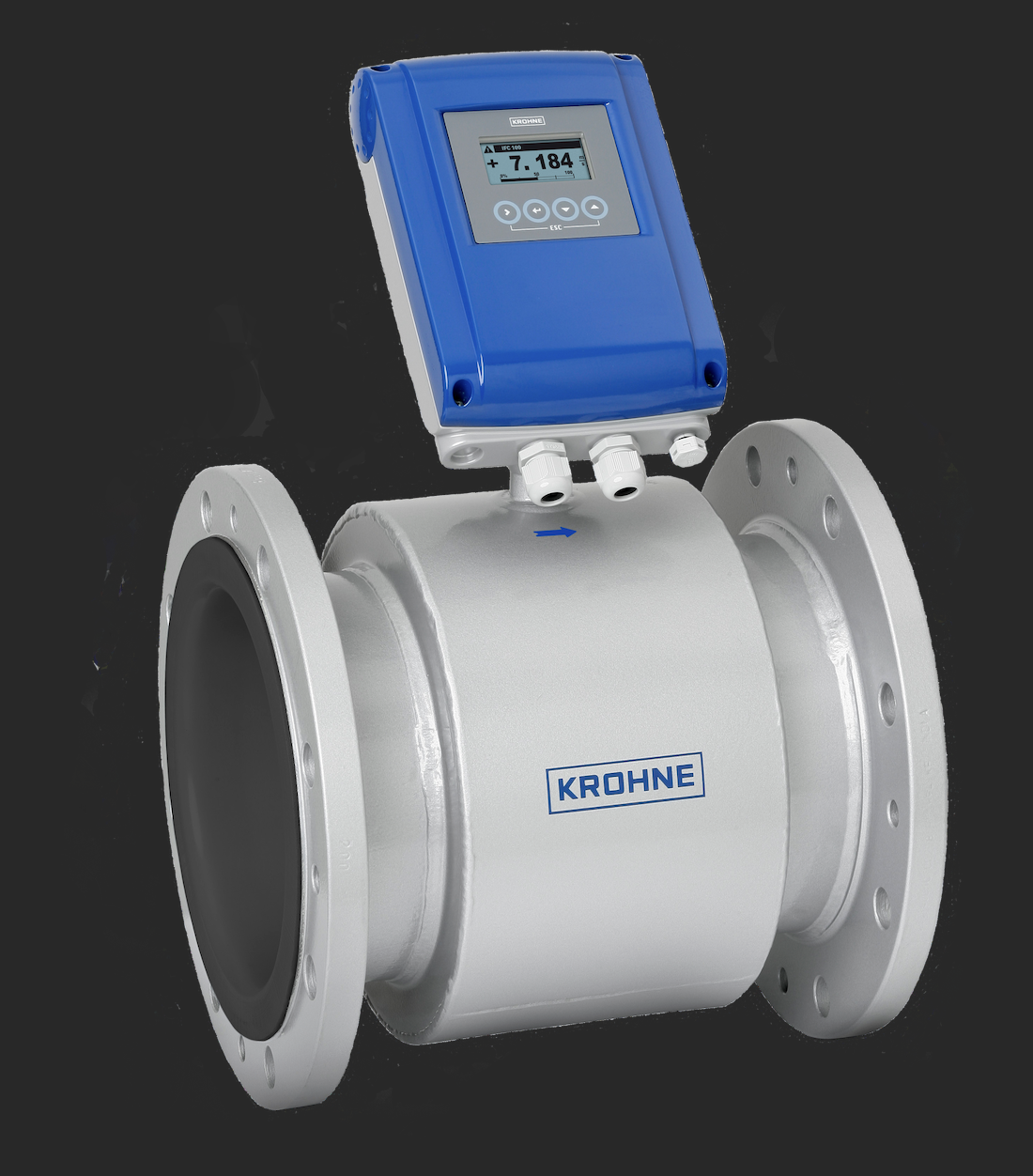

KROHNE ENVIROMAG electromagnetic flowmeter
KROHNE’s ENVIROMAG is an advanced electromagnetic flowmeter engineered specifically for the water and wastewater industry in North America. Certified with NSF approval for potable water, it features a robust design suitable for direct burial installations, with a NEMA 6P rating that guarantees protection against water ingress and environmental challenges. The ENVIROMAG comes equipped with multiple communication options, making it versatile and compatible with a wide range of control systems. It offers short inlet and outlet runs, remains unaffected by contamination, solids, fibers, and slurries, and requires no maintenance. Each unit is wet-calibrated, complete with a calibration report, and comes with continuous self-diagnostic features. It is also hazardous-area approved for added safety and compliance. 800-356-9464; us.krohne.com/en

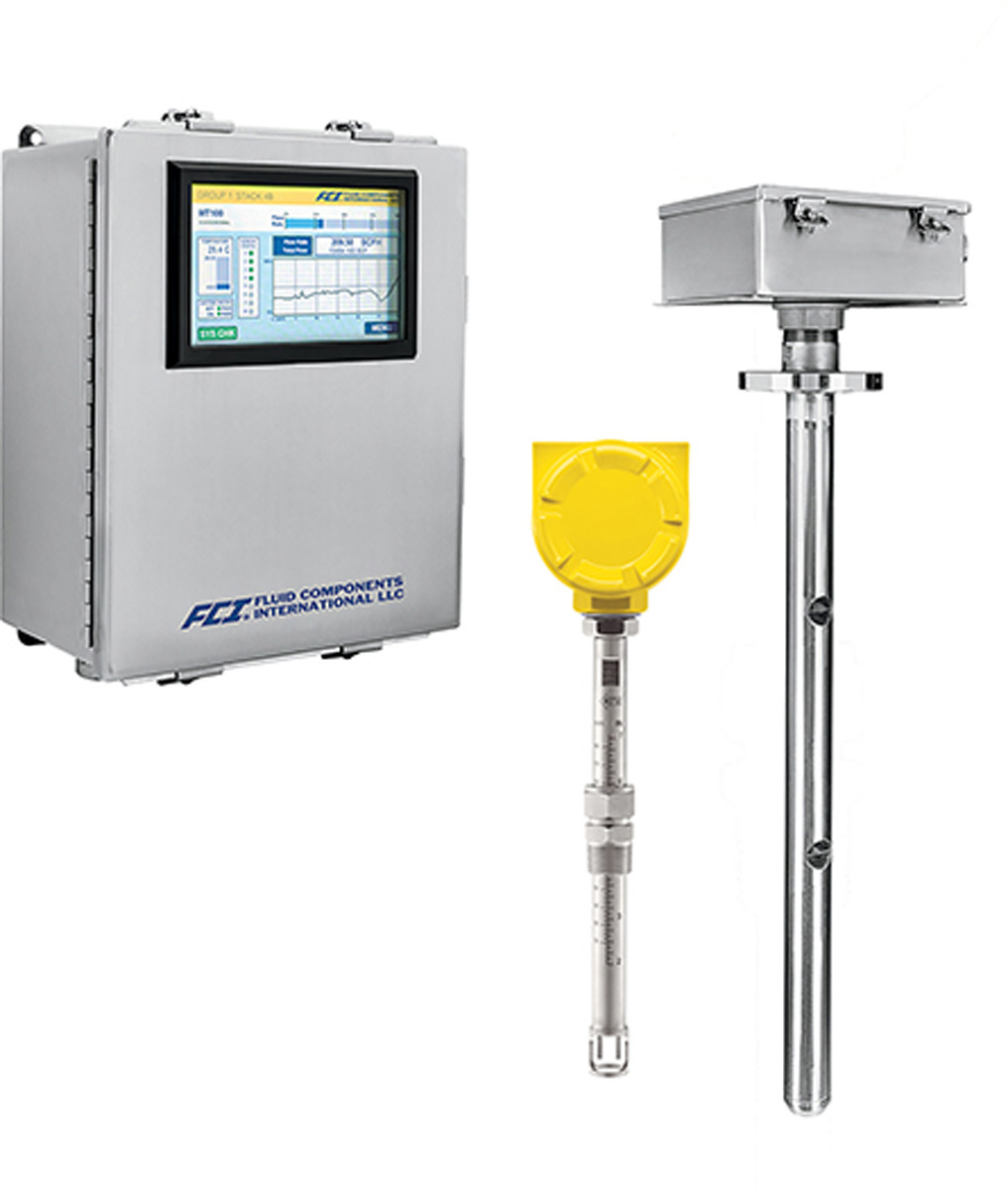

FCI MT100 flowmeters
MT100 flowmeters from Fluid Components International combine electronics technology with application-specific precision multipoint flow sensors in a rugged package designed for demanding operating environments. They come with one to eight flow rate sensing points. The sensors are inserted at multiple locations along the boiler burner piping assembly and their outputs are multiplexed and averaged to measure the air and gas flow rates and totalized flows. The MT100 meter’s sensors also can be installed at multiple points in other air or gas process lines in a single plane or across a large mast for stack gas waste measurement. These rugged, long-life, nearly-zero maintenance instruments excel in dirty, hot or humid environments because there are no moving parts, orifices or glass windows to foul or clog. The MT100 flowmeters measure air, natural gas, process gasses or flue waste gasses operating at up to 850 degrees F. 800-854-1993; www.fluidcomponents.com

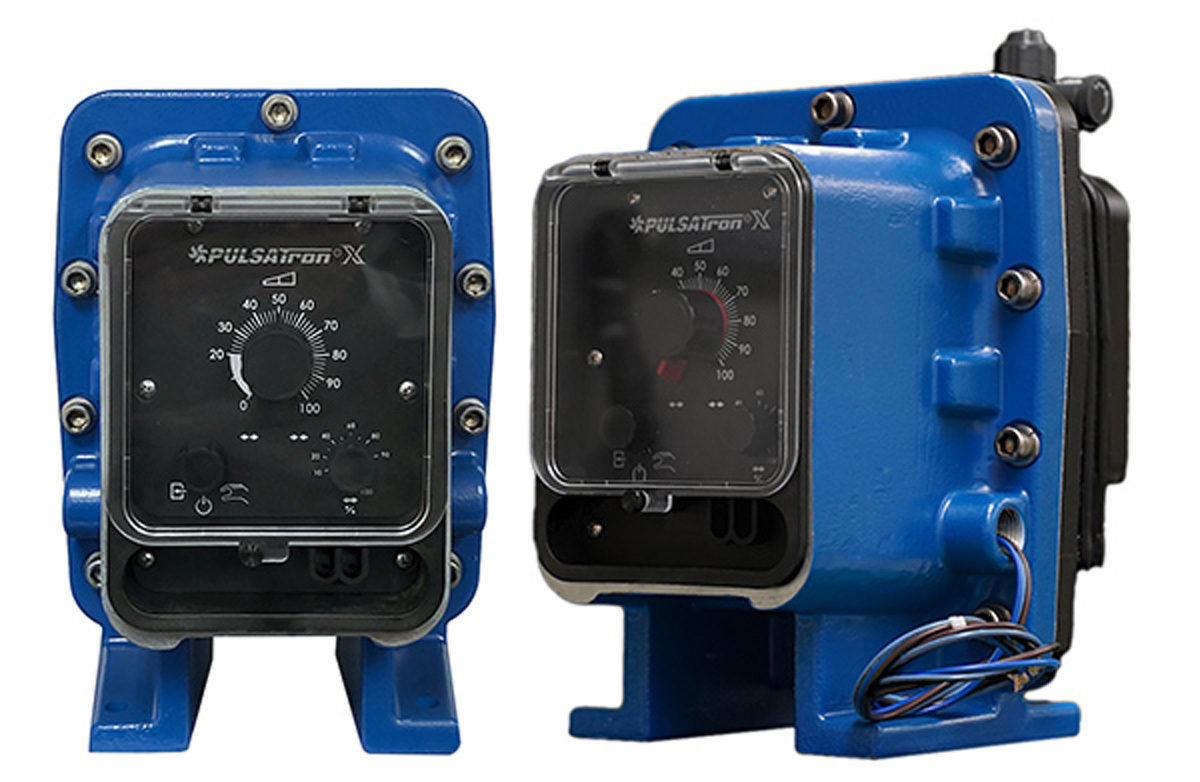

Pulsafeeder’s Pulsatron X explosionproof rated metering pumps
Pulsafeeder’s Pulsatron X explosionproof rated diaphragm metering pumps manage internal explosions, enabling dependable and accurate chemical metering securely and reliably. Pulsatron X meets the requirements of Class I, Div 1, Groups C, D, T5, Class I, Zone 1, Group IIB T5 as well as being NSF/ANSI 61 & 372 for safe drinking water. The Pulsatron X rugged, cast aluminum housing was designed for high corrosion resistance and integrated inputs into the pump’s control panel, eliminating the need for an extra device and external enclosures. With either a 4-20mA input or an external pulse input the Pulsatron X is ideal for applications that require remote control of the dosing rate. The pumps offer flow capacities up to 600 gpd and pressure capabilities up to 300 psig. 800-333-6677; www.pulsafeeder.com

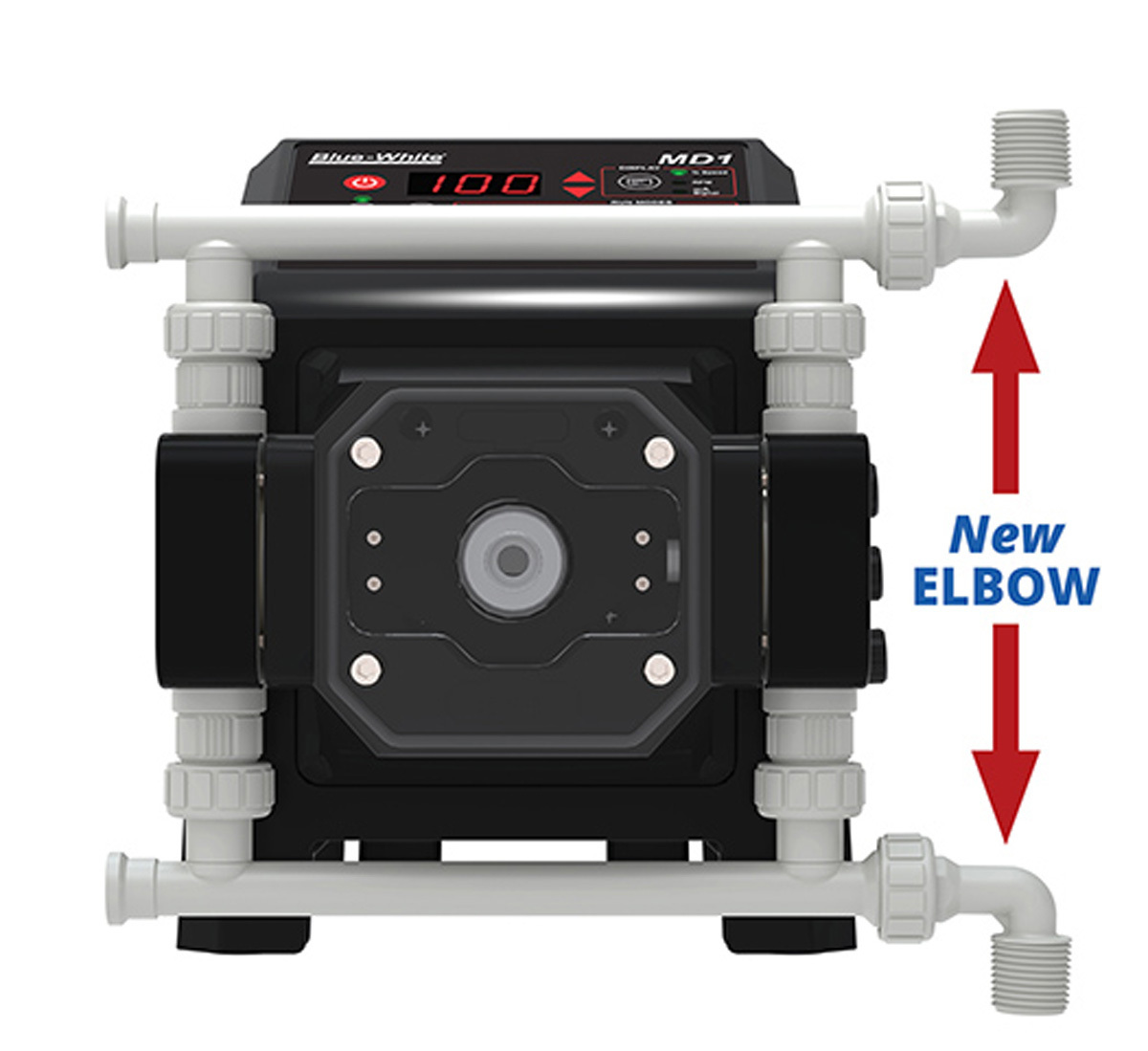

Blue-White MD1 elbow connectors for dual-diaphragm pumps
CHEM-FEED MD1 from Blue-White is engineered to provide smooth fluid flow that mimics the best performance traits of peristaltic pumps, particularly at low feeds. The dual-diaphragm configuration of the MD1 operates so that when the first diaphragm is in the suction phase, the second diaphragm is in the discharge phase. The double diaphragms allow for fluid to be pumped at a near continuous flow, preventing two of the problems most often associated with diaphragm pumps: gas build up and loss of prime. Now, the CHEM-FEED MD1 is available with elbow connectors, allowing suction and discharge plumbing to be installed at a 90-degree orientation. This is ideal for pumps that need to be installed in tight, confined spaces. Elbow connectors are offered in three sizes: 1/2-inch male NPT, 1/2-inch hose barb and 3/8-inch tube compression fittings. Retrofit kits are available for pumps already in the field. 714-893-8529; www.blue-white.com

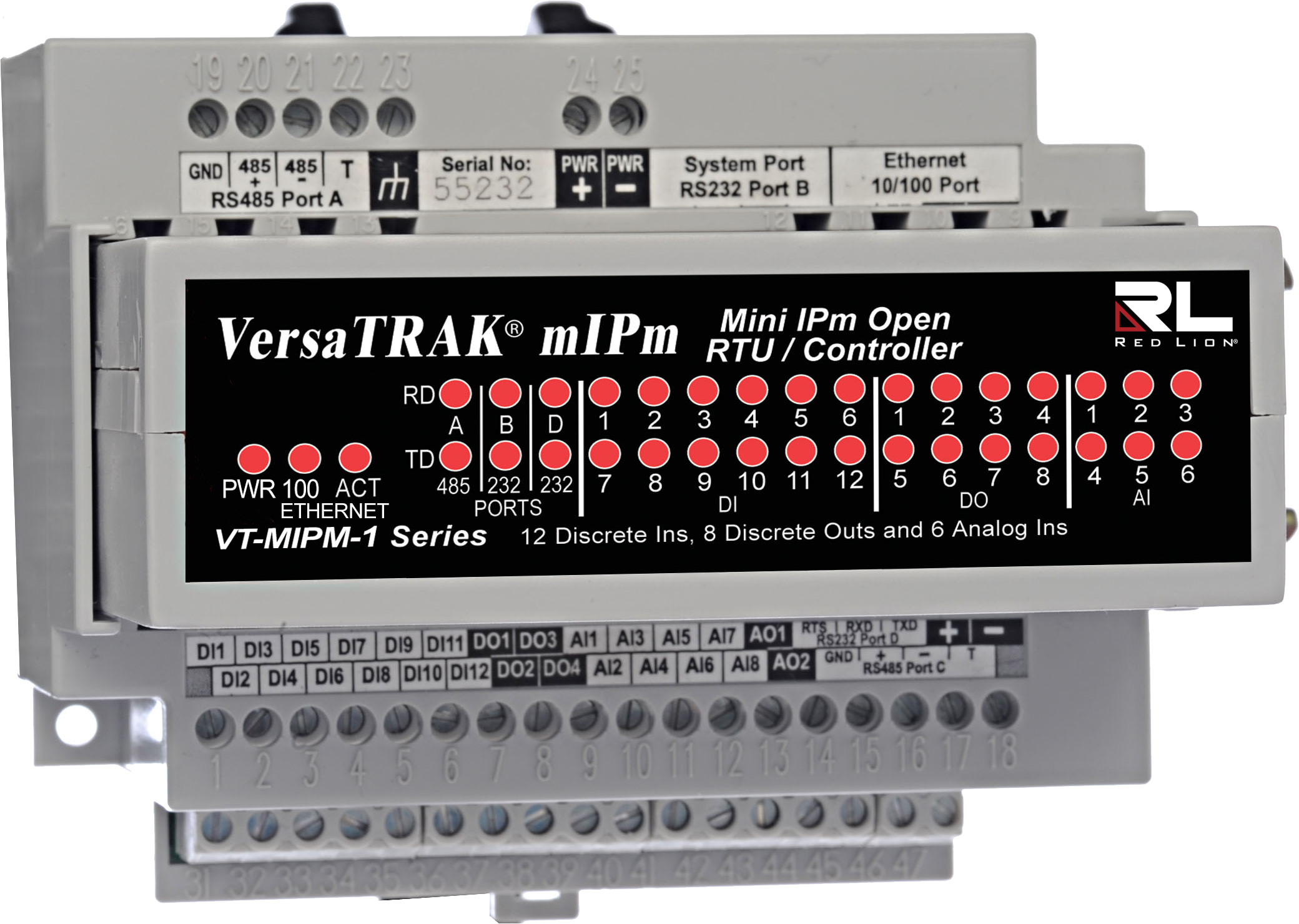

Red Lion VT-MIPM-138-D and VT-MIPM-248-D remote terminal units
Red Lion launched two new programmable remote terminal units, VT-MIPM-138-D and VT-MIPM-248-D. Equipped with onboard I/O and designed for uncompromising performance in extreme environments, the industrial controllers are ideal for a wide range of rugged, process-oriented applications in water and wastewater processing. Automatic datalogging and timestamping, as well as logging of trends, alarms and sequences of events, give operators full visibility on applications. A robust IEC 61131 programming and configuration environment in Red Lion Workbench provides extensive programming and troubleshooting capability. The unit also supports ISaGRAF for backward compatibility and has an open system design, with Ethernet TCP, Modbus, Linux and more. The VT RTUs come precertified, letting operators add applications as desired, program and configure as needed and scale up easily, from 1 to over 1000 stations. Multi-user connectivity is enabled via 10/100 Ethernet ports, RS232 and RS485 and up to 4 communications ports. 717-767-6511; www.redlion.net
