Giving Lagoons a Helping Hand

Lagoon process treatment plant in Saskatchewan discovers an effective and affordable way to reduce sludge along with some added benefits for its collections system

Giving Lagoons a Helping Hand

Interested in Odor Control?

Get Odor Control articles, news and videos right in your inbox! Sign up now.

Odor Control + Get Alerts

Seeking solutions to effectively remove its lagoon sludge and reduce the associated costs, the City of Weyburn, Saskatchewan, opted to implement a new automated bioaugmentation service technology from EnBiorganic Technologies on a performance trial basis.

The EBS-Di technology was attractive to Weyburn due to its plug-and-play readiness, zero capital expenditure for the city, and efficiency. In under 60 days, results were demonstrated in the de-sludging of the lagoons as well as elimination of odor. An additional benefit to the service was the removal of fats, oils and grease (FOG) within the city’s lift stations, which had long been an issue. Impressed with the results in such a short period, Weyburn’s utility staff decided to enter an ongoing treatment-as-a-service (TaaS) contract with Vital Utilities and EnBiorganic to continue the work begun in the performance trial.

History and region

Established in 1901, the city of Weyburn is home to a population of 10,000. Its utility delivers water, sewer and wastewater treatment to a customer base of approximately 3,500. Weyburn treats its wastewater exclusively through a lagoon system that includes a 50-acre diversion lagoon and a 350-acre primary lagoon consisting of two anaerobic sludge cells and a series of nine holding or polishing cells. The wastewater is held for approximately one year in the polishing cells before the treated effluent is released to the Souris River.

The plant was originally constructed in the 1960s and expanded in 2011 with additional holding cells, enlarging its primary lagoon to the current area of 350 acres. The city’s public sewer collections system is comprised primarily of 6-, 8- and 12-inch VCP and PVC mainlines with a single 24-inch diameter trunk line at the connection point of its six lift stations, which feeds the treatment plant.


Over its years of service, the lagoons have experienced heavy sludge buildup and have never been completely dredged. Some cleaning was performed in 2006, but this only comprised of cleaning around the inlet pipes and pumping the existing sludge to the edges of the lagoon and into its corners; however, nothing was removed. The new sludge cells did receive a cleaning once after being put into service, but nothing further in the way of sludge removal has been performed. The dredging of these cells was quite costly, and Weyburn experienced issues being unable to dispose of what was dredged in the typical method as the material contained hydrocarbons and other contaminants that were at a level above acceptable limits for a standard landfill disposal.

In addition to sludge remediation and disposal, Weyburn also experienced a high degree of FOG buildup in its lift stations that required confined space entry by its operators. However, normal pressure washer spray techniques would not remove the buildup as the FOG was so heavy. Yet, regular cleaning was required to keep lift station pumps and floats in good working order. Odor at the primary lagoon could also be an issue from time to time. Although able to meet compliance permits, Weyburn had been remaining very close to allowable levels and wanted to stay ahead of potential issues.


The City of Weyburn Engineering Department researched alternative solutions to costly mechanical dredging and came across EnBiorganic Technologies’ (EBT) website. Pleased to read of a local operating EBT licensee, the city reached out for further inquiries. LA Electrical Services — operating as Vital Utilities, an EBT licensee — recommended that Weyburn consider a trial performance of EBT’s EBS-Di autonomous bioaugmentation technology after learning of the city’s challenges and goals for its wastewater treatment. They felt strongly that this technology could help resolve Weyburn’s sludge issues, associated costs for dredging, disposal and odor.

“It was a very attractive option to consider,” says Renée Cugnet, municipal engineer for the City of Weyburn. “The solution is not mechanical and would not require a large CapEx equipment purchase or project to add onto our treatment facility. Being non-pathogenic and natural with no byproduct solution was also a key benefit.” Because Weyburn had the land space available for using facultative lagoons, constructing a mechanical treatment facility or process could not be justified or considered the best route.

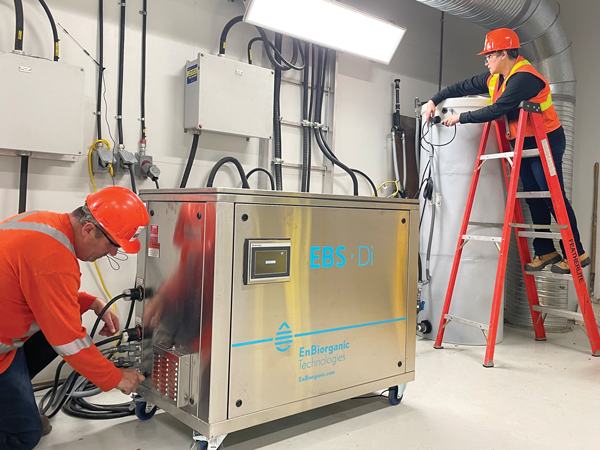

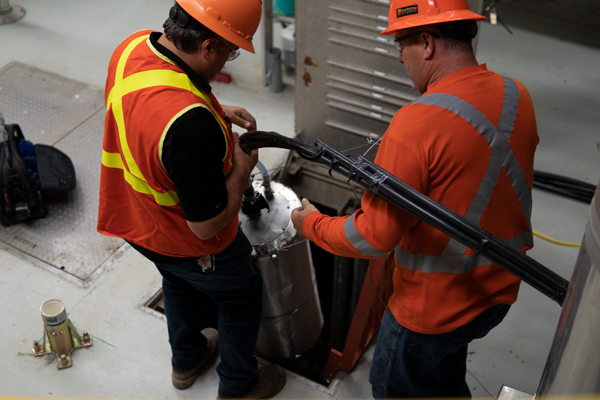

The performance trial began in August 2021, and after an economic impact report and assessment, it was determined by EBT that two EBS-Di units would be utilized for the trial. One unit would be placed at Weyburn’s primary lift station No. 1 and the other at lift station No. 3 in the western part of the city.

Weyburn received some positive results immediately after the units went online. Within a few weeks, its collections system operators noticed that in the lift stations where the units were set up, FOG was falling or sliding off the sides of the walls and not sticking or clumping to the pumps and floats as it always had. Because of this, the operators have not had to enter the lift station to manually clean it, whereas previously they were required to perform this task every few weeks. Odors had disappeared in both stations as well.

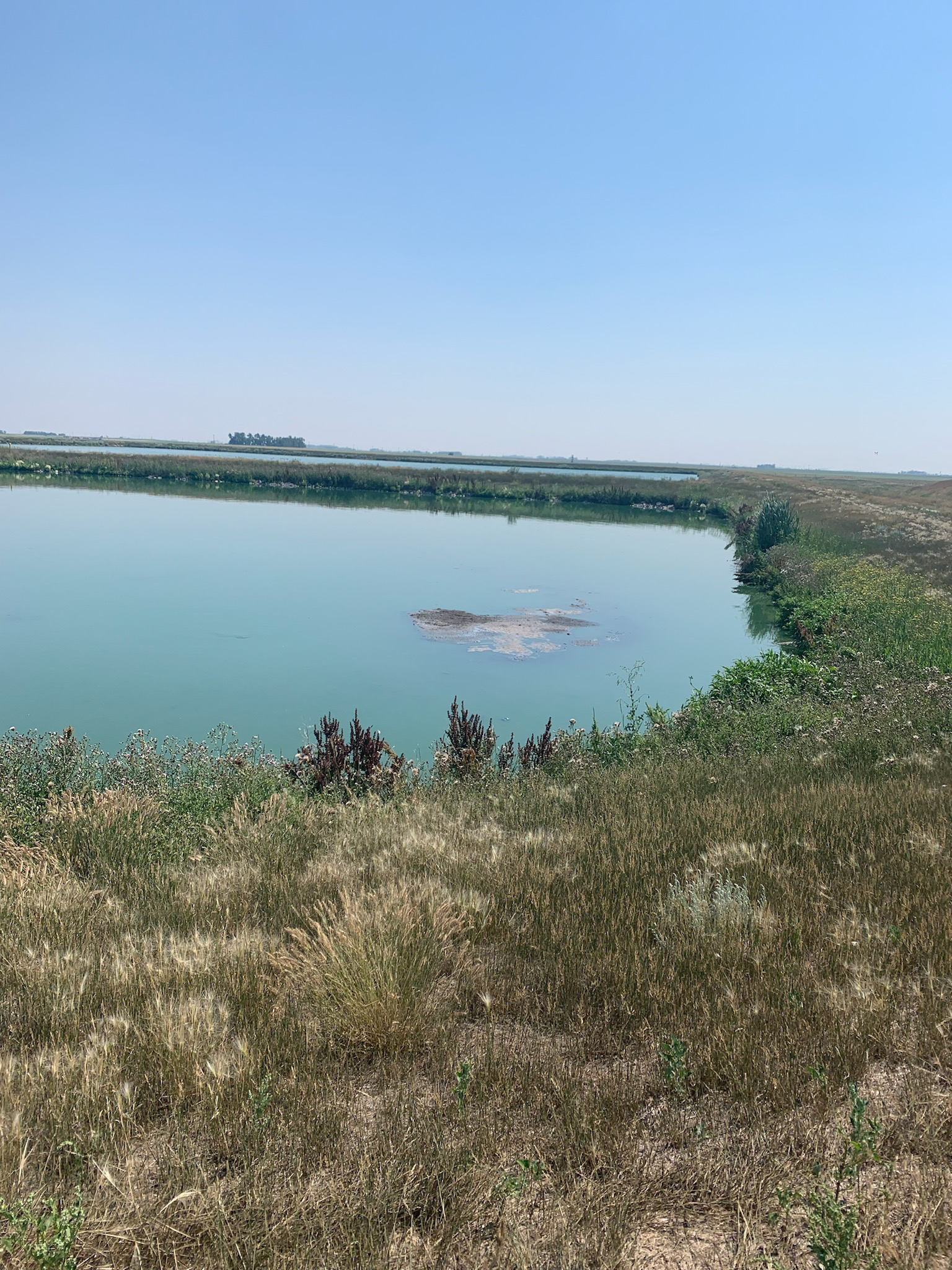

 Prior to the trial, some of the lagoons had sludge piles that were above the waterline. Approximately a month into the trial, the levels noticeably decreased, and piling was dissipating. Operators also noticed that the consistency of it had changed and was appearing fluffy or suspended instead of a fixed solid mass as it had been.

 Weyburn had tried other methods to deal with its sludge in the past that included the manual addition of powdered enzymes to the lift stations to help break down FOG with the added benefit to help with sludge reduction. Natural grease-reducing agents were also utilized primarily for breaking down of grease. “Everything seemed to do a little bit, but it just wasn’t really effective or continuous,” says Kim Wilkes, utility manager at the City of Weyburn.

Successful trial results

Continuous improvement in the collection system and sludge reduction was proof enough that this was a solution that Weyburn wanted to keep as part of its treatment process, so it entered a contractual service agreement with multiple extensions. The EBS-Di is provided on a TaaS model, and did not require any capital expenditure or additional operating expenditures for the city. All service and maintenance will be provided on contract with Vital Utilities with remote monitoring and control performed by EBT from its laboratory now that the performance trial is successfully completed.

Although the trial incorporated the deployment of two units, it was determined by EBT’s technical staff and Vital Utilities that a single unit at No. 3 lift station would be sufficient to achieve the desired results. Historically, EBT has found that units placed further out in the collections system are more effective and can also deliver added benefits to the overall health of the collections system.

“One of the more physical things on the safety side that I am excited about is not having to have our operators enter potentially hazardous or confined space in the wet wells to do the cleaning and maintenance of the FOG that had always built up there, and of course the associated labor costs,” says Cugnet. “But most exciting is not having to do mechanical dredging of the primary lagoon, along with dealing with the separated sludge which we have to store, transport and safely dispose of — all of which is very costly and presents environmental and human risks.”

A Wise Move

Taking the leap of faith and trying a disruptive bio augmentation technology has been a step in the right direction for this small community.

“The experience has been positive all around, everyone was excellent to work with and dedicated to getting the system working and delivering the expected results,” says Wilkes. “The added benefits at the lift stations and other things that I’m sure will come to light the longer we have the unit in place are very exciting and we look forward to receiving many benefits from the technology long-term.”
