Product News: September 2018

Browse the latest products exclusively for the water and wastewater treatment industry

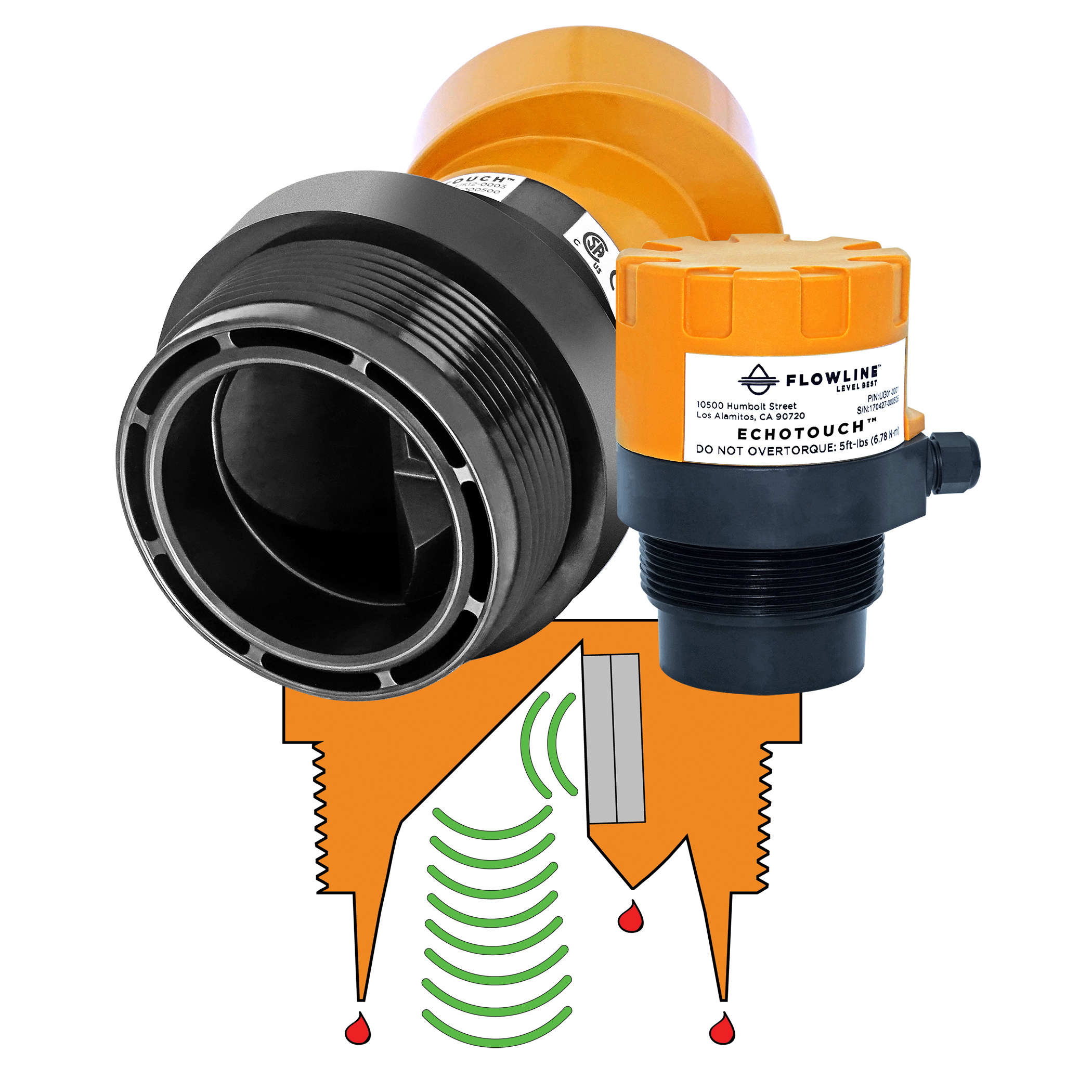

Flowline EchoTouch reflective ultrasonic liquid level sensors
Flowline’s EchoTouch reflective ultrasonic level sensors work in condensation. By orienting the transducer vertically, condensation runs off the unimpeded transducer face to deliver reliable level measurement. EchoTouch reflective ultrasonic level transmitters are offered in small and bulk tank versions with optional push button display or software configuration and HART communication. 562-598-3015; www.flowline.com.

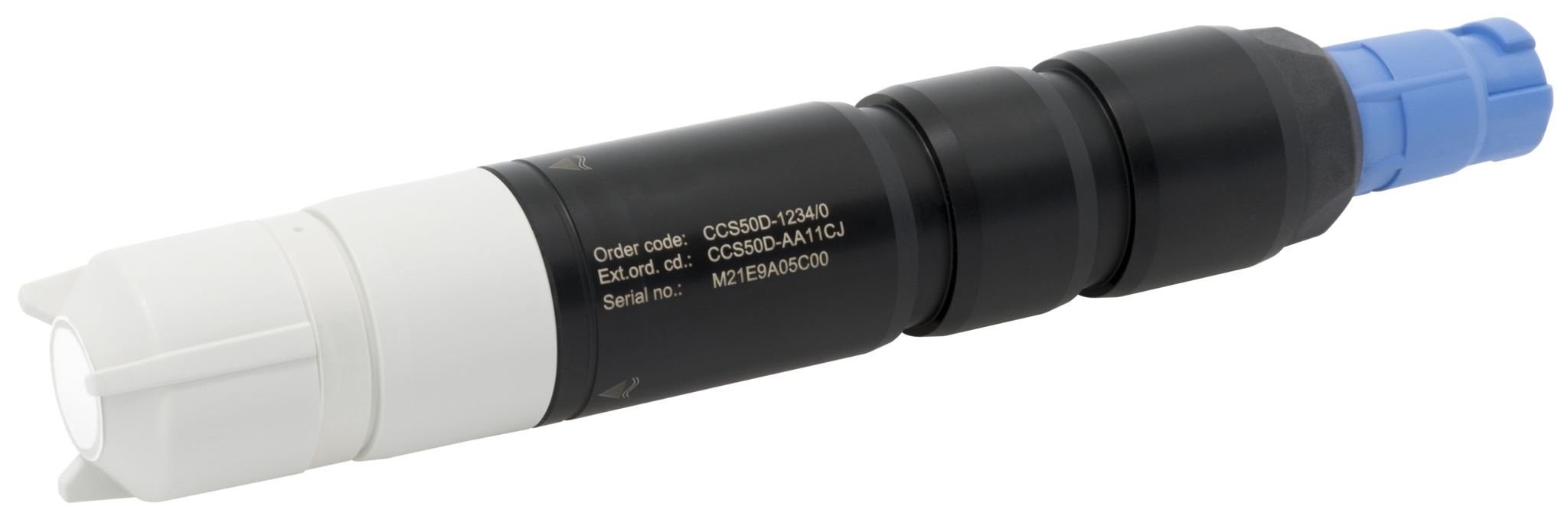

Endress+Hauser CCS50D chlorine dioxide sensor
Endress+Hauser’s new Memosens CCS50D chlorine dioxide sensor supports safe and effective disinfection for clean drinking water, pathogen-free cooling water and high-quality process water. The sensor features a convex membrane made of dense, dirt-repellent material that prevents soiling and makes it resistant to biofouling. Ultrasonic welding of the membrane to the sensor cap prevents dilution of the electrolyte, providing long-term stable measurements and security in the disinfection process. Direct commissioning of new sensors can be done without further calibration, and contactless data transmission eliminates measurement errors or failures caused by humidity or corrosion. 888-363-7377; www.us.endress.com.

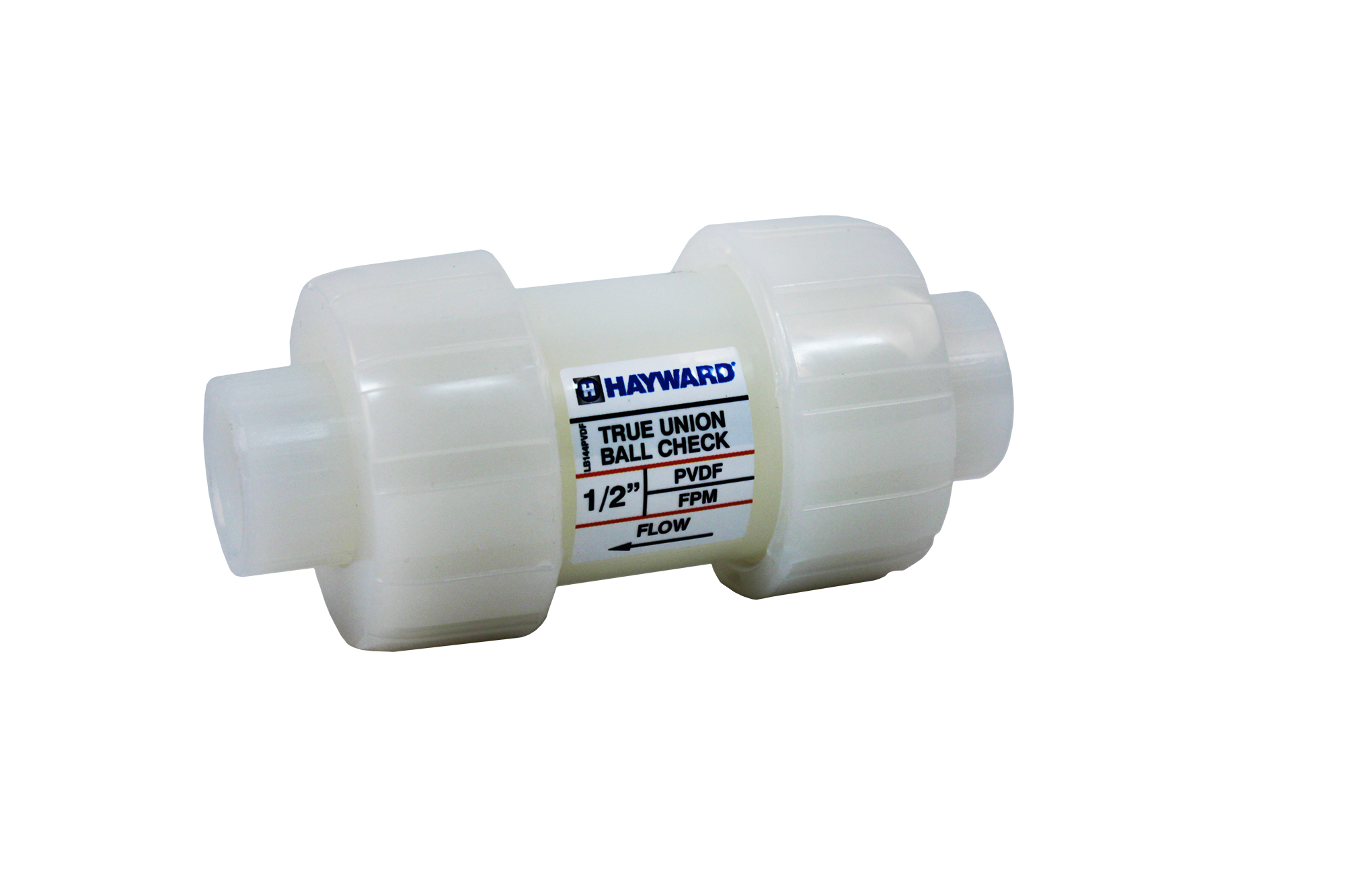

Hayward Flow Control PVDF ball check valves
True Union ball check valves with natural PVDF from Hayward Flow Control extend the range of applications and services where the valves can be installed, including higher temperature services, extreme corrosive media, and high purity systems. The ball is made from solid PTFE and sizes include 1/4 through 1 inch. All sizes carry a pressure rating of 150 psi at 70 degrees F, and maximum service temperature is 240 degrees F. The valves are ideal for vertical installations and have a square cut seat for positive sealing. 888-429-4635; www. haywardflowcontrol.com.

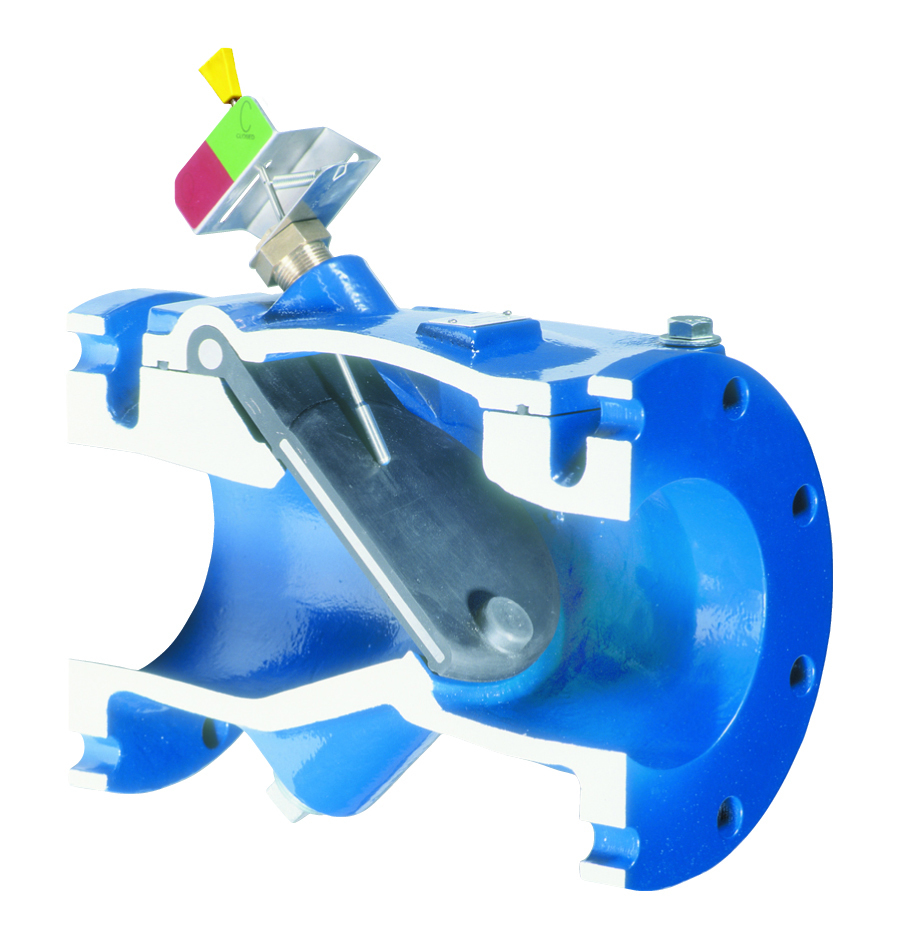

Val-Matic Swing-Flex check valves
The Swing-Flex check valve from Val-Matic has a nonclog design with only one moving part, and a short, 35-degree stroke provides fast closure to minimize slamming and slam-related surges. It is constructed of ductile iron with cold working pressures up to 250 psi, making it ideal for systems where traditional 125-pound valves were unsuitable and for those where surges may be a concern. The valves’ smooth, unrestricted flow path makes it a good choice for sludge and slurries. The valves are both NSF/ANSI 372 certified lead-free, NSF/ANSI 61 certified for drinking water, and are designed and manufactured to American Water Works Association C508. 630-941-7600; www.valmatic.com.

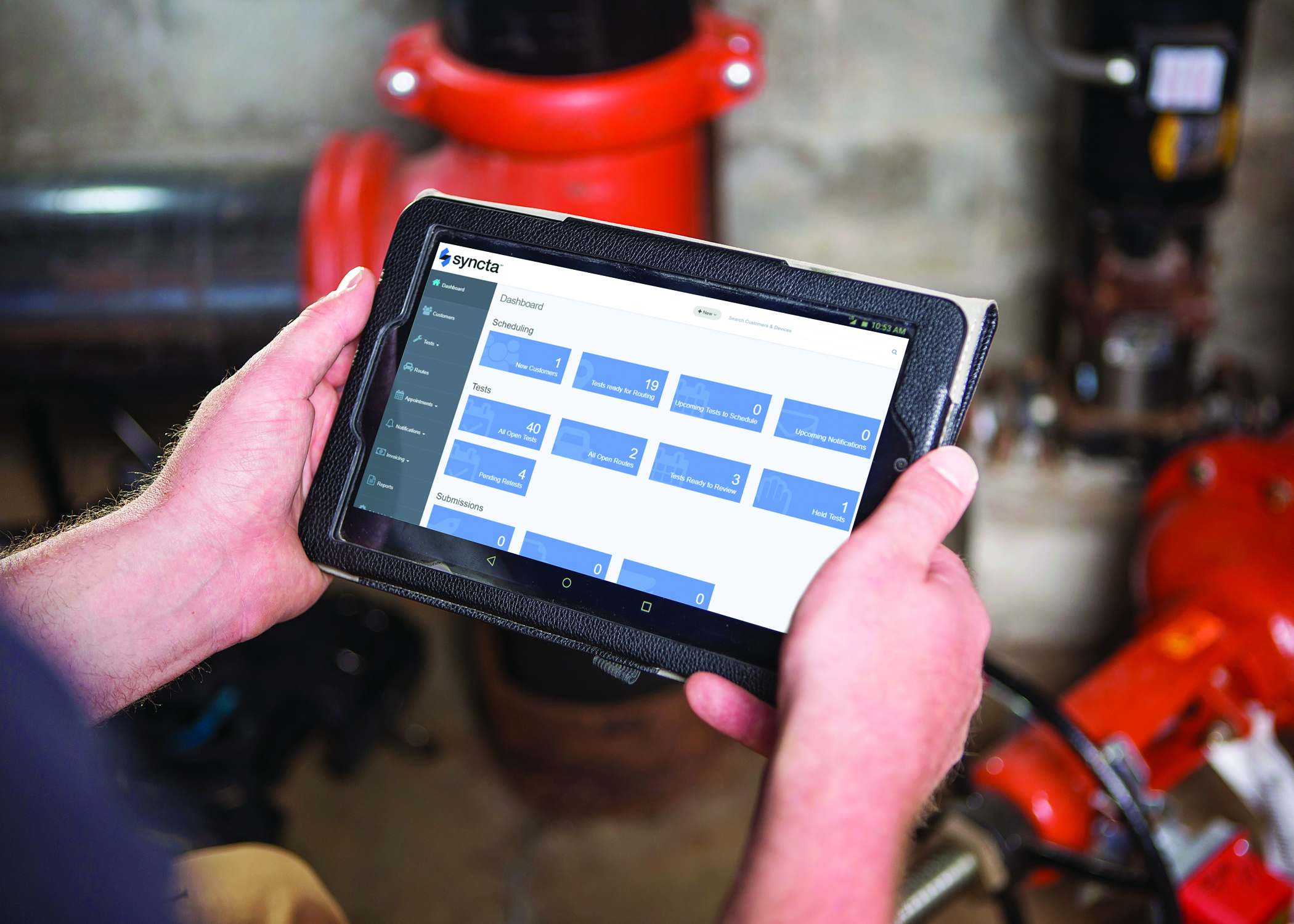

Watts Water Technologies Syncta backflow test management software
Syncta backflow test management software from Watts Water Technologies is cloud-based and makes for quicker test reporting and submission. All customer and device information can be accessed from anywhere on a smartphone, tablet or laptop. Efficiency is improved with features including automated reminders, online scheduling and route optimization. Test results can be submitted using water purveyor-required forms to ensure acceptance. 978-688-1811; www.watts.com.

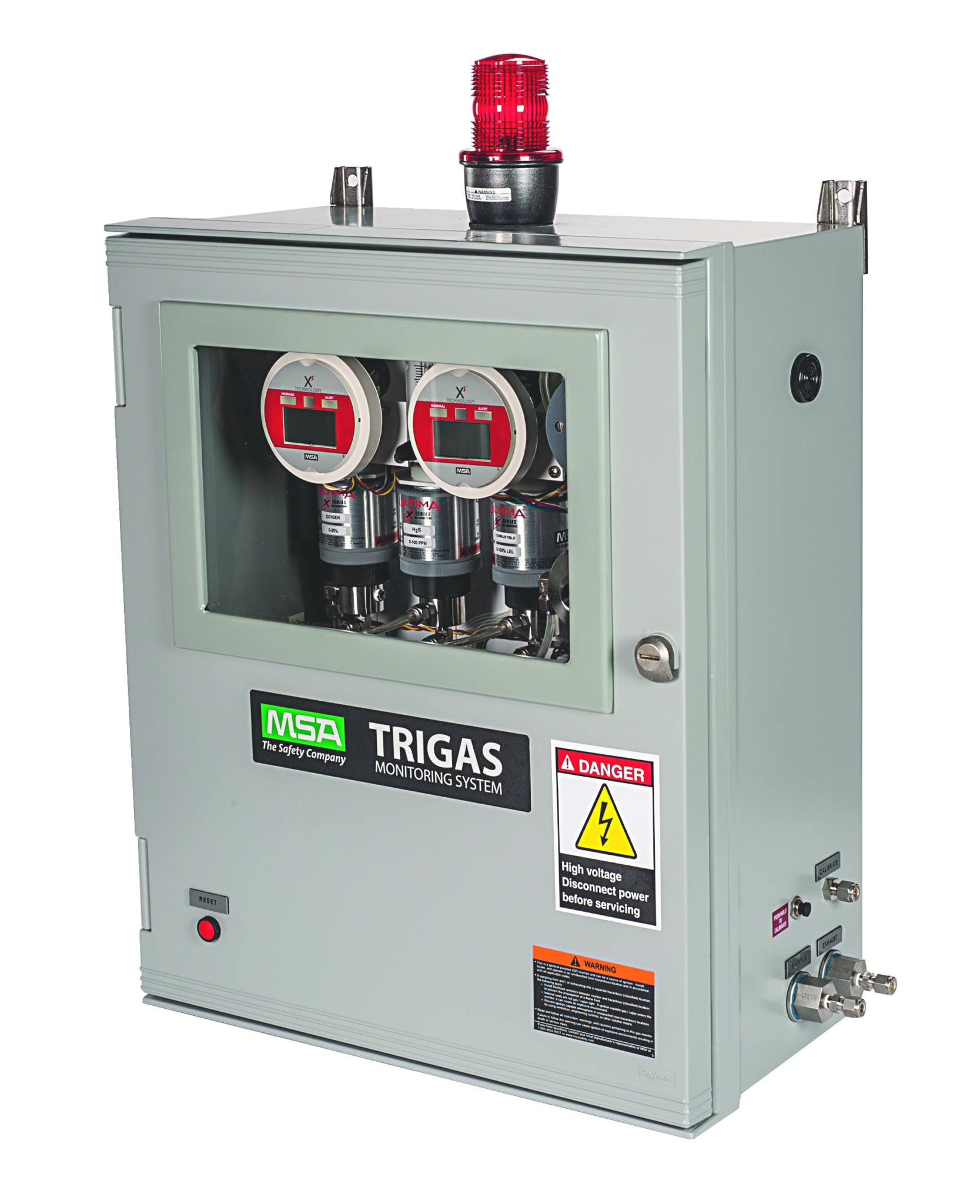

MSA Safety TriGas Monitoring System
The TriGas Monitoring System from MSA Safety protects against confined-space oxygen deficiency, hydrogen sulfide leaks, and combustible gases and is designed specifically for municipal or industrial wastewater treatment. With three highly responsive Ultima X3 sensors housed in NEMA 4X stainless steel enclosure, the system is ideal for areas of wastewater treatment plants that are subject to flooding. It is designed to meet NFPA 820 fire protection in wastewater treatment plants, OSHA 29 CFR Part 1910.148 confined space and ANSI 2117.1-1989 safety requirements. 800-672-4678; www.msasafety.com/detection.

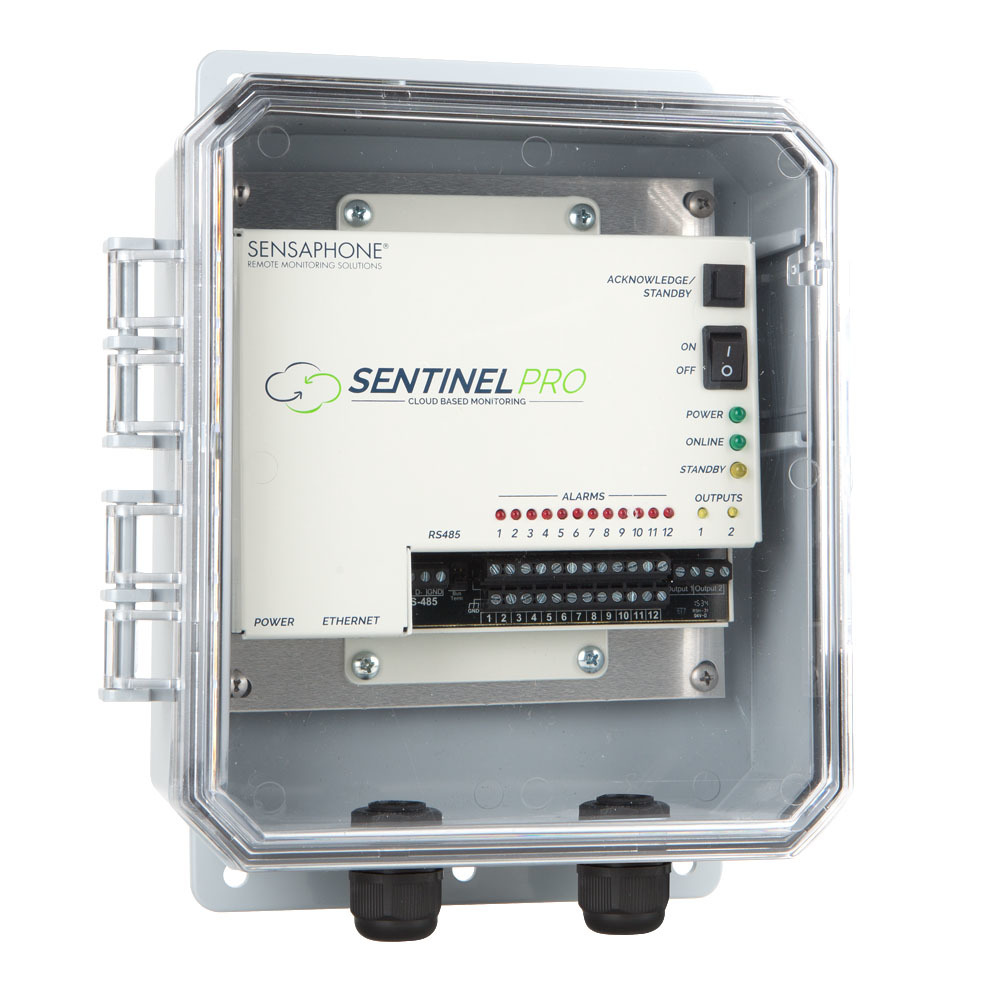

Sensaphone Sentinel PRO remote monitoring system
The Sentinel PRO system from Sensaphone provides 24/7 remote monitoring, data acquisition and real-time visibility of remediation sites from a cloud-based dashboard. It supports both Modbus RS-485 and TCP protocols and can use the controller’s existing configuration to read sensor values, flow totals, runtimes, and pulse counts directly, without adding additional sensors. Values can be viewed in real-time from a mobile phone via the free iPhone/Android app or website. The dashboard allows users to set alarms, acknowledge alerts and generate reports. The system is also available with a cellular option for remote locations where internet connectivity is unreliable. 855-807-1887; www.sensaphone.com.
