Product News: May 2018

Browse the latest products exclusively for the water and wastewater treatment industry

Product News: May 2018

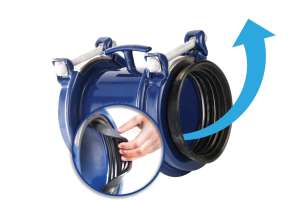

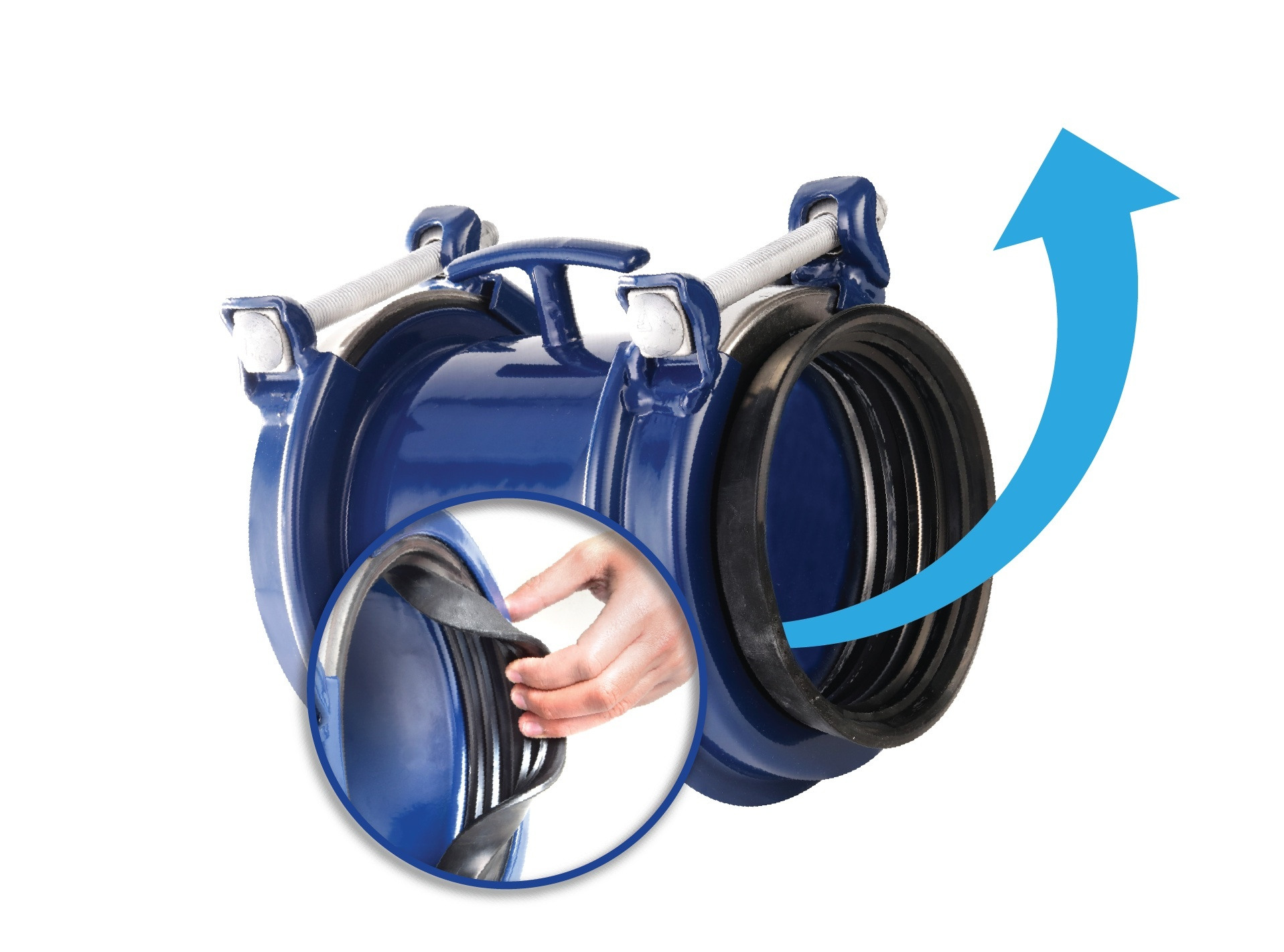

The HYMAX 2 coupling from Krausz USA

Krausz USA HYMAX 2 coupling
The HYMAX 2 coupling from Krausz USA features a flip gasket that easily flips in or out to accommodate different pipe ODs, allowing for faster and more efficient installations. The gasket also eliminates gasket removal mistakes since there is no need to tear out gasket layers to accommodate larger pipe ODs. The coupling’s two top-facing bolts eliminate the need for extensive under pipe digging, minimizing installer time in the ditch and maximizing worker safety. The HYMAX 2 features a T-handle to make it easy to carry and adjust on the pipe, and is a durable, long-term repair solution that can reliably withstand harsh ground conditions. 855-457-2879; www.krauszusa.com.

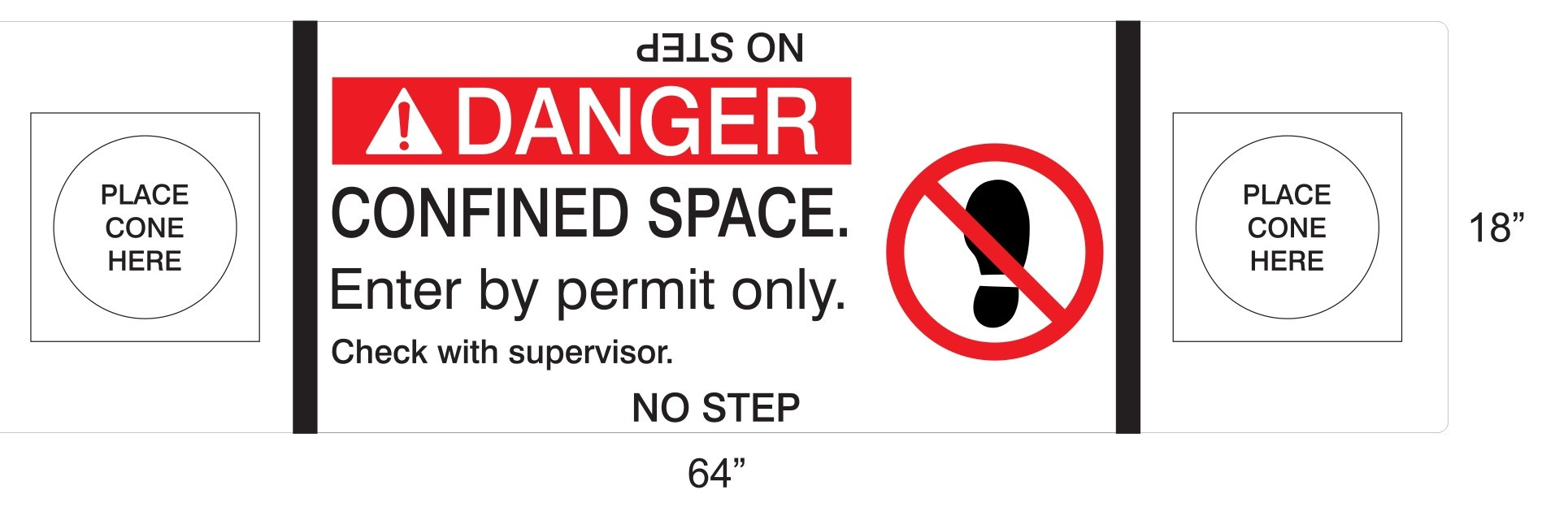

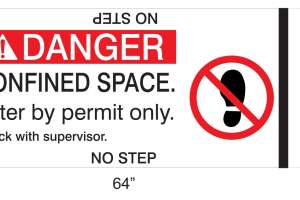

Uticom Systems U1864D confined space cover sign
The U1864D confined space cover sign from Uticom Systems are durable and easy to install and store. The signs increase confined space safety and reduce the risk of falling into or entering an uncovered or unsafe manhole. They comply with OSHA 1910.146, 1910.121 and ANSI Z535.1, Z535.2 and Z535.3. The signs have a non-skid adhesive backing and are made of a .125-inch polycarbonate with reflective material. They are also available in an 18- by 36-inch label, backed with an adhesive to apply to plywood. 800-548-5321; www.uticom.net.

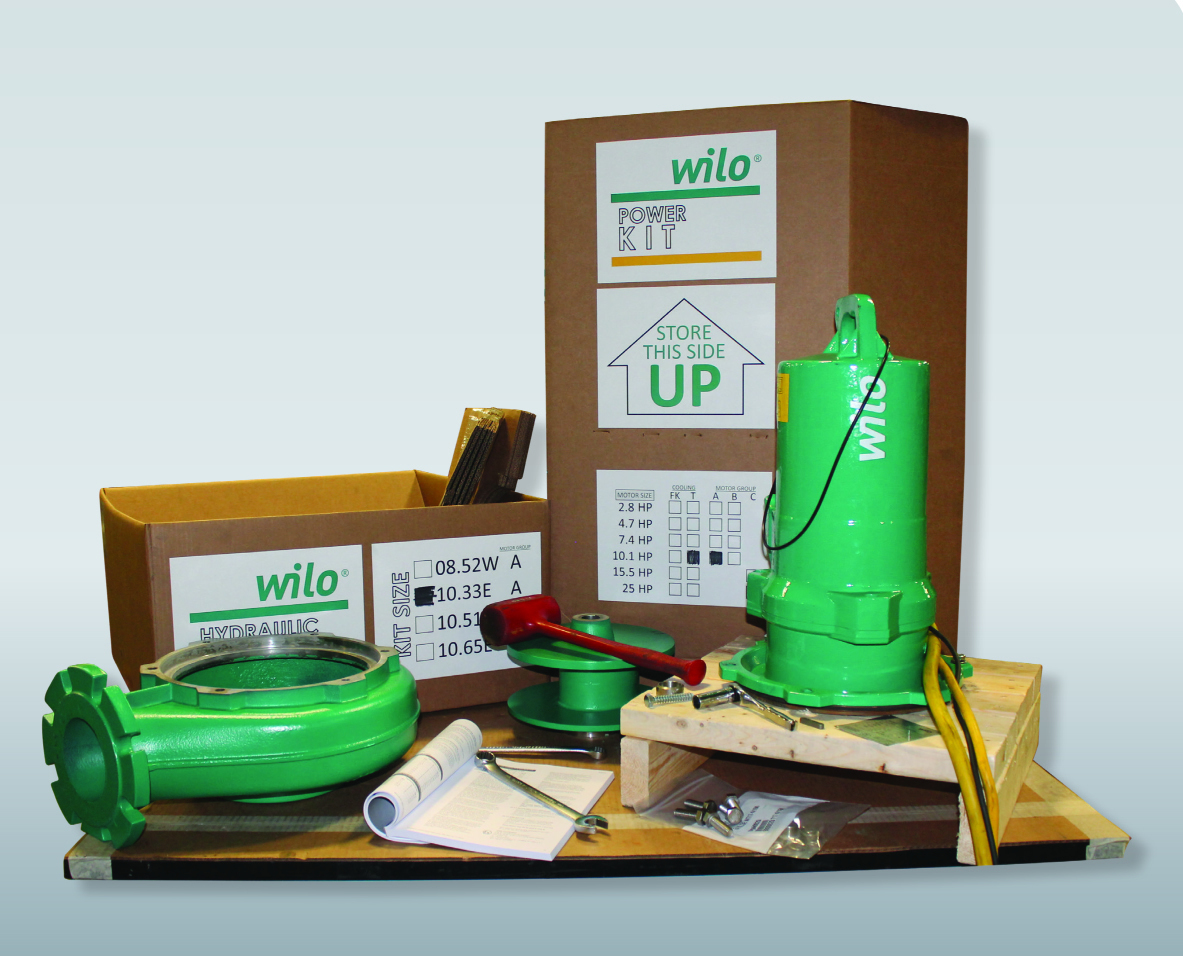

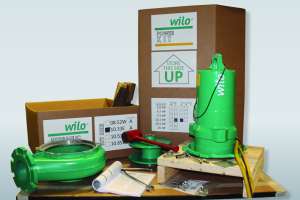

Wilo USA pump parts replacement kit program
Wilo USA’s kit program features two types of standard kits for both oiled and oil-less motors, the Power Kit and the Hydraulic Kit, for select FA pumps ranging from 2.8 to 25 hp. The Power Kit has the pump motor and necessary cables, while the Hydraulic Kit includes a volute kit, suction cover (if applicable) and an impeller kit, which has a full-sized unbalanced impeller that can be trimmed and balanced per the necessary specifications. The program was designed to allow locally authorized distributors to configure complete pumps within 24 hours, reducing lead time. 888-945-6872; www.wilo-usa.com.

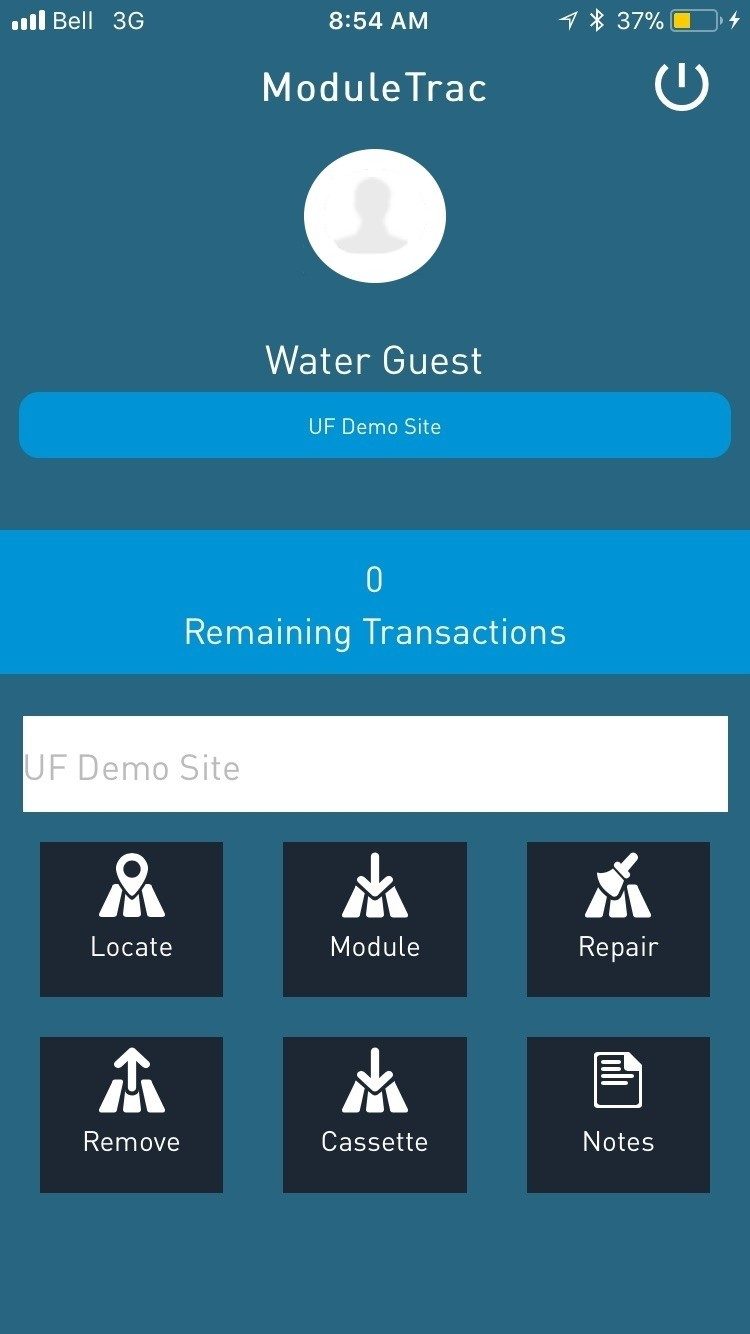

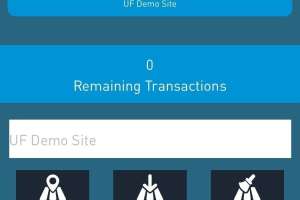

SUEZ – Water Technologies & Solutions ModuleTrac mobile app
SUEZ’s mobile app, ModuleTrac, tracks, monitors and analyzes ZeeWeed ultrafiltration membranes. Through a user’s mobile device, the app scans and tracks the location and maintenance history of ZeeWeed membranes using a unique bar code placed on each module. The information is then fed into InSight, which analyzes, archives and reports on the data at a train, cassette or module level. From there, users can view data, run reports and create graphics and charts to monitor and optimize their water treatment systems. www.degremont-technologies.com.

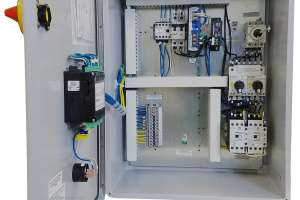

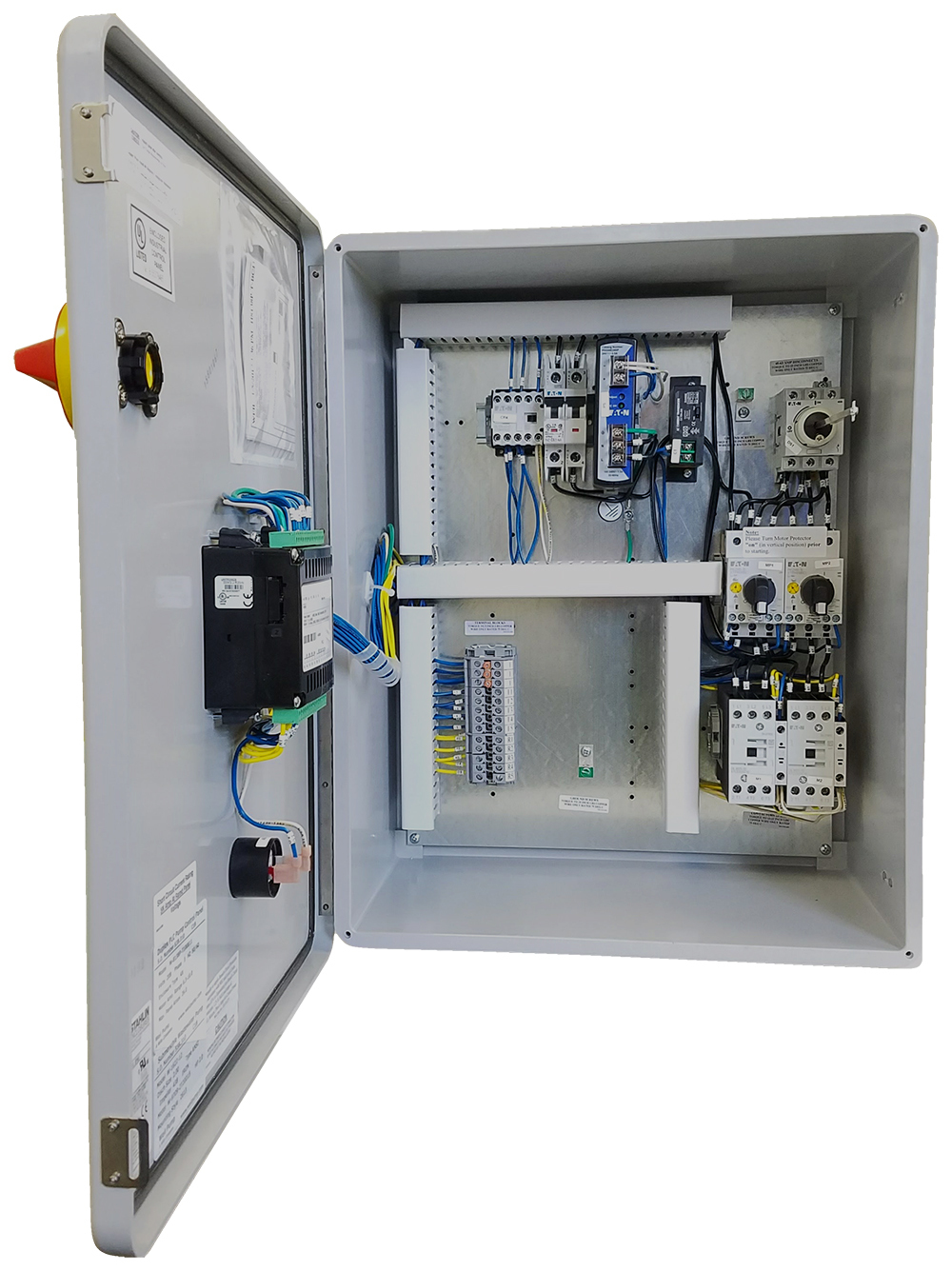

Weil Pump programmable logic controller panels
The PLC panels from Weil Pump provide a platform for the control of most pumping systems, including commercial, industrial, process and booster service pumps. The panels have the flexibility to control up to four pumps and work with a variety of level controls, from state-of-the-art transducers to traditional float switches. The PLCs have advanced monitoring capabilities, multiple fail-safes and built-in troubleshooting and provide early detection of faults to help keep mission-critical systems running smoothly and without interruption. In addition, the panels offer detailed metrics on pumping operation, maintenance intervals and alarm histories for offsite management and control, reducing the likelihood of having to enter the confined conditions on-site. 888-945-6872; www.weilpump.com.

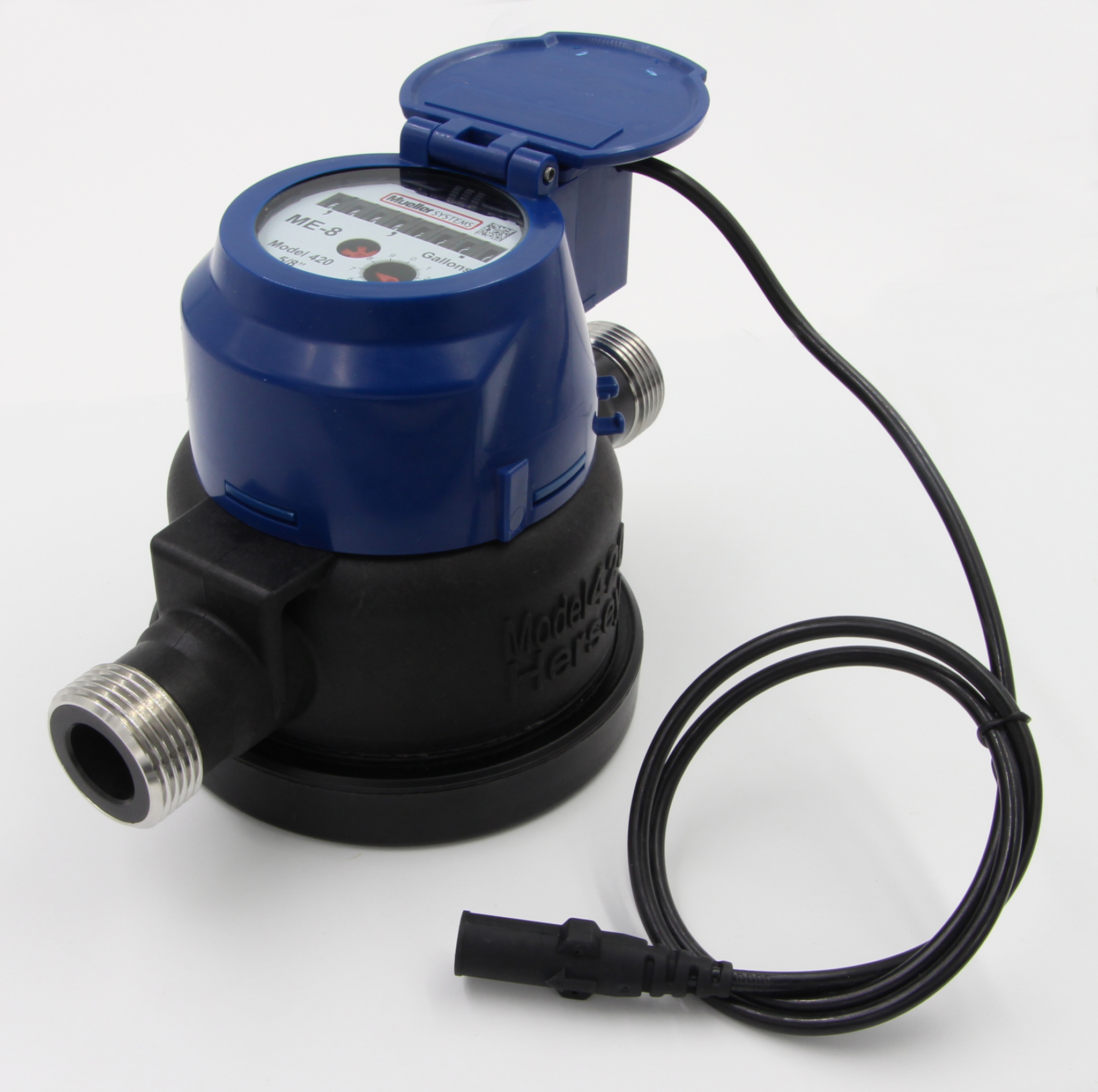

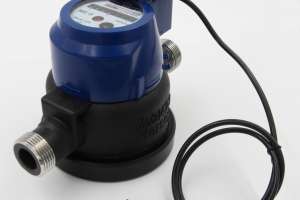

Mueller Water Products ME-8 encoder
The Mueller Encoder Eight (ME-8) register combines reliable mechanical components with a new automated data acquisition system that improves meter accuracy and functionality for utilities. Using a heat-treated tempered glass lens and corrosion-resistant copper can to house the register light tubes, electronics, self-lubricating gearing and drive magnet, the ME-8 is designed to provide dependable service with no maintenance required. It is available for use on all current Mueller Systems positive displacement meters from 5/8- through 2-inch sizes. 800-523-8618; www.muellersystems.com.

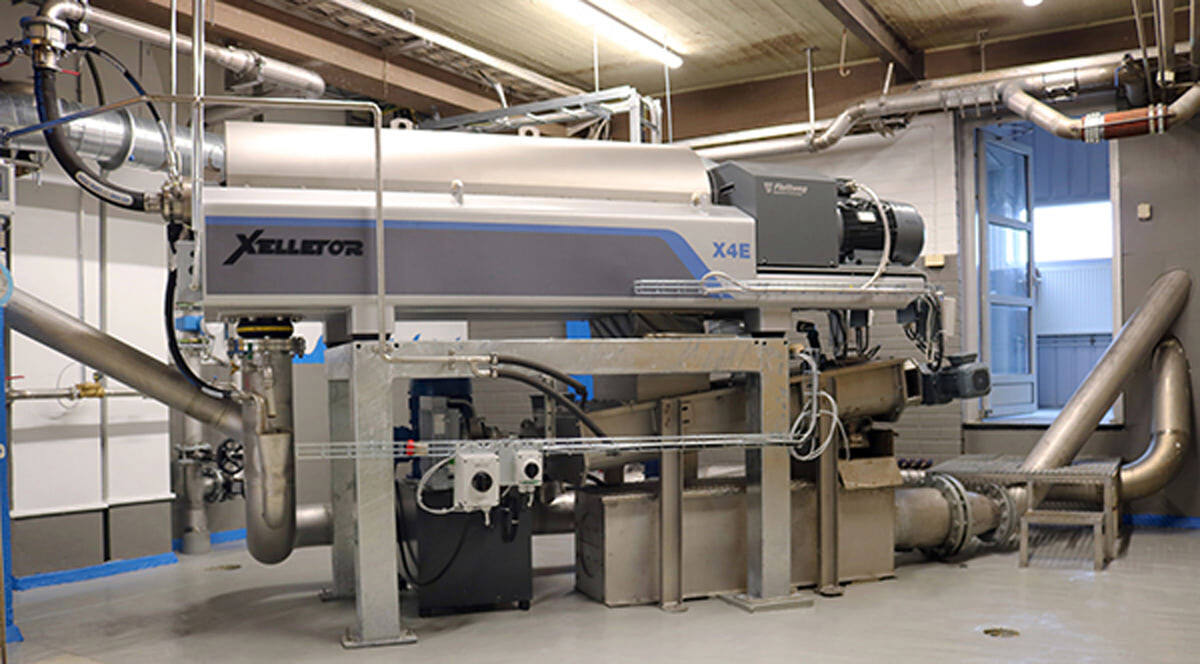

Flottweg Separation Technology Xelletor centrifuge series
Flottweg Separation Technology’s Xelletor series of decanter centrifuges uses a new intake configuration to reduce the consumption of polymers and increase throughput, saving on sludge disposal costs while maintaining a separation efficiency greater than 99 percent. It reduces the volume of biosolids by producing a drier cake. It offers fully automatic control of the bowl and differential speeds, even when there are fluctuations in the feed, using the Flottweg Simp Control. Optional automatic flocculant dosing with real-time monitoring also helps reduce polymer consumption. It has closed construction, providing a shield against noise and sewage sludge aerosols. 859-448-2331; www.flottweg.com.

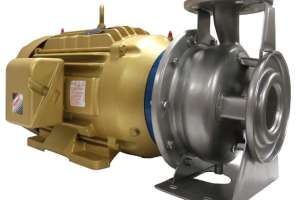

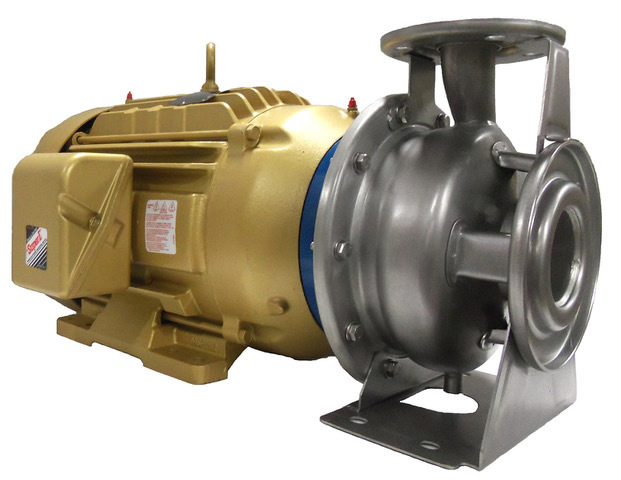

Scot Pump stamped 304 stainless steel pumps
The expanded line of Scot Pumps’ stamped 304 stainless steel pumps with NPT connections includes nine new ANSI flanged centerline discharge models. The new 320-328 series covers up to 385 gpm and 275 feet of head. The pumps feature a slip-fit O-ring/flinger design which prevents leaks caused by deformation as a result over-tightening. They are mounted on a JM frame and incorporate a back pull-out design and weep holes in the impeller. The weep holes extend seal life by creating fluid movement in the seal cavity which aids in venting of air at start-up. 888-945-6872; www.scotpump.com.

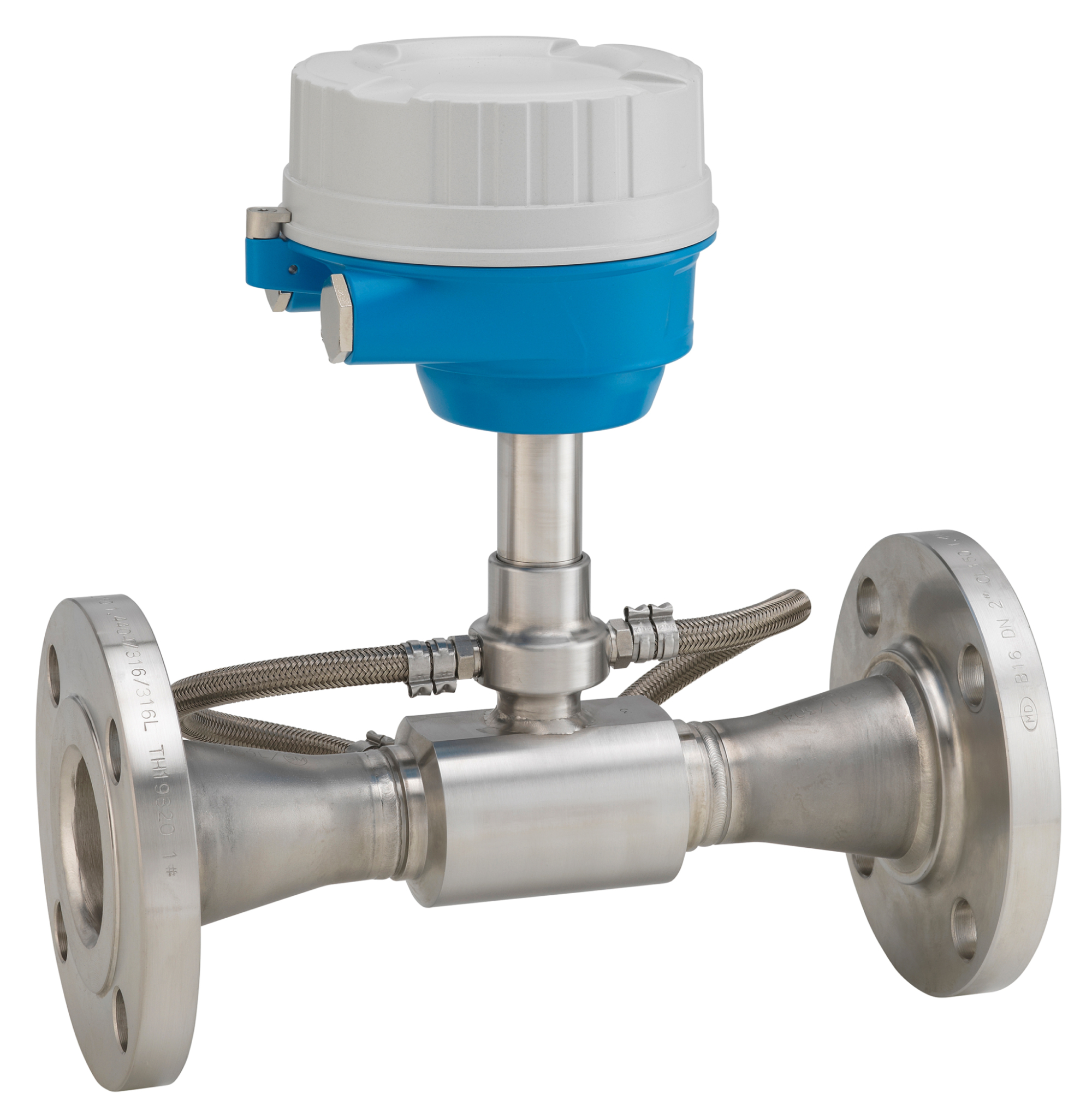

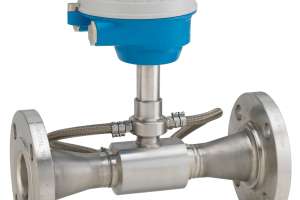

Endress+Hauser Prosonic Flow E 100 ultrasonic flowmeter
The Proline Prosonic Flow E 100 ultrasonic flowmeter from Endress+Hauser measures flow, temperature and volume of process water regardless of conductivity, pressure, density or temperature. It can measure flow in both directions as well as water temperature, making it ideal for measuring demineralized water in boiler condensate return lines, or monitoring controlling feedwater temperature. The all-stainless-steel Prosonic Flow E 100 works in process pressures up to 363 psi, and in temperatures from 32 to 302 degrees F. It is available in line sizes from 2 to 6 inch for measuring flows up to 1,680 gpm with accuracy of plus/minus 0.5 percent fs. 888-363-7377; www.us.endress.com.

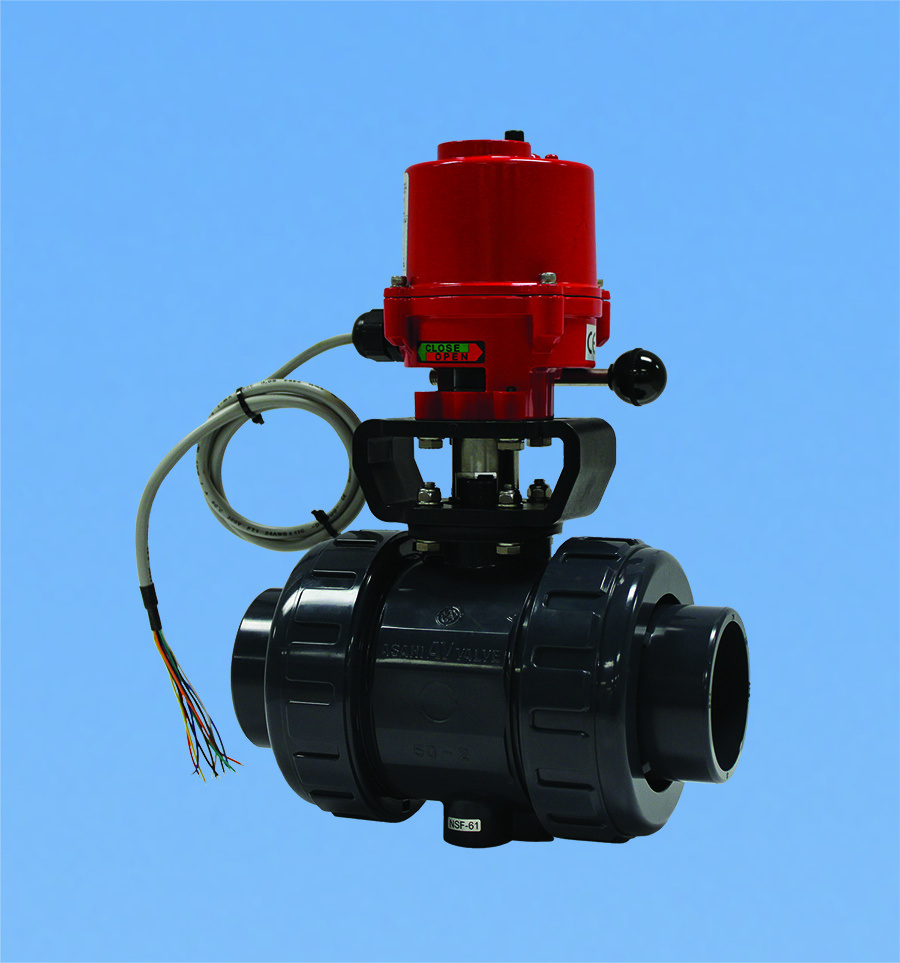

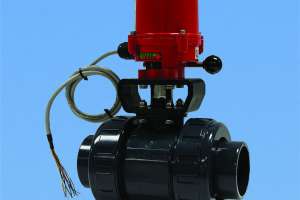

Asahi/America Series 17 electric actuator
The compact and lightweight Series 17 electric actuator from Asahi/America features a reversing motor with multi-voltage capabilities, an internal heater, auxiliary switches and two LED position indicators. Internally, the actuator includes a permanently lubricated steel gear train and declutchable manual override. They come with the company’s Type-21 ball valve and Type-57P butterfly valve. 800-343-3618; www.asahi-america.com.

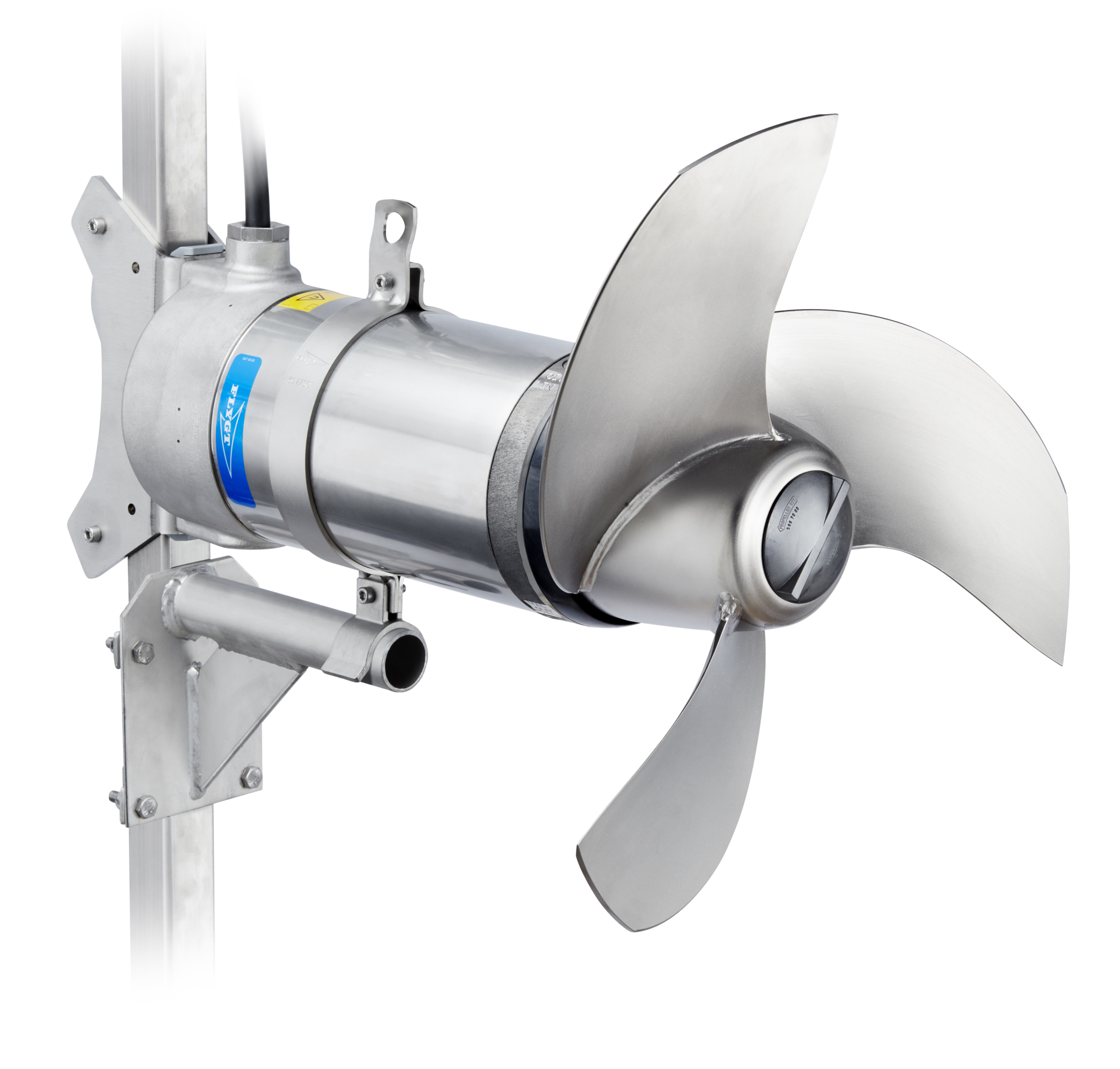

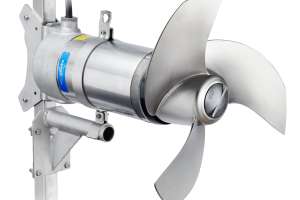

Xylem Flygt 4220 adaptable wastewater mixer
The Flygt 4220 from Xylem is a compact submersible wastewater mixer featuring easily adaptable output capabilities and can be controlled to deliver only the output required, saving on energy consumption. The mixer fits all common installation systems and is ideal for retrofits, slotting easily into an existing installation. It is based on Xylem’s Flygt Dirigo platform of integrated power electronics, including an IE4 super premium efficiency motor available in 1.5, 2, 3 and 4 hp versions. 855-995-4261; www.xylem.com.

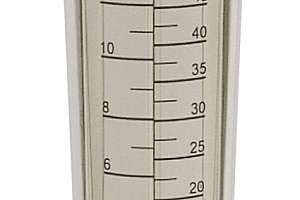

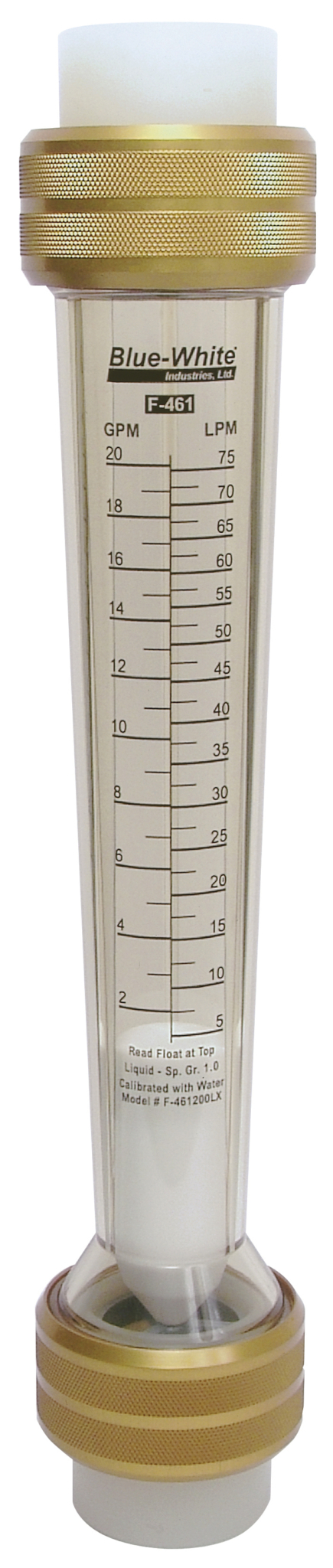

Blue-White Industries F-461 Flowmeter
There are no metals in the fluid path of F-461 Series inline Variable Area Flowmeters from Blue-White Industries, making the units well suited for use in many ultrapure applications. Constructed of chemical-resistant Polysulfone, the flowmeters offer better resistance to high temperatures, pressures and a broad use of harsh chemicals. The high-capacity F-461 utilizes precisely engineered ridges molded into the meter body, which guide PTFE floats. Maximum fluid temperature is 210 degrees F at 0 psi with PVDF adapters and 130 degrees F with PVC adapters. Maximum working pressure is 150 psig at 70 degrees F. An optional splash shield is available. 714-893-8529; www.blue-white.com.
