Product News: November 2017

Browse the latest products exclusively for the water and wastewater treatment industry
Product News: November 2017
Nidec Motor’s vertical totally enclosed fan cooled (TEFC) inverter duty motors

Interested in Dewatering/Biosolids?

Get Dewatering/Biosolids articles, news and videos right in your inbox! Sign up now.

Dewatering/Biosolids + Get Alerts

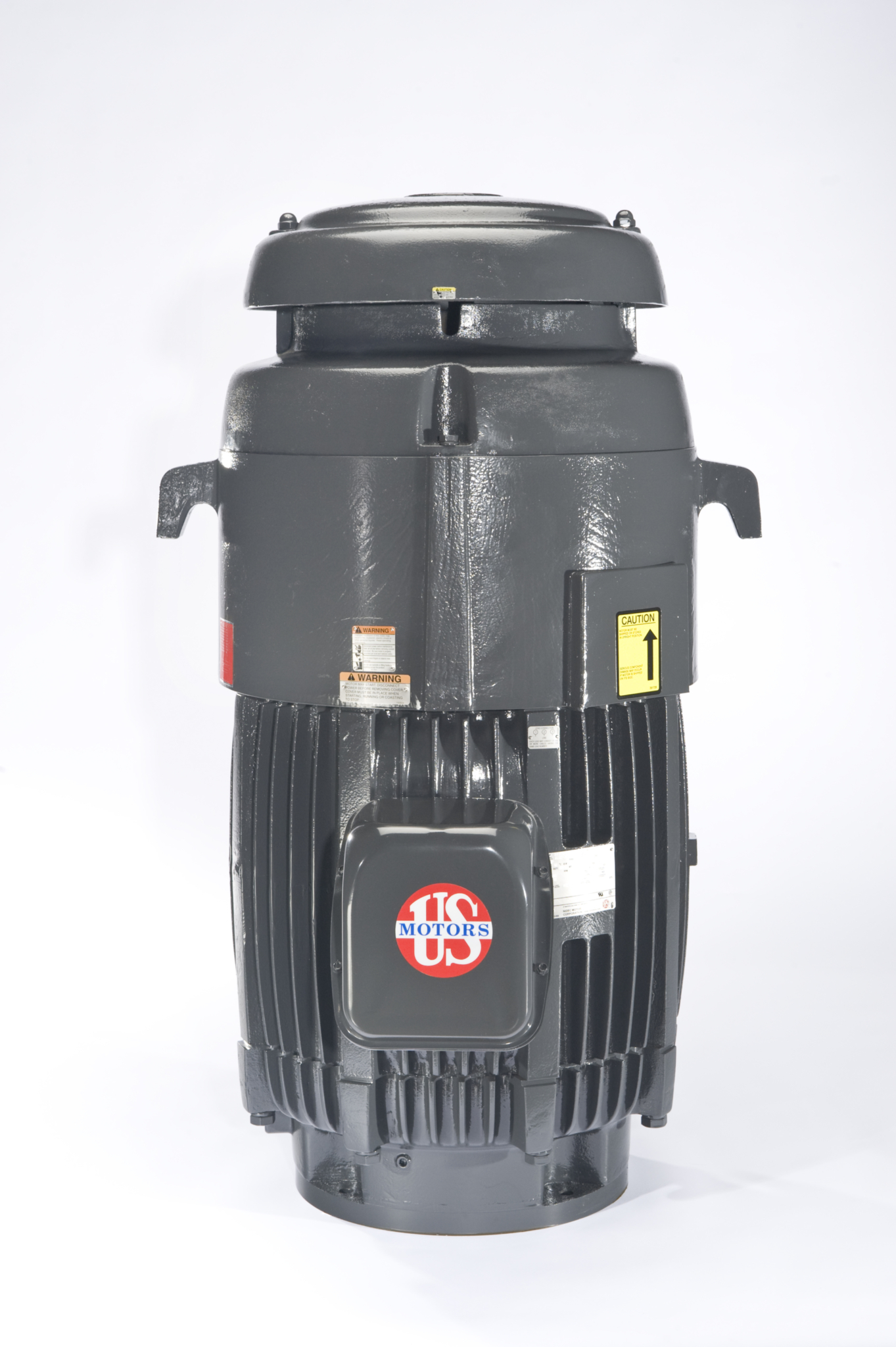

Nidec Motor inverter duty vertical TEFC motors
Nidec Motor’s vertical totally enclosed fan cooled (TEFC) inverter duty motors are for use on turbine, mix flow and propeller pumps and range from 5 to 300 hp. They are suitable for VFD operation per NEMA standards. The pump shaft is extended through the hollow shaft, so adjustments required to lift impellers and give a running clearance with the pump casing can be made by a nut threaded on the shaft at the top portion of the motor. 888-637-7333

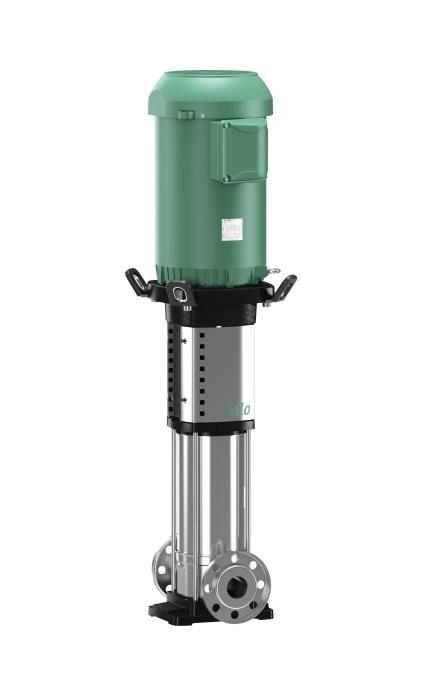

Wilo USA Helix V multistage pump line
Wilo USA’s extended range of the Helix V high-efficiency pump line is a nonself-priming, high-pressure, vertical multistage centrifugal pump with inline connections and is suitable for a wide range of applications. The pump is available in 6- and 8-inch sizes, has full 304 stainless steel construction, an efficient NEMA motor, cartridge seal for easy replacement and an improved hydraulic performance. It is NSF 61 certified for potable water. 888-945-6872

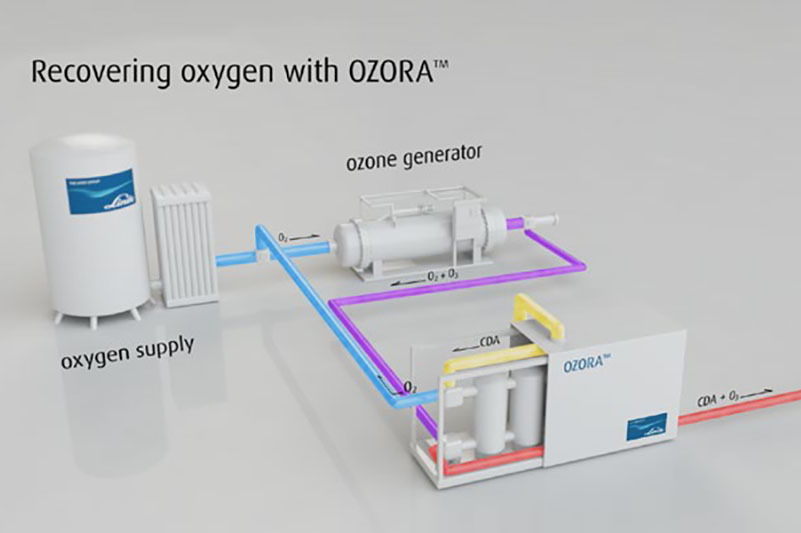

The Linde Group OZORA oxygen recovery system
The OZORA oxygen recovery system from The Linde Group is designed to reduce oxygen consumption during production of ozone. The technology has municipal and industrial water treatment applications. The system separates ozone and recycles oxygen back to the ozone generator, reducing oxygen consumption by up to 60 percent. OZORA systems can be sized to match new ozone generation units or engineered to retrofit existing water treatment operations. 800-755-9277

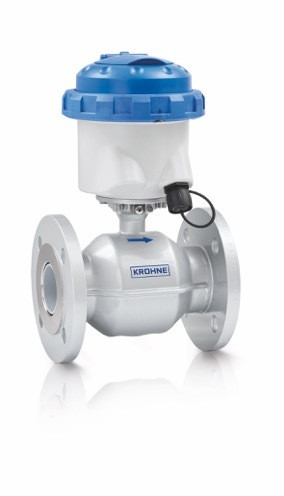

KROHNE Waterflux 3070 flowmeter
The updated Waterflux 3070 flowmeter from KROHNE provides precise measurement, no moving parts and maintenance-free service. The battery-powered electromagnetic unit is ideal for drinking water applications and is useful where power is unavailable. It has built-in flow, pressure and temperature measurement with one sensor, allowing for readings in leak-detection systems. It provides real-time data including water zone balance, water abstraction, pressure management or water billing. It requires no ongoing maintenance, and no inlet or outlet straight runs or filters are needed. The rugged IP68 polycarbonate remote converter housing comes standard with waterproof connector plugs. 800-356-9464

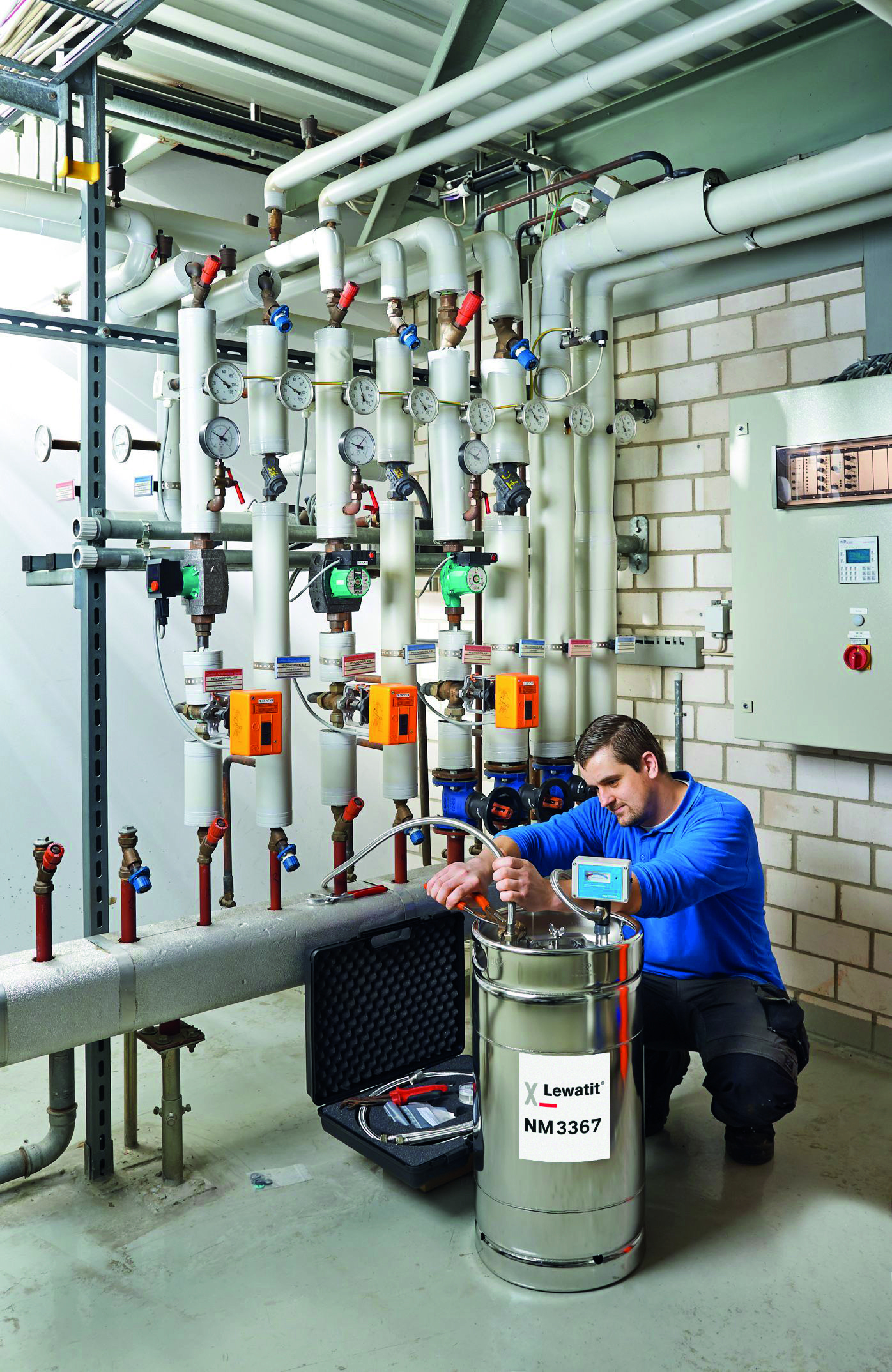

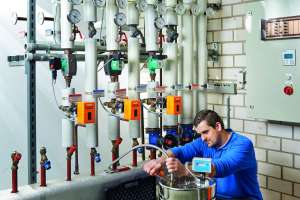

LANXESS / International Dioxcide Lewatit NM 3367 mixed-bed exchanger
Lewatit NM 3367 mixed-bed ion exchange resin is used to demineralize water used to charge and top up modern hot water heating systems. The system prevents scale formation in the parts of the heating system that convey water and also provides protection against corrosion. The higher proportion of anion exchange resin ensures a long service life and efficient demineralization with the new mixed bed. A process used to reload the resin results in efficient hydroxide ion loading of over 90 percent. 401-295-8800

Alphasense p-type Metal Oxide sensors
P-type Metal Oxide sensors from Alphasense are broadband, total VOC detectors with a range of 0 to 100 ppm and a 10 to 50 ppb detection limit, depending on the VOC. Applications include process monitoring, occupational safety, leak detection and environmental monitoring. Typical VOCs measured by the sensor include solvents, sterilants and petrochemicals

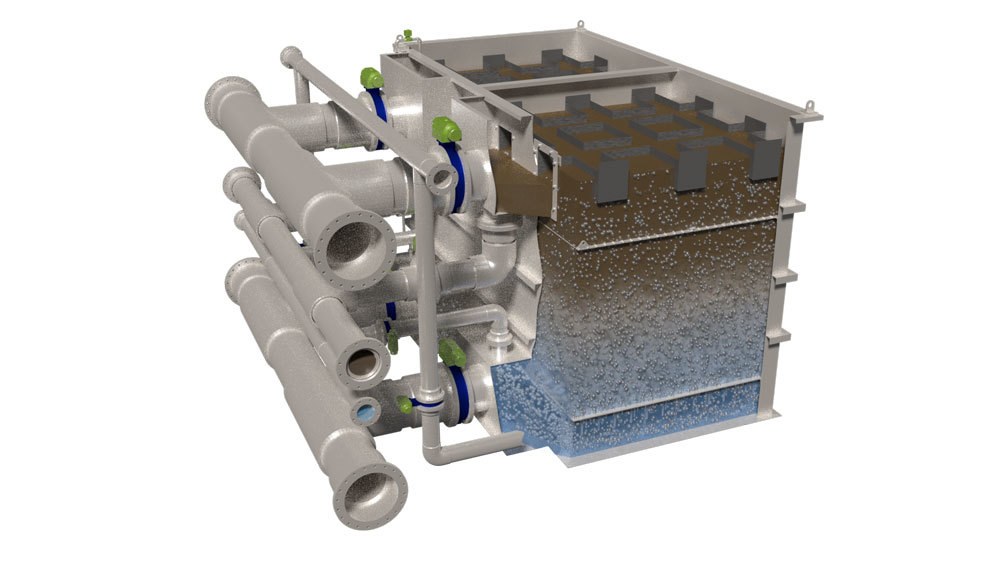

SUEZ FiltraFast extreme-rate compressible media filter
The FiltraFast media filter from SUEZ is designed for treatment of high flows and includes compressible media to enable up to 10 times the loading rate of conventional media filters. The high-rate downflow gravity or pressure filter uses hydraulic loading to create the required media porosity with no mechanical compressing devices. The backwash sequence is designed to enable maximum recovery, extend media life, and limit energy consumption. FiltraFast units are available in different configurations and can be customized to specific applications. Based on project requirements, units can be fully shop-assembled and delivered or erected on site. 800-446-1150

Lakeside Equipment Raptor multirake bar screen
Lakeside Equipment’s Raptor multirake bar screen is designed to remove inorganic solids from wastewater in municipal and industrial applications. A heavy-duty design provides durability and long life in severe conditions. High removal efficiency and low headloss are achieved with multiple rakes cleaning the screen, and with rake teeth penetrating the bar openings to positively remove captured material. The screen has all-stainless steel construction to resist corrosion and requires minimal headroom above the operating floor. Rectangular or trapezoidal screen bars are available with 3/16-inch minimum bar spacing. Other features include a durable stainless steel roller chain, replaceable rake teeth, a maintenance-free lower chain guide or optional lower sprocket assembly, and automatic reversing to clear obstructions. 630-837-5640

SEEPEX BRAVO chemical metering system
BRAVO chemical metering systems from SEEPEX are plug-and-play, pre-engineered feed systems that improve process control with accurate and repeatable flows and lower chemical consumption. The system is an integrated, modular and scalable solution used for disinfection, pH control, flocculation, corrosion inhibition, oxygen scavenging and contaminant elimination. It is designed as single source for pumps and controls. Systems are built from standardized panels in floor- or wall-mounted simplex, duplex, or triplex options. The system incorporates NSF/ANSI 61 certified SEEPEX progressive cavity Intelligent Metering Pumps. Slip is minimized even when fluid temperature, viscosity or discharge pressure fluctuates. 937-864-7150

Schneider Electric PowerPact B circuit breaker
Schneider Electric’s PowerPack B-frame circuit breaker replaces the legacy FA/FH series with upgraded features, including an expanded amperage range of 15-125A, and field installable accessories, while keeping the same mounting space dimensions. The EverLink wiring lugs maintain a constant contact with fine stranded conductors and every breaker includes a QR code to provide access to online product information and customer care center contact information. The breakers meet global electrical standards including UL, CSA, NOM, IEC and CCC. 888-778-2733

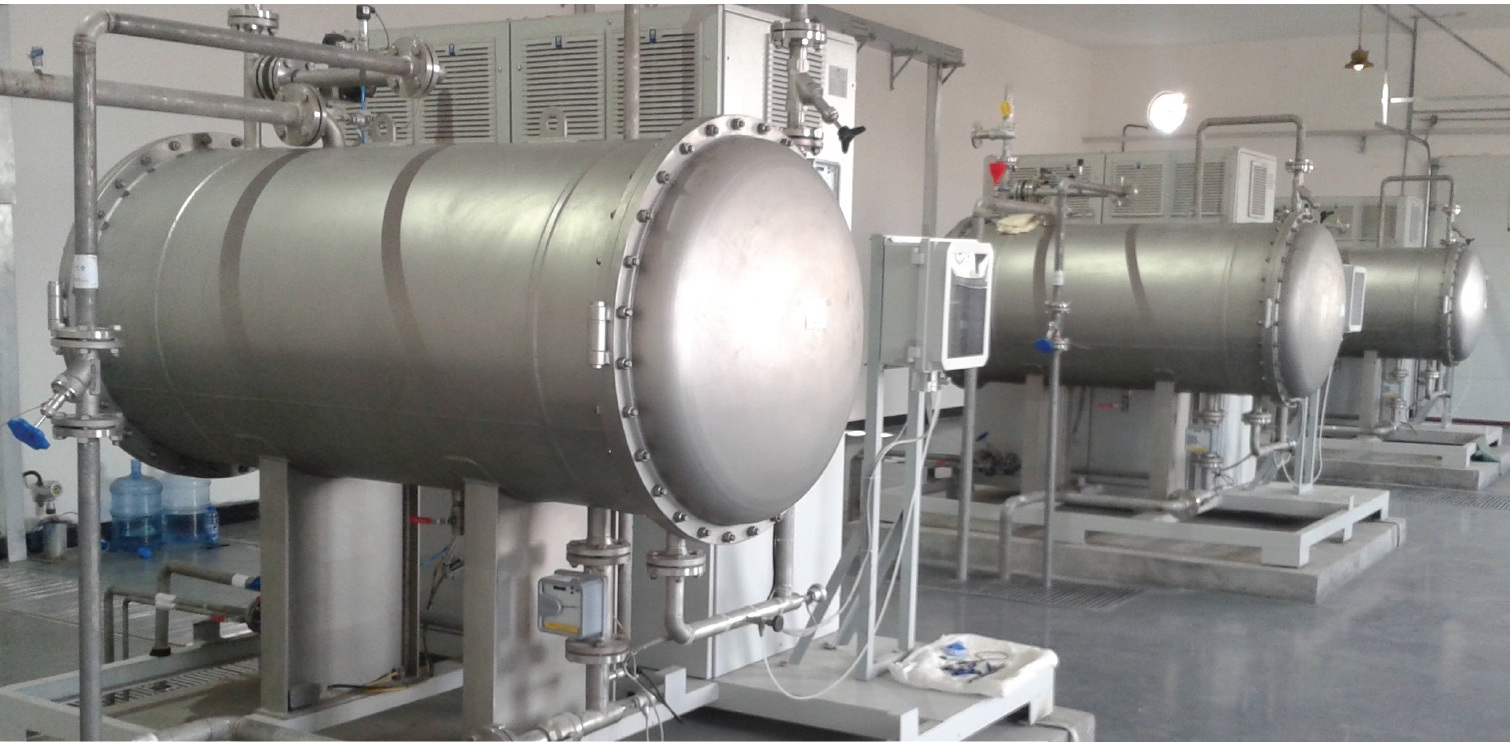

De Nora Water Technologies Ozone System
De Nora Water Technologies ozone disinfection systems cover a range from small compact units to turnkey plants. Applications include treatment of municipal drinking water and wastewater, micropollutant removal, industrial wastewater and process water treatment, advanced oxidation and biological solids reduction. Using natural oxidants, on-site ozone generation does not create a residual biological byproduct. It provides quick reaction time, and requires no chemical compounds. Pilot plants and testing and scale units are available. 215-997-4000

Plast-O-Matic Valves ball valves NSF 61 certified
The Plast-O-Matic two- and three-way ball valve series MBV/TMBV in PVC and CPVC are certified by the Water Quality Association as NSF/ANSI 61 compliant for drinking water system components. The valves feature heavy-duty, large-diameter shafts to eliminate flexing and breakage and dual-shaft seals eliminate leakage. Their trunnion design eliminates lateral ball stress and allows downstream piping to be disconnected under full line pressure. 973-256-3000
