Water & Wastewater Product News - April 2016

Browse the latest products exclusively for the water and wastewater treatment industry.
Water & Wastewater Product News - April 2016
Endress+Hauser Micropilot NMR81

Interested in Pumps?

Get Pumps articles, news and videos right in your inbox! Sign up now.

Pumps + Get Alerts

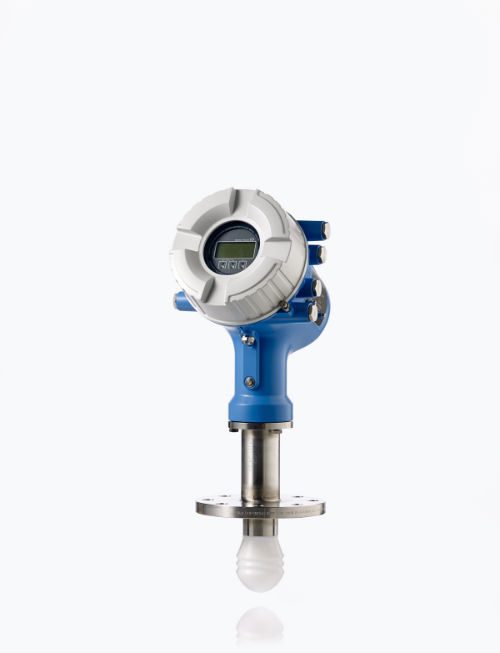

Endress+Hauser Liquid Measurement Radar
The Micropilot NMR81 radar from Endress+Hauser uses 79 GHz technology for high-accuracy custody transfer applications. Designed for level measurement applications in liquids, the sharply focused microwave beam angle ensures safe and reliable measurements without any interfering signals even in narrow tanks with baffles. Measurements to the bottom in very tall tanks are easier because the beam does not hit the tank walls prematurely. The technology permits measuring ranges of up to 70 meters. 888/363-7377; www.us.endress.com.

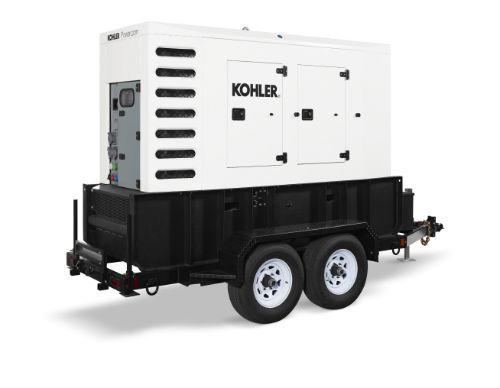

Kohler Tier 4 Final Diesel Mobile Generators
The Tier 4 Final 90REOZT4 and 120REOZT4 diesel-powered mobile generators from Kohler Power Systems are EPA emission certified for non-road use and equipped with a DOT-certified trailer with durable enclosure for easy maintenance. Nothing is attached to the enclosure; all wiring and connections are through the back of the unit, making it easy to remove the entire enclosure for fast engine access. Both units use John Deere Tier 4 Final 4.5L engines that help lower operating costs with efficient performance and fuel savings. The 90REOZT4 is capable of a 78-85 kW standby rating, 70-76 kW prime rating and 62-69 kW continuous rating. The 120REOZT4 achieves a 95-105 kW standby rating, 90-96 kW prime rating and 79-89 kW continuous rating. 800/544-2444; www.kohlerpower.com.

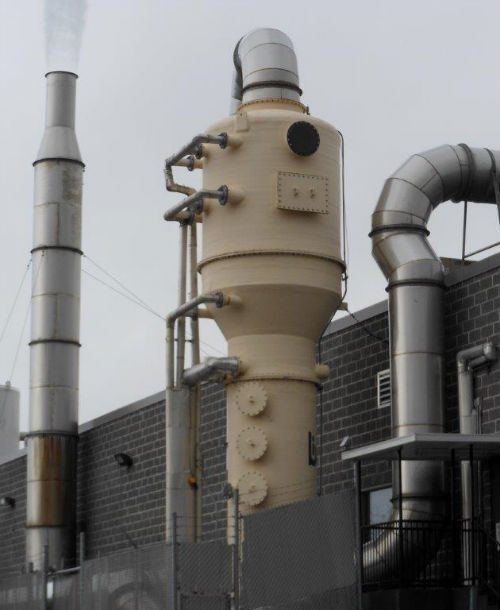

Bionomic Industries Fluidized Bed Scrubber
The RotaBed Fluidized Bed Scrubber from Bionomic Industries is designed to handle gas capacities from 500 through 250,000 acfm. The scrubber’s turbulent, packless, highly plug-resistant mass transfer bed is up to 99 percent open in the fluid contact scrubbing zone and delivers ultra-high efficiency gas absorption and particulate collection of over 99 percent on most applications. A two-stage chevron mist eliminator ensures complete droplet removal from the gas exiting the scrubber. Typical applications include acid gas removal from high temperature thermal oxidizers, odor control and VOC removal from process operations, product dryers and waste treatment operations. 800/311-6767; www.bionomicind.com.

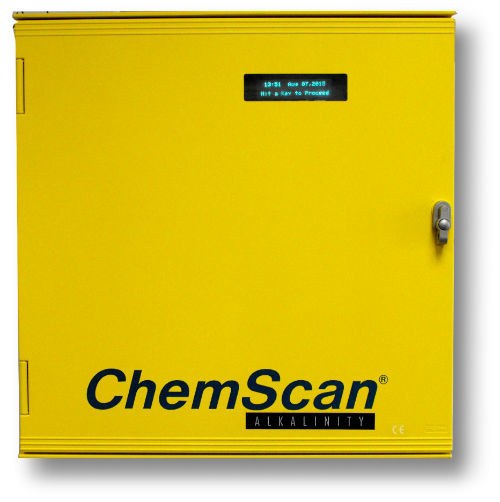

ASA Wastewater Alkalinity Analyzer
The ChemScan alkalinity analyzer from Applied Spectrometry Associates provides consistent, reliable chemical analysis for process control and optimization in multiple stream process monitoring and/or difficult or dirty samples. The analyzer is easy to operate and maintain, even by novice users with minimal chemical background or training. Simple menu-driven, graphical display with instructions guides the user every step of the way.  A proprietary sample-capture and delivery system ensures precise, repeatable sample volume. Wide-bore sample-inlet tubing minimizes blockages, allowing even high-turbidity samples to be handled readily. 262/717-9500; www.asaanalytics.com.

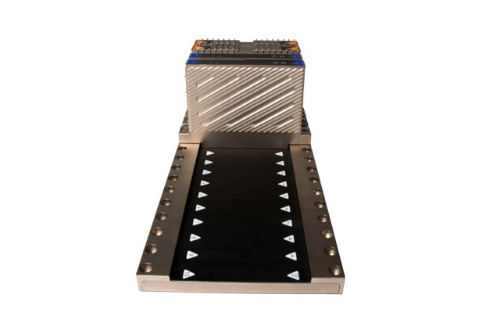

Bedrock Universal Control System
The Bedrock industrial control system from Bedrock Automation frees users from the constraints of traditional automation. Features include a pin-less, electromagnetic backplane and embedded cyber security. The removal of I/O pins improves reliability and increases cyber security while forming a galvanic isolation barrier for every I/O channel. Secure I/O modules use layers of advanced technology to deliver software-defined I/O for universal analog, discrete, Ethernet and Fieldbus signal types.  A secure power module is functionally and physically coupled to the backplane to deliver single and dual redundant cyber secure power for the control system. 781/821-0280; www.bedrockautomation.com.

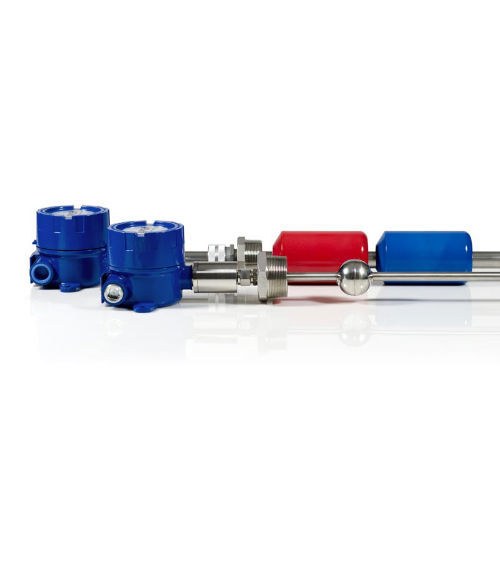

BinMaster Continuous Float Level Sensors
Magnetostrictive MPX-R and MPX-E level sensors from BinMaster feature Class 1, Division 1 hazardous location approvals. Designed to deliver accurate, repeatable level readings in hard environments, the MPX-R sensor has a large, buoyant, robust float and is typically unaffected by temperature. The MPX-E sensor has a compact design for constrained spaces. It can be configured for taking one or two measurements at both the interface level measurement and a total volume level. Both sensors are compatible with any Modbus controller or PLC. 800/278-4241; www.binmaster.com.

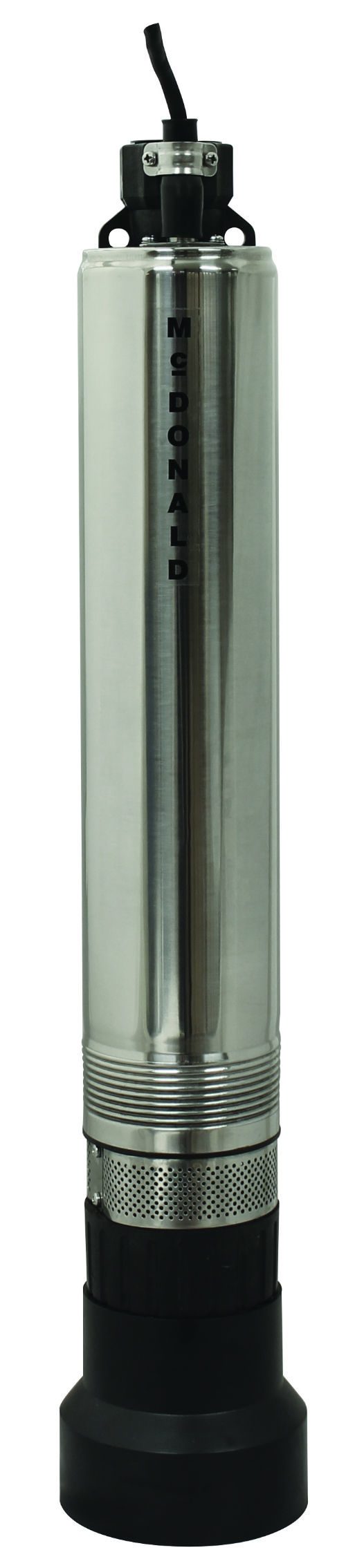

A.Y. McDonald Bottom Suction Pump
The Bottom Suction Pump from A.Y. McDonald is designed to provide maximum drawdown in cisterns or tanks. Available with a 1/2 or 3/4 hp, 115-volt motor, it pumps 15 gpm. Features include quiet operation and corrosion-resistant material for clean and dirty water, rainwater or pond. 800/292-2737; www.aymcdonald.com.

American-MC Outdoor Water-Sampling Station
The model EZ-02CFW stainless steel sampling station from American-MC is designed for evaluating water quality in inclement weather conditions. In addition to reducing false positives, the unit is specifically designed for the safe collection of bacteriological samples from a designated point that is fed directly from the water main. Features include a built-in, full flow flushing valve and weather-tight sealing closure that contains protective wind/rain guards. Between sampling intervals and during the sampling process, the three-position, self-sealing lid works in concert with the EZ-02FCW’s wind/rain guards to produce the best possible sample. 805/642-9924; www.american-mc.com.

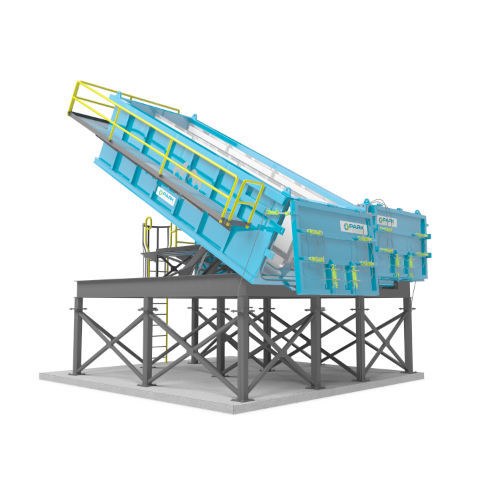

Park Process Big Tipper Dewatering Box
Big Tipper dewatering boxes from Park Process are available in a multitude of capacities and tipping heights. Mounted on permanent stands to eliminate hauling containers to the landfill where they can become damaged in transit and when emptying, the units include handrails, walkways and stairs or ladders. 888/611-7275; www.parkprocess.com.

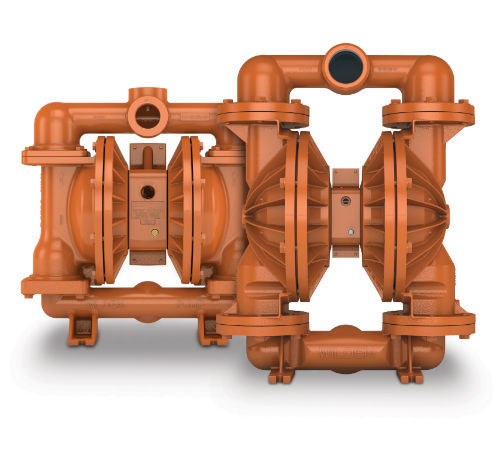

Wilden Air-Operated Double-Diaphragm Aluminum Pumps
Advanced FIT air-operated double-diaphragm (AODD) pumps from Wilden, part of PSG, a Dover company, are designed to be direct replacements for existing 1 1/2-inch pump installations and available in aluminum models 420/430. The pumps are available with the Pro-Flo SHIFT Air Distribution System (ADS) for energy efficiency and maximum Mean Time Between Repair (MTBR) or the Pro-FloX ADS for high operational flexibility. A range of diaphragms are available for a greater diversity in fluid compatibility including abrasive applications. The 420 Advanced FIT pumps are supplied with NPT or BSPT threaded connections. The 430 Advanced FIT pumps are available with ANSI or DIN flanged pipe connections. 909/422-1730; www.wildenpump.com.

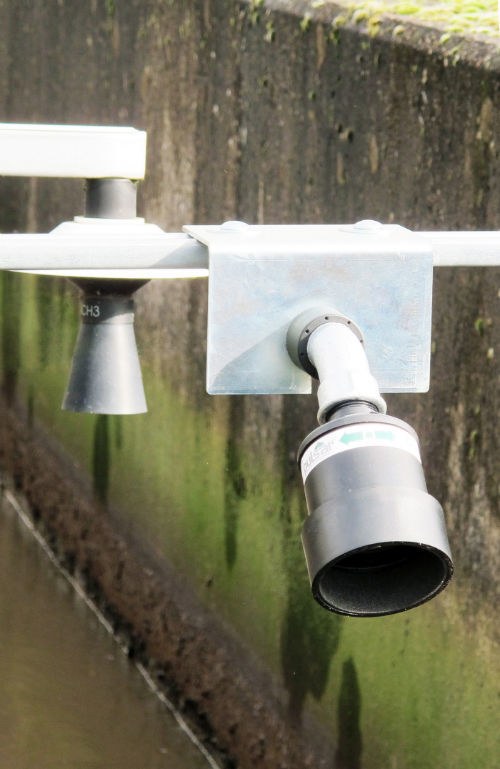

Pulsar Non-Contacting Liquid Velocity Sensor
The MicroFlow microwave-based non-contacting velocity sensor from Pulsar Process Measurement mounts above a channel for maintenance-free, reliable, repeatable and accurate velocity measurement. The sensor provides an alternative to a channel restriction such as a flume and a viable solution in situations where system hydraulics do not permit the installation of any primary measurement device. 850/279-4882; www.pulsar-pm.com.

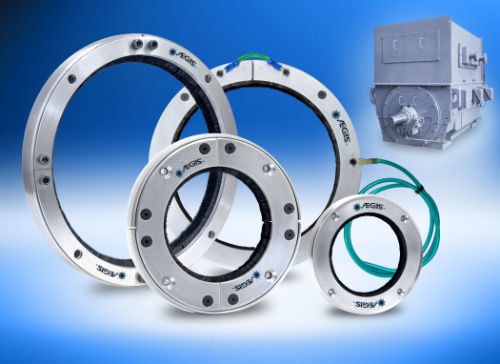

Electro Static Technology Voltage Diverters
AEGIS PRO Series rings from Electro Static Technology are designed to divert harmful VFD-induced shaft voltages safely to ground, protecting large AC and DC motors from bearing damage. Available for motor shafts to 30 inches in diameter, the rings, available in solid and split versions, are specially designed for high-current applications such as generators, turbines, and medium-voltage motors. Solid rings are made for installation on new or repaired motors prior to their installation. Split rings come in mating halves that simplify field installation around the shafts of in-service/coupled motors. The PRO SLR Ring features O-ring barriers that prevent the ingress of dust, debris, and excessive contamination that could lessen contact of the ring’s conductive microfibers with the motor shaft. 866/738-1857; www.est-aegis.com.
