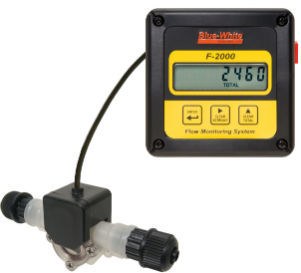

Blue-White Industries Digi-Meter Micro-Flo with analog output displays flow rate and accumulated total flow. It features 4-20 mA / 0-10 VDC circuitry for low-flow applications. Units include an NPN open collector output for communication with SCADA systems. Flow ranges include 30 t0 7,000 mL/min.
Several connection options are available including 1/8-, 1/4- and 1/2-inch threaded connection and 1/4- and 3/8-inch OD tubing connections.
A clear PVC viewing lens allows for visual confirmation of flow. A PVDF chemical-resistant lens is also available. The LCD display indicates operating mode and battery status. The memory is nonvolatile.
The meter is field programmable via a front panel touch pad or can be factory programmed. The front panel has a lockout option, and the total reset function can be disabled to prevent tampering. Electronics are AC-powered. The display is remote mounted, and is weather-resistant NEMA 4X washdown.
About Blue-White Industries
Blue-White Industries is a leading manufacturer of metering pumps (diaphragm, peristaltic), flowmeters (variable-area, paddlewheel, ultrasonic), and water-treatment accessories. For more information, visit blue-white.com.
