CCS Series plug-and-play package wastewater plants from Galene Water Treatment offer high process stability and effluent quality; a corrosion-resistant, fiber-reinforced polymer design; retractable components that minimize downtime and maintenance costs; flexibility for additional features like biological nutrient removal, tertiary filtration and chlorine/UV disinfection; and fast startup, a reduced footprint and lower CAPEX cost. The plants are delivered to the site with all electromechanical, mechanical and electrical equipment preassembled, reducing site work, change orders, civil works and installation time. 844-942-5363;

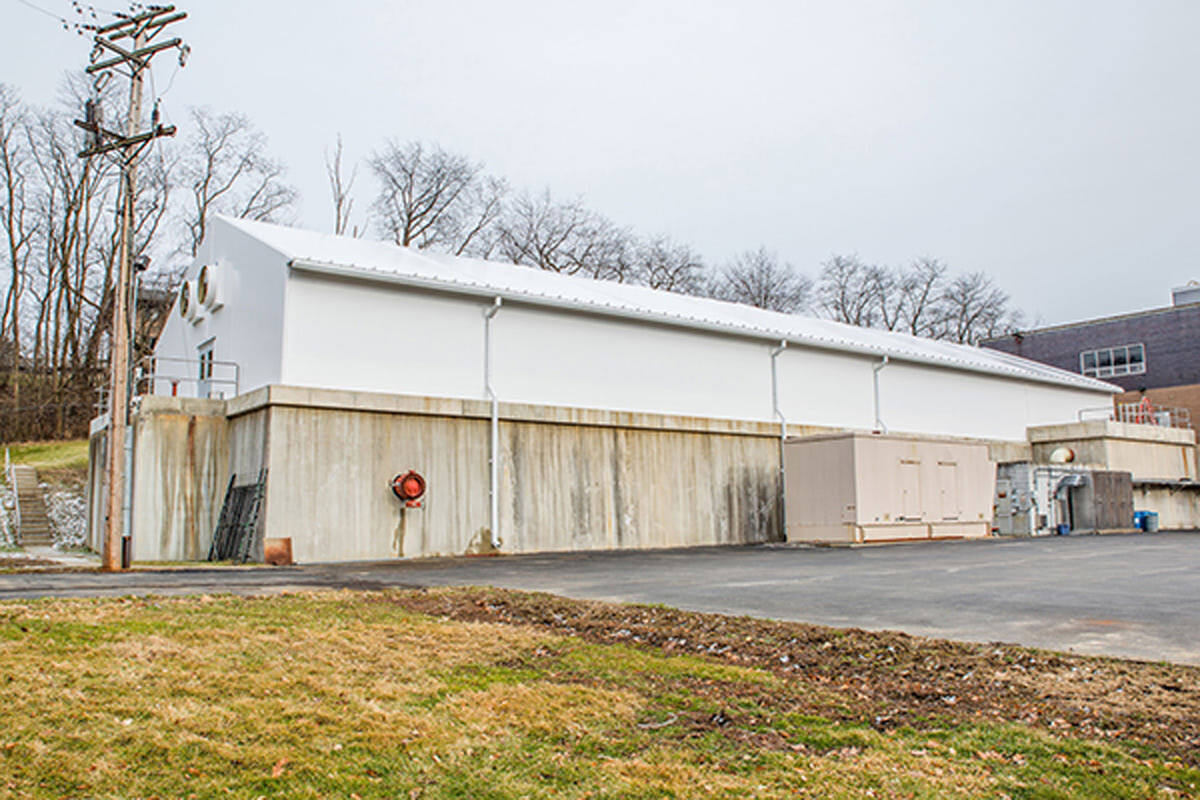

Tension fabric buildings from Legacy Building Solutions provide a high level of flexibility for a variety of building applications. They use a durable, rigid frame in place of hollow-tube, open web truss hoop framing. The strength of the structural steel frame provides the ability to easily customize buildings to the exact width, length and height required. In addition to long clear spans, the buildings have straight sidewalls that maximize the useable square footage inside the structure. The design allows for the ability to add lean-tos, mezzanines and sidewall doors. The structures are engineered to provide desired overhangs or handle additional loads for items such as sprinklers and conveyors. The solid structural steel I-beams are not vulnerable to unseen corrosion originating inside a tube. There are multiple coating options available for all steel components, including hot-dip galvanizing, primer and powder-coat paint. 877-259-1528;

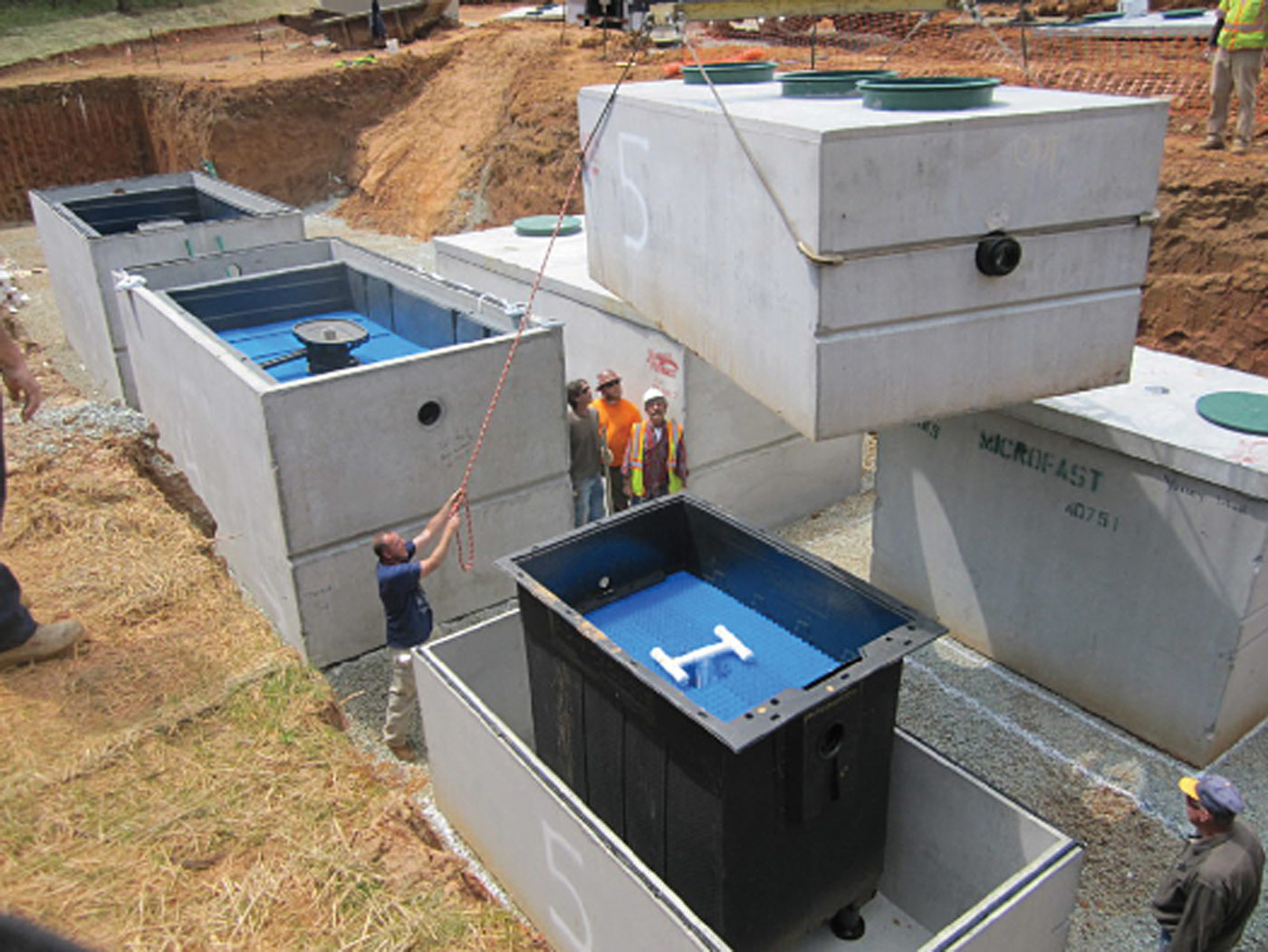

ABC (Anoxic Bio[logical]filter Clarification) clarifiers from BioMicrobics are a family of products used in tertiary treatment systems to remove excess nitrogen (ABC-N), phosphorus (ABC-P) and additional solids (ABC-C) for specialty applications requiring exceptional effluent quality. The most popular is the ABC-N denitrification device used with a carbon feed system that supplies a carbon source; the ABC-N promotes the growth of bacteria that denitrifies nitrified wastewater from most wastewater flows. The recirculation pump and assembly mixes nitrates and carbon throughout the media inside the tank. Bacteria grows on the media and uses the nitrates as oxygen, transforming the nitrates into harmless nitrogen gas. This continuous processing of the biomass with food and oxygen is efficient in a suitable environment to achieve high levels of nitrogen reduction. 800-753-3278;

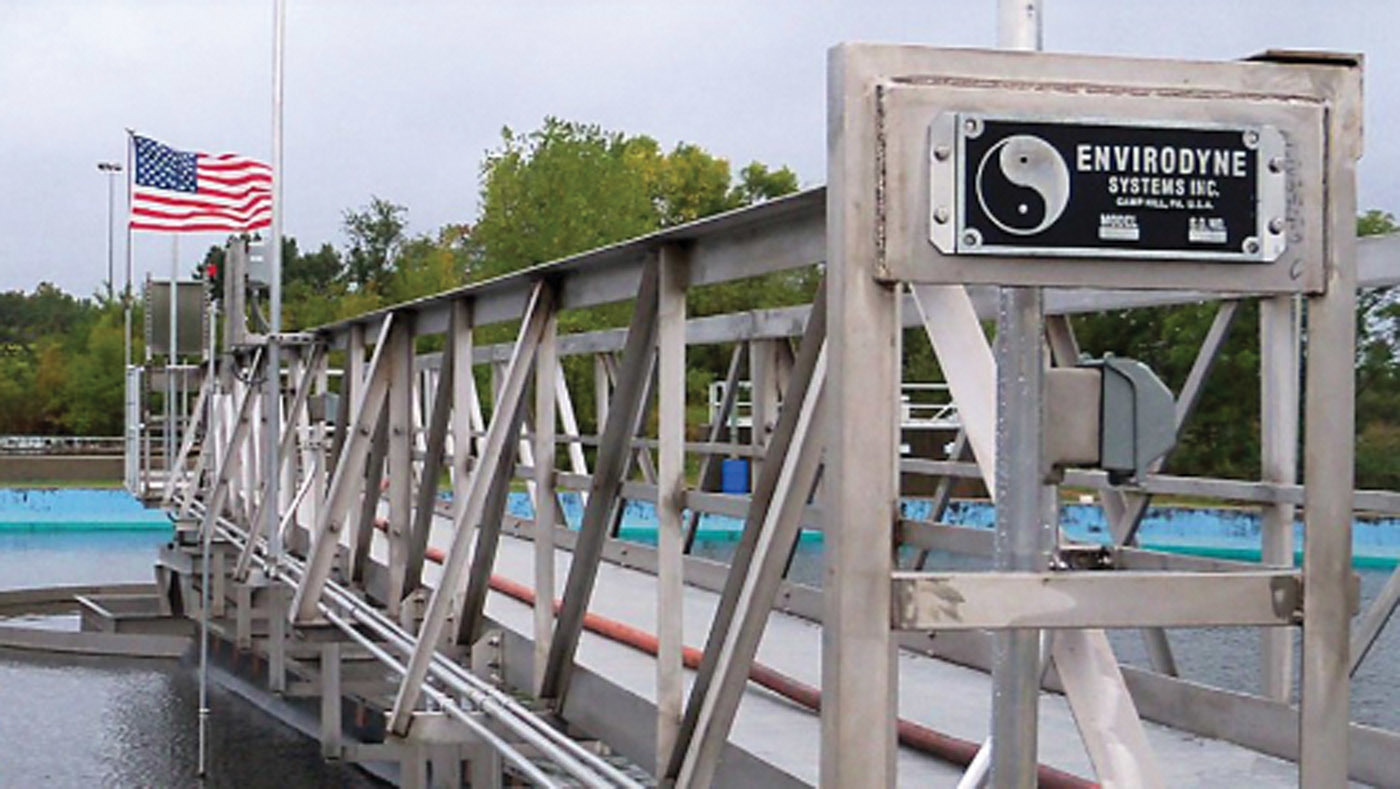

21st Century Clarifiers from Envirodyne Systems are equipped with Hercules drives, true full-radius scum troughs, RAS Booster Rings with spiral blades or suction headers, and algae control systems. Hercules drives are rated for both 100-year gear life and 100-year bearing life. The full-radius scum troughs include durable dual skimmers that clean both outside and inside the feedwell. The RAS Booster Ring creates highly concentrated, uniform return activated sludge to save pumping energy. The ring is also self-cleaning and features maintenance-free seals. Sealless designs are also available. The algae control system consists of an algae brush cleaner and/or algae spray cleaner. 717-763-0500;

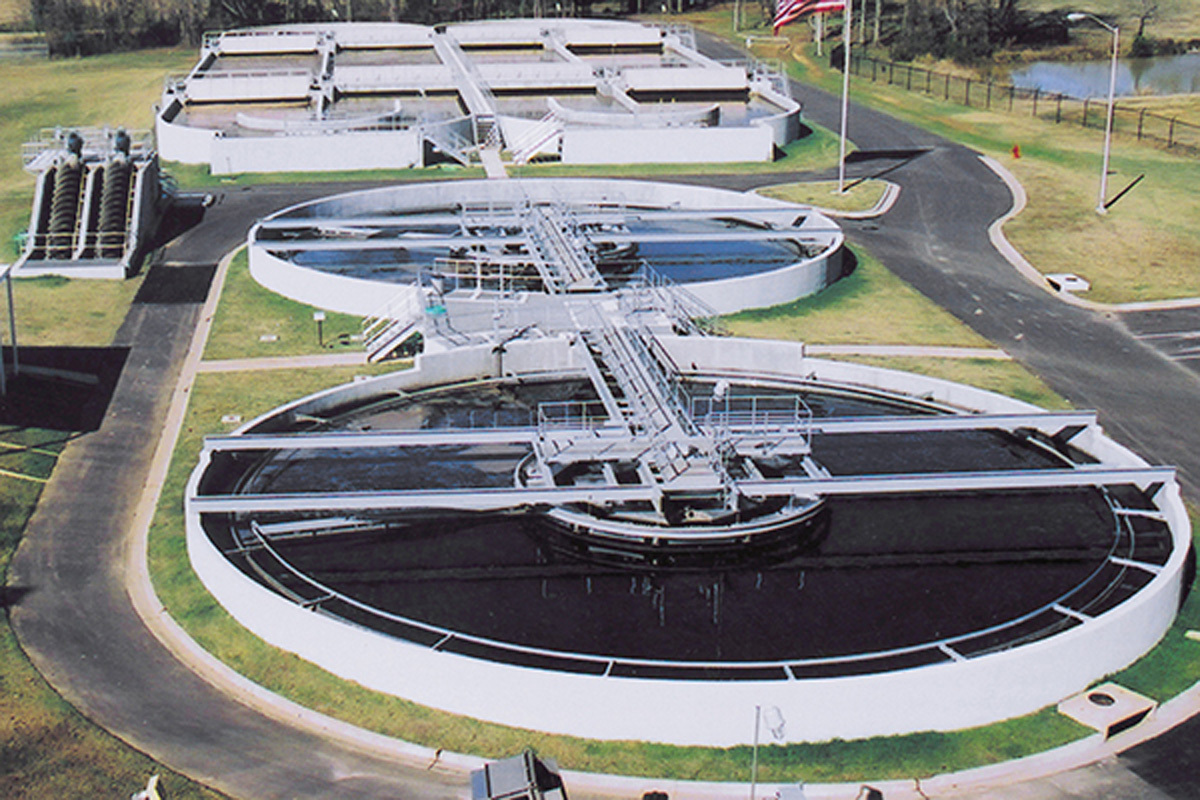

The Spiraflo clarifier from Lakeside is a peripheral feed clarifier designed for the removal of suspended solids in a primary, secondary or tertiary clarification system. Wastewater enters the outer perimeter of the clarifier tank and is directed along the narrow raceway formed by the skirt and the outer wall. This flow pattern dissipates the wastewater’s hydraulic energy as it flows around the raceway, eventually spiraling down underneath the skirt and into the main settling area. The flow travels inward from the skirt toward the center of the tank, coinciding with the direction of the sludge, and the clarified water rises into the centrally located effluent weir trough. The combination of the spiraling flow pattern and the skirt eliminates all possibility of short-circuiting and provides better utilization of the total tank volume for more effective settling. 630-837-5640;

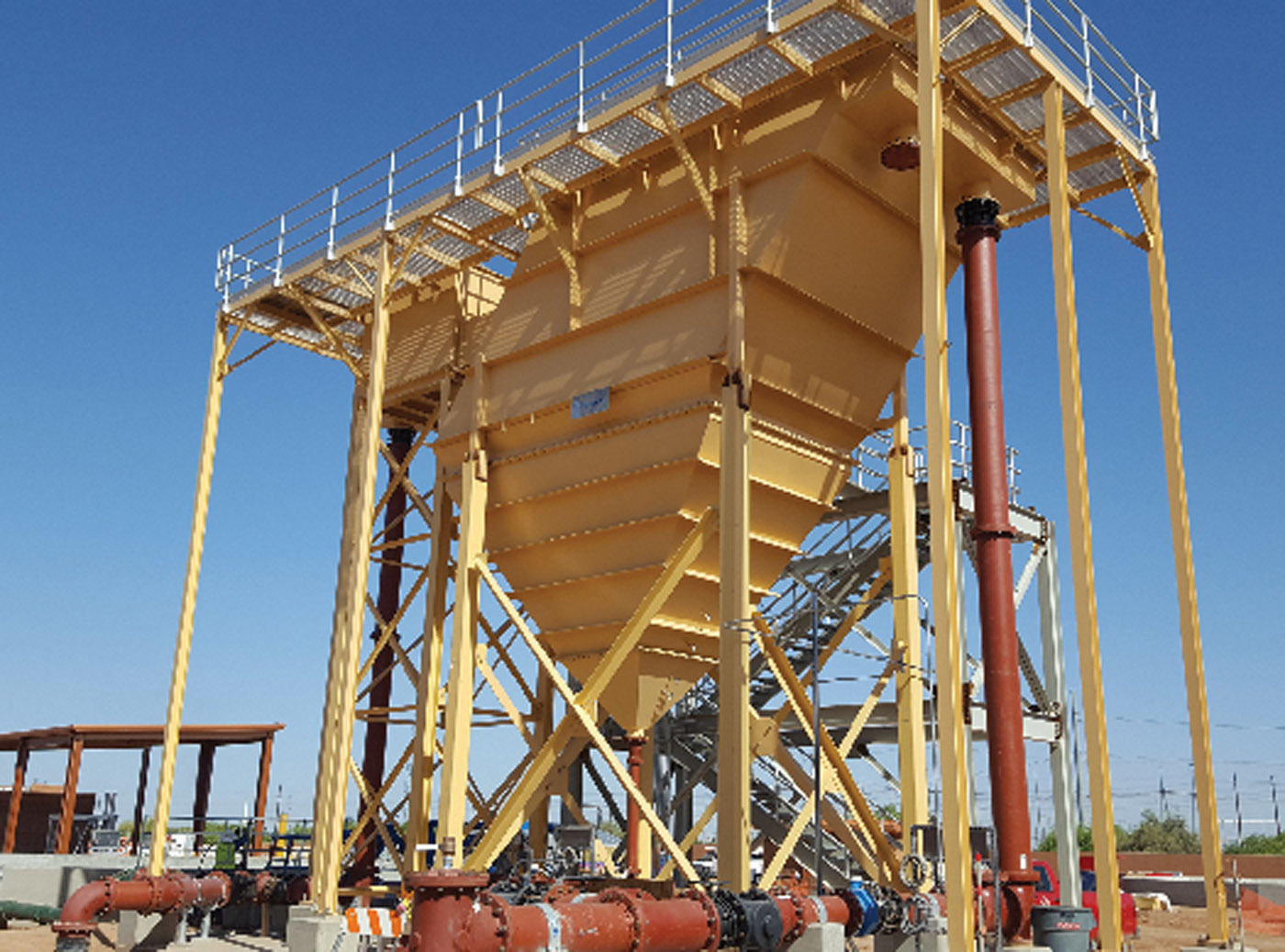

The Parkson Corp. Lamella EcoFlow inclined plate settler eliminates the area of interference at the bottom of plates and allows for 100% utilization of the plate settling area, translating to an increased capacity of up to 25% of the existing footprint. When compared to traditional clarifiers, it provides higher effluent quality, enhanced sludge thickening, less chemical usage downstream and an easy, cost-effective option to retrofit/upgrade older installations. In this process, chemically treated and flocculated water enters a tank and flows upward between a pack of inclined plates. Solids fall to the plate surface and, by gravity, slide down to a sludge collection hopper. Clarified effluent flows through orifice holes and exits the top of the settler. It can be used in municipal and industrial applications such as potable-water clarification, industrial process water, sand filter backwash, metal finishing and mining. 888-727-5766;

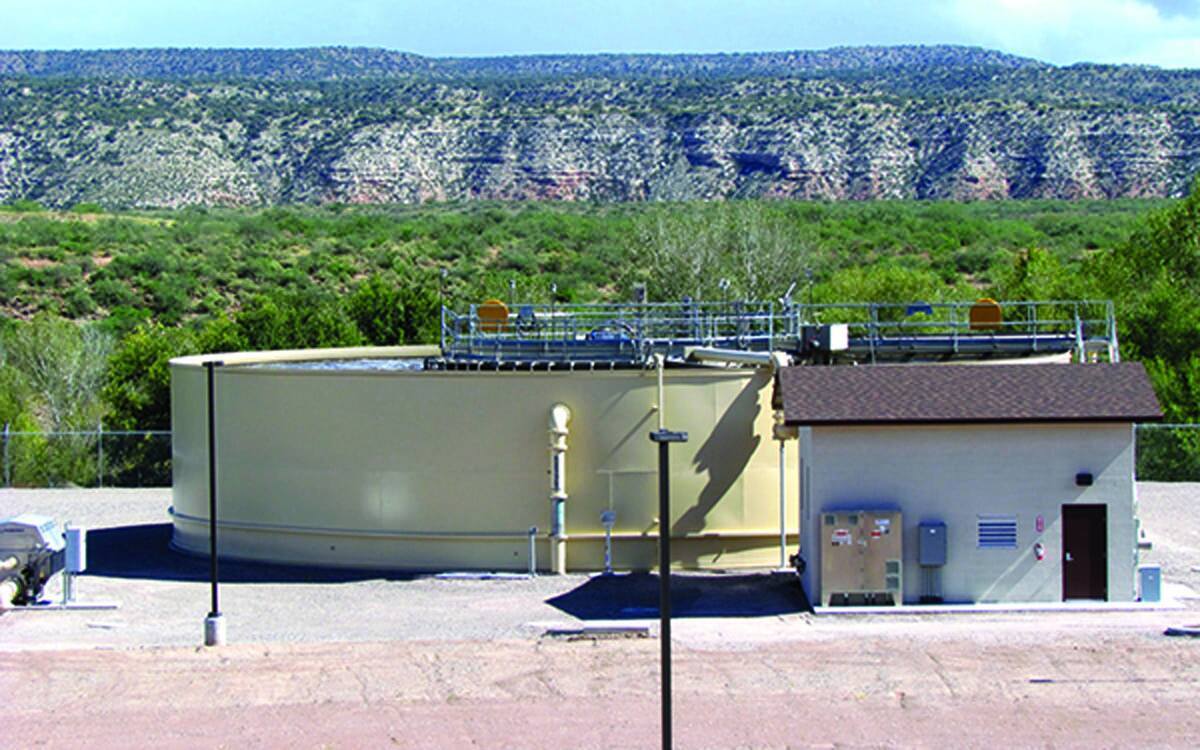

The Model R OXIGEST treatment system from Smith & Loveless provides stable operation and flexible process options for high-strength wastewater or larger flows up to 5 mgd. The field-erected design encompasses complete aeration, clarification and advanced treatment processes while allowing these units to be individually separated and controlled. The system achieves advanced nutrient removal and produces pristine effluent quality suitable for water reuse and direct or indirect discharge. Its concentric tankage maximizes space efficiency in its footprint, thereby preserving facility land for other key plant operations. Multiple aeration zones can be employed to provide specific activated sludge processes for desired treatment levels, including multistage aeration, complete mixed, plug-flow and nitrification/denitrification. Integral treatment process steps can include grit removal, flow equalization, reaeration, tertiary filtration, chlorination, dechlorination and sludge storage. 800-898-9122;

Coating and Lining

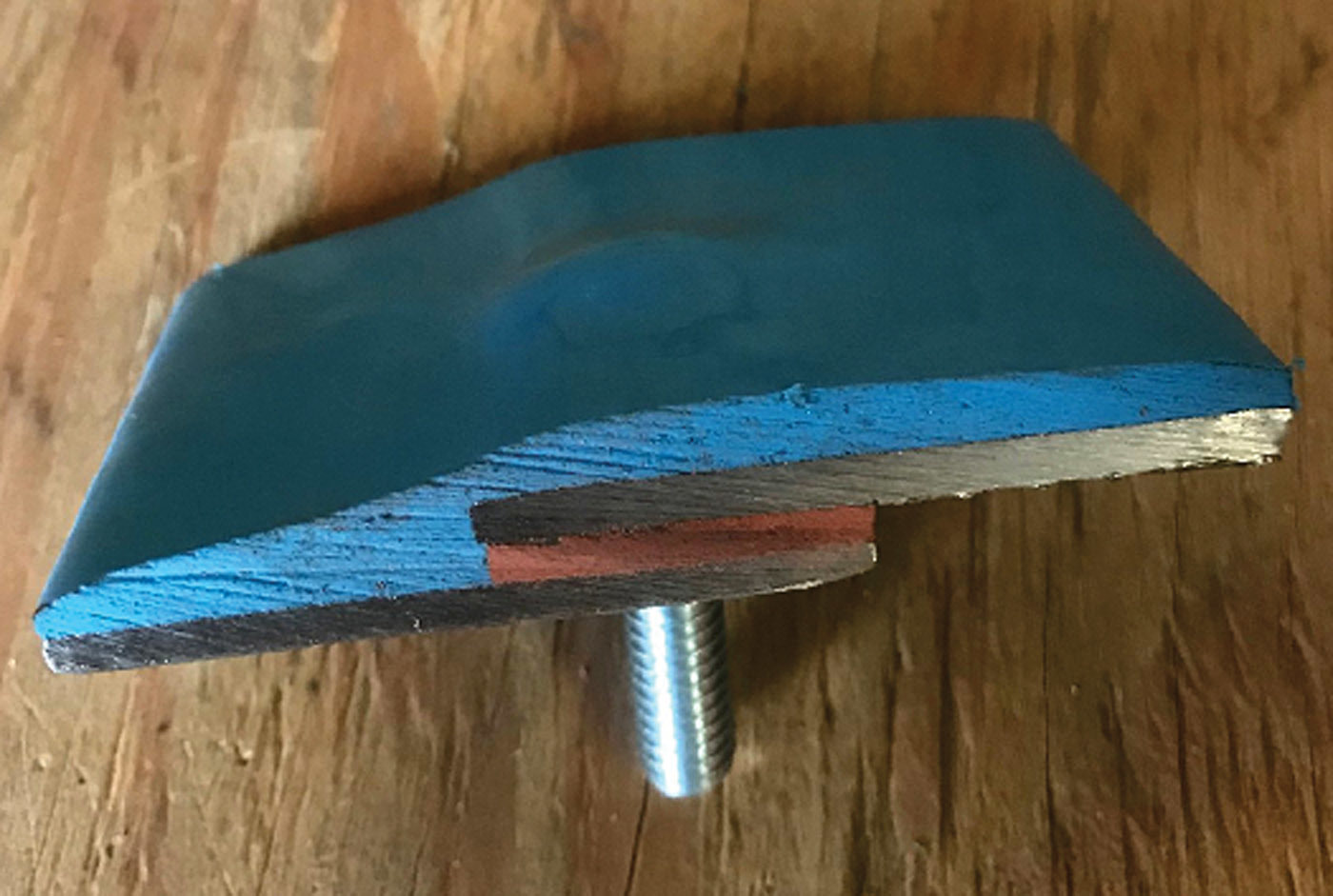

DuraChem 500 series spray-up elastomeric polyurethane lining systems from AmTech Tank Lining & Repair are formulated for the containment of wastewater, potable water, abrasive materials, chemicals and select corrosives. These 100% solids high-build lining systems have maximum flex modulus and extreme adhesion characteristics to permanently bond to most materials at the molecular level. They are compliant with requirements such as ANSI, NSF, NLPA, API and UL for specific immersion and containment applications. 888-839-0373;



The Double Membrane Biogas Holder from JDV Equipment is easy to install, has low upfront capital costs and requires low operating capital. Its design allows for variable biogas storage within the inner membrane at constant pressure during gas production and utilization, while the air-inflated outer membrane provides gas pressure and protection. The outer membrane is constructed of a high-tech, cross-woven fabric that’s coated with PVC- and UV-ray protection, proven to endure the weather elements. Sensors monitor the volume of gas present, giving operators full control of optimizing the utilization of biogas to feed generators and/or heating systems. Storing digester biogas can eliminate flaming from the digester, and it can help reduce or completely eliminate the need for electric grid power when generators and/or hot-water boilers are incorporated into the facility design. 973-366-6556;

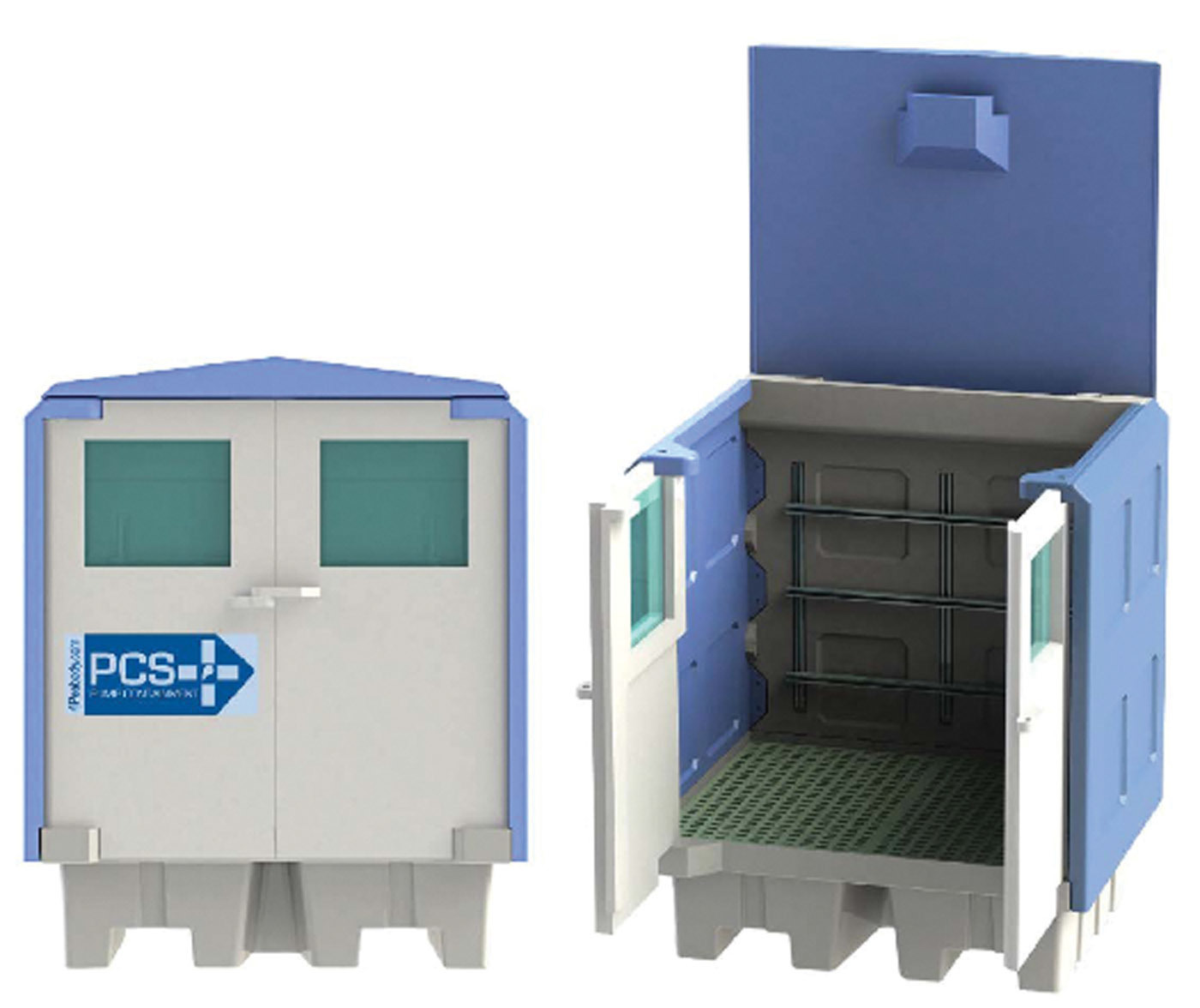

Peabody Engineering & Supply’s PCS-PLUS 4 enclosure can be designed for pumps and equipment that need secondary containment in a safe, secure, weatherproof and lockable cabinet. Durable UV-stabilized polyethylene construction makes it suitable for securing storage of chemicals, hazmat collection/response kits or other supplies in remote locations, treatment facilities, warehouses or construction sites. Its footprint allows for a large pump or multiple pumps. It includes standard internal grating to elevate equipment above the containment sump. Its large capacity with optional drain for overflows allows for Environmental Protection Agency-compliant storage of up to two 55-gallon-capacity drums or 60-gallon tanks. It includes a sturdy back wall for mounting pipe manifolds, control panels, coupon racks, calibration columns and an optional Unistrut mounting package for easy attachment of pipe manifolds. It offers flexibility in piping configurations, with multiple flat surfaces for installation of bulkhead fitting on the sides and back of the unit. 951-355-7724;

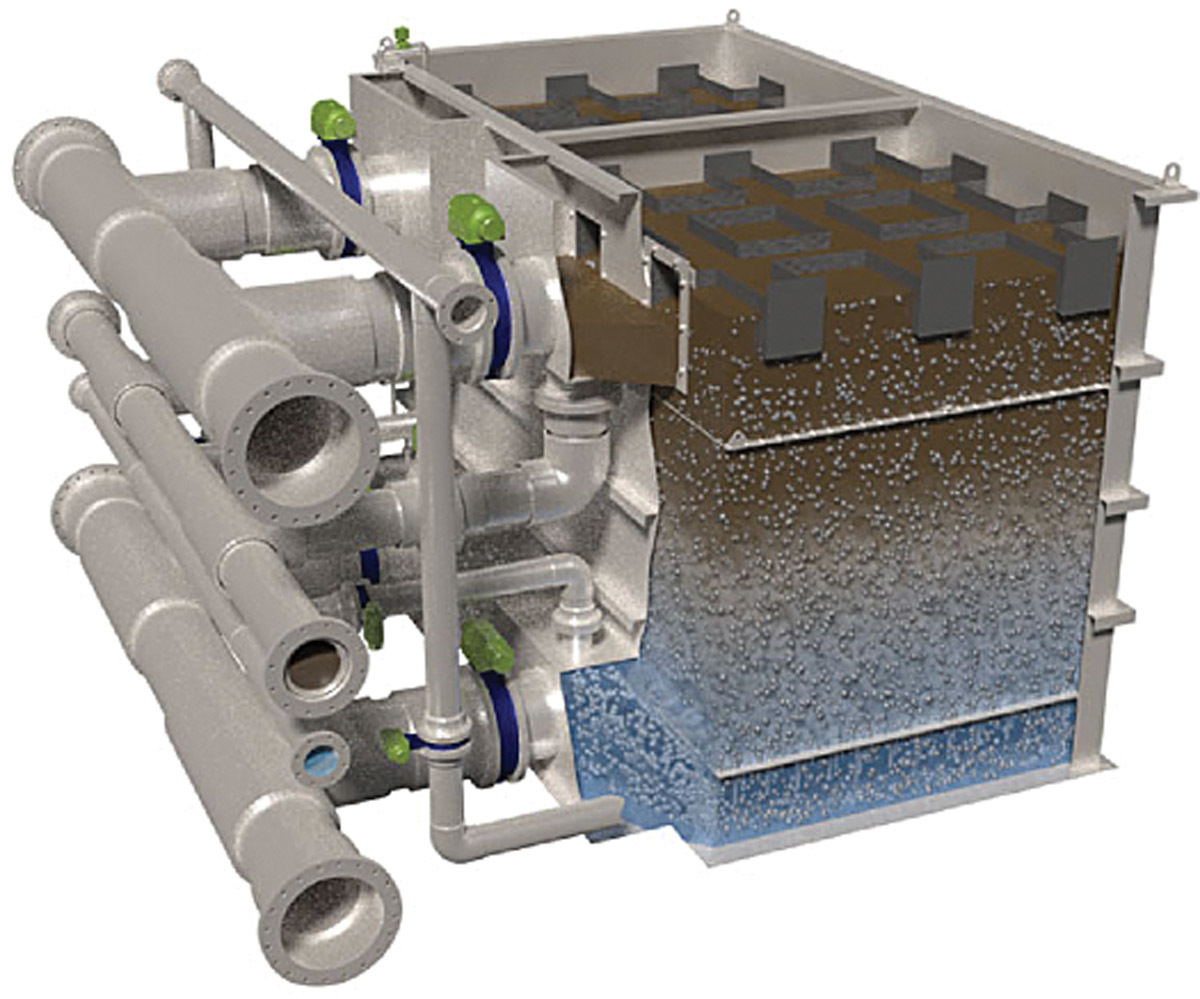

The FiltraFast media filter from SUEZ Water Technologies & Solutions is designed for treatment of high flows and includes compressible media to enable up to 10 times the loading rate of conventional media filters. The high-rate downflow gravity or pressure filter uses hydraulic loading to create the required media porosity with no mechanical compressing devices. The backwash sequence is designed to enable maximum recovery, extend media life and limit energy consumption. Units are available in different configurations and can be customized to specific applications. Based on project requirements, units can be fully shop-assembled and delivered, or erected on site. 866-439-2837;

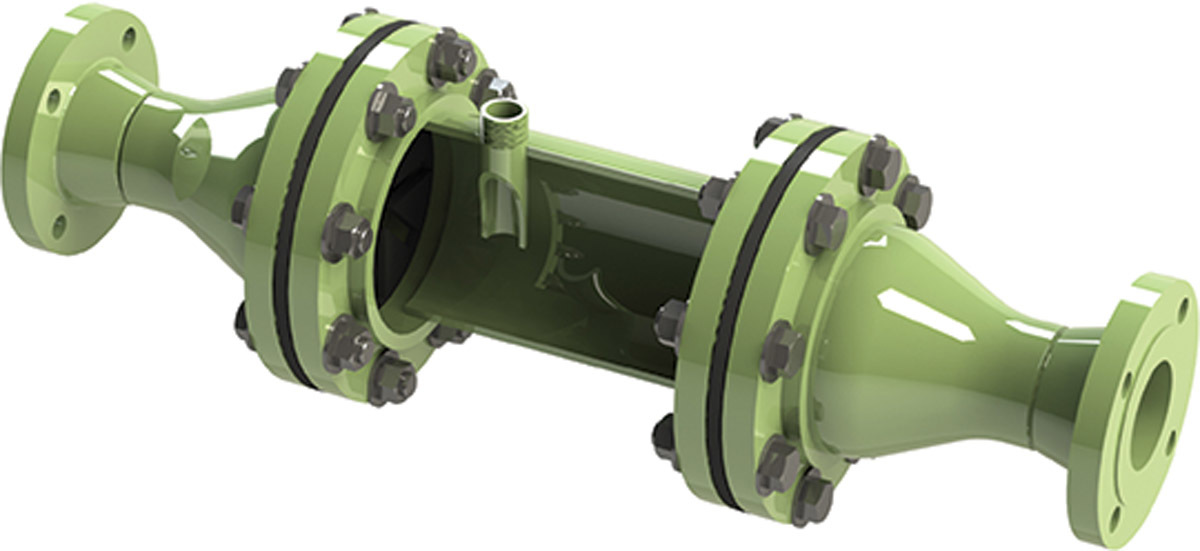

The VortaFlo static mixer from Park Process combines two mixing nozzles of different sizes to create turbulence and induce mixing. The addition of the injection quill allows chemicals or polymer to be injected in the mixing zone past the turbulence-creating nozzle prior to passing through the mixing nozzle. In the case of polymer flocculating biosolids, the turbulence nozzle causes the biosolids to roll in the mixing chamber so the polymer has maximum contact with biosolids particles prior to passing through the mixing nozzle, where flocculation is promoted. It is available in sizes ranging from a 1-inch inlet/outlet and 2-inch mixing chamber to a 12-inch inlet/outlet and 20-inch mixing chamber. 855-511-7275;

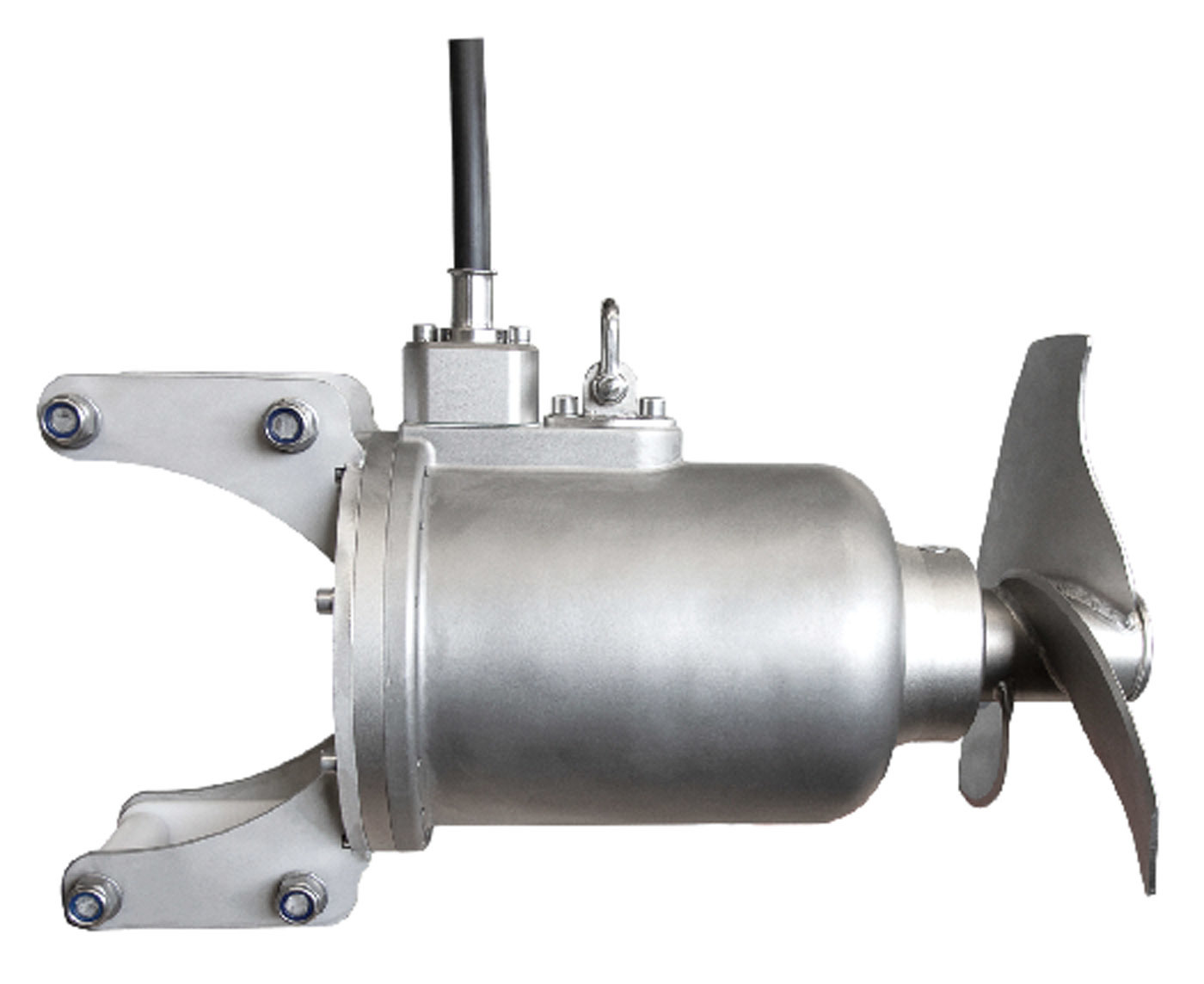

The Optimix 2A from SUMA America is a low-power agitator mixer made entirely of stainless steel. It completely meets the requirements of energy-efficient mixing technology for stirring and homogenizing aggressive media. It offers comparatively high thrust regarding the low nominal output of 1.0/2.0/3.0 hp, with a three-bladed, stainless steel propeller manufactured in a complex embossing process. It is available in diameters of 8.6 to 11.0 inches. The submersible mixer masters dry matter contents of up to 4% and aggressive media with pH values between 5.5 and 8.2 effortlessly. The application range includes various industrial sectors such as water and wastewater management, but it can also be used in the biogas sector. 312-945-9049;

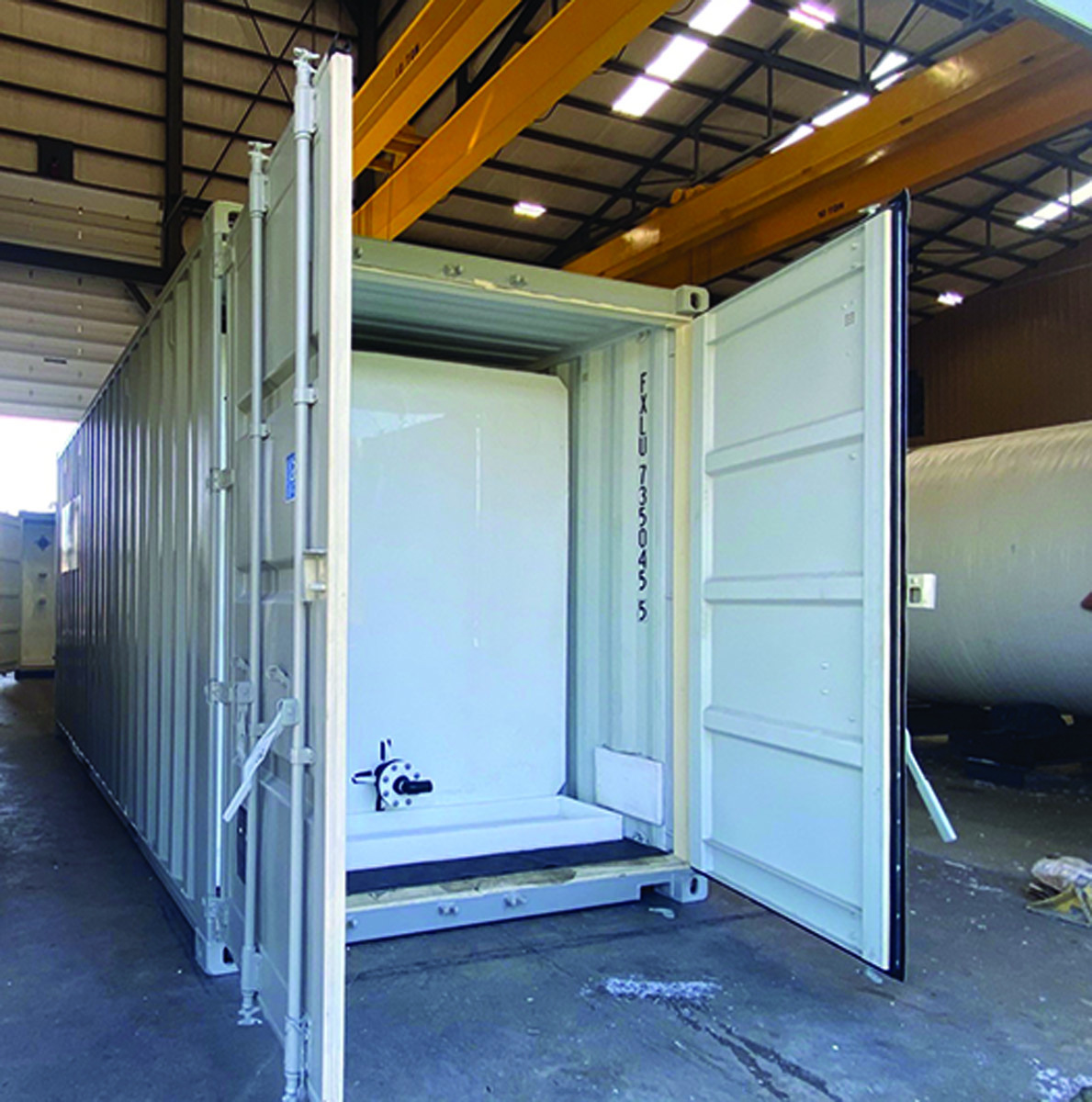

Houston PolyTank fabricates industrial-strength plastic storage tanks to handle a comprehensive range of water, wastewater and chemical storage, including process tanks and reactor tanks. The tanks are designed and extruded to handle harsh chemical (pH levels of 0-14) and environmental conditions. Molds produce rectangular plastic tanks up to 18,000 gallons in capacity. The rectangular tanks are structurally sound, require little maintenance, and have 1-inch-thick sturdy walls and 1.5-inch-thick end walls. Because of their shape, rectangular tanks can offer cost savings for shipping compared to cylindrical tanks. Popular rectangular tank design options include insertion into frac tanks, metal caged trailer tanks and standard shipping containers. 800-852-8265;

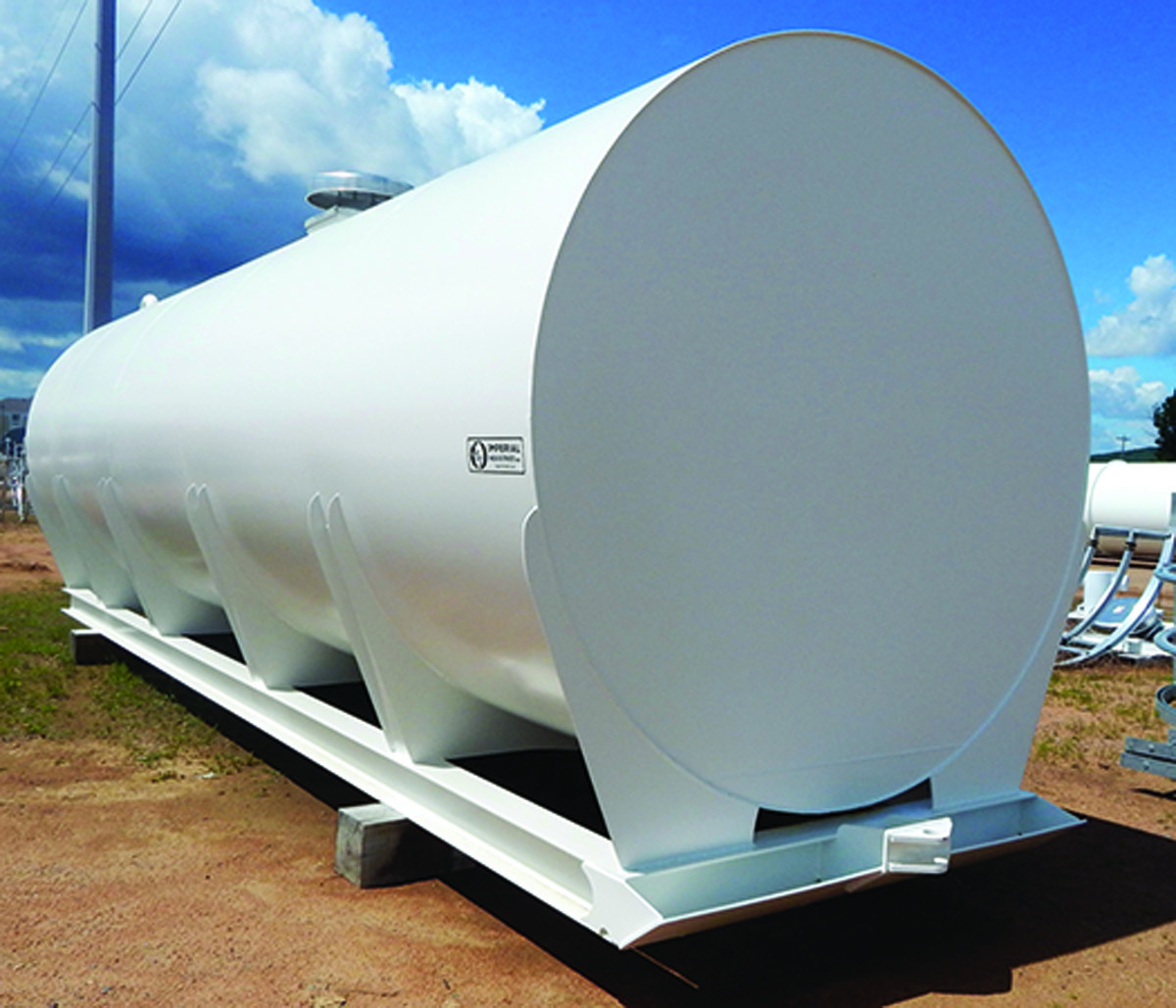

The 12,500-gallon storage tank unit from Imperial Industries includes a 6-inch dump, 4-inch intake, heavy-duty pull skid attachment and level indicator. Available options include custom tow, hitch and axle packages, and intake agitation. It is designed for various applications, including field edge load and unloads, shop or yard storage, and grease separation. 800-558-2945;
