Belt Filter/Rotary Presses

Alfa Laval AS-H KPZ belt press

The Alfa Laval AS-H KPZ belt press is designed to allow high solids loading while maintaining a high hydraulic throughput. Performance results in ideal sludge cake dryness in a layout that allows for an operator floor-level view of the gravity deck. It is suitable for all municipal biosolids and residual sludge types and a wide variety of industrial solid/liquid separation applications, such as paper, petrochemical, mineral, food processing, pharmaceutical and chemical. It incorporates variable energy mixing, flocculation, gravity drainage and pressure filtration. The design allows for decreased civil construction costs, elevated cake discharge height and low maintenance requirements. 866-253-2528;

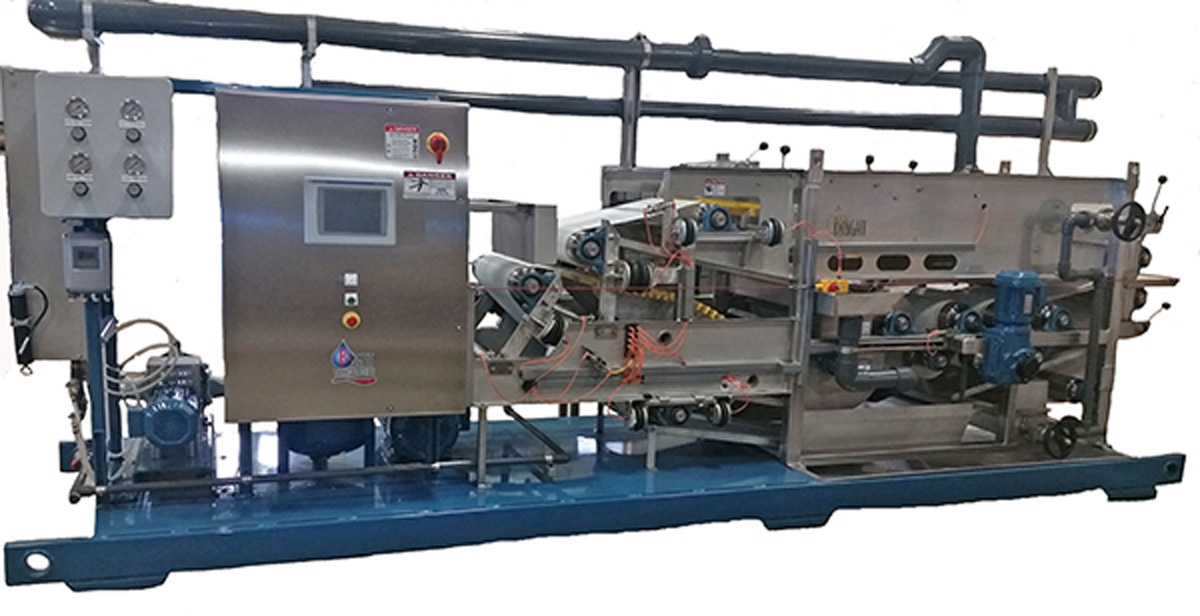

Bright Technologies, Division of Sebright Products, 0.6-meter skid-mounted belt filter press

The compact 0.6-meter skid-mounted belt filter press from Bright Technologies, Division of Sebright Products, has stainless steel frame and roller construction, as well as radius wedge zone and wing roller for sludge dewatering. Components include a sludge pump, polymer system and wash-water booster pump. Options include a sludge flowmeter, air compressor and discharge conveyors. The compact walk-around skid design can be utilized in as little as a 10-by-20-foot floor area. The Boerger rotary lobe sludge pump has a maintain-in-place design offering ease of maintenance. Cake solids of up to 35% can be achieved. Rates of 25 to 50 gpm make it ideal for small applications or when a processor has outgrown dewatering containers. 800-253-0532;

Biosolids Handling/Hauling/Disposal/Application

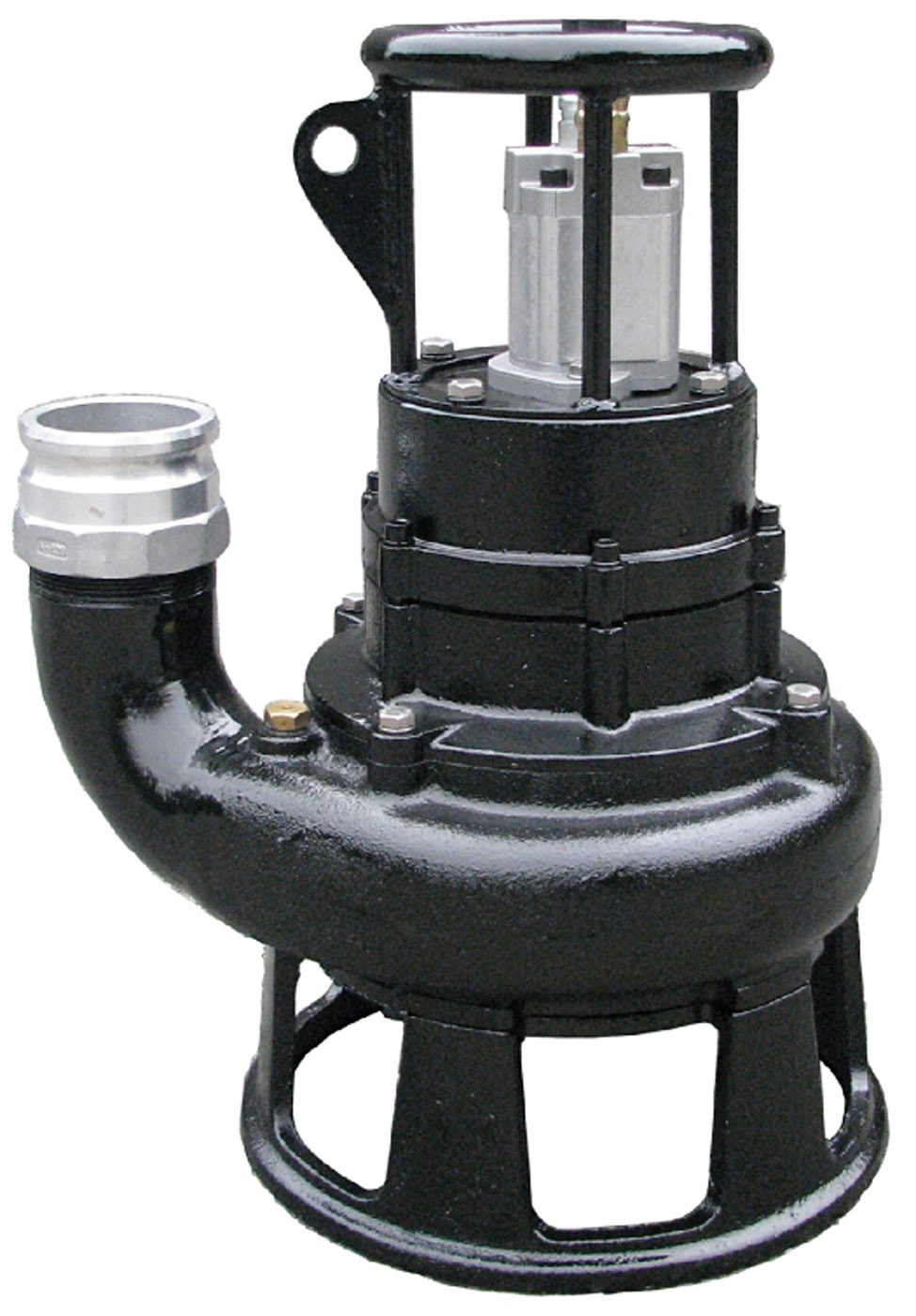

Hydra-Tech Pumps S4SHR-LP

The S4SHR-LP 4-inch hydraulic submersible shredder pump from Hydra-Tech Pumps continuously rips and shears solids with a 360-degree shredding action. The carbide-tipped impeller and hardened macerator suction plate work together to produce a violent shredding action that keeps the discharge open. It is 21.5 inches, which allows it to fit through most manholes. Depending on the application, there is a version for portable or fixed installations. A guide rail assembly is available for stationary applications. Combined with HT15 to HT35 power units, it is capable of flows up to 810 gpm. The safe and variable-speed hydraulic drive can be used where electric power is hazardous or impractical. 570-645-3779;

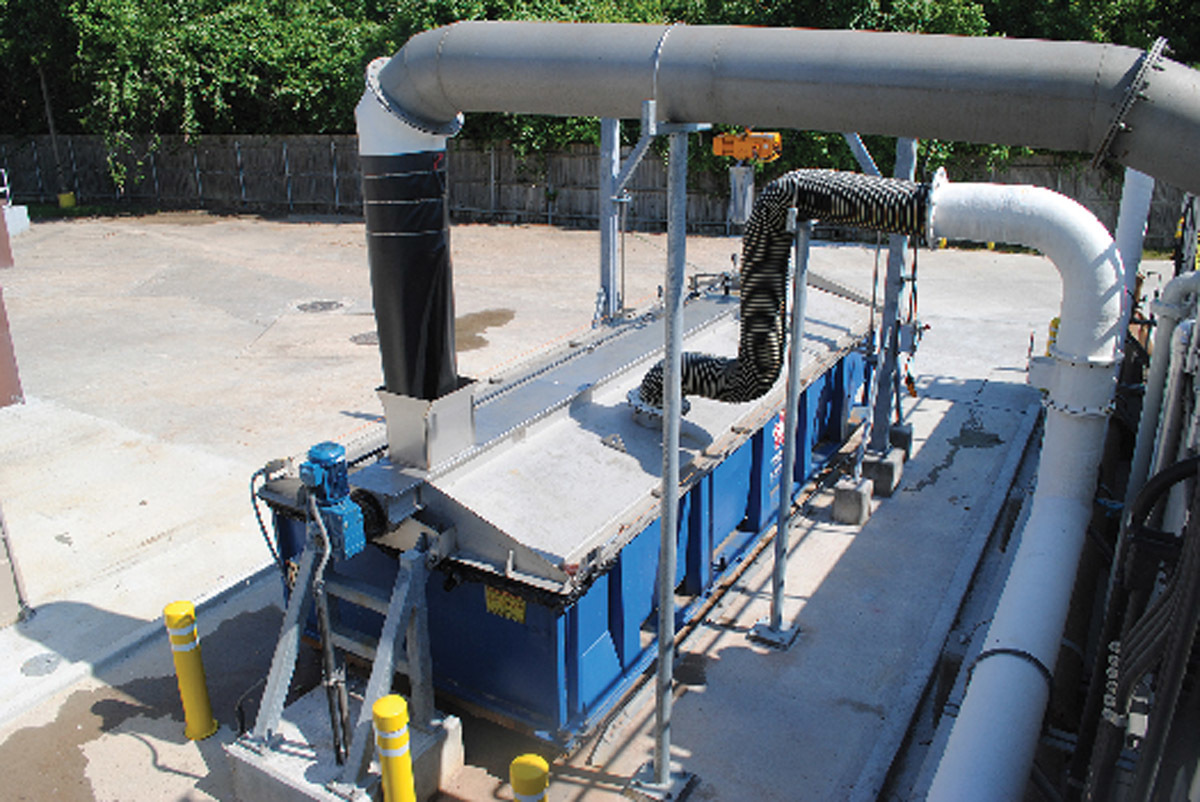

JDV Equipment Level Lodor

The Level Lodor cover system from JDV Equipment helps contain odors by covering standard dump containers used for hauling processed material. The design allows for even distribution, increasing the fill percentage without having to manually even out material. Enclosing containers allow outdoor installation without exposing material to the environment or pests. 973-366-6556;

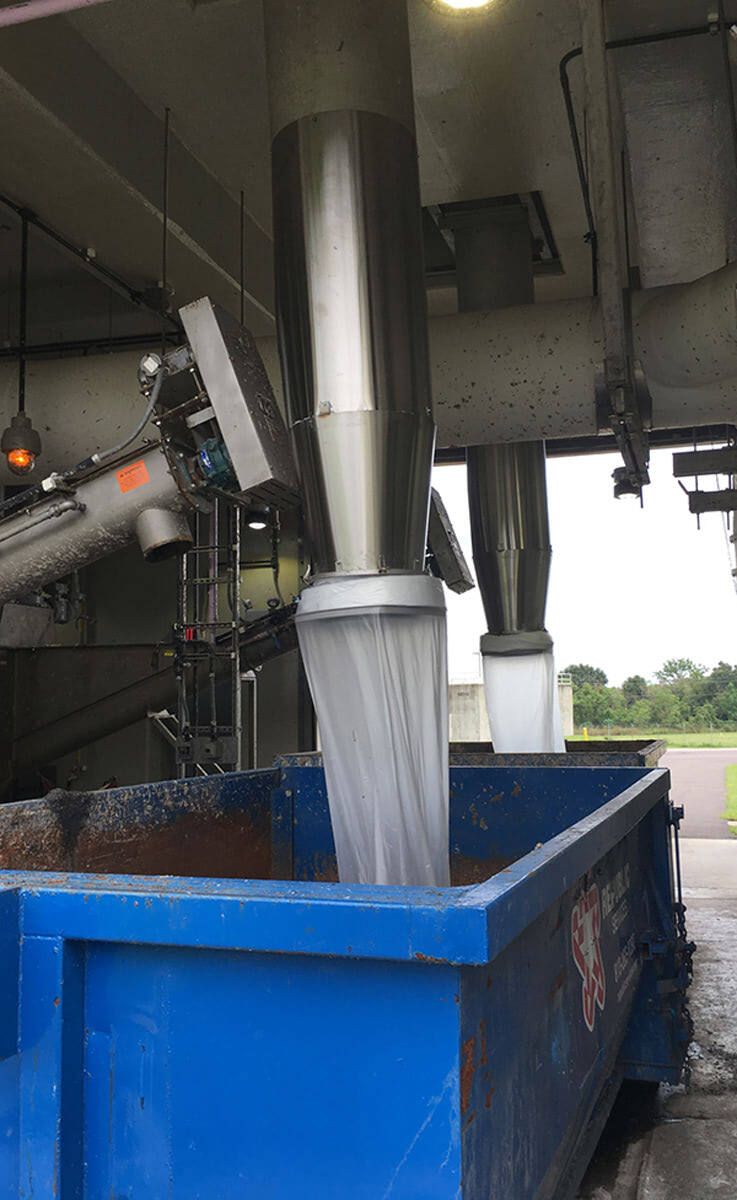

Paxxo Longopac Fill

The Longopac Fill continuous bag system from Paxxo can connect to the discharge point of machines used to move, dewater or compact screenings, grit and biosolids. Material is then deposited in a 90-meter-long continuous bag for odor containment and spillage control. The cassette bag can be sealed with ease, and the material and odors are trapped inside, cutting down development of bacteria and fungus spores. 770-502-0055;

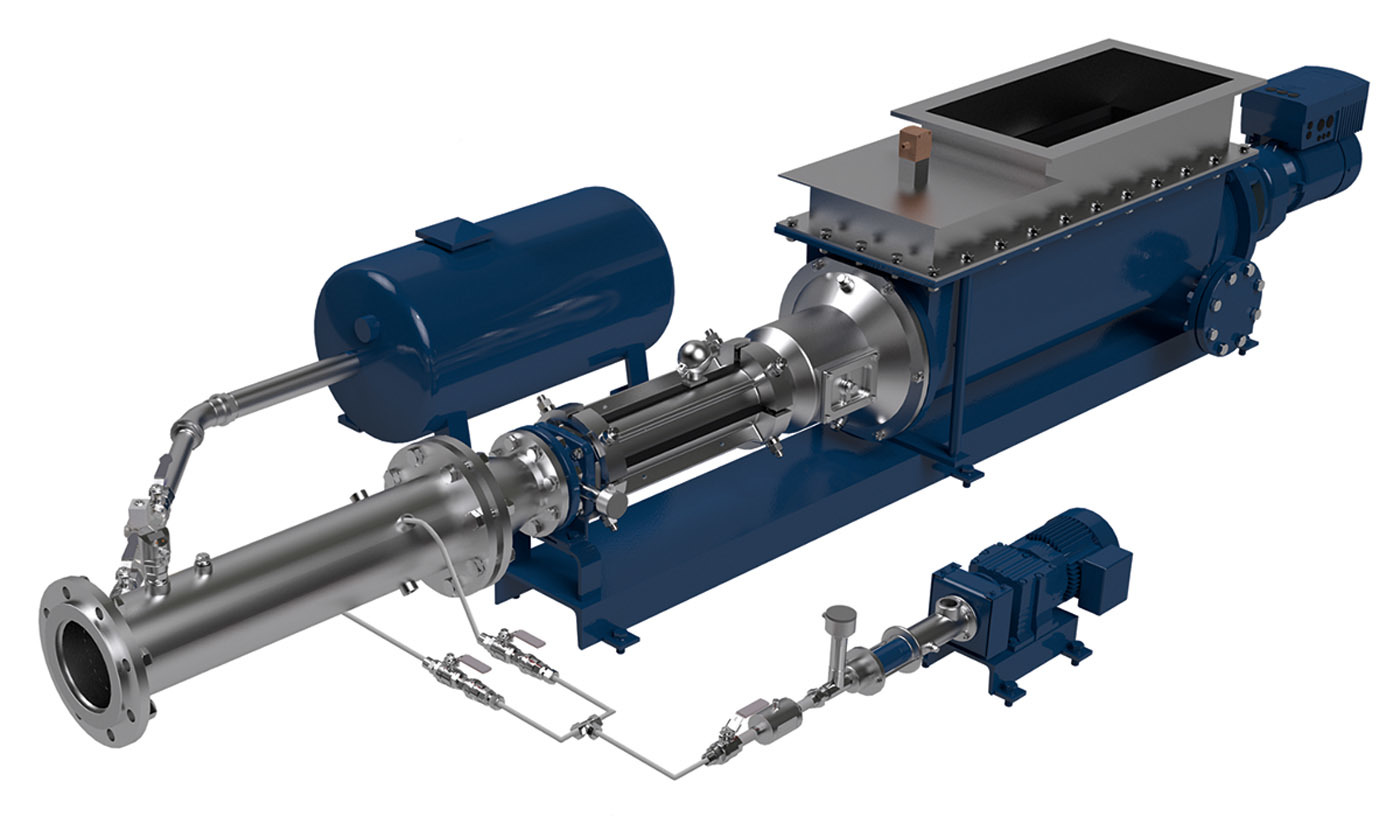

SEEPEX Smart Air Injection

Smart Air Injection, or SAI, is a SEEPEX customized system solution for pumping over long distances. The system uses compressed air and polymer injections to convey biosolids, or other media with a dry matter content of 20% to 40%, over distances of up to 1,000 meters. This combination ensures a low pressure level in the delivery line, as well as low friction, which translates into a long life cycle and low operating costs. The system is easy to integrate into existing automation and control systems; reduces the pressure rating of the pipework and valves; and is an enclosed pipework system, eliminating unpleasant odors or rainfall dilution. Open-hopper SAI systems with Smart Conveying Technology reduce maintenance time by up to 85% with the maintain-in-place design, requiring no disassembly of discharge pipework. 937-864-7150;

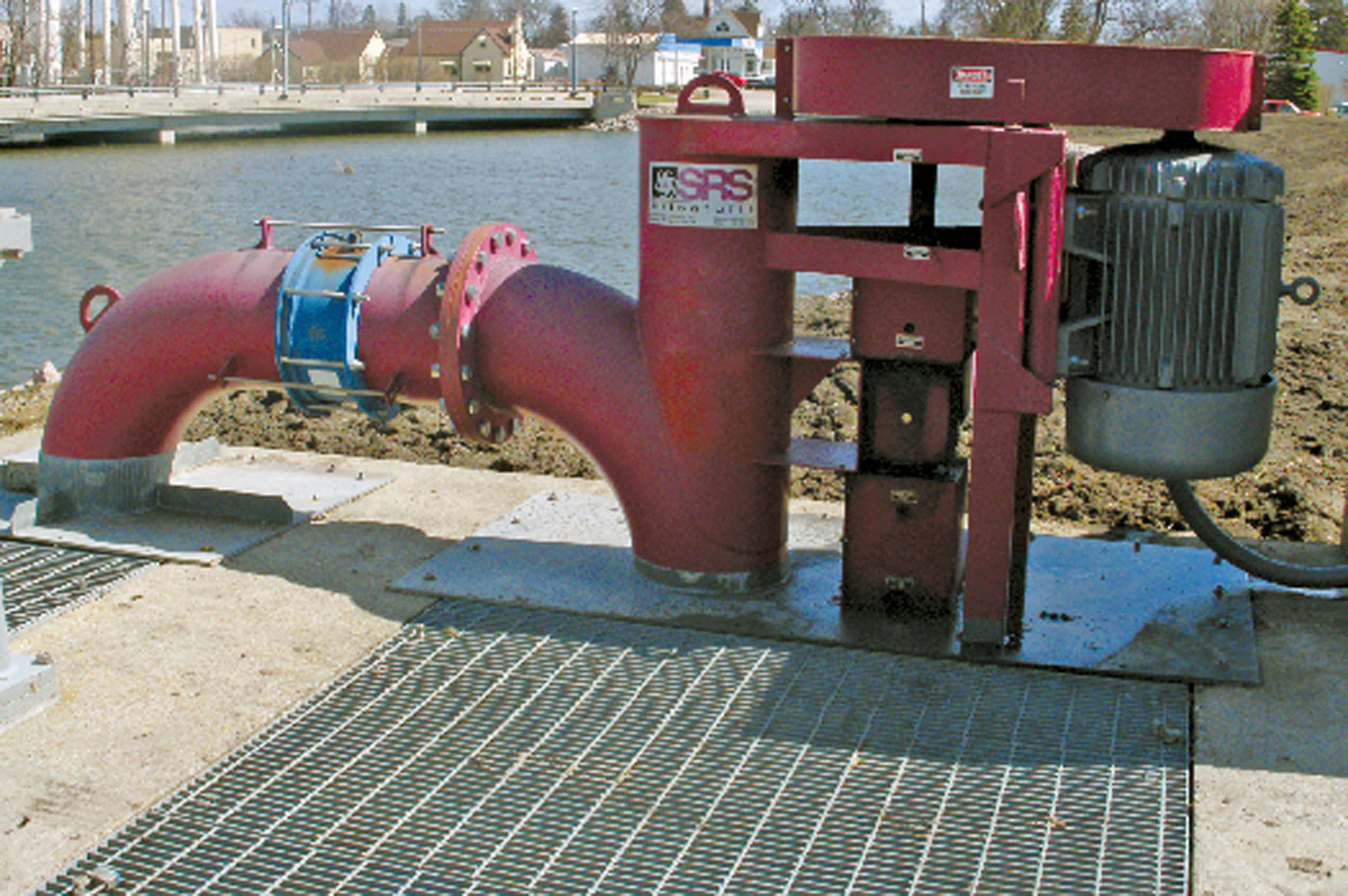

SRS Crisafulli System vertical pumps

SRS Crisafulli System vertical pumps are designed for stationary applications, such as sewage digesters and lift stations, manure tanks, chemical sumps and dry docks. They are submersible, centrifugal pumps that range in size from 2 to 24 inches. The pumps require no priming, check valves, suction pipes or screens, and they are self-drained. Steel construction ensures long life and trouble-free operation. The pumps pass large solids and pump high-weight/high-viscosity fluids with ease. Standard Duty pumps move relatively clean water and are equipped with grease-lubricated, sealed bearings. Severe Duty vertical pumps move sand, silt, mud, sludge or abrasives; are constructed with abrasion-resistant, heat-treated steel (450 Brinell hardness); include dual mechanical shaft seals (to prevent contamination); and have an enclosed, oil-filled bearing frame, allowing the pump to perform in demanding environments. 800-442-7867;

Biosolids Heaters/Dryers/Thickeners

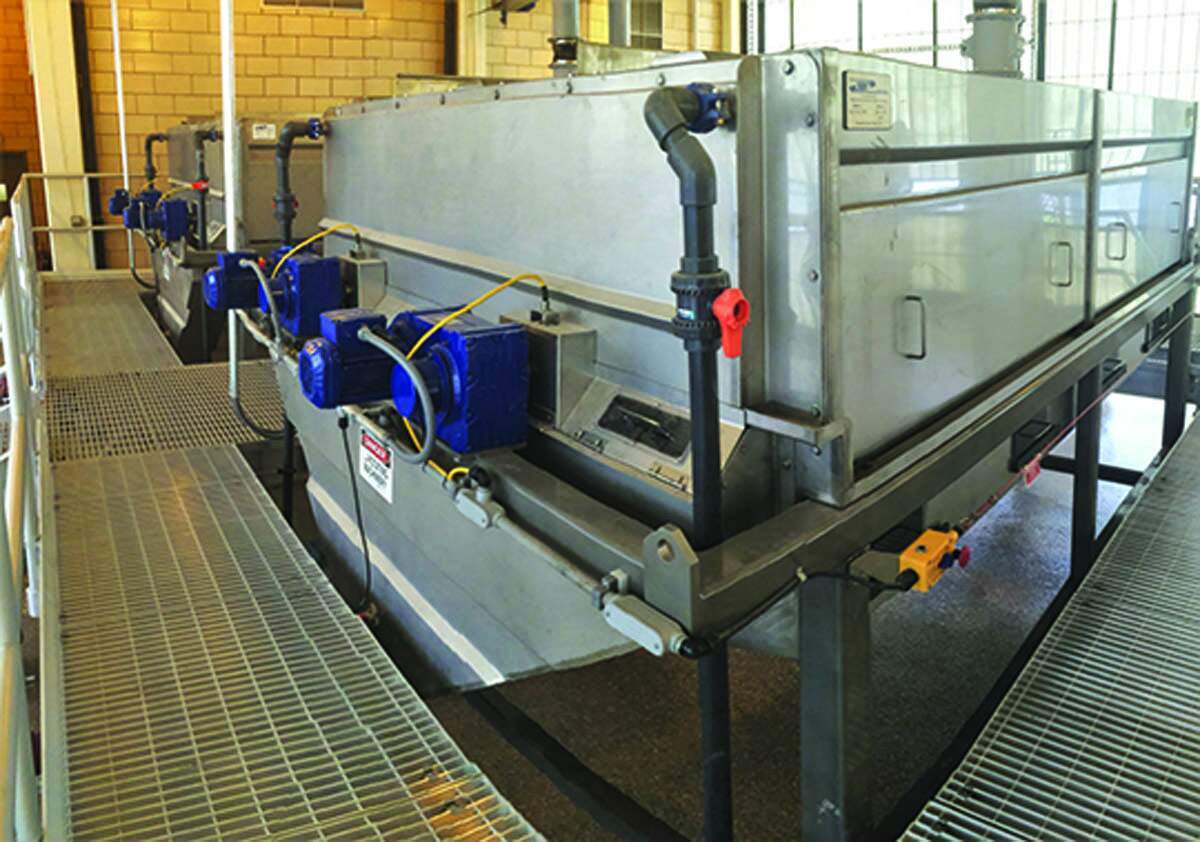

BDP Industries rotary drum thickener

The rotary drum thickener from BDP Industries is a suitable solution to thicken at water and wastewater treatment facilities. Internally baffled thickening zones lead to higher solids capture and higher throughput capability, all with reduced polymer usage. A full stainless steel construction with all bearings located outside of the enclosure makes operations and maintenance activities simple and easy. 518-796-1440;

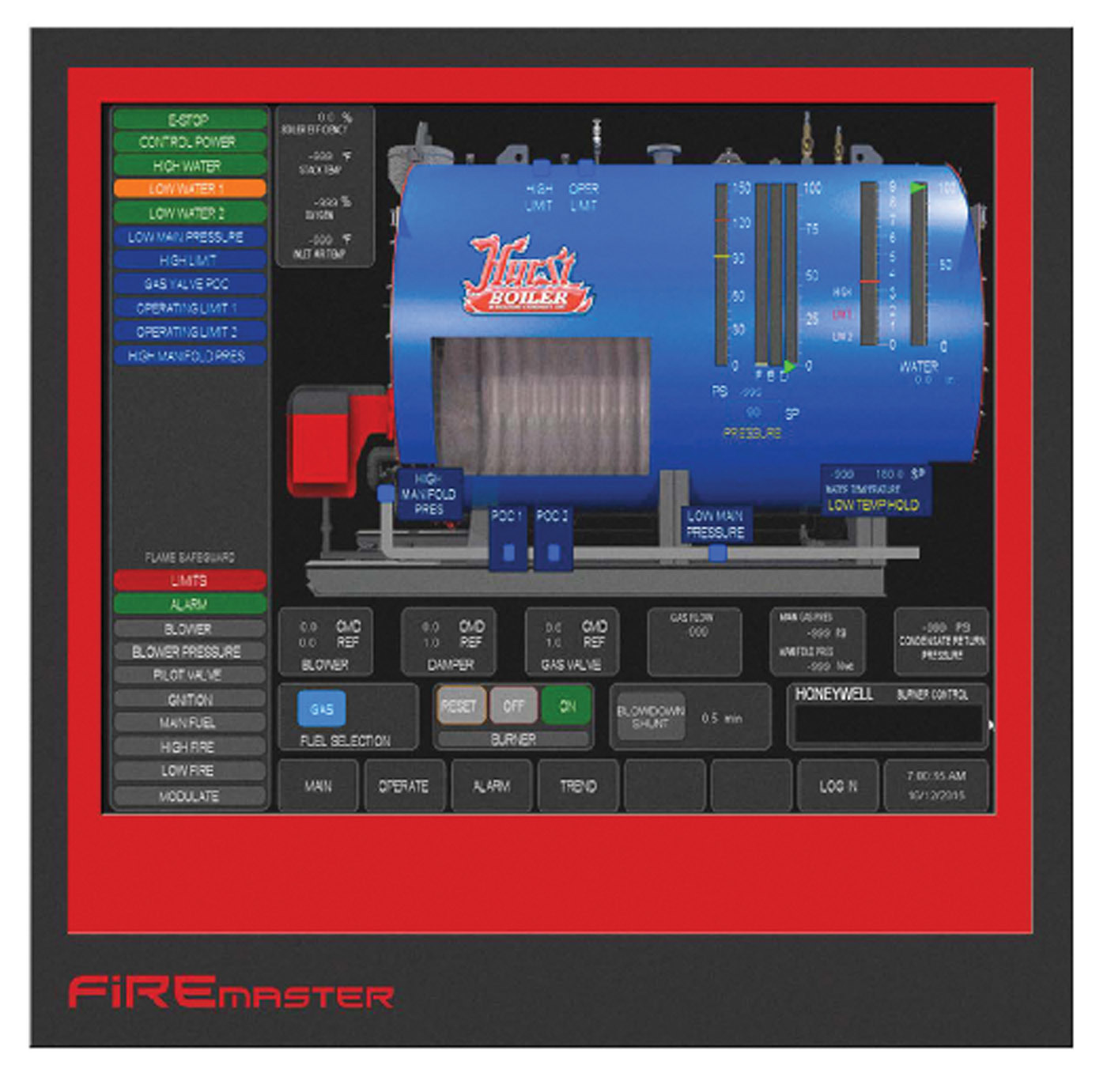

Hurst Boiler Firemaster Integrated Controls

Firemaster Integrated Controls from Hurst Boiler optimize the boiler lead/lag operation by continually monitoring the rate of change in steam pressure, which allows a single packaged boiler or multiple packaged boilers to work together efficiently to achieve system setpoints. They enable fuel flexibility, with automated fuel changeover to maintain constant header pressure. The onboard automated monitoring control system is designed for the optimal control and operation of a single boiler/burner package. It brings all boilers and equipment to a single collection control point. Monitor and control steam and hot-water operations from an on-site touch screen, remotely from a smartphone via secure internet, or through a SCADA building automation system. Real-time data of efficiency and operating conditions are reported on a continual basis, and this information is archived daily into the system’s history log and retrievable at any time. 229-346-3545;

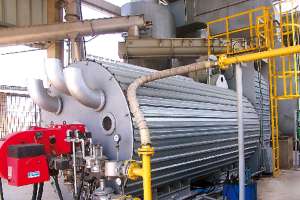

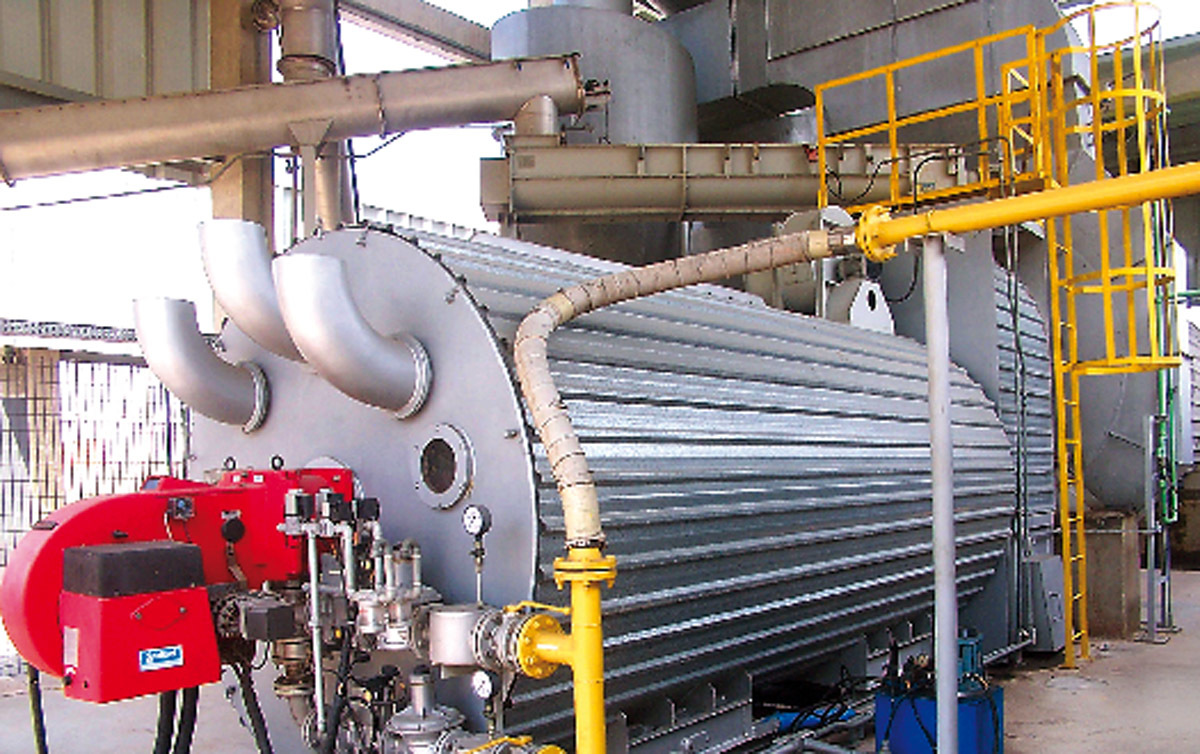

Pieralisi North America sludge thermal dryer

The sludge thermal dryer from Pieralisi North America is totally automated and easy to operate. It reduces sludge volume by 75%, producing Class A biosolids. It is self-sustainable with biogas as fuel from biodigesters or energy from waste gas turbines. It uses AISI 316L stainless steel for all contact parts, needs only a small area for installation and has low maintenance cost. Its operation uses negative pressure throughout the system, avoiding gas emissions, dust and odor. The dried sludge has a spherical shape of 0.5-inch average diameter. 513-760-9077;

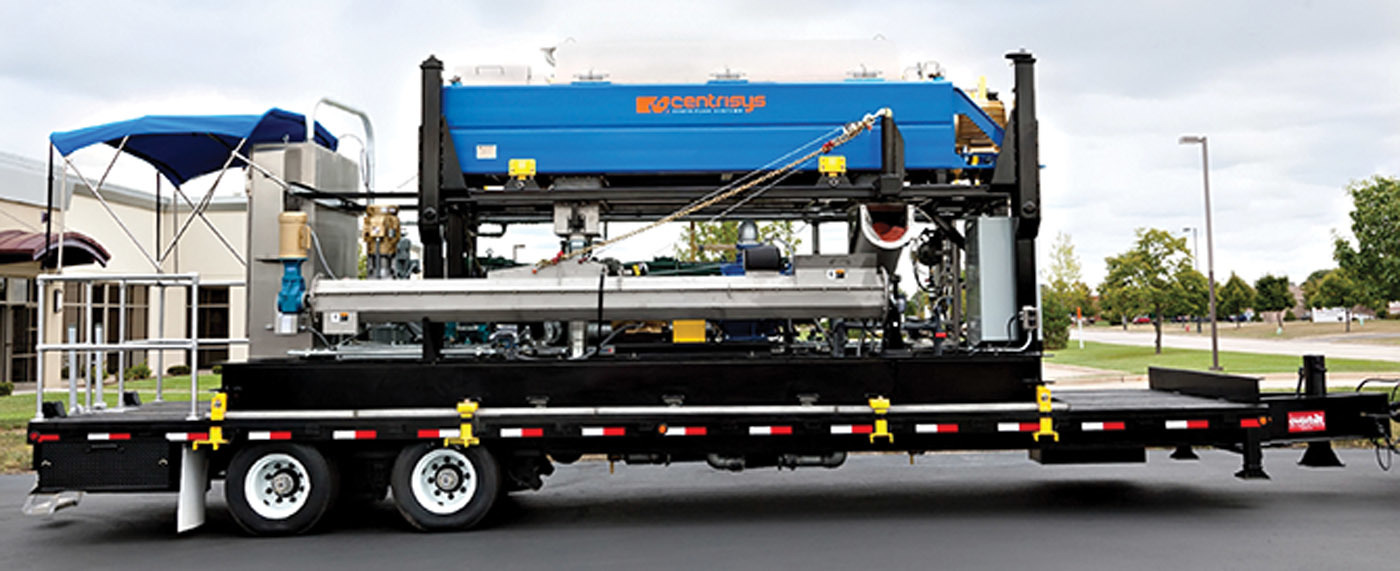

Centrisys/CNP centrifuge

Centrifuges from Centrisys/CNP apply 3,000 g (G-force) to dewater solids while accelerating the liquid end sedimentation of fine particles, resulting in drier solids and cleaner discharge water, which may reduce disposal costs. With a hydraulic back drive system, a centrifuge delivers high torque and low horsepower to reduce moisture in an energy-efficient manner. The three-phase centrifuge divides feed into solids, water and FOG from the grease trap or other biodiesel production sources. Inside the centrifuge, lighter oil separates from the water and discharges through an adjustable nozzle, while the heavier solids dewater and discharge from the opposite end. Centrifuges are available with flow rates of 5 to 700 gpm and can be a stationary skid-mounted unit or a mobile trailer. 262-654-6006;

Chemical/Polymer Feeding Equipment

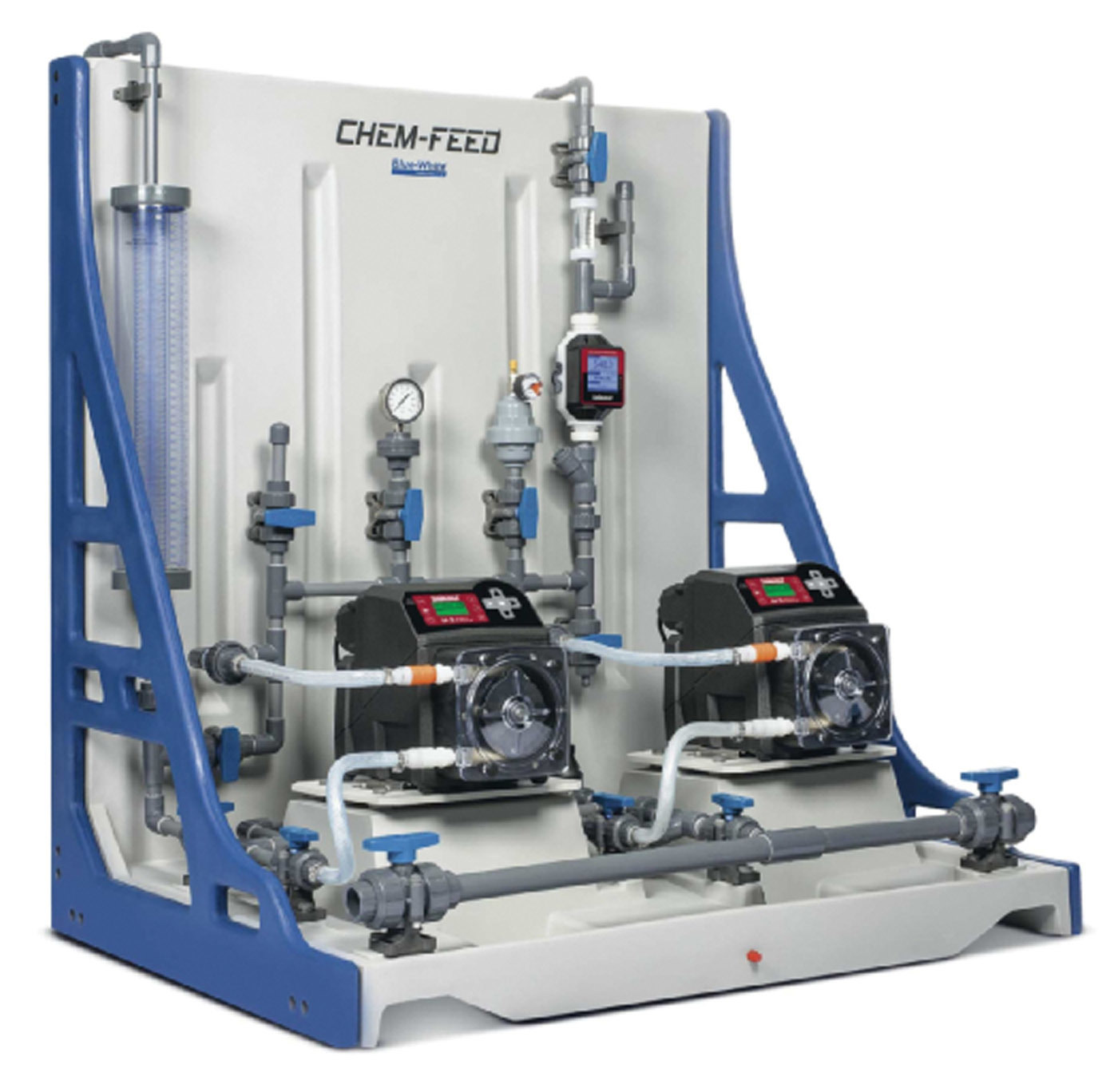

Blue-White Industries ProSeries-M CHEM-FEED

ProSeries-M CHEM-FEED polyethylene engineered skid systems from Blue-White Industries are complete solutions designed to dose liquid chemicals from a tank to an injection point in the process. The systems can be equipped with the ProSeries-M pump of the user’s choice, and both diaphragm-type and peristaltic-type pumps are offered. If requested, the metering pumps can be installed on the skids before shipment. Single- and two-pump units are available on skids constructed of chemical-resistant polyethylene with a drop-in-place design. Components include a visual flow indicator and an optional chemical feed flowmeter. Plast-O-Matic components include vented ball valves, gauge guard and pressure relief valve. They also feature Flex-A-Prene tubing designed to stay flexible and leak-free in chemical environments. 714-893-8529;

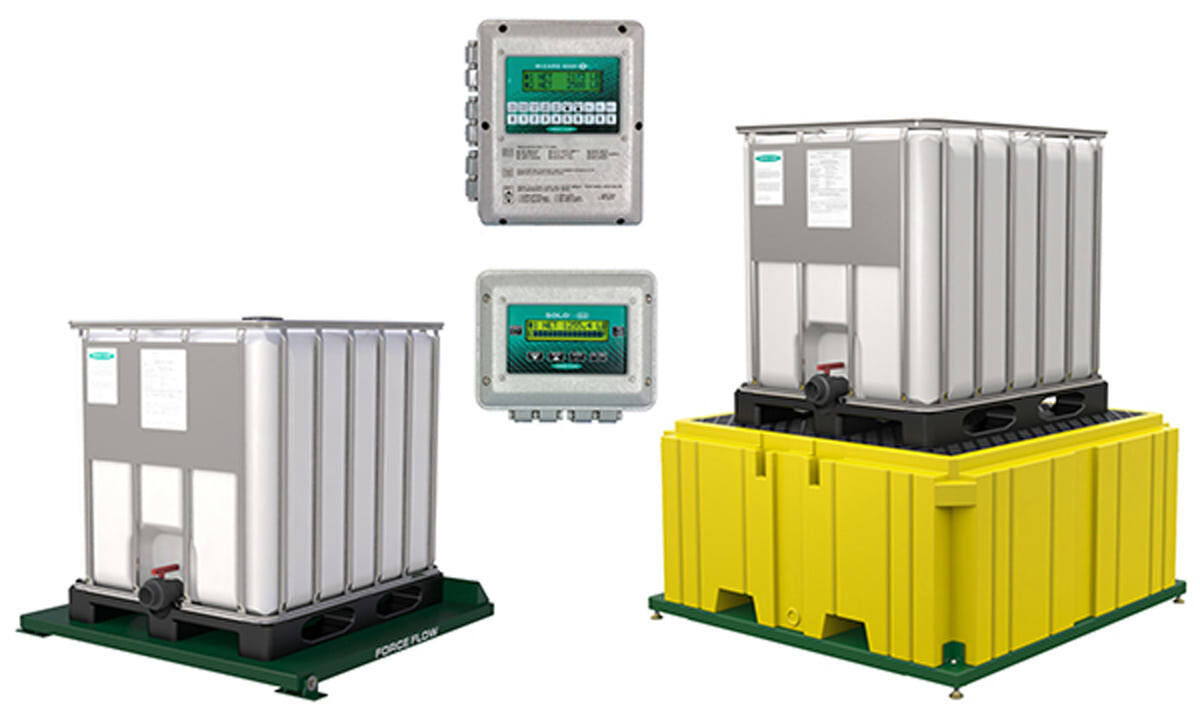

Force Flow Tote Bin Scale

The Tote Bin Scale from Force Flow allows plant operators to accurately monitor the amount of polymer being fed from IBC-type totes for dewatering. Simply place the tote on the platform and monitoring begins, as there is nothing to install inside the tote. Monitoring systems prevent costly overfeed conditions and enable the documentation of the actual amount fed, which keeps the plant in compliance with federal and state reporting requirements. Users can remotely monitor from SCADA or PLC. The unit is available with the SOLO G2 digital display or with the advanced Wizard 4000 chemical inventory management system. 800-893-6723;

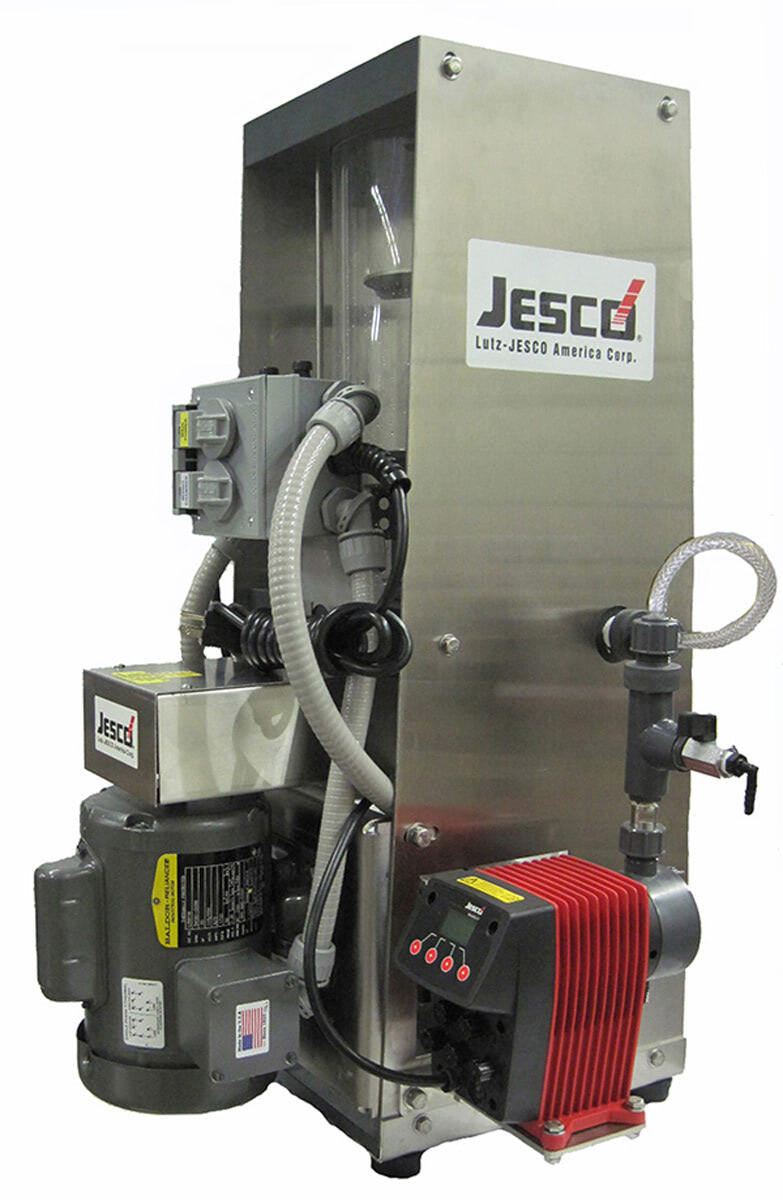

Lutz-JESCO America LJ-PolyBlend Polymer System

The LJ-PolyBlend Polymer System from Lutz-JESCO America is a dependable, motorized mixing machine with a corrosion-resistant housing, large turbine and multizone mixing chamber that provides uniform dispersion energy at the moment of initial polymer wetting. The prime mixing zone fully activates the polymer, while the second mixing zone promotes gentle polymer activation via a small turbine, lessening molecule fracturing. Its stainless steel injection valve prevents agglomerations and reduces the need for extended mixing time. The system includes a clear mixing chamber that provides visual monitoring of mixing polymer feed. Its compact design — only 1 to 1.5 square feet — means it’s light and allows for easy installation and transportation. It has automatic pump speed adjustment via 4-20mA input, water flow sensor and priming port. 800-554-2762;

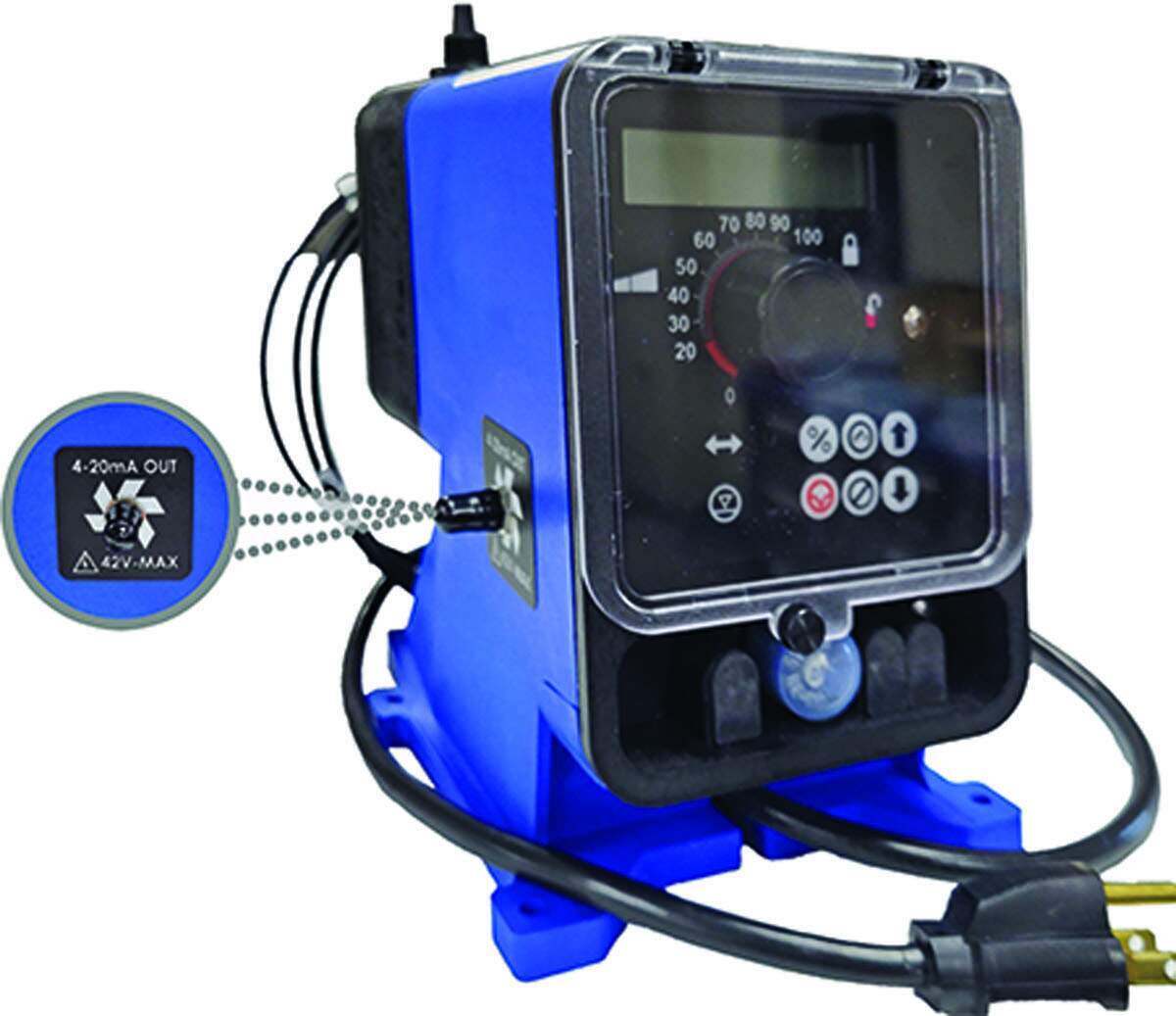

Pulsafeeder PULSAtron

PULSAtron diaphragm chemical feed pumps from Pulsafeeder have a guided check valve system with a seat-and-ball design that ensures reliable and accurate metering year after year. Their fin-cooled solenoid enclosure dissipates heat, ensuring that the pressure-handling capability of the pump can be maintained. The thermally protected solenoid protects the pump from seizing up in extreme heat conditions with an automatic reset feature, allowing the pump to resume operation upon cool-down. Units are tested and rated under hot conditions so flow and pressure ratings meet specifications. They offer flows up to 600 gpd and pressures up to 300 psi, with a wide range of flows and pressures. Agency approvals include CE, ETL, ETL san. and NSF 61 approval on PVDF material and degassing head models. 800-333-6677;

Composting Equipment

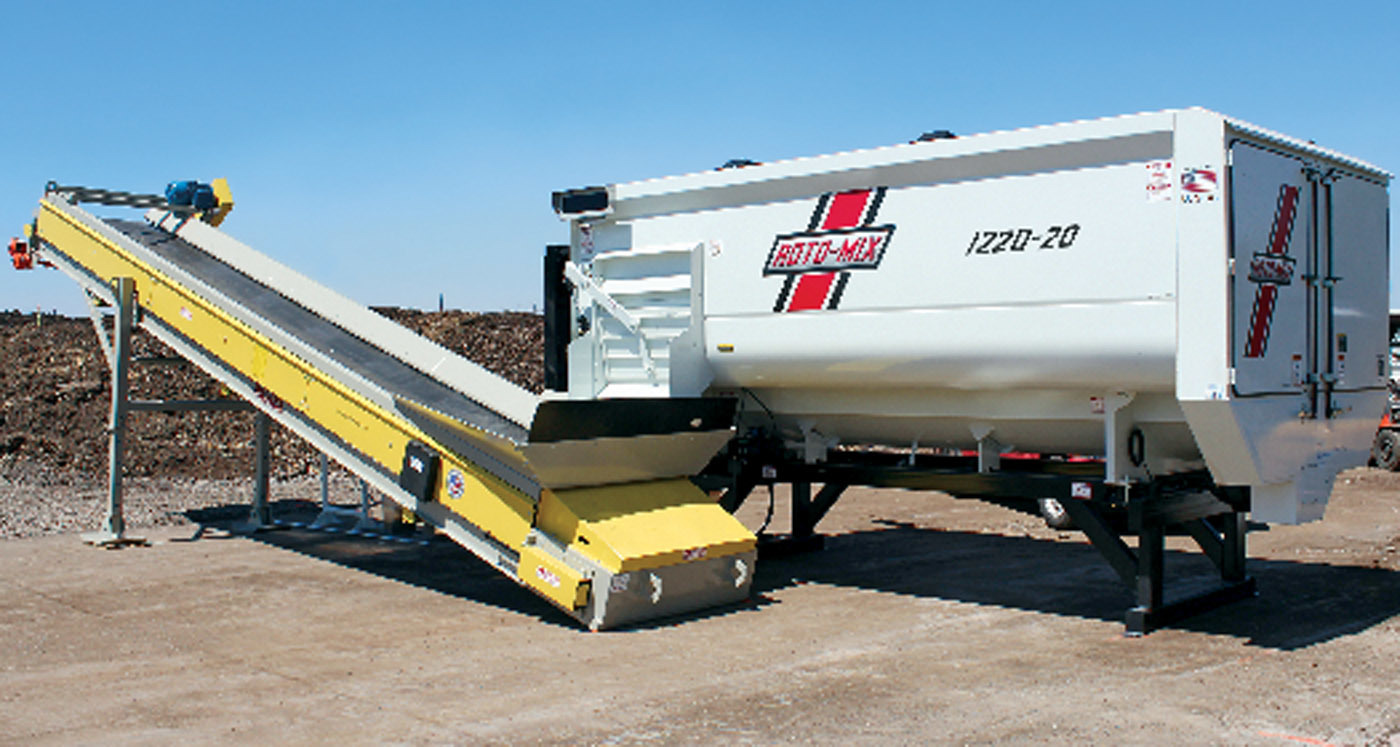

Roto-Mix Model 1220-20

The Roto-Mix 1220-20 horizontal rotary compost mixer has a large mixing capacity of 1,220 cubic feet and can hold a maximum load of up to 40,000 pounds. It is designed to thoroughly mix materials to ensure rapid decomposition and to produce quality compost. This rotary compost mixer, equipped with the GeneRation II Staggered Rotor mixer, will uniformly blend materials in a tumbling action that does not pack material and helps introduce air into the mix. The rotor lifts the material past the wedging point of the lower side auger, resulting in an aerated mixture while lowering power requirements. Total movement of material in the mixing chamber eliminates dead spots that are common in conventional auger mixers. Optional conveyors allow for the discharge and distribution of mixed nutrients with microorganisms into static compost piles or windrows. It is available in truck, trailer or stationary units. This size mixer works well with large-volume composting operations. 620-225-1142;

Dewatering Equipment

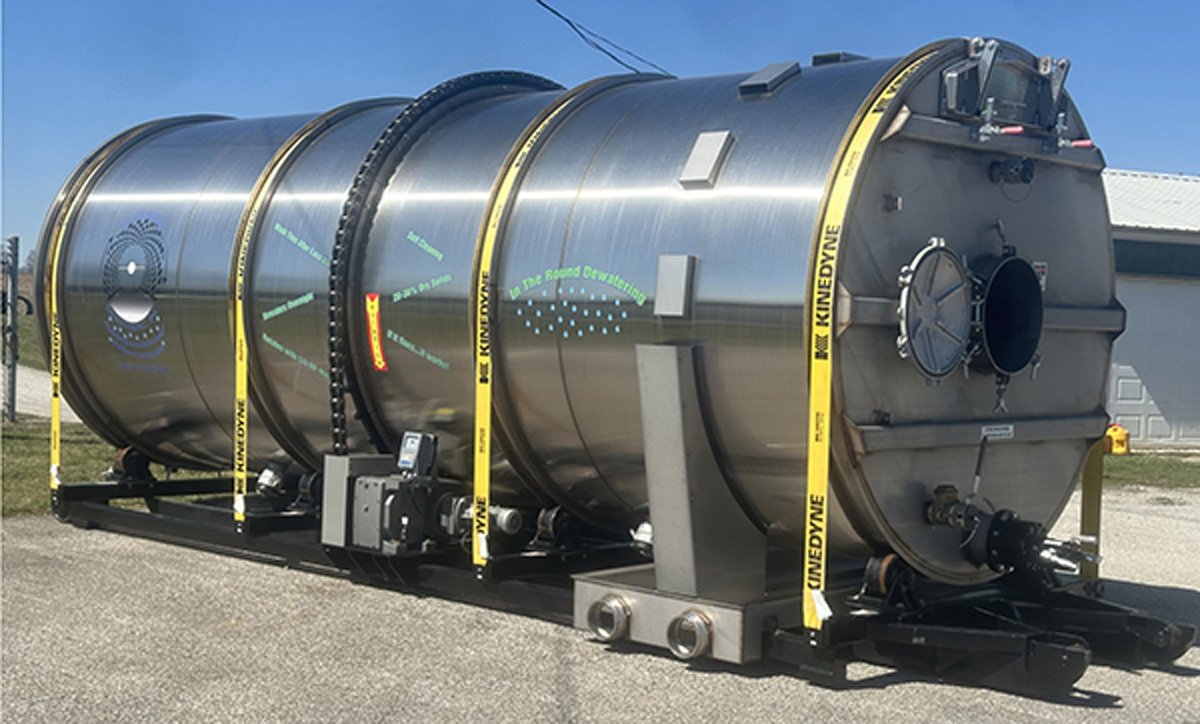

In The Round Dewatering horizontal drum

The horizontal biosolids dewatering system from In The Round Dewatering has a stainless steel drum with perforated plastic tile lining. The drum is mounted on a roll-off frame for easy transport and unloading. Water trays allow containment of discharge water. An 18,000- to 25,000-gallon batch is mixed with polymer before being filtered in the rotating drum, driven by a 1/2 hp variable-speed electric motor with a heavy-duty chain and sprocket. The turning eliminates crusting and wet pockets to produce uniform, consistent results. The dewatered material dumps easily, and the drum is self-cleaning. 317-563-2072;

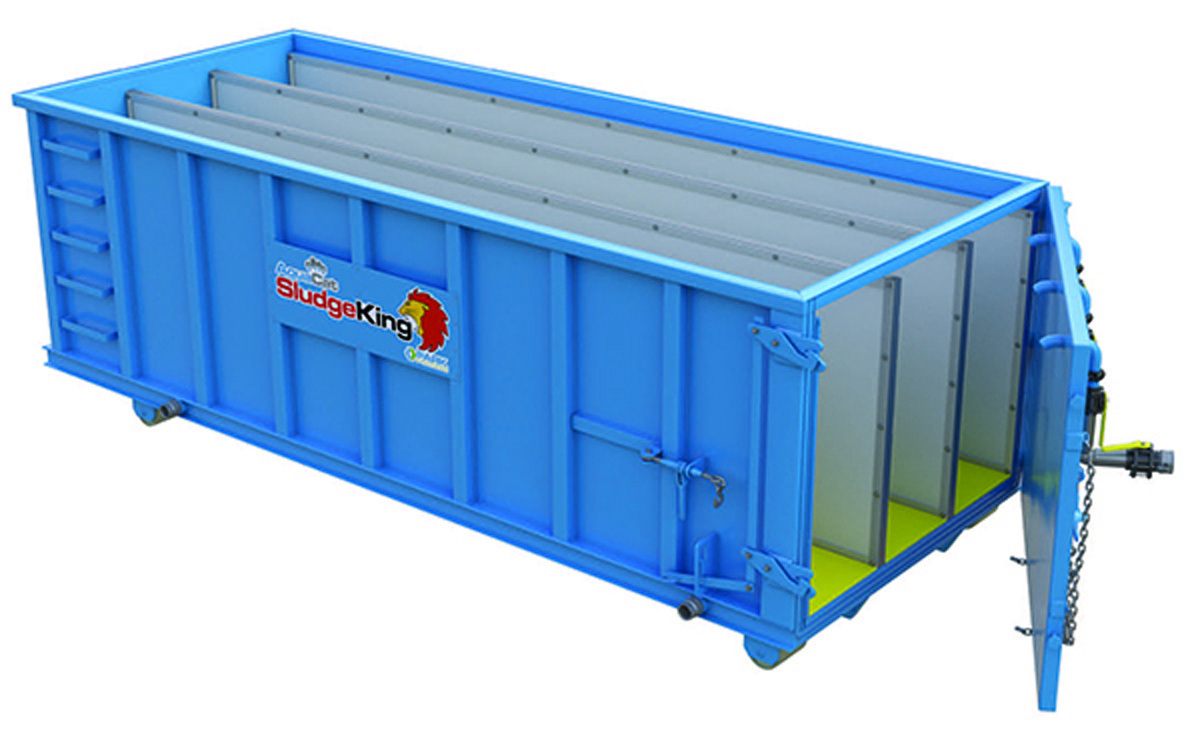

Park Process Sludge King II

The Sludge King II roll-off dewatering container from Park Process uses filters that turn 90 degrees at the bottom of the container, leaving standing water in the cake. This also increases the usable area of the filters by 33% over older containers with only one center filter wall. The increased filter surface area and the narrowed sludge compartments formed by the additional filter panel translate into drier cake formed in less time. 855-511-7275;

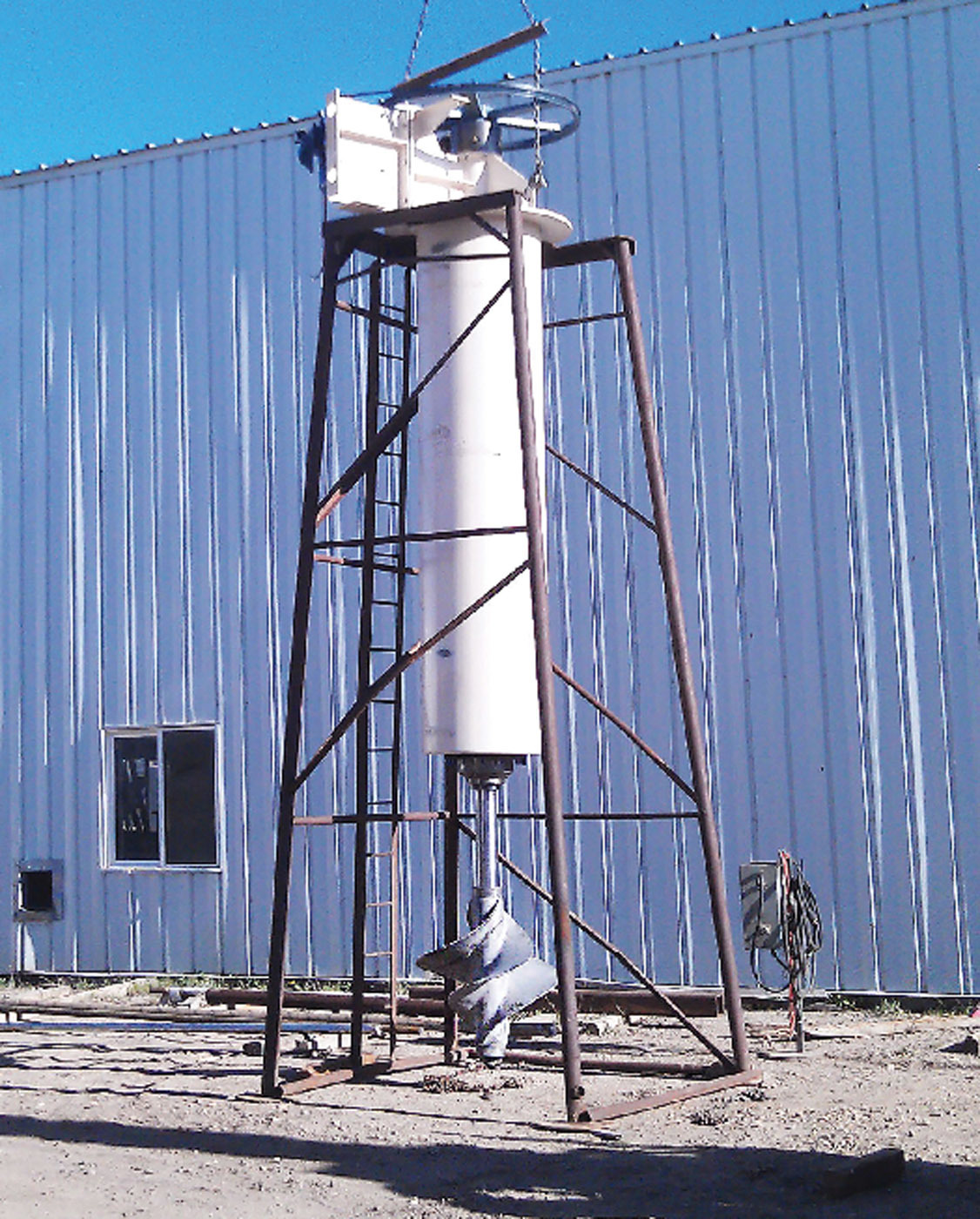

WesTech Engineering ExtremeDuty sludge mixer

ExtremeDuty sludge mixers from WesTech Engineering are designed to combat rapid rise events that can cause millions of dollars in damage at plants, from sludge plugging the pressure relief valves and flame arrestors to tank and cover damage. Trapped gas within the sludge content builds up but has no way to get out. It can form a scum layer on top, stratified sludge layers, or varying pressures and temperatures throughout the digester. If the mixing is inadequate, the result can be stratified sludge, a scum layer, a large grit layer or higher liquid levels due to gas entrapment. The mixers provide high flow rates while pumping both upward and downward, providing needed floc shear in the tank. The change in flow also aids in preventing stratification, suspends grit and disturbs the top of the sludge to break up the scum layer. 801-265-1000;

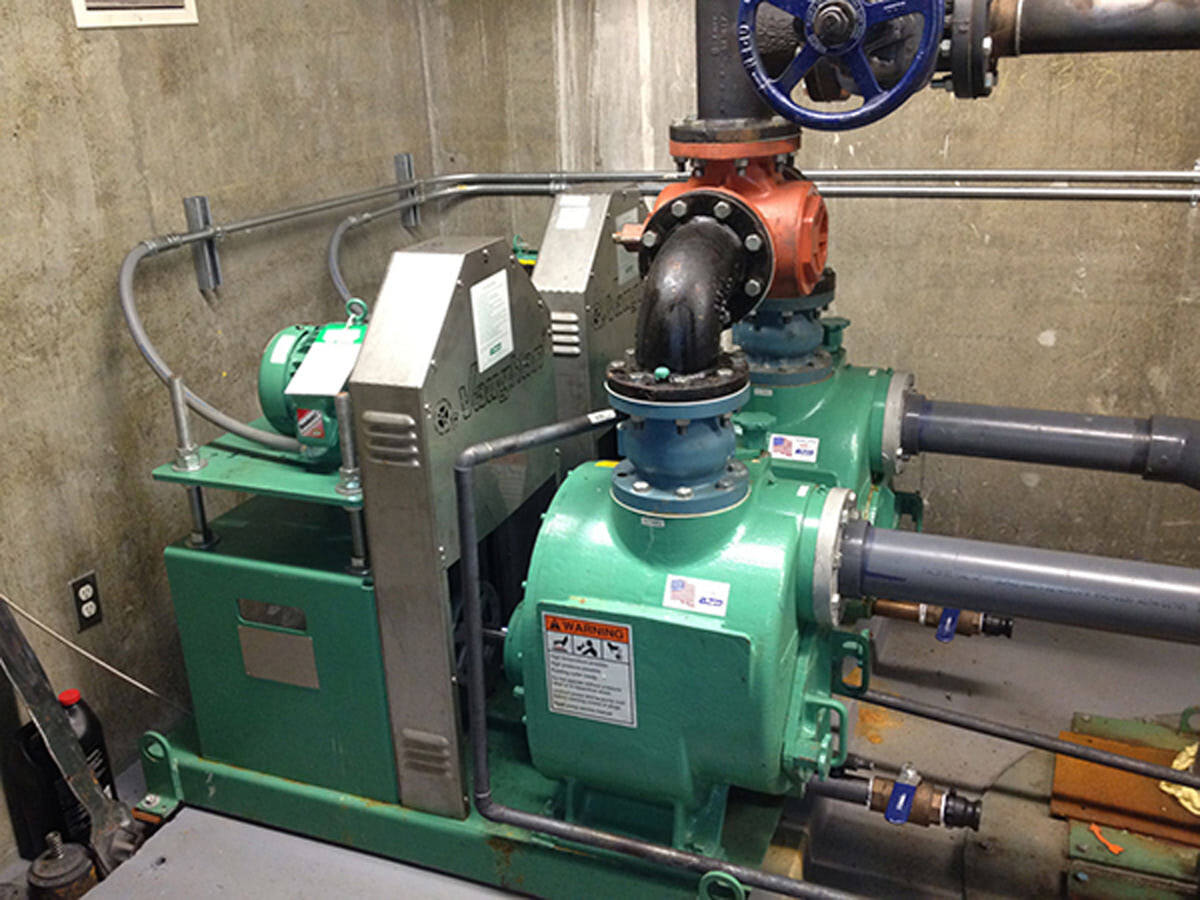

Vaughan self-priming chopper pump

Self-priming chopper pumps from Vaughan are designed to be easily accessed outside of the wet well while pumping waste solids at heavy consistencies, without plugging or dewatering of the solids. They eliminate the loss in production and mess, along with making it easy to service the pump to get it back in operation. 888-249-2467;

Grit Handling/Removal/Hauling

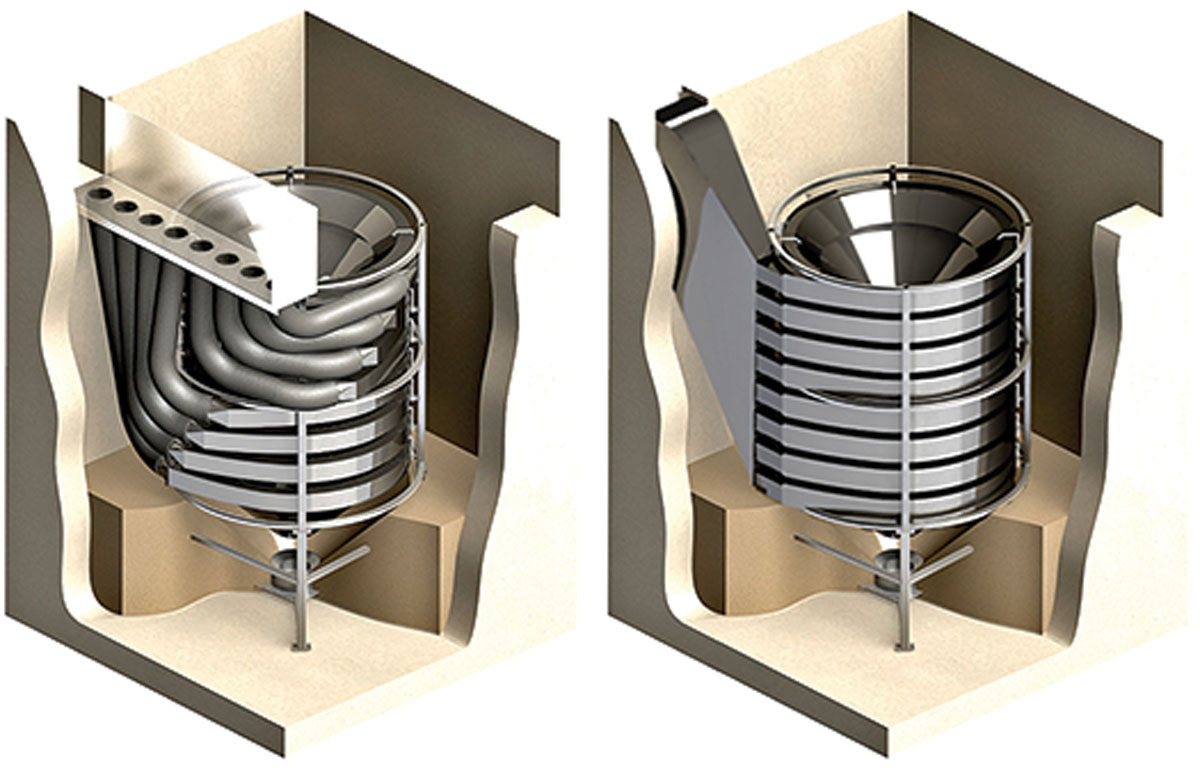

Envirodyne Systems OctoCell

The OctoCell grit removal system from Envirodyne Systems uses stacked trays to achieve a small footprint. Unique to their design is the inlet trough and tentacle arrangement above the trays, which means the flow path to each tray is the same size/length to better equalize pressure drops, meaning reduced headloss and greater grit removal efficiency. It allows for visual detection of any plugging and serves as a means of controlling flow to each individual tray. It has the ability to engage/disengage trays automatically based on flow variations. A “lollipop” configuration is also available for enhanced control of velocities and reduced organics accumulation. 717-763-0500;

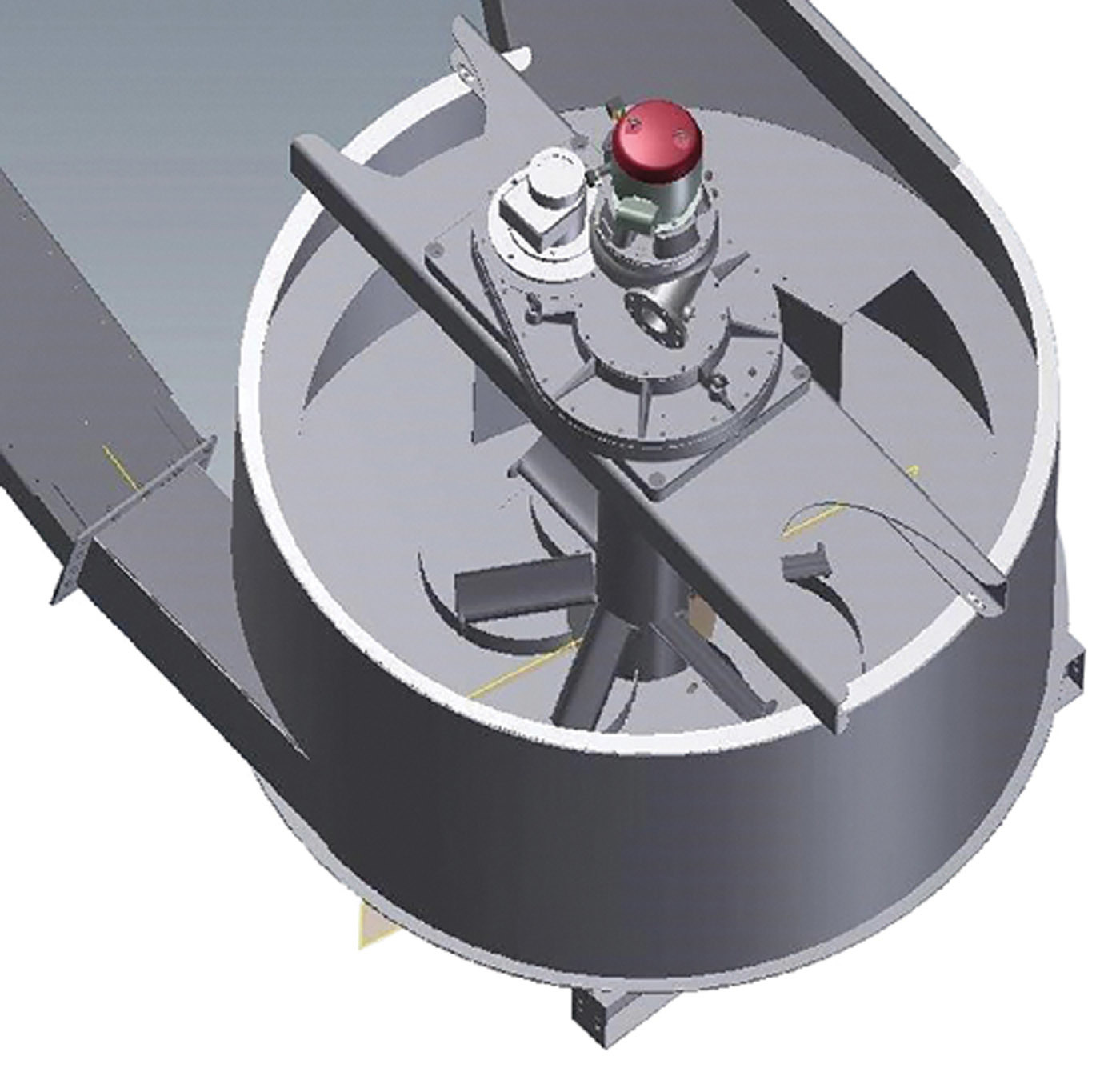

Smith & Loveless PISTA VIO grit removal system

The PISTA VIO grit removal system from Smith & Loveless provides grit removal efficiencies and application flexibility with a design that allows for full variability of the inlet and outlet channels. It provides the ability to design the inlet and outlet channels at any variable angle up to the full 360 degrees of the chamber. Designers can flexibly arrange the system to fit existing sites or maximize space during construction on new sites. This baffle system, in addition to providing application flexibility, also offers grit removal efficiency. It has a hydraulic vortex grit chamber design that uses a baffle system to create the vortex action that removes 95% of grit down to 100 microns. Its effluent flume design minimizes the harmful weir effect that can contribute to grit bypass. 800-898-9122;

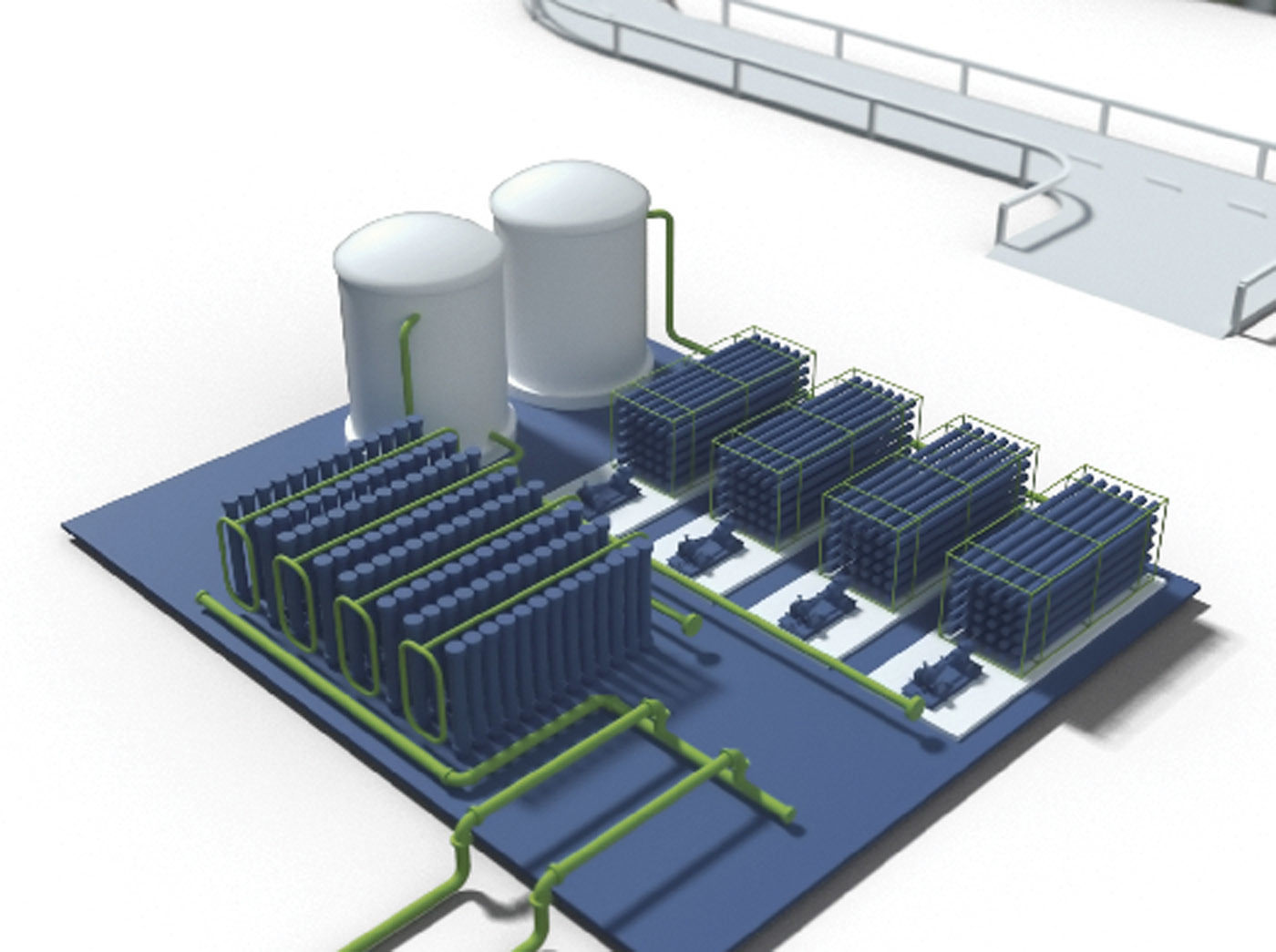

CECO Environmental headworks treatment systems

Custom-designed headworks treatment systems and services from CECO Environmental are primarily geared toward oil field or other project location setups and can be retrofitted to existing plants or installed as part of new ones. Designs combine different types of screening, oil removal, clarification, and other chemical and physical processes that render influent wastewater suitable for further treatment and protect the downstream treatment from abrasion and clogging. Typical headworks treatment applications include screening industrial wastewater that contains high levels of oil, suspended solids or ammonia. Fine screening primary treatment strategies safeguard sensitive equipment like membrane bioreactors by blocking large solids and catching sand, oil and grit. Together, the screening, washing and compacting phases separate fecal matter from inorganics and produce a clean, dry, compacted material. Headworks are supplied in a customized design as part of an integrated system, using different types of screening as needed to meet performance values. 800-333-5475;

Septage Receiving Station

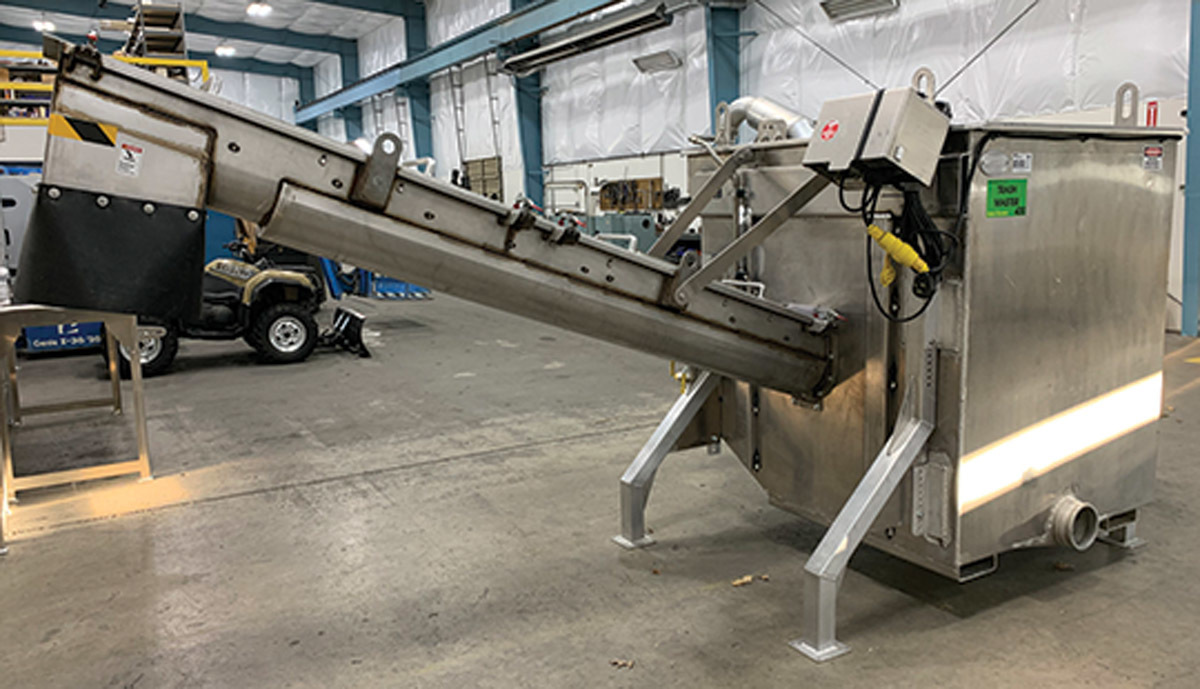

ScreencO Systems Trash Master 400 Auto Screen

The Trash Master 400 Auto Screen from ScreencO Systems uses gravity to separate the trash from the flow stream through a 4-inch inlet with a fan spreader to power-offload vacuum trucks. It has an aluminum hopper with a 6-inch outlet cam and 3/8-inch gapped 1/4-inch bar screen that meets U.S. Environmental Protection Agency 503 regulations. A stainless steel U-channel with plastic-lined titanium UHMW provides for years of wear, with a high-strength alloy steel 8 1/2-inch shaftless screw that moves trash to a waste container. The stainless steel U-channel has slotted drain holes and a center channel bar screen for cleaner and dryer trash. A custom-built stainless steel bar rake is included for easy maintenance. A front spray bar with a 1 gpm nozzle keeps the unit clean and free of buildup. A 2 hp NORD gear reduction drive with Lenze variable-frequency drive control accomplishes a variable-speed screw from 6 to 30 rpms. 208-790-8770;

Screening System

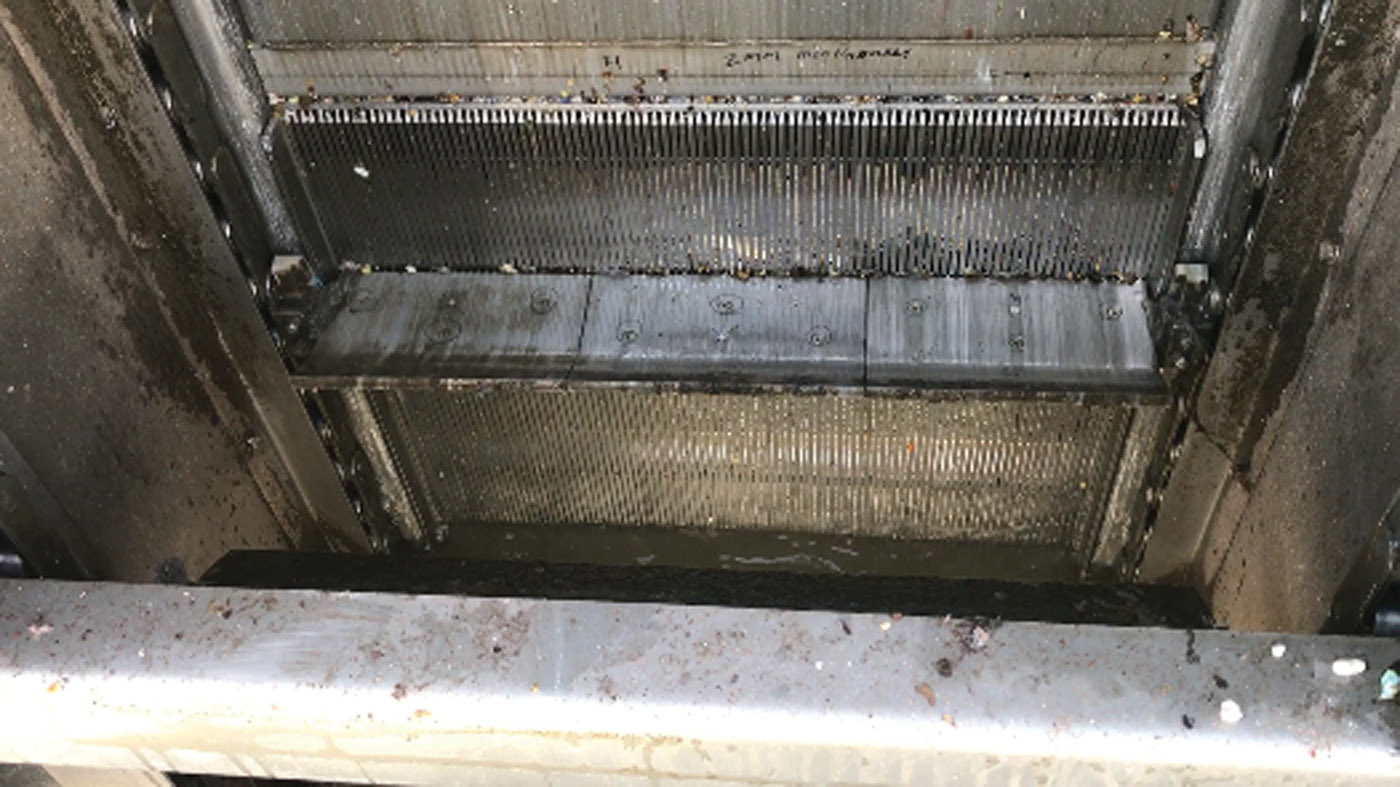

Headworks International MS bar screen

The 2 mm MS bar screen from Headworks International is a retrofitted Headworks MS Series bar screen that reduces the bar spacing from 6 mm to 2 mm. Traditionally a client would buy a perforated plate, or band screen, that requires spray water and often rotating brushes and that are maintenance intensive. The 2 mm MS bar screen provides a high capture rate with the simplicity of a bar screen. No sprays or brushes are required. 713-647-6667;
