Belt Filter/Rotary Press

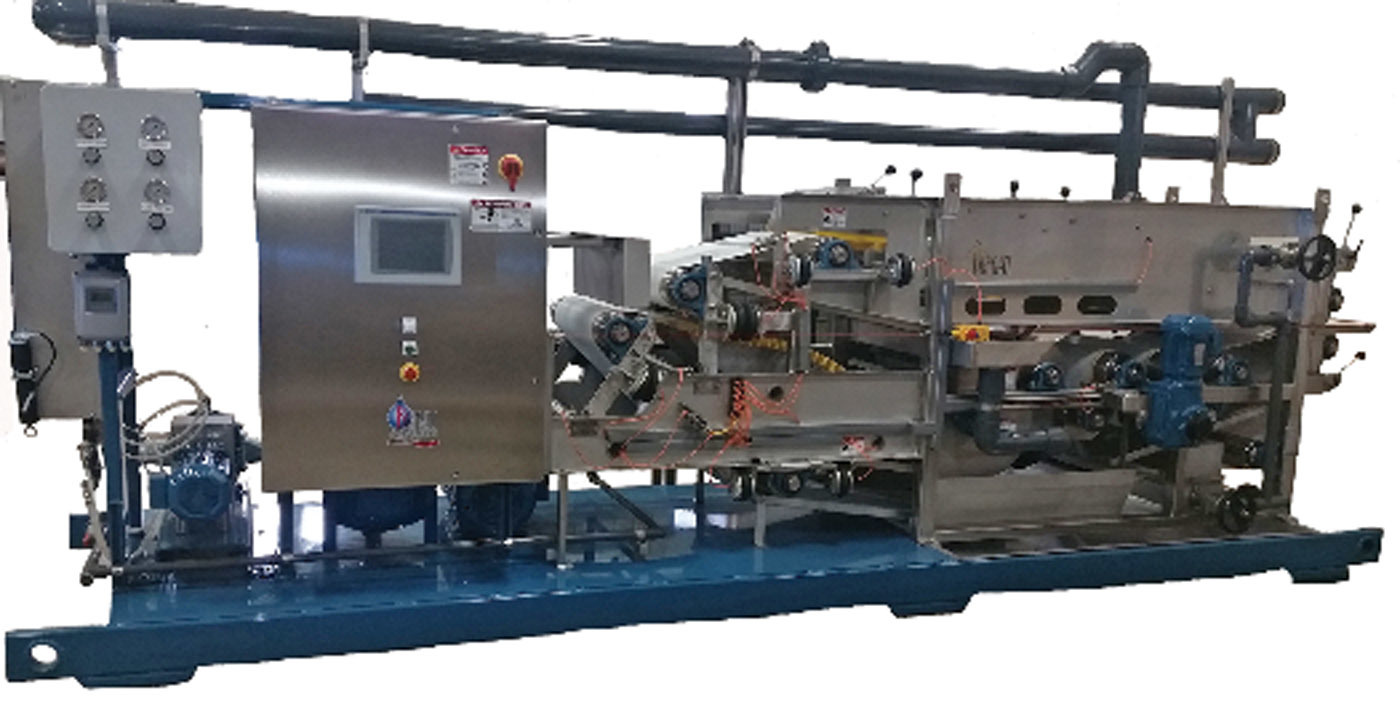

Bright Technologies, Division of Sebright Products, 0.6-meter skid-mounted belt filter press

The compact 0.6-meter skid-mounted belt filter press from Bright Technologies, Division of Sebright Products, has stainless steel frame and roller construction, and radius wedge zone and wing roller for sludge dewatering. Components include a sludge pump, polymer system and wash-water booster pump. Options include a sludge flowmeter, air compressor and discharge conveyors. The compact walk-around skid design can be utilized in as little as a 20-by-10-foot floor area. The Boerger rotary lobe sludge pump has a maintain-in-place design offering ease of maintenance. Cake solids of up to 35% can be achieved. Rates of 25 to 50 gpm make it ideal for small applications or when a processor has outgrown dewatering containers. 800-253-0532; www.brightbeltpress.com


Biosolids Handling/Hauling/Disposal/Application

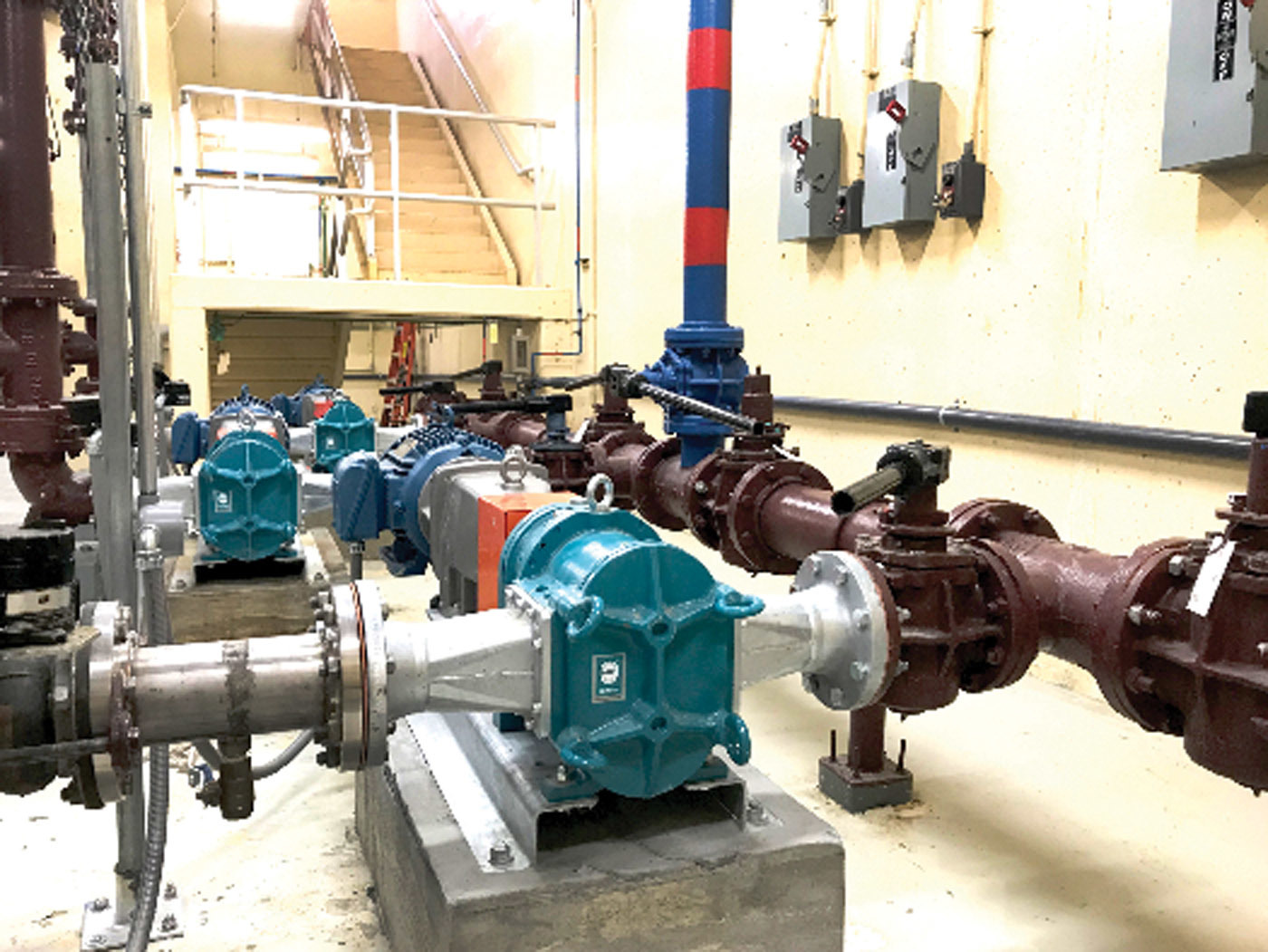

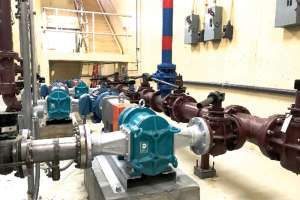

Boerger BLUEline rotary lobe pump

The BLUEline rotary lobe pump from Boerger is a self-priming, valveless, positive displacement pump used to convey viscous and abrasive materials. There are 21 pump models in six series with pulsation-free operation, fully reversible rotation, dry-run capabilities and flow rates up to 7,500 gpm. The pumps are stable and wear-resistant with a maintenance-in-place design that allows for all wetted parts to be easily replaced through the front cover without the removal of pipe or drive systems. 612-435-7300; www.boerger.com

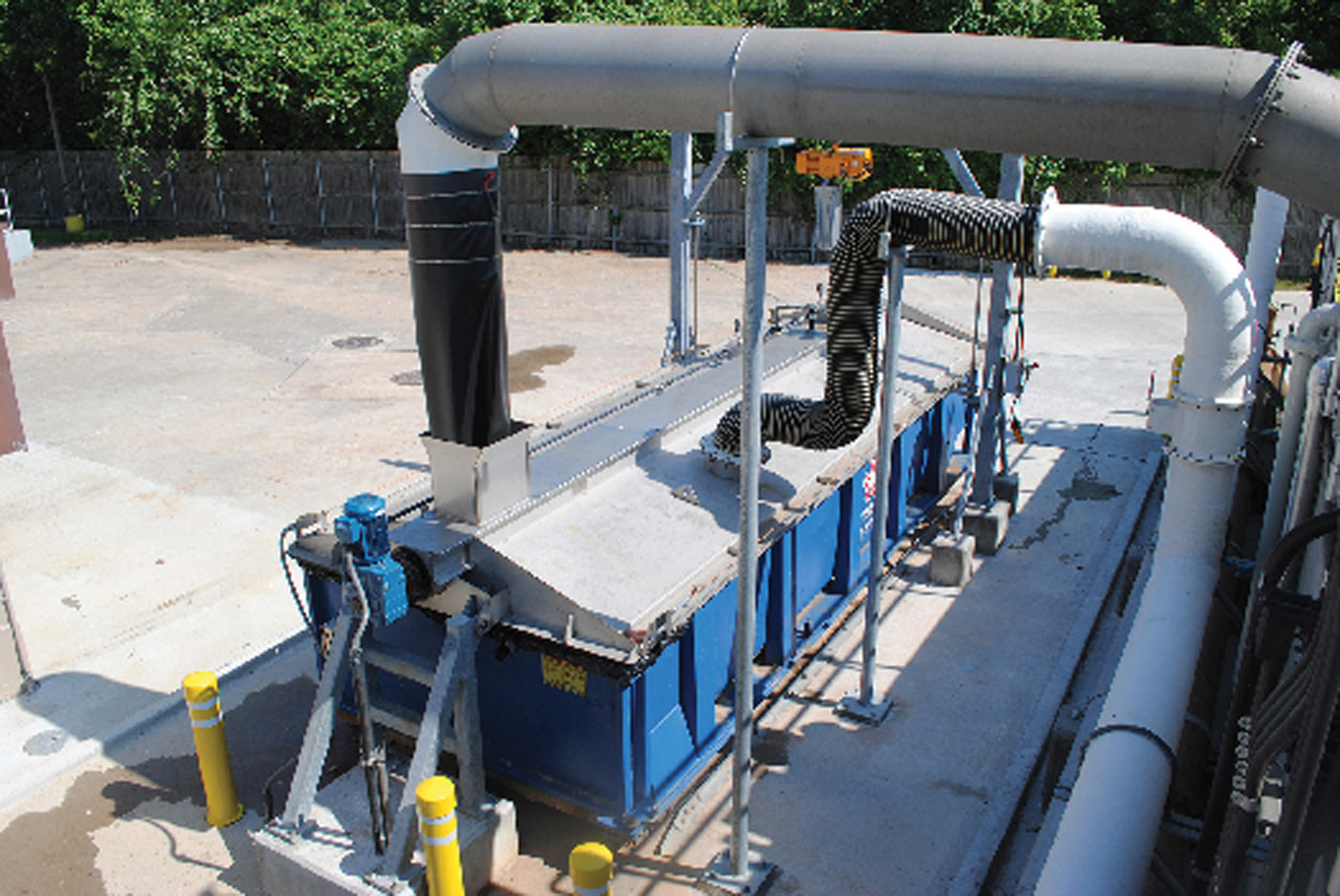

JDV Equipment Level Lodor

The Level Lodor cover system from JDV Equipment helps contain odors by covering standard dump containers used for hauling processed material. The design allows for even distribution, increasing the fill percentage without having to manually even out material. Enclosing containers allow outdoor installation without exposing material to the environment or pests. 973-366-6556; www.jdvequipment.com

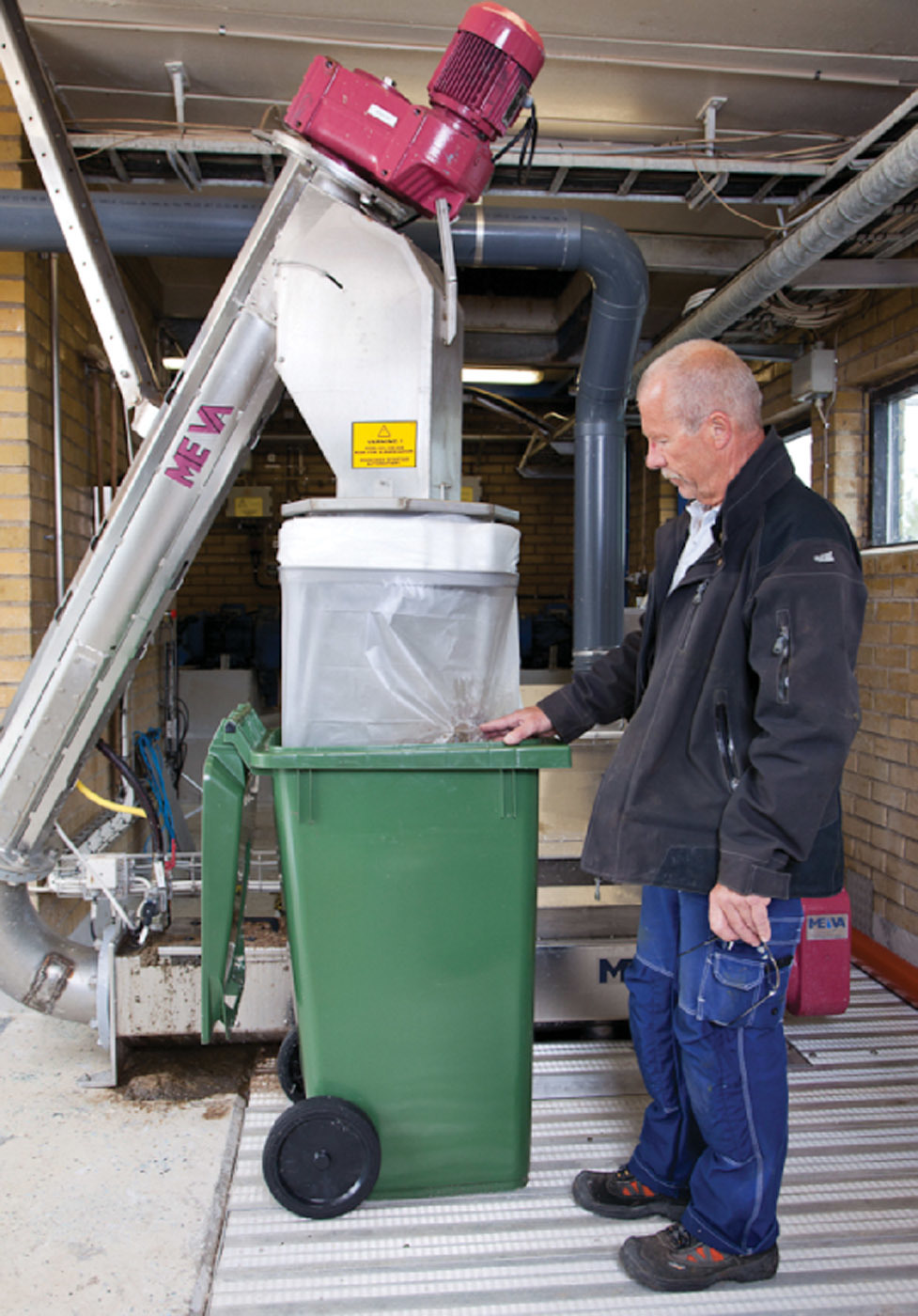

Paxxo Longopac Fill

The Longopac Fill continuous bag system from Paxxo can connect to the discharge point of machines used to move, dewater or compact screenings, grit and biosolids. Material is then deposited in a 90-meter-long continuous bag for odor containment and spillage control. The cassette bag can be sealed with ease, and the material and odors are trapped inside, cutting down development of bacteria and fungus spores. 770-502-0055; www.paxxo.com


Biosolids Heaters/Dryers/Thickeners

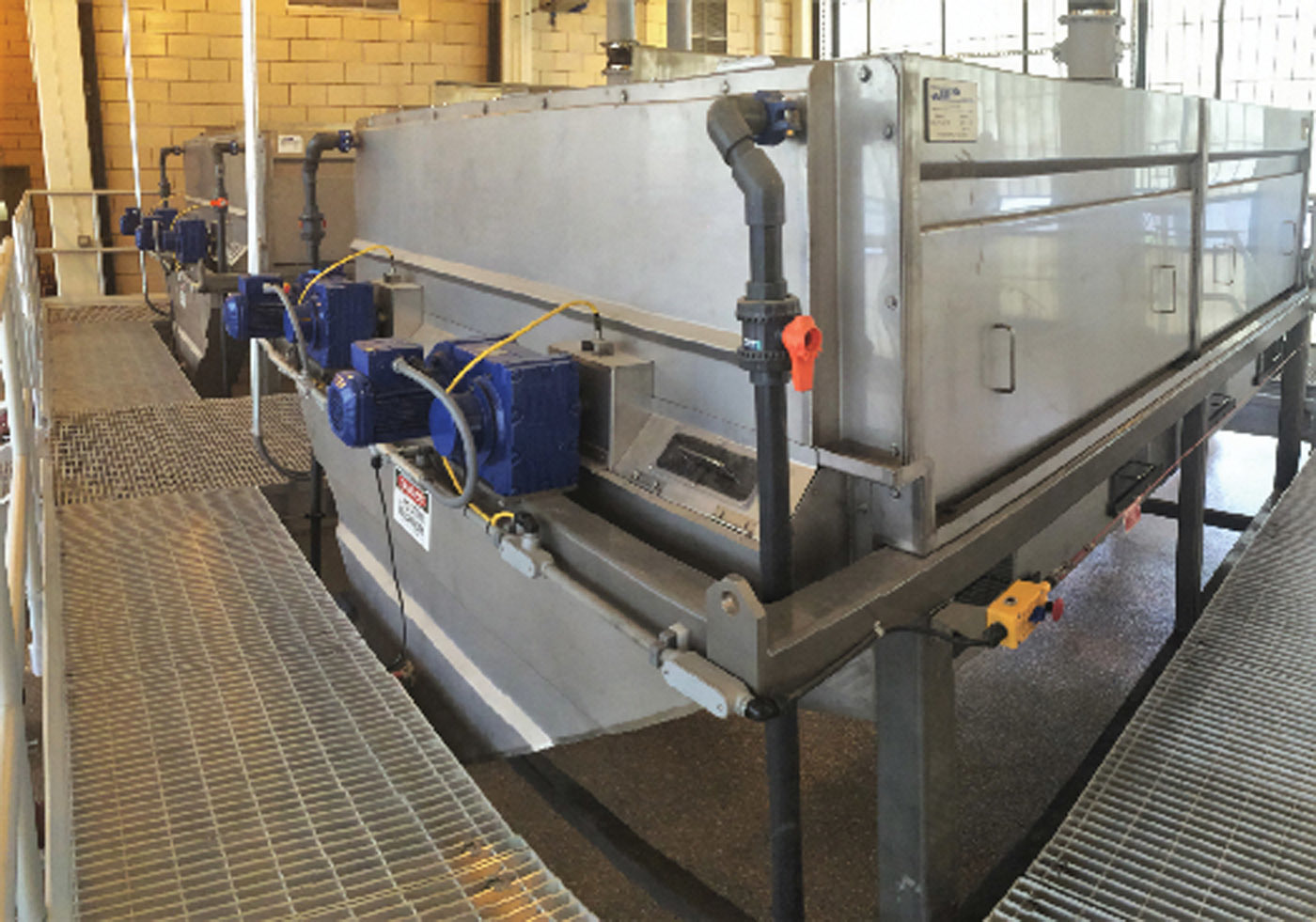

BDP Industries rotary drum thickener

The rotary drum thickener from BDP Industries is a suitable solution to thicken at water and wastewater treatment facilities. Internally baffled thickening zones lead to higher solids capture and higher throughput capability, all with reduced polymer usage. A full stainless steel construction with all bearings located outside of the enclosure makes operations and maintenance activities simple and easy. 518-796-1440; www.bdpindustries.com

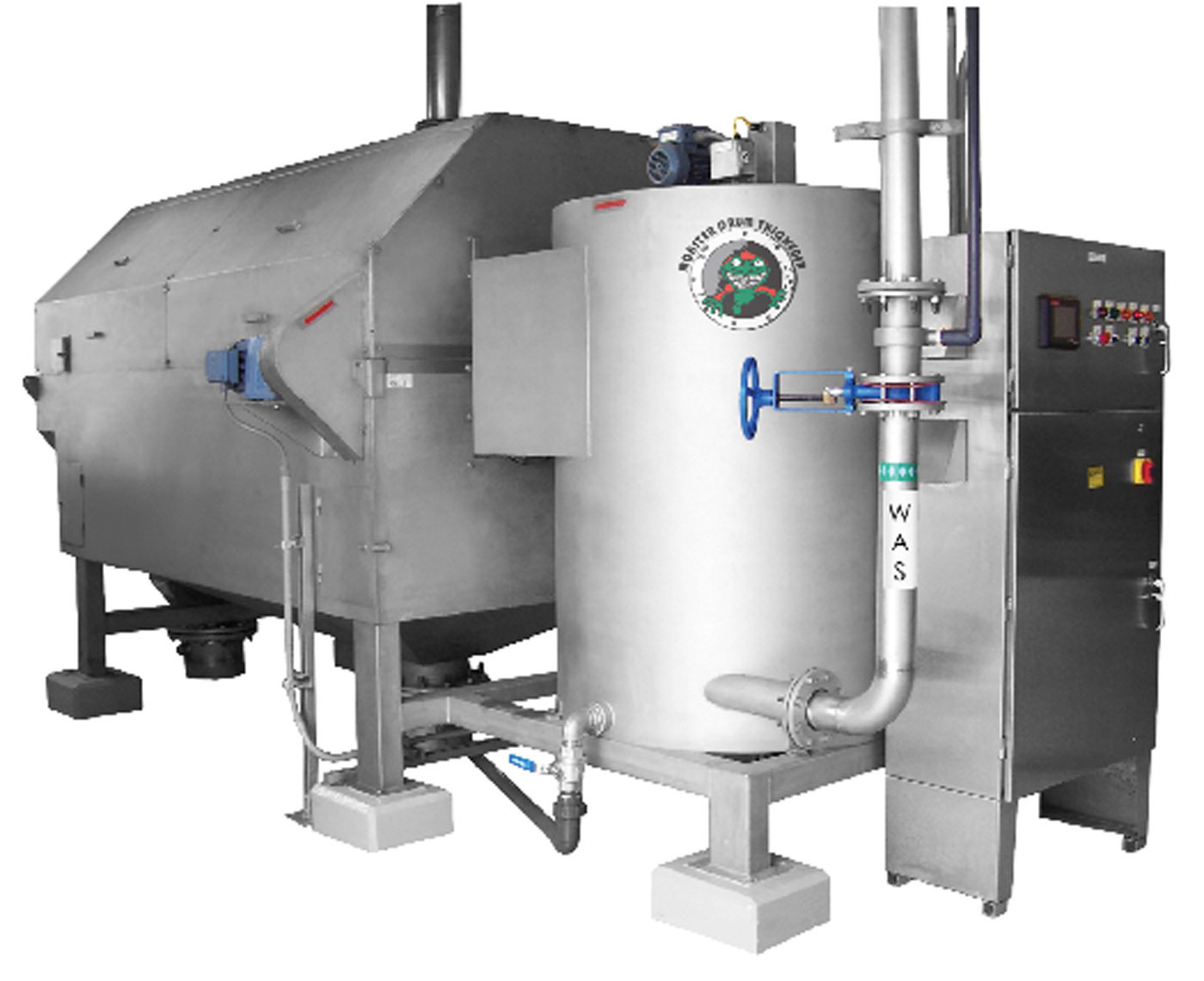

JWC Environmental Monster Drum Thickener

The JWC Environmental Monster Drum Thickener is designed to achieve 5% to 12% solids from biosolids containing 0.5% to 3% solids. It uses individual panels of woven wire mesh for high solids capture rates. The individual panels can be removed from the frame of the rotary drum, which allows for an efficient exchange if they are damaged or if operating conditions dictate a screen change without having to replace a full drum. Additionally, it has a short biosolids dwell time in the flocculation tank to achieve the required floc structure, minimizing polymer consumption and tank size, which translates to lower operating costs. The system is fully enclosed to collect filtrate water and can be connected to a plant’s odor control system. 800-331-2277; www.jwce.com

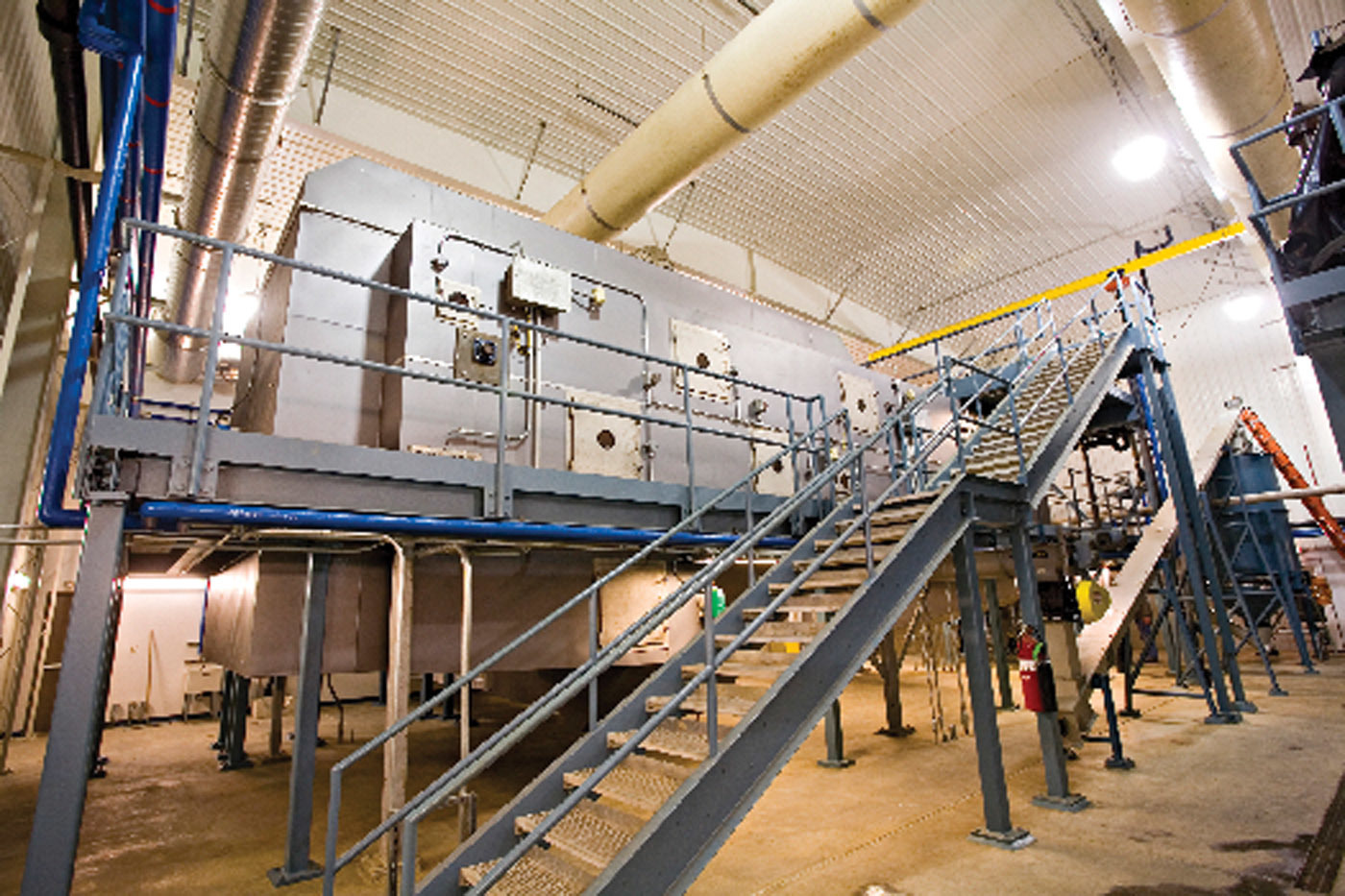

Kruger BioCon ERS dryer for PFAS removal

Rising concern of per- and polyfluoroalkyl substances (PFAS) contamination of water and soil has sparked interest in this emerging contaminant as it pertains to wastewater sewage sludge. BioCon ERS from Kruger offers a safe and sustainable drying and combustion system for treating PFAS-laden municipal sludge. It combines the efficiencies of a convective-air, medium-temperature belt dryer with a biomass furnace, which uses the dryer output (dry product) as a biofuel. The heat available in the exhaust is captured and used as process heat in the belt dryer. This integrated dryer and energy recovery system is sustained by heat generated by the combustion of biosolids to drive the drying process, and in turn, the dried material fuels the combustion system, making it a fully energy-sufficient and sustainable operation. It combusts sludge at a temperature higher than the minimum required for PFAS destruction. 919-677-8310; www.veoliawatertech.com

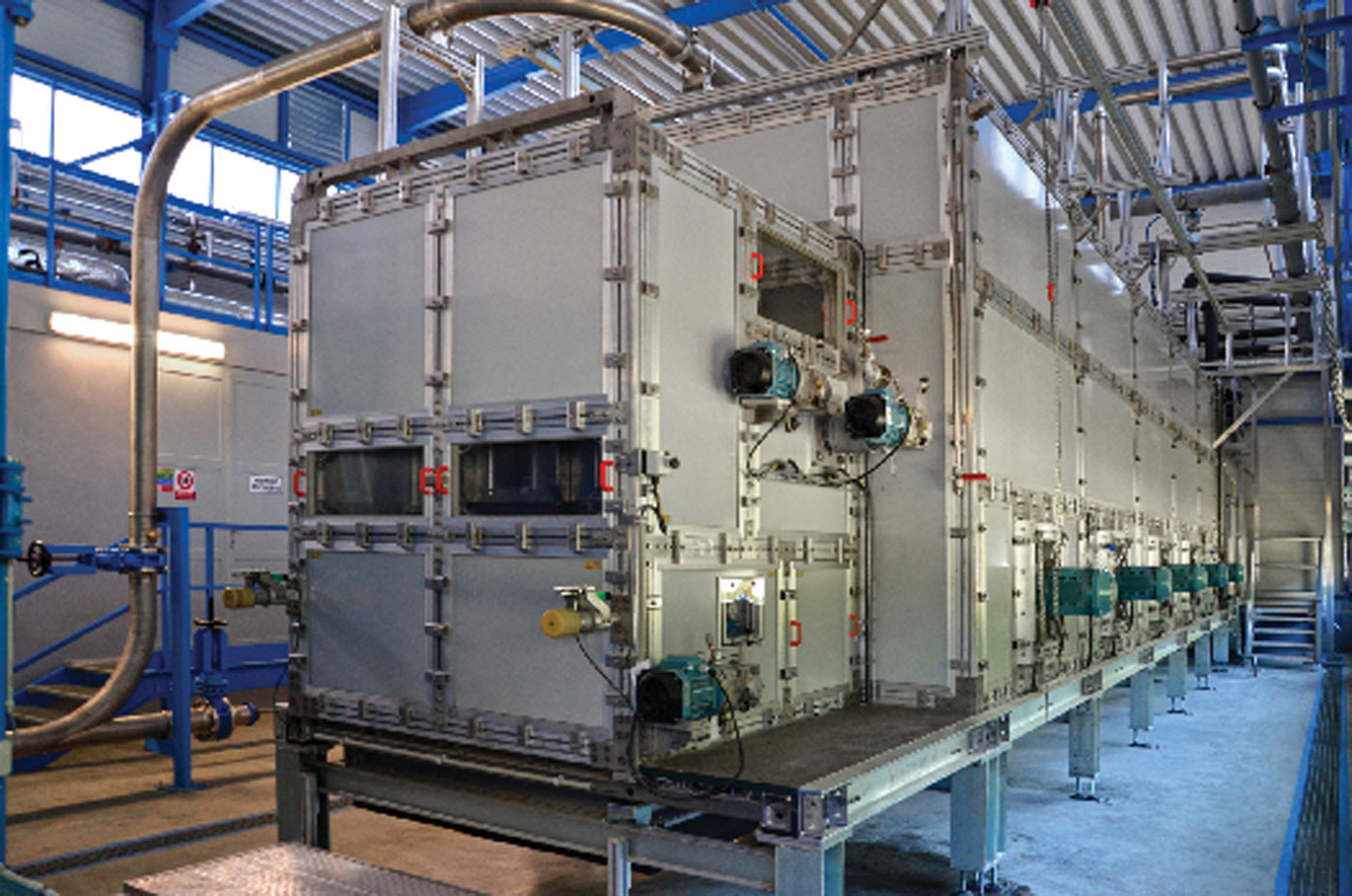

SUEZ Water Technologies & Solutions STC System

The STC System low-temperature thermal dryer from SUEZ Water Technologies & Solutions enables an operator to reduce biosolids and recover a resource as fertilizer or fuel, using an energy-efficient belt dryer. It is fully automatic and offers efficient odor control and simple operation and maintenance. It is intrinsically safe, thanks to low-temperature and dust-free operation. The efficient and flexible unit uses hot water from 158 to 194 degrees F and can be fully supplied by waste heat, with a wide range of primary heat sources possible. It produces Class A biosolids at 90% dry solids, to be recycled as fertilizer or as solid fuel. www.suezwatertechnologies.com


Centrifuges/Separators

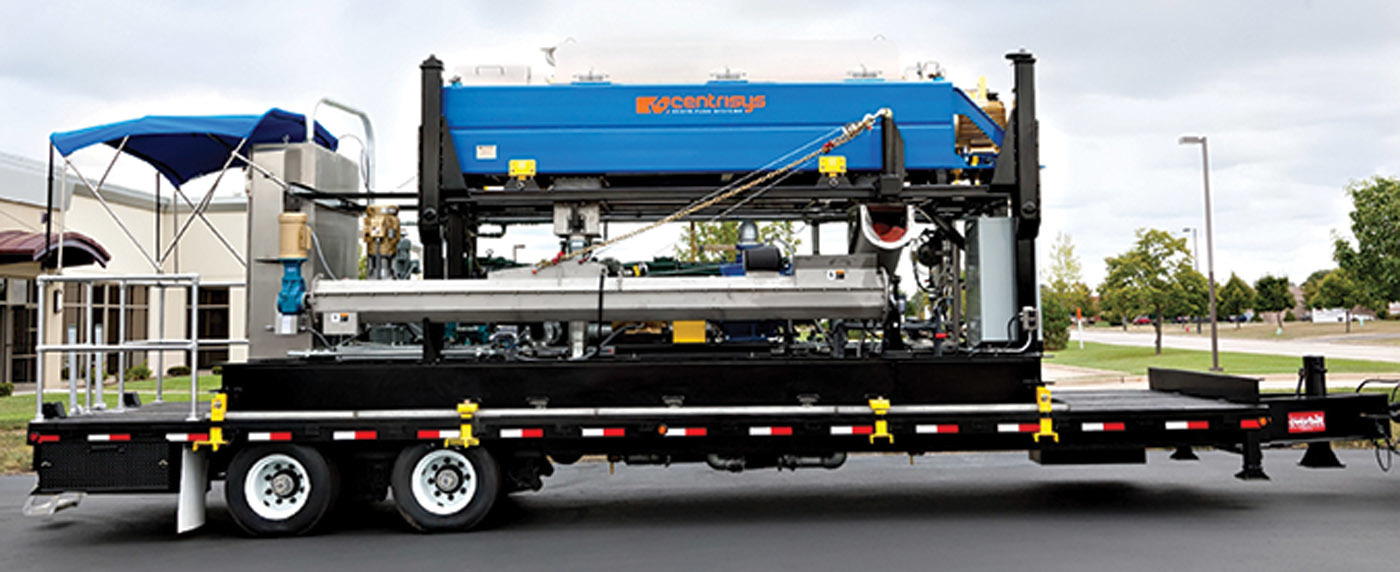

Centrisys/CNP centrifuge

Centrifuges from Centrisys/CNP apply 3,000 g (G-force) to dewater solids while accelerating the liquid end sedimentation of fine particles, resulting in drier solids and cleaner discharge water, which may reduce disposal costs. With a hydraulic back drive system, a centrifuge delivers high torque and low horsepower to reduce moisture in an energy-efficient manner. The three-phase centrifuge divides feed into solids, water and FOG from the grease trap or other biodiesel production sources. Inside the centrifuge, lighter oil separates from the water and discharges through an adjustable nozzle, while the heavier solids dewater and discharge from the opposite end. Centrifuges are available with flow rates of 5 to 700 gpm and can be a stationary skid-mounted unit or a mobile trailer. 262-654-6006; www.centrisys.com

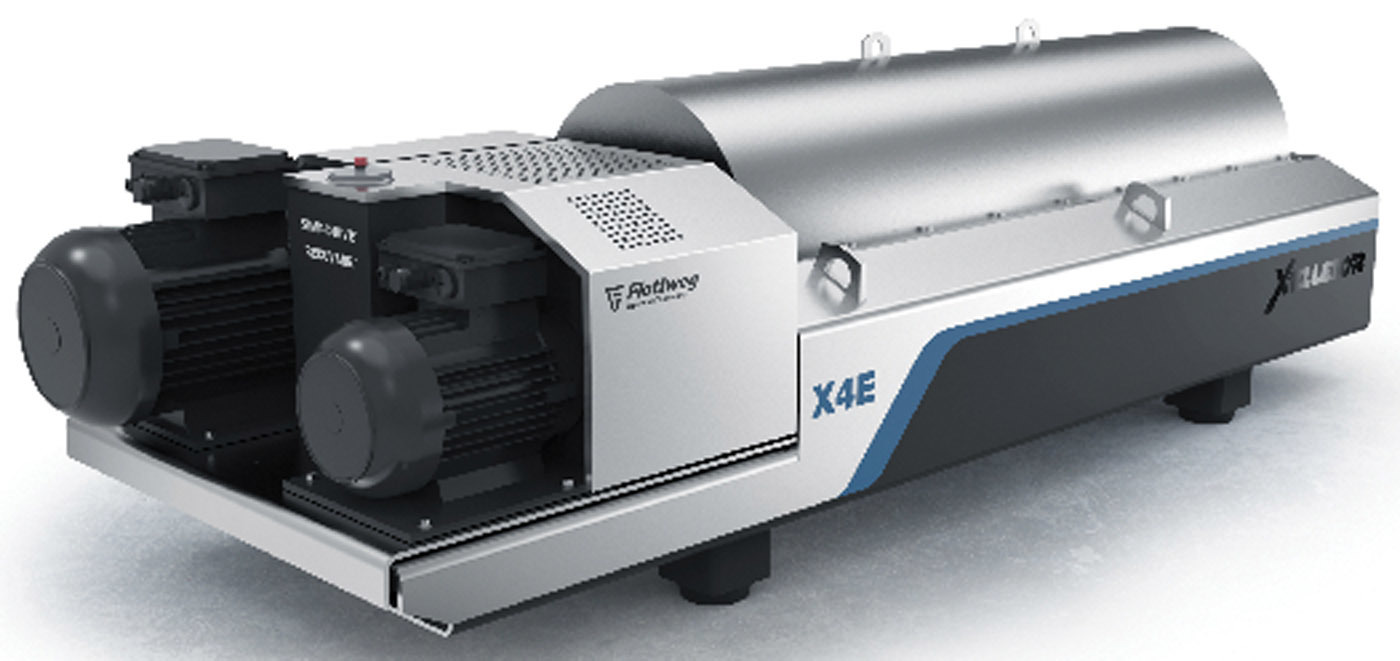

Flottweg Separation Technology Xelletor

Xelletor series separators from Flottweg Separation Technology include a rotor and scroll designed to reduce the consumption of polymer while also reducing energy consumption. Depending on biosolids quality, the centrifuge can save about 20% on energy while providing significantly better performance. It can increase throughput by up to 15%, reduce the volume of biosolids by as much as 10% and save up to 20% in energy and polymer consumption. 859-448-2331; www.flottweg.com


Chemical/Polymer Feeding Equipment

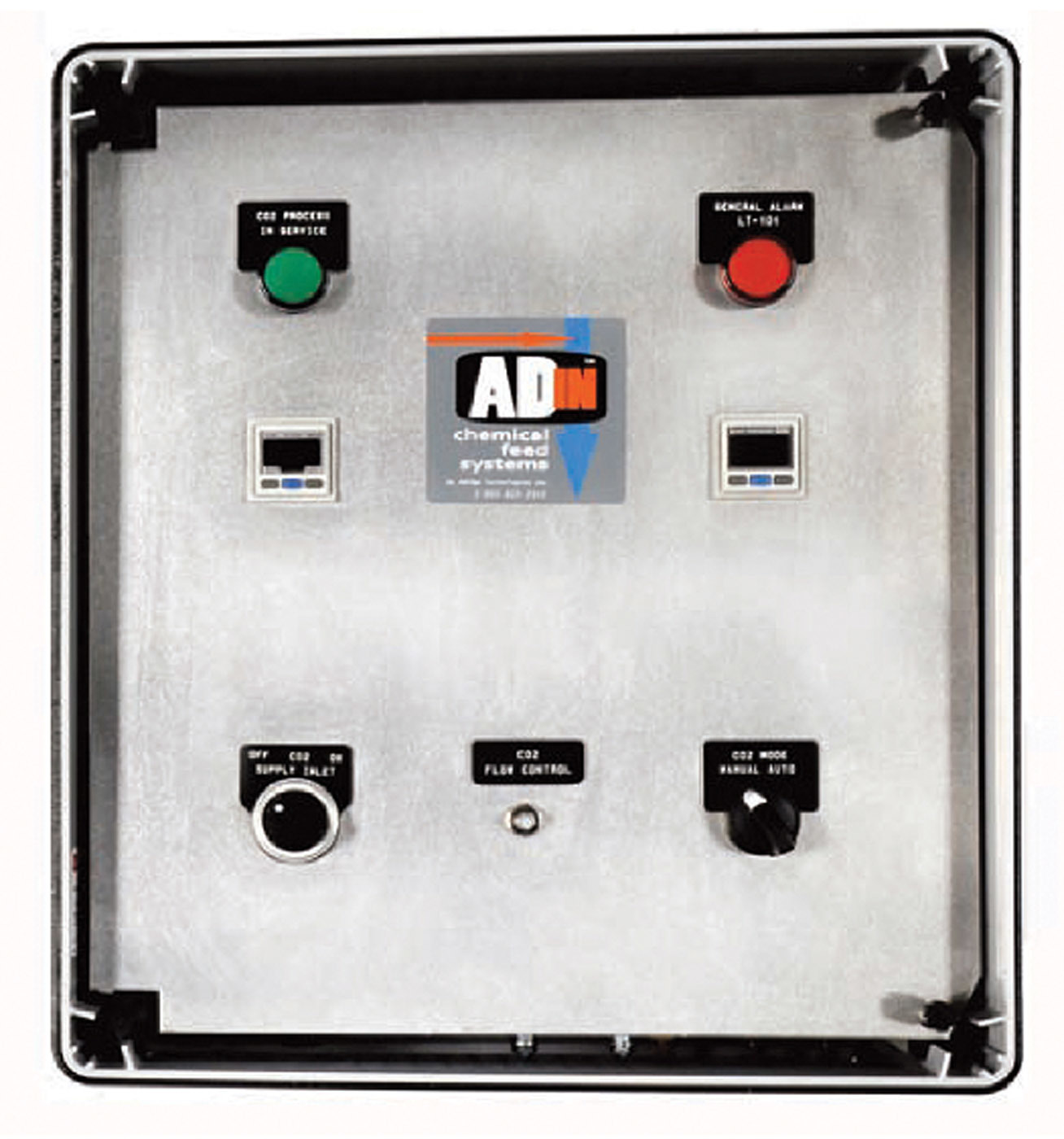

AdEdge Water Technologies ADIN CO2

The ADIN CO2 injection system from AdEdge Water Technologies is an alternative to other methods of alkalinity control and pH reduction. It’s ideal for the reduction of alkalinity prior to primary treatment components for optimizing contaminant removal. The system uses carbon dioxide gas, which when released in water, forms carbonic acid — a weak acid that immediately reacts with alkalis to reduce pH. As a gas, carbon dioxide is inert, noncorrosive and easy to store. With the use of the included monitoring equipment and injector, the control panel can be used in several different configurations to reduce pH. The automatic systems use a pH probe downstream of the system to regulate the amount of carbon dioxide being injected into the water. An injector and mixer are provided with all systems for optimal injection. A manifold and regulators are provided for carbon dioxide cylinders. 866-323-3343; www.adedgetechnologies.com

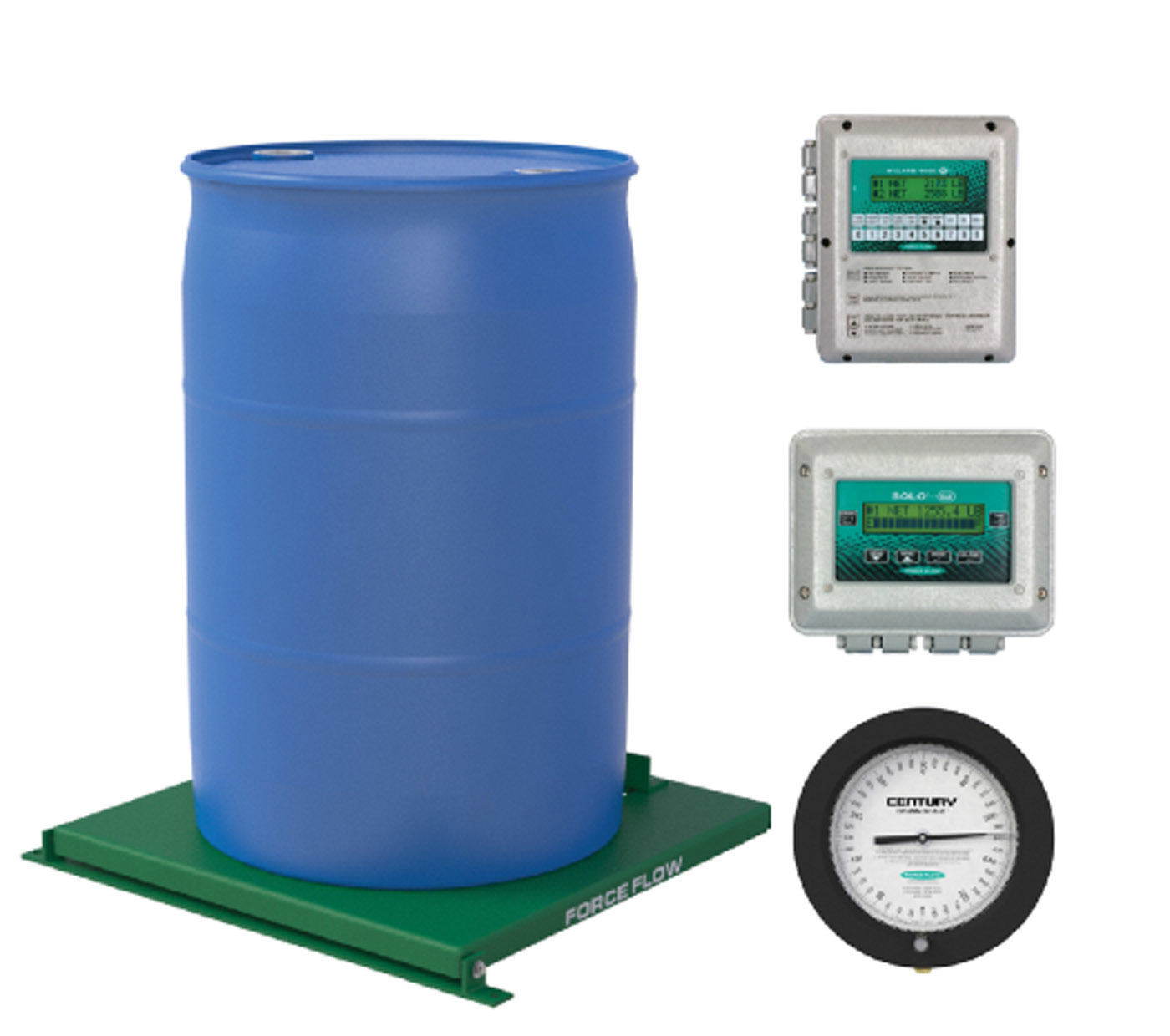

Force Flow Drumm-Scale

The Drumm-Scale from Force Flow is a simple and reliable way to accurately monitor the amount of polymer fed from a day tank, and it enables accurate compliance with government-required documentation of chemical use. It helps maximize solids yield with minimal polymer use. The low-profile Tuf-Coat steel platform permits easy on- and off-loading of tanks without the need to pit-mount the scale. The unit is available with any of the company’s indicators, including the economical SOLO G2, the advanced multichannel Wizard 4000 and the rugged Century hydraulic dial. 800-893-6723; www.forceflowscales.com


Digester/Component

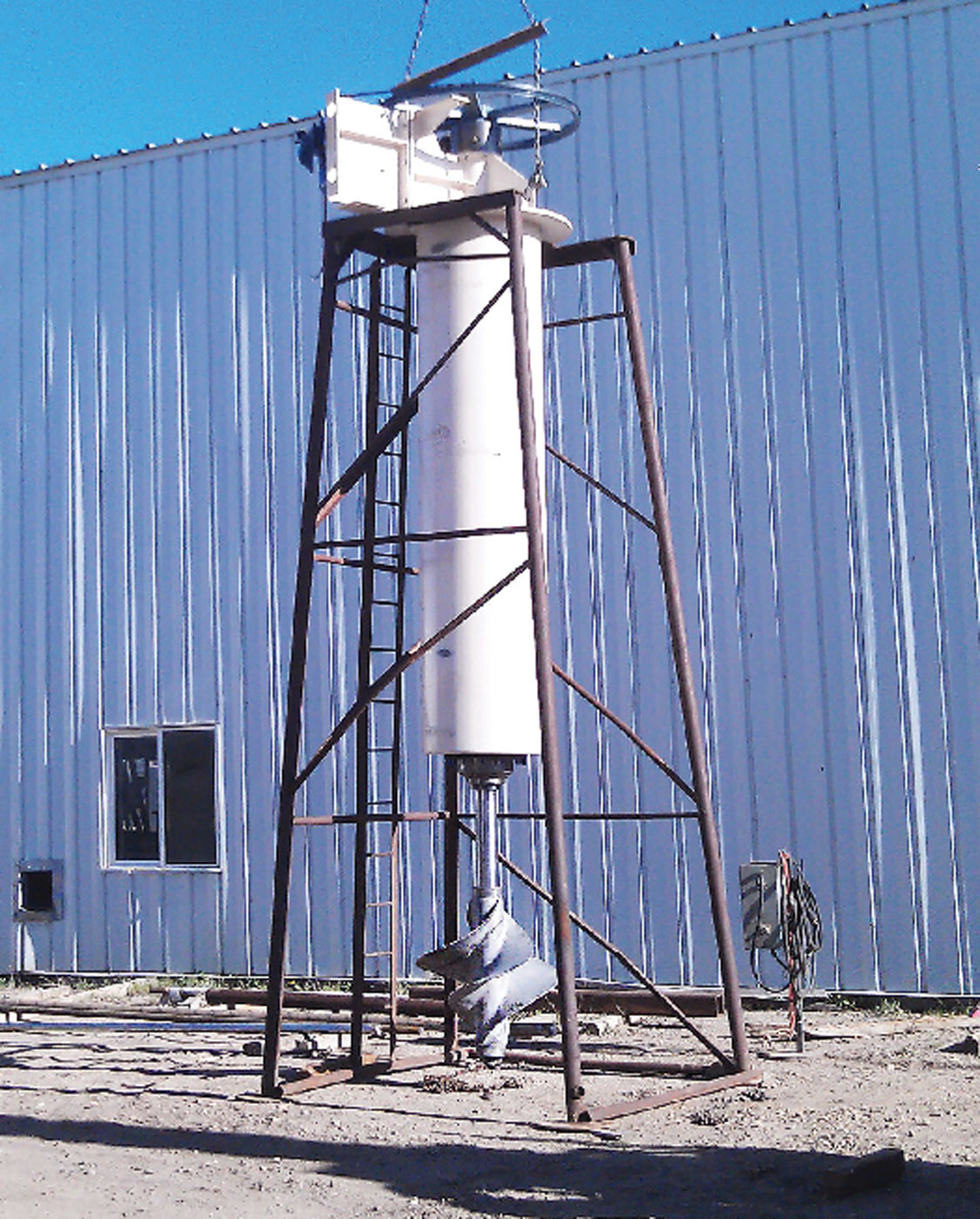

WesTech Engineering ExtremeDuty sludge mixer

The ExtremeDuty sludge mixer from WesTech Engineering is designed to improve the anaerobic digestion process. The mixer provides aggressive mixing in the digester with low power requirements. While keeping grit suspended, it also reduces foaming and provides even heat distribution throughout the digester. When combined with a draft tube heat exchanger jacket, the mixer eliminates the need for extra pumps and a heat exchanger by heating the sludge while mixing. It includes reversible mixing, with low operating costs and an integral early warning system. 801-265-1000; www.westech-inc.com


Grinder/Shredder

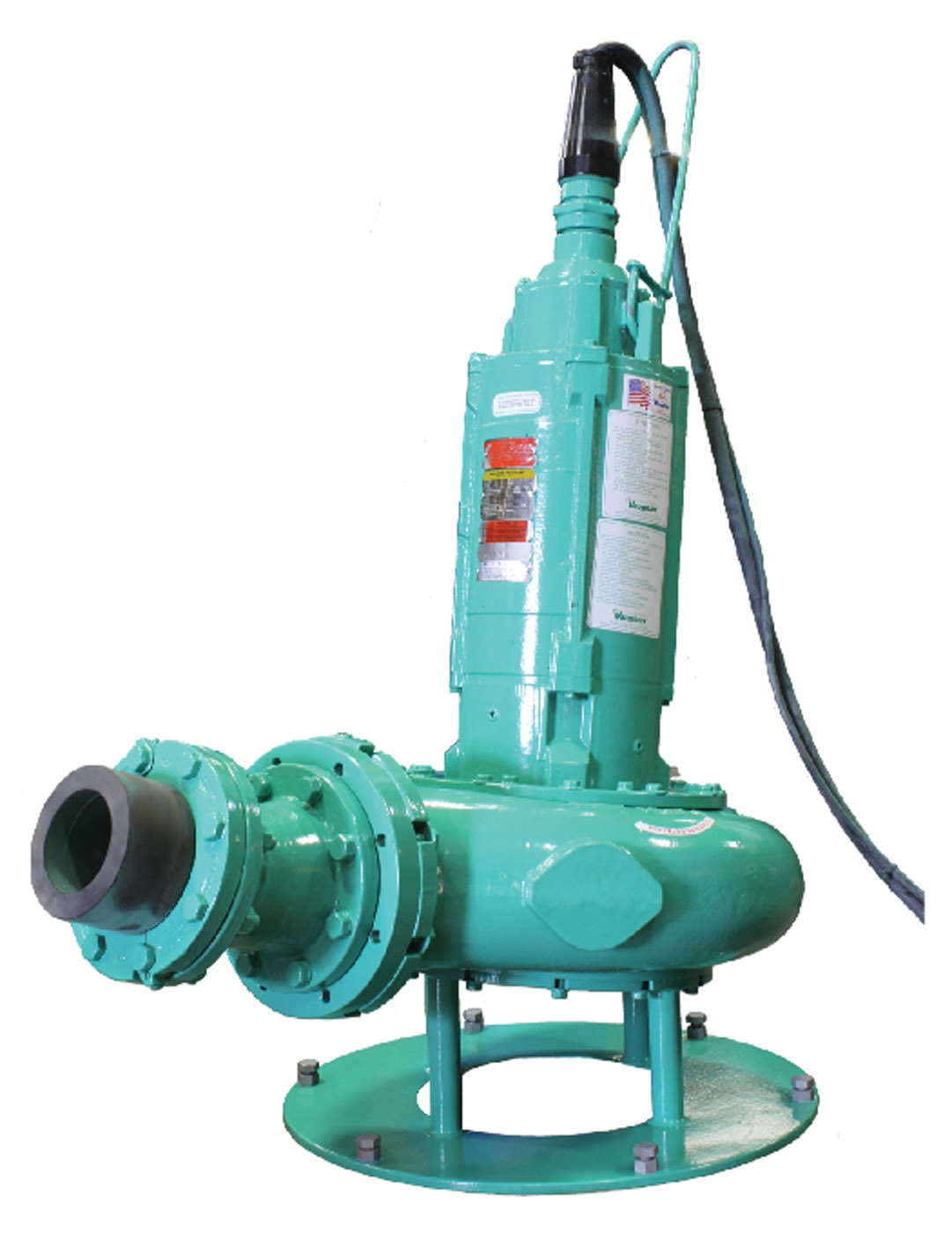

Vaughan chopper pumps

Vaughan chopper pumps deliver performance in the toughest applications. With flushable wipes clogging sewer systems across the country, the pumps easily handle difficult solids like disposable pads, wipes, duster cloths and diapers. The conditioning pump and self-priming chopper pump can help keep the water moving. 888-249-2467; www.chopperpumps.com


Grit Handling/Removal/Hauling

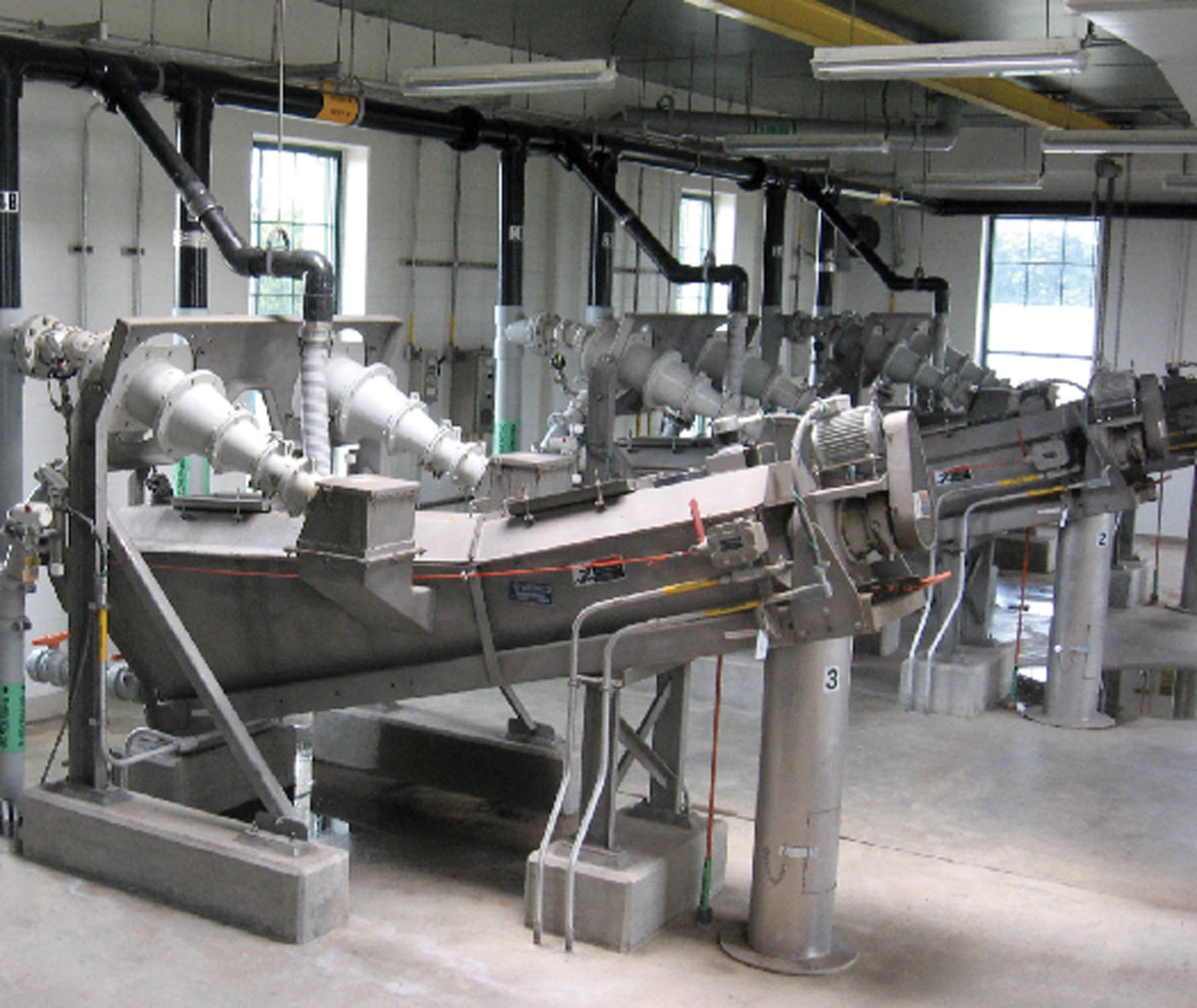

WEMCO Pumps Hydrogritter

The WEMCO Pumps Hydrogritter is a grit classifier system that removes 95% of particles of 105 micron/150 mesh with a specific gravity of 2.65 and greater. The unit’s main purpose is to protect downstream equipment from damage due to abrasive wear. A cyclone concentrates the grit slurry to approximately a 10-1 ratio. After the grit is concentrated, it drops into a settling pool, specifically sized for removing fine grit. When in the pool, the grit particles settle, while the lighter particles, such as organics, float and are carried over the weir at the end of the pool, to be returned to the wastewater stream. The settled grit is then carried up the inclined bottom of the unit to the discharge chute, where it is dropped into a dumpster for final disposal. 801-359-8731; www.trilliumflow.com


Screening Systems

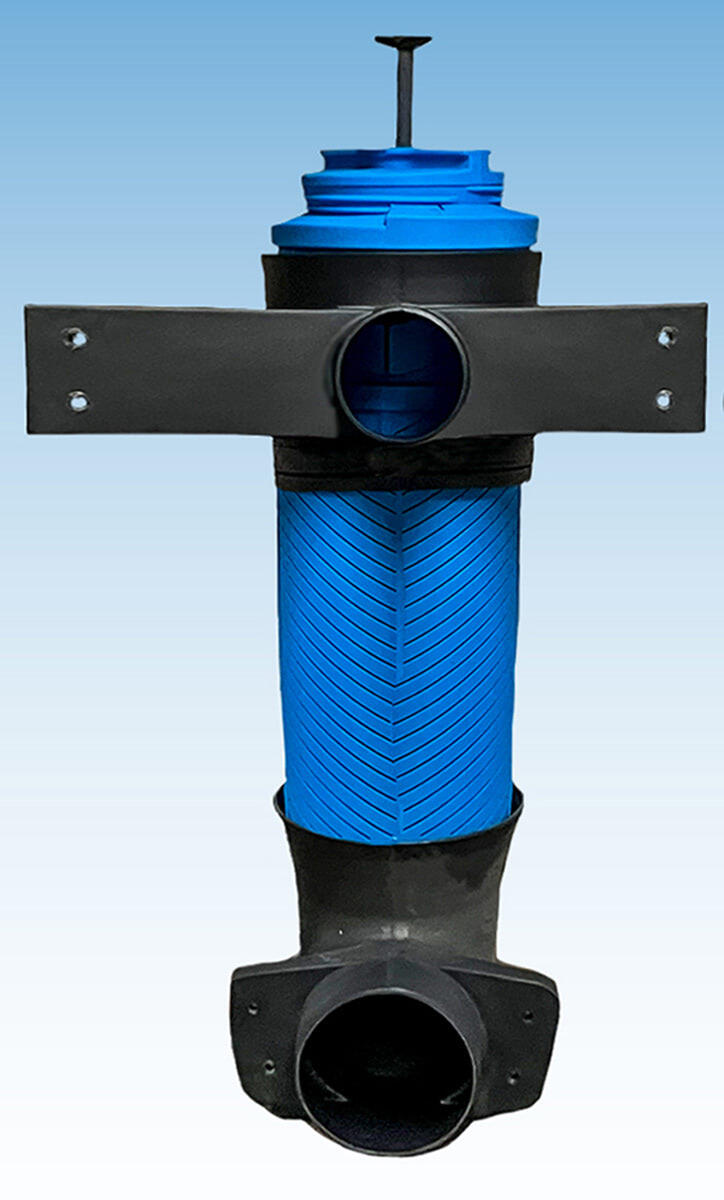

BioMicrobics MyTEE

The MyTEE screen from BioMicrobics provides effective separation of nonbiological solids and grit prior to the AMS Zone in the MyFAST system. The device comes standard with wall-mounted top diverters, base supports and internal/external cleaning swabs for easy maintenance. 913-422-0707; www.biomicrobics.com

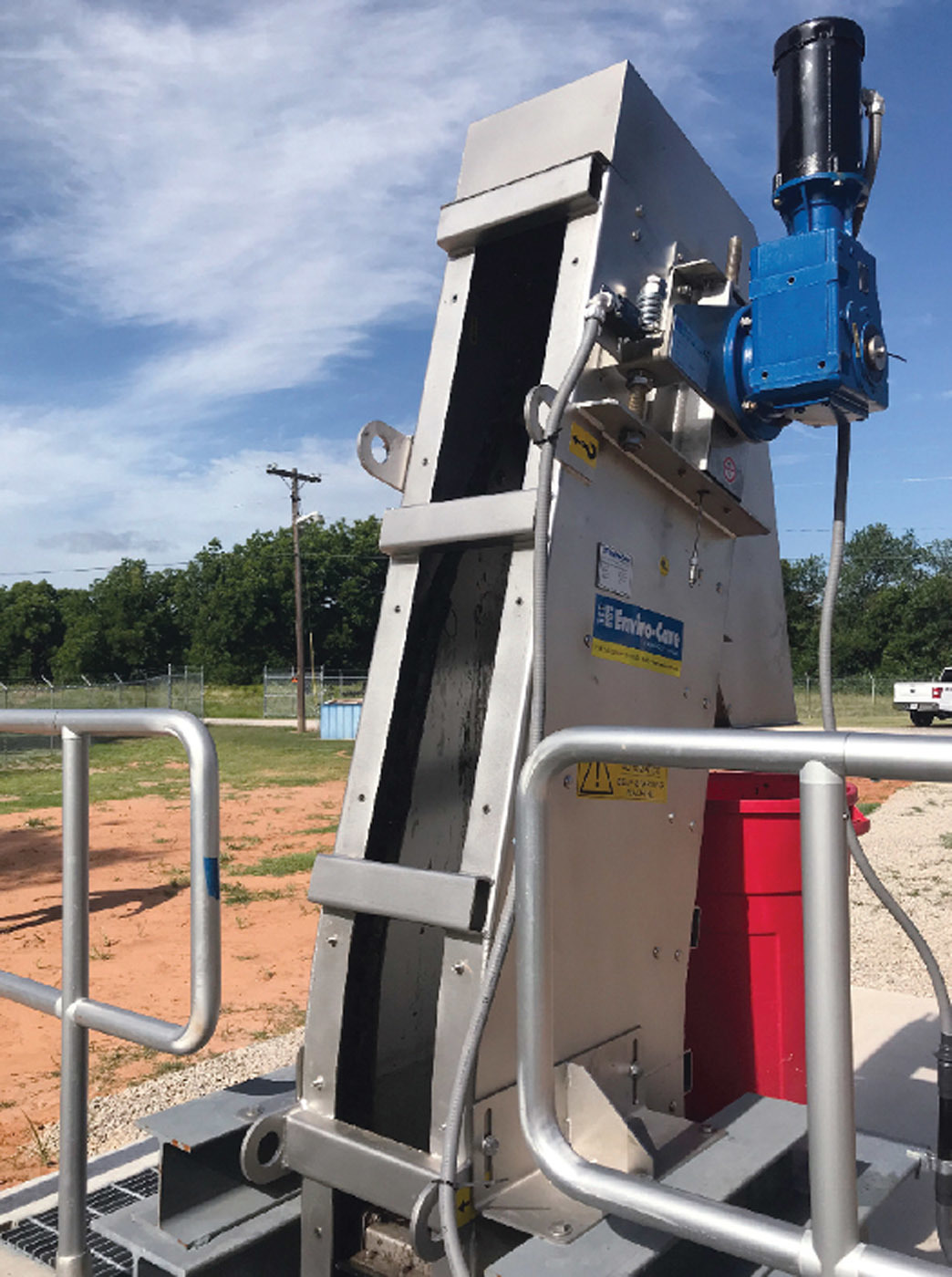

Enviro-Care SAVI GVS Multirake Perforated Plate Screen

The SAVI GVS Multirake Perforated Plate Screen from Enviro-Care is a unique multirake design where the bars have been replaced by a stainless steel perforated plate to achieve higher debris capture. Multiple wipers remove the debris from the perforated plate and transport the screened material to discharge. Independent testing has proven that perforated plate screens have higher capture rates, which can be as high as 85% depending on design. It can be mounted in traditional channels at 75 degrees, or at 90 degrees for deep, narrow channels and wet wells. The low-maintenance design makes it a suitable choice for remote locations. 815-636-8306; www.enviro-care.com

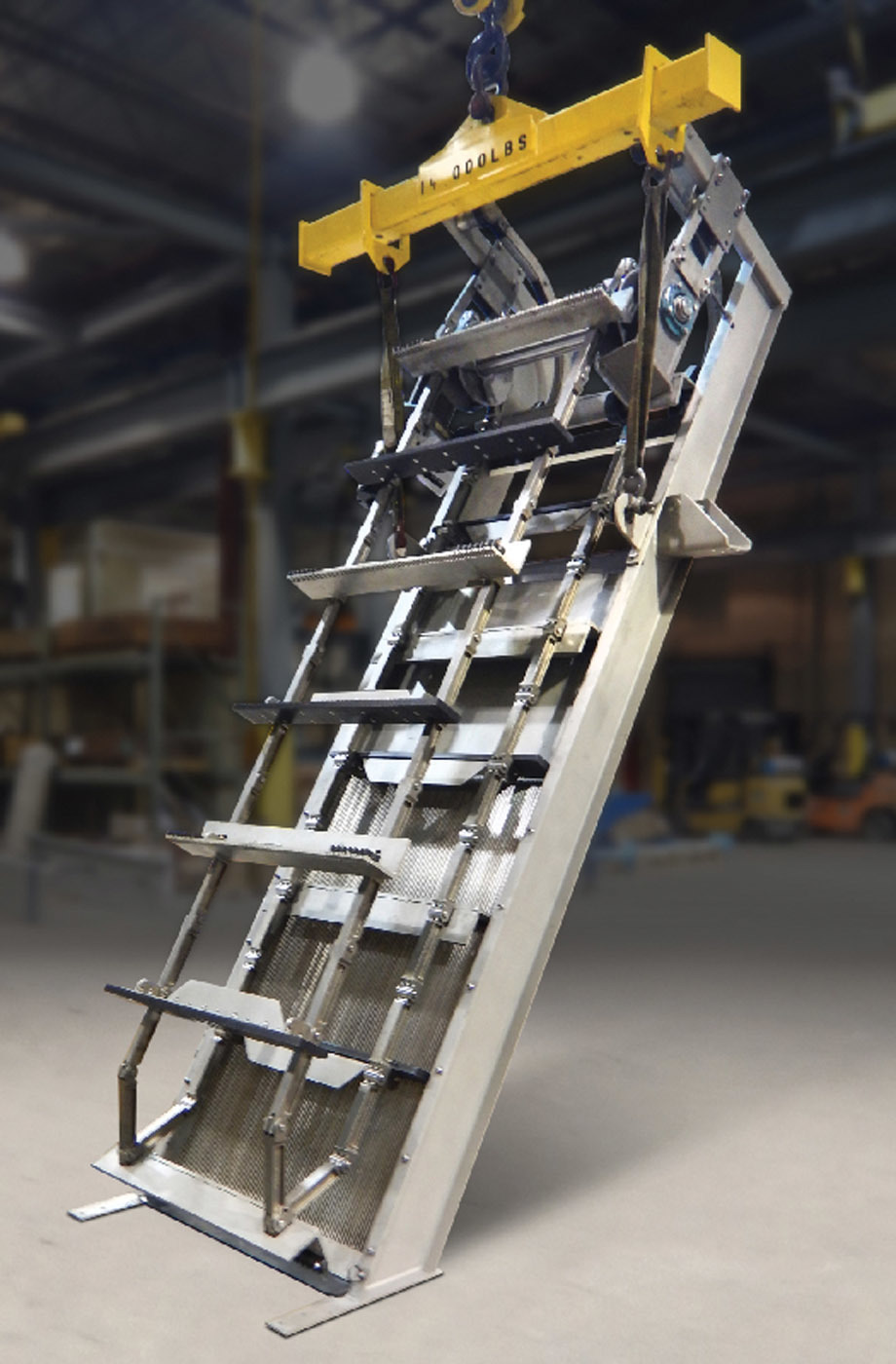

Parkson Corp. Aqua Caiman

The Aqua Caiman articulating rake screen from Parkson Corp. provides durability, ease of operation and protection of downstream process equipment. The system’s flexible belt assembly handles large solids with ease and eliminates the need for bottom bearings. Teardrop-shaped bars and low-profile screen bottom are designed for low headloss. True 100% rake engagement is achieved with the True-Engage bar fastening design. The True-Track chain positioner allows for rake engagement adjustment without a hoist. It is designed to fit various applications and is suitable for plants seeking low-maintenance screening. It can be used in conjunction with conveyors or wash compactors to complete the screening system. 888-727-5766; www.parkson.com
