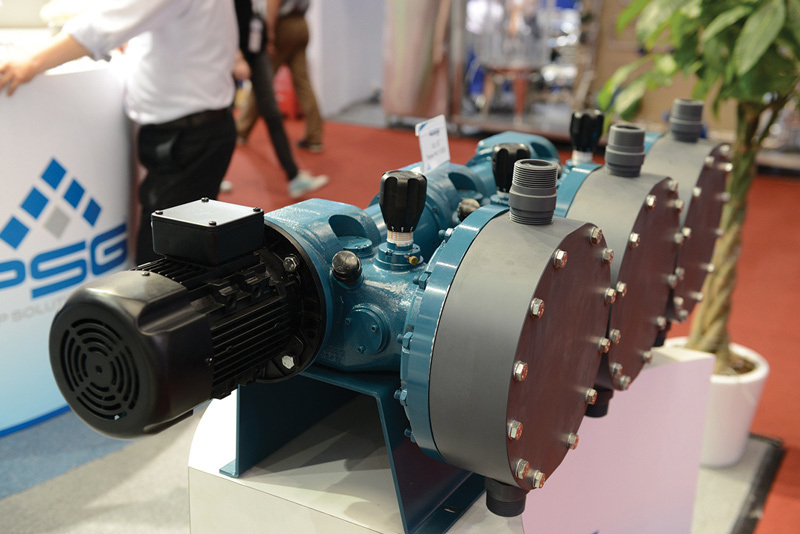

PSG diaphragm metering pumps

Neptune Series 7000 mechanically actuated diaphragm metering pumps from the Pump Solutions Group are designed to handle clear liquids with viscosities ranging from water-like to 1,500 cPs. The triplex version features flow to 4,200 liters per hour with discharges to 58 psi. The pump heads are driven by a single motor but can inject chemicals in three different lines at the same time. 909/557-2900;

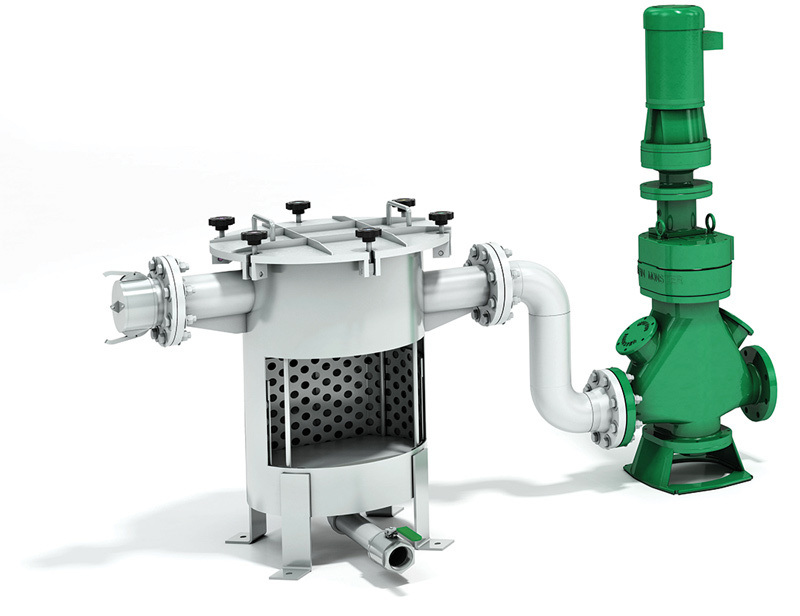

JWCE grease receiving, screening system

The Heavy Object Trap (HOT), model GRS, grease receiving and screening system from JWC Environmental has a variable bar screen with 1/2- and 1-inch spacings to capture and direct heavy objects, including rocks, silverware and trash into the debris basket. The largest basket can hold up to 2.2 cubic feet of material. The bar screen design and hot water washdown system prevents screen blinding for high flow rates of grease. The HOT system is available in six sizes with a maximum flow rate of 600 gpm and operating pressure of 15 psi and 4- or 6-inch pipelines. 800/331-2277;

Universal Flow Monitors vortex-shedding flowmeters

P420 vortex-shedding flowmeters from Universal Flow Monitors are designed for process water, membrane permeate, brine and corrosive fluids in water treatment, desalination and chemical treatment applications. The meters include models with wetted parts made entirely of PVC or CPVC for greater heat resistance. The CPVC body meter has a maximum operating temperature of 180 degrees F and the PVC meter has a maximum operating temperature of 140 degrees F. Both meters are available in five pipe diameters (1/2, 3/4, 1, 1 1/2 and 2 inches), providing a flow range from 12 to 200 gpm. 866/542-9641;

Kaeser high-capacity refrigerated dryers

TK-TM series modular, high-capacity refrigerated dryers from Kaeser Compressors have air-side isolation valves, a cooling water control valve and cooling water isolation valves, enabling individual modules to be serviced without disrupting air flow. Service panels on the top, front and back allow for easy access. Each module has its own electrical disconnect switch. 877/596-7138;

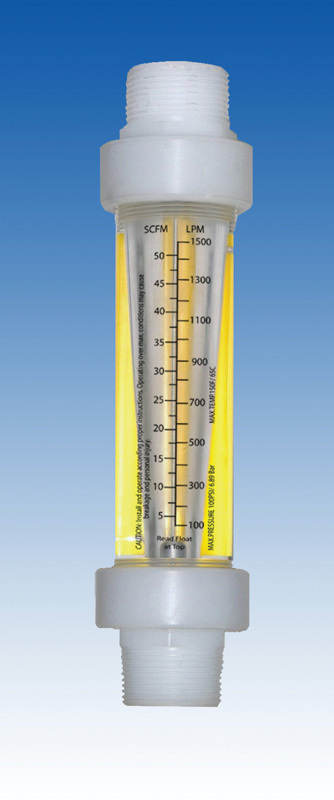

AALBORG acrylic flowmeters

The ACRX line of acrylic flowmeters from AALBORG feature interchangeable direct-reading scales for air, water, argon, oxygen, carbon dioxide, nitrogen, helium and hydrogen. Dual scales display flow rates in metric and English units. Optional scales available. The yellow back plate enhances readability and helps minimize eye fatigue. The meters are configured for inline 1/2-inch female NPT connections. They have a maximum operating temperature of 130 degrees F and maximum operating pressure of 100 psi. 845/770-3000;

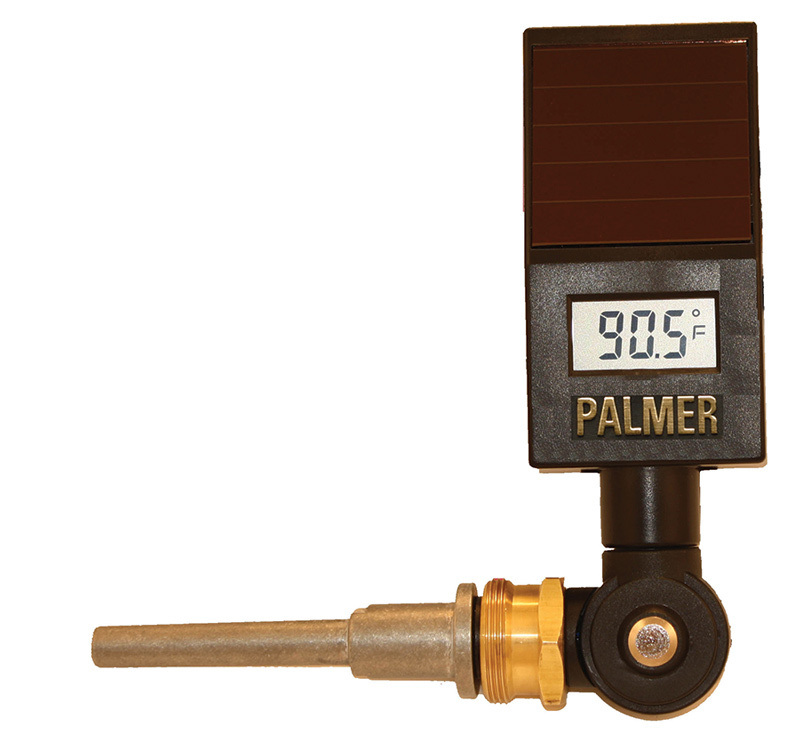

Palmer solar-powered thermometer

The solar-powered digital industrial thermometer from Palmer Instruments has a 1/2-inch high LCD screen and is mercury free. Models with 4-20 mA transmitter capability are available. An adjustable angle fitting enables the meter to be rotated 180 degrees for best viewing. 800/421-2853;

Thomas & Betts induction lighting fixtures

Hazlux induction lighting fixtures from Thomas & Betts include Fulham induction electronic ballast and lamps that deliver 100,000 hours of warm, white light. Operating range is -65 to 104 degrees F. The extreme-cold option operates at temperatures down to -85 degrees F. The lighting fixtures are suitable for use in Class 1, Zone 2, Groups IIA, IIB, IIC, Exn RII T3 (restricted breathing) and Division 2 Groups A, B, C and D areas. They also are rated for explosion-proof areas: Class 1, Division 1, Groups C and D, and Class II, Divisions 1 and 2, Groups E, F and G. 901/252-5000;

KOHLER 2,500 kW generator

The 2,500 kW (model 2500REOZDC) generator with V-16 engine from KOHLER Power Systems has a 60 Hz standby rating, 50 C cooling system, heavy-duty air cleaner and dual-bearing alternators. The generator is International Building Code (IBC) 2012 seismic certified for applications including hospitals, large data centers and water treatment plants. It also meets NFPA 110 requirements, providing power in less than 10 seconds. 800/544-2444;

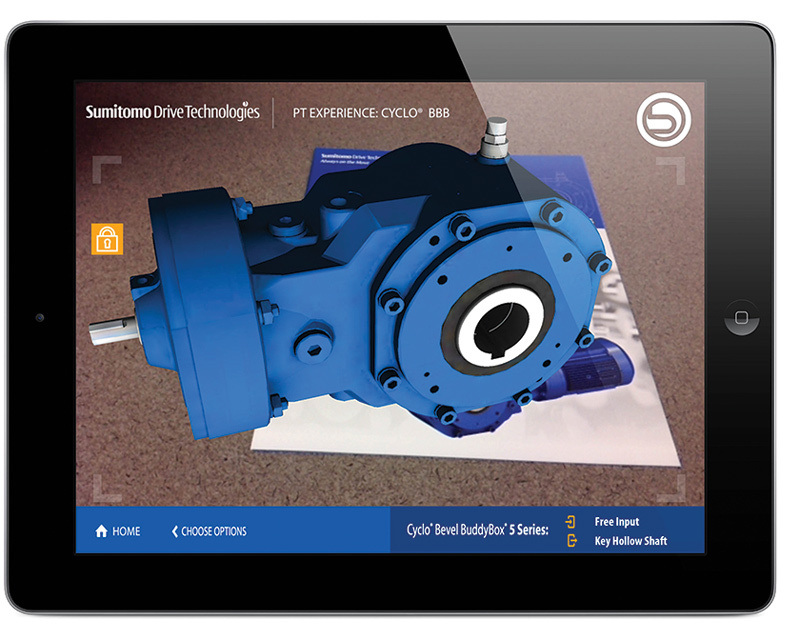

Sumitomo Machinery virtual product app

The PT Experience mobile iPad app from Sumitomo Machinery Corporation of America enables users to customize Cyclo Bevel BuddyBox (BBB) power transmission products, visualize internal and external workings, and connect to company representatives and online resources. 800/762-9256;

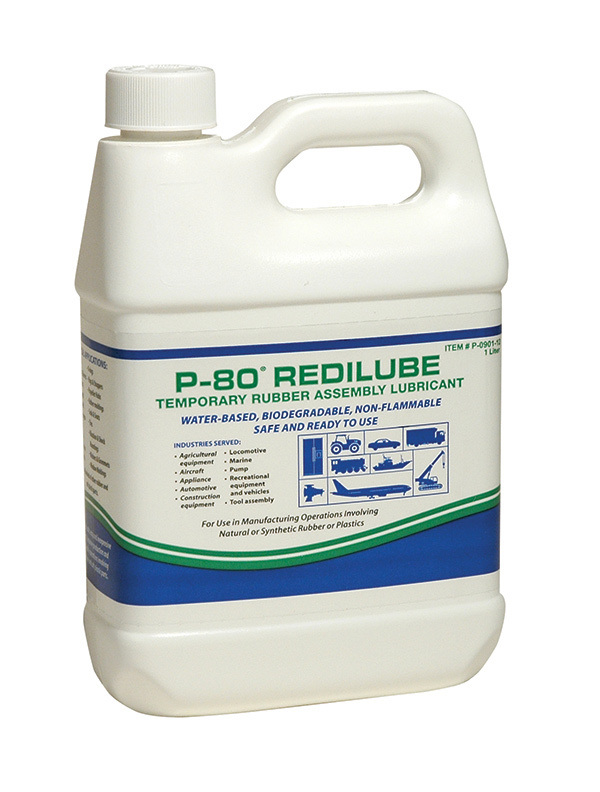

International Products assembly lubricant

P-80 RediLube from International Products Corp. provides temporary lubrication that can ease the assembly of tight-fitting parts. It is solvent-free, water-based, biodegradable, nontoxic and nonirritating to eyes and skin. 609/386-8770;

HEMCO emergency shower

The emergency shower from HEMCO is designed to protect individuals working with hazardous chemicals. Constructed of one-piece fiberglass composite, the showers are fully assembled and ready for installation to water supply and waste systems. The unit includes a pull-rod activated shower and push-handle eye/face wash for immediate drenching of personnel who have been exposed to harmful chemicals. Options include grab bars, and hand-held body wash and curtains. The unit is ANSI and OSHA compliant. 800/779-4362;

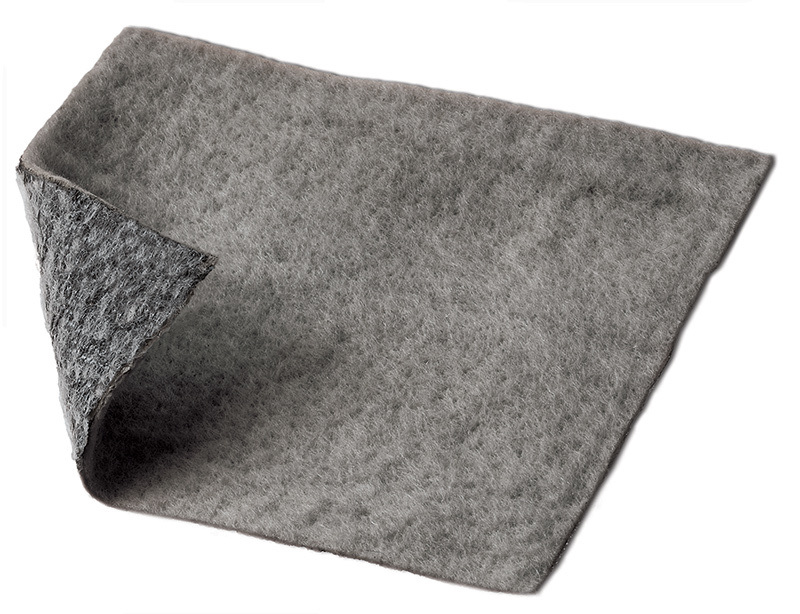

Agru America geosynthetic clay liner

GeoClay reinforced needle-punched geosynthetic clay liner from Agru America features a uniform layer of granular bentonite, encapsulated between two nonwoven geotextiles. GCL is designed for moderate to steep slopes and moderate to high load applications, where increased internal shear strength is required. 800/373-2478;

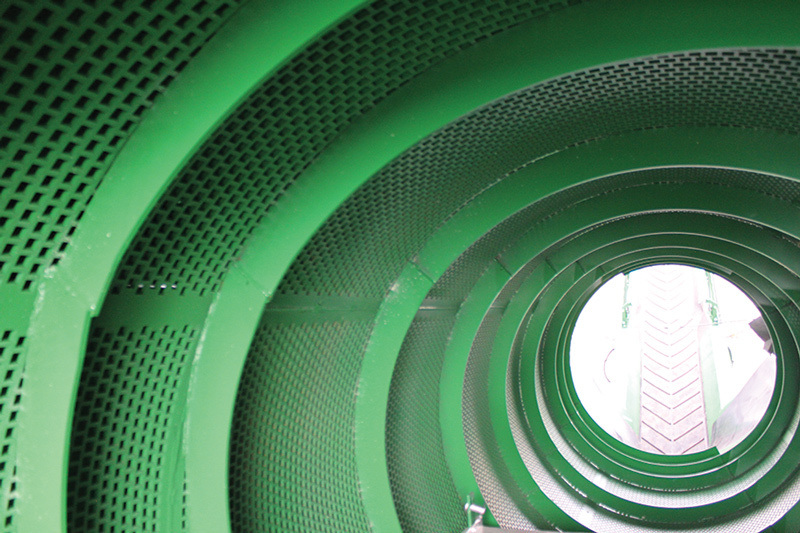

McCloskey International spiral drum

The spiral drum option for trammel screen models from McCloskey International prevents spearing where elongated material is lifted and thrown through the screen opening. It increases control of material flow, maximizing material sorting per load. The drum is available on 500, 600 and 700 series trammels. 877/876-6635;

Adalet flameproof screw cover enclosures

The XJ_X series of screw cover flameproof meter enclosures from Adalet feature 68 standard sizes approved to gas group IIB+H2 with an IP66 rating. The enclosures are available with solid cover or viewing windows. 216/267-9000;

SEL power quality, revenue meter with IEC

The SEL-735 power quality and revenue meter with IEC functionality from Schweitzer Engineering Laboratories supports systems built from multivendor intelligent electronic devices (IEDs) networked to perform protection, monitoring, automation, metering and control. IEC 61850 features include up to six manufacturing message specification client sessions for logging and reporting data, the ability to publish and subscribe to generic object-oriented substation event (GOOSE) messages and support for device configuration using substation configuration language (SCL) and configured IED description (CID) files. 509/332-1890;

Hammond hinged cover enclosures

HJ H Series hinged cover metal (14- or 16-gauge steel) enclosures from Hammond Manufacturing Co. are environmentally sealed to NEMA Type 3R, 4 (IP66), 12 and 13 standards. Designed for wall or bulkhead mounting, applications include housing electrical and electronic equipment where dust and/or water protection is required. Sizes range from 4 by 4 by 3 inches to 16 by 14 by 10 inches. 716/630-7030; www.hammond
