Product News - October 2013

Product News - October 2013
Adalet flameproof screw cover meter enclosure

Interested in Energy?

Get Energy articles, news and videos right in your inbox! Sign up now.

Energy + Get Alerts

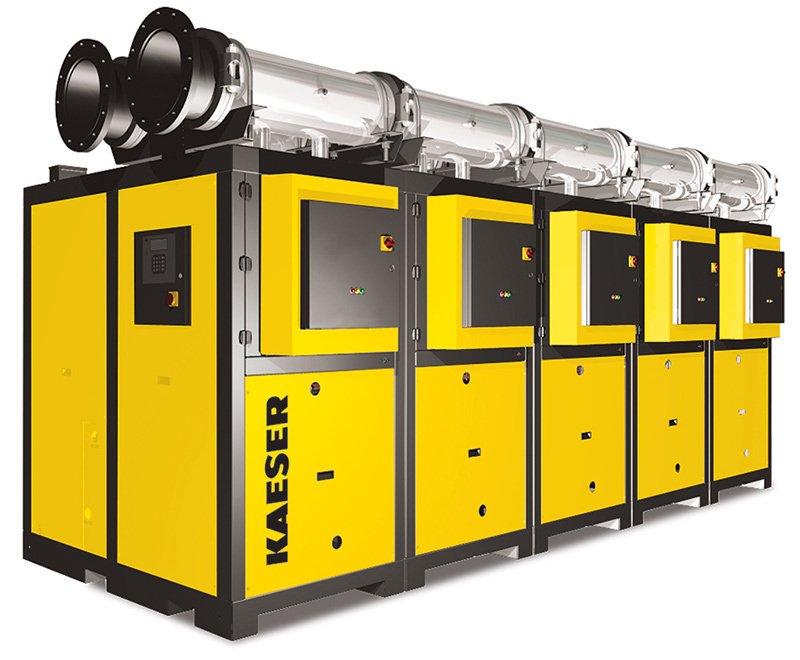

Kaeser high-capacity refrigerated dryers

TK-TM series modular, high-capacity refrigerated dryers from Kaeser Compressors have air-side isolation valves, a cooling water control valve and cooling water isolation valves, enabling individual modules to be serviced without disrupting air flow. Service panels on the top, front and back allow for easy access. Each module has its own electrical disconnect switch. 877/596-7138;

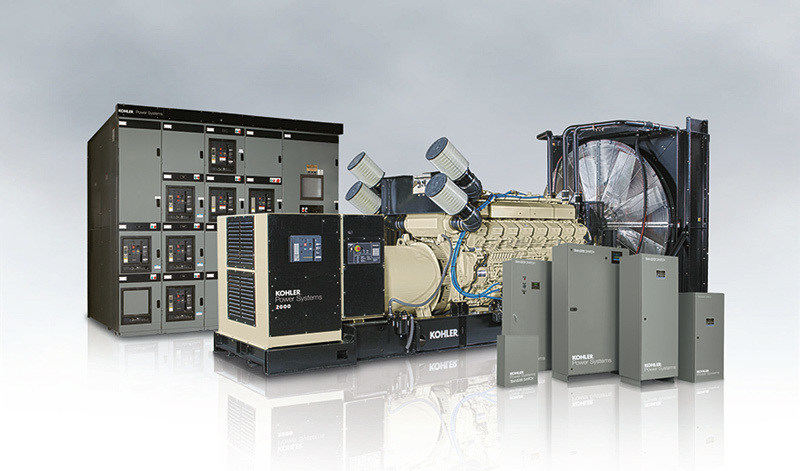

Kohler 2,500 kW generator

The 2,500 kW (model 2500REOZDC) generator with V-16 engine from Kohler Power Systems has a 60 Hz standby rating, 50 C cooling system, heavy-duty air cleaner and dual-bearing alternators. The generator is International Building Code (IBC) 2012 seismic certified for applications including hospitals, large data centers and water treatment plants. It also meets NFPA 110 requirements, providing power in less than 10 seconds. 800/544-2444;

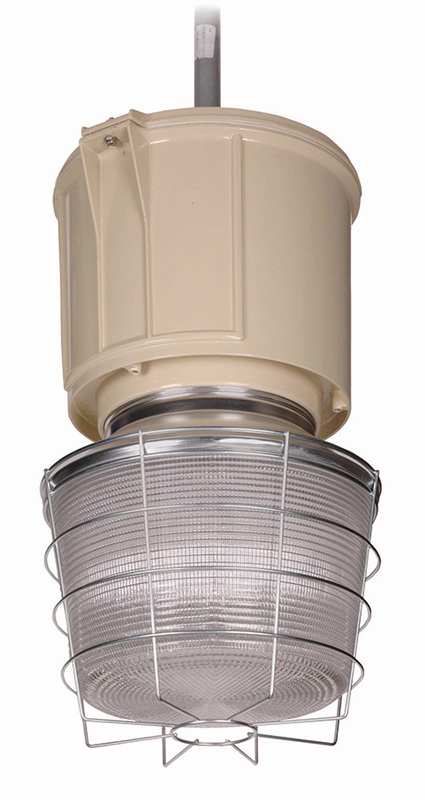

Thomas & Betts induction lighting fixtures

Hazlux induction lighting fixtures from Thomas & Betts include Fulham induction electronic ballast and lamps that deliver 100,000 hours of warm, white light. Operating range is -65 to 104 degrees F. The extreme-cold option operates at temperatures down to -85 degrees F. The lighting fixtures are suitable for use in Class 1, Zone 2, Groups IIA, IIB, IIC, Exn RII T3 (restricted breathing) and Division 2 Groups A, B, C and D areas. They also are rated for explosion-proof areas: Class 1, Division 1, Groups C and D, and Class II, Divisions 1 and 2, Groups E, F and G. 901/252-5000;

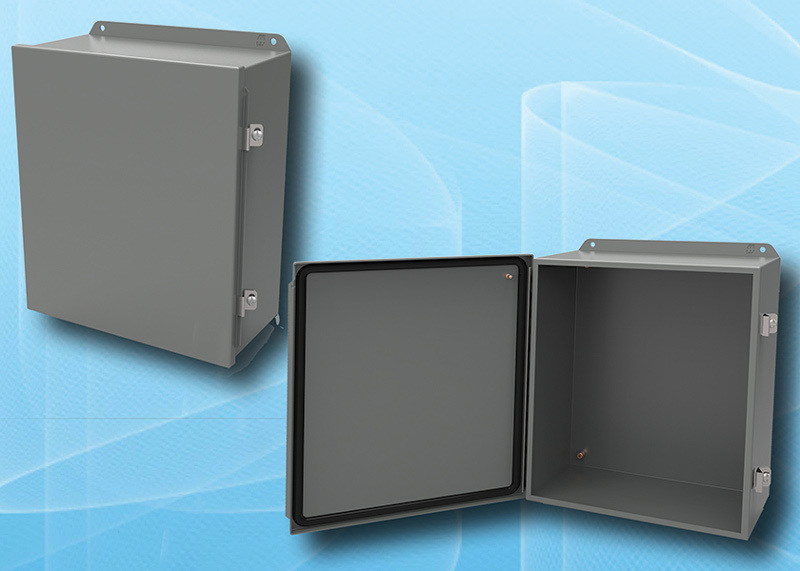

Hammond hinged cover enclosures

HJ H Series hinged cover metal (14- or 16-gauge steel) enclosures from Hammond Manufacturing Co. are environmentally sealed to NEMA Type 3R, 4 (IP66), 12 and 13. Designed for wall or bulkhead mounting, applications include housing electrical and electronic equipment where dust and/or water protection is required. Sizes range from 4 by 4 by 3 inches to 16 by 14 by 10 inches. 716/630-7030;

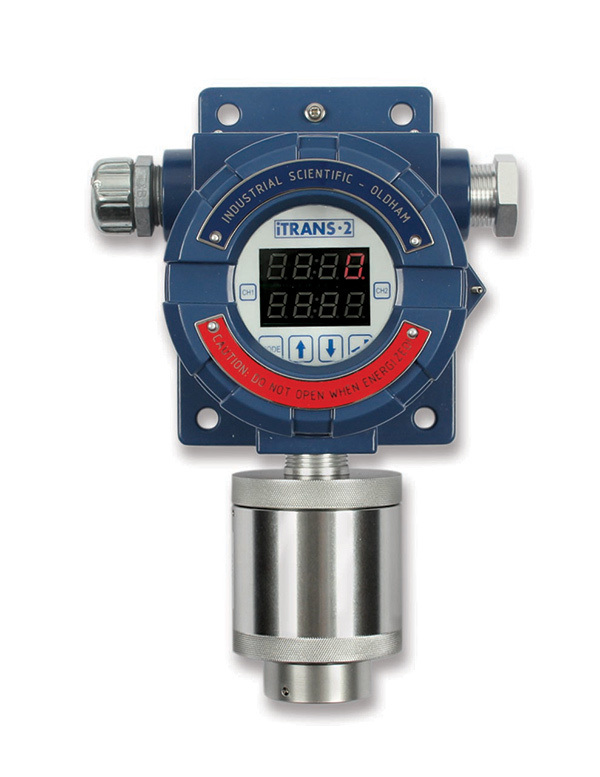

Oldham fixed gas monitor

The iTrans 2 fixed gas monitor from Oldham, an Industrial Scientific Company, detects explosive gases, toxic gases or oxygen. The intelligent electronics platform provides one or two points of detection from a single head. When in RS485 bus configuration, one system is capable of accommodating more than 200 transmitters and can monitor any combination of gases for a specific environment. Other features include nonintrusive calibration, HART and Modbus communication, programmable relays and explosion-proof aluminum or stainless steel housings. 800/338-3287;

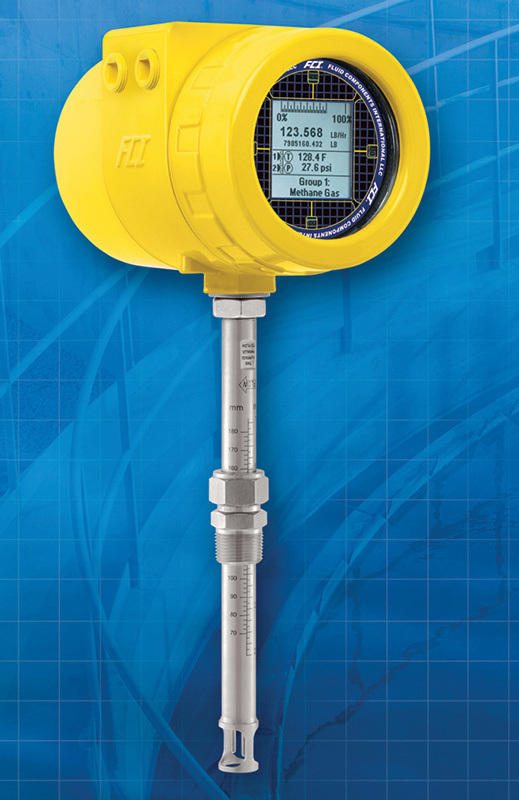

Fluid Components air/gas flowmeter

The ST100 air/gas flowmeter from Fluid Components International can be calibrated to measure most process gas, including wet, mixed and dirty gases. It can store five unique calibration groups or differing mixtures of the same gas, and has a plug-in card replacement that can be changed out in the field. Features include a graphical, multivariable, backlit LCD display. The readout continuously displays all process measurements and alarm status. It also can query for service diagnostics. 800/854-1993;

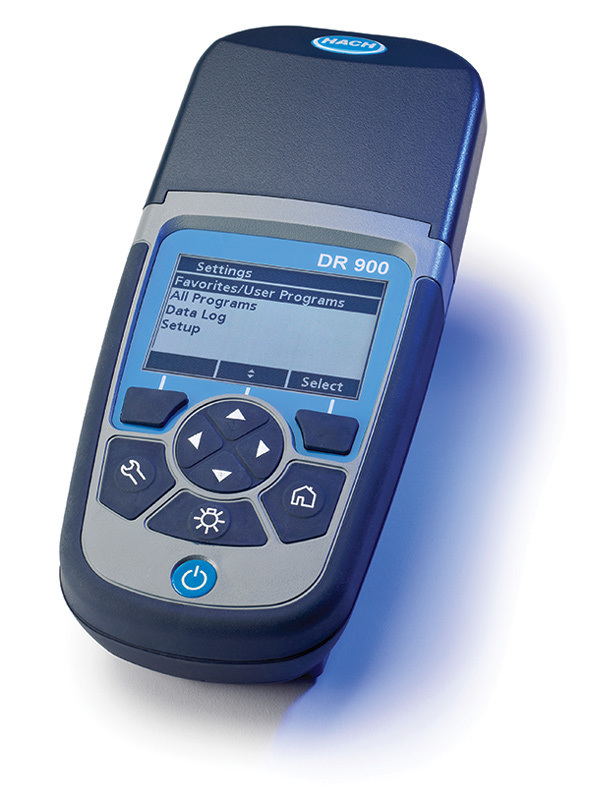

Hach handheld colorimeter

The DR 900 handheld colorimeter from Hach Co. is designed for testing water in harsh and challenging field environments. Waterproof, dustproof, drop tested and shock resistant, the colorimeter has a backlit display option for low light conditions. It can store 500 tests and comes with a USB port for data transfer to a PC or laptop. 800/227-4224;

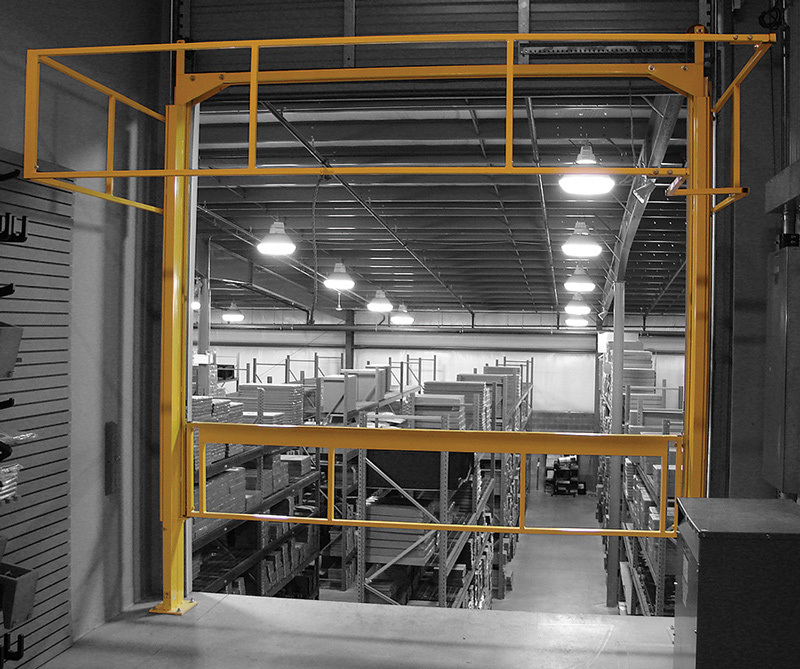

Benko mezzanine safety gate

Protect-O-Gate Clear Aisle mezzanine safety gates from Benko Products feature a double-gate design and three-sided load access to ensure against falls and other accidents associated with mezzanines and loading areas. The OSHA-compliant gates require 10 inches of floor space when closed at the mezzanine ledge and are counterbalanced for ergonomic, easy manual operation. Optional powered operation includes remote controls. Units can be customized to accommodate various load and space restrictions. 440/934-2180;

SEL power quality, revenue meter with IEC

The SEL-735 power quality and revenue meter with IEC functionality from Schweitzer Engineering Laboratories supports systems built from multivendor intelligent electronic devices (IEDs) networked to perform protection, monitoring, automation, metering and control. IEC 61850 features include up to six manufacturing message specification client sessions for logging and reporting data, the ability to publish and subscribe to generic object-oriented substation event (GOOSE) messages and support for device configuration using substation configuration language (SCL) and configured IED description (CID) files. 509/332-1890;

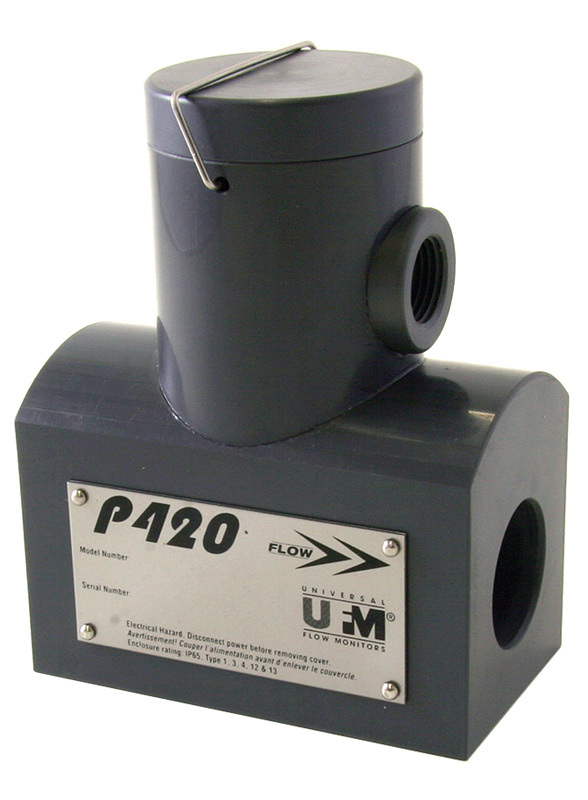

Universal Flow Monitors vortex-shedding flowmeters

P420 vortex-shedding flowmeters from Universal Flow Monitors are designed for process water, membrane permeate, brine and corrosive fluids in water treatment, desalination and chemical treatment applications. The meters include models with wetted parts made entirely of PVC or CPVC for greater heat resistance. The CPVC body meter has a maximum operating temperature of 180 degrees F and the PVC meter has a maximum operating temperature of 140 degrees F. Both meters are available in five pipe diameters (1/2, 3/4, 1, 1 1/2 and 2 inches), providing a flow range from 12 to 200 gpm. 866/542-9641;

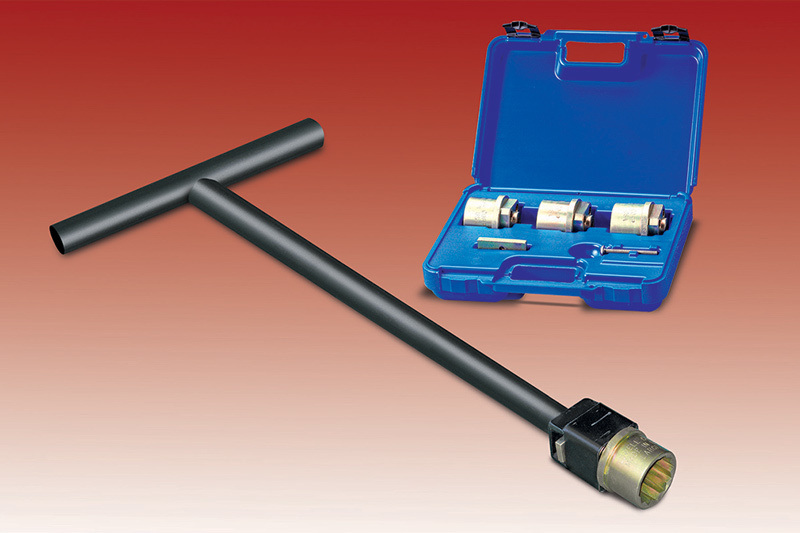

Lowell valve key sockets

The three-size valve key sockets kit from Lowell Corp. can handle from 1 13/16-inch Boston gates nuts to 2-inch standard square nuts. It includes a compact case, attachment plate and 3-inch screw for mounting the socket on any standard key. 800/456-9355;

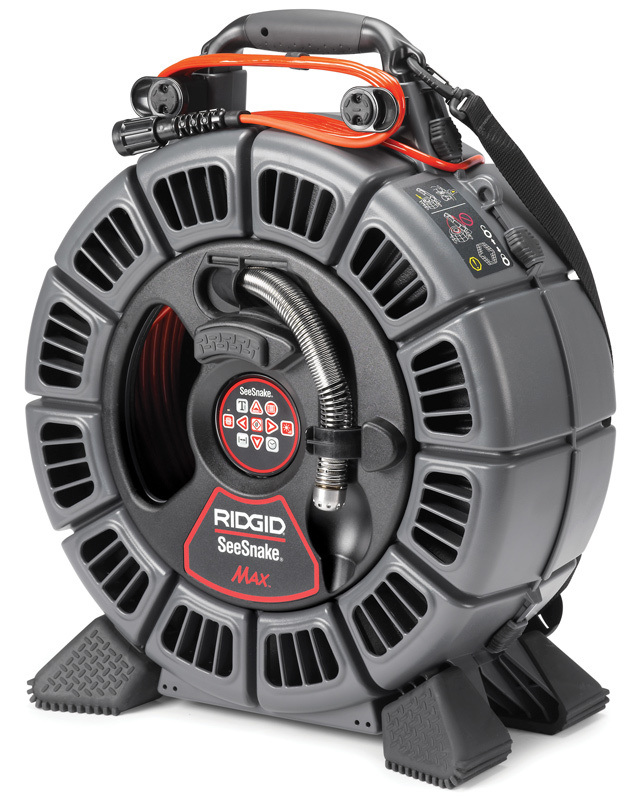

RIDGID SeeSnake with self-leveling head

The SeeSnake Max rM200 camera system from RIDGID with self-leveling head takes the guesswork out of inspections, providing clear, right-side-up images or video. 800/769-7743;

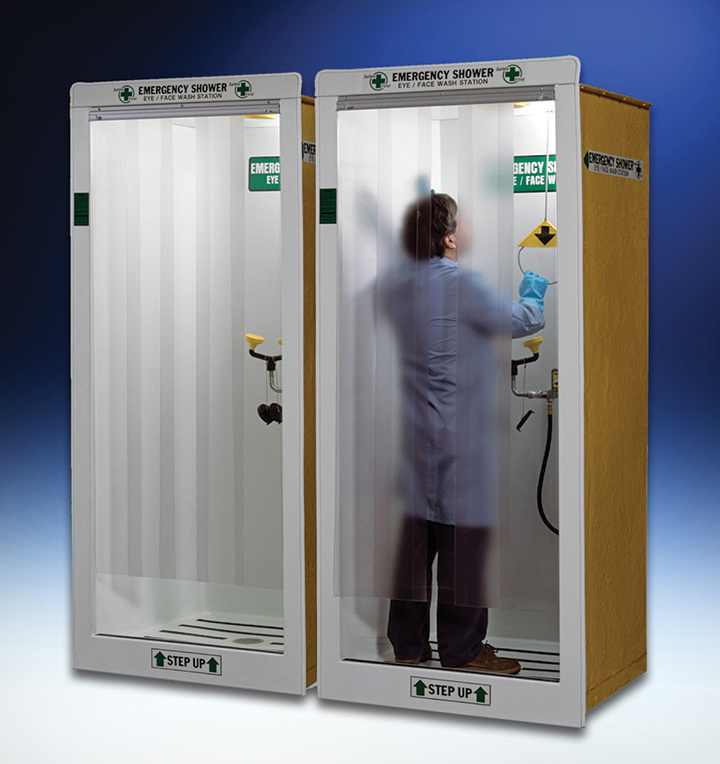

HEMCO emergency shower

The emergency shower from HEMCO is designed to protect individuals working with hazardous chemicals. Constructed of one-piece fiberglass composite, the showers are fully assembled and ready for installation to water supply and waste systems. The unit includes a pull-rod activated shower and push-handle eye/face wash for immediate drenching of personnel who have been exposed to harmful chemicals. Options include grab bars, hand-held body wash and curtains. The unit is ANSI and OSHA compliant. 800/779-4362;

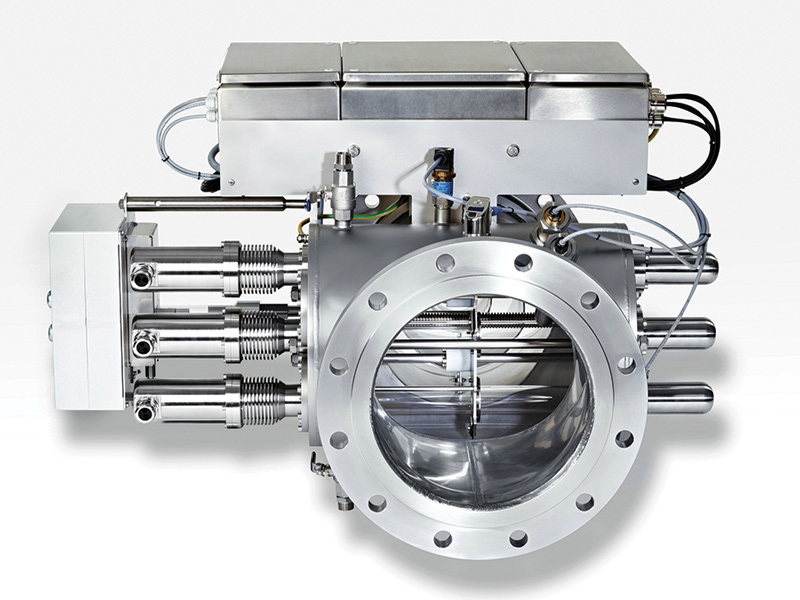

Xylem WEDECO Quadron UV systems

WEDECO Quadron medium-pressure ultraviolet water treatment systems from Xylem are designed for drinking water disinfection and wastewater reuse applications. The 600 and 1,200 units manage flows to 8.6 and 13.3 mgd. Multiray UV lamps provide 8,000 hours of life, even in dimmed mode. 704/409-9700;

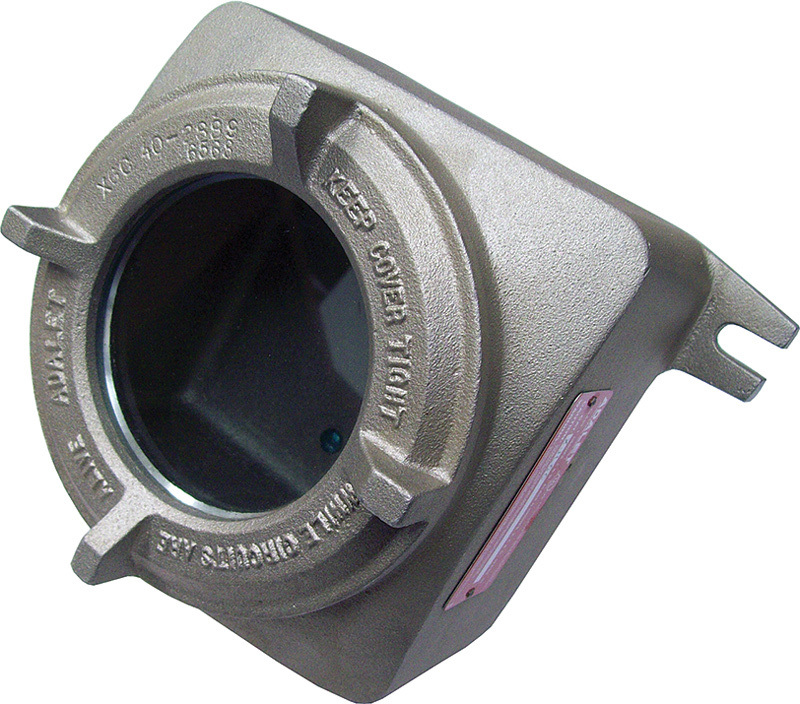

Adalet flameproof screw cover meter enclosure

The XJ_X series of screw cover flameproof meter enclosures from Adalet feature 68 standard sizes approved to gas group IIB+H2 with an IP66 rating. The enclosures are available with solid cover or viewing windows. 216/267-9000;

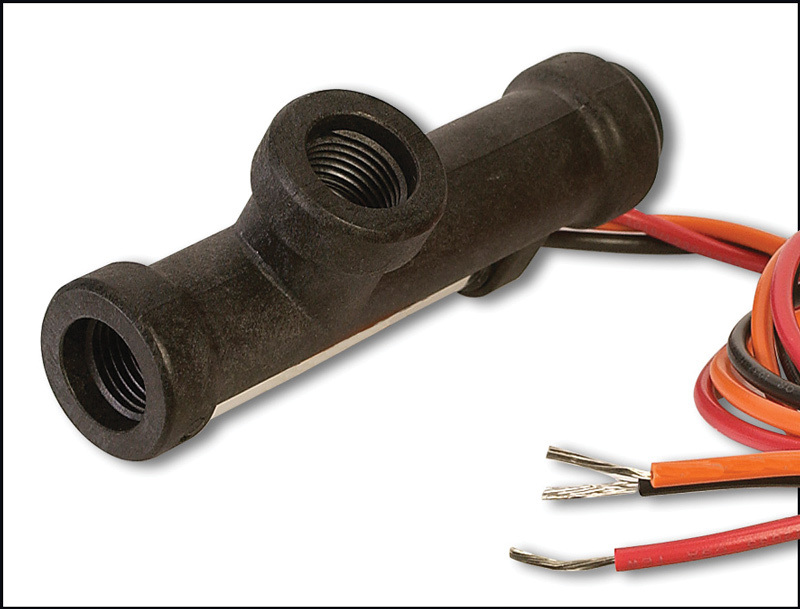

Omega mini plastic flow switch

The FSW-120 series of compact PPS switches from Omega Engineering are designed for use with water and water-based solutions  and high-volume OEM applications, including coolant or chemical monitoring. Switch points are based on water flow. 800/826-6342;
