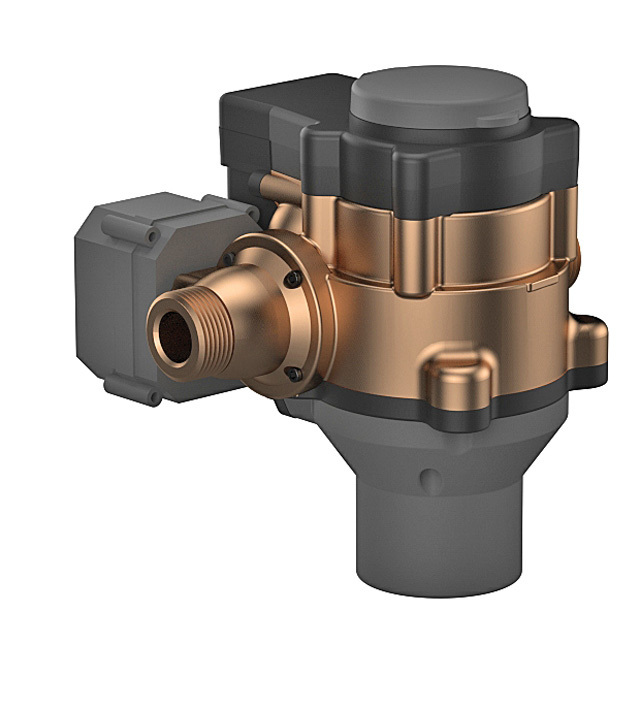

Wireless water meter

The IntelliH2O wireless water meter from Capstone Metering captures, collects, controls and conserves water. The meter and its software transform the water grid into an intelligent network.

The meter features self-generating power by the flow of the water, a remote on/off valve, flexible and frequent two-way communications using virtually any wireless communication network (including Zigbee, Wi-Fi and cellular). It also offers inline self-calibration and high- and low-pressure sensors. The meter meets all AWWA standards and the total operational cost is less than that of current AMI systems. 972/446-1700; www.capstonemetering.com.



Total organic carbon analyzers

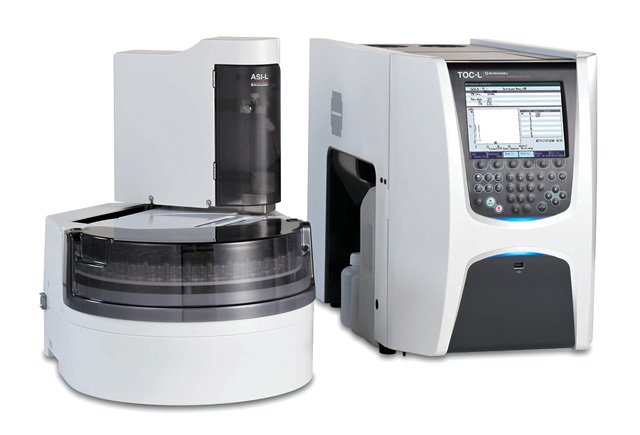

TOC-L Series total organic carbon analyzers from Shimadzu Scientific Instruments offer a wide sample range from 4 μg/L to 30,000 mg/L. Consisting of four models, including PC-controlled and stand-alone versions, the analyzer uses the 680 C combustion catalytic oxidation method to analyze all organic compounds. It features automatic sample acidification and sparging and an automatic dilution function that reduces sample salinity, acidity and alkalinity.

High-precision mass flow controllers ensure uninterrupted carrier gas and a no-maintenance Peltier cooler for maximum water vapor removal ensures accurate analysis. The optional salt kits permit 12 times more salt to be analyzed before maintenance. Models can accept particulates up to 500 microns or 800 microns with the optional particulate kit. 800/447-1227; www.ssi.shimadzu.com.



Pipe strain measurement

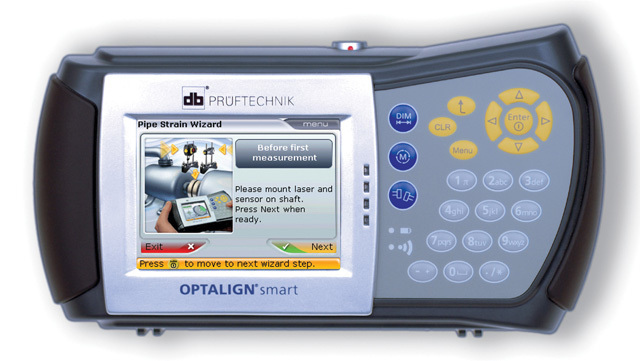

The Pipe Strain Wizard from LUDECA measures the effects of pipe strain on shaft alignment. The program checks for strain from external sources acting on machines. The measured values are quantified in terms of offset and angularity. The vector values are combined for vertical and horizontal directions. The check can prove the existence of pipe strain on a pump or conduit strain on a motor. Measurement files can be saved or printed in PDF format directly from the alignment tool. 305/591-8935; www.ludeca.com.

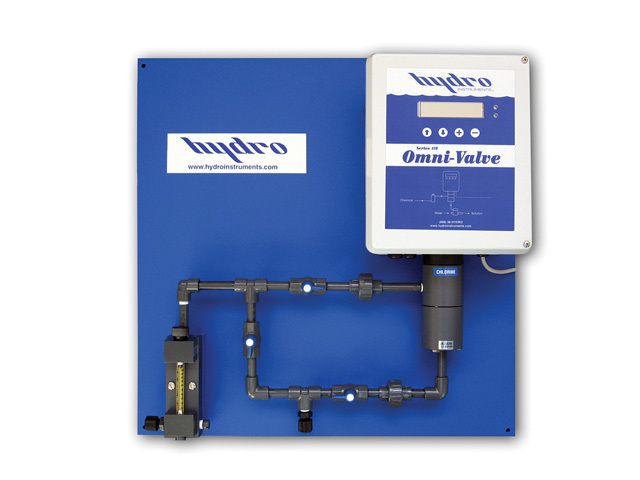

Control valve

The Hydro Instruments OV-110 Omni-Valve automatically controls chemical feed based on one or more electrical input signals and is compatible with gases or liquids. It can operate in seven control modes including flow pacing, residual set point, compound loop (PID), dual input feed forward, step feed, dual set point and manual. It can also handle a wide range of chemicals and a wide range of feed capacities. Microprocessor technology eliminates the need for feedback potentiometers. 888/384-9376; www.hydroinstruments.com.



Pressure transmitter

The Valueline from Keller America is a high-accuracy, general-purpose pressure transmitter that uses microprocessor technology to provide high Total Error Band (TEB) accuracy, with fully conditioned analog output over a wide compensated temperature range. Available with various electrical connections, custom pressure ranges, and voltage or current outputs, the device integrates into new and existing systems, including PLC, VFD, SCADA, and most commercially available displays/controllers. 877/253-5537; www.kelleramerica.com.

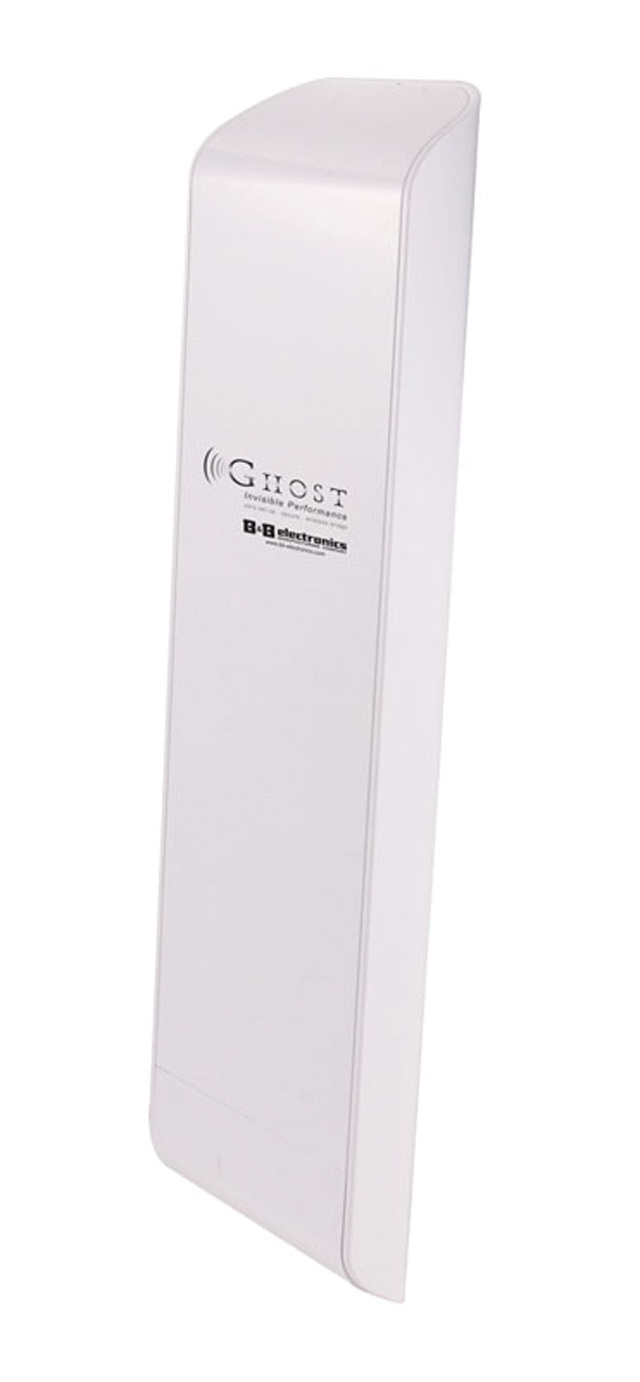

Long-distance wireless connectivity

The Ghostbridge wireless Ethernet bridge from B&B Electronics can be used to network-enable remote sensors and devices or to connect LANs at line-of-sight distances of up to 15 km at speeds of up to 150 Mbps. It creates a transparent, secure, high-speed link between remote stations and a central PLC. The UV-stabilized plastic enclosure and an operating range of -30 to 80 degrees C make it suitable for outdoor and harsh indoor industrial applications.

It is pre-configured for plug-and-play operations, but its internal Web server can be configured to address special situations. It can be pole- or wall-mounted, is shipped with both DC and AC PoE adapters, and its PoE pass-through Ethernet port can be used to connect local devices such as IP cameras. An 80-degree, 15 dBi sector antenna is integrated into the plastic housing. 815/433-5100; www.bb-elec.com.

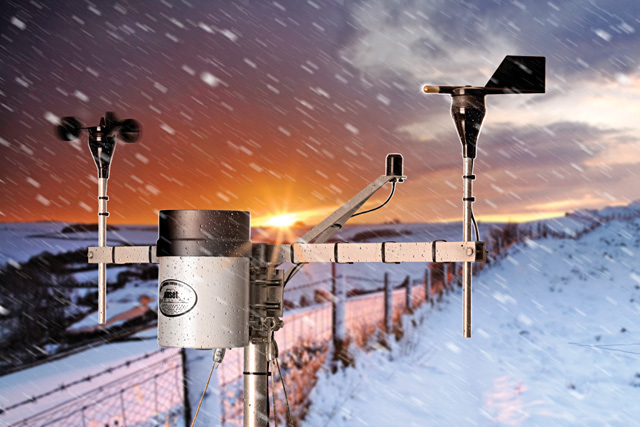

Wind monitoring sensor

The Wind Direction Smart Sensor from Onset Computer Corporation is a research-grade plug-and-play sensor for measuring and logging wind direction data. Features include shielded stainless steel ball bearings, balanced wind vane, wind averaging and drip overhang to reduce icing. 800/564-4377; www.onsetcomp.com.



Multichannel transmitter/controller

Burkert Fluid Control Systems offers the MultiCELL Type 8619 multichannel controller for water treatment. In reverse osmosis systems, the controller monitor functions as a flow indicator, to measure the ORP value or percentage retention value. It can also be used for control tasks, such as regulation of pH, chemical dosing and ratio control. The modular controller is adapted at the factory to the application and customer specifications.

The large, configurable graphic display with backlighting can display up to four readings simultaneously. Further parameters and user-specific pages can be displayed by scrolling. The digital and analog signal outputs enable the transfer of process data and status signals. All process values can be stored on SD cards with an optional data logger package for computer analysis using any standard software package. 800/325-1405; www.burkert-usa.com.

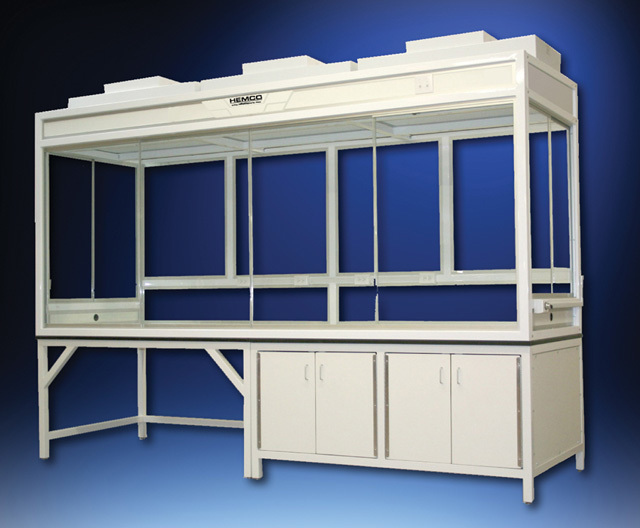

Fume hoods

The UniFlow SE Aire-Stream fume hood from HEMCO Corporation is a series of fume hoods UL 1805 certified and offered in 48-, 60-, 72- and 96-inch widths in constant air volume or restricted bypass models. The hood is constructed of chemical resistant, flame retardant, non-metallic composite resin and features unitized construction that does not require screws, bolts, rivets, or metallic hardware to assemble.

The fume chamber is a molded one-piece white surface with all corners covered for easy cleaning and light reflectivity. The hood has a 36-inch-high extended view height, slotted VaraFlow baffle system, aerodynamic sash lift with perforated air-sweep feature, and molded-in belled outlet collar for reduced airflow resistance. 816/796-2900; www.hemcocorp.com.

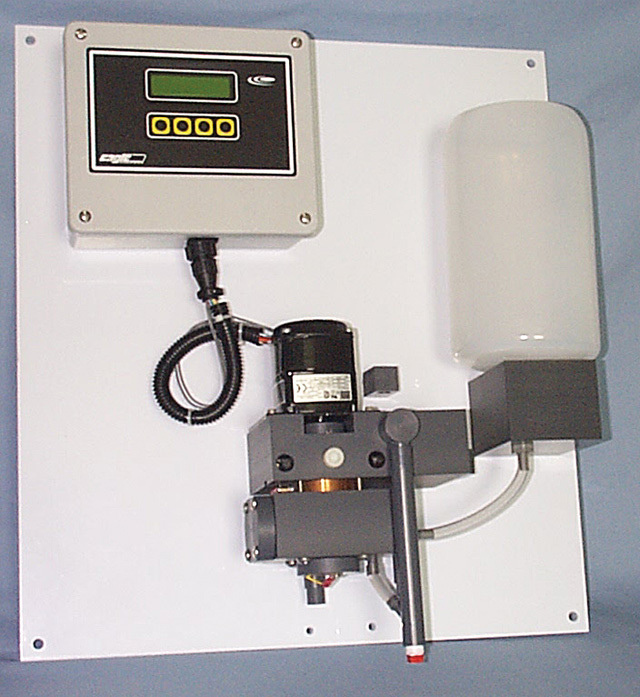

Residual chlorine analyzer

The RA-1000 residual chlorine analyzer from Eagle Microsystems monitors residual concentrations of free or total chlorine, chlorine dioxide, or potassium permanganate. Features include eight field-selectable ranges, all-digital controls, self-cleaning electrodes, and fully automatic control capability.

The digital controller transmits a 4-20 mA DC signal for recording or remote display and can output a signal for residual process control via one of several modes, including flow pacing and compound loop control. All control and calibration functions are digital, and adjustments are made via a four-pushbutton keypad. 610/323-2250; www.eaglemicrosystems.com.

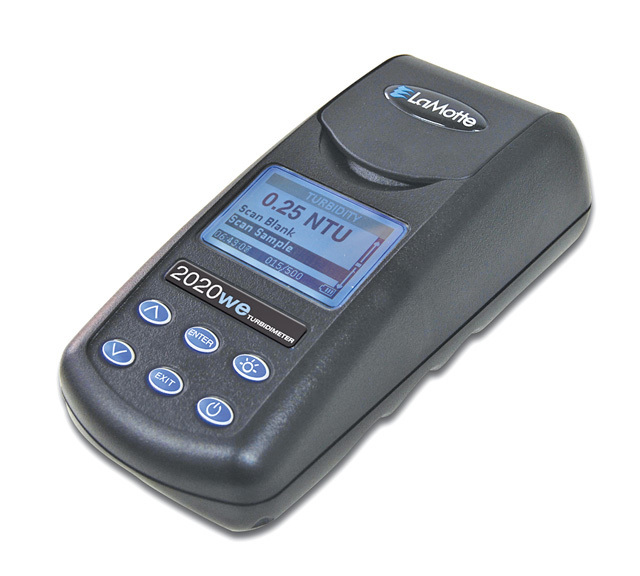

Waterproof turbidity meter

LaMotte Company offers the waterproof 2020we Turbidimeter, a portable handheld device that can be used in the field or lab. The unit is rated waterproof to IP67 and features lithium rechargeable batteries, a backlit display, USB port and seven language options. It complies with the EPA 180.1 standard using a tungsten light source protected by a waterproof chamber with a removable cup.

Reading a full range of 0 - 4,000 the instrument displays as NTU and AU units so analysts can test without dilutions unless required by the method. In the low range of 0 - 2.5 NTU, instrument accuracy is stated as +/-0.05 NTU, and in the mid range accuracy runs +/-2 percent. 800/344-3100; www.lamotte.com.

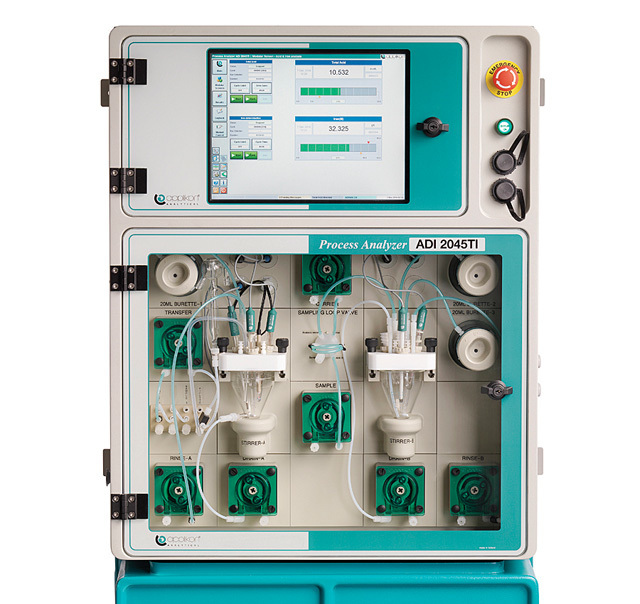

Hexavalent chromium monitors

Applikon systems from Metrohm USA offer customized online analytical solutions for monitoring of hexavalent chromium in water treatment plants. Constant monitoring ensures that the hexavalent chromium levels in water stay within specifications and that removal runs efficiently and cost-effectively. Online process monitoring provides real-time results. Analyzers can be configured to include additional testing parameters, such as pH or alkalinity. 800/727-6768; www.metrohmusa.com.

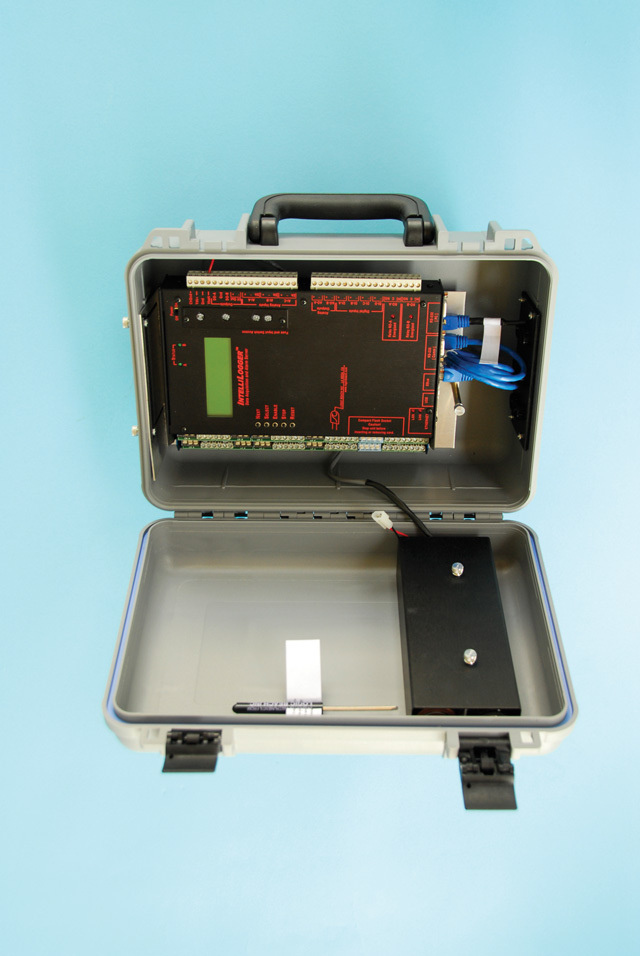

Data and alarm instruments

The IntelliLogger from Logic Beach is a family of data acquisition and alarming instruments. It can be used for pump station monitoring and alarming, remote and customer site flow totalization and reporting, energy auditing, treatment plant studies and more. With the network-enabled capability, units can be connected to the Internet via LAN or cellular modem.

With Internet connectivity, units can send status or alarm emails and text messages, automatically FTP logged data back to central servers, and serve standard and user designed custom Web pages to a browser. The instruments accept analog, digital and Modbus inputs and offer I/O expansion via bus-connected expansion modules. Models range from the battery-powered IntelliLogger-Mini to the full network-enabled IntelliLogger IL-80. 619/698-3300; www.logicbeach.com.

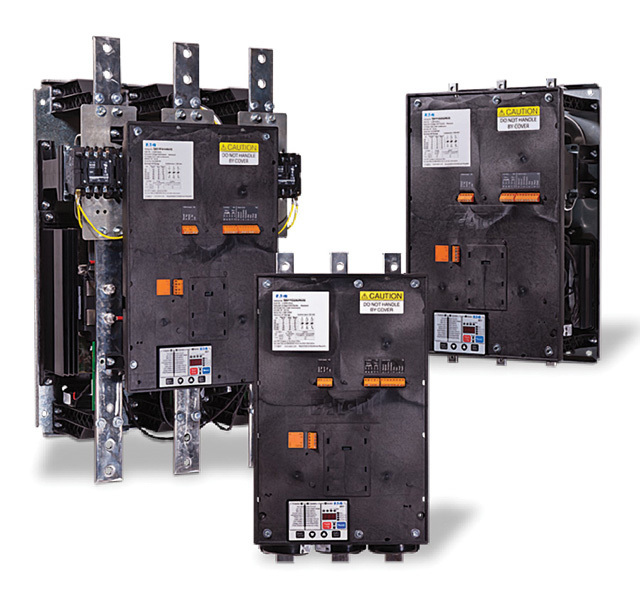

Soft start controller

The S611 soft start controller from Eaton minimizes shock to mechanical components, extends system life, increases reliability, reduces maintenance and lowers energy requirements. With a pump algorithm, it protects pumping systems from water hammer.

With an integrated bypass and overload protection, it reduces installation time and costs. In addition, heating losses are minimized and the design eliminates an external contactor. The device provides overload, undervoltage, overcurrent, phase loss, jam and stall protection, and power monitoring capabilities. Users can customize parameters to their requirements. 877/386-2273; www.eaton.com.



Gas monitor

The CTX300 gas monitor from Oldham is enclosed in a high-grade, explosion-proof plastic housing, with an IP66 rating to resist corrosion. Its advanced design makes it durable in harsh environments. Additional features include 4-20 mA output analog transmitter with optional backlit display; plug-in and pre-calibrated sensors; electrochemical, infrared or semi-conductor sensors; detection of O2, CO2, toxic and refrigerant gases; compatibility with more than 30 sensors; and an infrared version for CO2. 800/338-3287; www.oldhamgas.com.



Membrane contactor degassing system

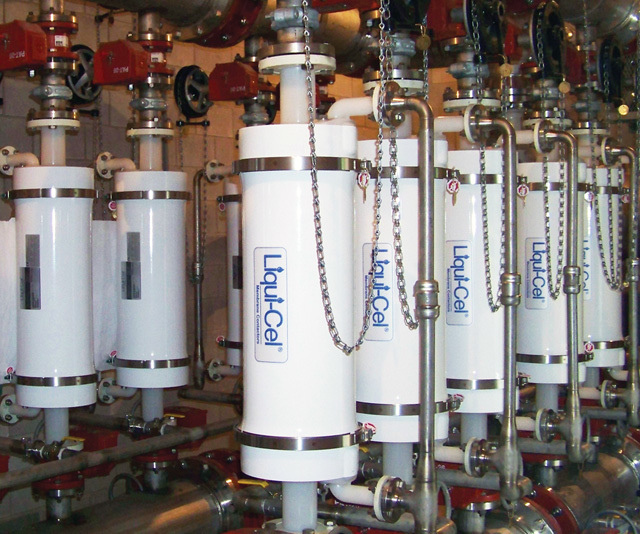

Liqui-Cel membrane contactors from Membrana-Charlotte contain microporous hollow-fiber membranes that allow removal of dissolved gases from liquids. In the contactor, gas flows across one side of the membrane and liquid is on the other side. Because the membrane is hydrophobic and microporous, only gases pass through. Lowering the partial pressure of the gas in the contactor allows the dissolved gases in the liquid to transfer more easily through pores in membranes. 704/587-8888; www.liquicel.com.

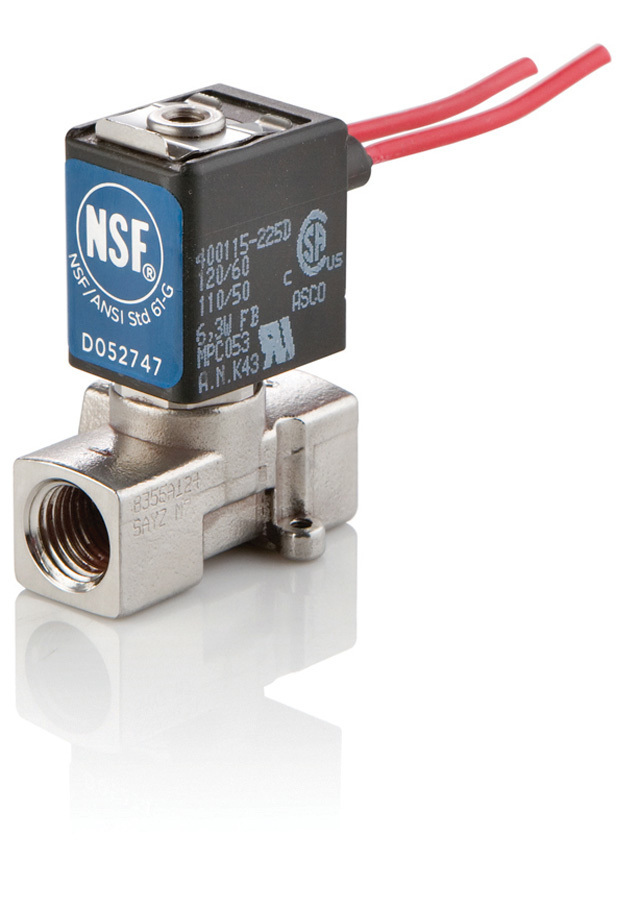

Stainless steel solenoid valves

Series 8256/8356 stainless steel solenoid valves from ASCO carry NSF 61 and 169 approvals, permitting their use in any potable water application. The stainless steel design ensures that strict NSF standards for minimizing lead leaching are met. The valves are available in two-way and three-way constructions with rugged 316 stainless steel bodies. 800/972-2726; www.ascovalve.com.



Detector tube system

Nextteq Gastec pumps and detector tubes measure airborne levels of various gases and vapors. The piston pump is easy to use, lightweight and durable. The direct-read length of stain tubes offers distinct lines of demarcation for easier viewing. The Dosimeter tubes are direct-read, long-term sampling tubes that allow users to make time-weighted average measurements. The pumps and detector tubes can measure many substances that can’t be measured with electronic gas detection devices. 877/312-2333; www.nextteq.com.

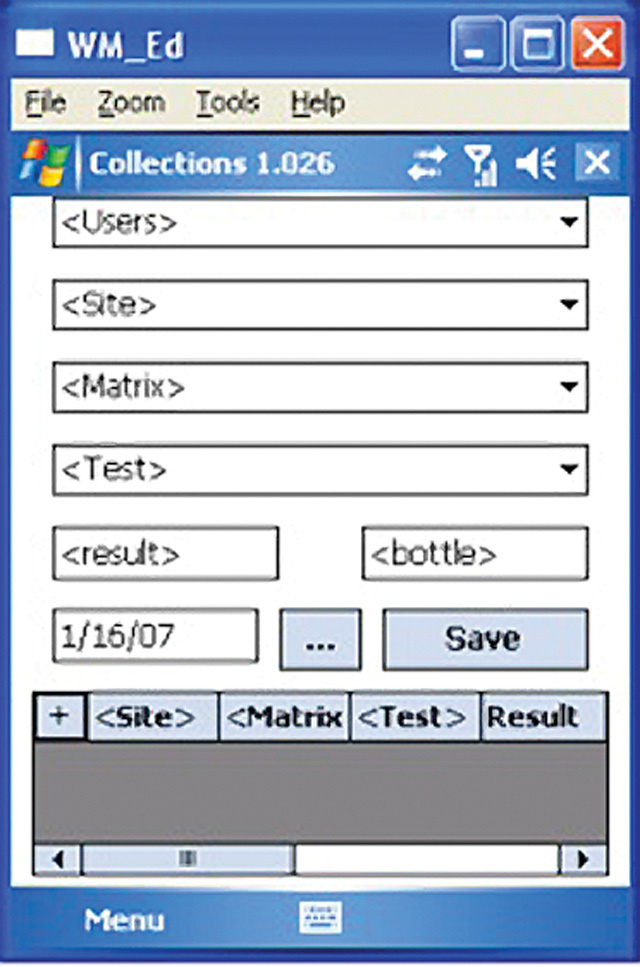

Handheld data collection software

LabLite Handheld Collections software runs on a pocket PC or smartphone and records sample data collected in the field. Input consists of four customizable dropdown boxes that can be set up with any four fields. Values in one dropdown can be related to the values in the previous list. Additional test results can be entered for the same sample, or all new selections can be made. Upon returning to the plant or lab, the collected data can be uploaded into plant or lab software. 888/954-5483; www.lablite.com.



Suspended solids, density meter

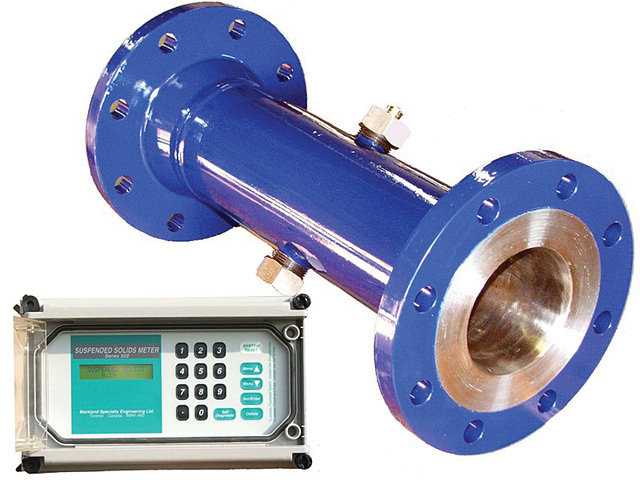

The Markland Specialty Engineering Model 502 suspended solids meter measures the concentration of sludges or slurries without the reading being affected by color. The meter can be used in potable water plants to measure the concentration of the backwash sludge from sand or membrane filters before it is sent for further processing.

It uses the attenuation of ultrasound to read the concentration. The meter can be mounted in open-top tanks or pipelines. It measures slurries that are too thick for optical methods. 905/873-7791; www.sludgecontrols.com.

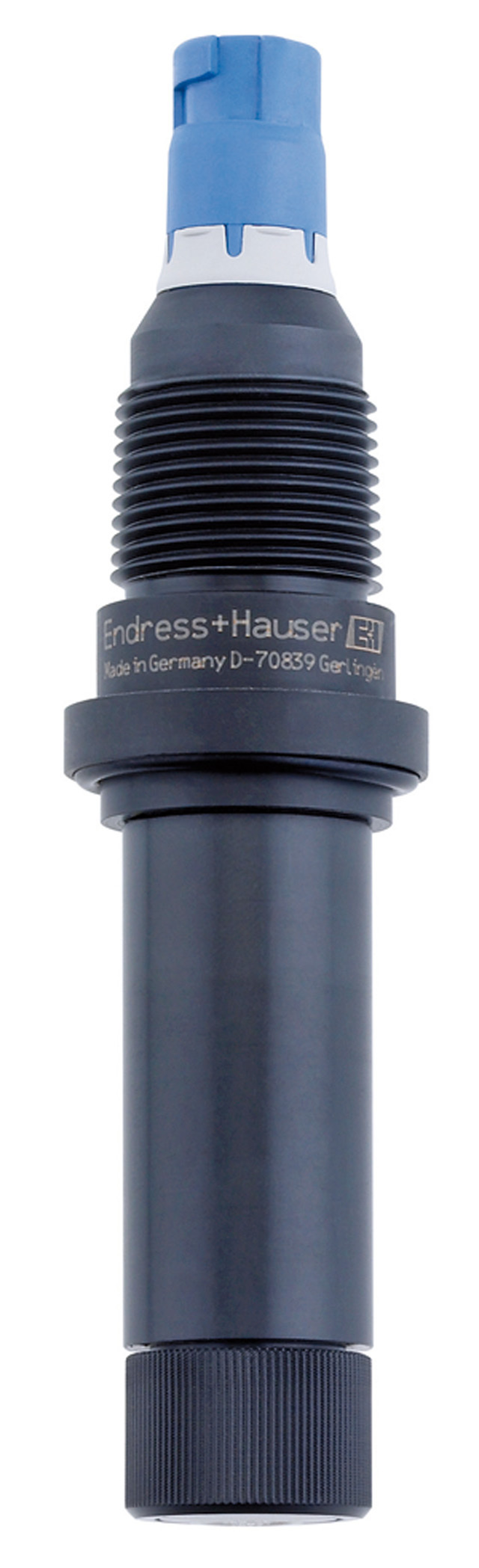

Digital sensor

Endress+Hauser offers the CCS142D digital sensor with Memosens technology for determining free chlorine. The membrane-covered amperometric sensor allows users to calibrate the measuring point by disconnecting the sensor and replacing it with a pre-calibrated unit. Standardized modules give users flexibility when expanding, since the smart software detects and integrates the modules automatically. 888/363-7377; www.us.endress.com.

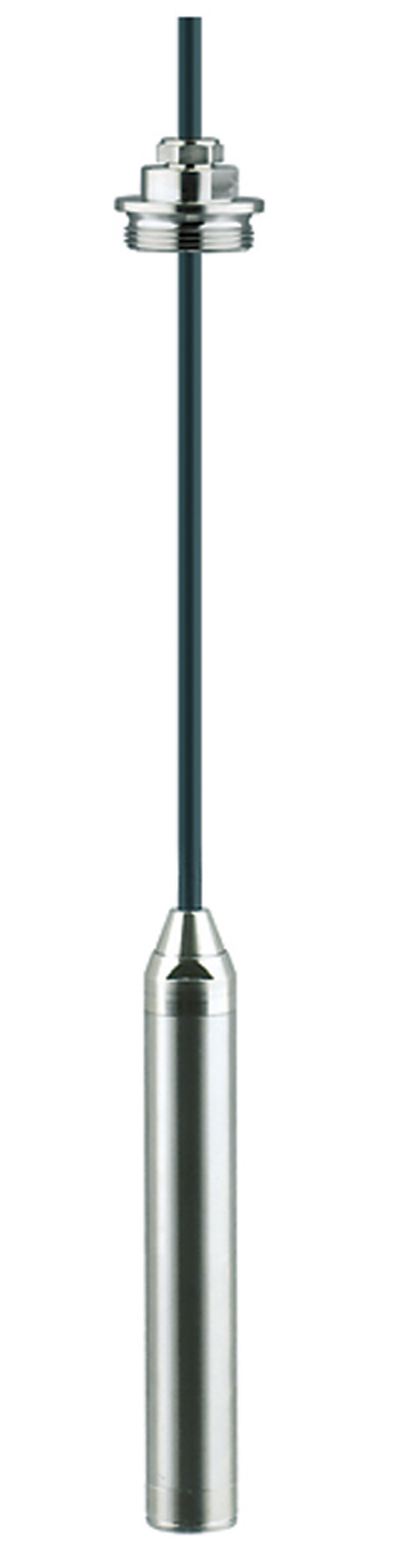

Submersible hydrostatic level transmitter

The VEGAWELL 52 submersible hydrostatic level transmitter from VEGA Americas has a ceramic sensor diaphragm, is drift-free and requires no recalibration. The measuring diaphragm is flush with no recessed area where contaminants could build up. It is self-monitoring and will indicate if there is a failure. The sensors resist water shock and are protected against EMC radiation from high-performance pumps. Integrated overvoltage protection protects against lightning and electrical surges. 800/367-5383; www.ohmartvega.com.

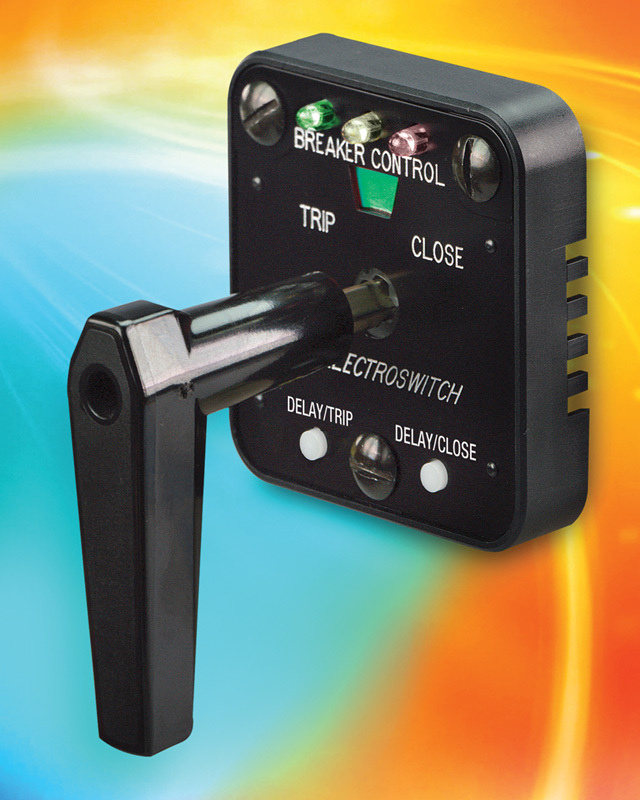

Control switch relay

A time delay control switch relay (TD-CSR) from Electroswitch provides a safe and effective way to mitigate arc flash danger in local circuit breaker operation by allowing for a manually initiated time-delayed trip or close. A flashing LED notifies the operator of the pending trip or close operation and serves as a warning to evacuate the arc flash area.

An intuitive pushbutton design simplifies training. No special wiring is required for installation. Features include a standard mechanical target to show the last operating position and a lighted nameplate that includes local LED indication, a remote SCADA contact alarm, and a single or dual trip-coil monitoring option. 781/335-5200; www.electroswitch.com.



E. coli and coliform testing

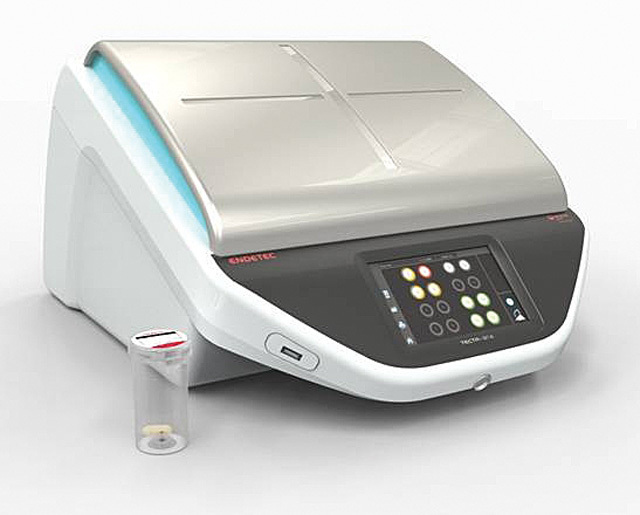

The TECTAB16 automated E. coli and coliform water microbiological testing system from ENDETEC provides laboratory-grade results on site with fast time to result. It uses proven enzyme/fluorescence chemistry with a polymer partition process. With full automation and continuous monitoring of the test analysis and results interpretation, the system provides an objective result that can be sent wirelessly to a cellphone or laptop to provide instant notification. 613/533-3321; www.endetec.com.

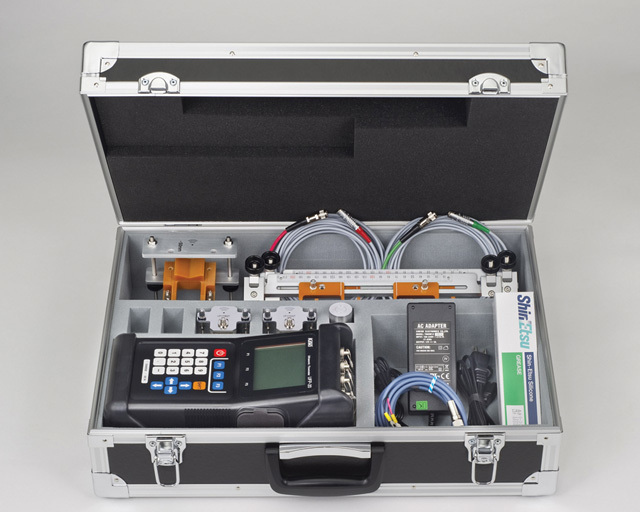

Ultrasonic flowmeter

The UFP-20 portable, clamp-on ultrasonic flowmeter from Scantek provides instantaneous flow rate measurements with up to two pairs of transducers placed on the outsides of pipes. Users can also measure heat energy at two systems or two circuits in a system at the same time. The meter can measure pipe diameters from 13 mm to 5,000 mm by using three types of transducers (small, medium and large). The main unit’s inner memory can store instantaneous flow rates and totalized data in digital form. Data can then be transferred to PC through USB memory under CSV format and modified for statistical analysis and other purposes. 800/224-3813; www.scantekinc.com.



GAED training and conferences

Gravimetric Adsorption Energy Distribution (GAED) is used by municipal water treatment plants to help determine the best replacement granular activated carbon (GAC). GAED provides low-cost and accurate isotherms that help determine how much GAC is needed to clean a known volume of water. The isotherms can be provided at any temperature. 800/367-2587; www.pacslabs.com.

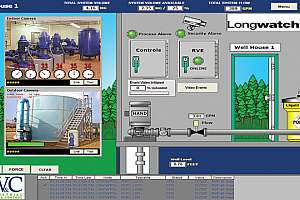

Video alarm system

The video alarm system from Longwatch, a division of IVC, brings operators the complete picture by incorporating alarm-based video directly into the operator screens. Video clips are recorded when alarm conditions from the SCADA system or from cameras are triggered at the remote site. The alarm with video clip attached can then be viewed over the Web, through email, on cellphones or directly in the SCADA/HMI system.

Once operators see the alarm video clip and message on the HMI screen, they can command the system to transmit live video and remotely pan, tilt and zoom the site cameras to further investigate process or intrusion alarms. 781/255-7400; www.longwatch.com.

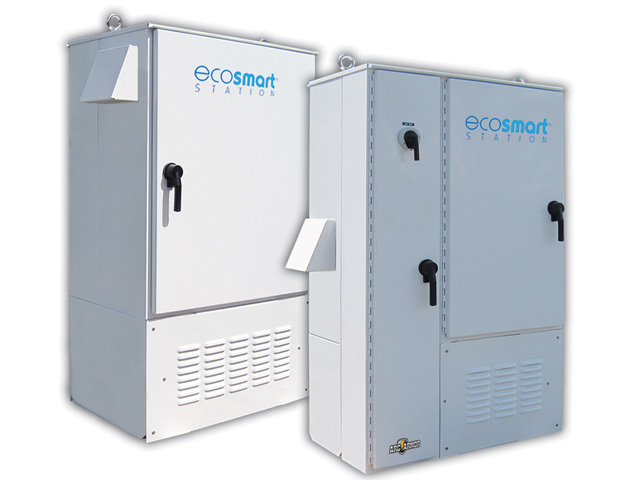

Lift station control panel

The ECO SMART STATION from SJE-Rhombus provides a safe, simple, energy-efficient solution for pump control in municipal lift stations. It integrates the Energy View controller with variable-frequency drive technology into the multiple-compartment enclosure to reduce exposure to arc flash and save energy. The color touch screen HMI can provide level control, pump alternation, flow monitoring, data logging, alarm log, and historical trending.

The auto-tuning function searches for the Best Efficiency Frequency (BEF). When the pump operates at the BEF point, it uses the least energy per gallon pumped. During high-low conditions the software can automatically switch to PID operation for optimum energy efficiency and resume cycle based operation when normal flow returns. 888/342-5753; www.sjerhombus.com.



Wireless lift station monitoring

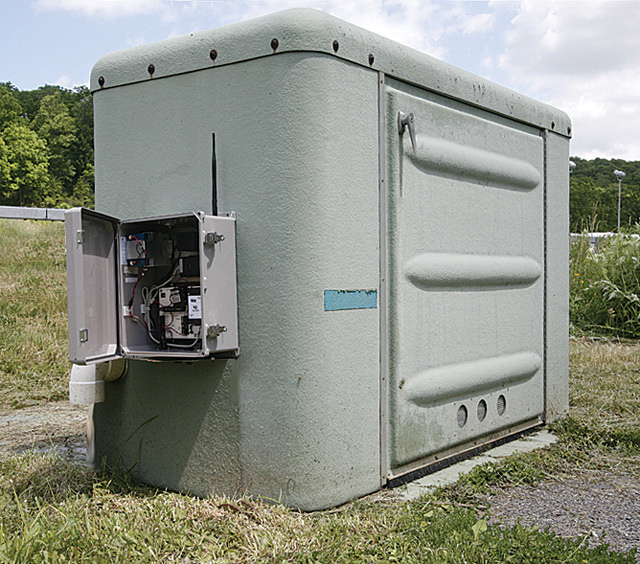

Telog Instruments provides a lift station remote monitoring system that collects information on station operation and provides a combination of real-time alarms, historic data pump activity, pump performance, station flows, and station alarms.

Utilities can share information internally or with engineering and modeling firms via Web server, email, SMS message alarms, periodic reports, and third-party applications including SCADA. The system collects data automatically using remote telemetry units (RTUs), then transfers the data to a central server using technologies including packet switched cellular, landline telephone, radio, or Ethernet. Information is then stored for archival use in the database to share with other applications such as SCADA, modeling and billing, and made available to users in report format or graphically on a website. RTUs can record wet well level, temperature, vibration, level exceeded, generator failure, rain gauge tip, flowmeter frequency, pump on/off, pump power, line pressure, and PLC interface. 585/742-3000; www.telog.com.



Gas detection wall-mount controller

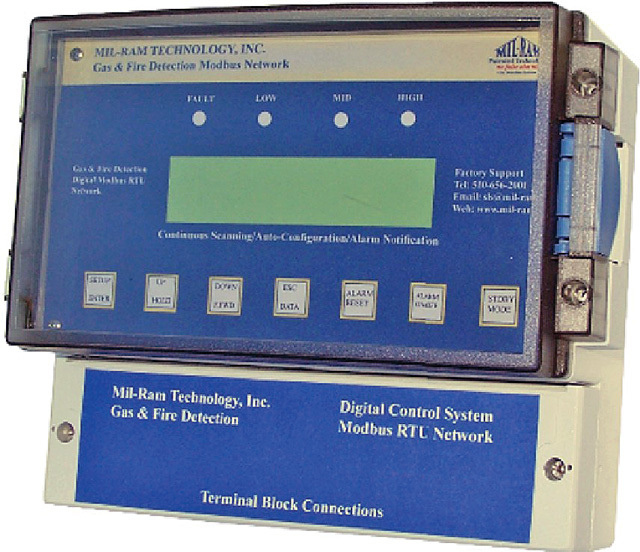

The TA-2016MB-WM gas detection wall- mount controller from Mil-Ram Technology includes a 16-channel system using a RS485 Modbus RTU multi-drop transmitter network, four relays, 10 amp/channel, latching/non-latching function, low/mid/high fault relays, and LED alarm indicators. Additional features include a local buzzer, backlit 16-character by two-line LCD display, auto-scrolls for channel data/fault conditions, and pushbutton channel setup. 888/464-5726; www.mil-ram.com.

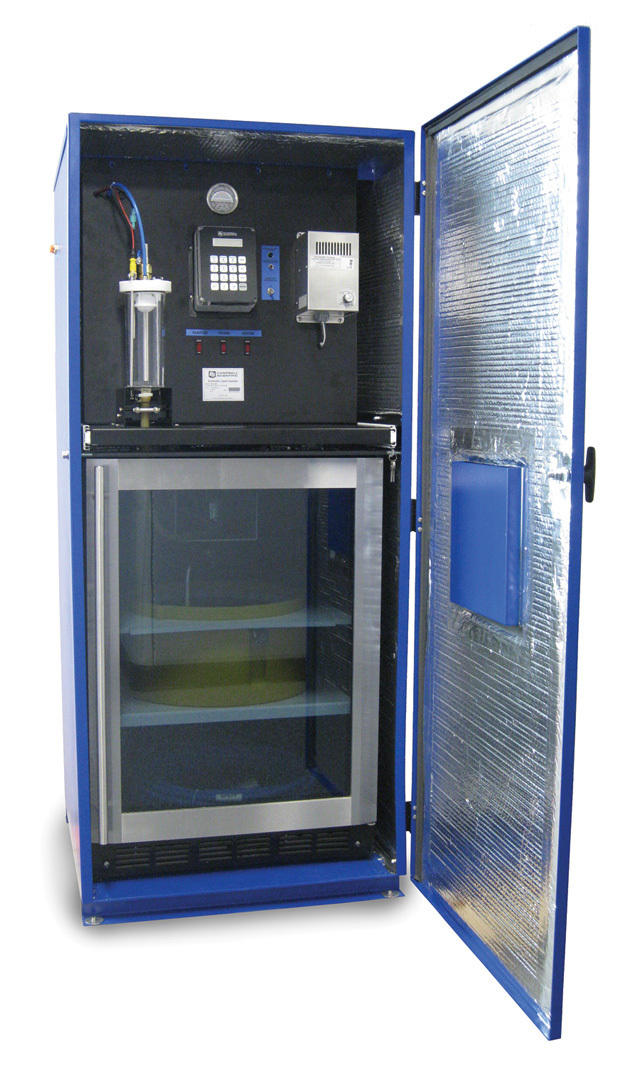

Outdoor sampler

The BVS4300 outdoor stationary sampler from Campbell Scientific is designed to handle extreme conditions and take samples reliably for years with little to no maintenance cost. The enclosure is made with durable, heavy-gauge steel or stainless steel, coated with heat-cured, polyester-based powder paint for added corrosion resistance.

The sampler uses an accurate vacuum sampling method of collection. With numerous options, samplers handle challenging applications. The controller can accept a pulse input or a 4-20 mA signal, or initiate a sample on a timed basis. 435/227-9000; www.campbellsci.com.



Plug-and-play analyzer

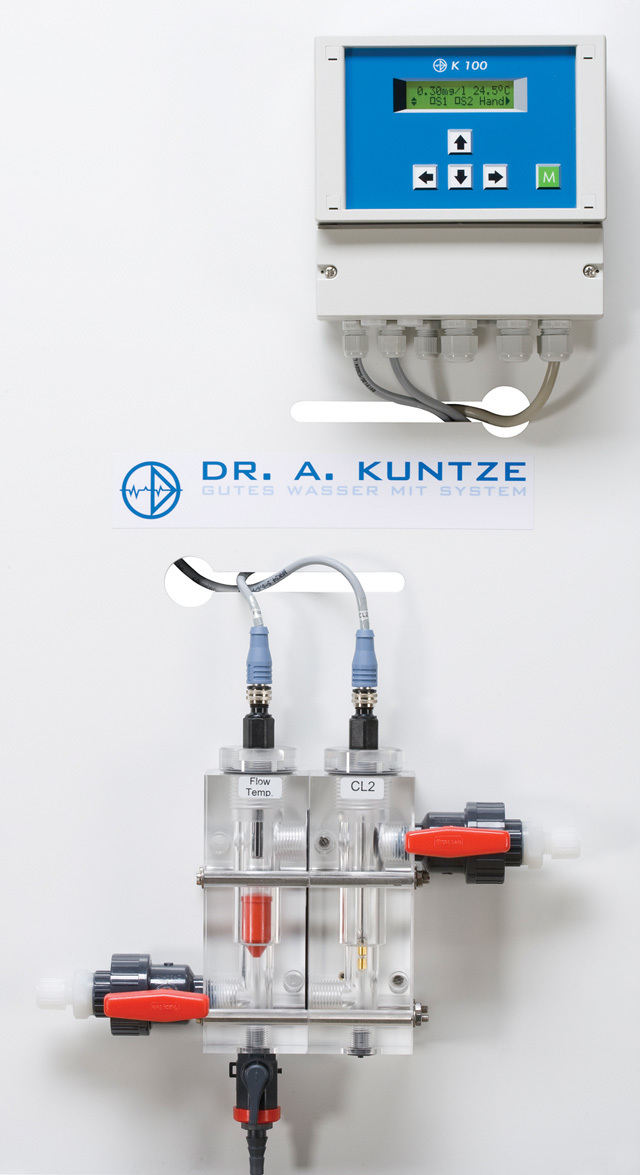

The plug-and-play Krypton K series free chlorine analyzer from Kuntze Instruments uses automatic sensor cleaning (ASR) electrode technology, reducing maintenance and calibration demand. The analyzer replaces the need for reagents or membrane refurbishment. There is no waste stream or moving parts. The unit includes two PI controllers via a 4-20 mA output and two relays. Also available in chlorine dioxide, ozone and hydrogen peroxide. 724/339-8510; www.kuntzeinstruments.com.
