Over a series of articles recently, Huber Technology has explored the transition of a wastewater treatment plant’s journey to becoming a water resource recovery center. In particular the focus is on moving towards a net-zero basis in terms of energy consumption of the WWTP and in emerging cases a net-positive outcome that produces revenue and lowers the carbon footprint of the facility. The WERF publication A Guide To Net Zero Energy Solutions For Water Resource Recovery Facilities succinctly defines net zero for a WRRF as a “… move toward ‘net-zero’ energy use through current best practices and proven technologies in the areas of energy efficiency, demand reduction and onsite renewable energy production.”

The report primarily looks at what energy and resources can be isolated and harvested from the incoming waste stream of the facility itself. The WERF publication indicates that “the total estimated available energy at WRRFs sized >5 million gallons per day in the U.S. is 851 trillion British Thermal Units (Btu) annually, or approximately five times the energy consumed at these large facilities. Wastewater thermal energy accounts for 80 percent of this total amount; chemical energy accounts for most of the remaining 20 percent.”

Shedding the load

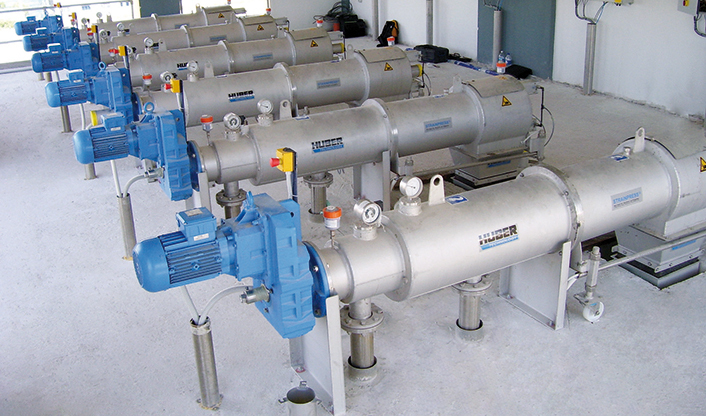

In the article Resource Hero: The Treatment Plant Operator it is observed that, “Microsieving can be used both as an advanced primary technique to harvest and redirect recovered materials, as well as to provide a mechanism to lower energy loads deeper in the process. By applying a process intensification method of using microsieving technology as an advanced primary clarifier, a means of high-rate, controlled carbon diversion is opened up. Diverting carbon from primary sludge to anaerobic digestors can lower (by a third or more) the energy cost for aeration in the activated sludge basins by reducing BOD/COD loading.”

While considering the harvesting of energy and resources from within the waste stream flow of a WRRF as being essential to achieving energy independence, optimizing the process to lower energy loads significantly contribute to achieving those energy goals.

Here comes the sun

Energy that is scavenged beyond the WRRF waste stream can also contribute to lowering the facility’s energy requirements and further reduces dependency on conventional electrical sources. Next to aeration, sludge disposal is one of the largest expenses in a conventional WWTP. The use of thermal energy is a common technique to effectively accomplish sludge volume reduction as well as create a usable Class A product for land application.

The sun is a tremendous source of free energy. Solar energy can be harvested in a couple different ways to provide most, if not all of the energy required to accomplish sludge volume reduction and a Class A product. One method is utilized by placing dewatered sludge into a greenhouse.

In the greenhouse’s constructed environment, the sludge is evenly distributed on the greenhouse floor with an automated turning mechanism. The interior climate is controlled through circulation fans and venting, allowing for effective moisture evaporation. Surprisingly, this solution can be employed in a variety of locations, including more northern latitudes. Drying is accomplished by understanding and controlling time-temperature relationships of the thermal energy exposure to the targeted sludge in the greenhouse. By understanding the solar index of a given location, the size and the capacity of the greenhouse structure can be determined.

In areas that experience variables in the solar index or low winter temperatures, in-floor heating coil solutions provide a means to extend the drying capacity and potentially reduce the actual size of the greenhouse required to meet the sludge drying goals. Using floor heating in a sludge-drying greenhouse allows for further opportunity to utilize scavenged thermal energy. With advances in self-cleaning heat exchangers, waste heat from the effluent of a WRRF can be captured and utilized

In Bayreuth, Germany, the sludge-drying greenhouse located there augments the solar heating capacity by accessing waste heat from a nearby biogas plant. The thermal energy is applied through radiators located above the sludge bed and is distributed by ventilation fans that are used in the solar drying and waste heat operations.

Although solar greenhouses for drying sludge provide an excellent example of the ability to reduce sludge volumes using scavenged thermal energy from the sun, WRRF effluent and external waste heat sources, it is not a panacea. Since the system is largely dependent on the amount of solar energy available, the size of the facility’s footprint becomes larger as the solar index lowers.

Symbiotic relationship

With the introduction of low-threshold-temperature belt dryers, the technology opened up the opportunity to safely access waste heat sources such as cogeneration facilities, kilns, biogas plants or any other thermal intensive processes. The physical size range of the belt dryers makes it practical to locate the drying facility in close proximity to the energy source.

Interesting combinations of waste heat utilization were used at the Innsbrucker Wastewater Treatment Plant in Austria. The facility was able to place a belt dryer in an existing structure. Heat to operate the dryer is extracted from exhaust heat from the generators at the biogas operation. Waste heat from the dryer itself is used to contribute to the facility’s heating and finally distributed further in a district heating grid to heat the Olympic swimming pool and nearby restaurant at the former Olympic Village.

Heat under your feet

The use of scavenged energy and waste heat sources to reduce sludge volumes are proving to be effective tools in creating energy self-sufficiency in the WRRF. The wastewater stream that flows through the facility still conveys and discharges a tremendous source of low-grade thermal energy.

Because wastewater is collected in a centralized network of sewer pipes in populated regions, it is possible through the use of self-cleaning heat exchangers to access and use the wastewater as a sizeable quasi-geothermal source for heating and cooling buildings. A recent example of this was accomplished at the American Geophysical Union headquarters building in Washington, D.C., where they were successful in accessing a major sewer line in front of the building and providing heating and cooling of the building using wastewater as the primary source.

As this application begins to expand, utilities are actively interested in tapping the Btu resource in the collected wastewater and metering to heating districts, to provide an additional source of revenue.

Tip of the iceberg

So-called “waste” thermal energy provides viable in-roads for WRRFs on the path to achieving net-zero and net-positive objectives. As research and technology advances it will become increasingly feasible and practical to access other forms of energy latent in the wastewater flow passing through the plant. In a workshop conducted by the NSF/DOE/EPA three areas of focus were identified in WRRFs as possible sources of energy: 1) thermal, 2) chemical, and 3) hydraulic.

Biochemical energy sources are currently in use in the digestion processes and the production of biogas in a WRRF. Breakthroughs in the practical application of bioelectrical systems such as microbial fuel cells or microbial electrolysis cells provide a clue of what the future may bring.
