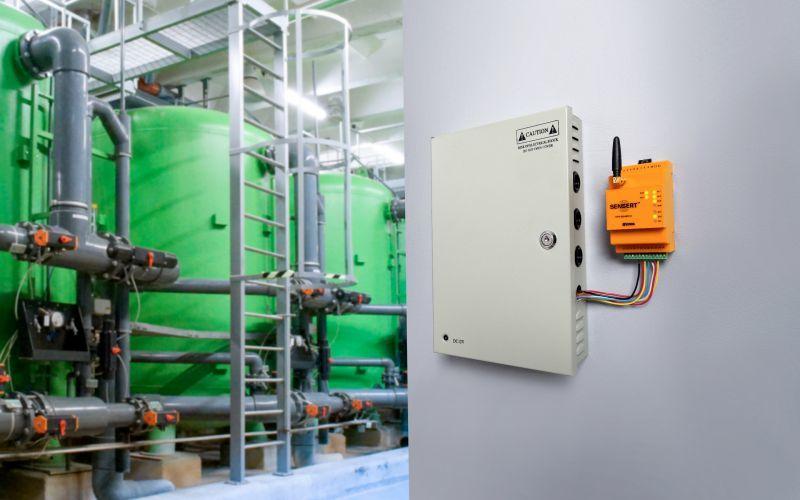

ATC Diversified Electronics SENSERT remote monitoring system
An affordable remote process monitoring technology makes it easy for water departments and wastewater treatment plants to monitor and measure operations without committing to a costly condition monitoring system that’s only compatible with proprietary sensors. SENSERT, from ATC Diversified Electronics, is a remote 4monitoring and alert system in which a variety of sensors can be hardwired directly to the SENSERT base unit or wirelessly connected via the SENSERT remote I/O. SENSERT monitors use the sensors that are already in place, giving operators total control over the kinds of sensors they use in the future. SENSERT can monitor many conditions including level, temperature, pressure, flow and current, as well as vibration, presence of voltage and others. It works throughout water and wastewater treatment plants. SENSERT’s unique capabilities, ease of use and low price make it a ready solution for water and wastewater treatment plants. 304-387-1200; www.sensertio.com

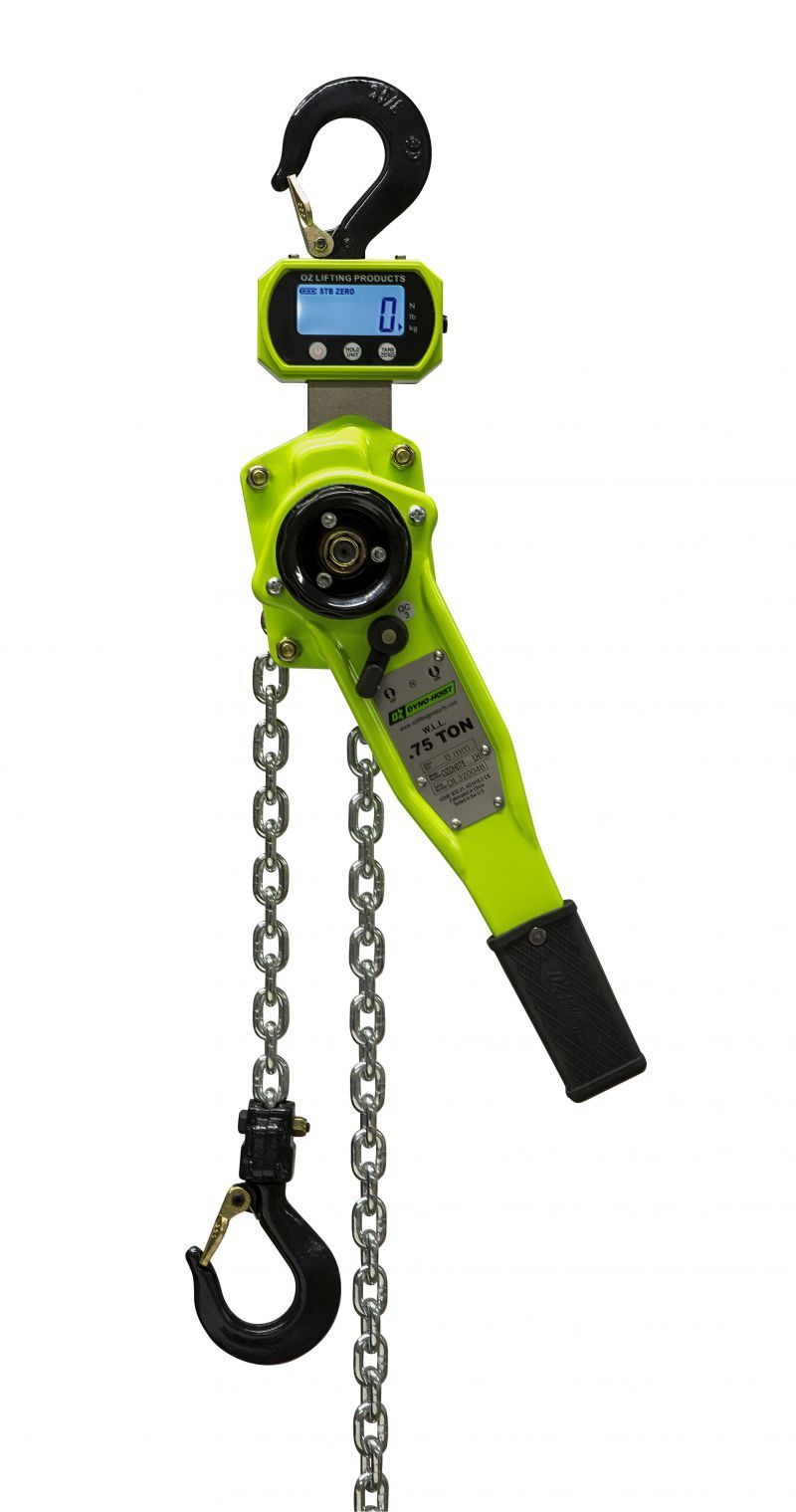

OZ Lifting Dyno-Hoist lever hoist
OZ Lifting Products introduces the first lever hoist with an integrated dynamometer to the North American market, the Dyno-Hoist. It gives users a real-time reading of the load — in kilograms or pounds — they are applying to the hoist, whether during a lifting or pulling application. An overload alert is triggered at 126%. The hoist is available in 0.75, 1.5, 3, 6 and 9 ton capacity, matching the ranges of the company’s industrial and premium (overload protected) lever hoist offerings. Dyno-Hoist’s dynamometer fitting can also retrofit to either of the industrial or premium lever hoists. Other features include all-steel construction; steel handle with rubber grip; zinc-plated load chain; forged alloy steel hooks; and fully enclosed gearing. Dyno-Hoist meets or exceeds CE, ASME B30.21, and AS 1418.2 standards. Standard AA batteries offer a runtime of 150 hours, but the product can be plugged into a 115/1/60 outlet. Each hoist is load-tested and arrives with a test certificate, one-year warranty and a free set of latches. 888-617-3579; www.ozliftingproducts.com
KROHNE 24 and 80 GHz OPTIWAVE radar transmitters
KROHNE added three 24 GHz and three 80 GHz OPTIWAVE radar level transmitters to its product line, which complement the existing 10 GHz devices. With the 10 GHz OPTIWAVE 5200 and the series of 24 and 80 GHz radars, KROHNE offers the appropriate frequency for multiple applications. The new radars are each designed for specific industry needs, delivering reliable and accurate level measurement of liquids and solids, even in most difficult applications. The transmitters offer a measuring range from the antenna edge up to 328 feet, with accuracy from plus/minus 0.08 inches, and can measure products with dielectric constants as low as 1.4. They feature a quick setup assistant for easy commissioning as well as an empty tank spectrum function for eliminating false reflections. 800-356-9464; www.us.krohne.com

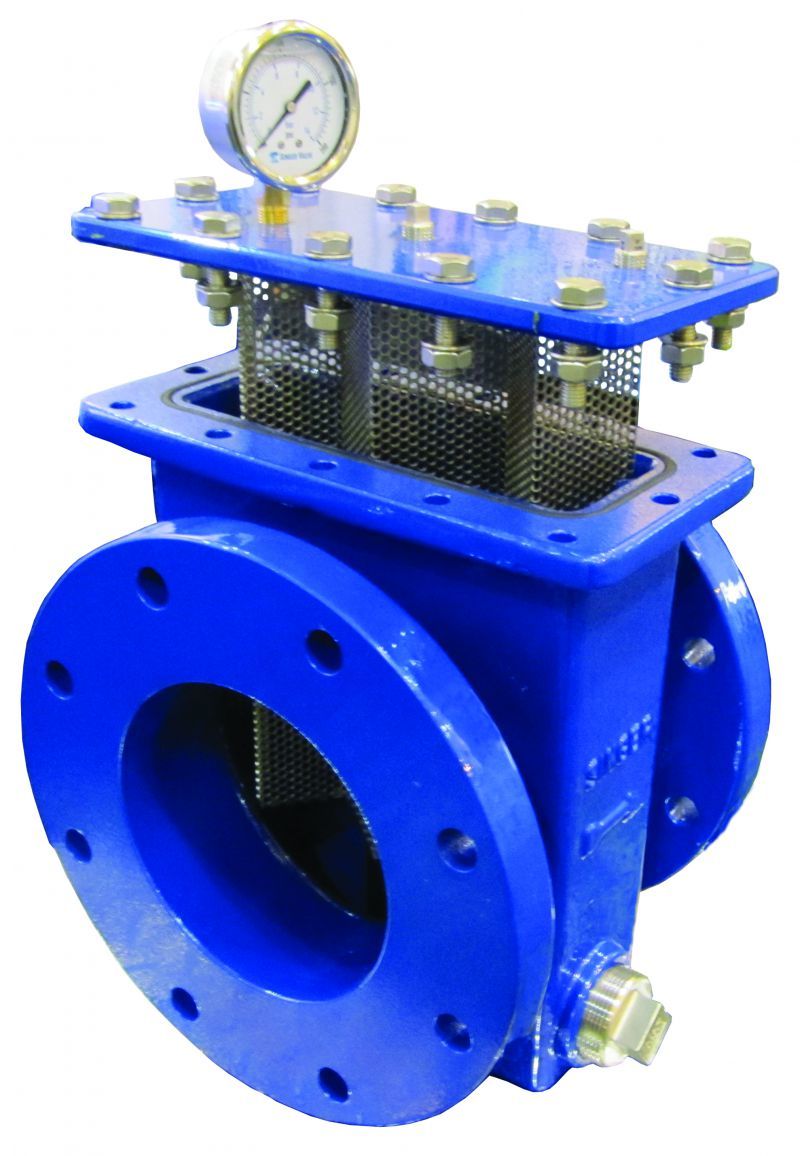

Mueller Water Products Singer in-line strainer
Mueller Water Products’ Singer in-line strainer is designed to protect valves and regulators from pipeline debris, so utilities don’t have to worry about costly maintenance, downtime and repairs. Manufactured in ductile iron with a corrosion-resistant stainless steel screen, the design provides a smooth laminar flow, which is ideal for locations ahead of automatic control valves. The strainer is now available in eight sizes: 2-, 2 1/2-, 3-, 4-, 6-, 8-, 10- and 12-inch. It is also supplied with flushing ports on both sides of the strainer, and an air-bleed connection and connections across the screen for the installation of a differential pressure gauge if required. 800-423-1323; www.muellerwaterproducts.com

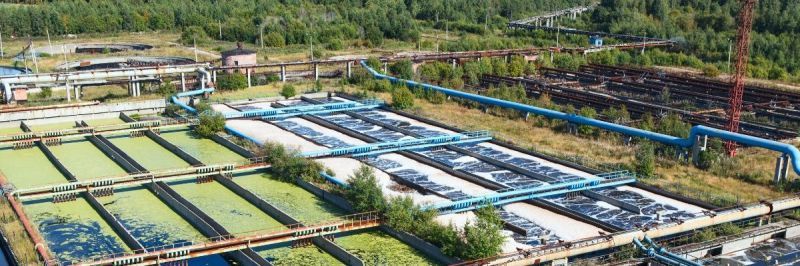

Xylem Edge Control analytic system
Xylem’s Edge Control is designed to help wastewater utilities achieve compliance targets while cutting energy consumption from aeration by up to 25%. Edge Control applies analytics to real-time data to provide rapid process recommendations to optimize chemical usage and aeration. The platform can operate with any programmable logic controller under various communications protocols and connect to existing hardware, including sensors and probes. It can be used as a standalone process or as a connected, subscription-based enterprise with fees based on efficiency and savings. 855-995-4261; www.xylem.com

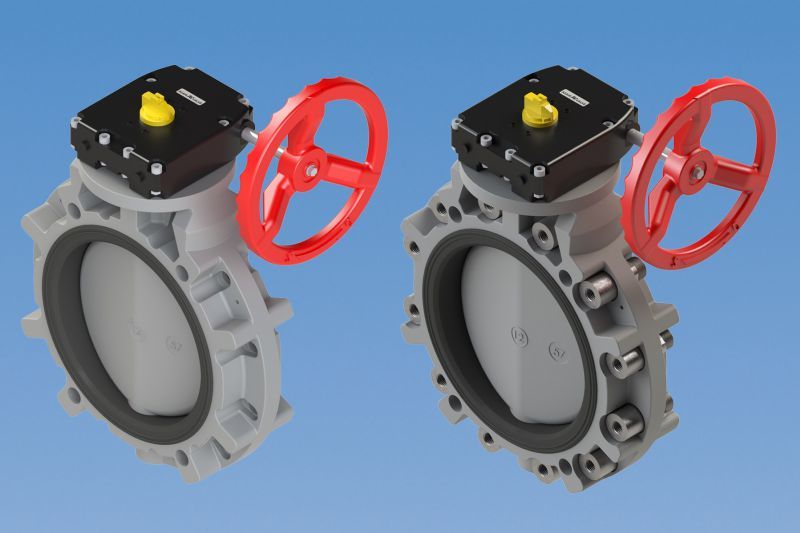

Asahi/America Type-57P CPVC butterfly valves
Asahi/America added to its Type-57P butterfly valve line to include 10- and 12-inch sizes in a CPVC body and disc model. The valve is available in ANSI wafer-style connection or with 316 stainless steel lug inserts in the 10- and 12-inch sizes. Both options are offered with a Plasgear operator only. Additionally, the Type-57P CPVC can be actuated both electrically and pneumatically, and various manual accessories can be installed. The larger butterfly valves are best suited for chemical processing applications. 800-343-3618; www.asahi-america.com

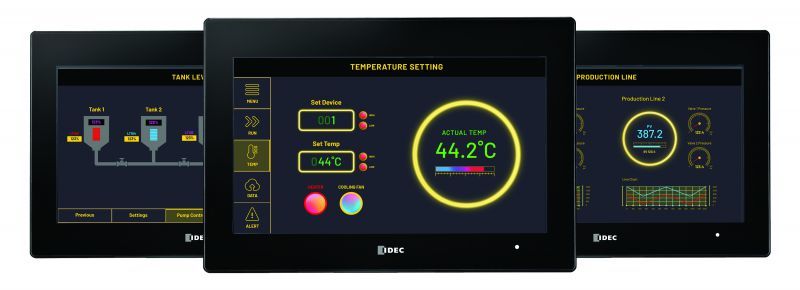

IDEC 7-inch touch screen HMI
IDEC Corp. expanded its HMI product family with the HG2J Series 7-inch touch screen HMI. The HMI’s projected capacitive touch panel technology saves space, improves performance, is wear-resistant and provides a long life. PCAP glass requires fewer layers than traditional analog resistive plastic films, and the self-capacitance technology can also prevent accidental input due to water droplets. Also, it is more resistant to scratches, won’t turn yellow in the sun, and has a higher tolerance for dirt deposits and for contact with cleaning or washdown chemicals. Fewer layers and better light transmission ratings mean less backlight power is needed. 800-262-4332; www.idec.com
