High Performance Grit Washing and Classification with the COANDA from Huber Technology

Grit slurry from grit chambers contains organic solids. Grit classifiers separate some organic solids and water from the slurry, but the product still contains around 30 percent mineral grit, 20 percent organic dry solids and 50 percent water (by weight). It is odorous and attractive to pathogen vectors, and transport and disposal are expensive. By effective grit washing, the product would become virtually odorless and its mass would be reduced to around 30 percent. Clean grit with an organic content of below 3 percent does not need to be disposed of, but can be used as construction material, e.g. for road or pipe bedding.

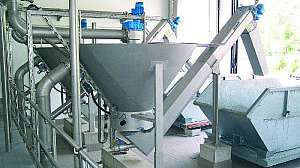

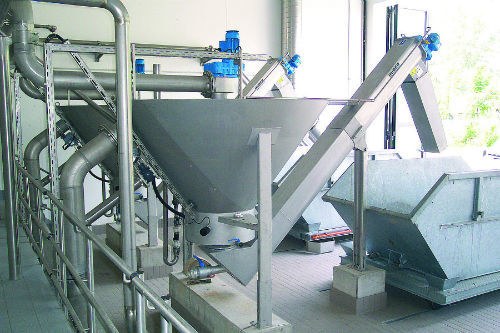

These objectives are achievable by using the fluidized bed grit washer RoSF4 COANDA. Organics are effectively removed from grit particles due to the turbulent flow and high shear forces within the fluidized bed. Stratification of layers in a fluidized bed does not depend on the size and settling velocity of particles, but only on their specific density, as is well known from backwashing of multilayer sand filters. Mineral grit particles have a far higher density than organic solids. Even very small grit particles accumulate in the bottom layer of a fluidized bed, while organic particles are either washed out at the top or form another layer above the grit layer, which is periodically removed.

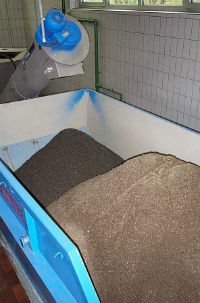

Well-washed grit contains less than 3 percent organics and below 10 percent water. The capture rate of 0.2 mm diameter (approx. 75 mesh) grit particles is above 95 percent. Grit washers must have at least the same grit capture rate as grit traps. Fluidized bed grit washers reduce the mass of grit slurries from grit traps, and therewith, their transport and disposal costs by as much as 70 to 90 percent depending on organic content. Typical return of investment periods as compared to conventional grit classifiers are three to five years.
